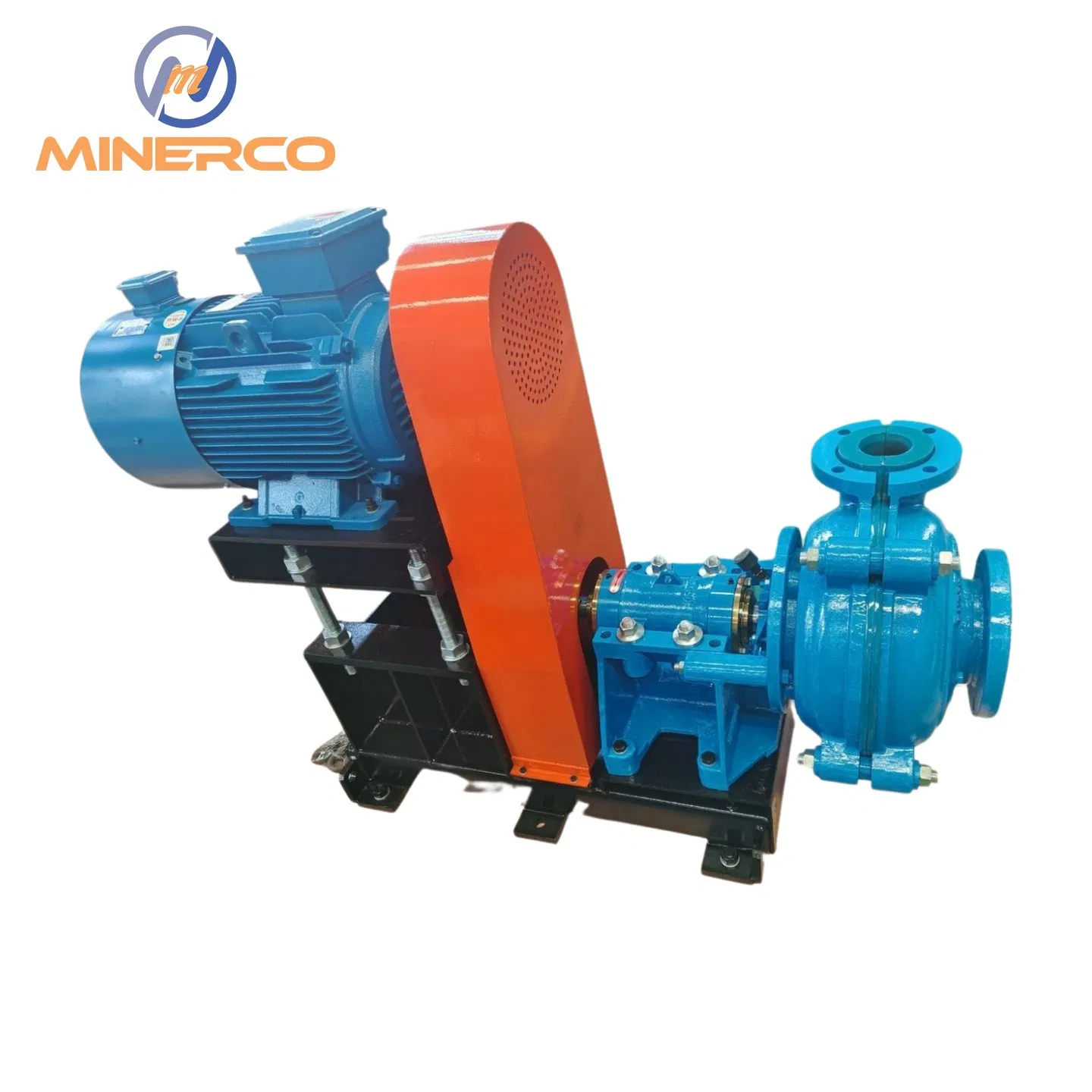

Mining Coal Power Generation Using AH Series Mining Slurry Water Pump
Mining Coal Power Generation Using AH Series Mining Slurry Water Pump
Mining Coal Power Generation Using AH Series Mining Slurry Water Pump
Mining Coal Power Generation Using AH Series Mining Slurry Water Pump
Mining Coal Power Generation Using AH Series Mining Slurry Water Pump
1 / 5
Mining Coal Power Generation Using AH Series Mining Slurry Water Pump
Mining Coal Power Generation Using AH Series Mining Slurry Water Pump
Mining Coal Power Generation Using AH Series Mining Slurry Water Pump
Mining Coal Power Generation Using AH Series Mining Slurry Water Pump
Mining Coal Power Generation Using AH Series Mining Slurry Water Pump

Mining Coal Power Generation Using AH Series Mining Slurry Water Pump

Customization: Available
After-sales Service: Within 24 Hours
Warranty: 12 Months After Trial Operation/12 Months After Sh
Send Inquiry

Product Description

Basic Information
Model NO.
AH
Max.Head
>150m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Usage
Slurry Pump, Circulating Pump
Drive
Electric
Case
Double Casing
Lubrication
Oil or Grease
Origin
China
HS Code
8413709990
Product Description
The AH(R)/HH/M(R) series slurry pumps are cantilevered, horizontal, centrifugal pumps designed for handling abrasive slurry with solid particles. These pumps are widely used in various heavy-duty applications, including mud pumping, impurity removal, dredging, and desilting. The wet parts are made of chrome alloy or rubber, tailored for different liquid handling needs.
Mining Slurry Water Pump
Performance Characteristics
  • Replaceable wear-resistant metal lining, impeller, sheath, and guard plate.
  • Long service life with reliable performance and easy operation.

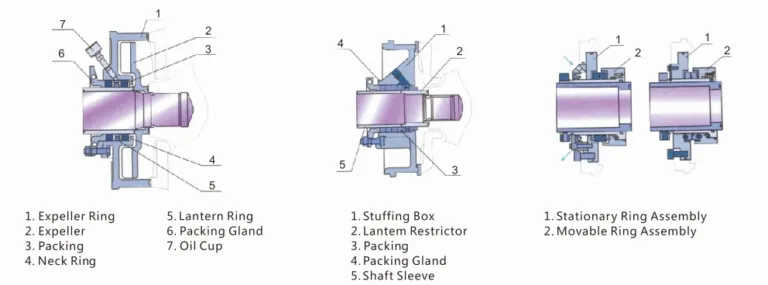

  • Multiple shaft seal types: Gland seal, Expeller Seal, and Mechanical Seal.
  • Discharge branch can be positioned at intervals of 45 degrees.
  • High-strength double casing design for increased safety.
Specifications

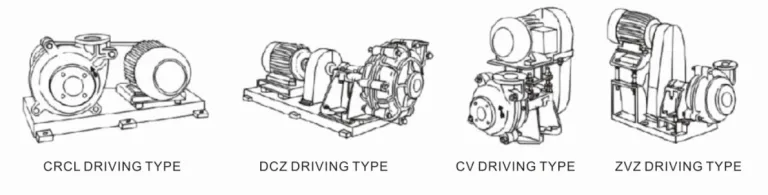

Dimensions

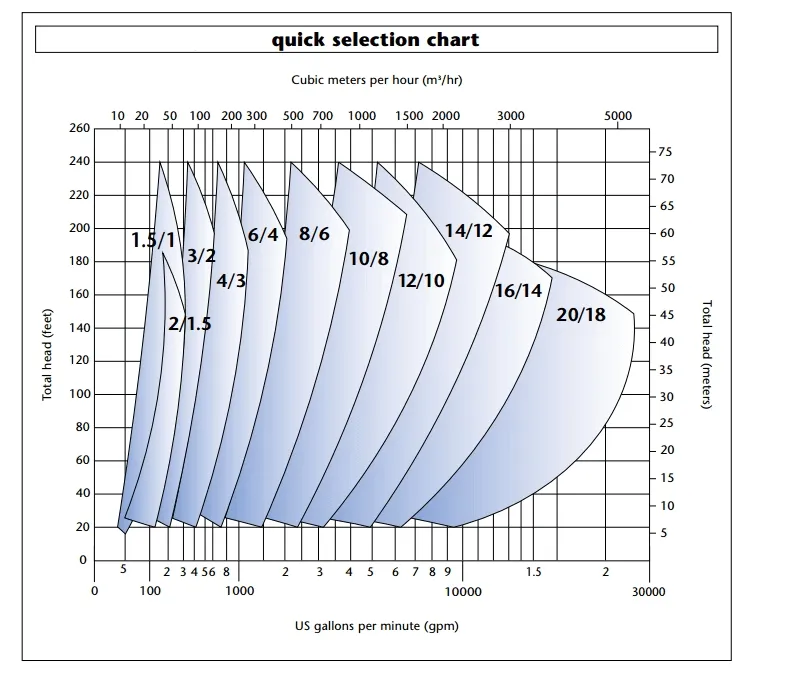

Performance Data Chart
Type Max. Power (kW) Capacity (m³/h) Head (m) Vanes Max. Particle (mm)
1.5x1B-AH153.6-21.66-65514
1.5x2B-AH157.2-48.65-62519
2x3C-AH3021.6-88.5615-40521
4x3C-AH3028.8-158.47-53528
6x4D-AH6072-331.211-64544
8x6E-AH120126-7206-62563
10x8ST-AH560216-1051.29-64576
12x10ST-AH560316.8-162010-66586
14x12ST-AH560504-2455.210-75590

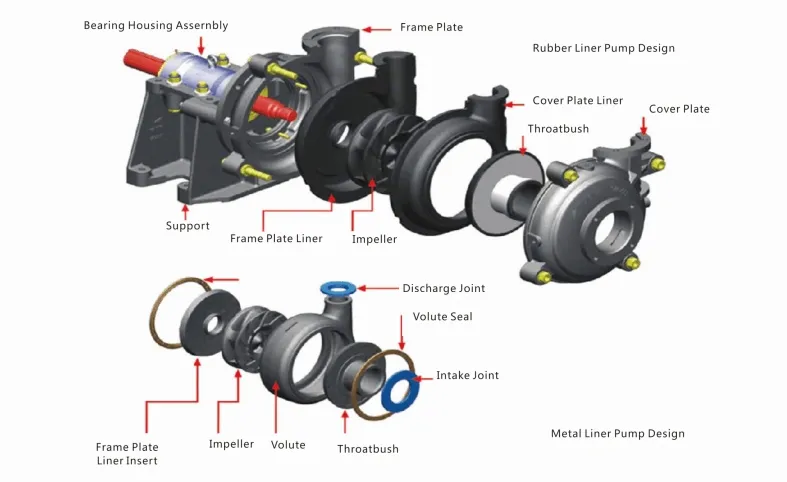

Structure Diagram
Industrial Applications
Our pumps are engineered for the most demanding environments across multiple industries:
  • Mining: Mineral slurry & tailings
  • Metallurgy: Ore processing
  • Coal: Sludge transportation
  • Power: FGD systems
  • Building: Gypsum handling
  • Dredging: River desilting

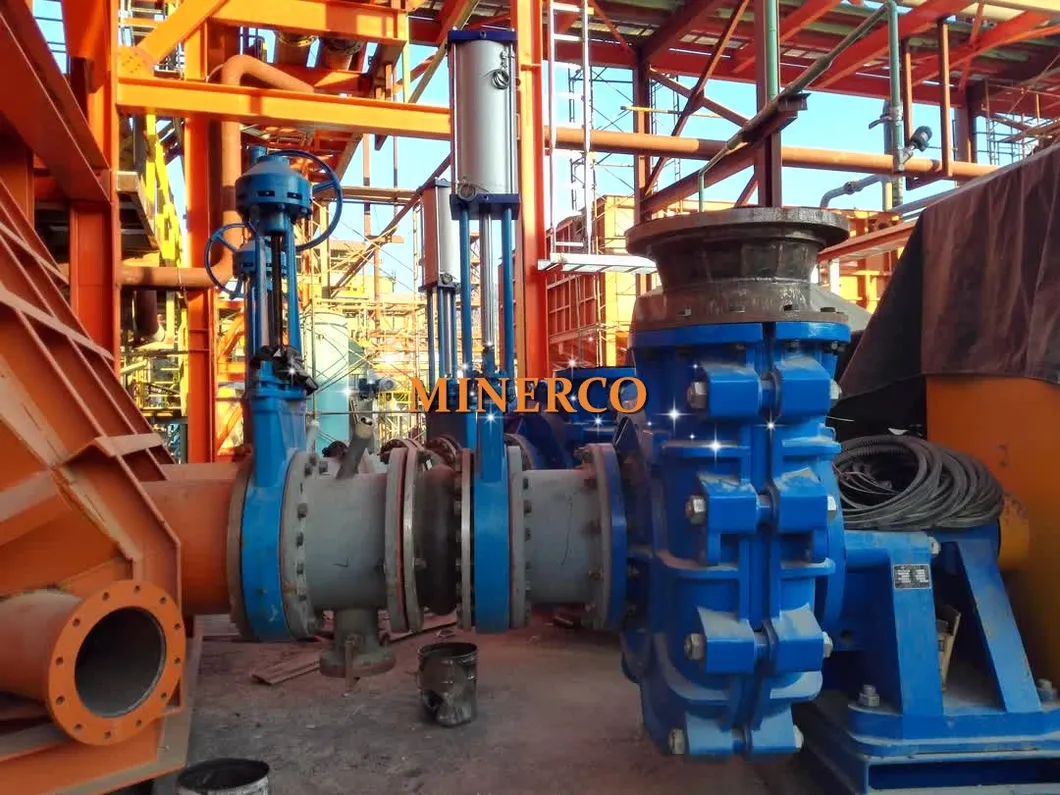

Application Site
Factory & Packing
We operate as a large-scale industrial group specializing in pumps, valves, and wear-resistant materials. Our facilities include advanced casting and testing equipment to ensure every unit meets world-class standards. For shipping, we use reinforced export-standard wooden cases, with larger units securely bolted directly in containers to prevent movement during transit.
Frequently Asked Questions
1. What materials are available for the pump wet parts?
The wet-end components are available in high-chrome alloy (wear-resistant metal) or natural rubber linings, depending on the corrosiveness and abrasiveness of the medium.
2. Are your parts interchangeable with other international brands?
Yes, our components are 100% interchangeable in terms of dimensions, material quality, and working efficiency with leading global slurry pump brands.
3. What is the standard lead time for orders?
Common spare parts are kept in stock and can be delivered within 5 working days. For complete pump assemblies, the typical delivery time is within 15 working days.
4. Can the discharge direction be customized?
Yes, the discharge outlet can be rotated and positioned at any of the eight positions at 45-degree intervals to meet specific installation requirements.
5. What types of shaft seals do you offer?
We offer three types of sealing solutions: Packing/Gland Seal, Expeller Seal (Centrifugal Seal), and Mechanical Seal to suit different working conditions.
6. Do you provide on-site technical support?
Our experienced engineering team is available for technical support and can arrive at most global sites within 4 days for troubleshooting and optimization if required.
