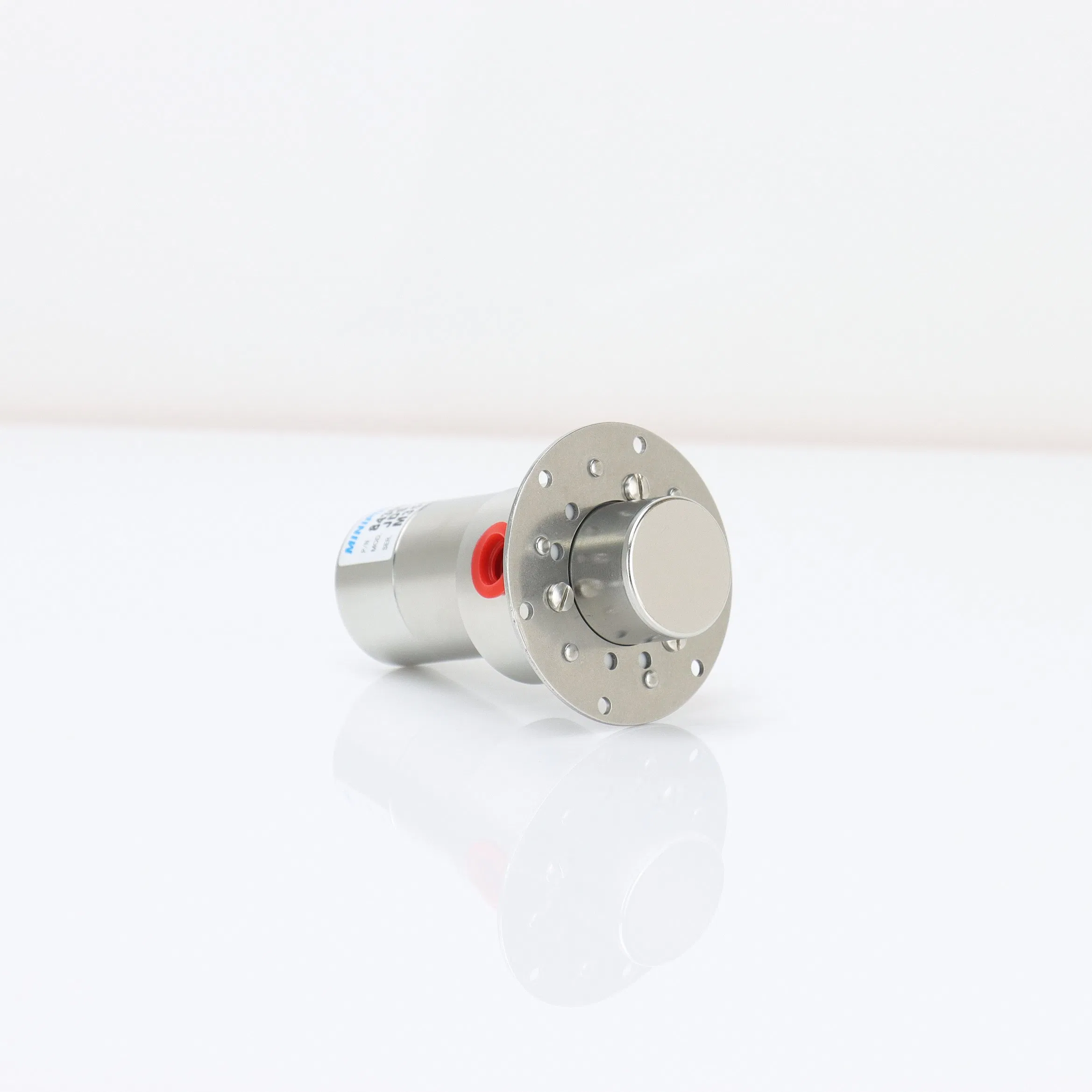

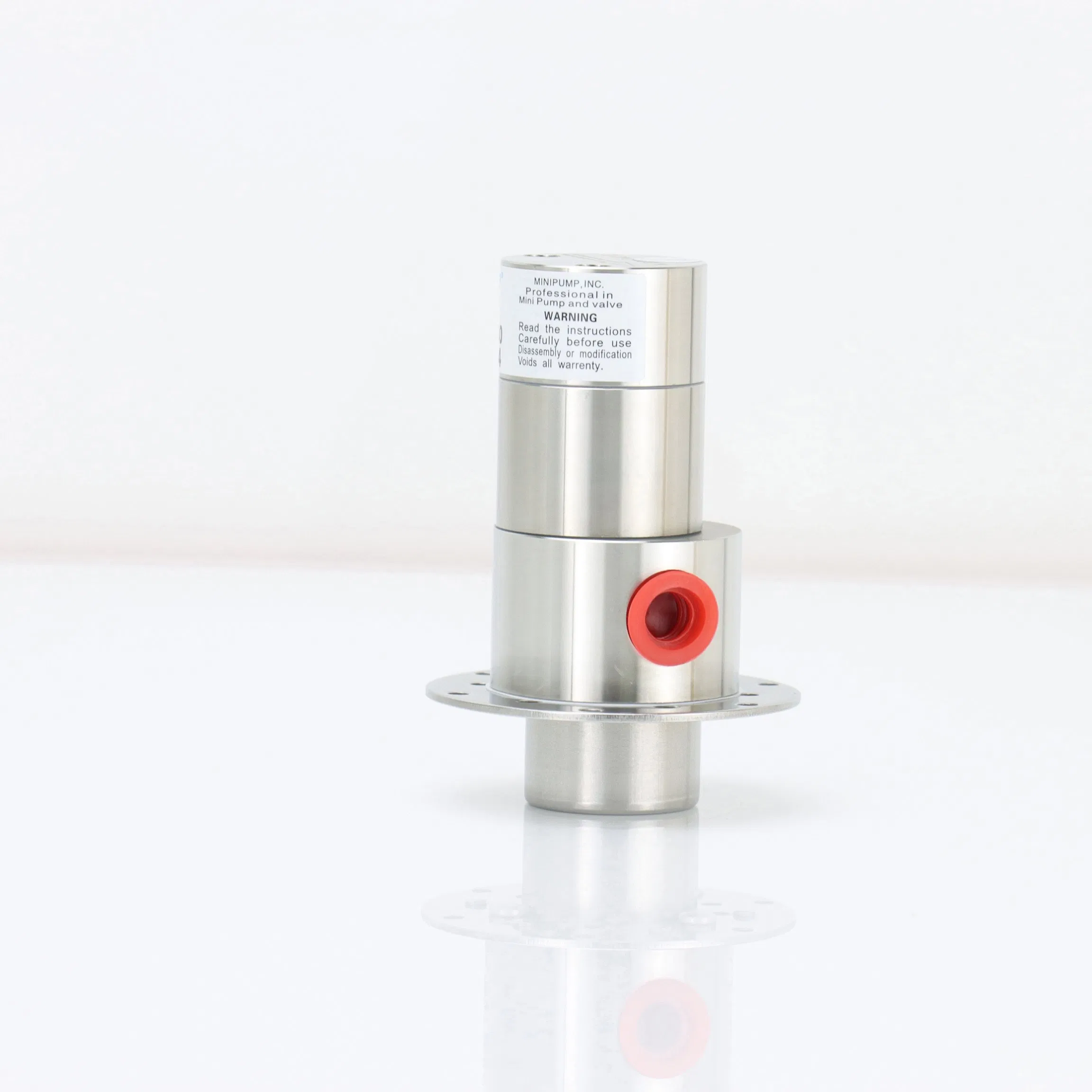

High Performance Electric Gear Oil Pump for Suitable for Filling and Cooling with Miniature Design and Micro Magnetic Drive

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Technical Overview

Model NO.	GQA125ESLD01
Mesh Form	External Engaged
Tooth Flank	Straight Tooth
Tooth Curve	Involute
Power Source	Magnetic
Pump Type	Normal Line Gear Pump
Applications	Machinery Manufacturing
Certifications	CE, ISO, RoHS
Origin	China

Performance Parameters

Nominal Displacement	1.25mL/rev
Maximum Flow Rate	6L/min (water)
Maximum Pressure	0.25MPa
Viscosity Range	0.5 to 1500CP
Operating Speed	500-4500rpm
Rated Voltage/Power	24VDC / 70W
Materials	PEEK Gears, Stainless Steel Shaft, SUS316L Body
Temperature Range	-40 to 105°C

Product Features

High-Precision Control Features pulseless fluid delivery and precise metering, ideal for precision-dependent industrial tasks.

Wide Adaptability Handles low-viscosity corrosive media and operates smoothly in extreme environments from -40°C to 105°C.

Zero-Leakage Design Equipped with an advanced magnetic drive, PTFE gaskets, and EPDM O-rings for absolute static sealing safety.

Durable Build Constructed with SUS316L food/chemical grade body and precision-machined imported PEEK gears.

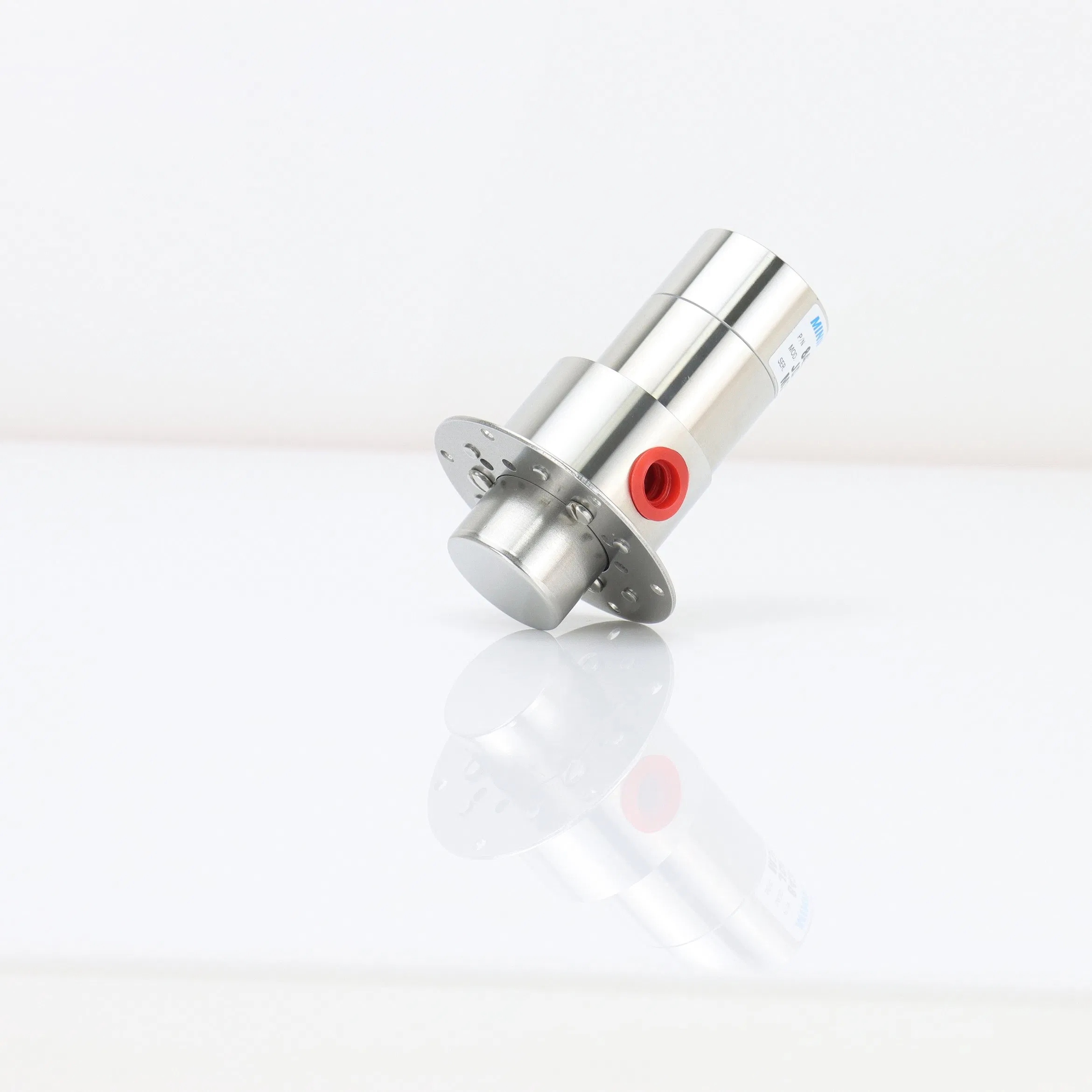

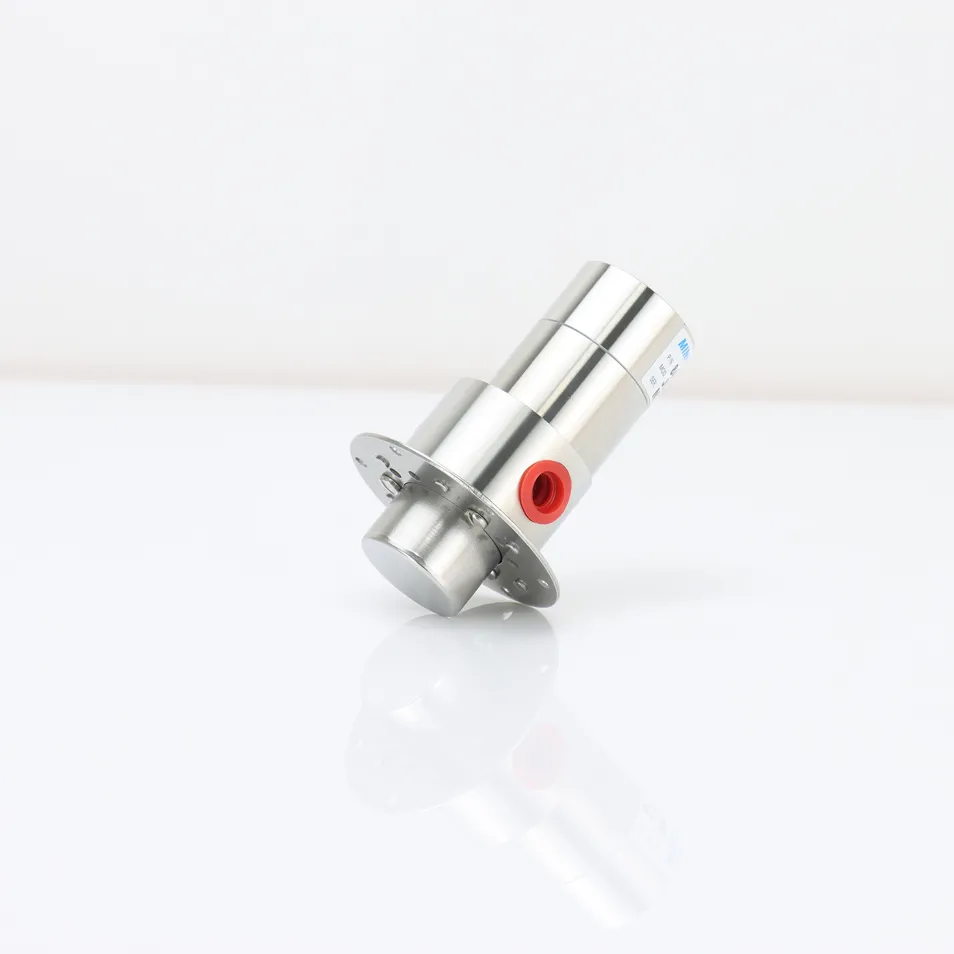

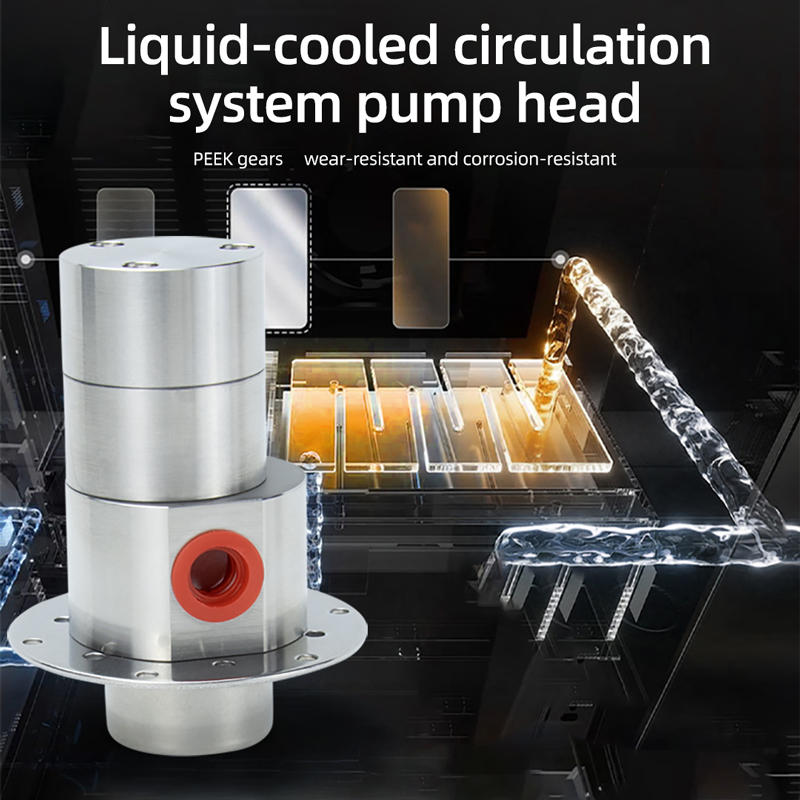

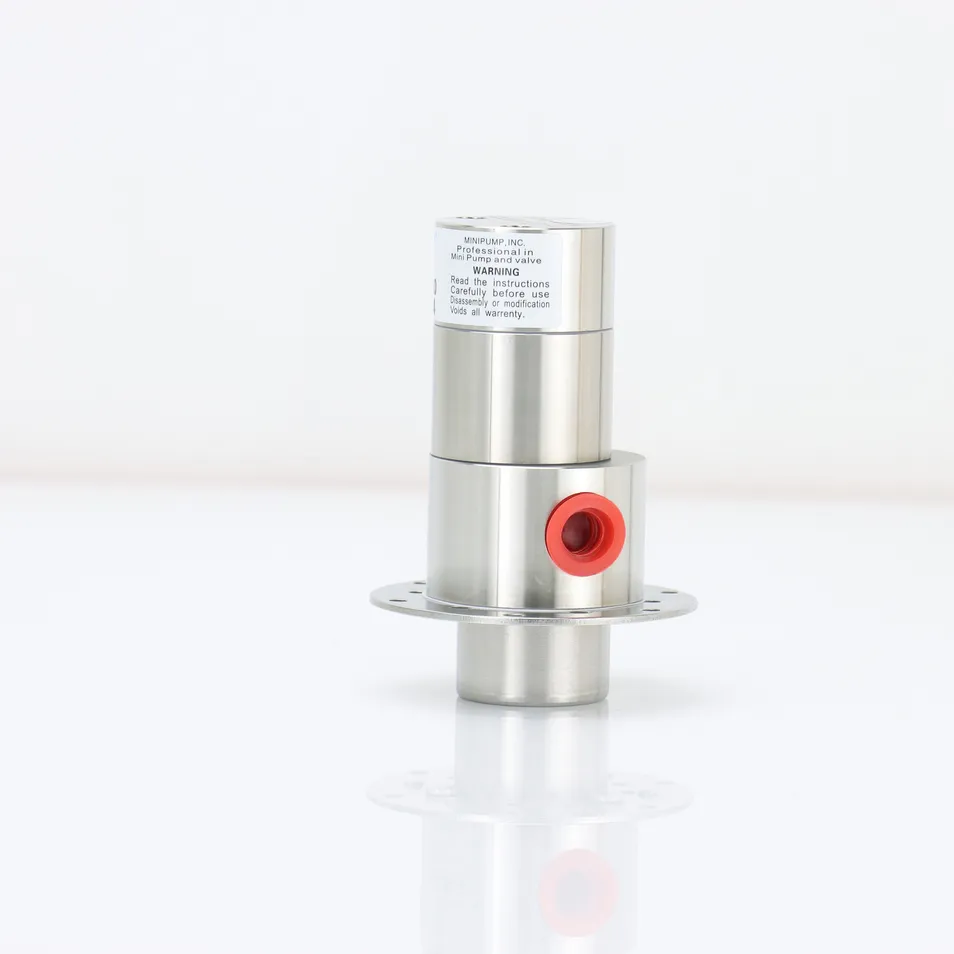

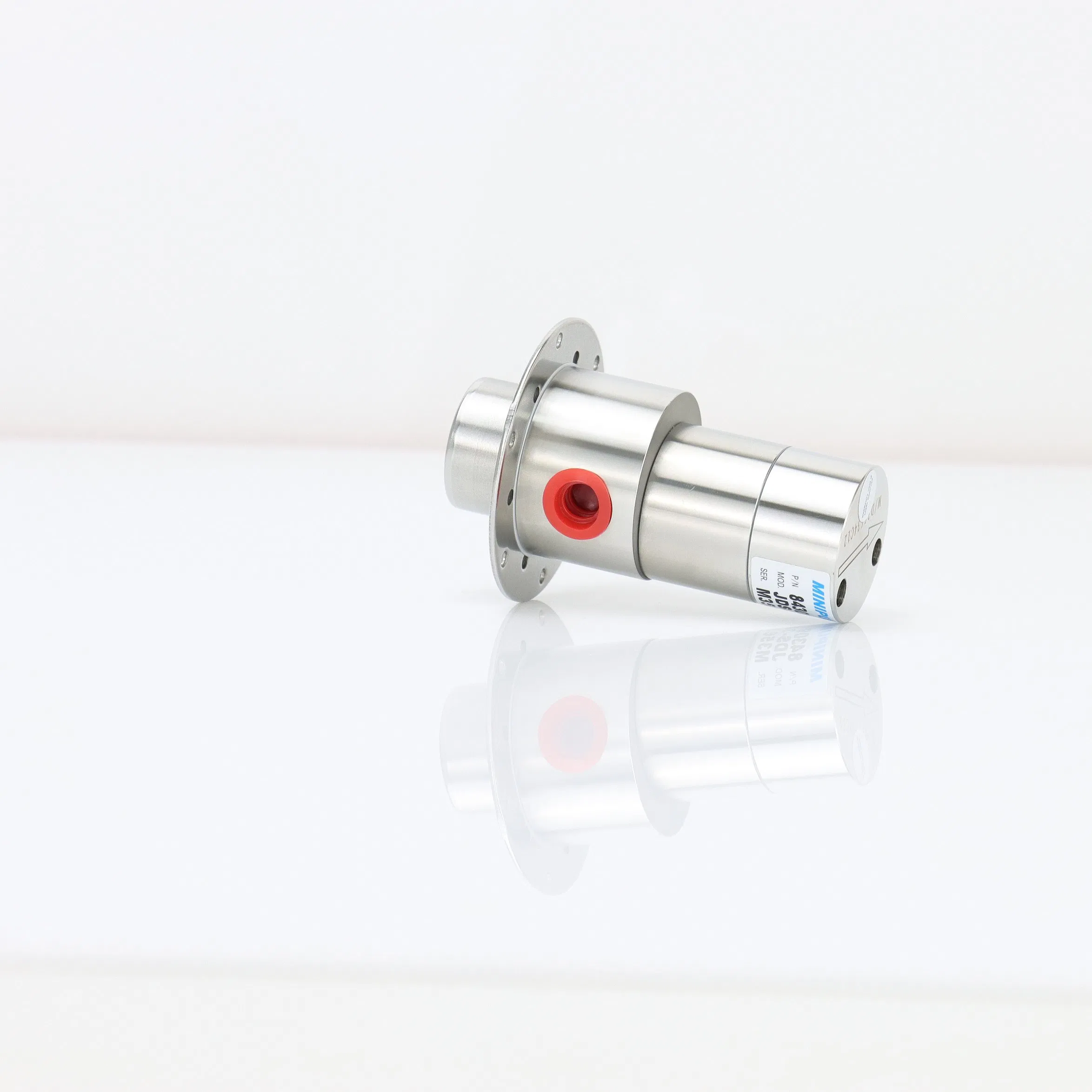

Product Display

Operational Video

Corporate Capabilities

Our team has been focusing on the design, R&D, production, sales, and service of precision machines and parts. We provide excellent coding and marking solutions worldwide. With over 20 years of experience and a core R&D team of 35-60 engineers, we are committed to creating products that satisfy global customer requirements.

Packaging & Shipping

Frequently Asked Questions

Can I get a free sample for testing?

You can send us the material you want to print or process; we will conduct tests and provide photos/videos for your reference.

How quickly can I expect a response?

All inquiries are typically answered within 24 hours.

What are the available payment terms?

We accept T/T, Western Union, PayPal, and cash. Payments are based on current exchange rates.

What transportation methods do you offer?

Small packages are delivered via DHL, UPS, FedEx, or TNT. For larger shipments, air or sea freight is recommended.

What is the standard delivery time?

Shipments are usually arranged within 3 to 10 working days after receipt of payment.

How do you handle technical problems?

Our technicians analyze detailed descriptions, photos, or videos provided by the customer to offer an appropriate solution.
