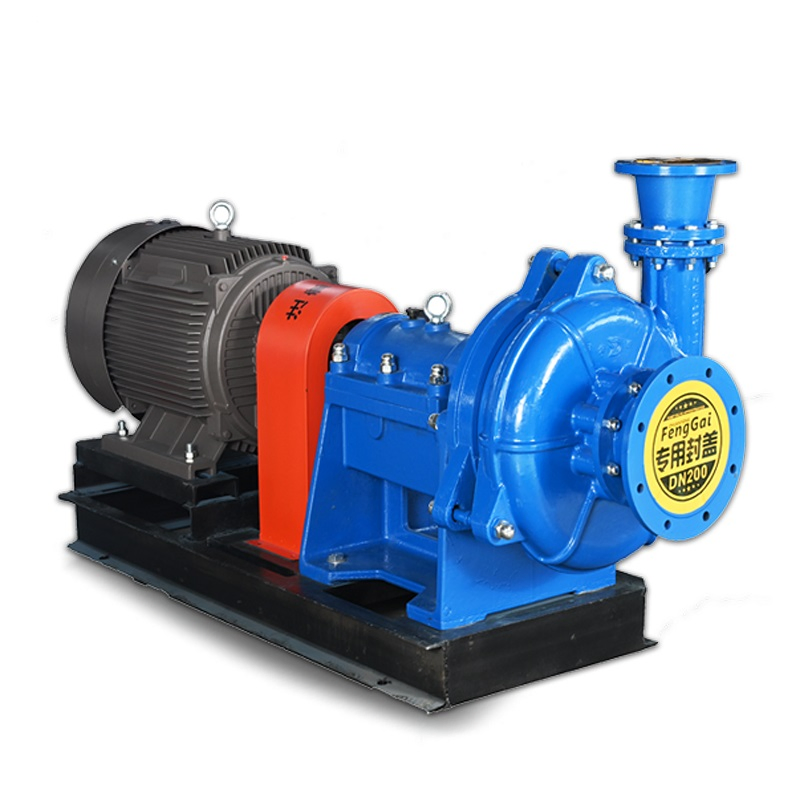

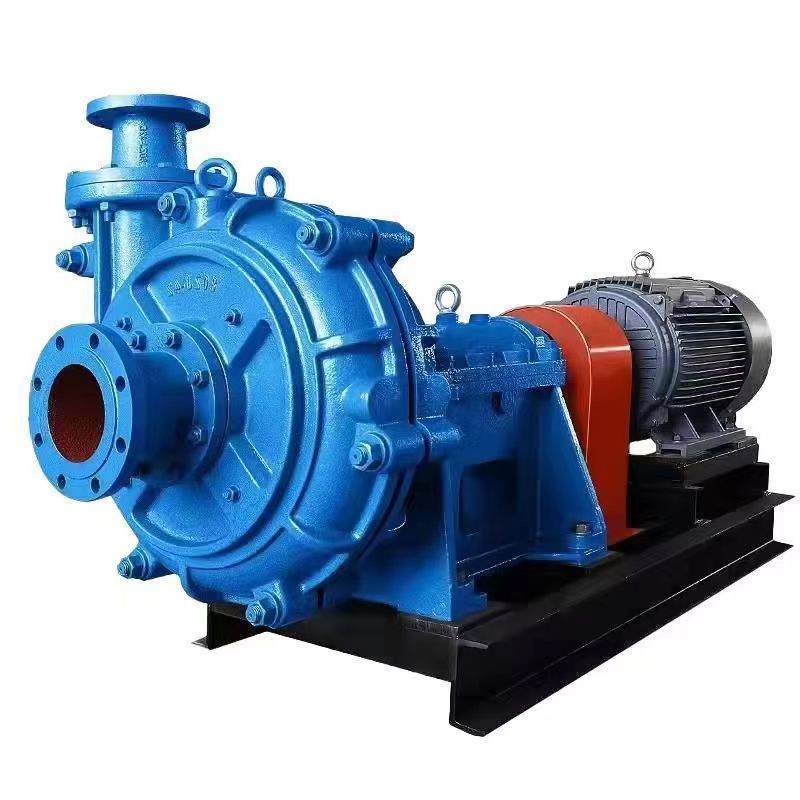

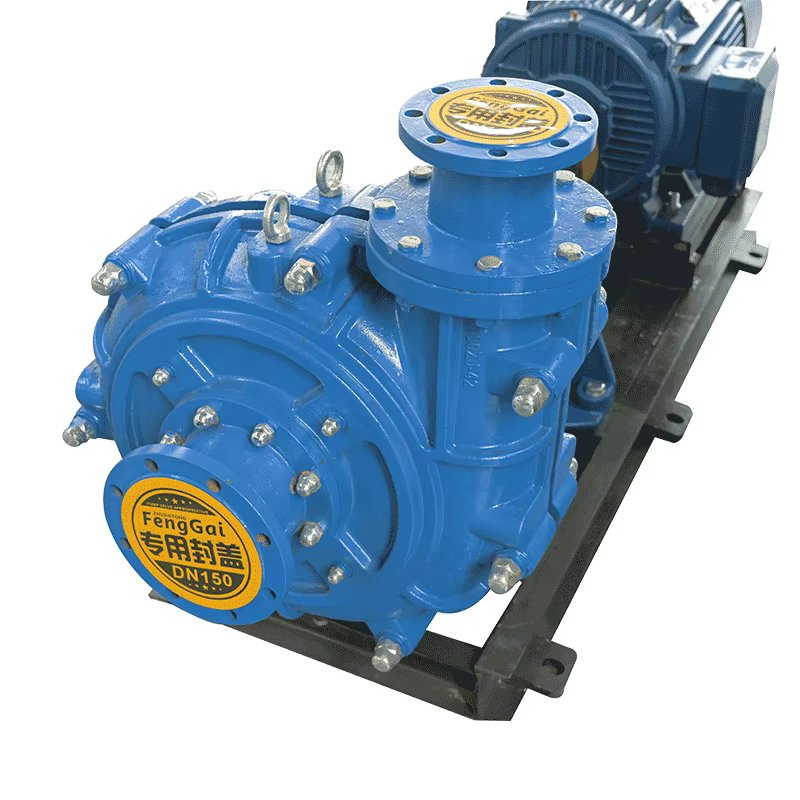

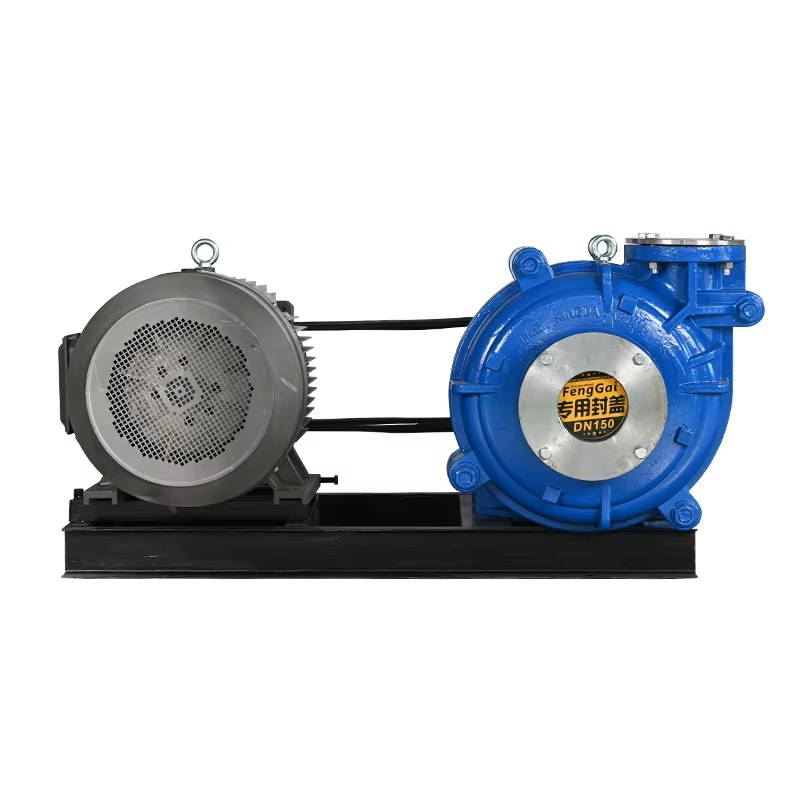

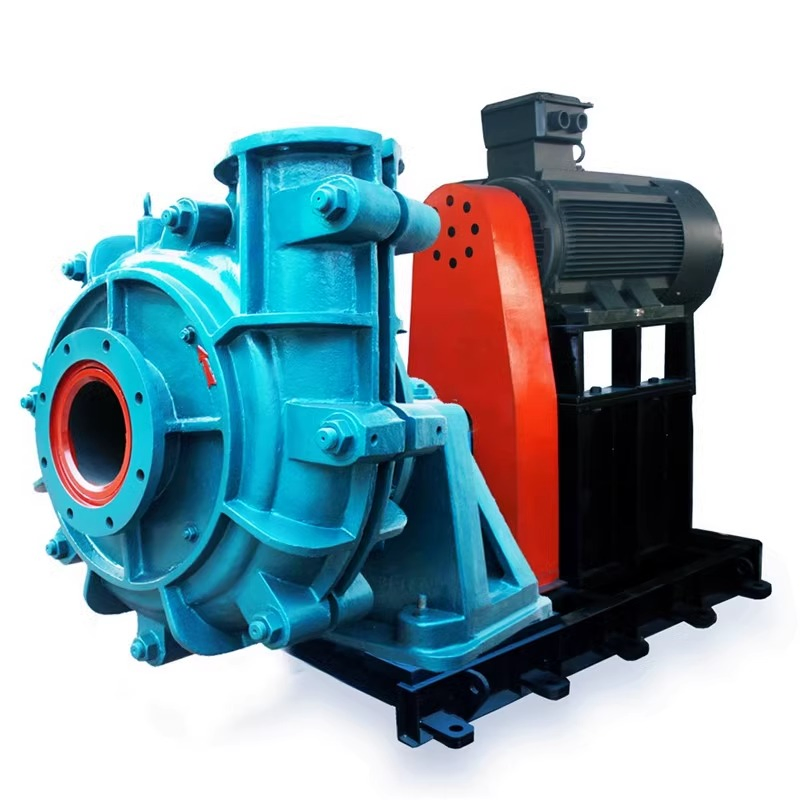

Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps
Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps
Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps
Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps
Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps
1 / 5
Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps
Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps
Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps
Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps
Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps

Zj Series Single-Stage Horizontal Slurry Pumps Mining-Specific Heavy-Duty Centrifugal Slurry Pumps

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
Horizontal Slurry Pump
Max. Head
>150m
Max. Capacity
>400 L/min
Driving Type
Motor
Material
Cast Iron
Structure
Single-stage Pump
Power
Electric
Application
Sand-Pumping Pump
Capacity
10-2400m3/H
Origin
China

Product Description

The AH type slurry pump is a single-stage, single suction, cantilever, double shell, horizontal centrifugal slurry pump. This series is widely used in industrial sectors such as mining, coal, metallurgy, power, and building materials to transport strong abrasion and high concentration slurry.

The ZJ slurry pump is suitable for conveying highly abrasive, high-density or low-density slurries at high head. It can be installed in series for multiple stages within the permissible pressure range.

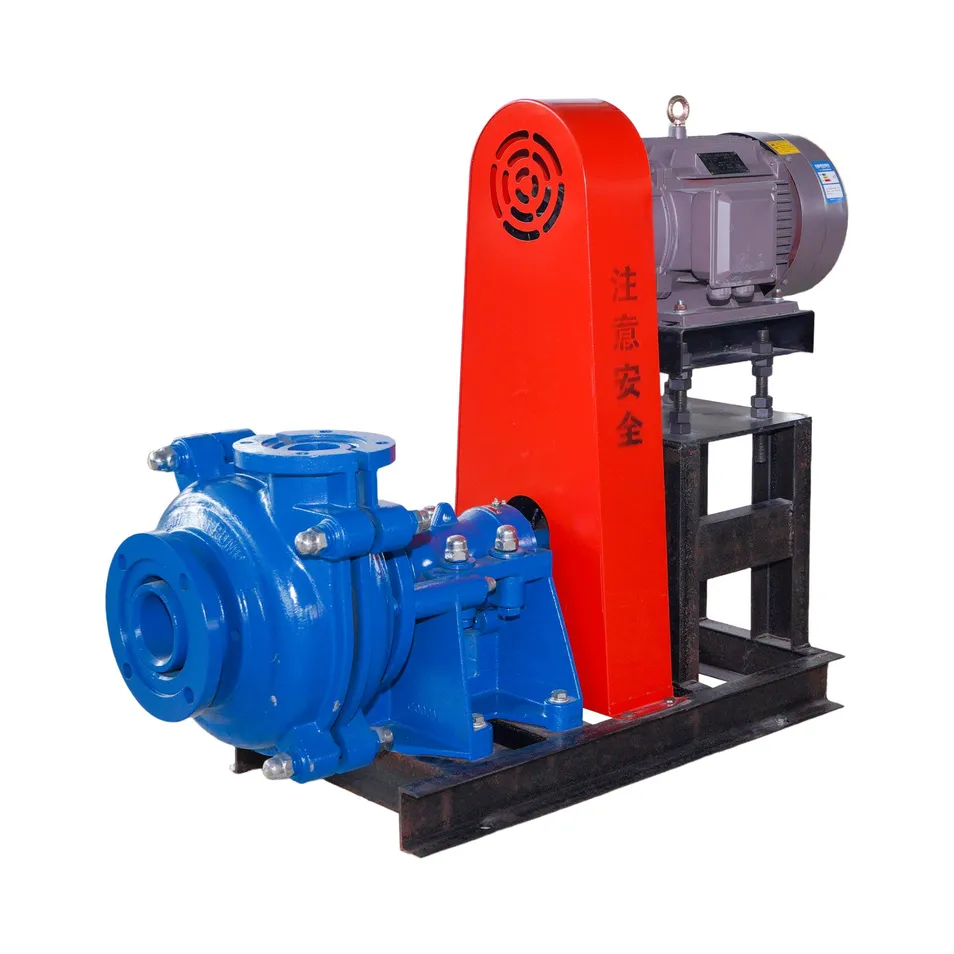

Horizontal Slurry Pump

Key Technical Features

  • Discharge port can be positioned at 8 different locations at 45° intervals.
  • Exceptional hydraulic performance ensuring high-efficiency and low wear.
  • Combination of discharge-end seals with packing and mechanical seals for leak-free operation.
  • Wet-part materials exhibit outstanding wear and corrosion resistance.
  • Capable of operating in seawater ash removal applications.
  • Interchangeable high-wear-resistant metal or pressure-molded elastomer linings.

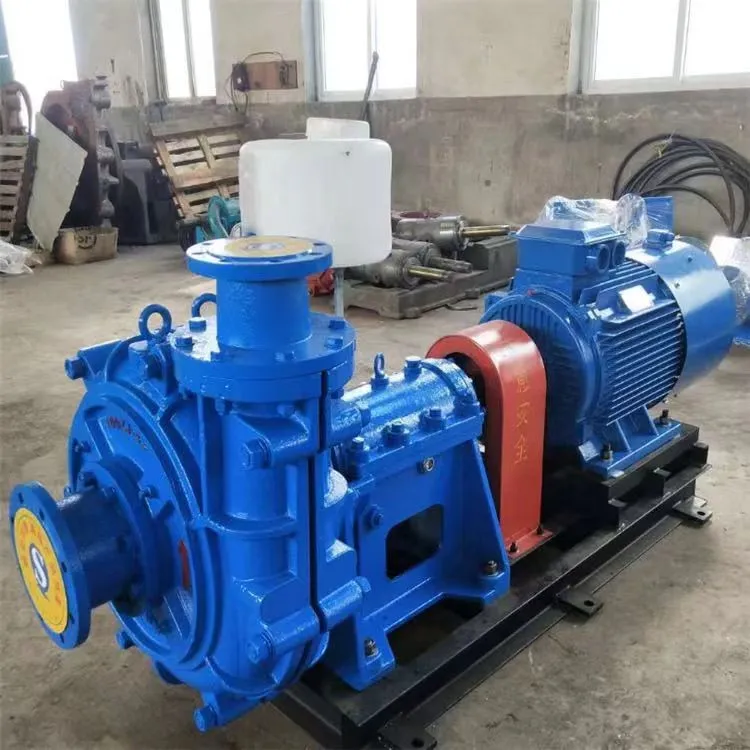

Slurry Pump Detail 1

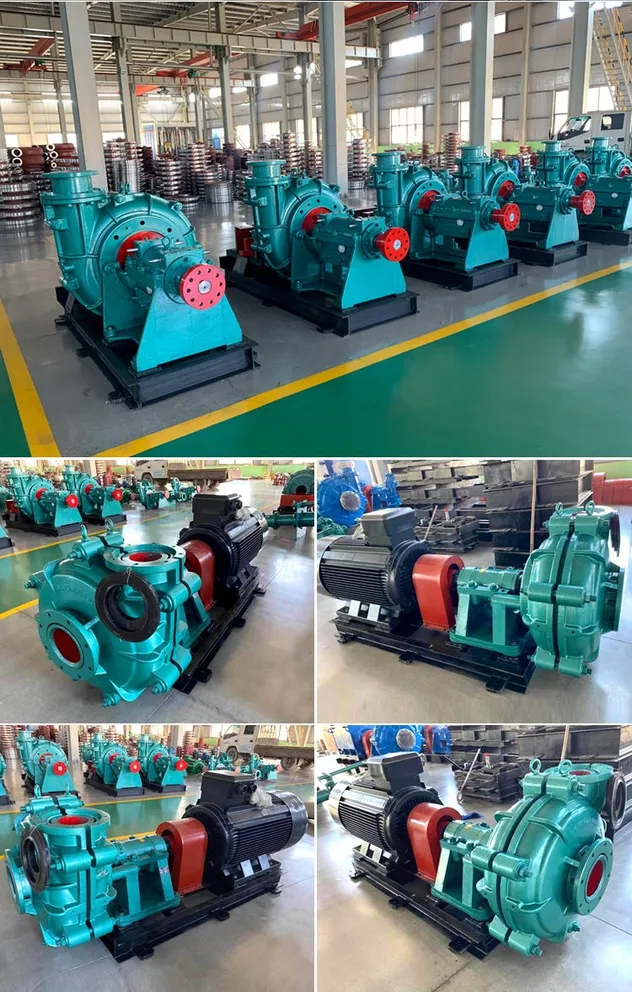

Slurry Pump Detail 2

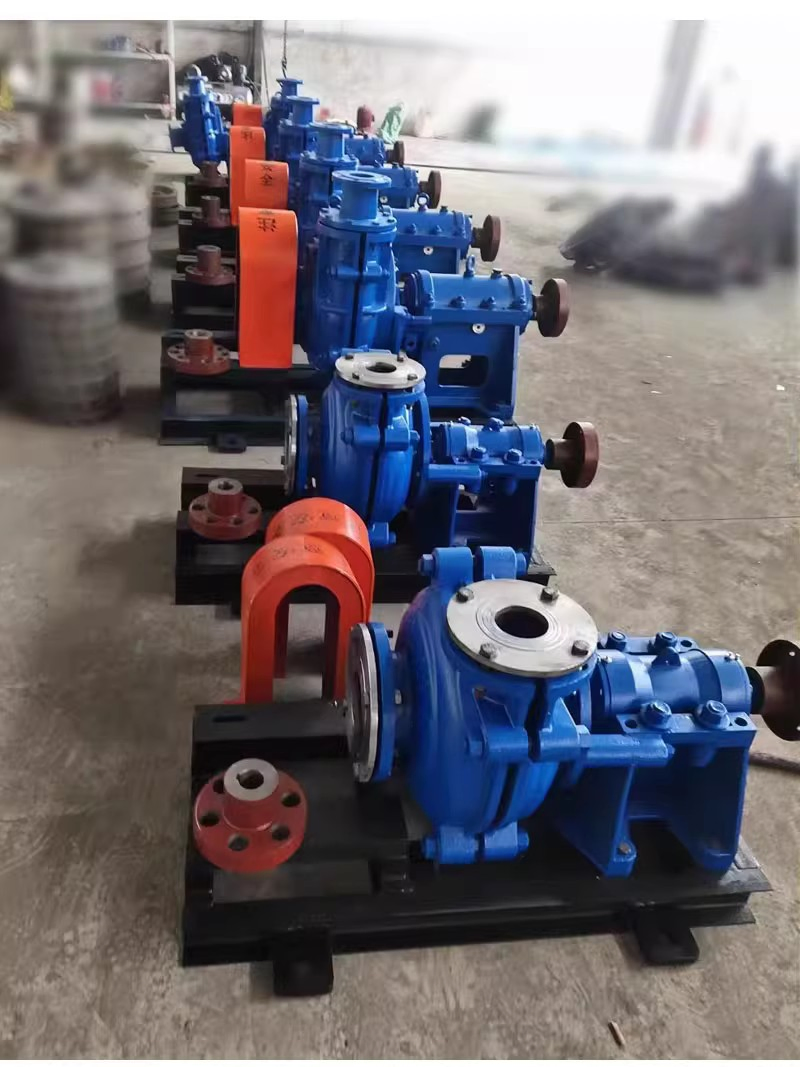

Slurry Pump Detail 3

Specifications

Model Capacity (m3/h) Head (m) Max. Power (KW) Speed (r/min) Max. Eff η% NPSH (m)
40ZJ5.0-206.0-297.51390-2890532.5
50ZJ12-1117-11090700-1480452.9
100ZJ45-3608-100160700-1480762.5
200ZJ200-97613-133560490-98081.43.0
300ZJ395-21669-79630490-980803.5

Product Details

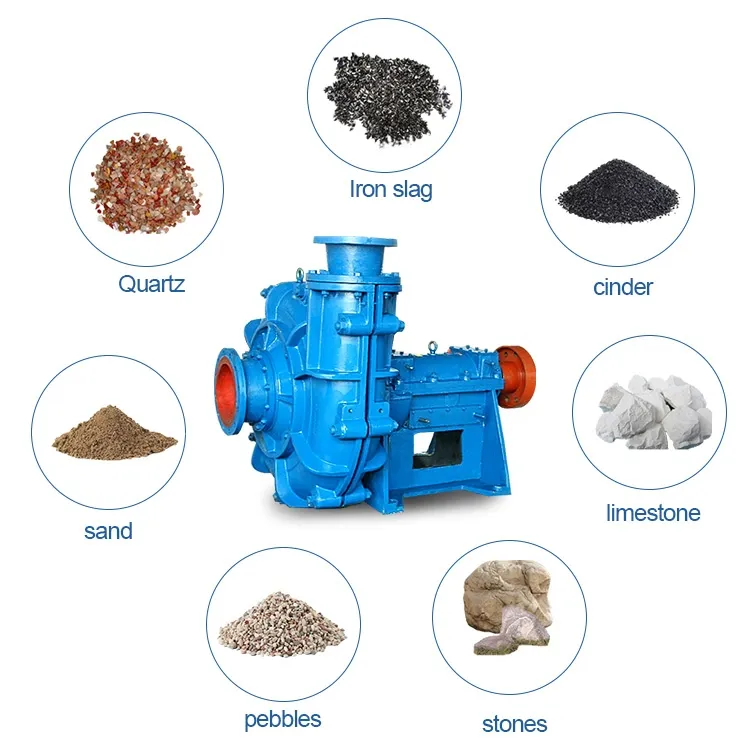

Detail Image 1

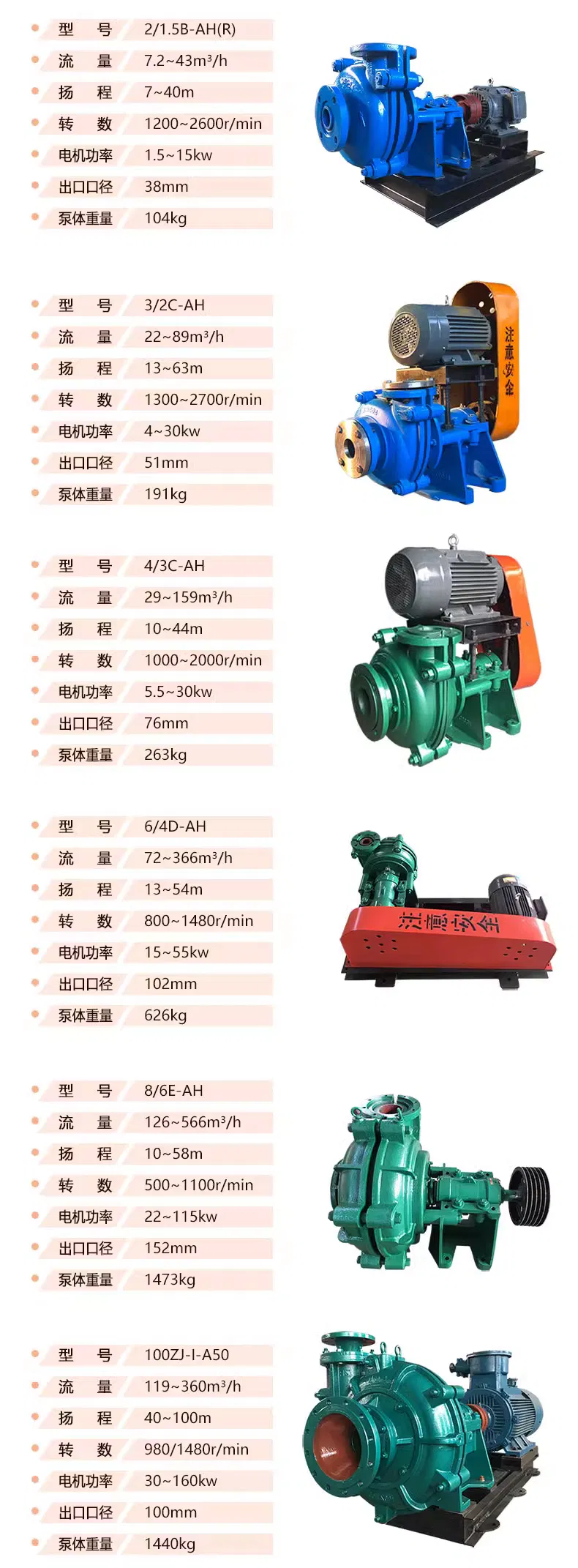

Detail Image 2

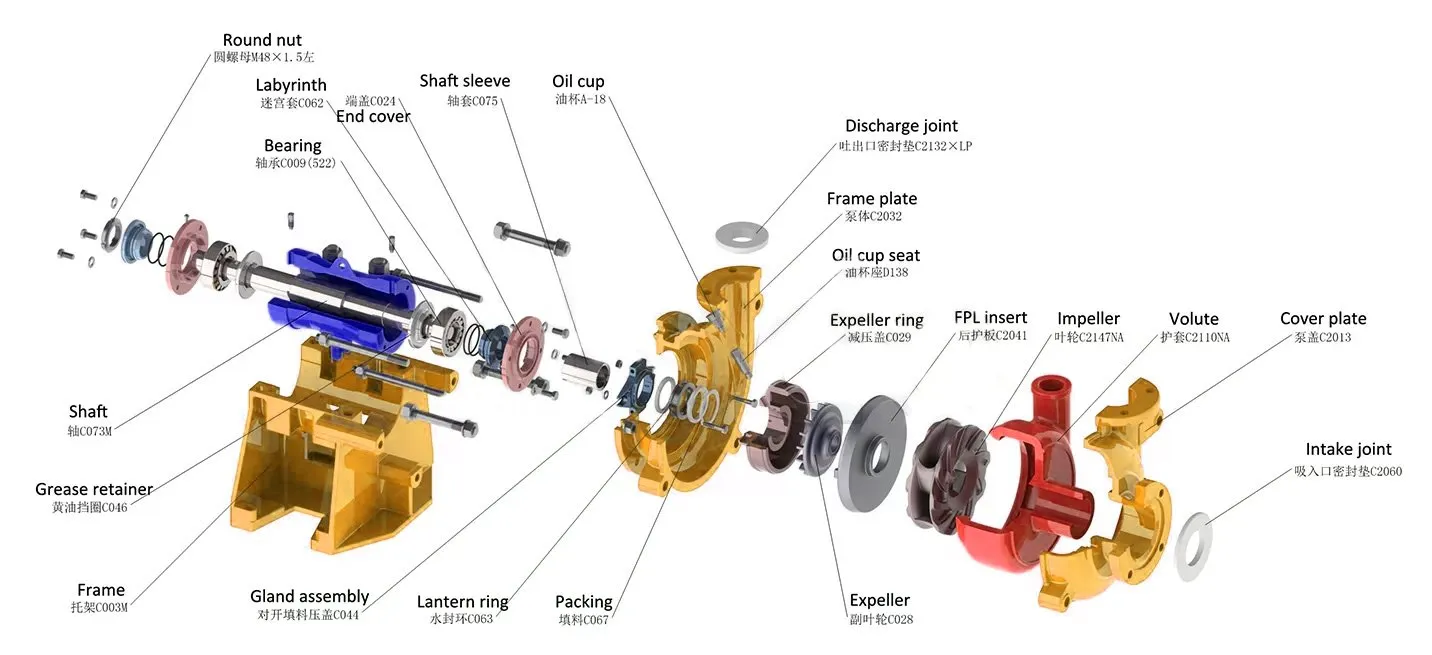

Pump Assembly

Usage Scenarios

Usage Context
  • River and Port Dredging: Conveys abrasive sediments with particles up to 300 mm.
  • Sand Dredger Operations: Handles gravel-sand mixtures at up to 50% concentration.
  • Metal Mine Tailings: Pumps coarse-grained tailings into underground voids.
  • Aggregate Washing: Elevates sand-laden wastewater to dewatering screens.
  • Seawater Projects: High-chromium castings resist chloride ion corrosion.
  • Tunnel Shielding: Superior cavitation resistance for muck conveyance.

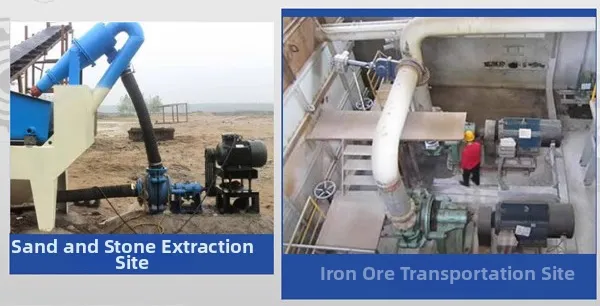

Scenario 1

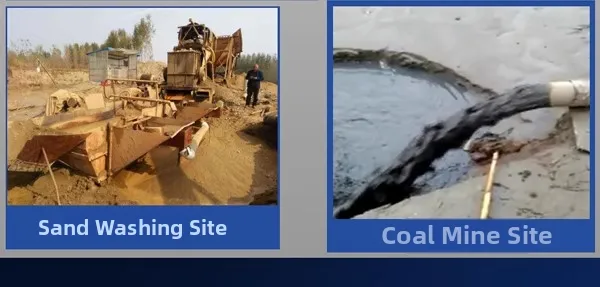

Scenario 2

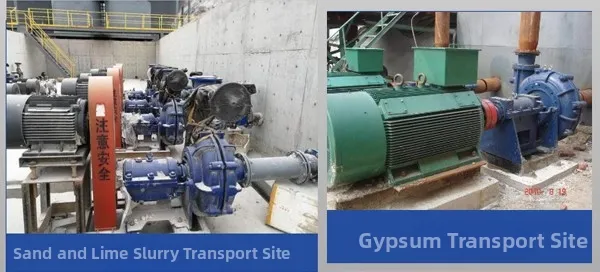

Scenario 3

Packaging & Shipping

Packaging 1
Packaging 2

Frequently Asked Questions

How can I get an accurate quotation for the pump?
Please provide the pump flow, head, power, caliber, voltage, frequency, and required quantity.
What is the typical delivery time?
Sample orders are usually in stock. Container orders take 7-15 days depending on the season.
What kind of warranty is provided?
A one-year quality warranty is provided. We offer replacement parts via international courier for any quality issues.
Do you provide installation support?
Yes, we have a professional team that can provide a one-stop installation guide.
What are the available payment terms?
Normally 30% - 50% deposit via T/T, with the balance before delivery. L/C at sight, Paypal, and Western Union are also accepted.
Can the discharge port be adjusted?
Yes, the discharge port can be positioned at 8 different locations, spaced at 45° intervals to suit your pipeline.
