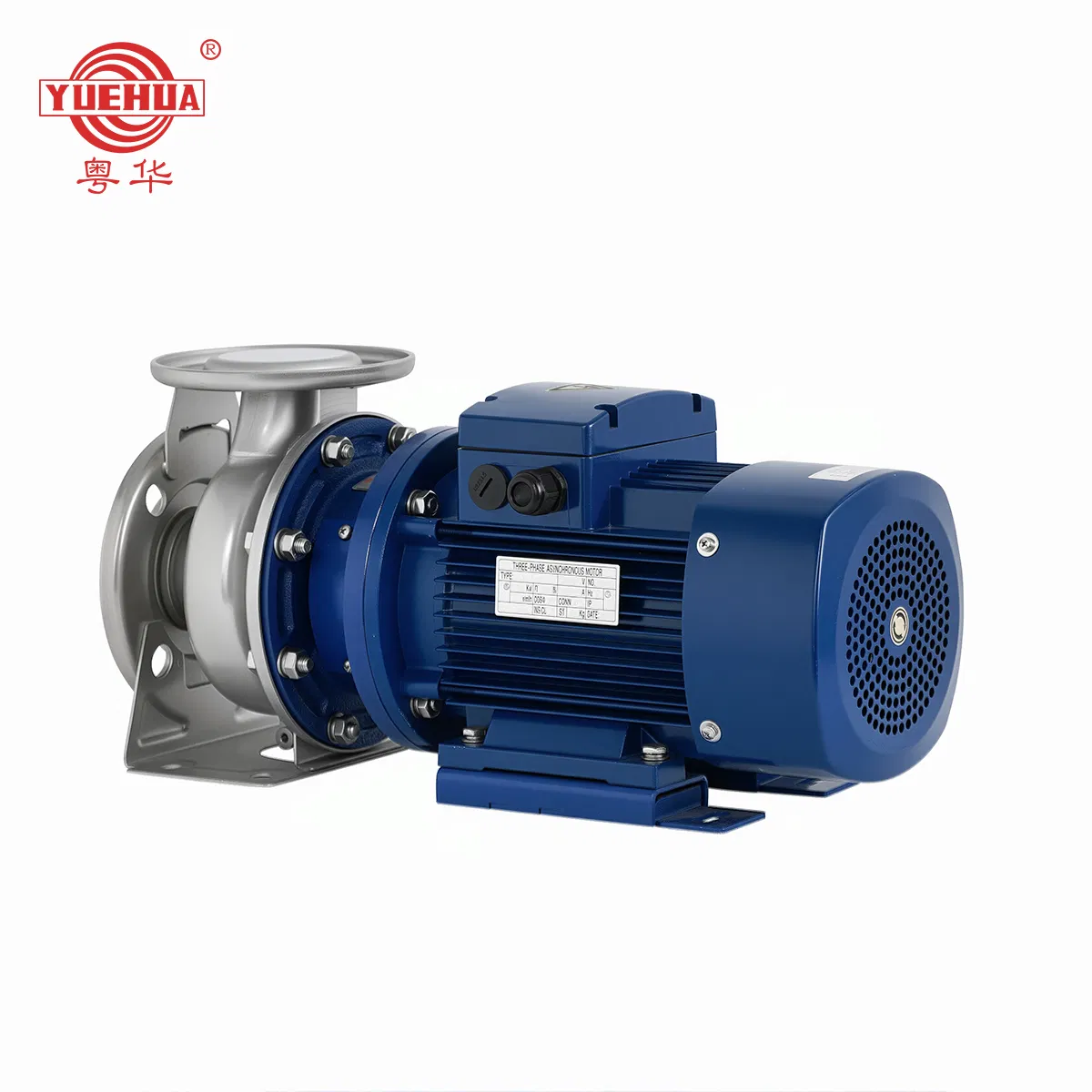

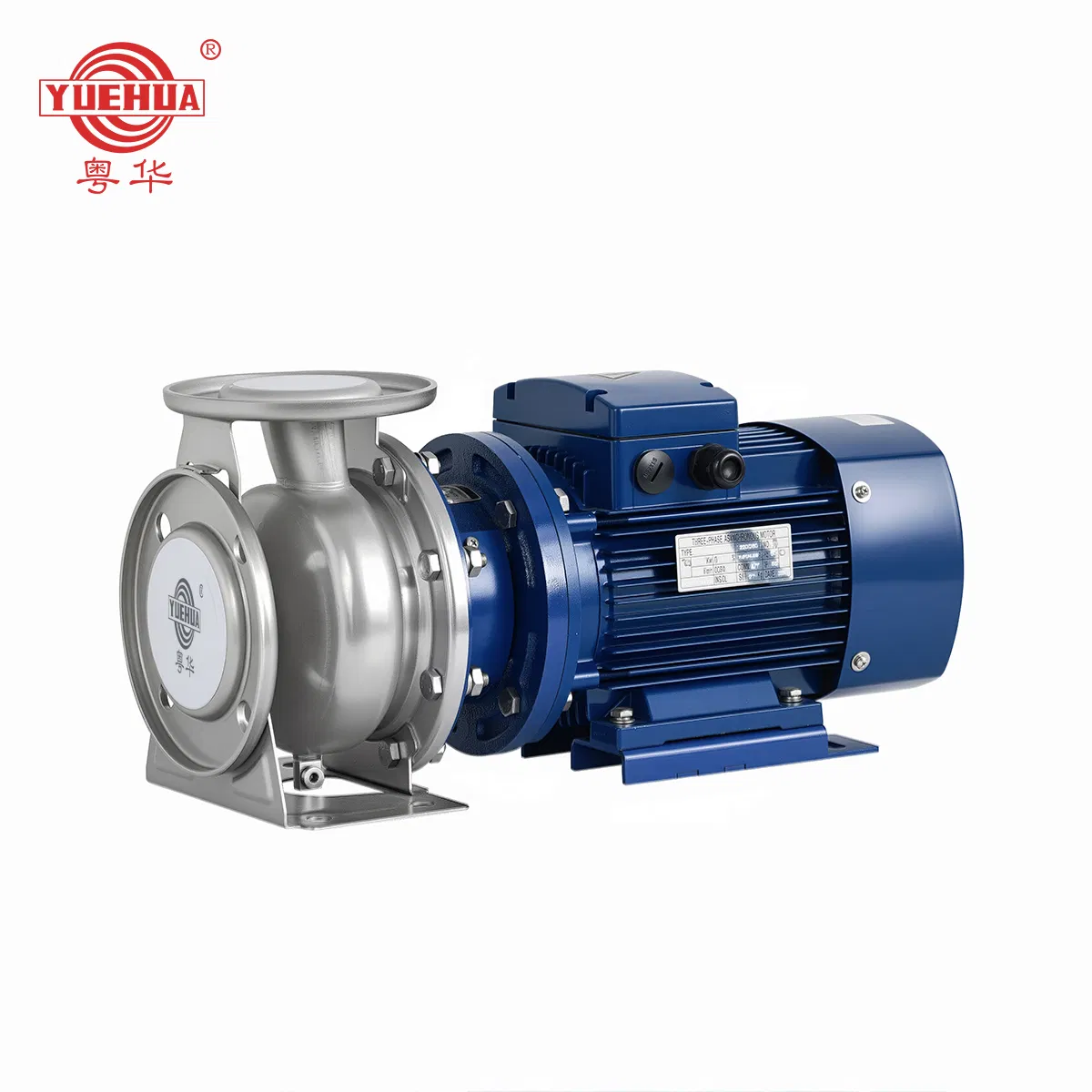

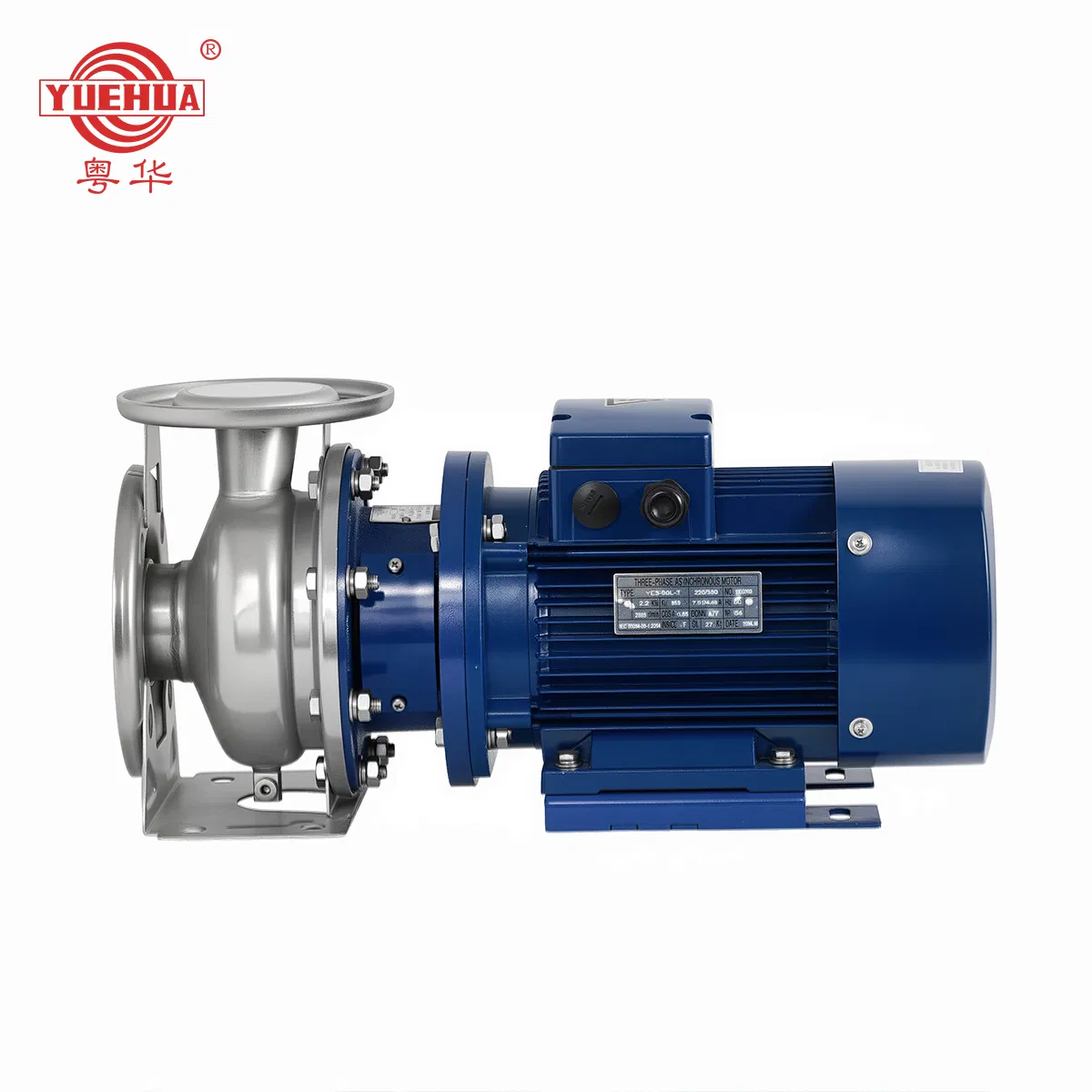

YUEHUA Horizontal Industrial End Suction Single-Stage Sewage Wastewater Impeller Liquid Radial Centrifugal Pumps

1 / 4

YUEHUA Horizontal Industrial End Suction Single-Stage Sewage Wastewater Impeller Liquid Radial Centrifugal Pumps

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔹

Overview & Technical Specifications

Model NO.

DZA(S)65-50-125/2.2

Max. Capacity

>400 L/min

Driving Type

Motor

Working Pressure

Low Pressure Pump

Impeller

Closed Single-Stage

Position

Horizontal Pump

Ambient Temp.

-15ºC~+40ºC

Protection Class

IP54/IP55

Insulation Class

Voltage/Freq

220V/380V, 50Hz/60Hz

⚙️

Applications

Water supply systems

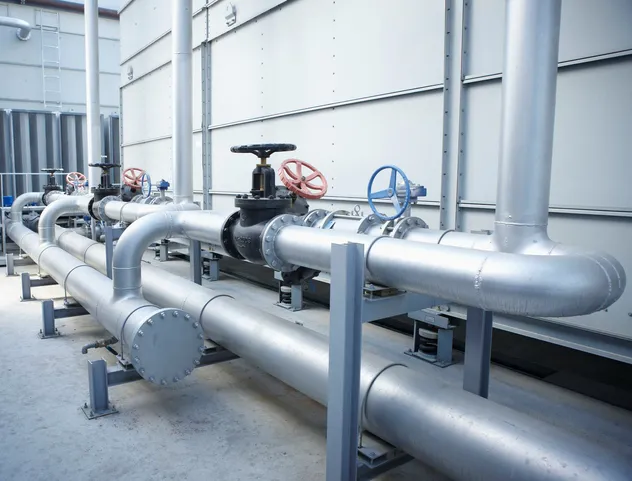

Pressure boiler feeding

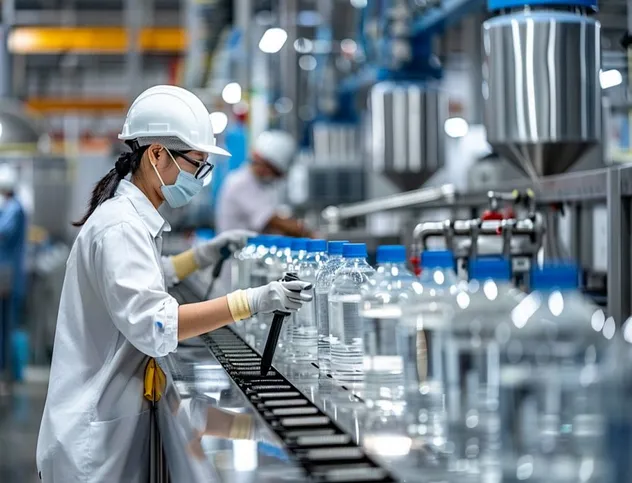

Pure water treating

Refining chemical industries

Washing and sprinkling

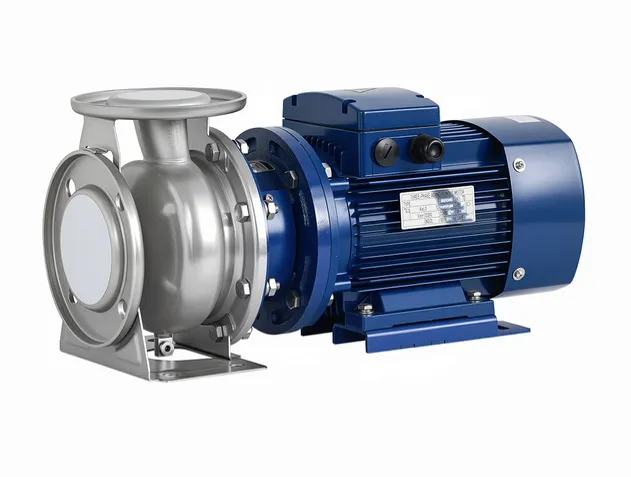

Industrial Liquid Transfer

📋

Product Description

📈Performance Limits

Max. Working pressure: 10 bar
Media temperature with NBR: -20℃~+80℃
Media temperature with Ceramic/Carbon: -20℃~+110℃
Media temperature with EPR: -20℃~+110℃

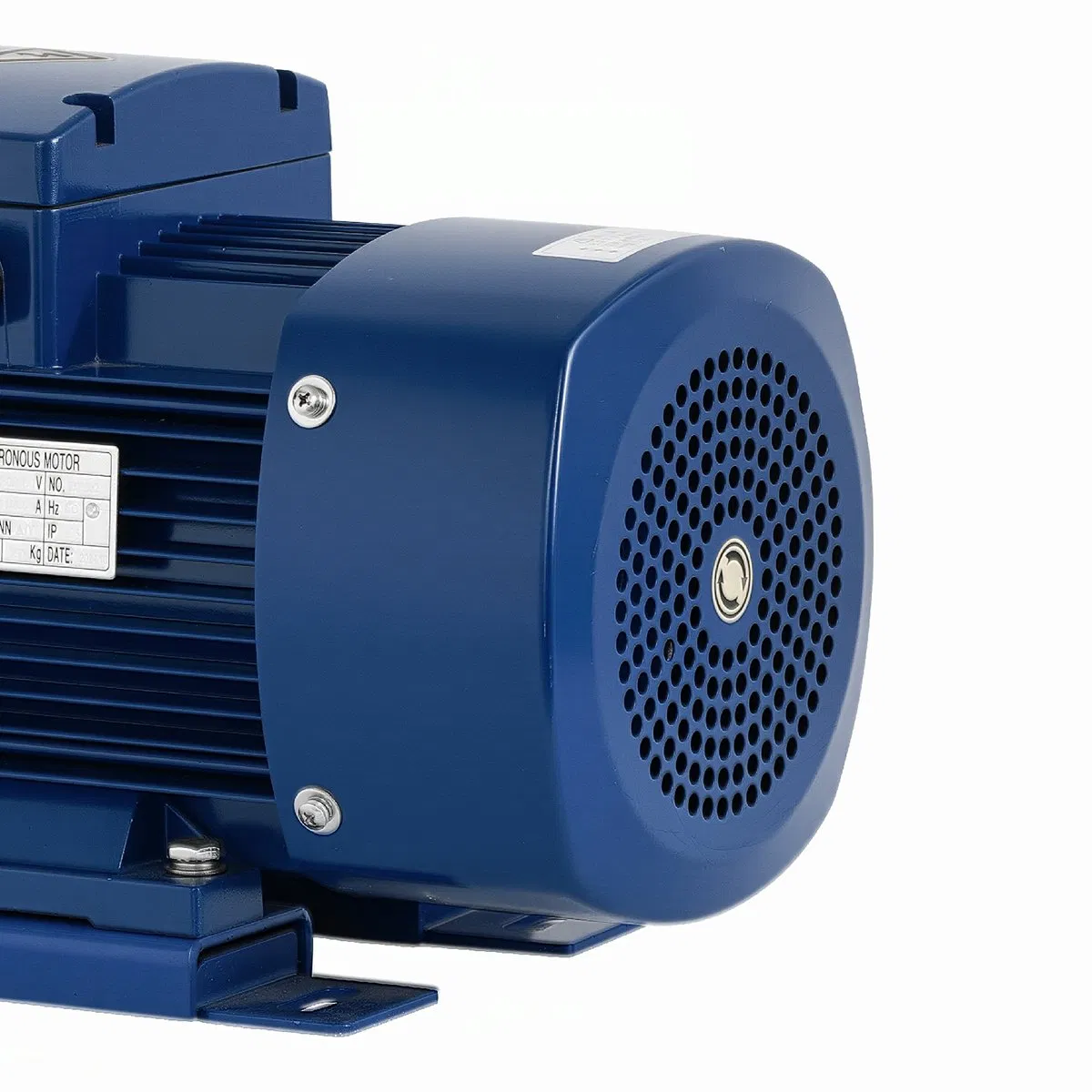

🔌Motor Specifications

T.E.F.C., continuous duty, Insulation class: F
Protection class: IP54, IP55
Ambient temperature range: -15℃~+40℃
Altitude ≤ 1000m
Includes overload protector in single phase motor.

📊

Performance Data & Charts

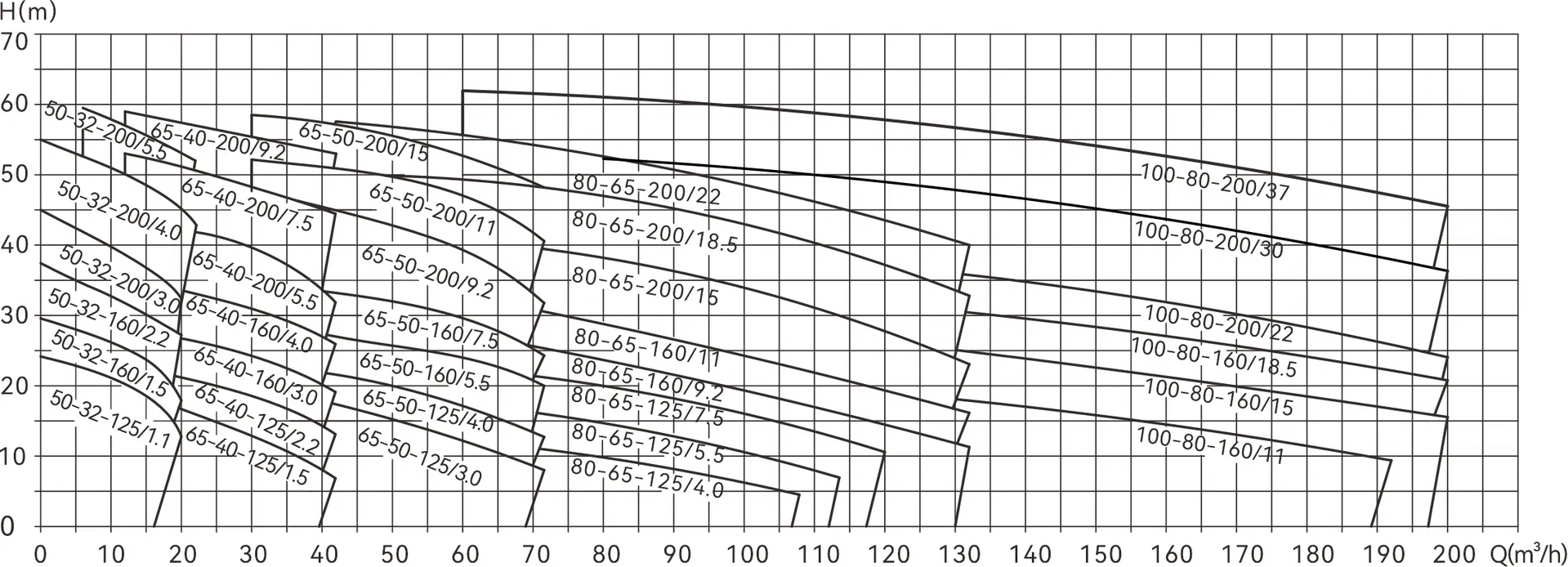

Curve Chart (n=2900rpm)

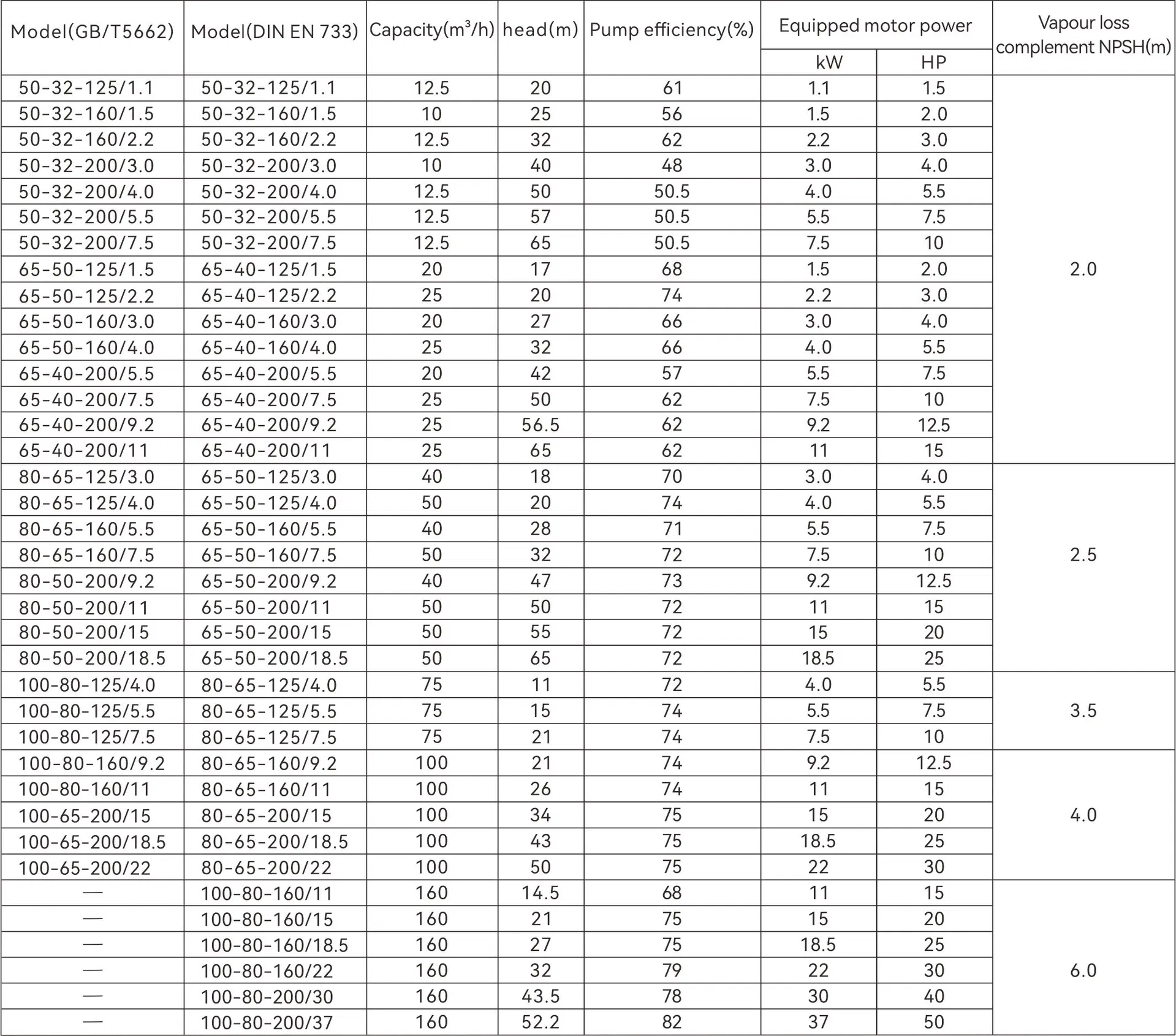

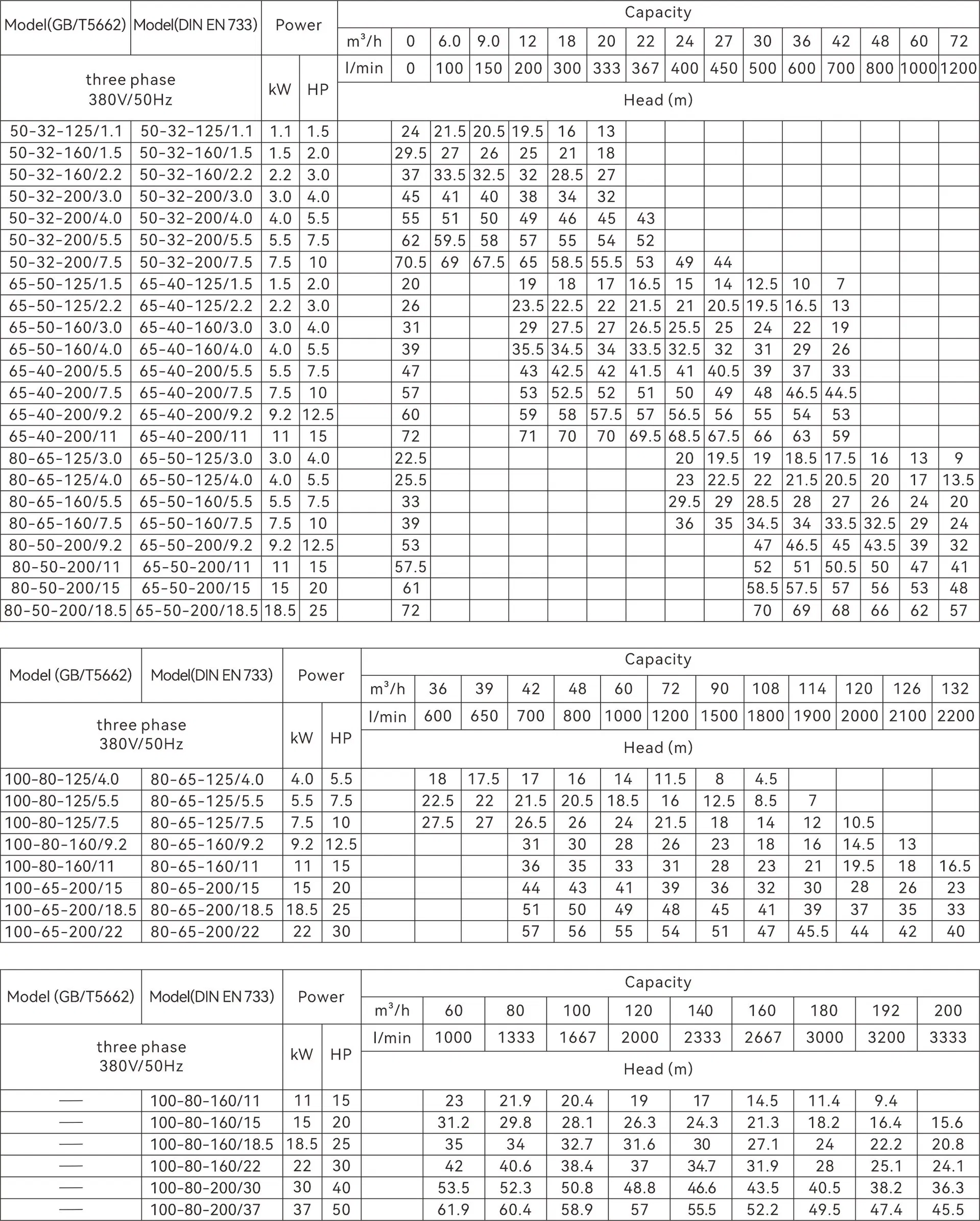

Performance Data Table

🔧

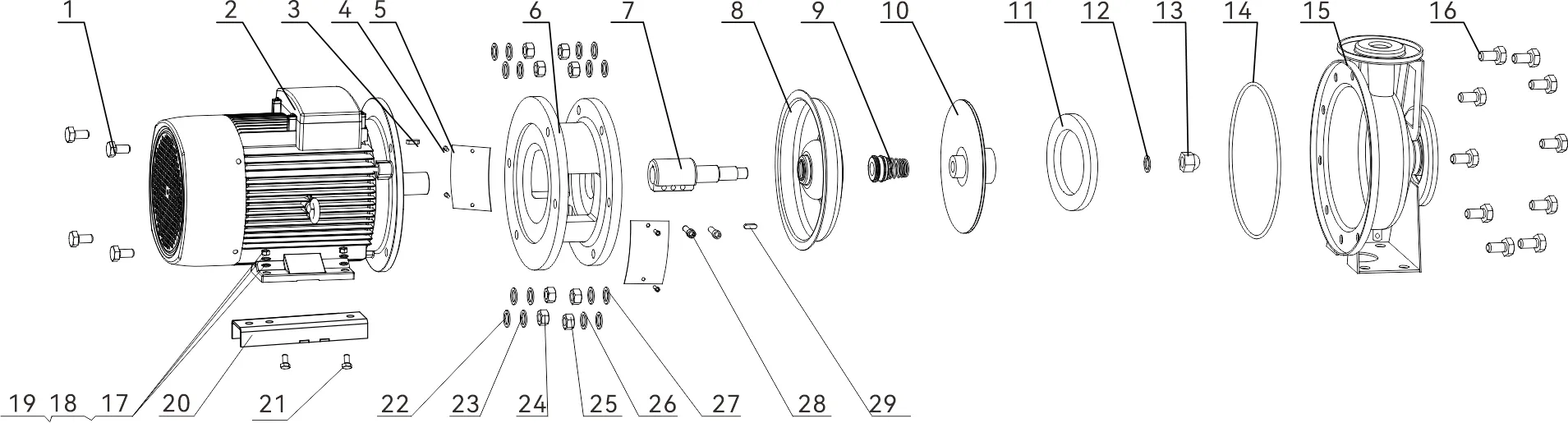

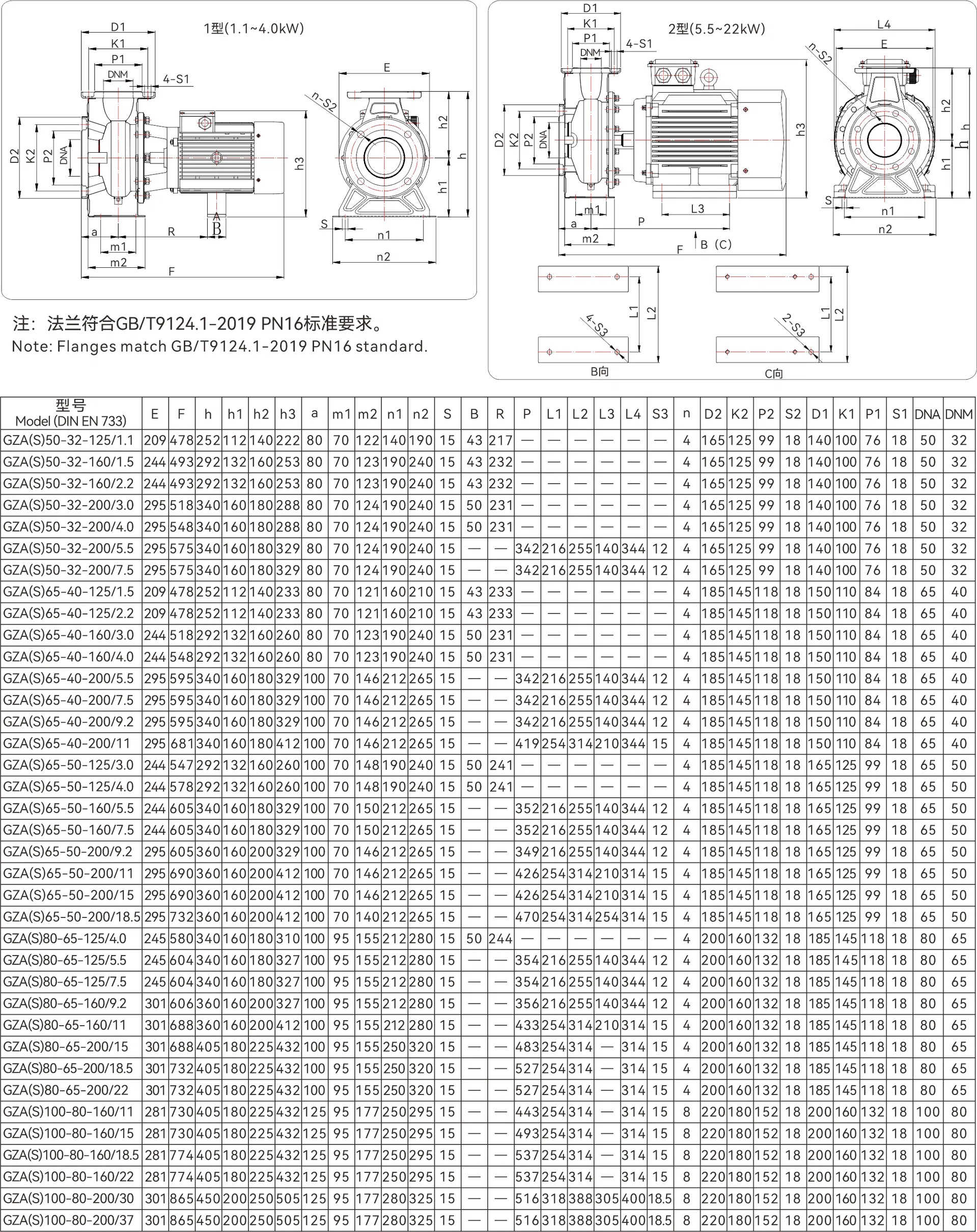

Parts & Dimensions

No	Description	No	Description	No	Description
1	Bolt	7	Stub-shaft	13	Impeller Nut
2	Motor	8	Back cover	14	O Ring
3	Key	9	Mechanical Seal	15	Casing
4	Bolt	10	Impeller	16	Bolt
5	Coupling Guard	11	Wear Ring	17	Plain washer
6	Bracket	12	Spring Washer	18	Spring Washer

🏢

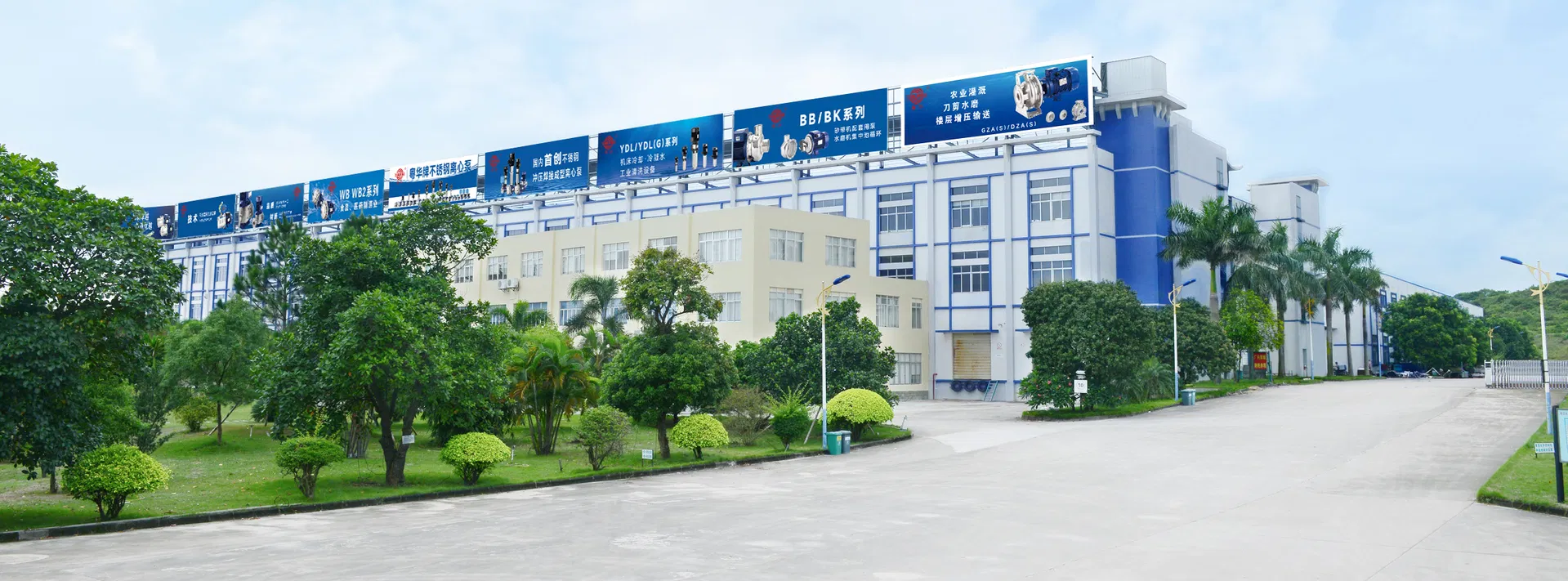

Company Profile

Founded in 1994, our company is a leading developer of stamped stainless steel centrifugal pumps. With over 30 years of experience, the enterprise integrates R&D, manufacturing, and sales within a 140,000 square meter facility.

We specialize in hydroforming technology and advanced welding techniques, replacing traditional casting to create highly efficient, durable, and environmentally friendly products. We hold numerous national and international patents and our products are certified to ISO9001:2015, ISO14001:2015, and CE standards. Over 70% of our production is exported globally to Europe, North America, and Australia.

❓

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer with over 30 years of experience in centrifugal pump production, operating within a 140,000 m² facility.

Do you support OEM/ODM customization?

Yes. Our R&D team and advanced facilities enable full customization of design, materials, performance parameters, and branding to meet your requirements.

What information is needed for an accurate quotation?

Please provide the required flow rate, total head, material preference, voltage, and frequency for your specific application.

How do you ensure the quality of your pumps?

Every unit undergoes full performance testing in our advanced internal laboratory, supported by a comprehensive ISO-certified QC/QA management system.

What is the typical delivery time and warranty?

Delivery typically takes 30-45 days. We provide a 1-year warranty along with professional technical video support for all products.

Which international certifications do your products hold?

Our products comply with ISO, DIN EN standards and have obtained CE and CCC certifications to ensure global compliance and safety.
