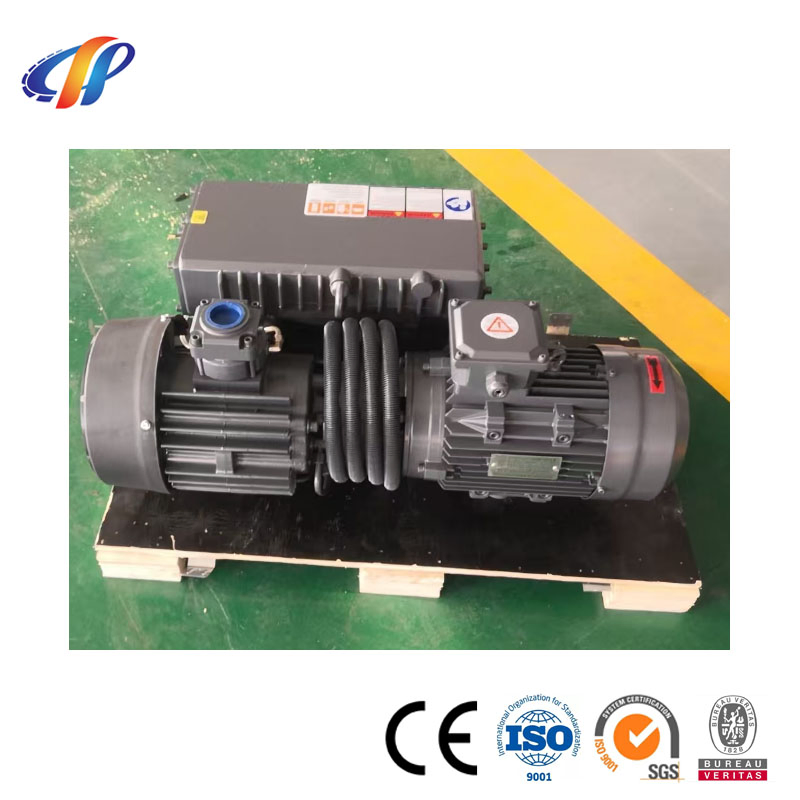

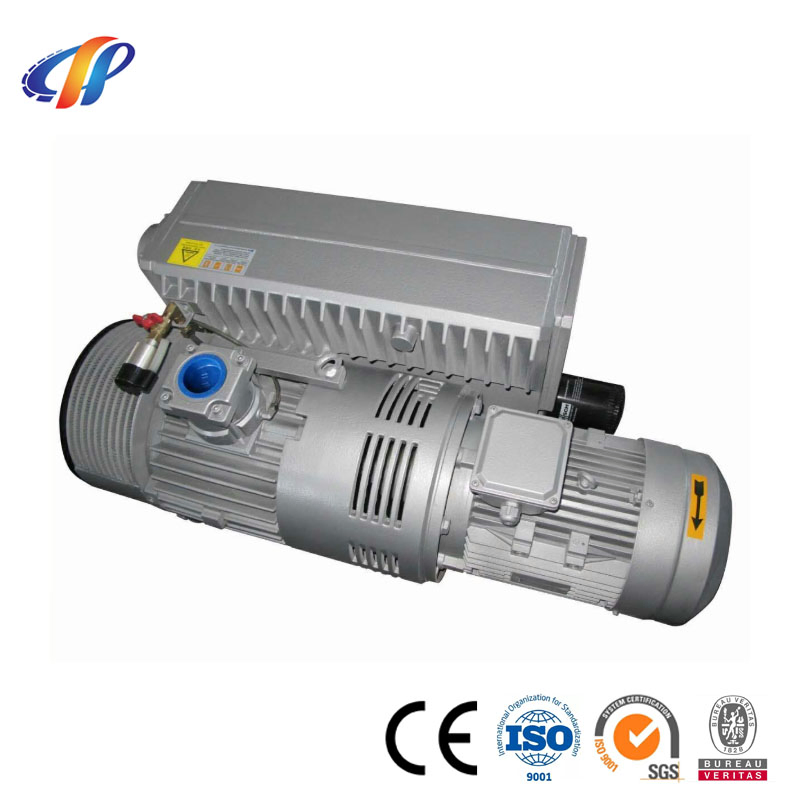

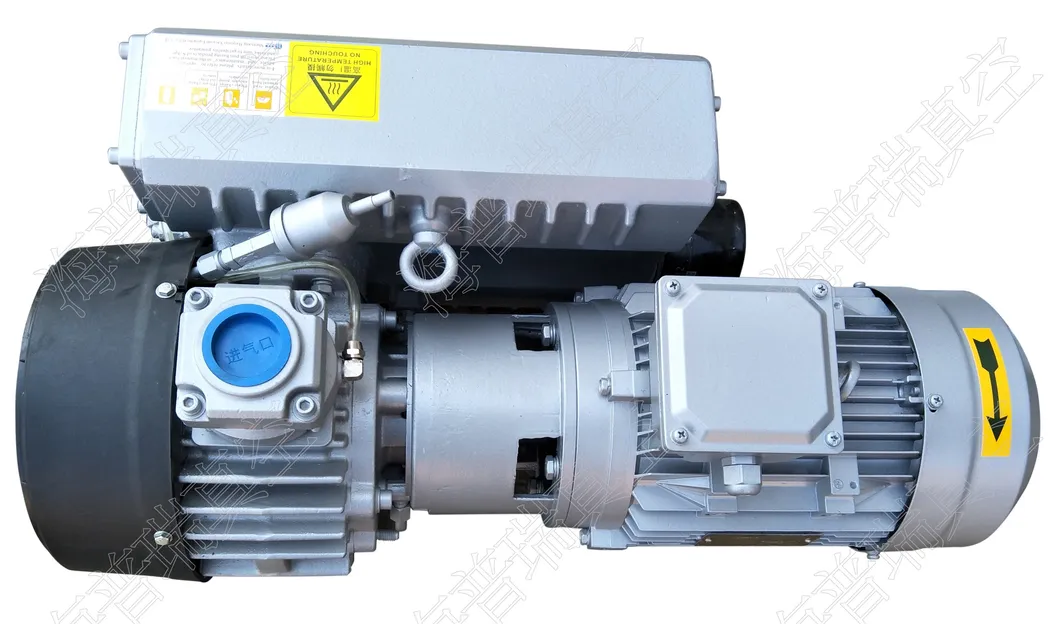

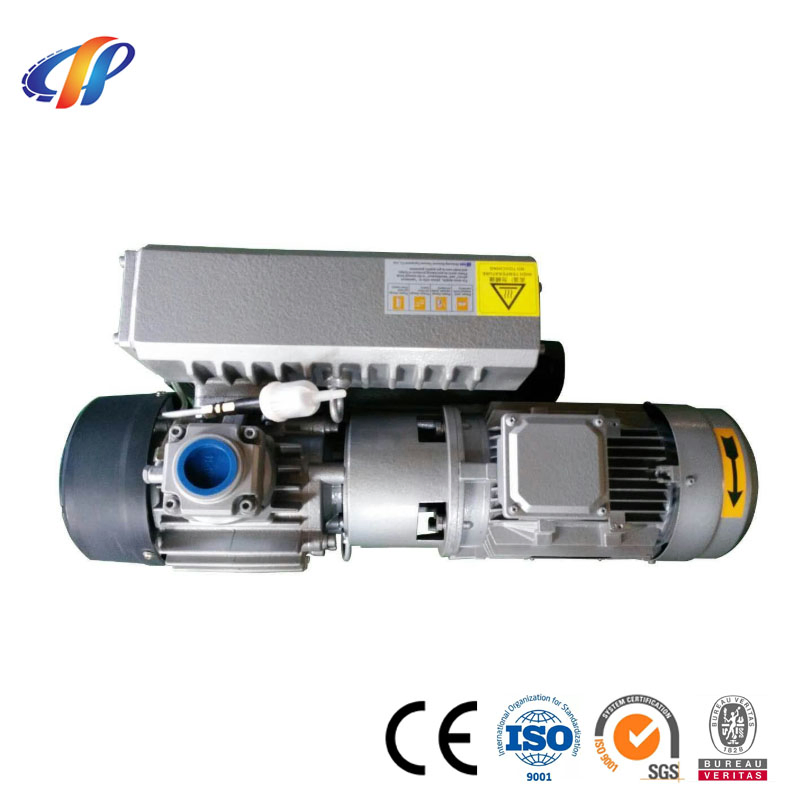

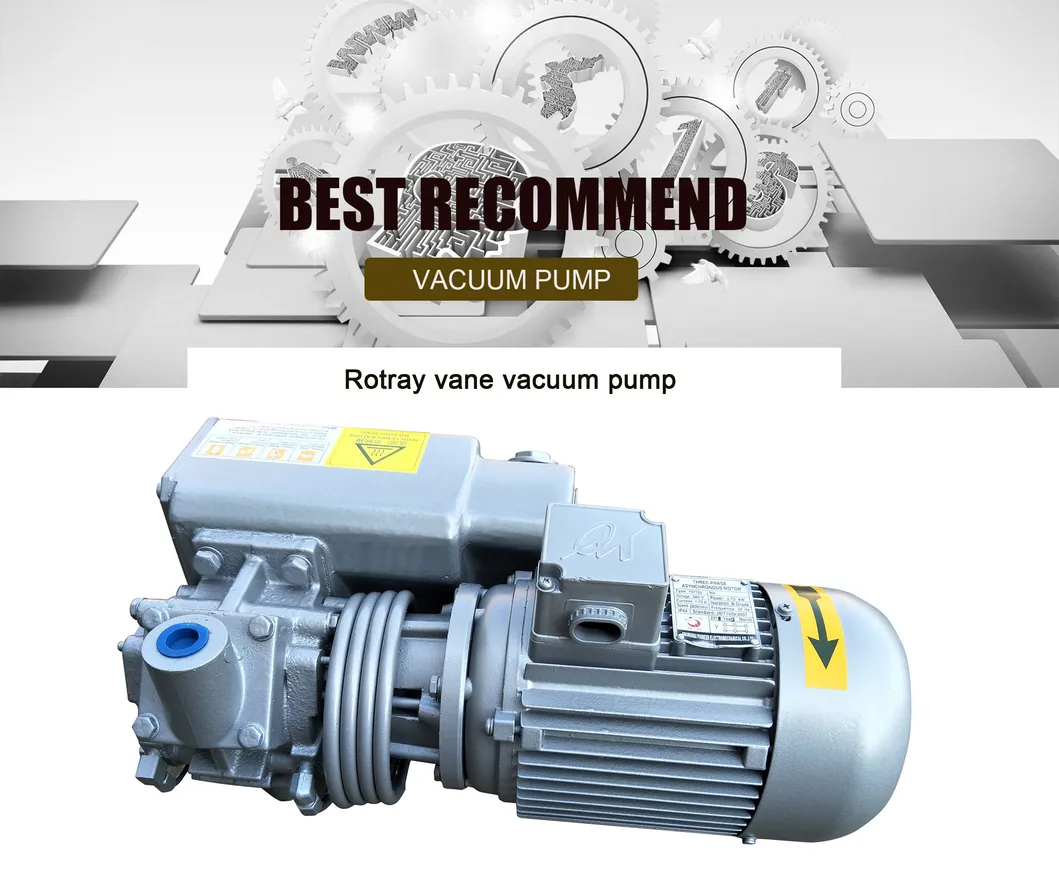

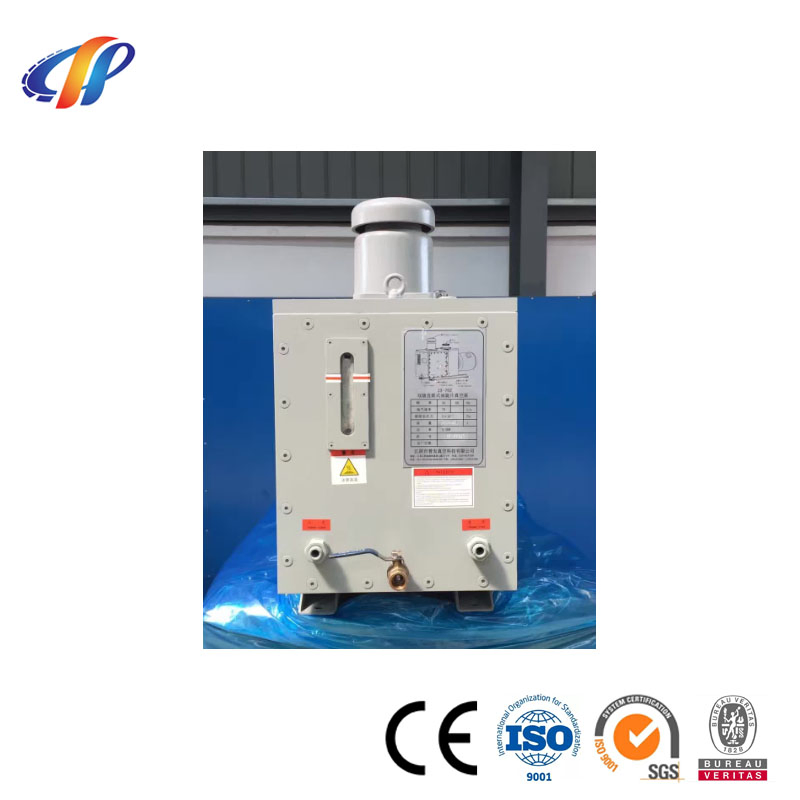

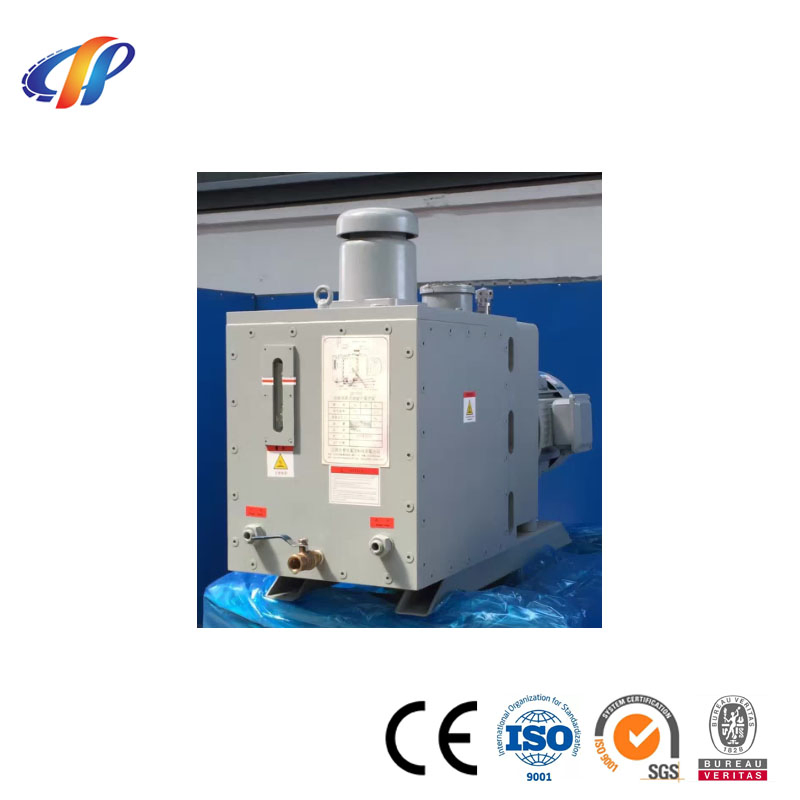

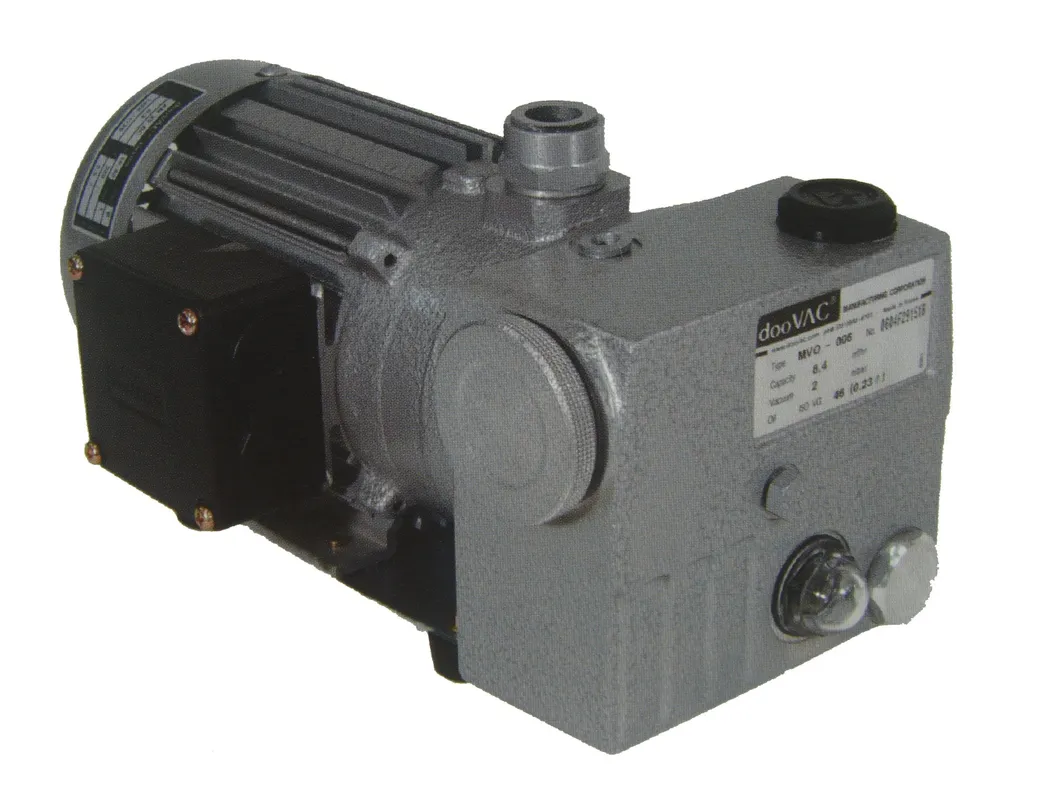

The XD series vacuum pump is a single-stage rotary vane vacuum pump with a simple structure, easy operation, and convenient maintenance. It can operate continuously within the range of 101325~10Pa (A). It is a widely used basic equipment for obtaining vacuum in various industrial processes.
| Model | XD-010 | XD-021 | XD-025 | XD-040 | XD-063 | XD-100 | XD-160 | XD-250 |
|---|---|---|---|---|---|---|---|---|
| Rated gas capacity (m3/h) | 10 | 21 | 25 | 40 | 63 | 100 | 160 | 250 |
| Extreme pressure (mbar) | 0.1 - 0.5 | |||||||
| Noise dB(A) | 61 | 62 | 62 | 64 | 65 | 66 | 65 | 81 |
| Motor power (Kw) | 0.37 | 0.75 | 1.1 | 1.1/1.5 | 1.5/2.2 | 2.2/3 | 4 | 5.5 |
| Weight (Kg) | 17 | 18 | 18 | 48 | 58 | 72 | 157 | 195 |

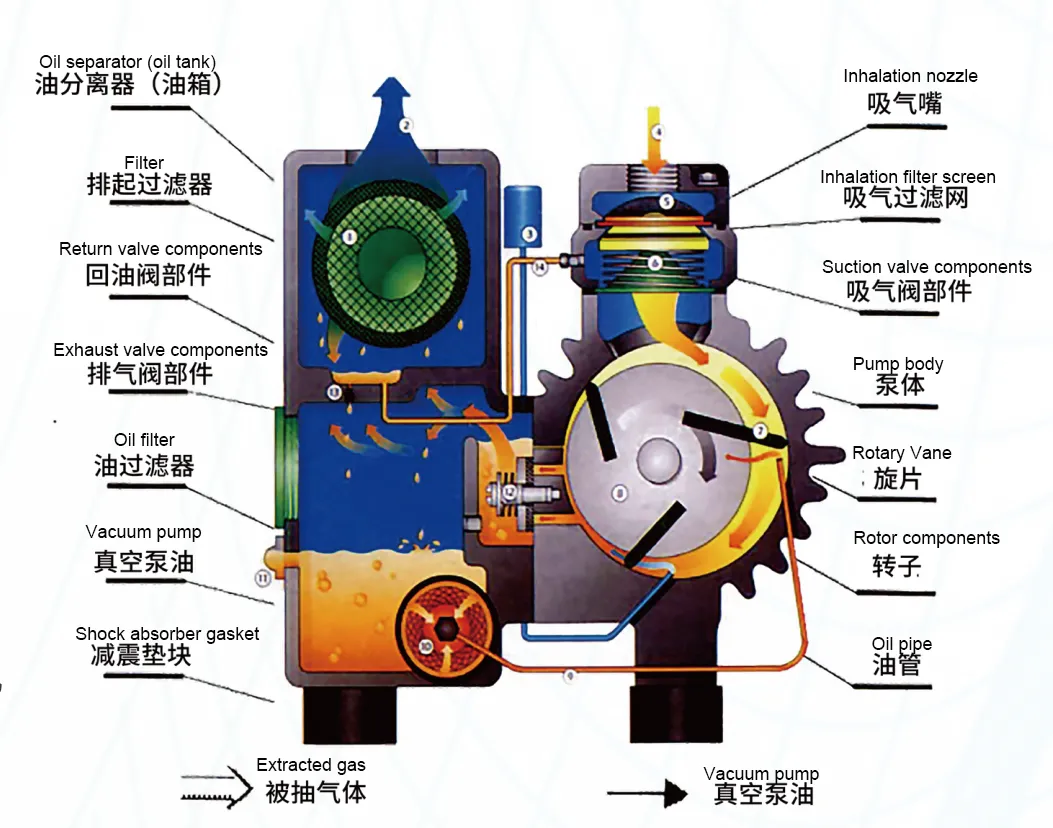

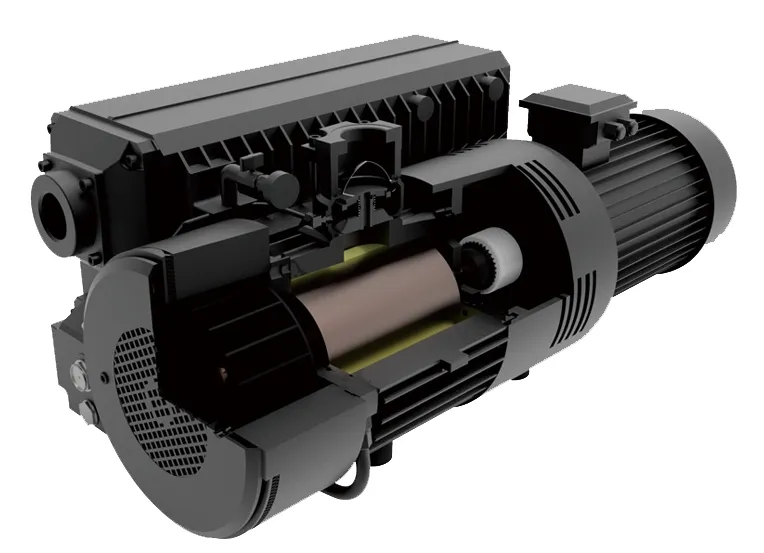

1) The eccentric rotor is installed inside the pump chamber (stator), with slots where vanes slide freely.
2) The rotor divides the internal space into three chambers; volume changes as the rotor rotates.
3) Gas entering the intake chamber is compressed and discharged through the exhaust valve.
4) Injected oil seals, lubricates, and cools. Compressed gas drives the oil to the tank for separation.
5) Float valves ensure consistent oil circulation based on pressure differences, maintaining system vacuum.
Standard Corrosion Resistance: Overcurrent components made of nickel phosphorus alloy or PTFE coating. Sealing features PTFE and labyrinth designs for chemical engineering and pharmaceutical requirements.
High-End Durability: Components made of Stainless Steel (S304/S316L) for highly corrosive environments, including the pump casing, partition, and rotor.

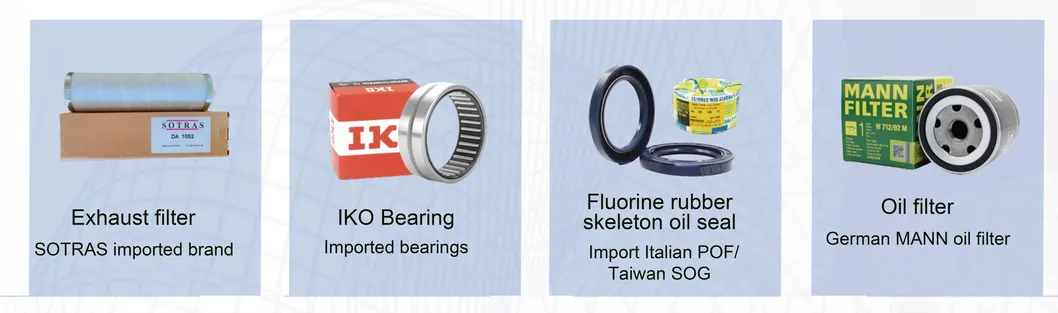

Note: Other custom materials are available upon request. Spare parts use export brands to ensure high quality.

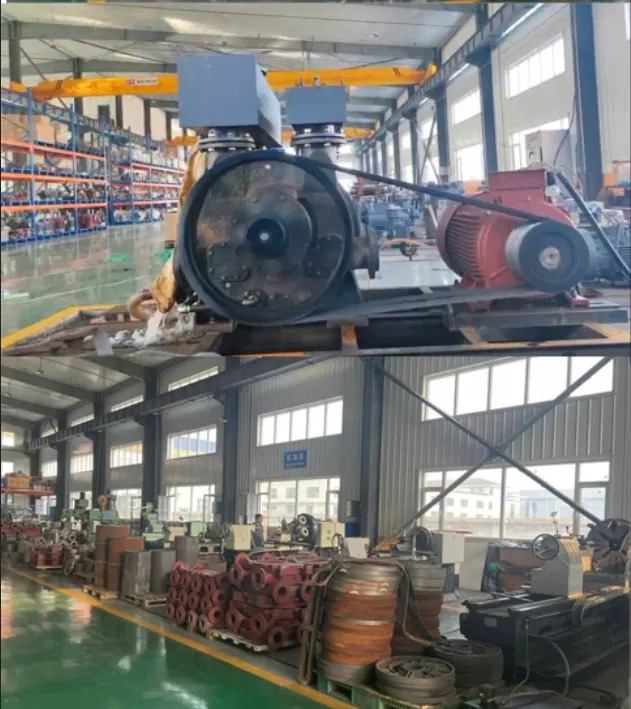

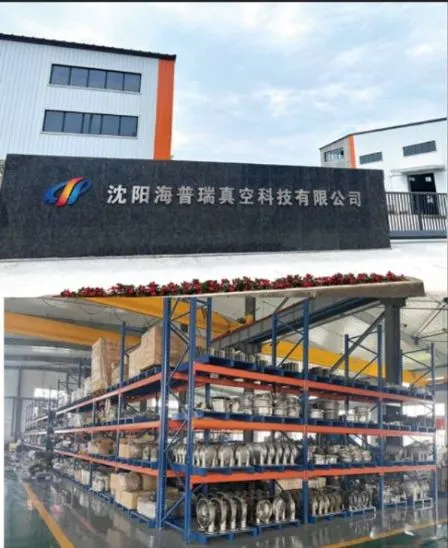

As a high-tech enterprise, we are committed to vacuum pump and vacuum equipment R&D, design, and manufacturing. With years of experience in the vacuum industry, our technical personnel continuously improve product designs to provide optimal solutions for vacuum applications across various industries. Our facilities have passed ISO9001 certification, and we hold numerous patents in vacuum technology.
