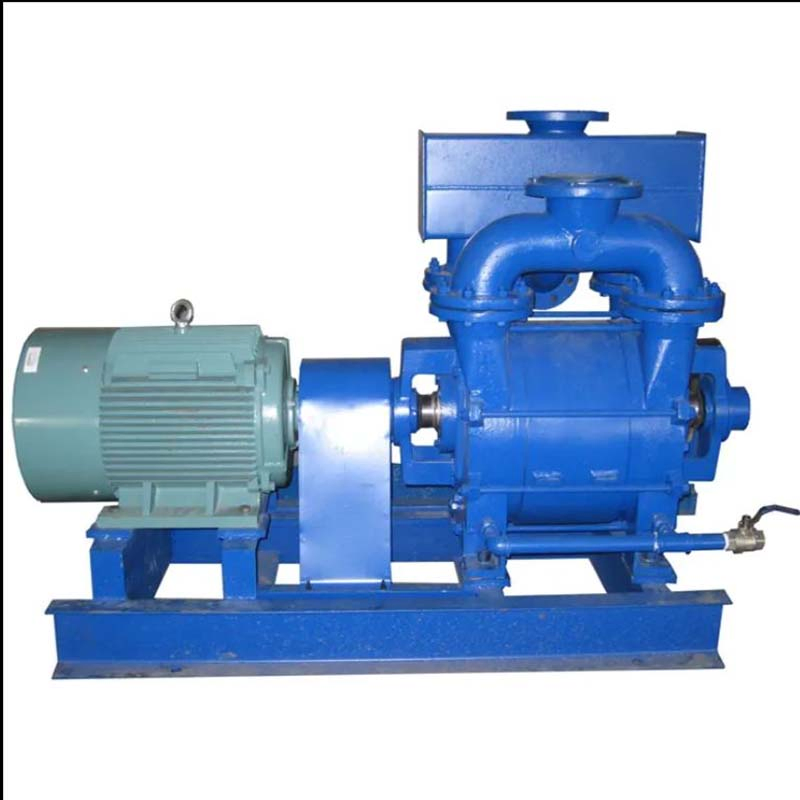

Water Ring Vacuum Pump /Dressing Vacuum Pump (2BE3)

1 / 5

Water Ring Vacuum Pump /Dressing Vacuum Pump (2BE3)

Customization:	Available
Oil or Not:	Oil Free
Structure:	Reciprocating Vacuum Pump

Send Inquiry

Product Description

📊 Basic Information

Model NO.

2BE3

Exhauster Method

Entrapment Vacuum Pump

Vacuum Degree

High Vacuum

Work Function

Vacuum Pump

Working Conditions

Wet

Color

Blue

Material

Casting Iron or SS

Connect

Belt or Direct Drive

Drive

Motor

Motor Power

110kw~900kw

Origin

China

Production Capacity

300sets/Month

📦 Packaging & Delivery

Package Size

287.00cm * 159.00cm * 151.00cm

Gross Weight

6741.000kg

Transport Package

Wooden Case

⚙️ Product Description

Water Ring Vacuum Pump / Dressing Vacuum Pump (2BE3 Series)

The 2BE1 series water ring vacuum pumps and compressors are engineered for high efficiency and economic power. Utilizing advanced integrated technology, these products feature a single-stage and single-action structure, offering a compact design, reliable operation, and convenient maintenance.

Premium Bearings: All bearings are imported brands (NSK or NTN) ensuring precise orientation and high stability during operation.

Durable Impeller: Made from QT400 nodular iron or stainless steel to ensure stability under rigorous conditions and extend pump lifetime.

Robust Casing: Constructed from steel or stainless steel plates for enhanced durability.

SS Shaft Bushing: Stainless steel shaft bushings improve the lifespan of the pump significantly compared to normal materials.

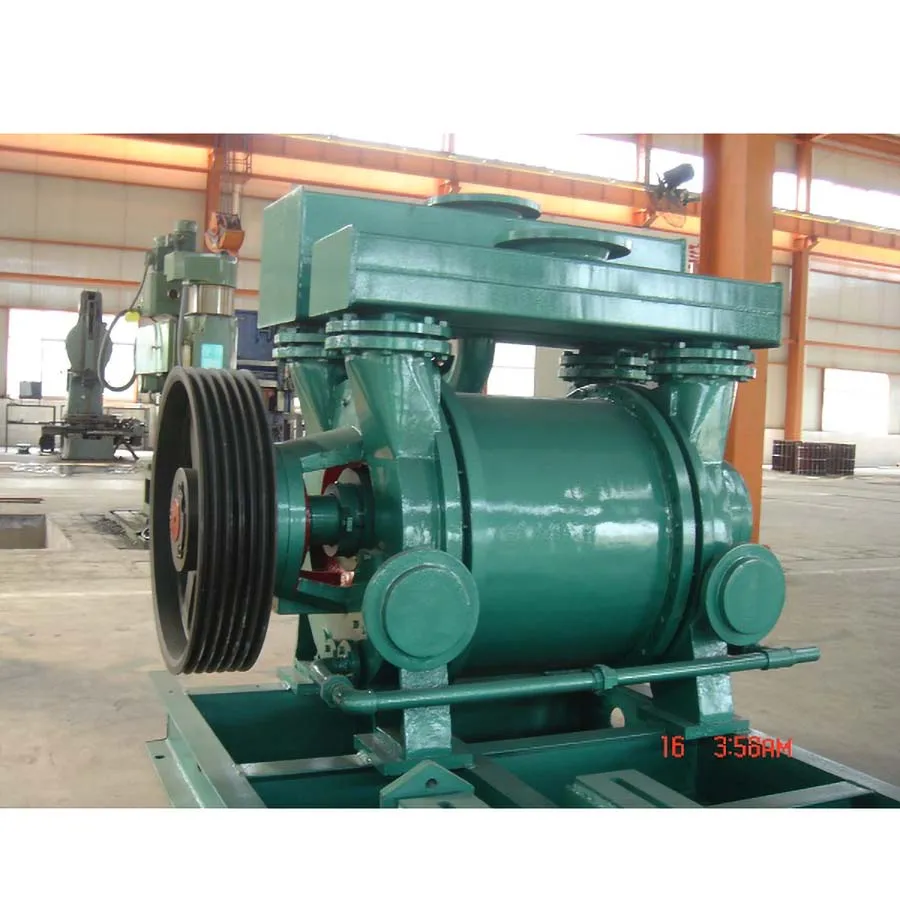

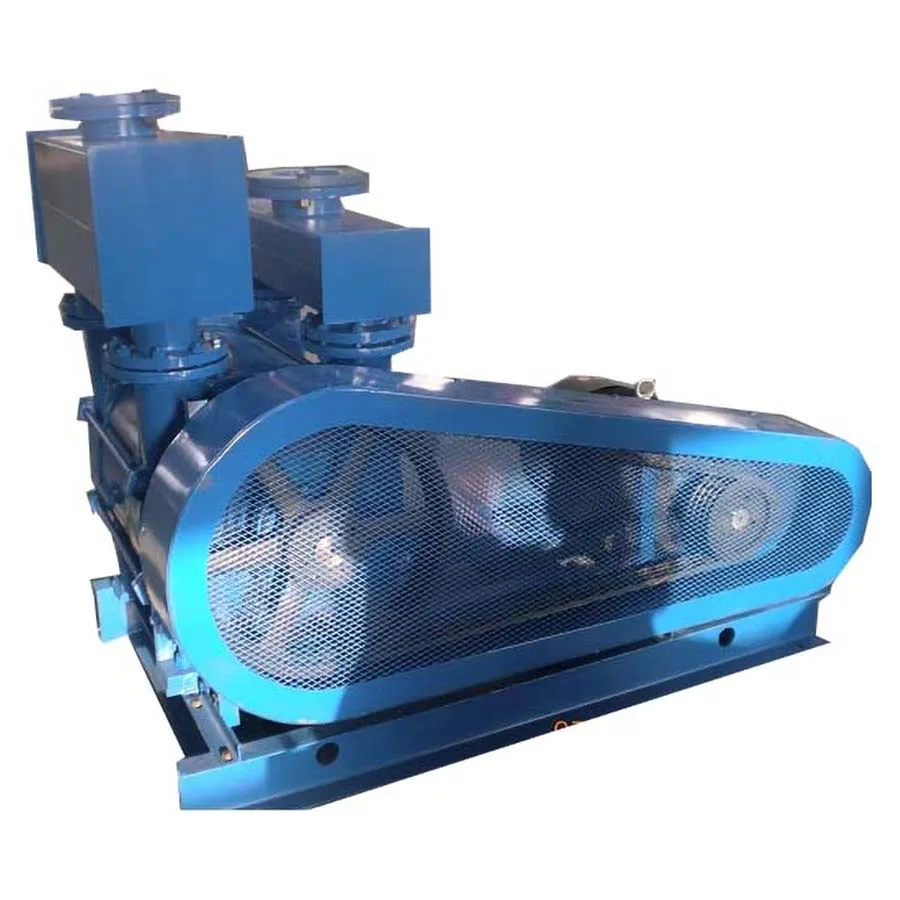

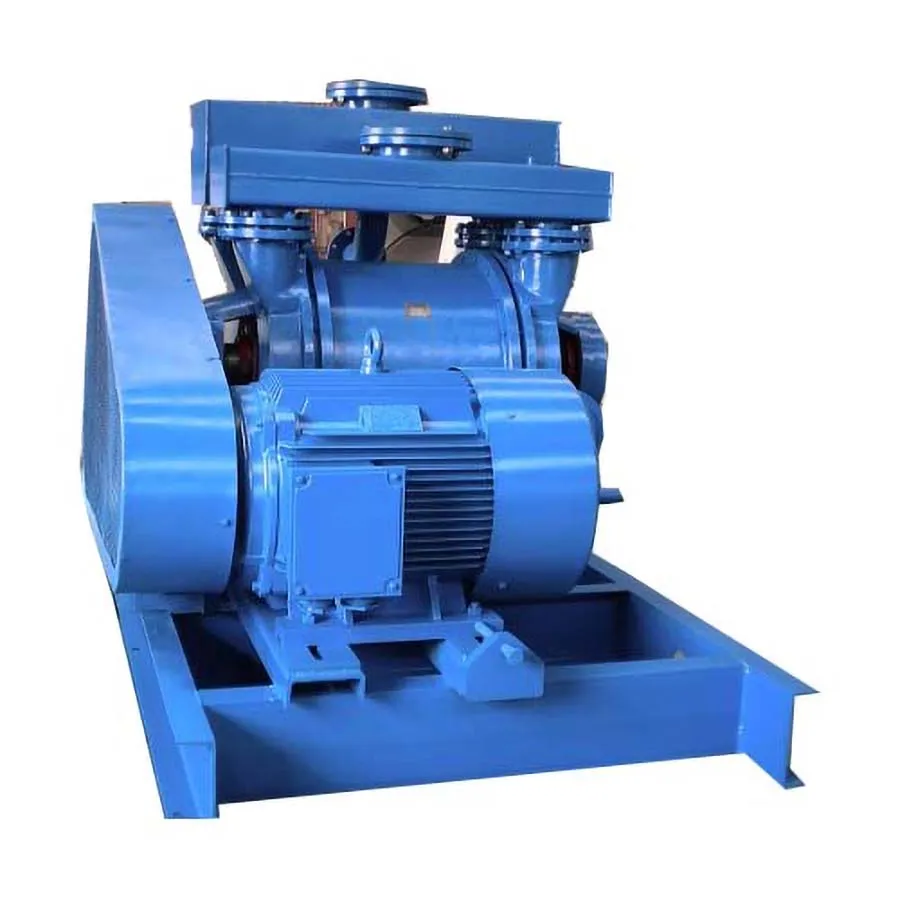

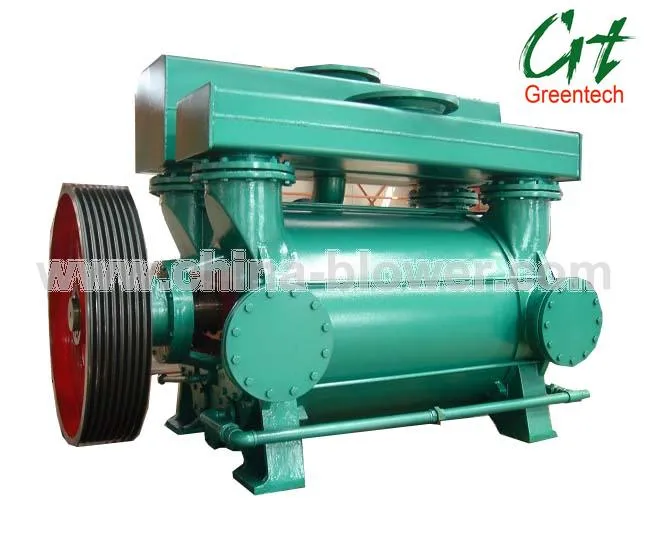

High-Precision Pulley: V-belt driven models use high-precision pulleys with taper bushings for reliability and easy maintenance.

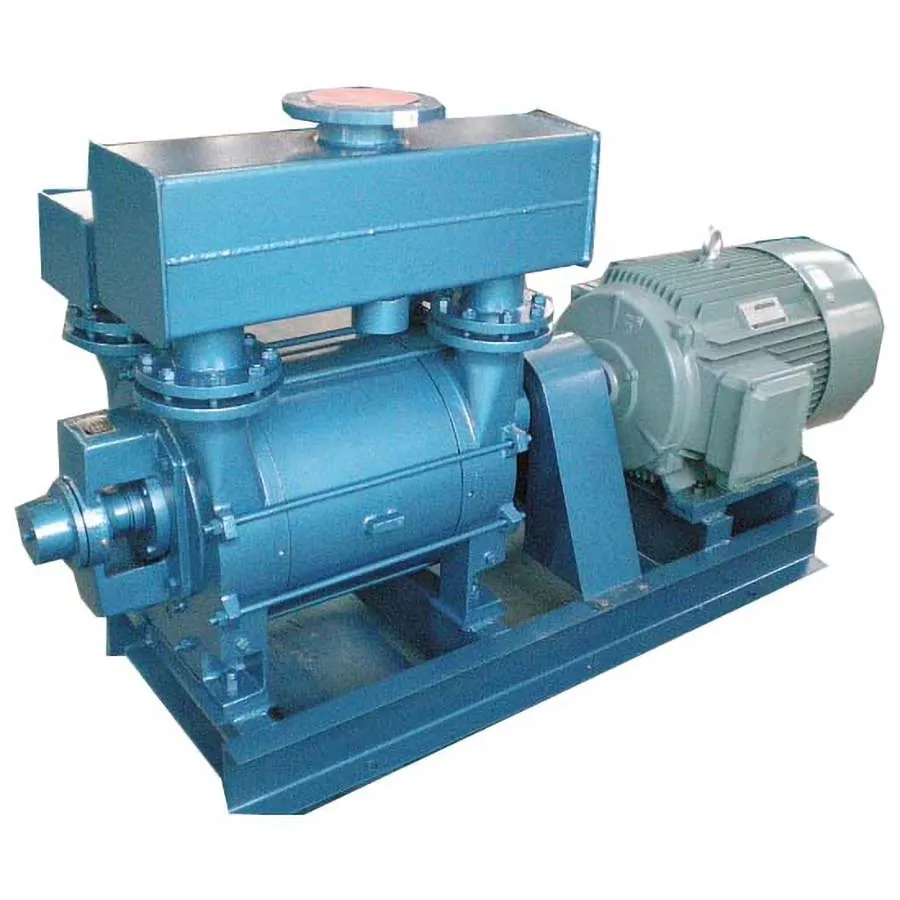

Reliable Coupling: Direct drive models utilize flexible polyurethane couplings for enhanced reliability.

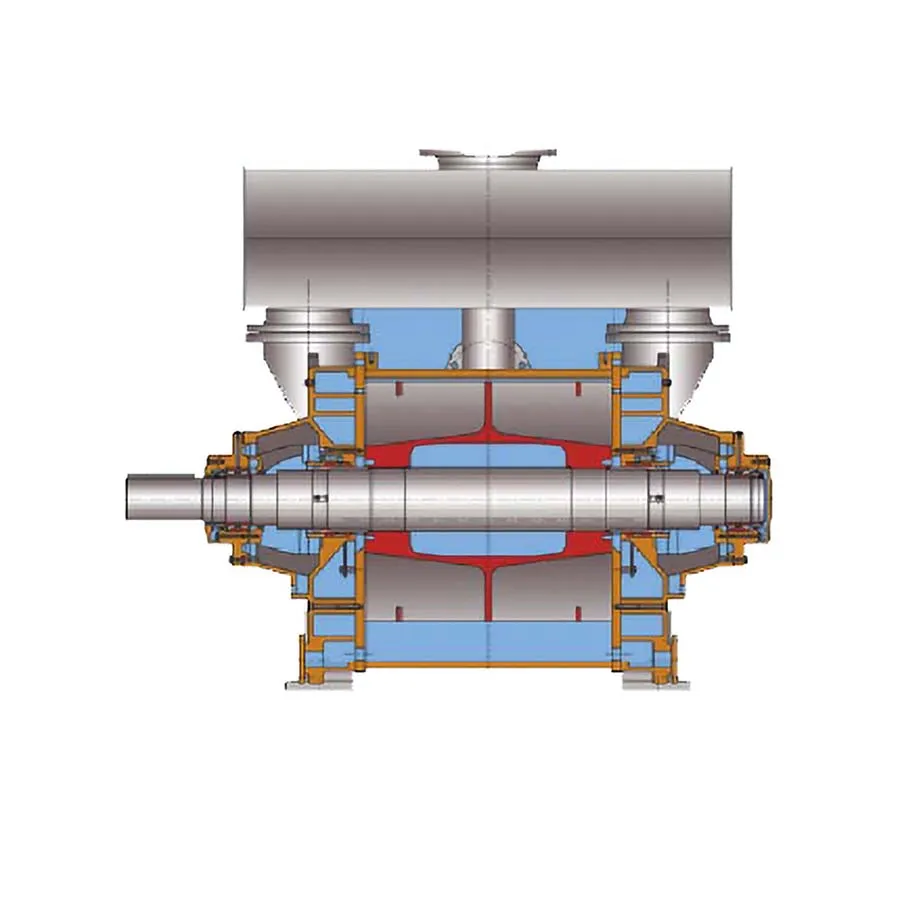

Space-Saving Design: Unique separator placement above the pump saves floor space and efficiently reduces noise.

Quality Casting: Parts are cast with resin sands for a smooth surface, providing efficient heat dissipation.

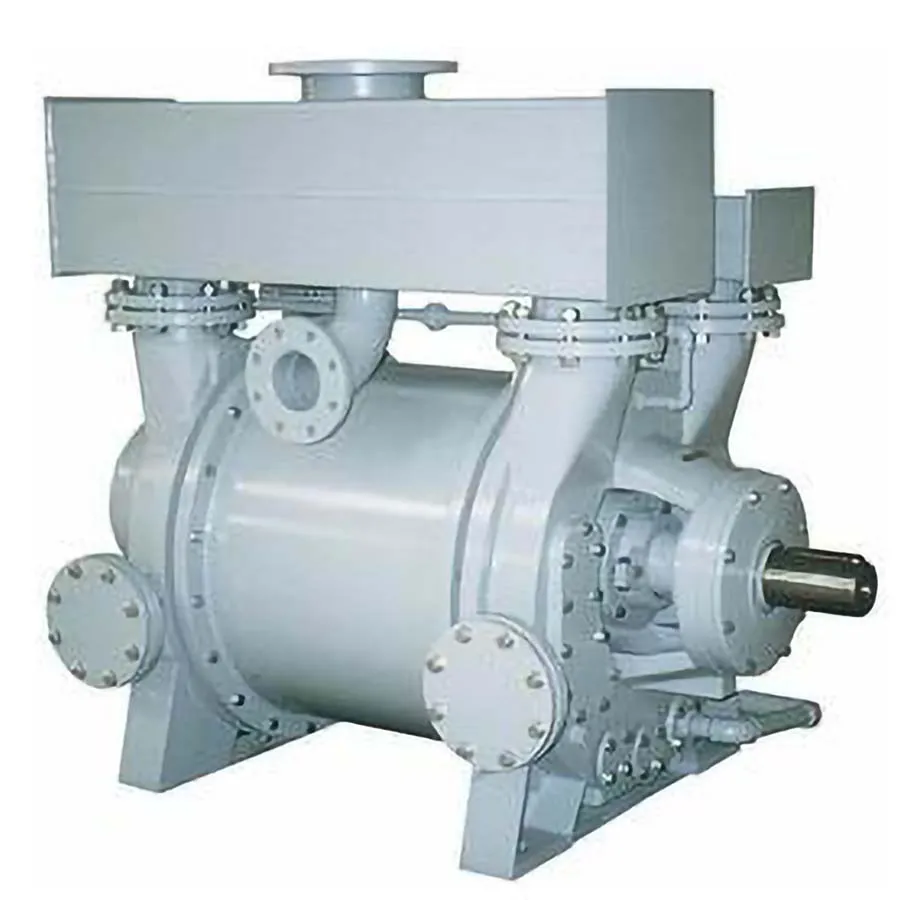

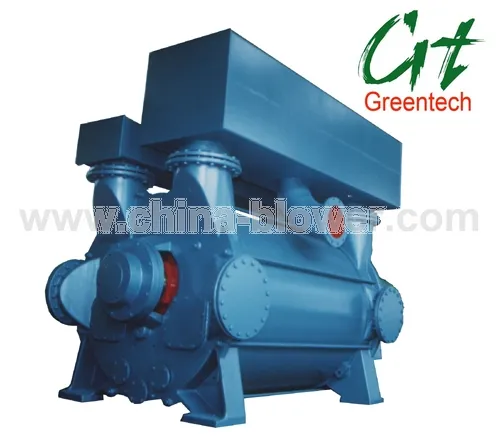

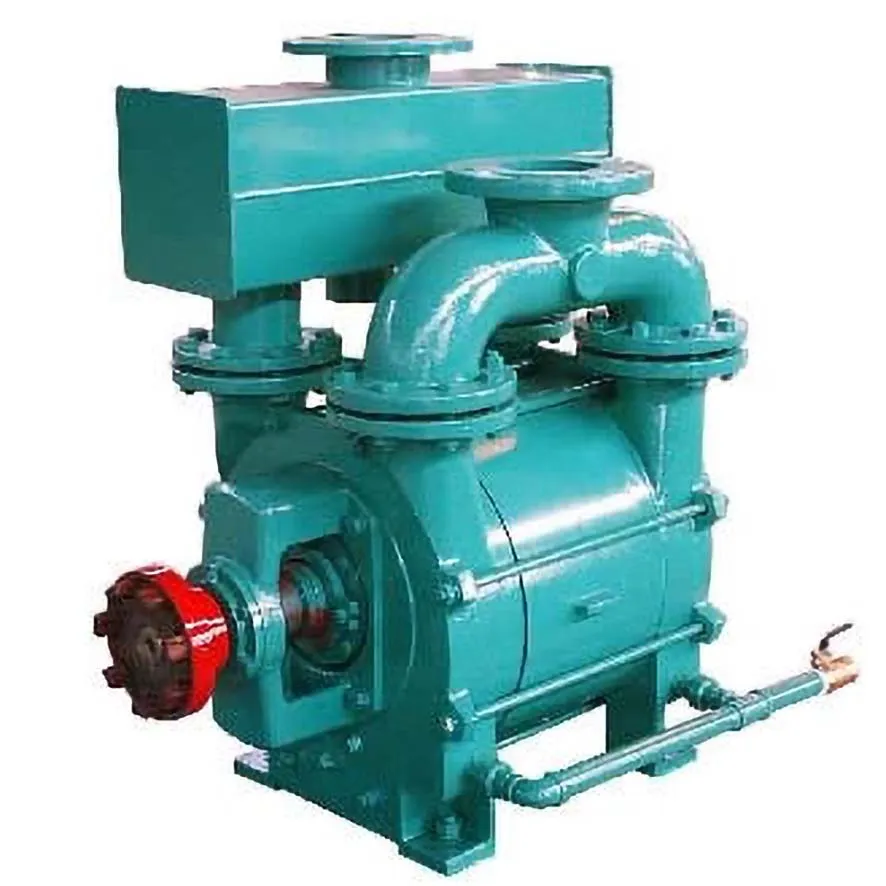

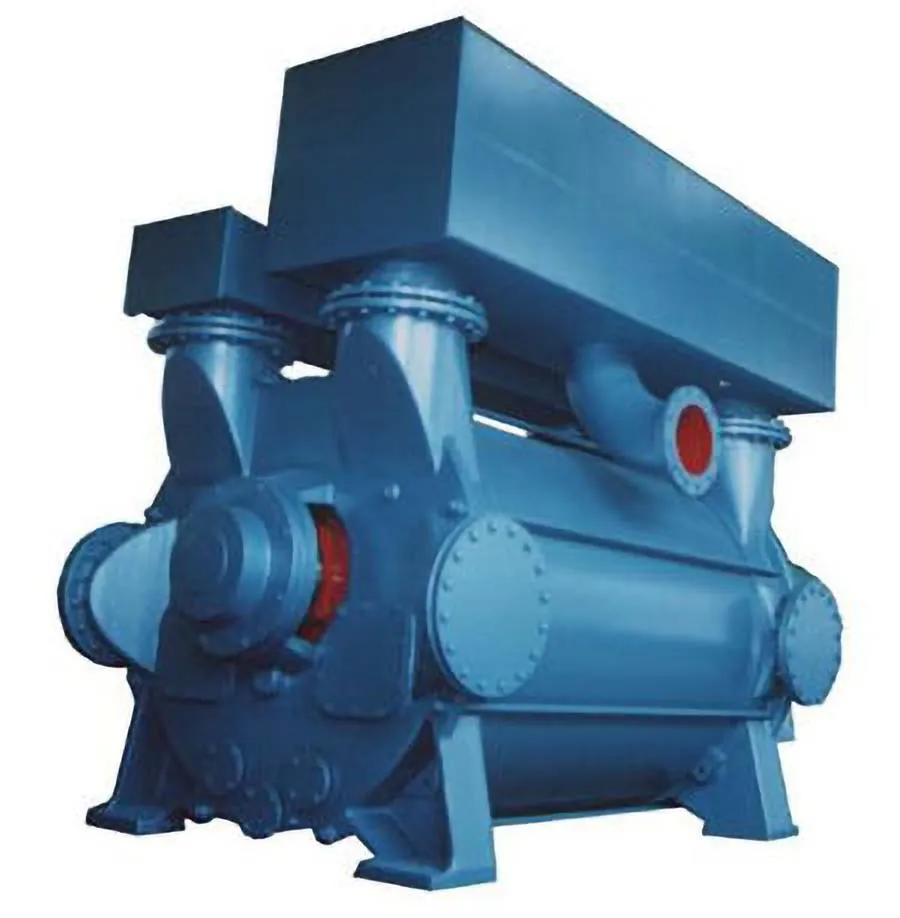

📷 Detailed Photos

📋 Product Parameters

Type	Speed (r/min)	Max Shaft Power (kW)	Motor Power (kW)	Suction Capacity (m³/h)	Suction Capacity (m³/min)	Limit Vacuum (mbar)	Weight (kg)
2BE3 400	340 - 610	82 - 189	110 - 220	4850 - 8600	80.8 - 143.3	160	3275
2BE3 420	340 - 610	108 - 260	132 - 315	6650 - 11600	110.8 - 193.3	160	3720
2BE3 500	260 - 470	142 - 338	160 - 400	8700 - 15500	145.0 - 258.3	160	6110
2BE3 520	260 - 470	172 - 412	200 - 500	10700 - 18700	178.3 - 311.7	160	6740
2BE3 600	230 - 400	205 - 465	250 - 560	12700 - 21600	211.7 - 360.0	160	9100
2BE3 620	230 - 400	250 - 570	280 - 630	15600 - 26200	260.0 - 436.7	160	10700
2BE3 720	190 - 340	345 - 795	400 - 900	21900 - 38100	365.0 - 635.0	160	15700

❓ Frequently Asked Questions

What are the main advantages of the 2BE3 series vacuum pumps?

The series offers a compact structure, high efficiency, and economic power consumption. Features like imported NSK/NTN bearings and stainless steel bushings ensure long-term reliability and low maintenance.

What materials are used for the pump impellers?

Impellers are typically made from QT400 nodular iron or stainless steel, depending on the specific application requirements and durability needs.

How does the 2BE3 pump manage noise reduction?

The pump features a unique design where the separator is positioned directly above the pump, which efficiently decreases noise while also saving installation space.

Can the pump be driven by both belt and direct connection?

Yes, the 2BE3 series supports both V-belt drive (using high-precision pulleys with taper bushings) and direct drive (using flexible polyurethane couplings).

What makes the pump casing more durable?

The casing is constructed from high-quality steel or stainless steel plates, and all parts are cast using resin sands to ensure a smooth, heat-efficient surface.

Are mechanical seals available for this series?

Yes, imported mechanical seals are optional to prevent leakage during long-term operations under rigorous conditions.
