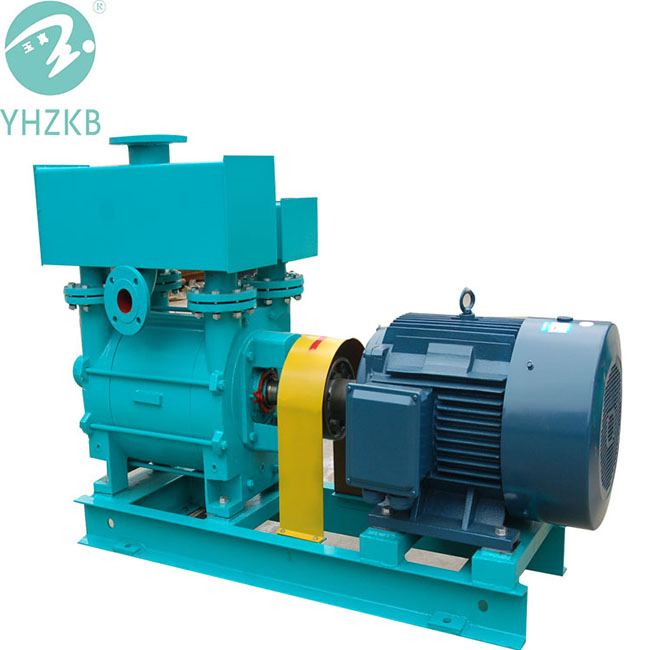

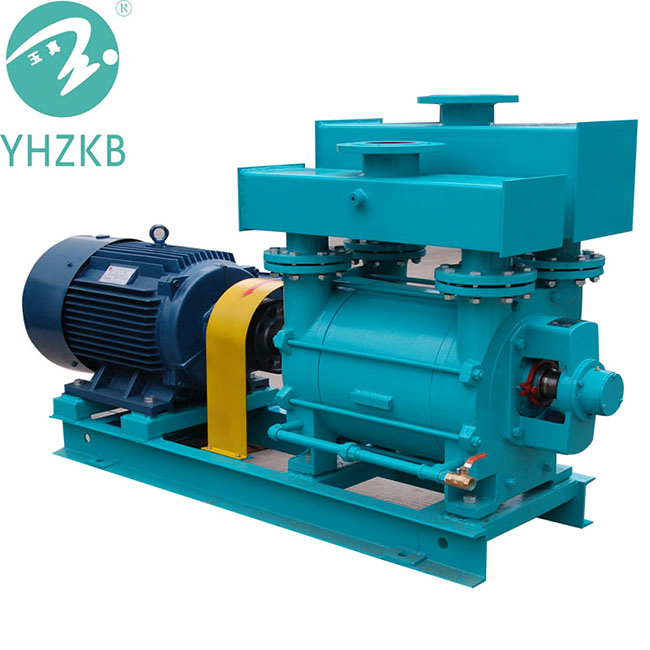

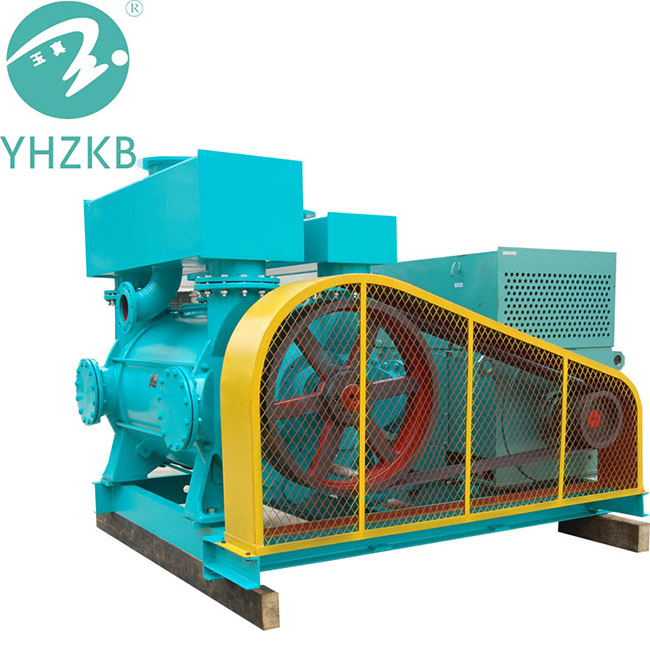

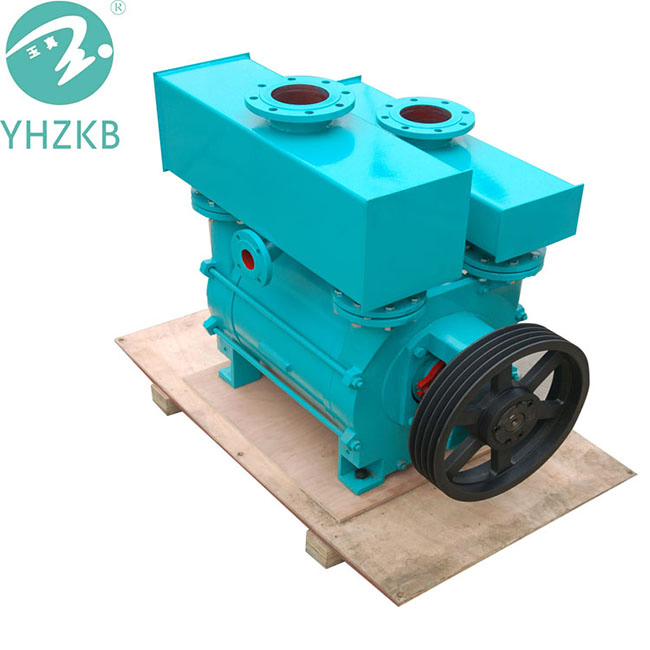

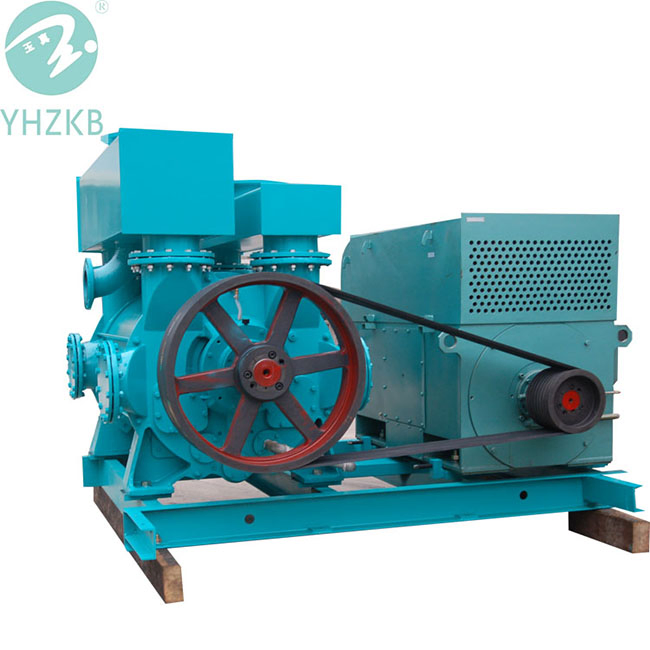

Single stage water ring vacuum pump.
Used widely at paper mill, chemical, petrification, medicines manufacture, food, metallurgy etc.
| Type | Description | Application Details | Option |
|---|---|---|---|
| SK | Thread connection | Mechanical sealed, widely used in Foodstuff, Medicine Package, Disinfectant, Printing, Dyeing, Weaving, Plastic Industry | Cast iron/SS |
| SK-A | Thread connection, coat disposal | Specially designed for Plastic Industry, coat disposal inside pump cavity, solve scaling problem in hard water | - |
| SK-C | Thread connection, coat disposal | Higher vacuum degree than SK-A | - |
| SK-D | Flange connection | Added flanged fitting based on SK-A Series | Cast iron/SS |
| SK-E | Flange connection, higher vacuum | Higher vacuum degree than SK-D | - |
| 2SK-B | Two stage liquid ring | Two-stage Strap drived, High Ultimate Vacuum, Energy-saving, Low Noise. | Cast iron/SS |
| 2BEA/2BEC | Medium/big size liquid ring | Used widely at paper mill, chemical, petrification, medicines manufacture, food, metallurgy etc | Cast iron/SS |
| Type of Pump | Speed (r/min) | Motor Power (Kw) | Limit Vacuum (hpa) | Max Gasm (m³/h) | Weight (Kg) |
|---|---|---|---|---|---|
| 2BEA103 | 1450 | 11 | 33 | 340 | 125 |
| 2BEA153 | 1450 | 18.5 | 33 | 600 | 190 |
| 2BEA202 | 980 | 22 | 33 | 750 | 450 |
| 2BEA203 | 980 | 37 | 33 | 1120 | 510 |
| 2BEA252 | 660 / 740 | 37 / 45 | 33 | 1540 / 1680 | 810 |
| 2BEA303 | 472 - 740 | 55 - 110 | 33 | 2560 - 4000 | 1400 |
| 2BEA403 | 372 - 530 | 110 - 220 | 33 | 5680 - 8120 | 3300 |
| 2BEA505 | 298 - 420 | 160 - 250 | 160 | 8800 - 11820 | 5100 |
| 2BEA705 | 210 - 298 | 315 - 500 | 160 | 17500 - 23850 | 11500 |
