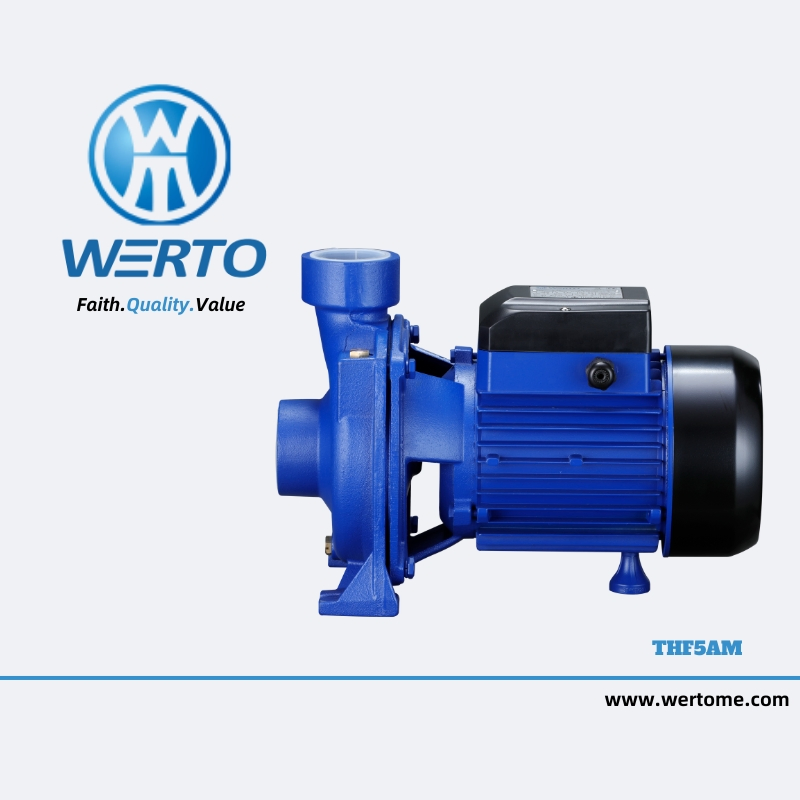

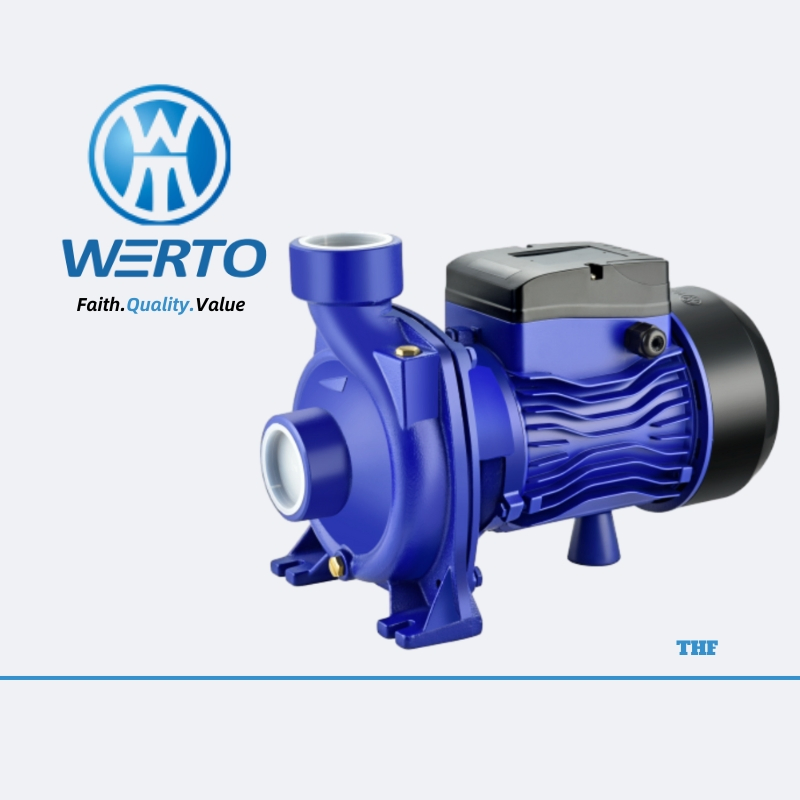

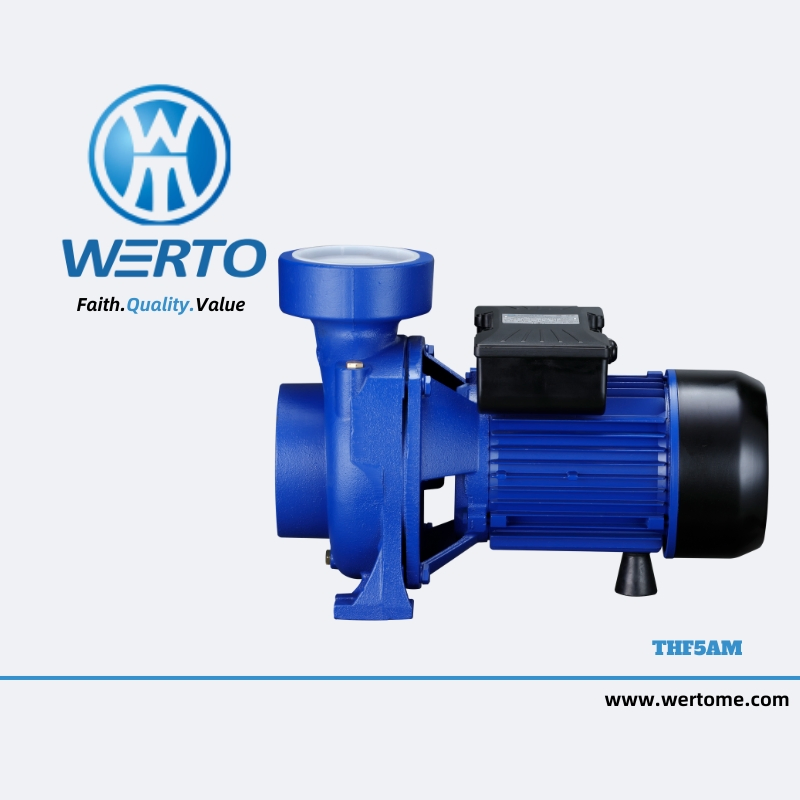

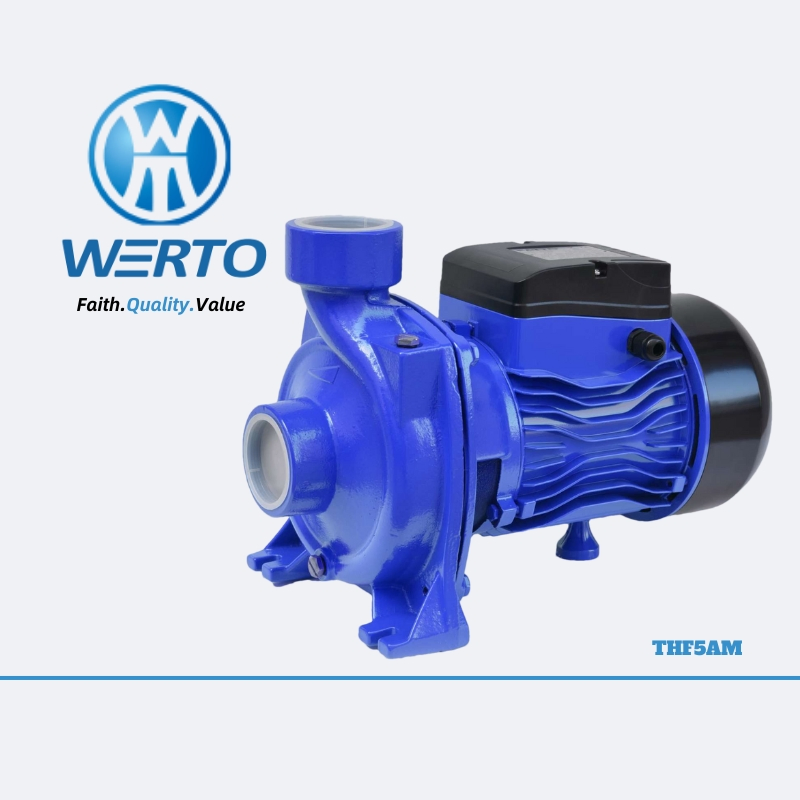

Suitable for use in civil and agricultural applications. The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and middle to low head are required.
Installation Note: The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

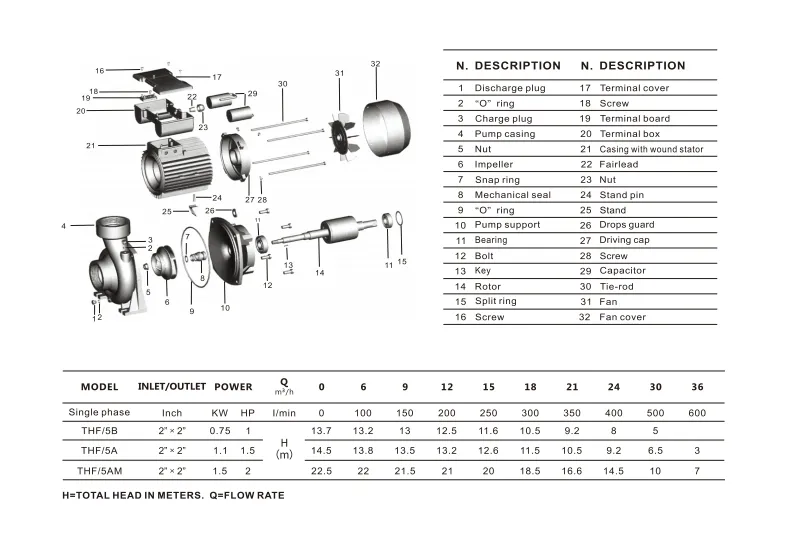

| COMPONENT | CONSTRUCTION CHARACTERISTICS |
|---|---|
| PUMP BODY | Cast iron |
| PUMP SUPPORT | Cast iron |
| MOTOR HOUSING | Aluminum |
| IMPELLER | Brass |
| MOTOR SHAFT | Carbon steel (AISI304SS on request) |
| MECHANICAL SEAL | Ceramic/Graphite |
| BEARINGS | 6203 RZ/6202 RZ (1HP), 6204 RZ/6204 RZ (1.5HP & 2HP) |
| BEARINGS (Large) | 6205 RZ/6204 RZ (3HP), 6305 RZ/6205 RZ (4HP & 5.5HP) |
