| Model NO. | 65QV-SP |
|---|---|
| Driving Type | Motor |
| Impeller Number | Single-Stage Pump |
| Working Pressure | High Pressure Pump |
| Influent Type | Single Suction Pump |
| Shaft Position | Vertical Pump |
| Pump Casing | Verticaljoint Surface Pump |
| Mounting Height | Since Irrigation Centrifugal Pumps |
| Impeller Type | Closed |
| Usage | Slurry Pump, Condensate Pump, Circulating Pump, Sludge Pump |
| Size | 65mm |
| Capacity | 18-113m3/H |
| Head | 5-31.5m |
| Max. Power | 15kw |
| Handing Solids | 15mm |
| Speed | 700-1500rpm |
| Submerged Length | 900-2800mm |
| Materials | High Chrome Alloy, Rubber, Polyurethane etc |
| Transport Package | Wooden Case |
| Origin | China |

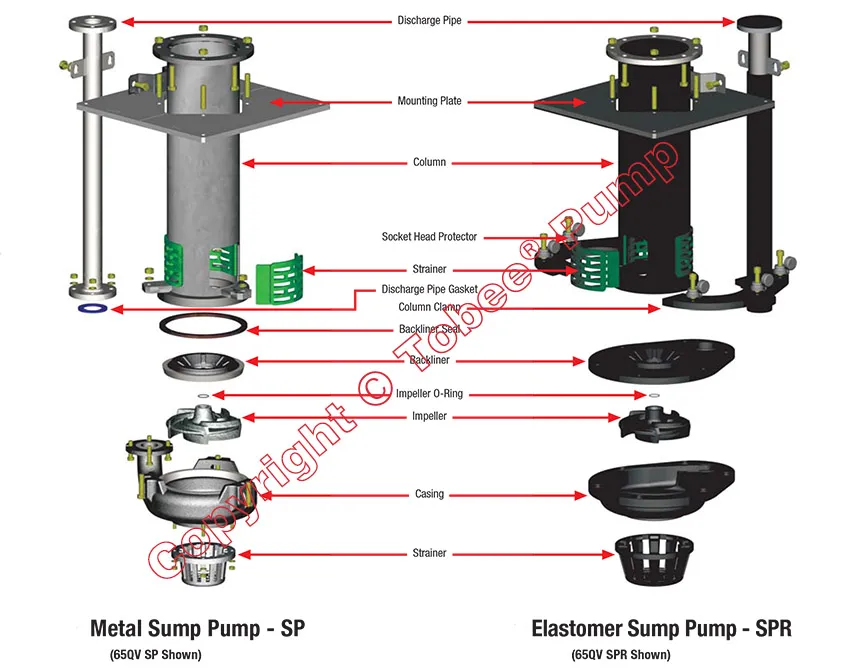

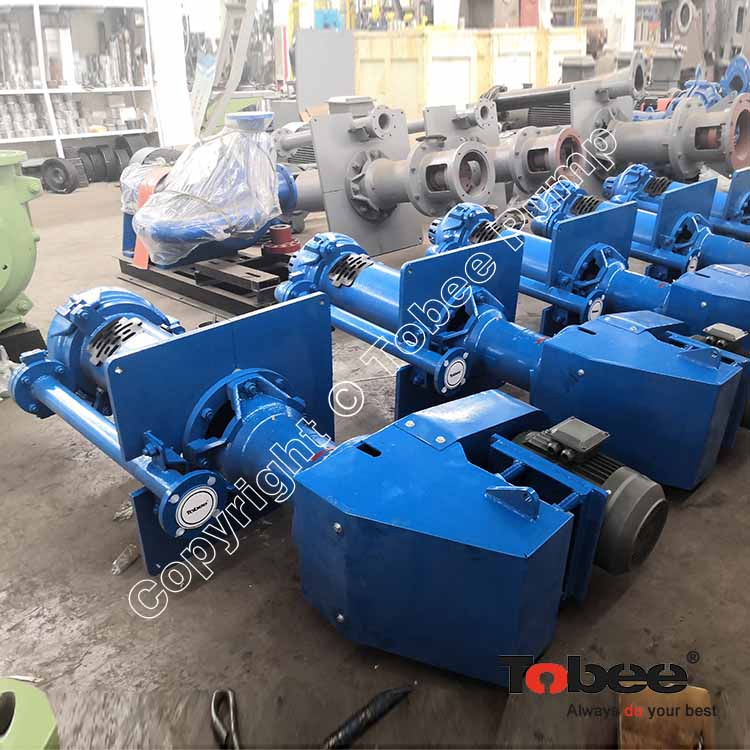

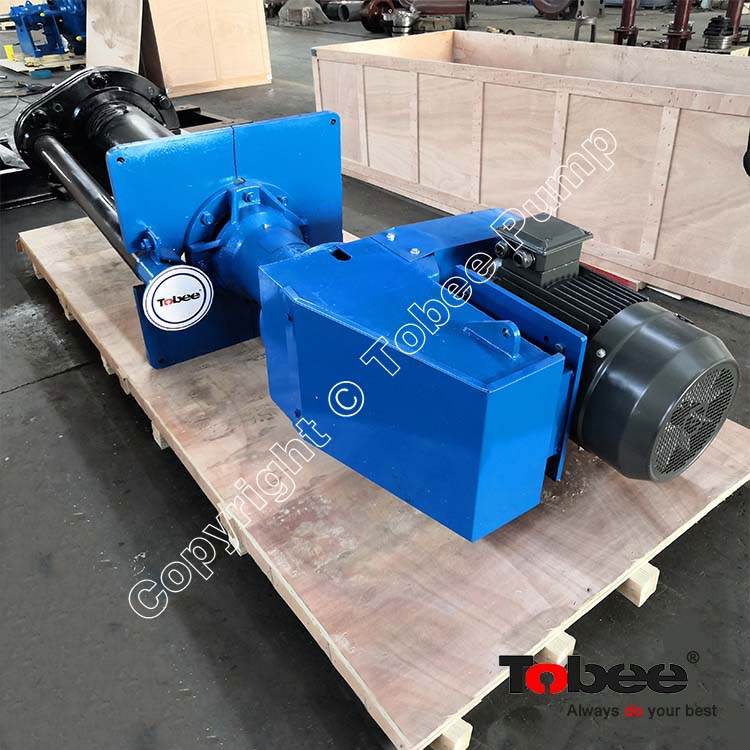

Our industrial centrifugal electric vertical spindle pump is available in various standard lengths to suit common sump depths. For very deep sumps or where high shaft speeds limit the length of the pump, a suction extension pipe can be fitted to the bottom inlet to extend the depth of the pump by up to 2 meters. Pumping is maintained even when the top inlet is not submerged, enabling the level of liquid to be lowered right down to the bottom inlet.
| Model | Power (kw) | Capacity (m3/h) | Head (m) | Speed (r/min) | Eff. (%) | Impeller Dia (mm) | Max. Solids (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40PV-SP(R) | 1.1-15 | 7.2-29 | 4-28.5 | 1000-2200 | 40 | 188 | 12 | 300 |
| 65QV-SP(R) | 3-30 | 18-113 | 5-31.5 | 700-1500 | 60 | 280 | 15 | 500 |
| 100RV-SP(R) | 5.5-75 | 40-289 | 5-36 | 500-1200 | 62 | 370 | 32 | 920 |
| 150SV-SP(R) | 11-110 | 108-576 | 8.5-40 | 500-1000 | 52 | 450 | 45 | 1737 |
| 200SV-SP(R) | 15-110 | 180-890 | 6.5-37 | 400-850 | 64 | 520 | 65 | 2800 |
| 250TV-SP(R) | 18.5-200 | 261-1089 | 7-33.5 | 400-750 | 60 | 575 | 65 | 3700 |

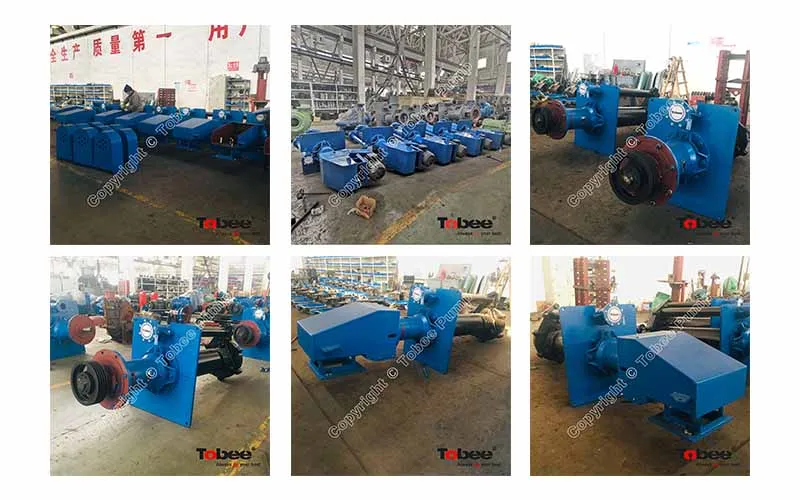

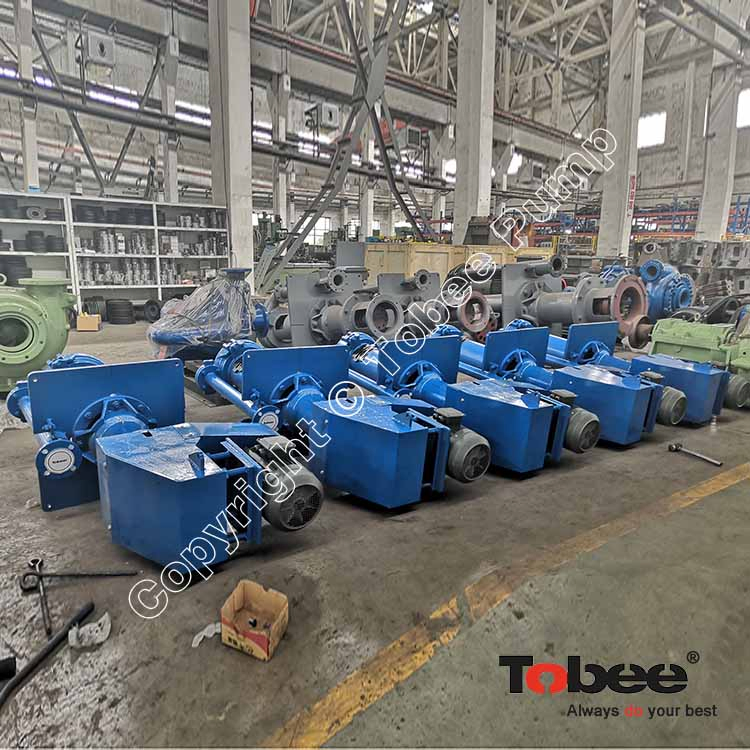

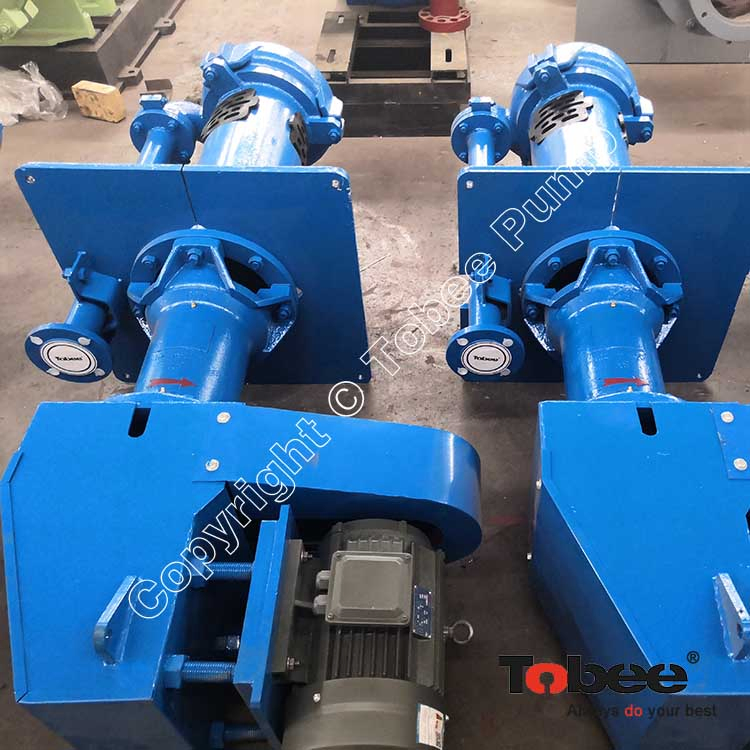

Our vertical slurry pumps are proving their reliability and efficiency worldwide in: minerals processing, coal preparation, chemical processing, effluent handling, sand and gravel and almost every other tank, pit or hole-in-the ground slurry handling situation. The design with either hard metal or elastomer covered components makes it ideal for abrasive and corrosive slurries.

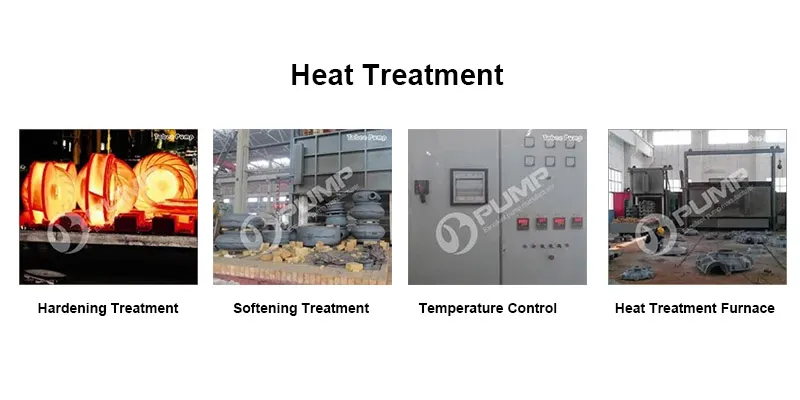

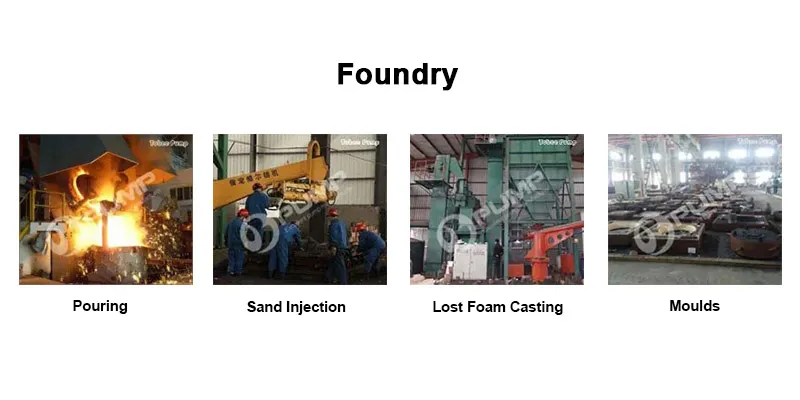

With over 45 years of machinery manufacturing experience and more than 30 years in pump R&D, our production capacity surpasses 10,000 units annually. We utilize sophisticated equipment such as CNC, Spectrometers, and CMM to ensure precision casting, welding, and assembly.
