Product Description

📋 Basic Information

Model NO.SRV0063

Exhauster MethodKinetic Vacuum Pump

Pumping Speed63m3/H

Nominal Motor Rating2.2kw

Ultimate Pressure0.1mbar

Oil Volume2 L

Sound Level63dB(a)

Weight55kgs

CertificationISO9001:2015, CE, RoHS

OriginChina

🔍 Product Overview

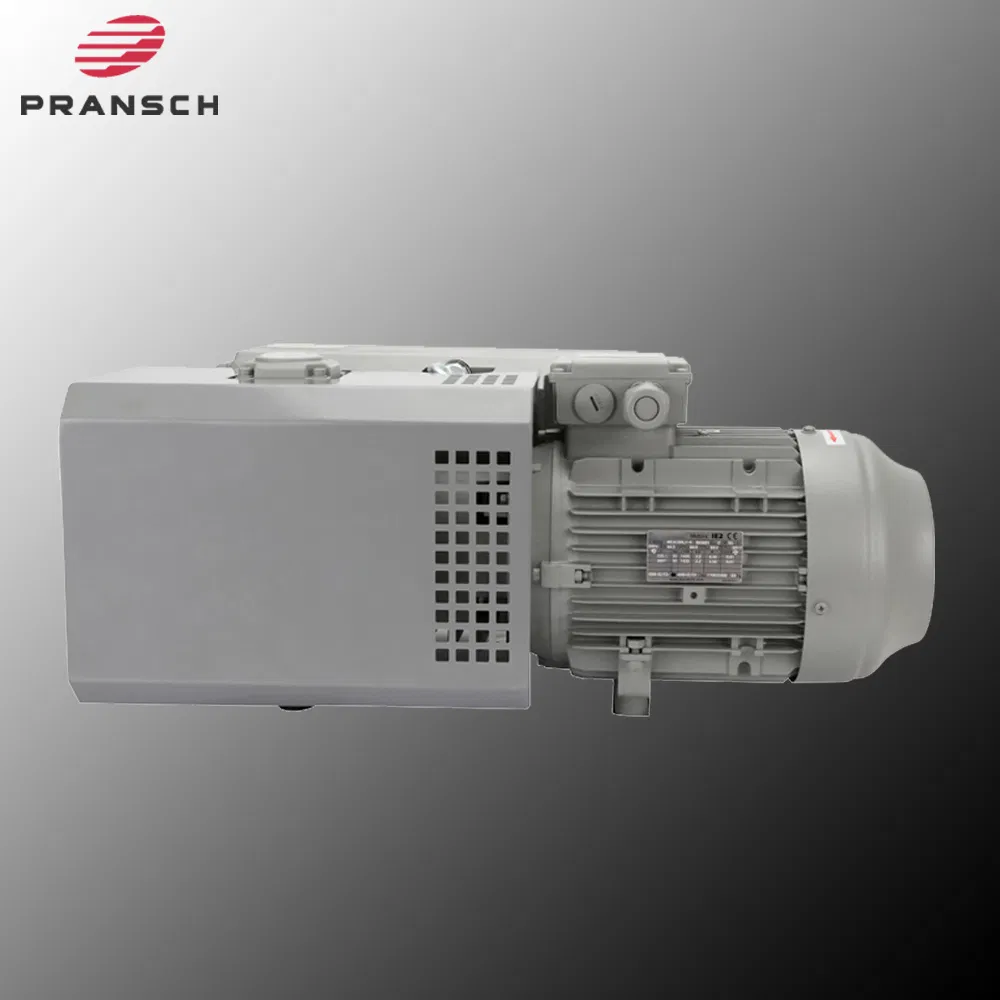

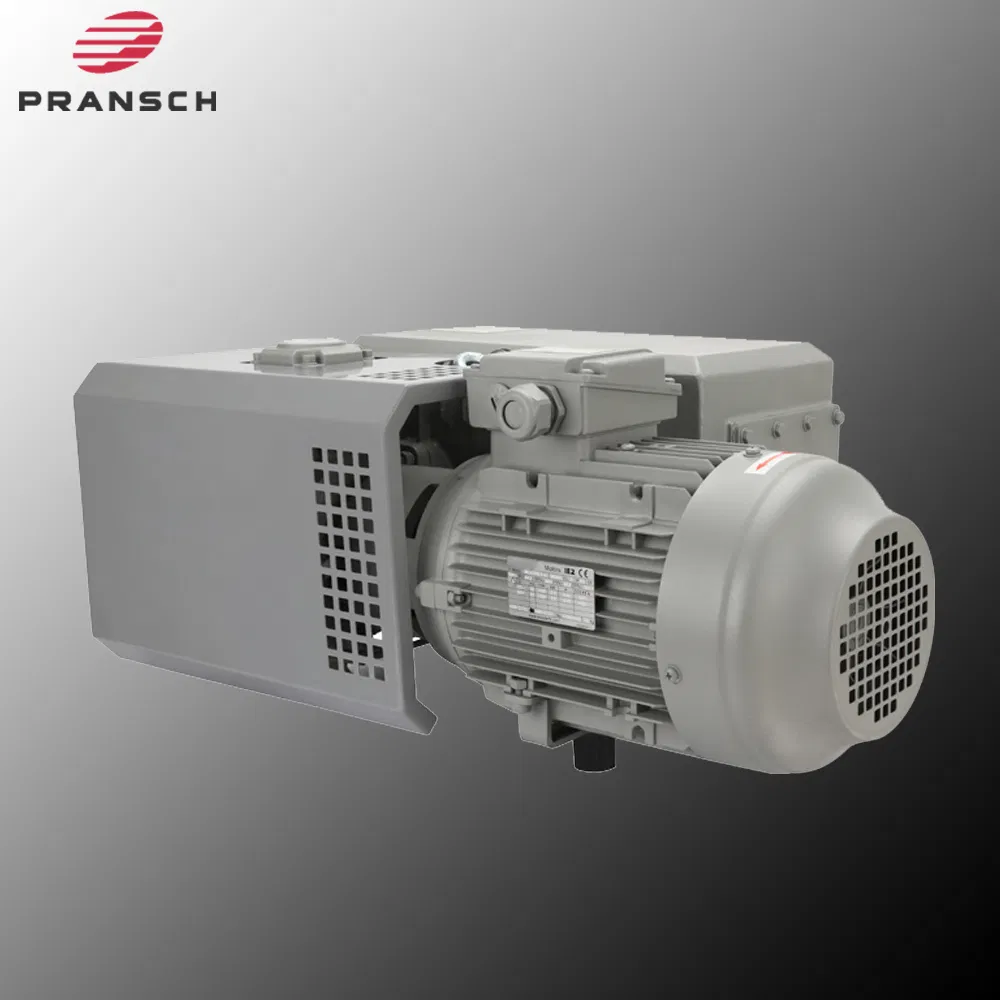

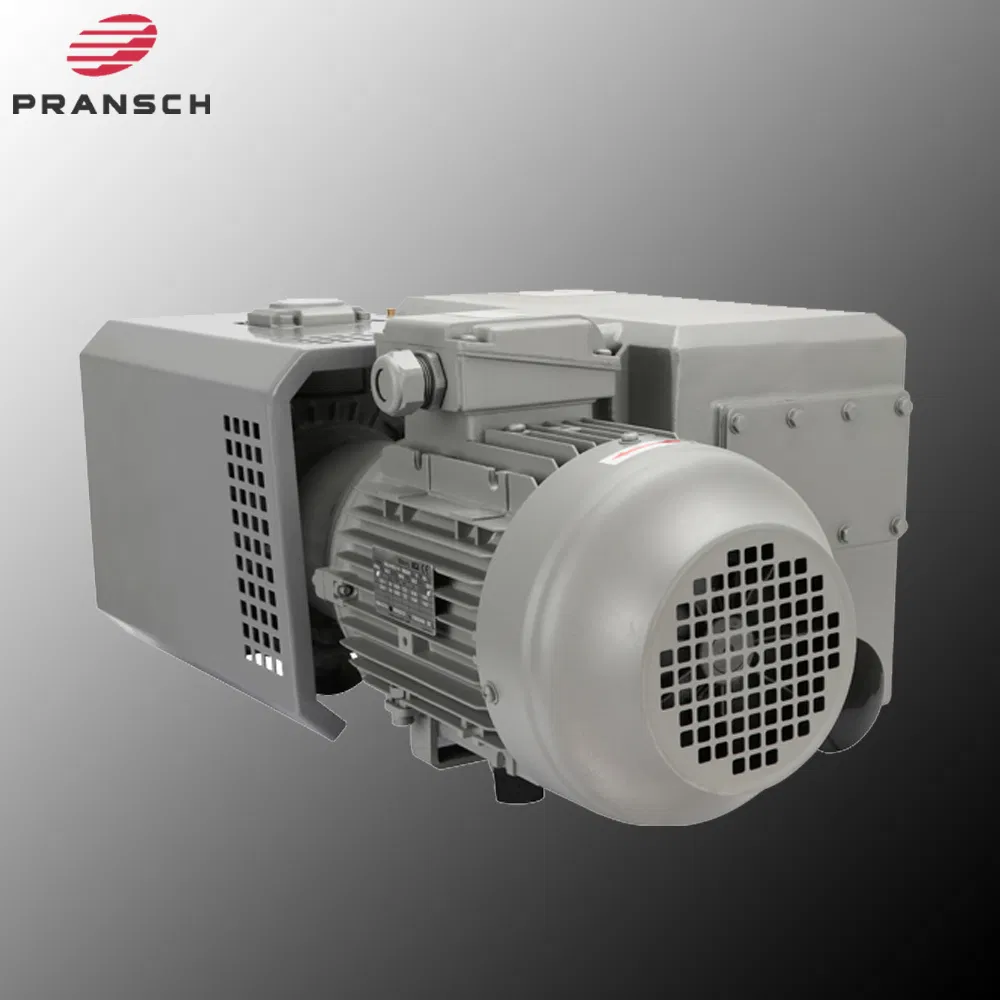

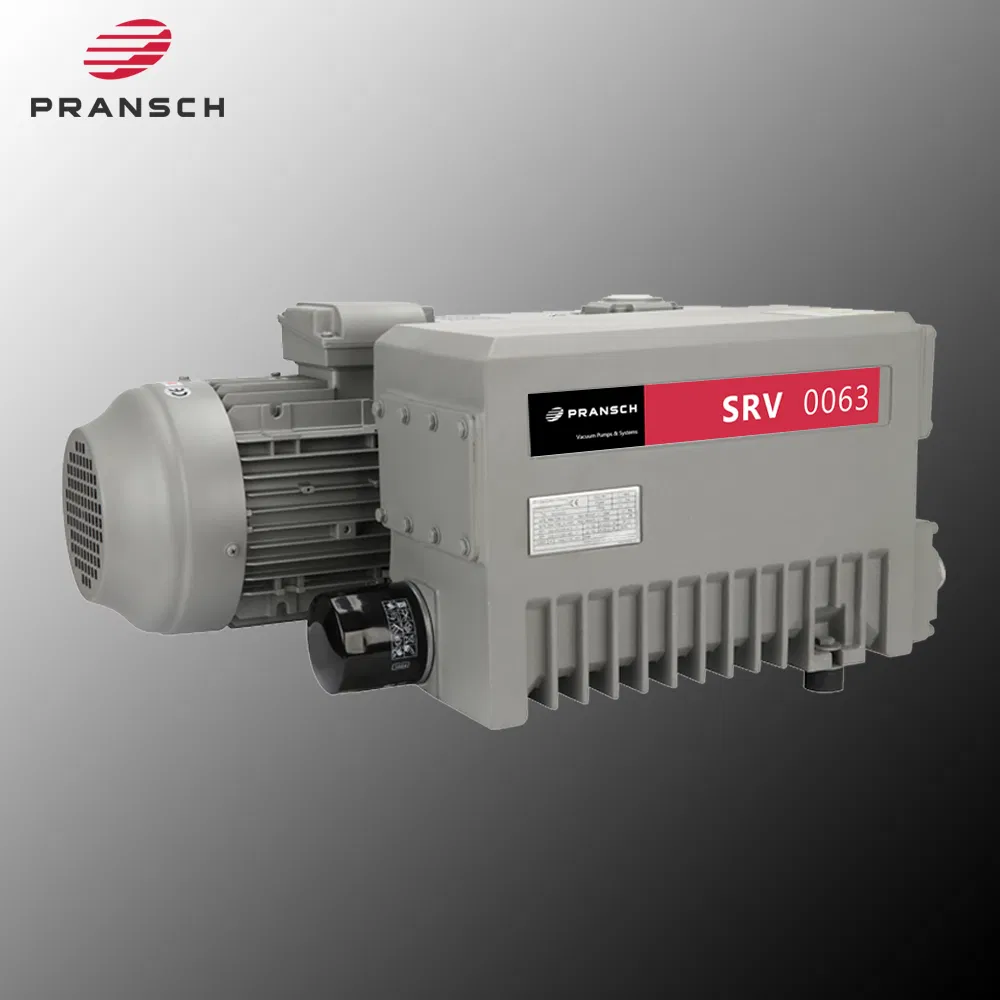

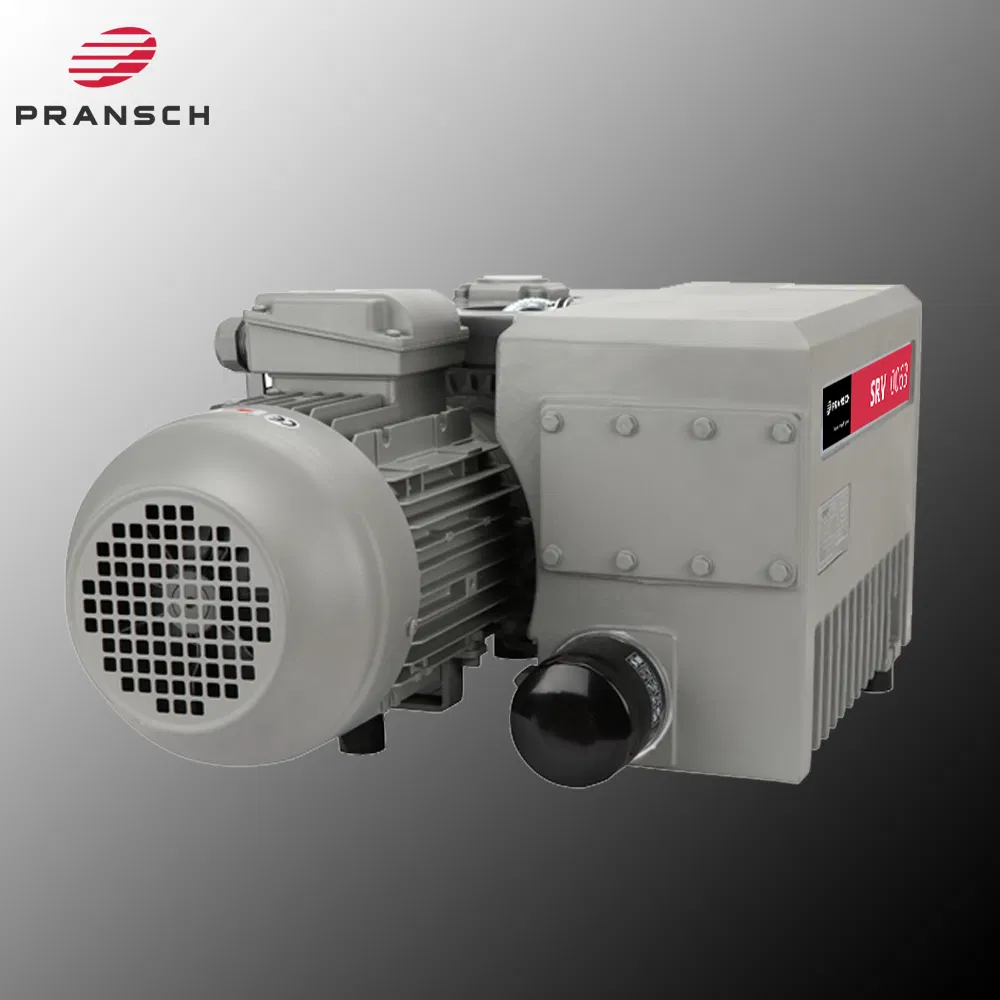

SRV0063 Single Stage, Oil-lubricated rotary vane vacuum pump

Air rotary vane pumps have been the most popular choice for generating low and medium vacuum for many years. These units are sturdy and designed for a long service life, whether used as backing pumps for turbopumps or as standalone units. As displacement pumps, they provide a virtually steady low-pulsation suction volume flow. The principle involves an eccentrically supported rotor revolving in a housing with movable vanes. Oil lubrication ensures insulation and lubrication of components, resulting in very low final pressures and extended operational life.

⭐ Key Features

Powerful performance for diverse industrial applications.
Three-phase universal motor for worldwide network compatibility.
Integrated oil mist separator with a high degree of separation.
Special vane material engineered for a long service life.

📊 Technical Specifications

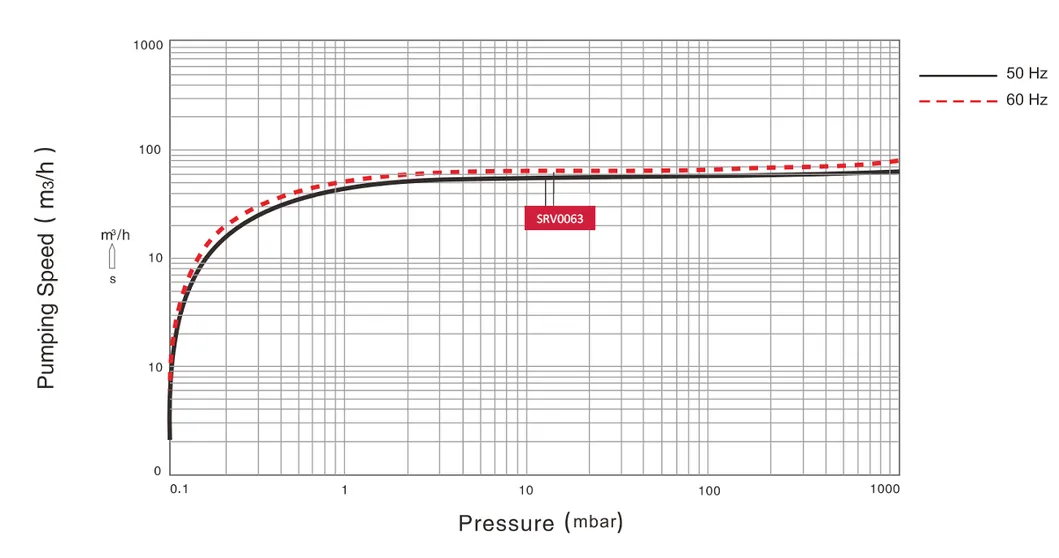

Technical Data	Frequency	SRV 0063
Pumping Speed	50Hz	63m³/h
Pumping Speed	60Hz	76m³/h
Ultimate Pressure	mbar	0.1
Diameter	Inches	G 1 ¼" / G 1 ¼"
Voltage	50Hz	220-240/345-415v
Voltage	60Hz	220-275/380-480v
Nominal Motor Rating	Kw	2.2
Sound Level	dB(A)	63

📸 Product Display & Details

🚀 Typical Applications

Analytics: Mass spectrometry, electron microscopy.
Coating Technology: Surface protection, decorative films, display units, monitor screens.
Vacuum Metallurgy: Soldering, sintering, alloys, and furnace construction.
Leak Detection: Vacuum systems, automotive tanks, airbag cartridges, packaging.
Lighting Industry: Light bulb manufacture.
Drying Industry: Vacuum drying and transformer drying.

❓ Frequently Asked Questions

Q1: What is the maximum pumping speed of the SRV0063? The SRV0063 offers a pumping speed of 63 m³/h at 50Hz and up to 76 m³/h at 60Hz.

Q2: What level of vacuum can this pump achieve? The pump achieves an ultimate pressure of 0.1 mbar, making it suitable for low and medium vacuum ranges.

Q3: Is the pump suitable for continuous industrial operation? Yes, the oil-lubricated design and specialized vane materials ensure an extremely long lifetime even in continuous industrial operation.

Q4: Does the SRV0063 include any filtration systems? Yes, it features an integrated oil mist separator with the highest degree of separation for cleaner exhaust.

Q5: Can this motor be used internationally? The unit comes with a three-phase universal motor that covers almost all global network voltages and frequencies (50Hz/60Hz).

Q6: What are the main maintenance requirements? Regular checks of the 2-liter oil volume and ensuring the use of special vacuum operating fluids will maintain peak performance and insulation.
