Tongyi Machinery
1 / 5
| Model NO. | MPD025 |
| Tooth Flank | Straight Tooth |
| Tooth Curve | Involute |
| Power | Electric |
| Type | Normal Line Gear Pump |
| Applications | Machinery Manufacturing |
| Certification | CE, ISO, RoHS |
| Motor | 30W DC Brush Motor |
| Feature | Compact Size, Higher Cost Performance |
| Outlet Size | G1/8 |
| Voltage | 24V |
| Speed | 500-4500rpm |
| Pump Type | Miniature Gear Pump |
| Medium | Water Oil Beverages Others |
| Sealing Material | PTFE, Stainless Steel |
| Pump Body Material | 316L Stainless Steel |
| Gear Material | Peek |
| Customized Support | OEM, ODM, OBM |
| Specification | 0.65ml/rev |
| Origin | Guangdong, China |

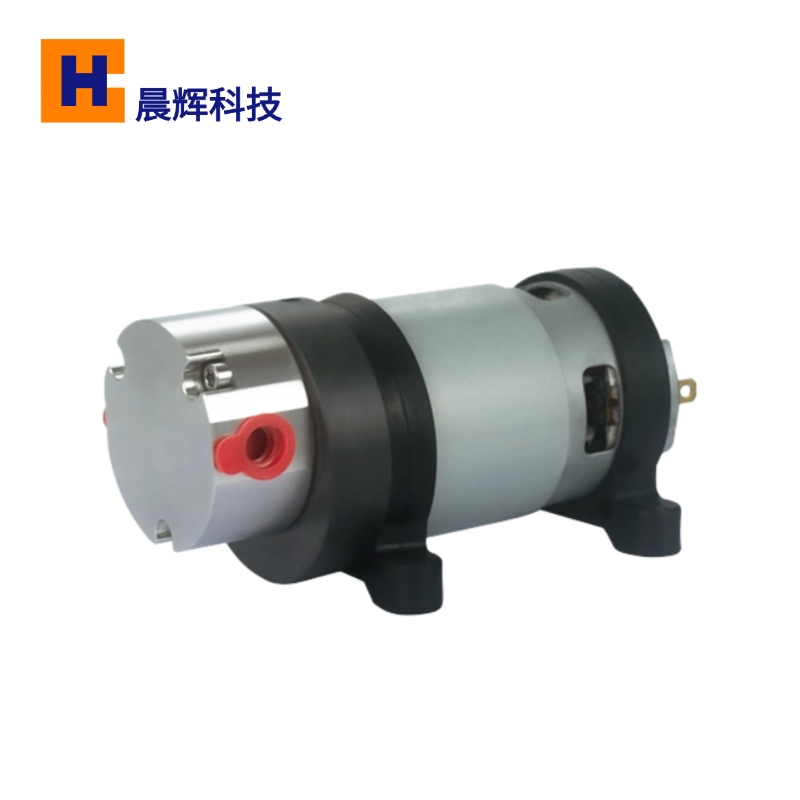

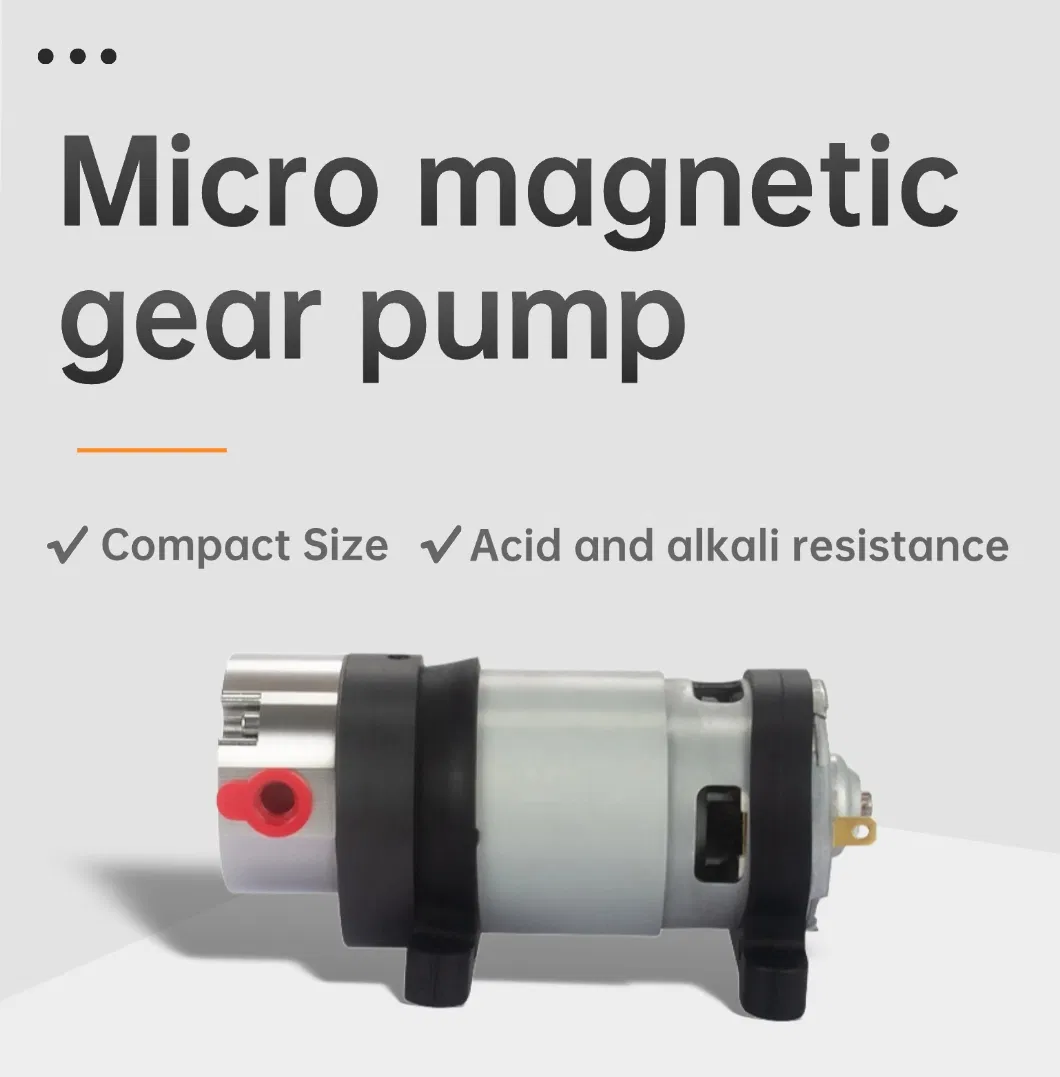

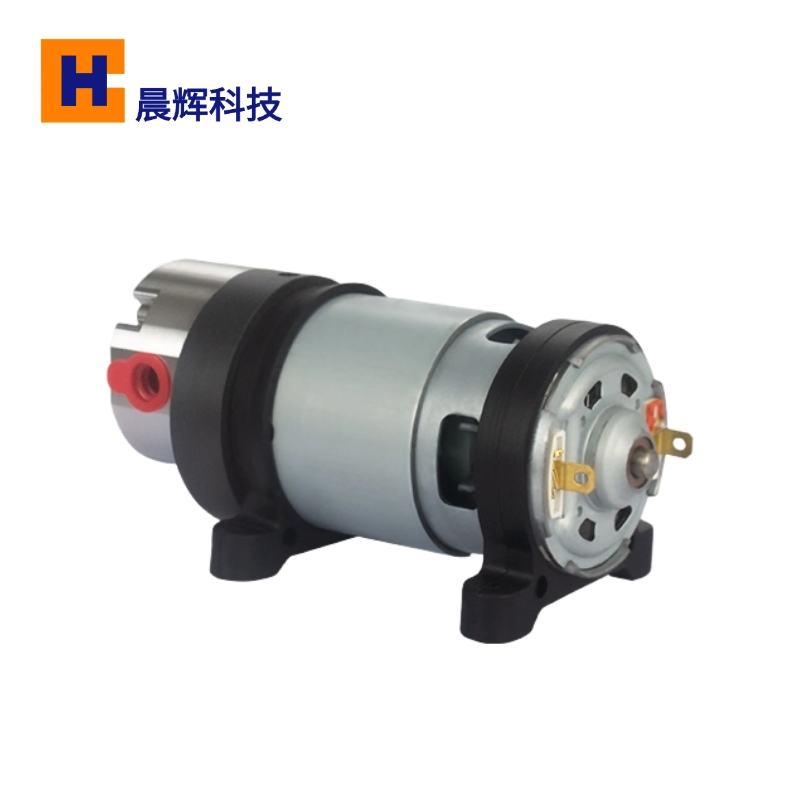

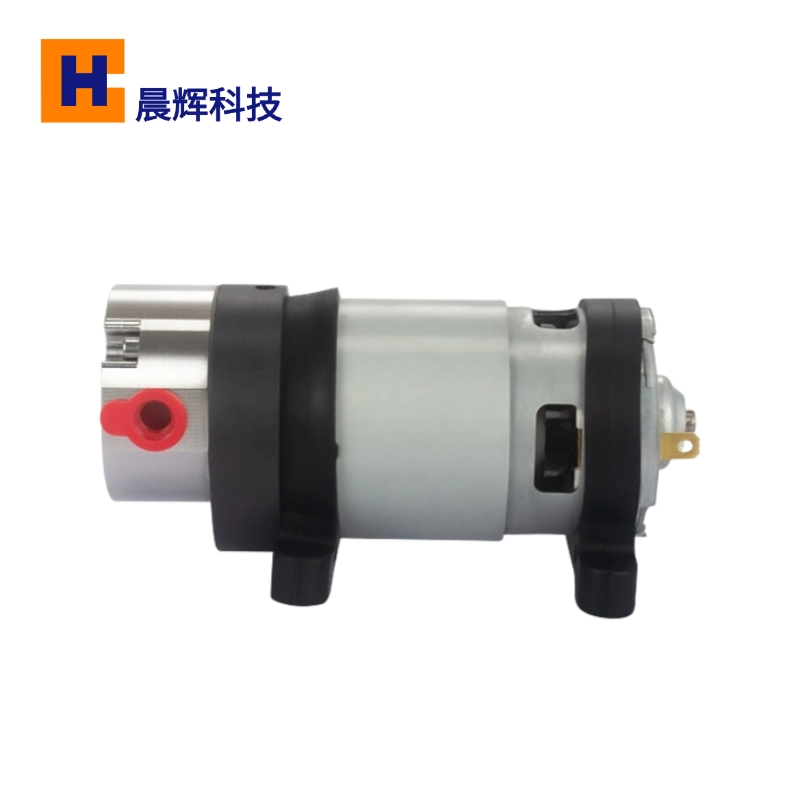

MPD025-30W Brushed Motor Micro Magnetic Gear Pump
| Model | Displacement | Flow | Motor | Motor Speed |
| MPD025BBAB24V30W | 0.65ml/rev | 2.5L/min | 30w brushed motor | 500-4500rpm |

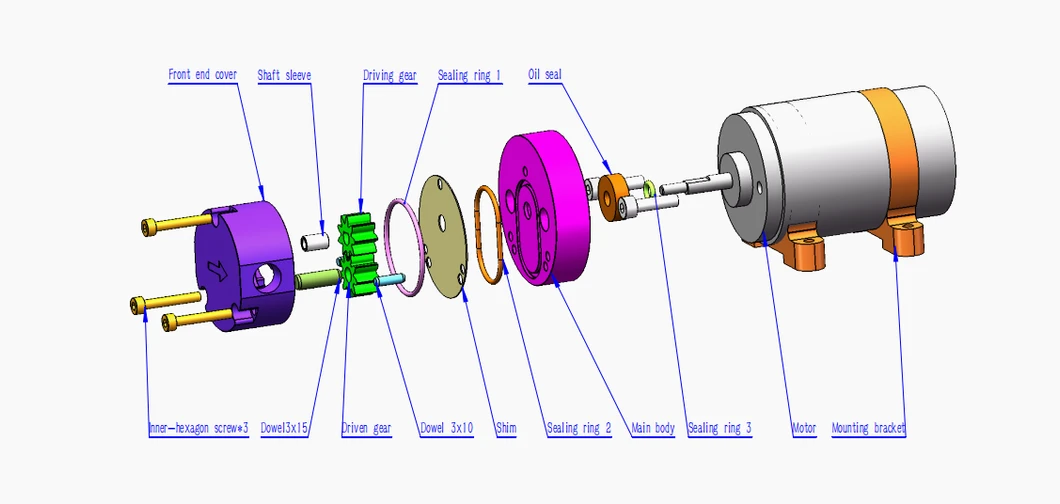

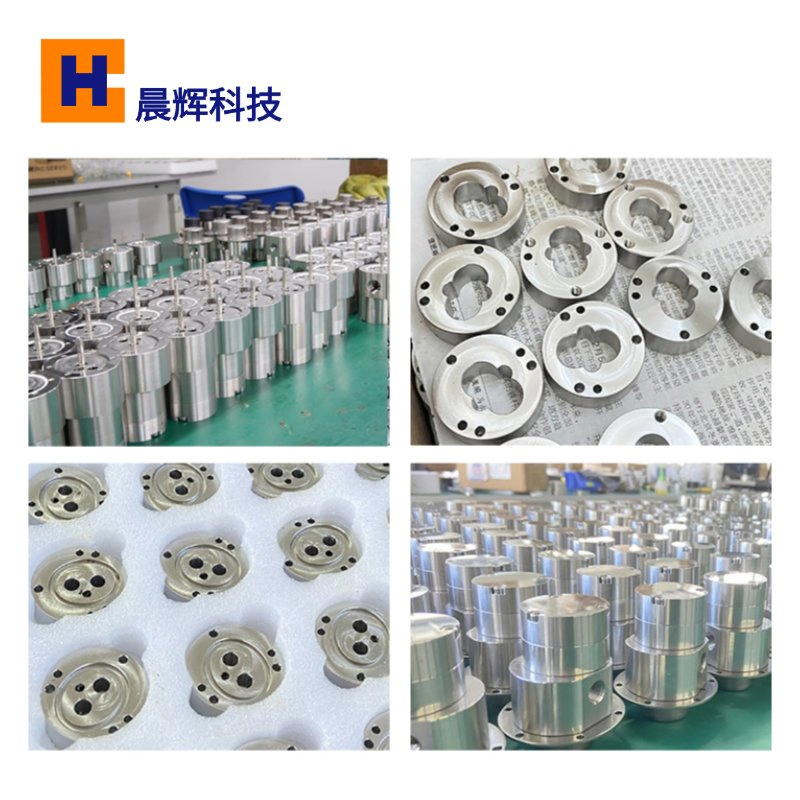

MPD025 gear pump with 30W is a kind of Micro gear pump directly through the brush DC motor shaft, the pump body is made of 316 stainless steel, the gear adopt the imported engineering plastics (PEEK), the material of static seal is FKM. This series of products has the characteristics of small flow, low pressure and small volume. Mainly used in water purification, water circulation, selling machine and food processing and other fields.
Small Flow Low Pressure Liquid Transfer Water Metering Pumps Positive Displacement Micro Gear Pump For Filling.
Widely used in Ink-Jet printing system, Medical equipment, Food processing equipment, Laser apparatus, Laboratory instrument, Refrigeration Industry (Cooling Pump & Freon Pump), Cooling systems, Fuel Cell Technology, Mechanical Seal Flush, and Environmental Water Treatment.

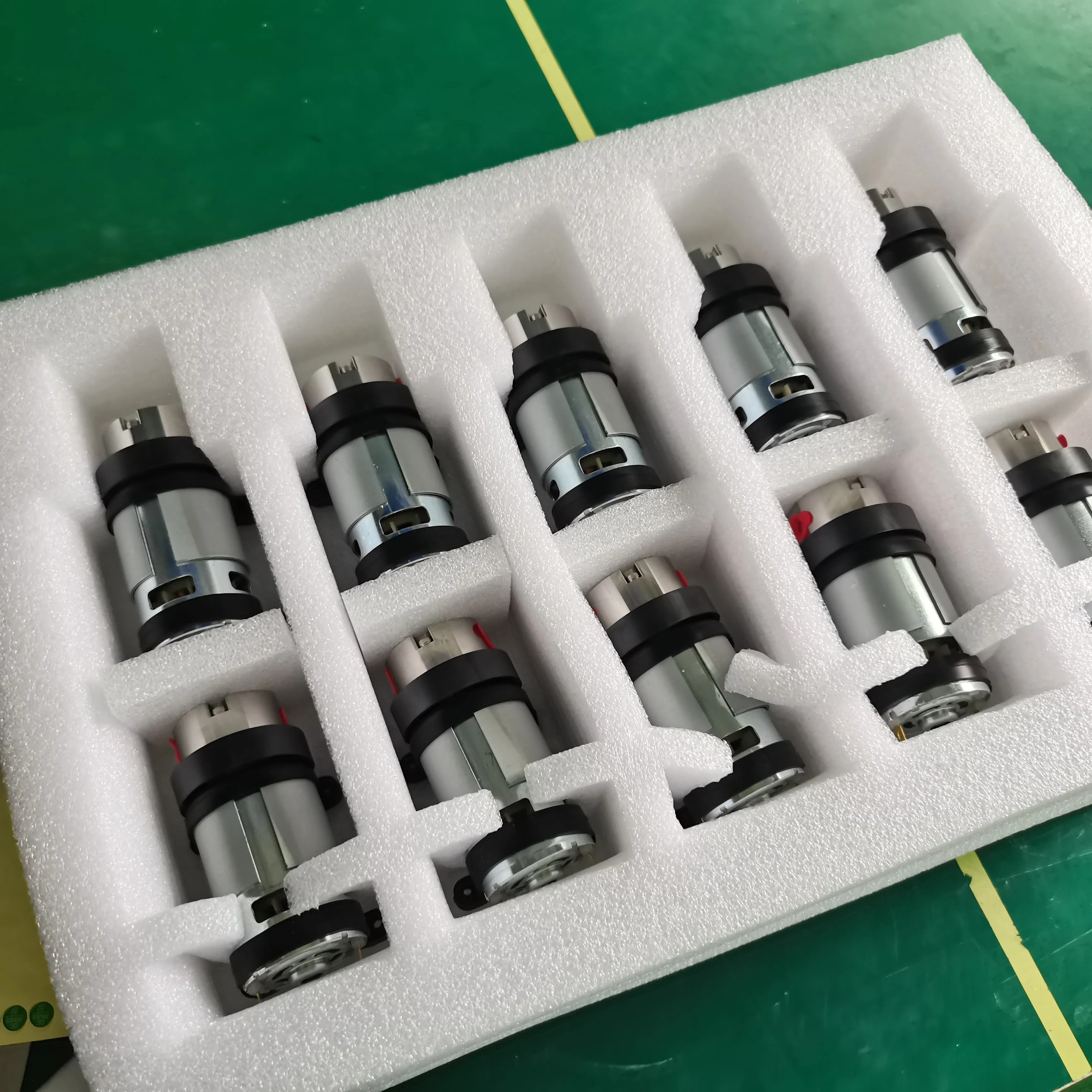

| Package Size | 30.00cm * 25.00cm * 20.00cm |
| Package Gross Weight | 3.000kg |
| Lead Time | 3 days (1 - 5 sets); To be negotiated (> 5 sets) |
