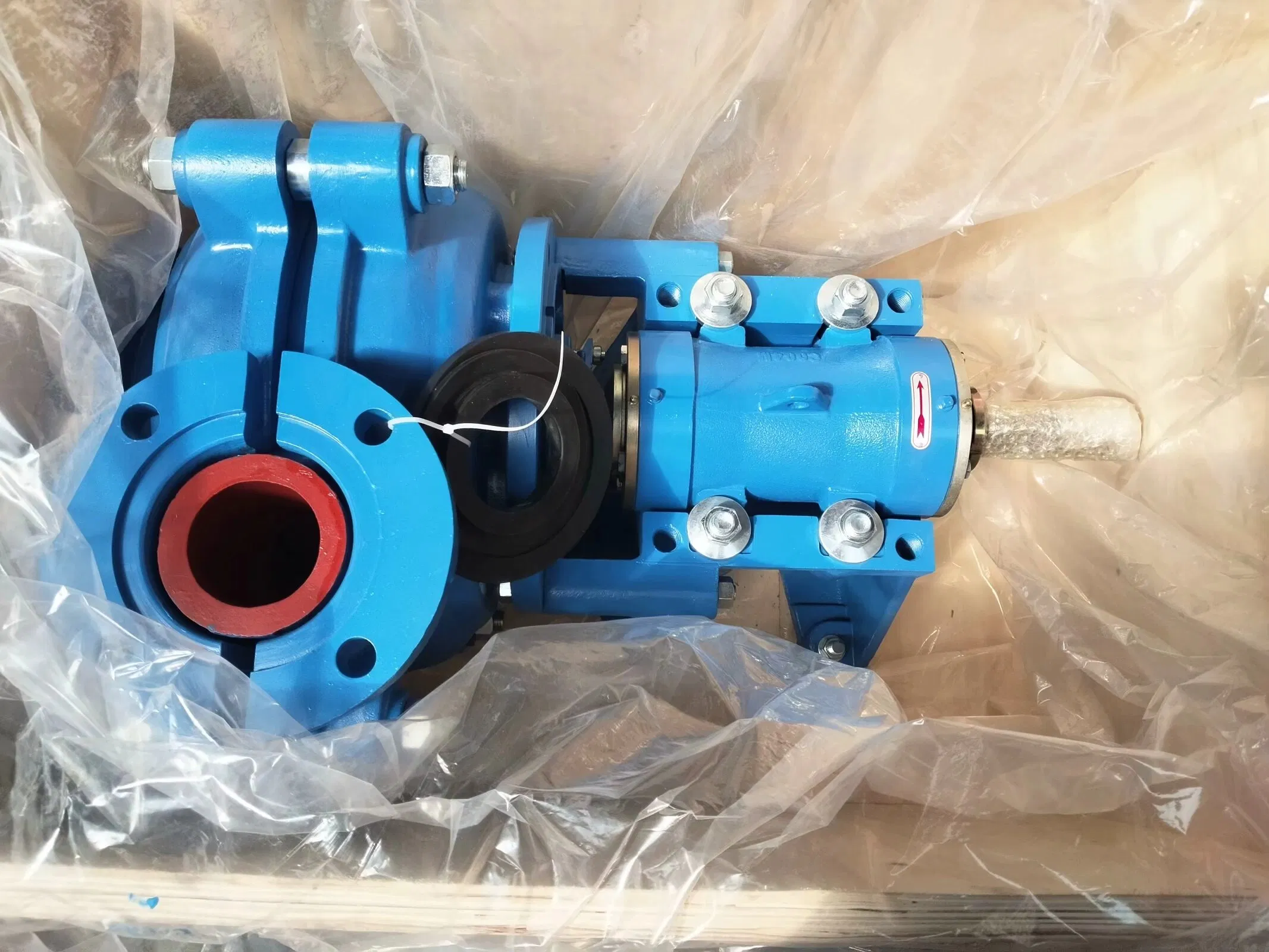

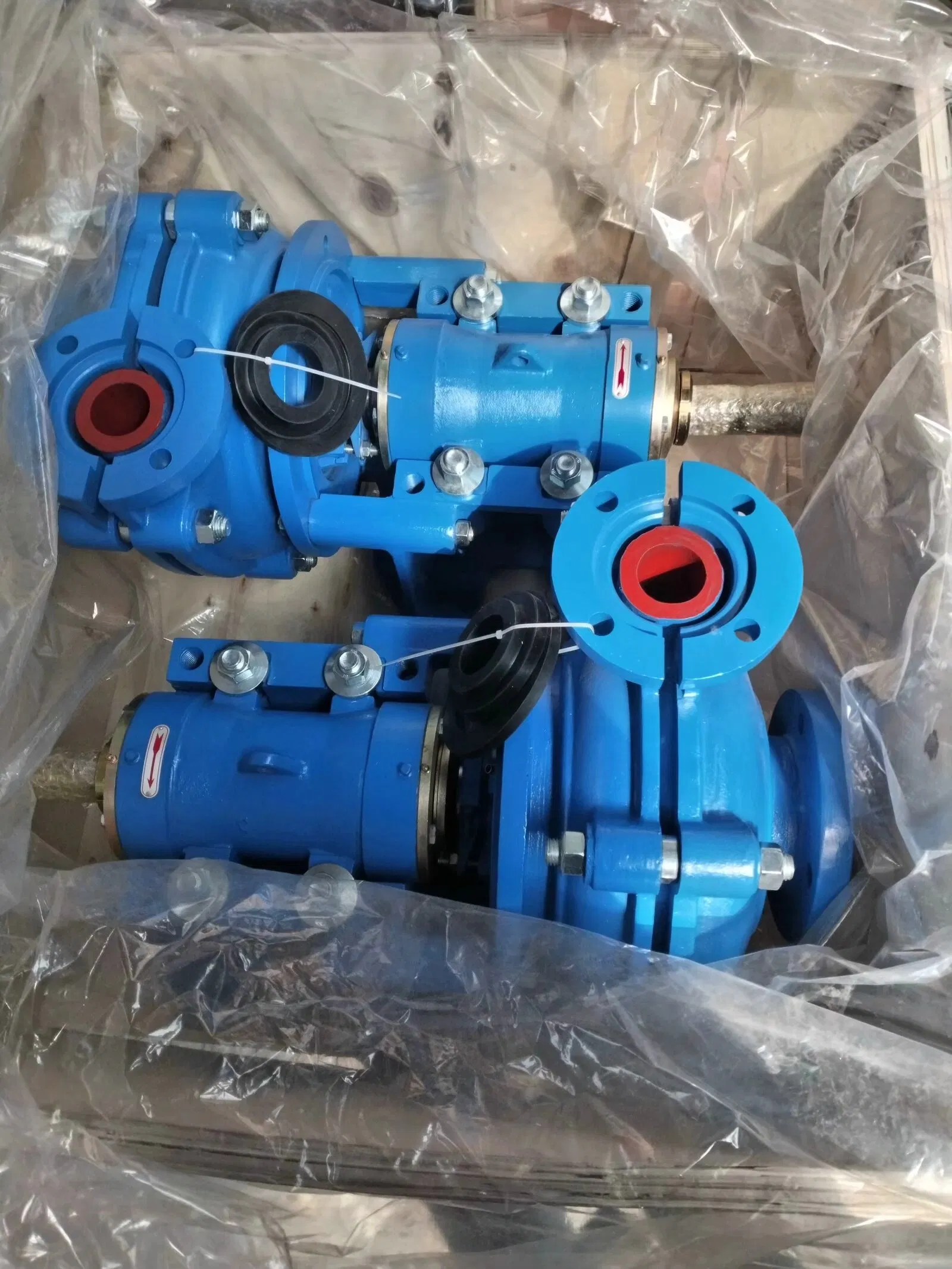

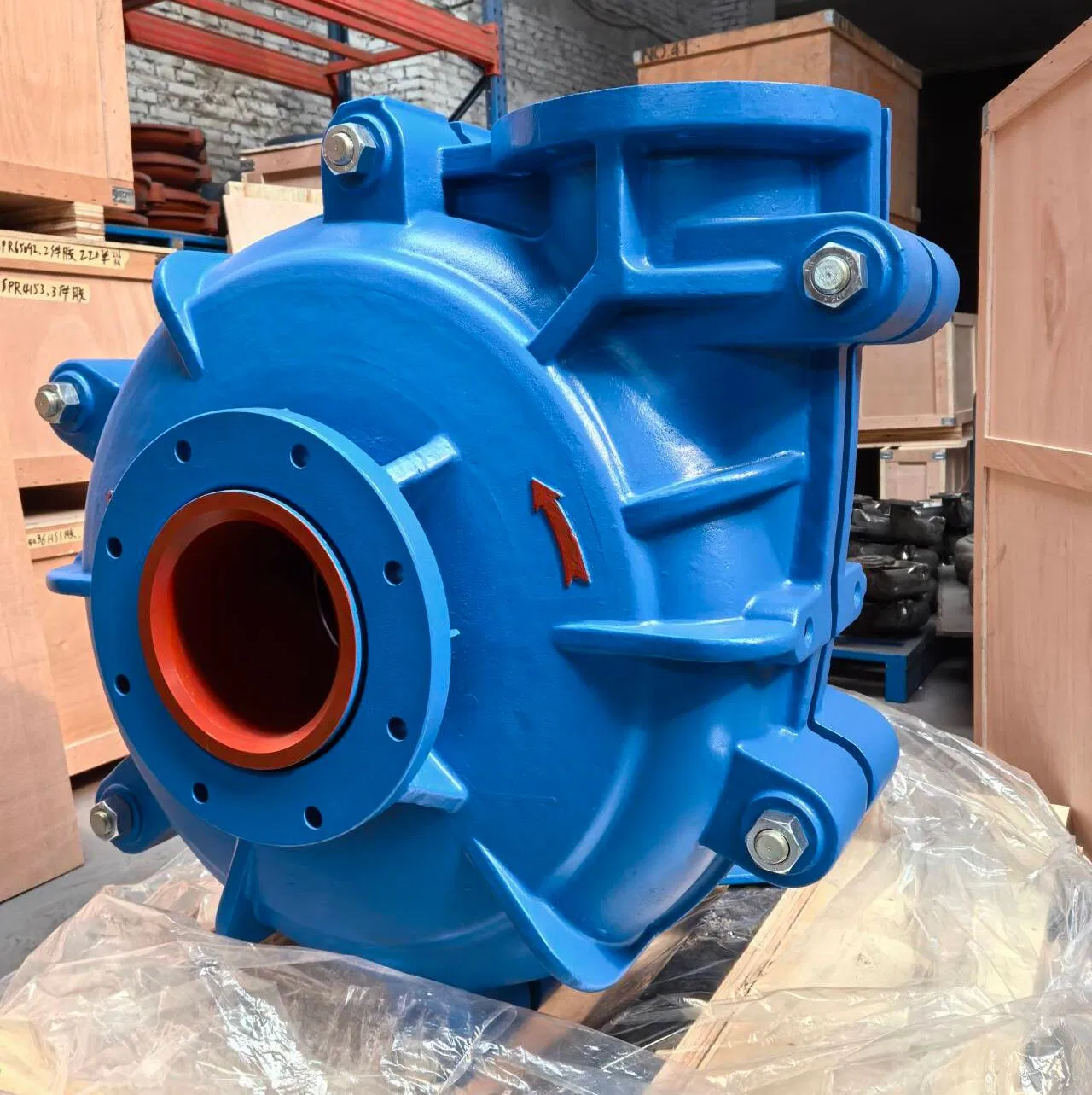

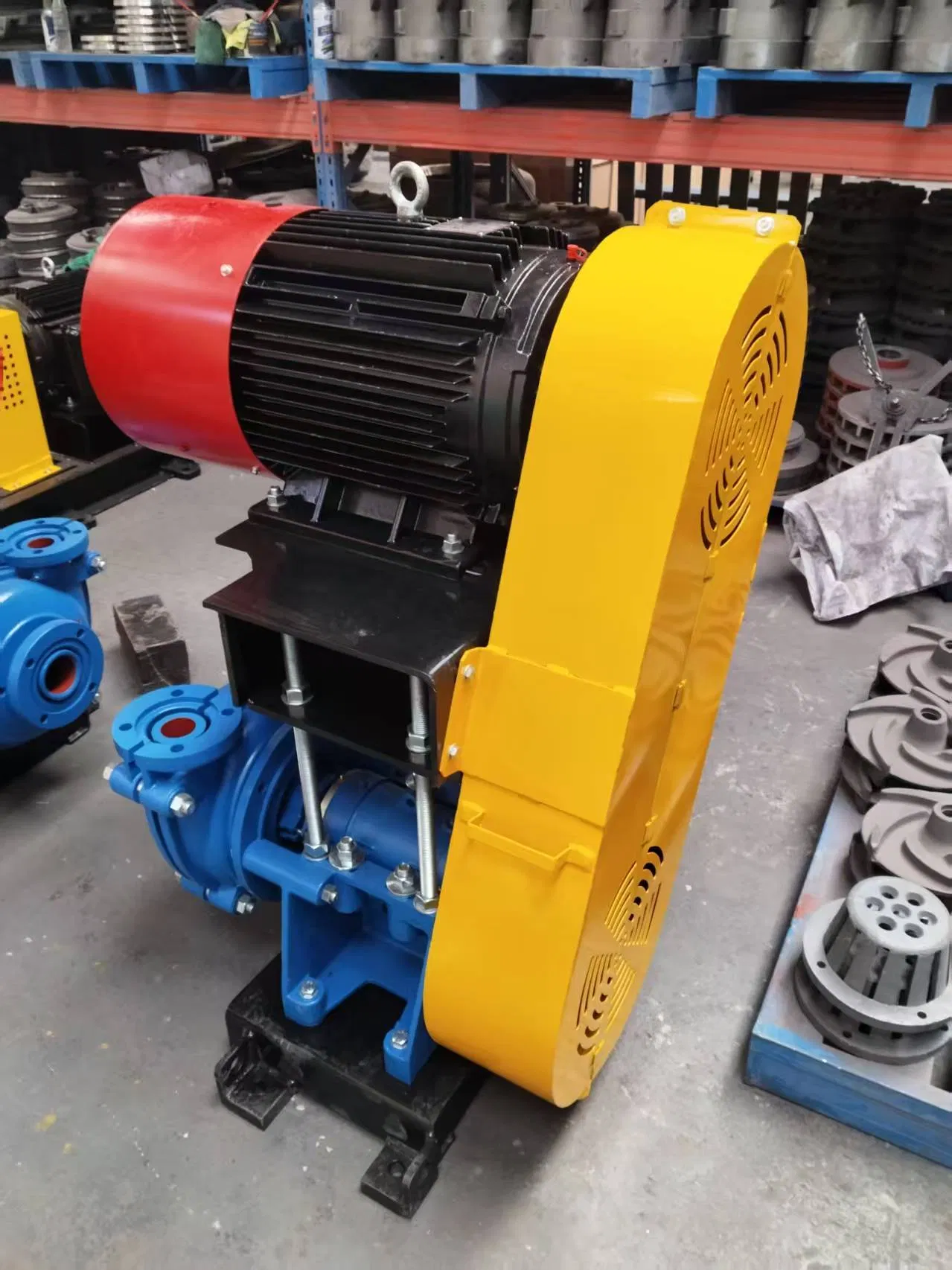

1"-16" Slurry pumps with metal liners for high abrasive mining site
These slurry pumps are available in a variety of sizes and configurations to satisfy diverse industrial needs. Featuring 100% interchangeable parts, these pumps handle abrasive fluids continuously. Wearing parts can be replaced individually without replacing the entire unit, significantly reducing maintenance costs. Flow parts including the impeller, volute, throatbush, and frame plate liner insert are crafted from 27-28% high chrome alloy with a guaranteed HRC 60-65 hardness for extended service life.
Product Parameters
| Type | Max. power (kW) | Flow (m3/hour) | Head (m) | Eff (%) | Impeller diameter (mm) |
|---|---|---|---|---|---|
| 1.5/1 B | 15 | 12.6-28.8 | 6-68 | 40 | 152 |
| 2/1.5 B | 15 | 32.4-72 | 6-58 | 45 | 184 |
| 3/2 C | 30 | 39.6-86.4 | 12-64 | 55 | 214 |
| 4/3 D | 60 | 97.2-198 | 9-53 | 71 | 245 |
| 6/4 E | 120 | 162-360 | 12-56 | 65 | 365 |
| 8/6 R | 300 | 360-828 | 10-61 | 72 | 510 |
| 10/8 ST | 560 | 612-1368 | 11-61 | 71 | 686 |
| 12/10 ST | 560 | 936-1980 | 7-68 | 82 | 762 |
| 16/14 TU | 1200 | 1368-3060 | 11-63 | 79 | 1067 |
| 20/18 TU | 1200 | 2520-5400 | 13-57 | 85 | 1370 |

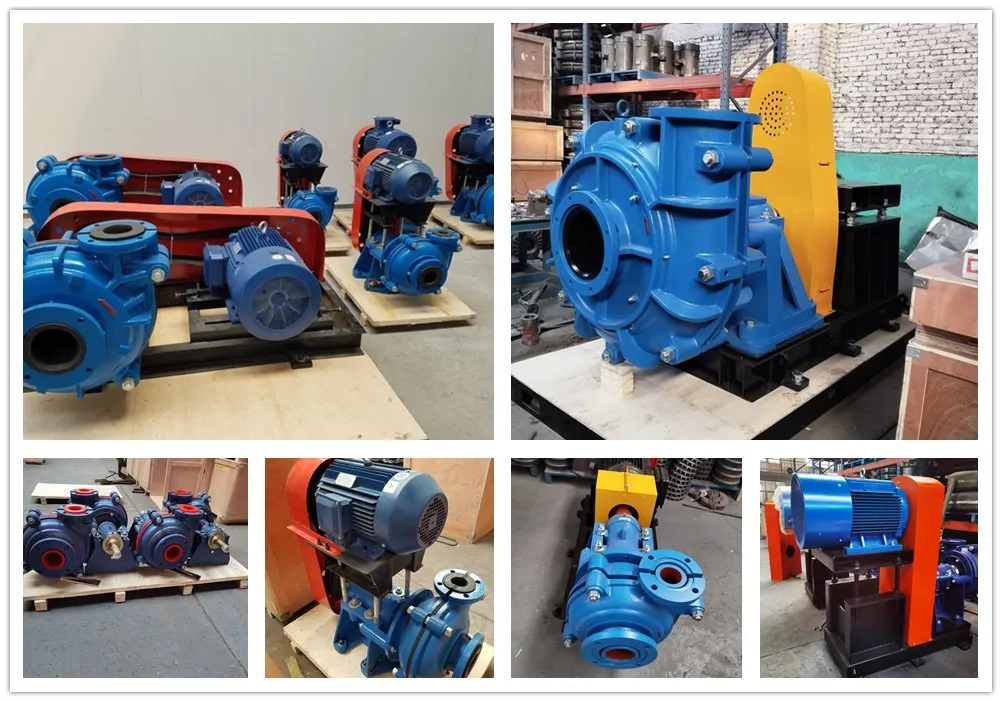

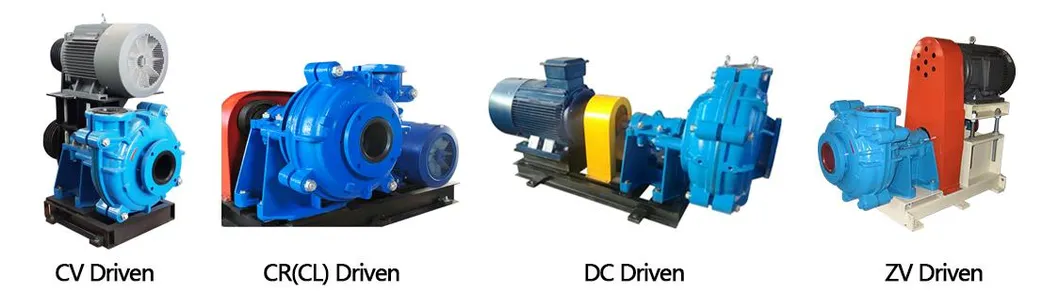

Detailed Photos & Drive Types

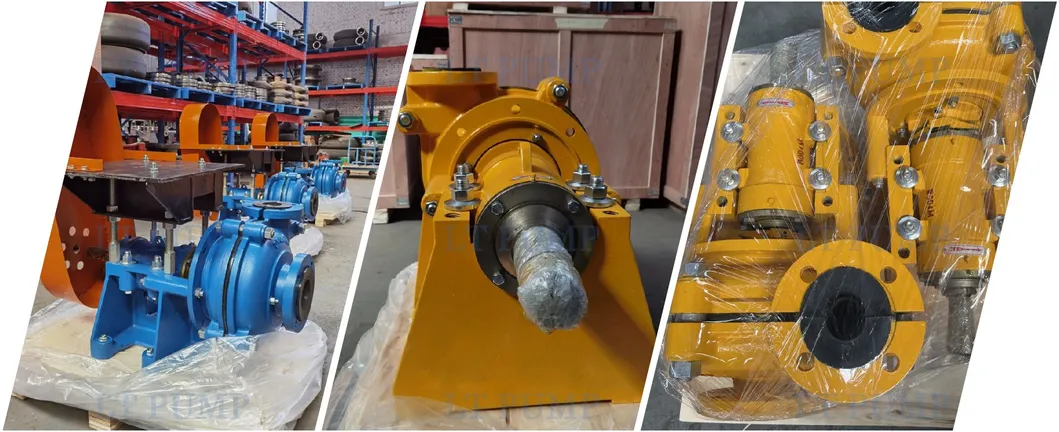

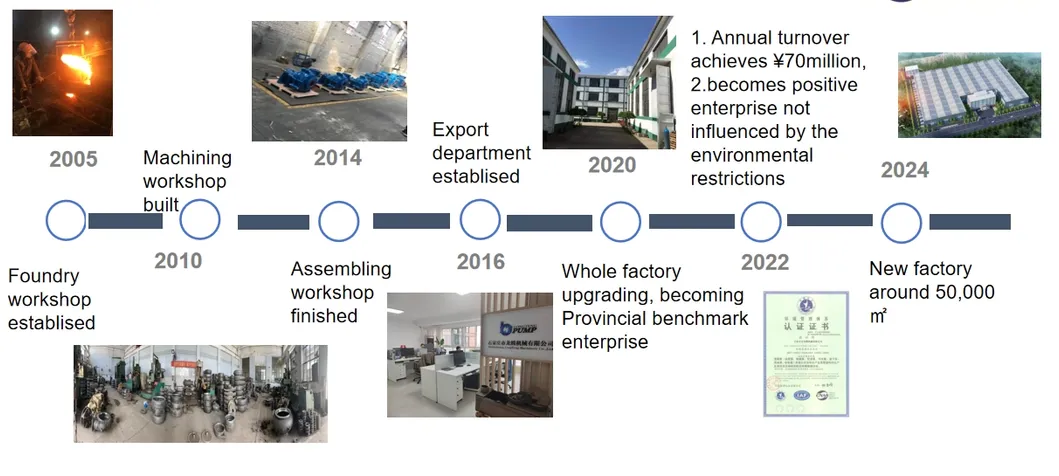

Production & Packaging
A complete production line and quality management system are in place, encompassing Material Testing, Casting, Heat Treatment, Machining, Pump Assembly, and Performance Testing. Advanced material analysis ensures precise composition before pouring, resulting in smooth surfaces and dense internal structures. Hardness and hydrostatic tests ensure every product meets high industrial standards before shipment.
