1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump
1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump
1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump
1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump
1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump
1 / 5
1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump
1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump
1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump
1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump
1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump

1" Slurry Pneumatic Pump Water Mud Pump Air Double Diaphragm Pump

Customization: Available
After-sales Service: Oversea Install Service
Warranty: 3
Send Inquiry

Product Description

Basic Specifications

Model NO.
1" Slurry Pneumatic Pump Water Mud Pump
Certification
EMC, ISO9001:2008, ISO9001:2000, RoHS, CE
Material
Aluminum Alloy
Power
Pneumatic
Valve Body Type
Direct Double-Seat
Diaphragm Material
Polyvinylidene Fluoride
Performance
No Leak
Transport Package
Wooden case
Specification
PP PE PVC
Origin
China
HS Code
8601101900
Production Capacity
10000/Y

Product Overview

Pneumatic diaphragm pump is a new transport machinery, currently recognized as one of the most innovative pump designs for industrial fluid handling. Using compressed gas as a power source, it is ideal for a variety of corrosive liquids, including those with particles, high viscosity, volatile, flammable, or poisonous properties.
Pneumatic Diaphragm Pump
Mode Max. Suction Lift (dry/wet,m) Max. Particle Diameter (mm) Suction/Discharge (inch) Air Inlet (inch) Max. Flow (L/min) Air Consumption (m³/min)
HY-15/204 / 7.62.51/2 - 3/41/4570.672
HY-254 / 8411/21571.7
HY-405 / 851½1/23583.5
HY-505 / 8621/25874.9
HY-805 / 89.433/410609.1
Providing stall-free, ice-free operation for continuous reliability.
Explosion-proof and zero leak design ensuring workplace safety.
Capable of transmitting adhesive liquids and large solid particles.
Low shearing mechanism protects material structure during transfer.
Multiple material options (Plastic, Aluminum, Cast Iron, Stainless Steel) for diverse environments.
Adjustable flow delivery and pump lift via air supply and pressure control.

Product Detailed Views

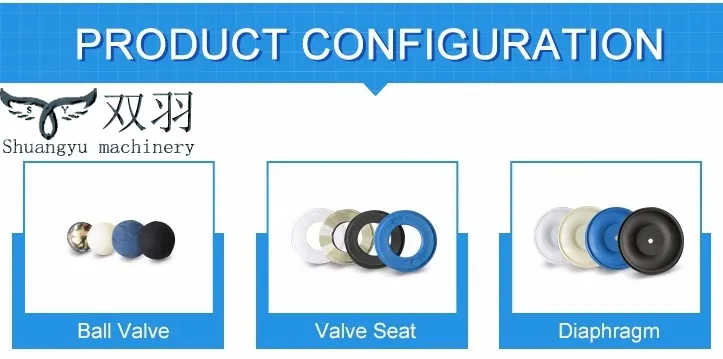

Pump Display 1

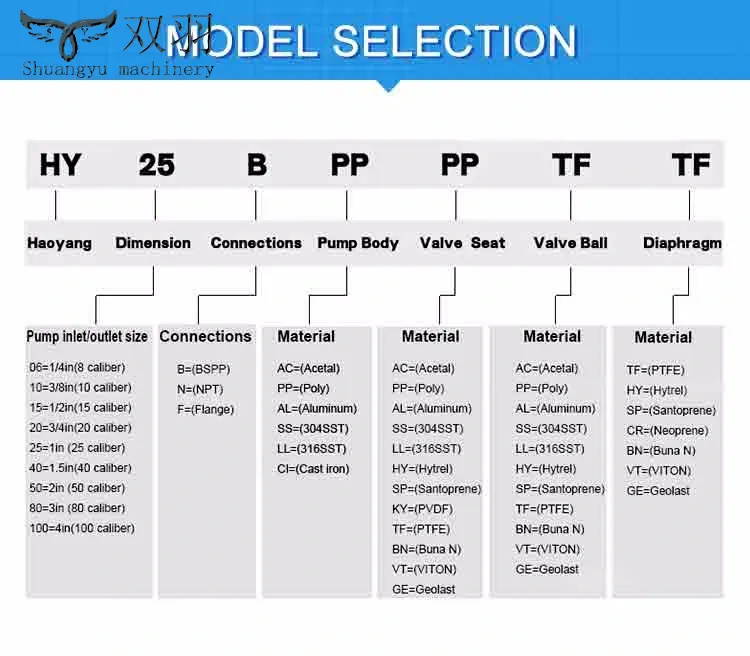

Pump Display 2

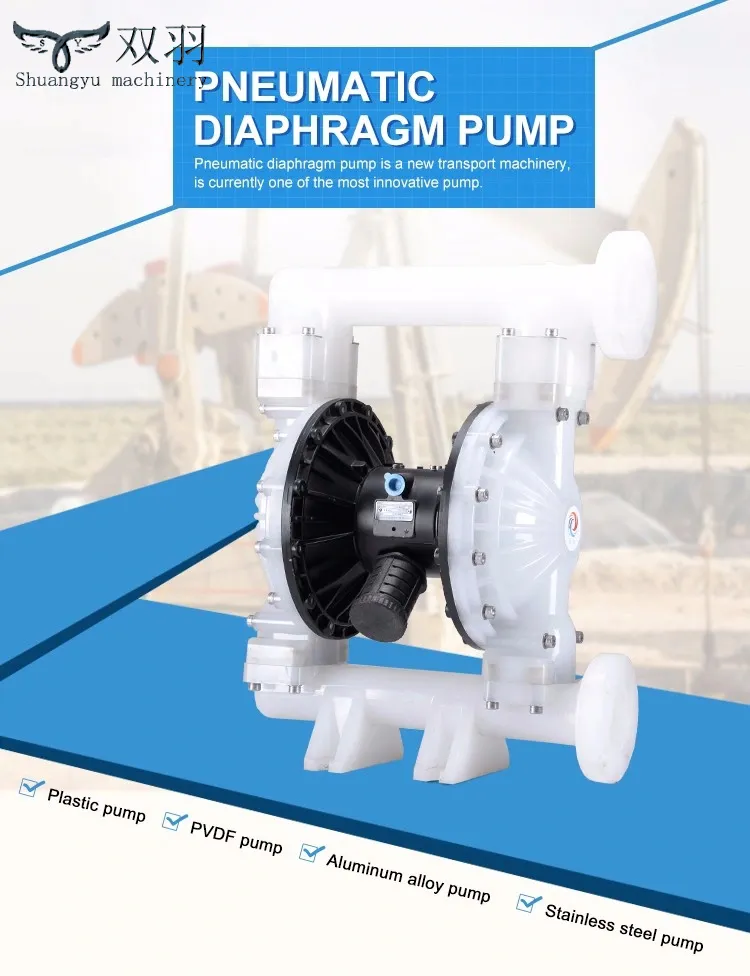

Pump Display 3

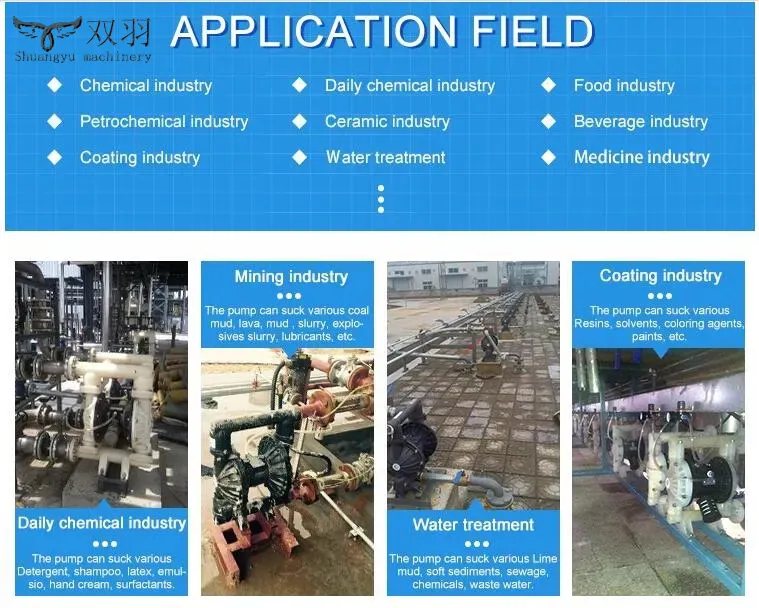

Pump Display 4

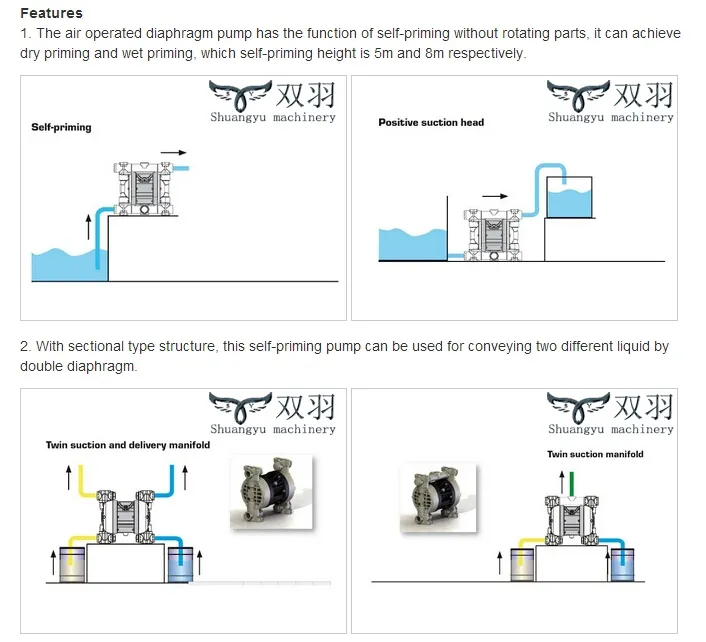

Pump Display 5
Pump Display 6

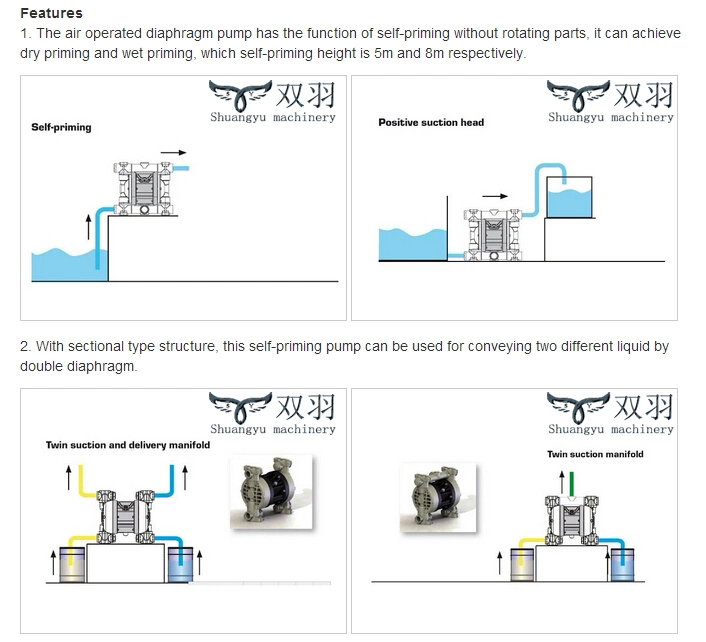

Technical Feature

Frequently Asked Questions

Are you a factory or trading company?
We are a specialized manufacturing facility focusing on high-performance pump solutions.
What are your accepted payment methods?
We accept T/T, Western Union, L/C, and other standard international payment terms.
How are the products packaged for shipping?
All products are packed in standard export plywood cases or reinforced cartons to ensure safety during transit.
What is the warranty period for the pumps?
According to international standards, products under standard operation are covered for 1 year, excluding quick-wear parts.
What kind of media can these pumps handle?
The pumps are versatile and can handle food items (syrup, chocolate), chemicals (paint, glue, acid, alkali), and industrial slurries (ceramic glaze, toxin liquids).
What quality certifications do your products hold?
Our pumps hold CE certification. We ensure quality assurance and provide personalized OEM services to meet specific industrial needs.
