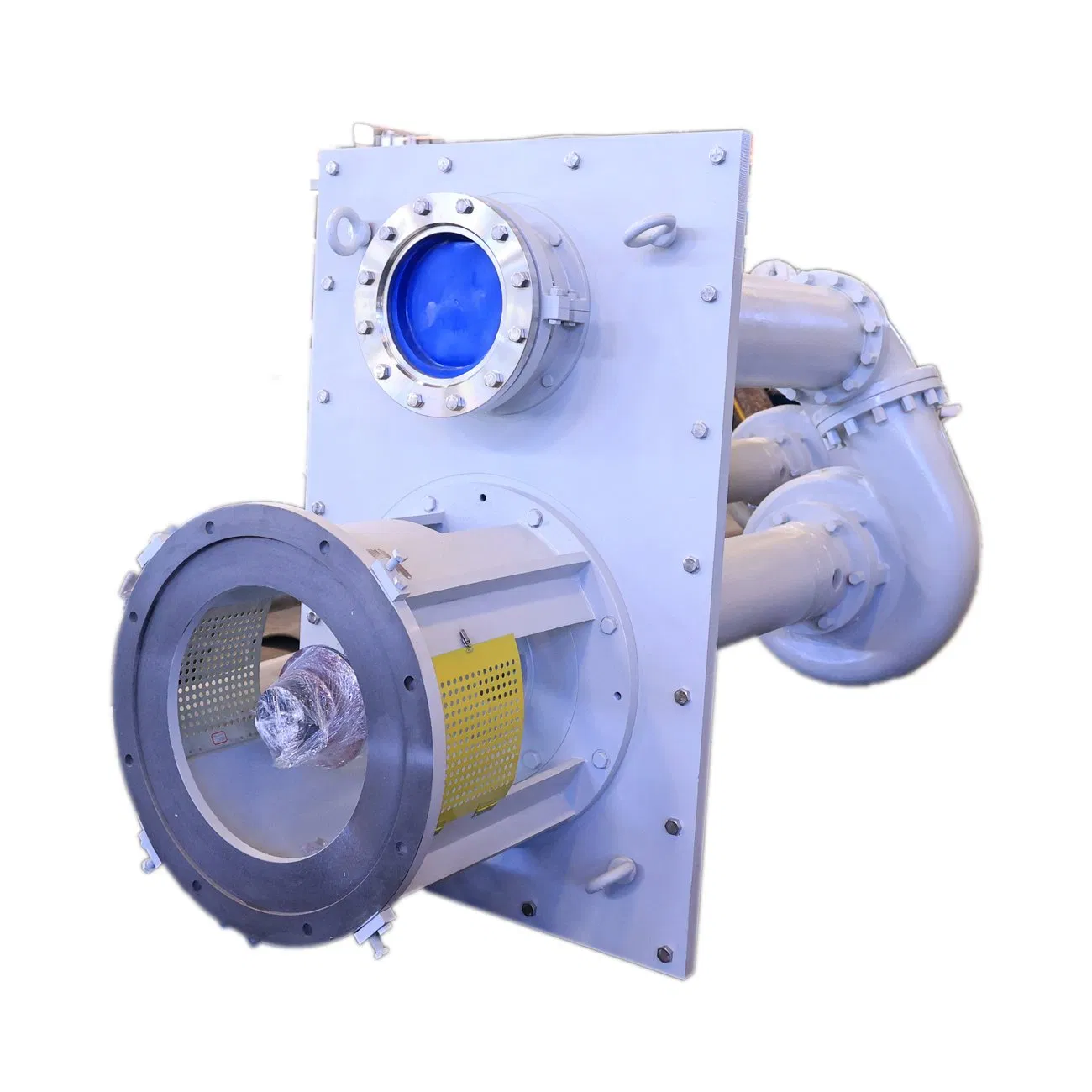

Slurry Chemical Suction Centrifugal Industry Hydraulic Submersible Sulfuric Acid Water Vertical Axial Flow Pump Factory Price

1 / 5

Slurry Chemical Suction Centrifugal Industry Hydraulic Submersible Sulfuric Acid Water Vertical Axial Flow Pump Factory Price

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

VS4-JHB

Max. Head

~55m

Max. Capacity

~3520m³/H

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

1.0 MPa

Influent Type

Single Suction Pump

Shaft Position

Vertical Pump

Diameter

50~600mm

Temperature

~120℃

Certification

API / CE / ISO

Material

Metals and Special Alloys

Feature

Corrosion Resistant

Transport

Wooden Box Packaging

📝 Product Description

Key Engineering Features:

3.6m Max Submersion Depth: Engineered for operations up to 3.6 meters submerged depth.

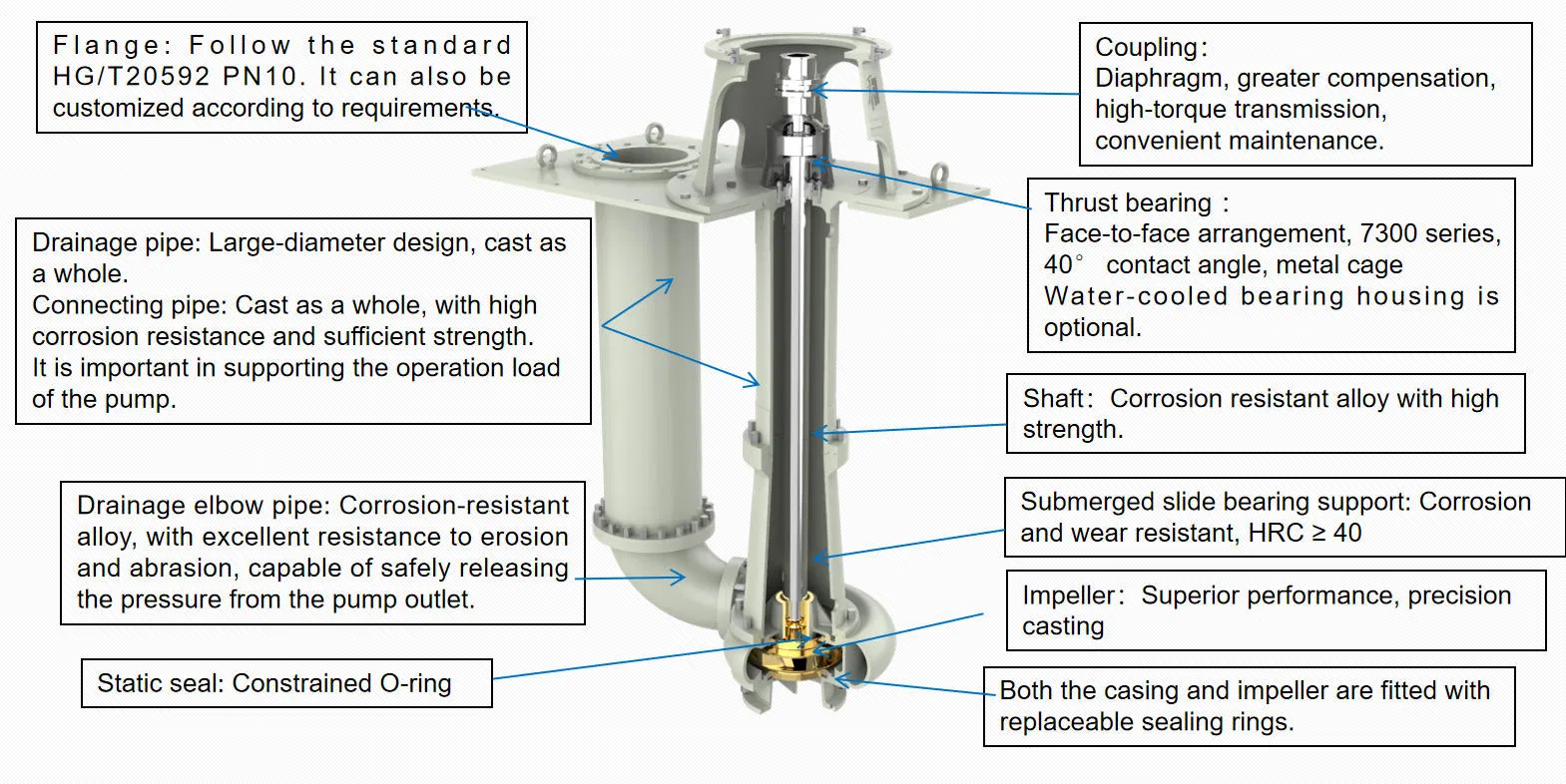

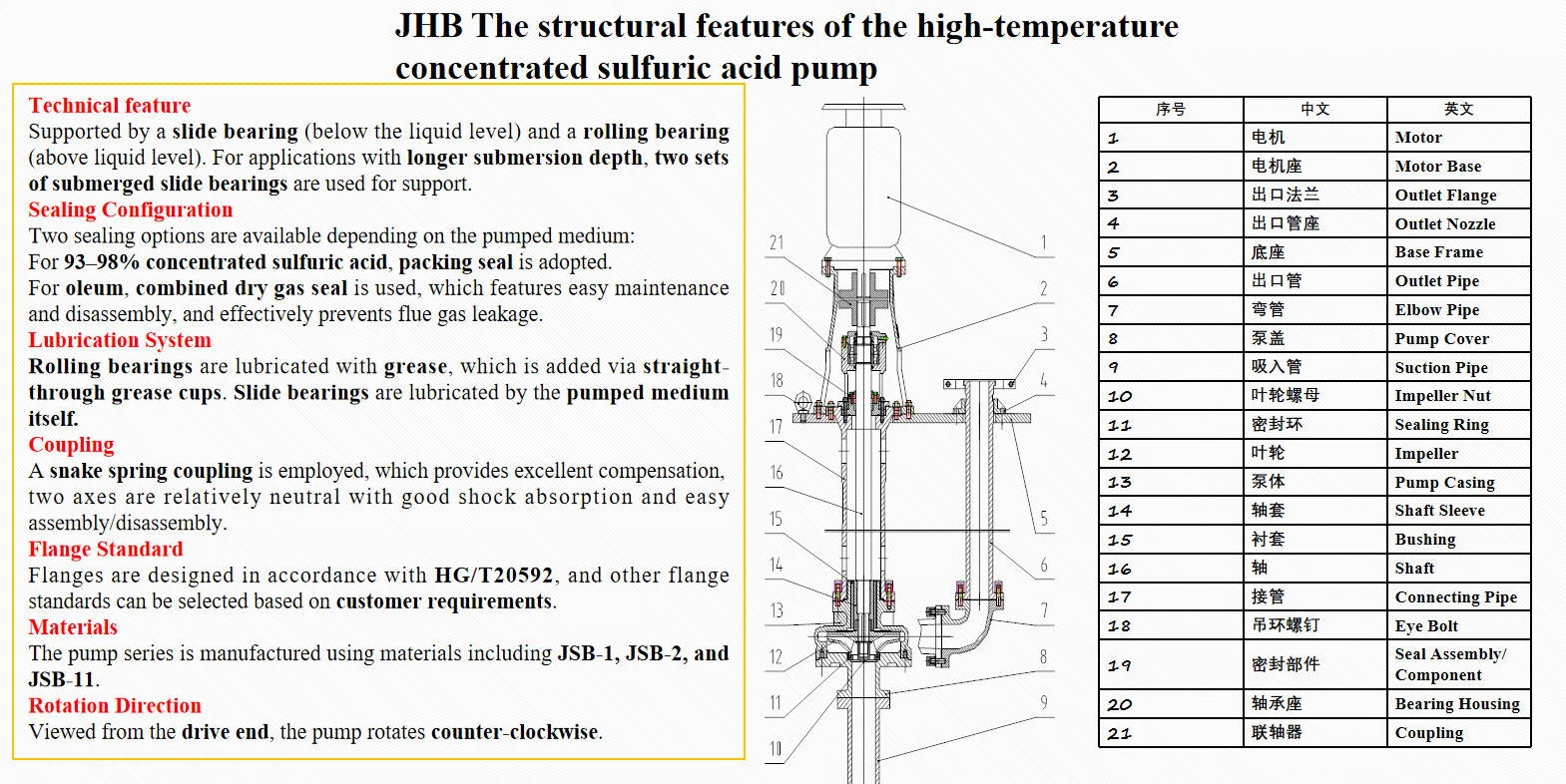

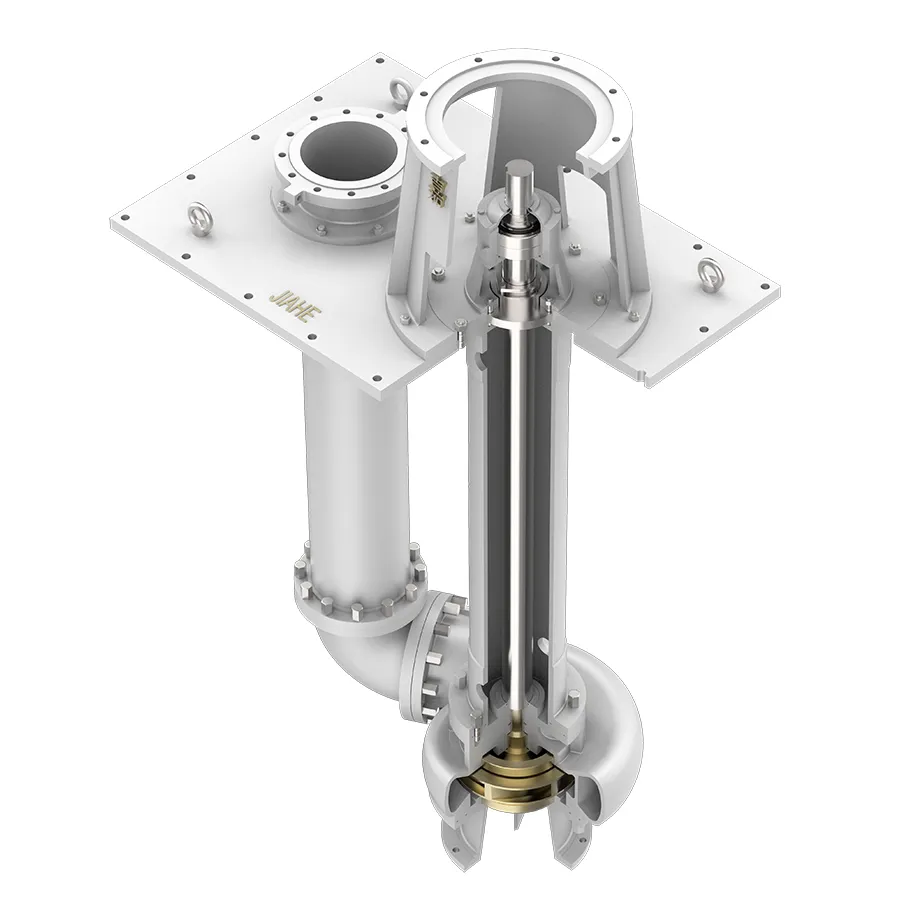

Dual-Support Bearing System: Above liquid dual-row angular contact ball bearings handle axial loads; Submerged zone sliding bearings absorb radial forces.
Corrosion-Resistant JSB Alloy: Withstands 120°C, 93-98% sulfuric acid and ≥105°C fuming sulfuric acid.
Extended Lifespan: 300% longer lifespan compared to standard materials (lab-verified).

Application Scope: This series is ideal for Sulfuric Acid Production, specifically drying/absorption cycle systems and concentrated sulfuric acid (93-98%) transfer. It is perfectly compatible with Oleum (fuming sulfuric acid) at ≥105°C and industrial acid circulation pipelines.

📊 Specifications

Performance Range
Diameter	50–600 mm
Flow	~3520 m³/h
Head	~55 m
Pressure	1.0 MPa
Temperature	~120 °C

🏆 Certifications

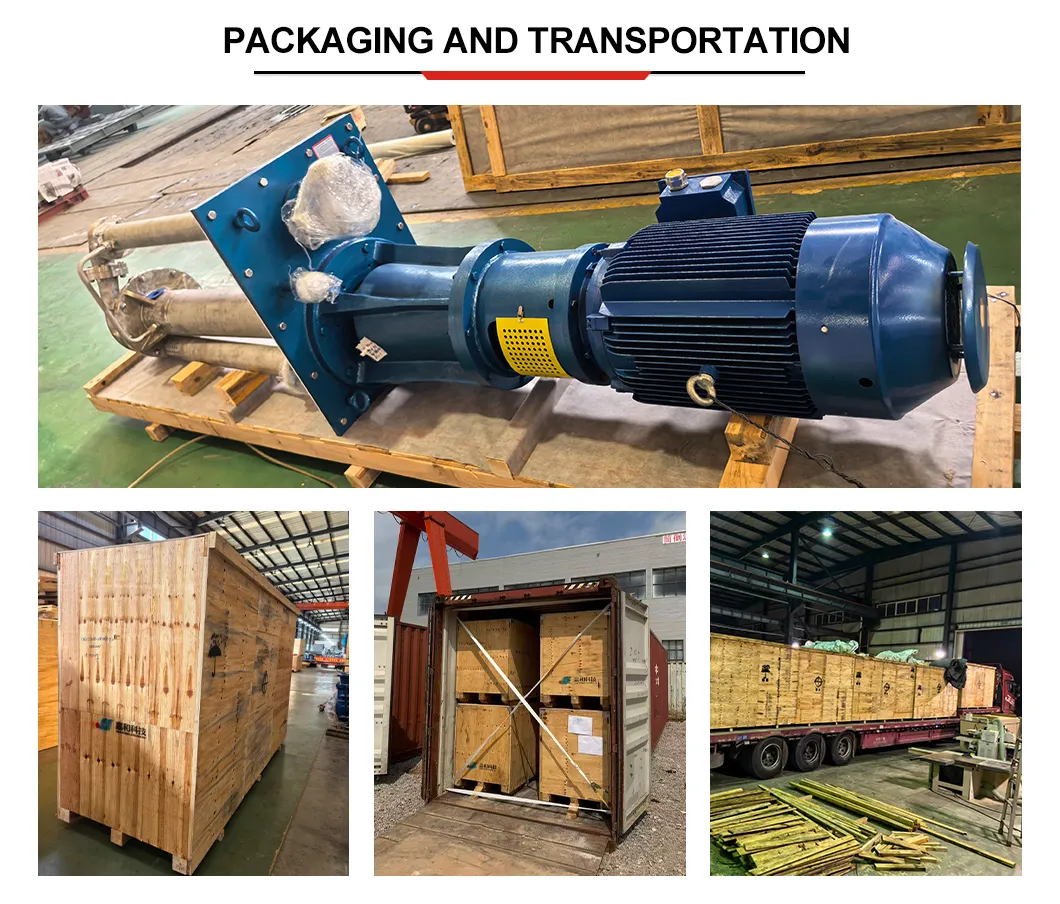

📦 Packaging & Shipping

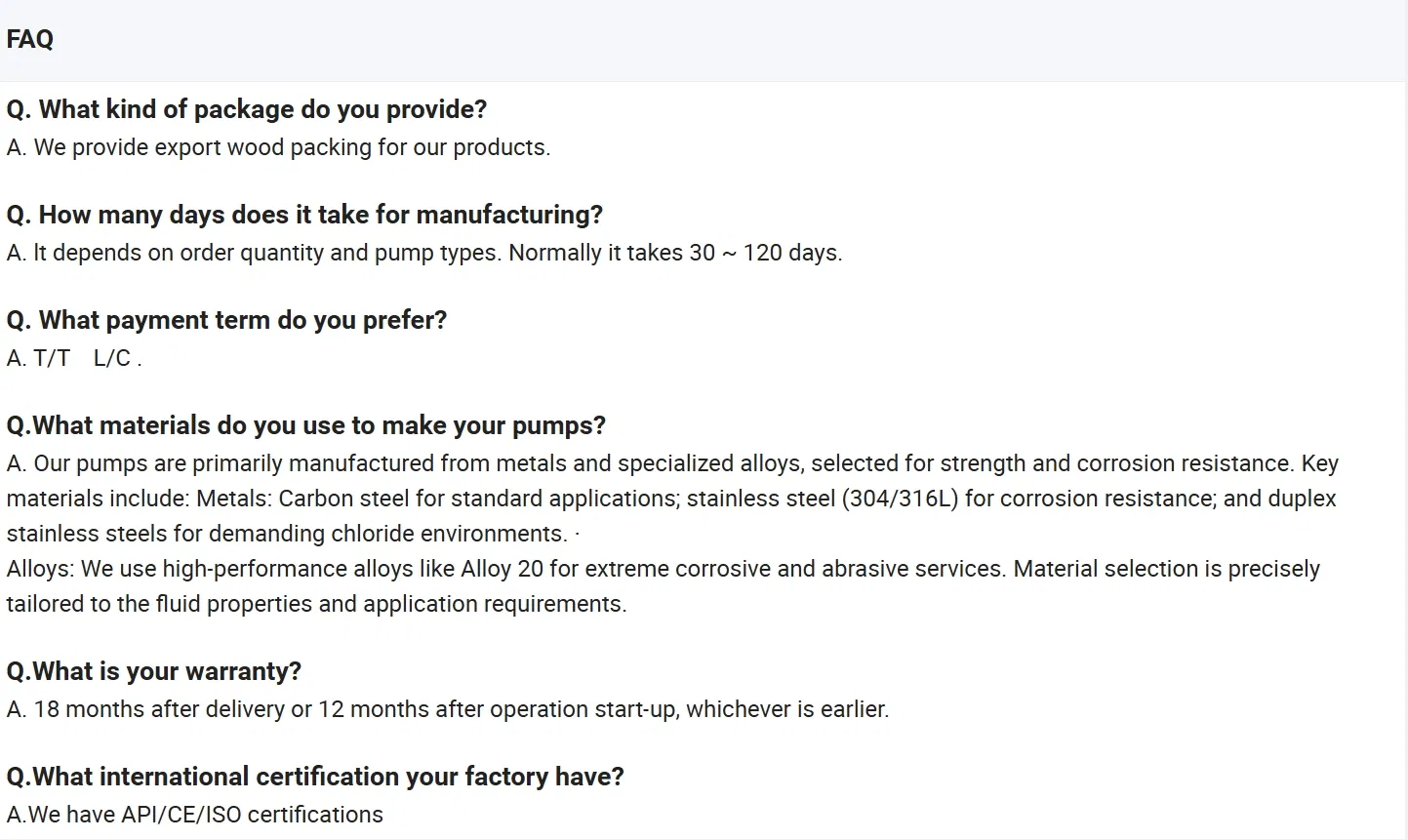

❓ Frequently Asked Questions

What is the maximum submersion depth for this pump?

The pump is engineered for deep-dive performance with a maximum submersion depth of up to 3.6 meters.

What kind of corrosive liquids can the JSB alloy handle?

The JSB alloy flow-through components are designed to withstand 93-98% concentrated sulfuric acid at 120°C and fuming sulfuric acid (oleum) at temperatures ≥105°C.

How does the dual-support bearing system improve performance?

It utilizes dual-row angular contact ball bearings above the liquid for axial loads and sliding bearings in the submerged zone for radial forces, which reduces vibration and wear.

What are the primary applications for the VS4-JHB model?

It is ideal for chemical processes, specifically sulfuric acid production, drying/absorption cycles, and high-temperature acid circulation.

What international certifications do these pumps meet?

These pumps are manufactured to meet API, CE, and ISO international standards for quality and safety.

What is the maximum flow capacity and head range?

The pump offers a maximum capacity of approximately 3520 m³/H and a maximum head of about 55 meters.
