| Demonstration of Type | Range of Application | Performance Parameter |
|---|---|---|
| HZA50-250 | Oil refinery, petrochemical industry, coal processing industry and cryogenic engineering | Discharge: ~2600m³/h |
| HZA: Foot support series | Chemical industry, paper, pulp industry, sugar industry | Head: ~250 m |
| HZAO: Open impeller series | General process industry, water supply plant, seawater desalination plant | Speed: 1450~2950r/min |
| HZE: Center support series | Heating and air conditioning system power plant | Pressure: ~2.5MPa |

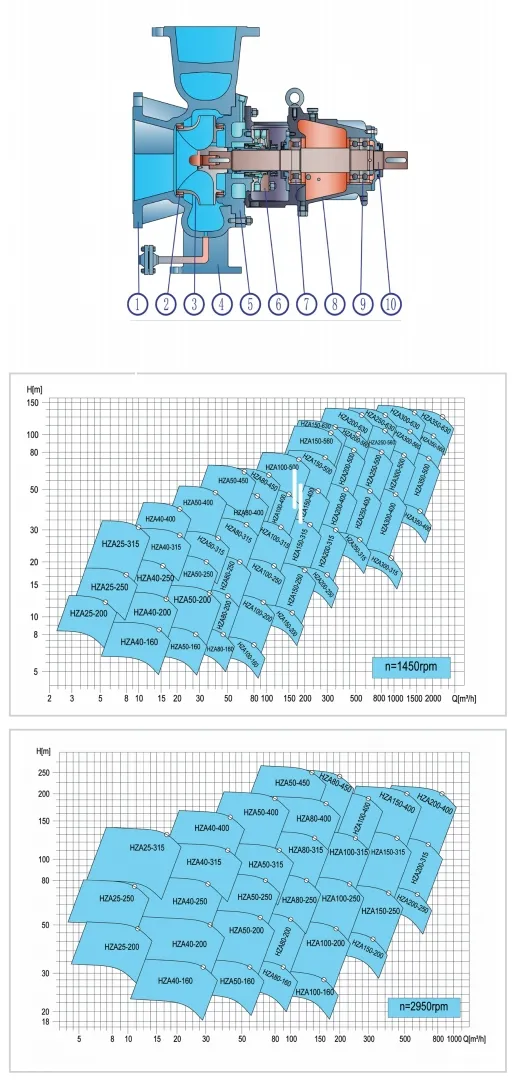

Components: 1. Pump body 2. Seal ring 3. Impeller 4. Pump foot 5. Pump cover 6. Shaft seal 7. Non-drive end bearing 8. Bearing bracket 9. Drive end bearing 10. Shafting

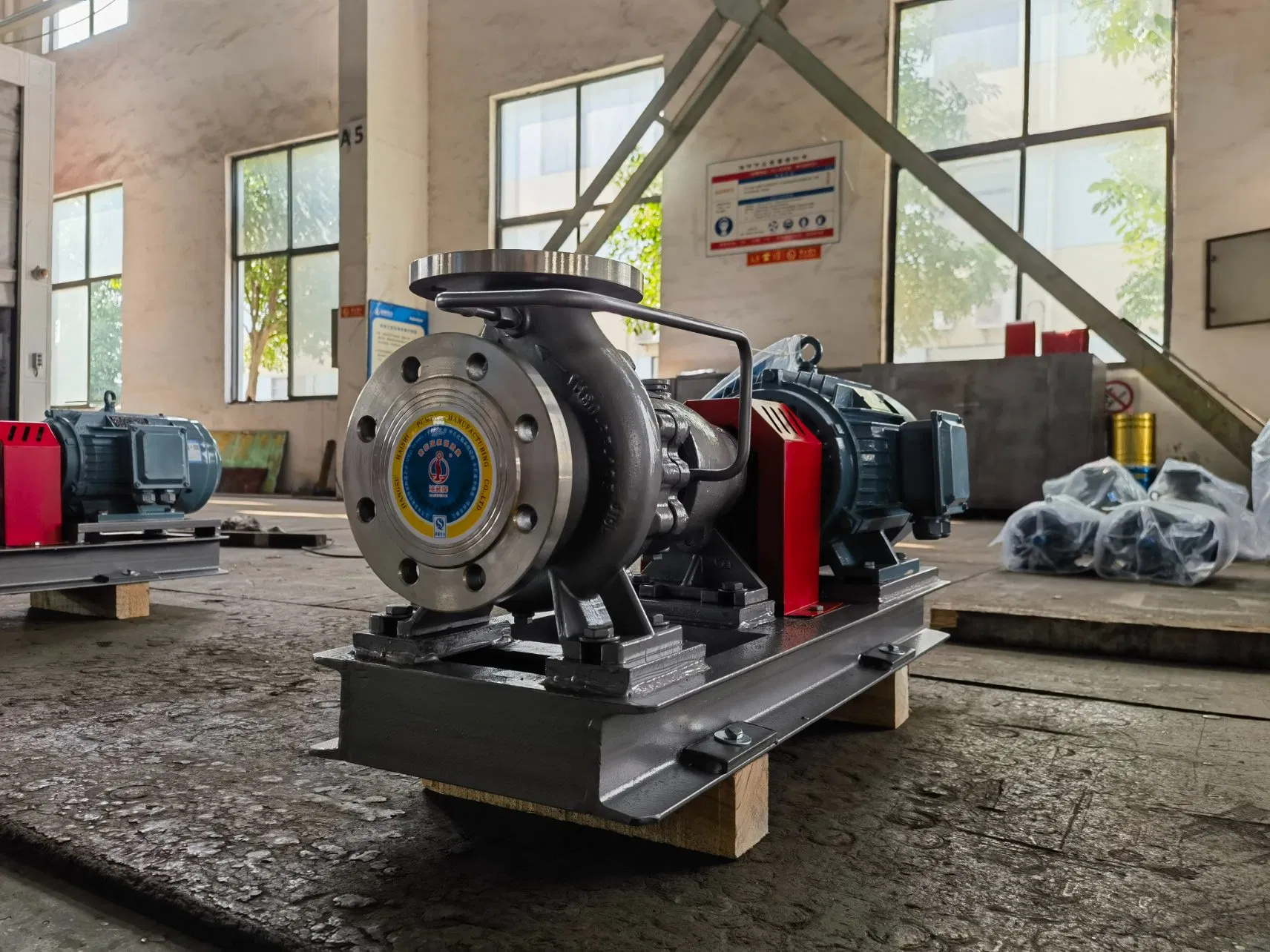

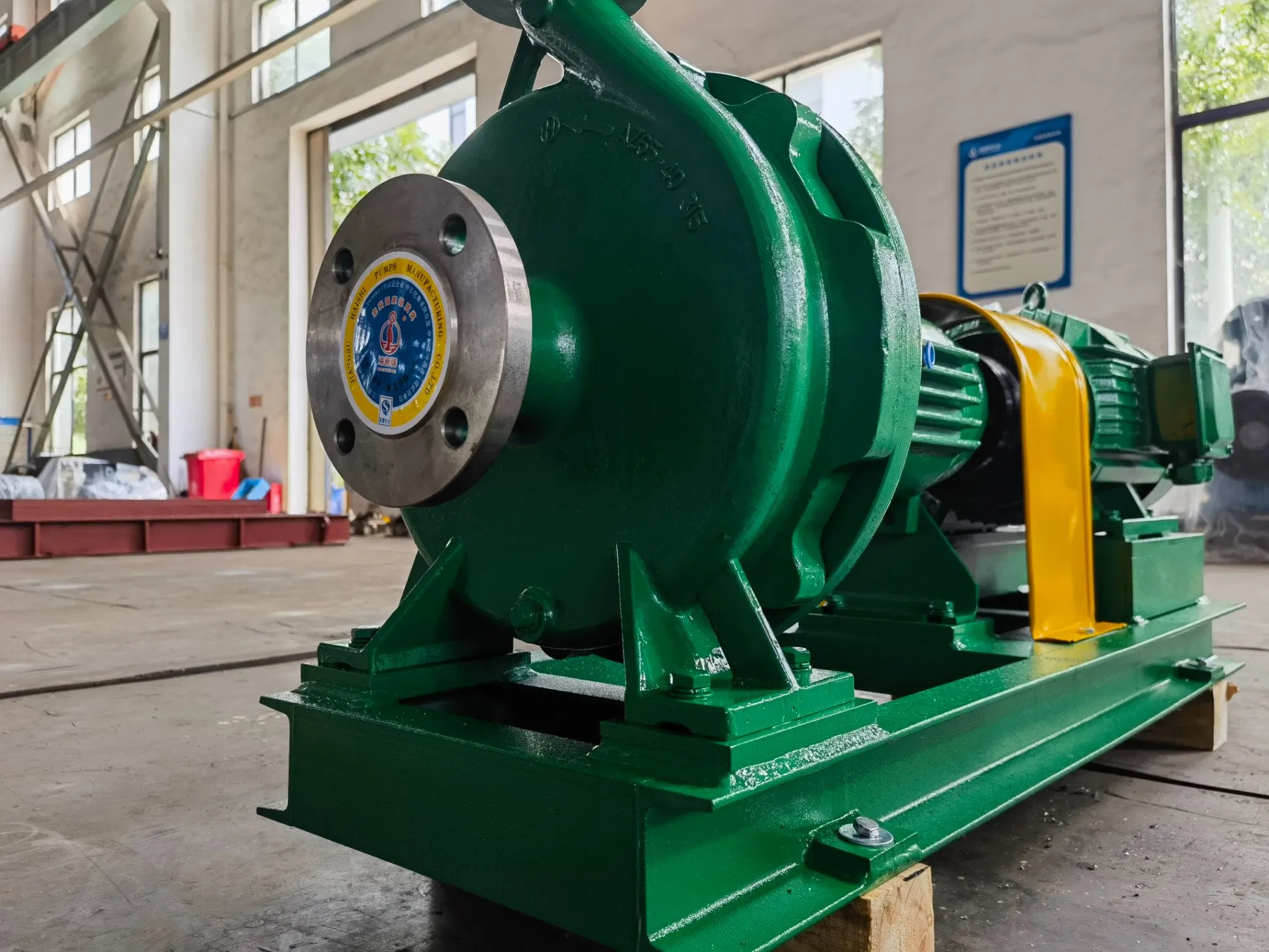

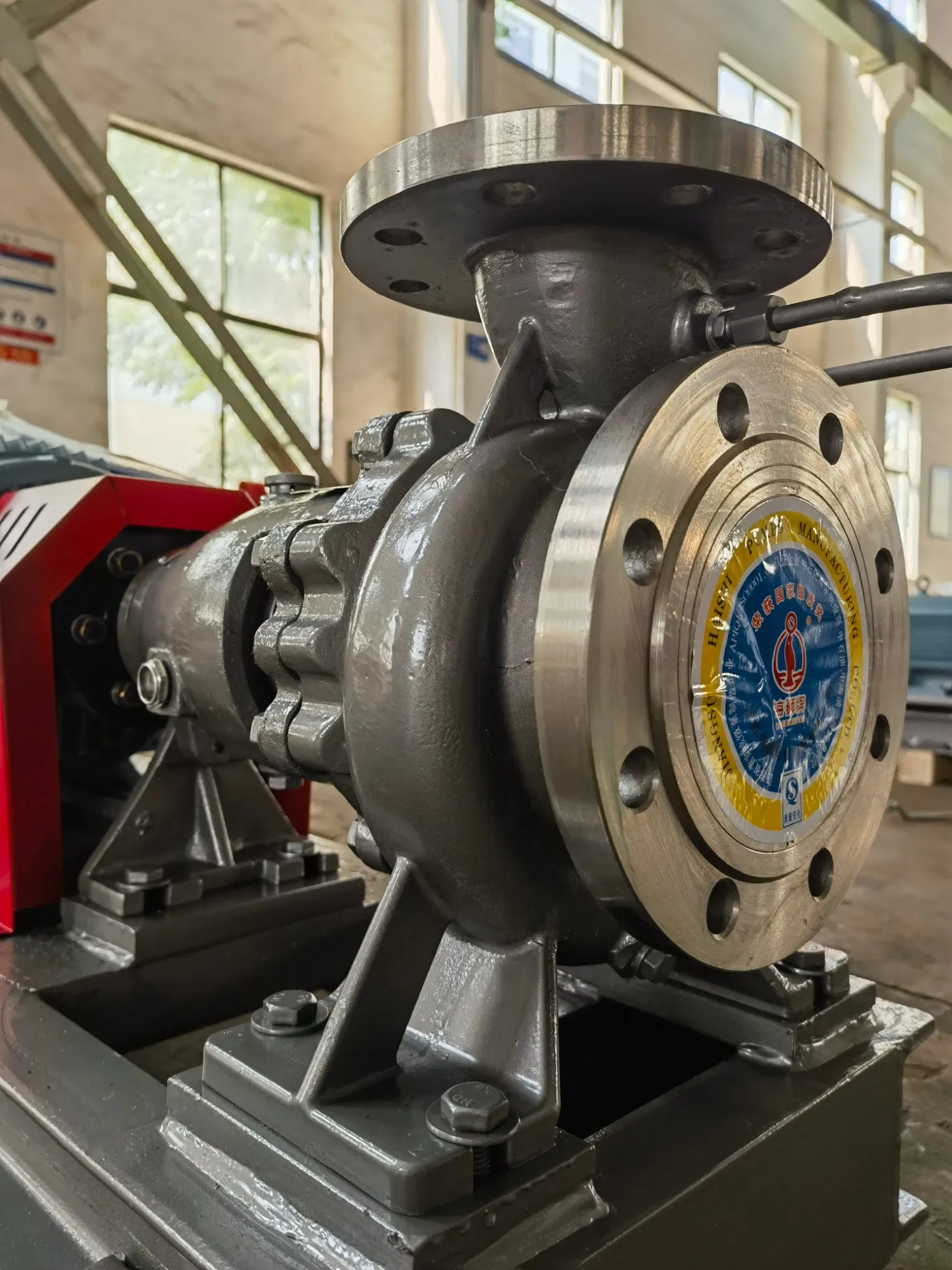

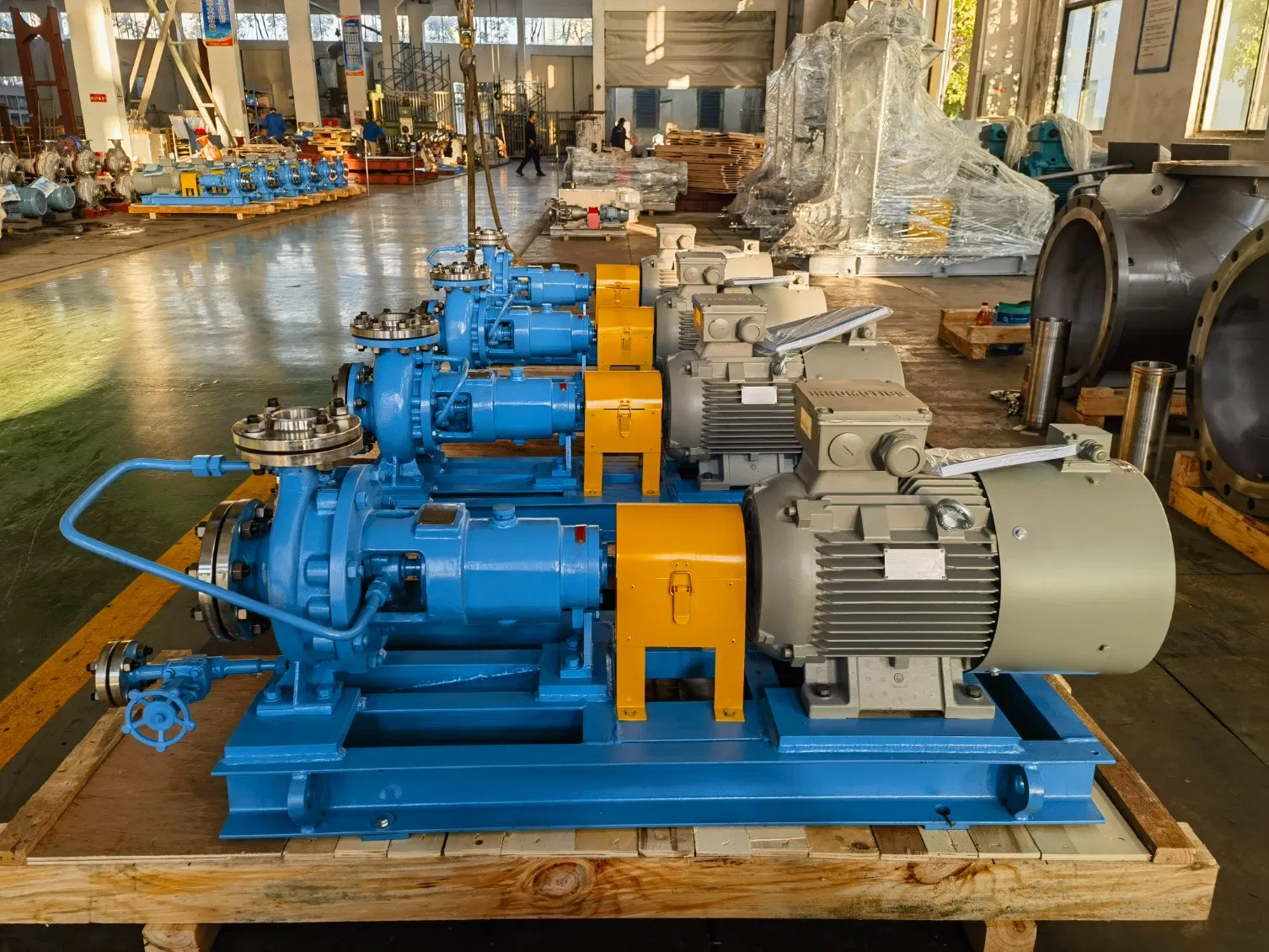

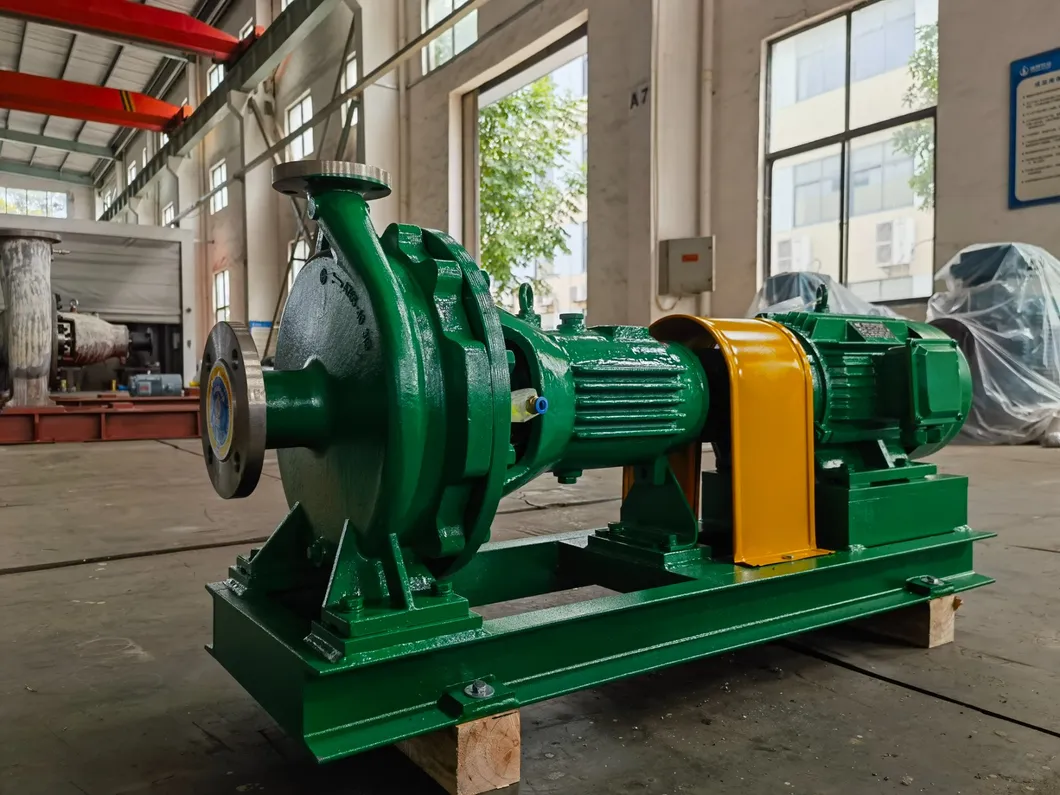

HZA and HZE series petrochemical process pumps are horizontal, radially split, single-stage cantilevered centrifugal pumps. They are designed in accordance with API 610 standards. The sealing system follows API 682, ensuring high safety and reliability for complex operating conditions.

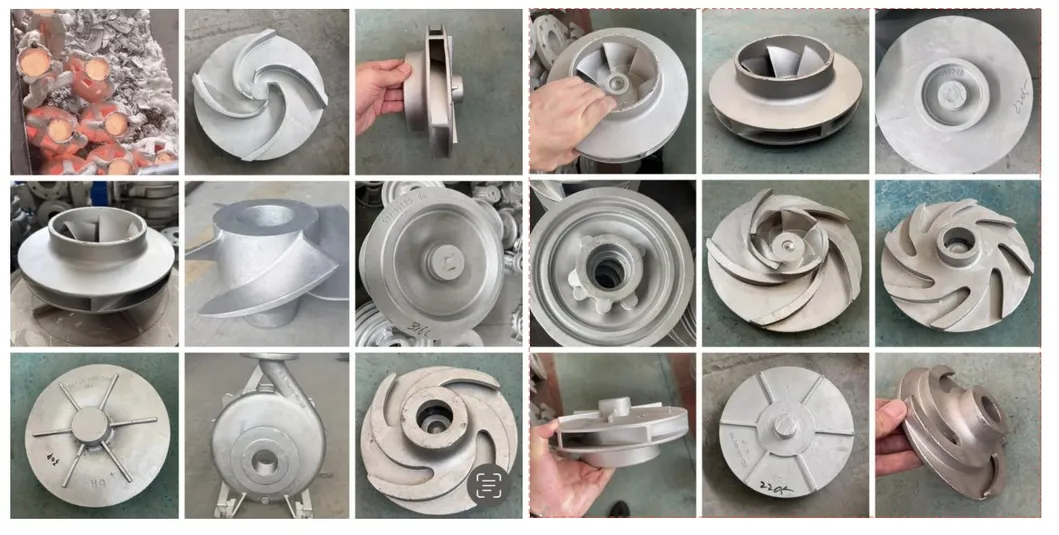

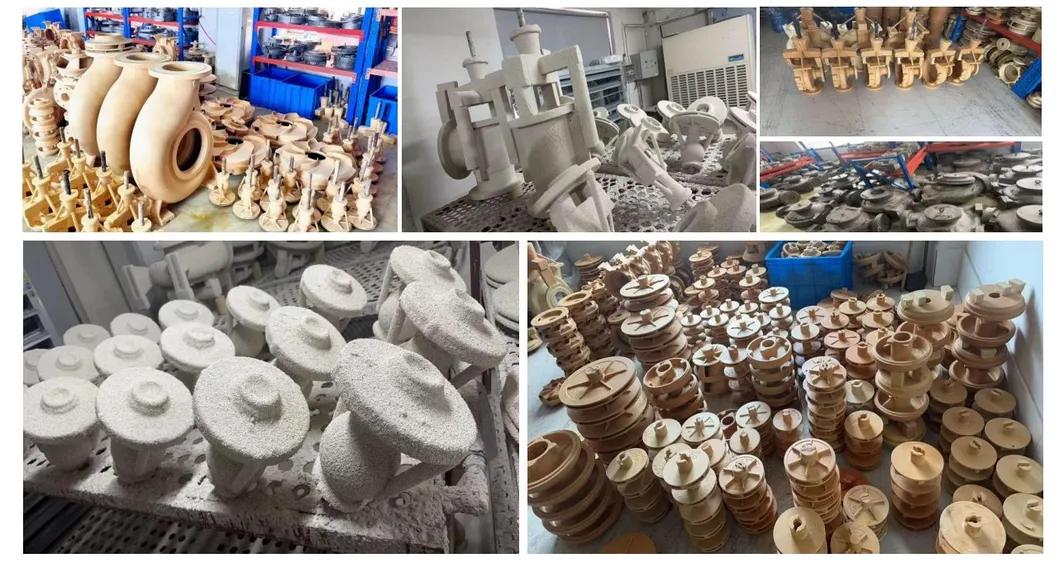

Integrated solutions from embryo casting to complete machines with controlled quality.

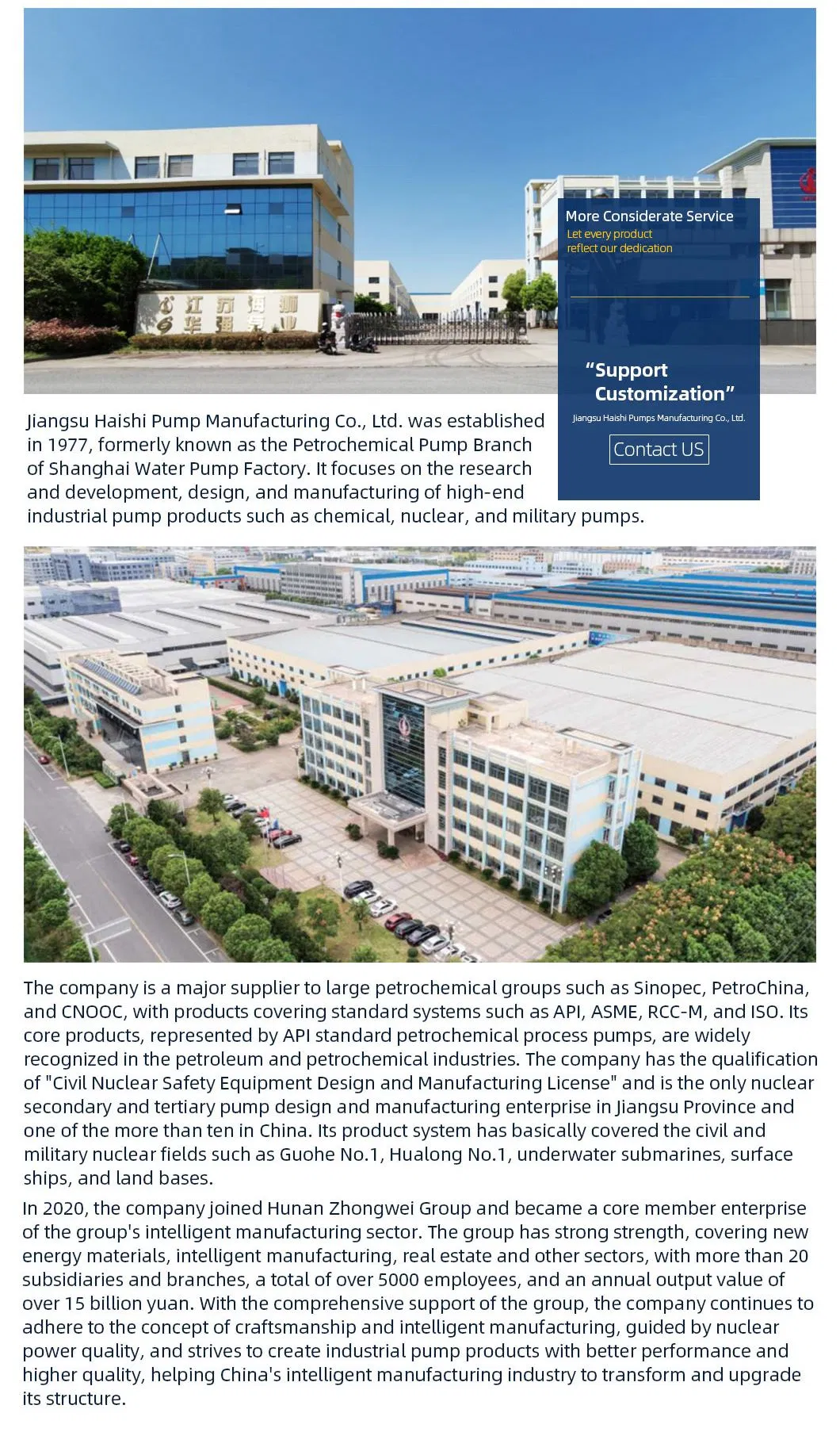

Established in 1977, rich history and experience in pump manufacturing.
Professional engineers and workers ensuring timely delivery.

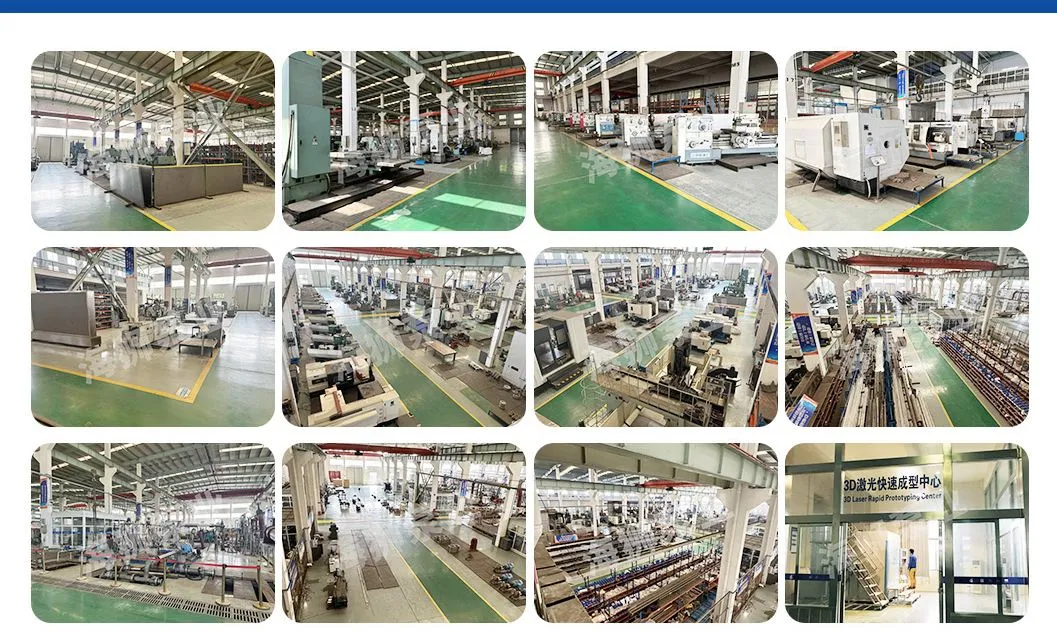

Modernized workshops with strict QA & QC procedures.
