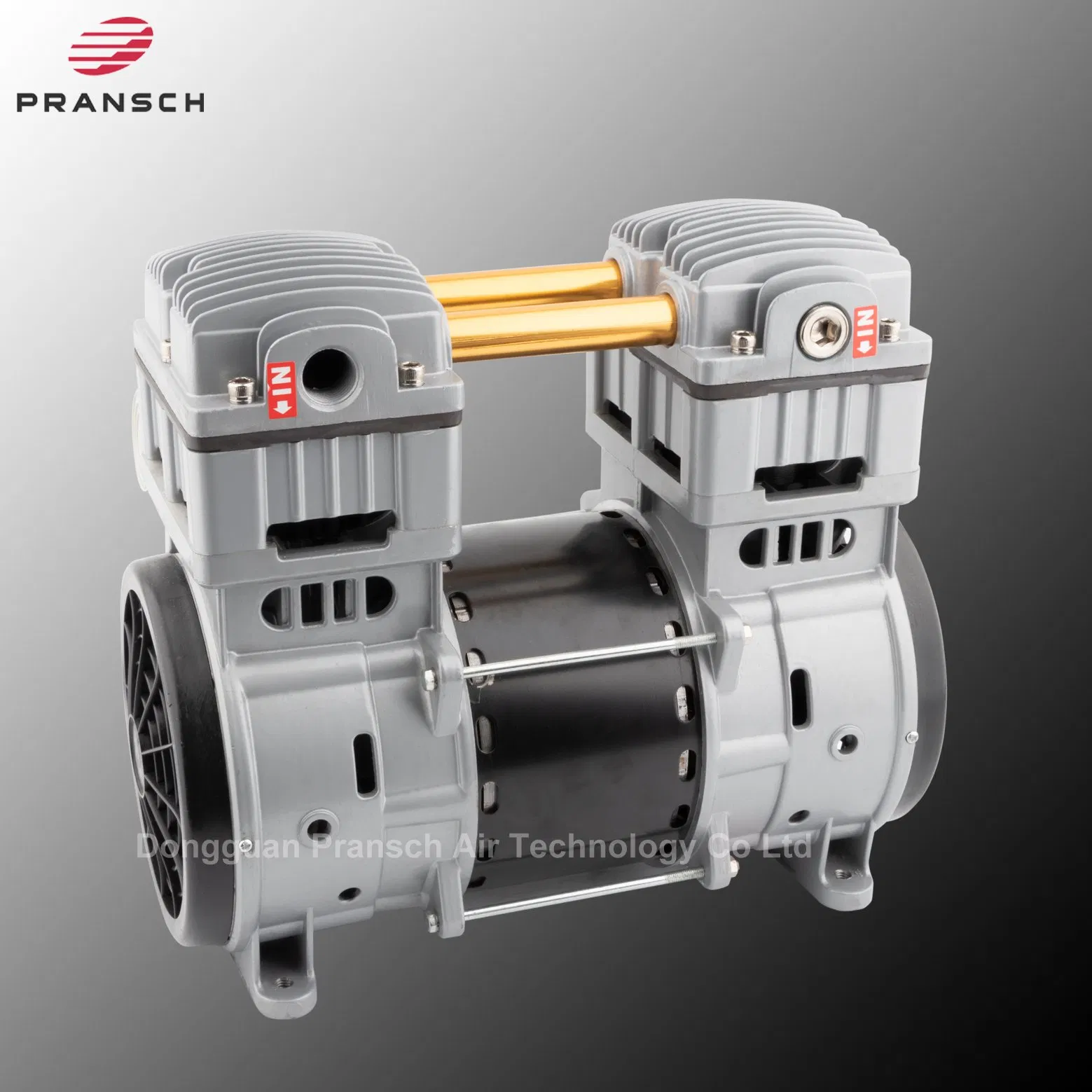

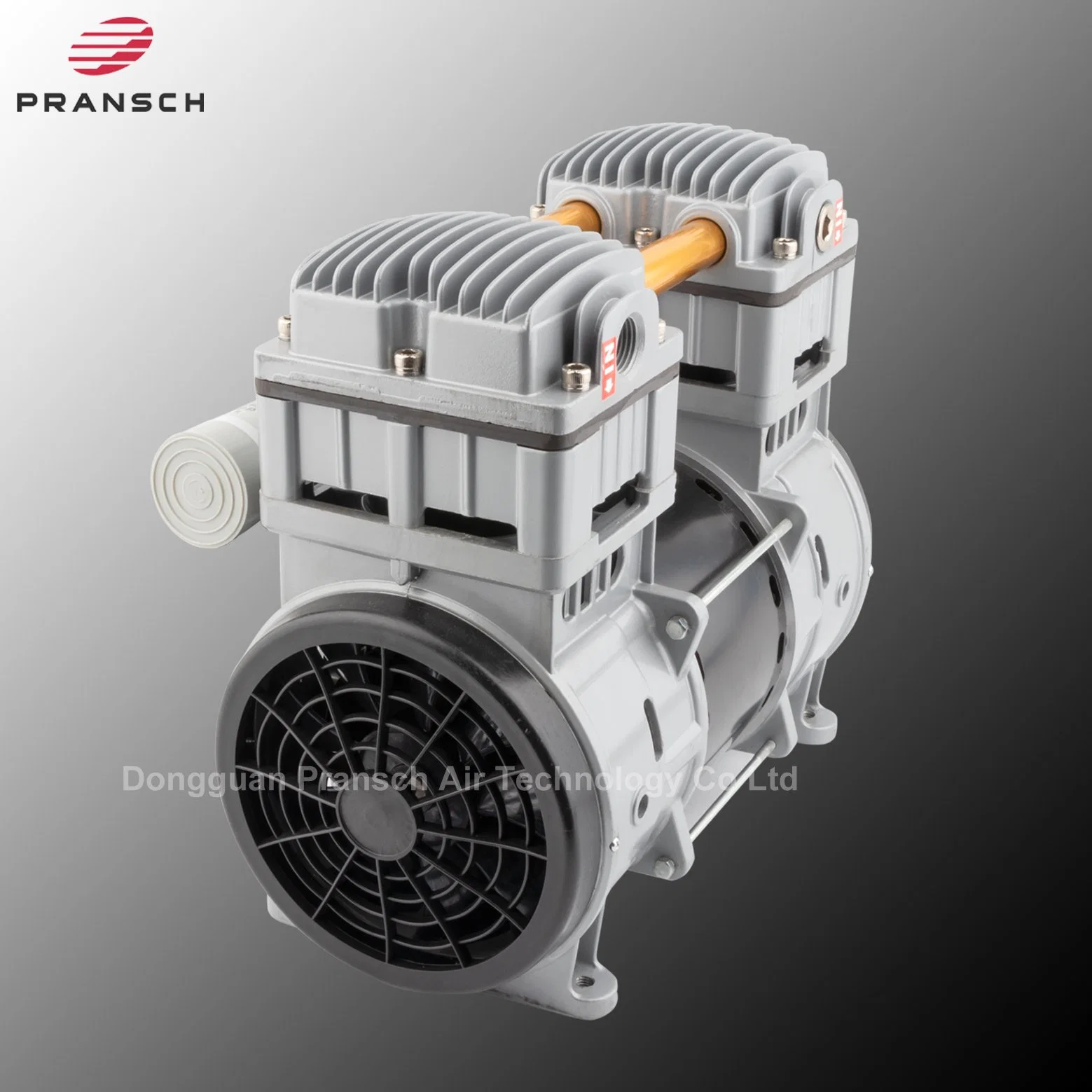

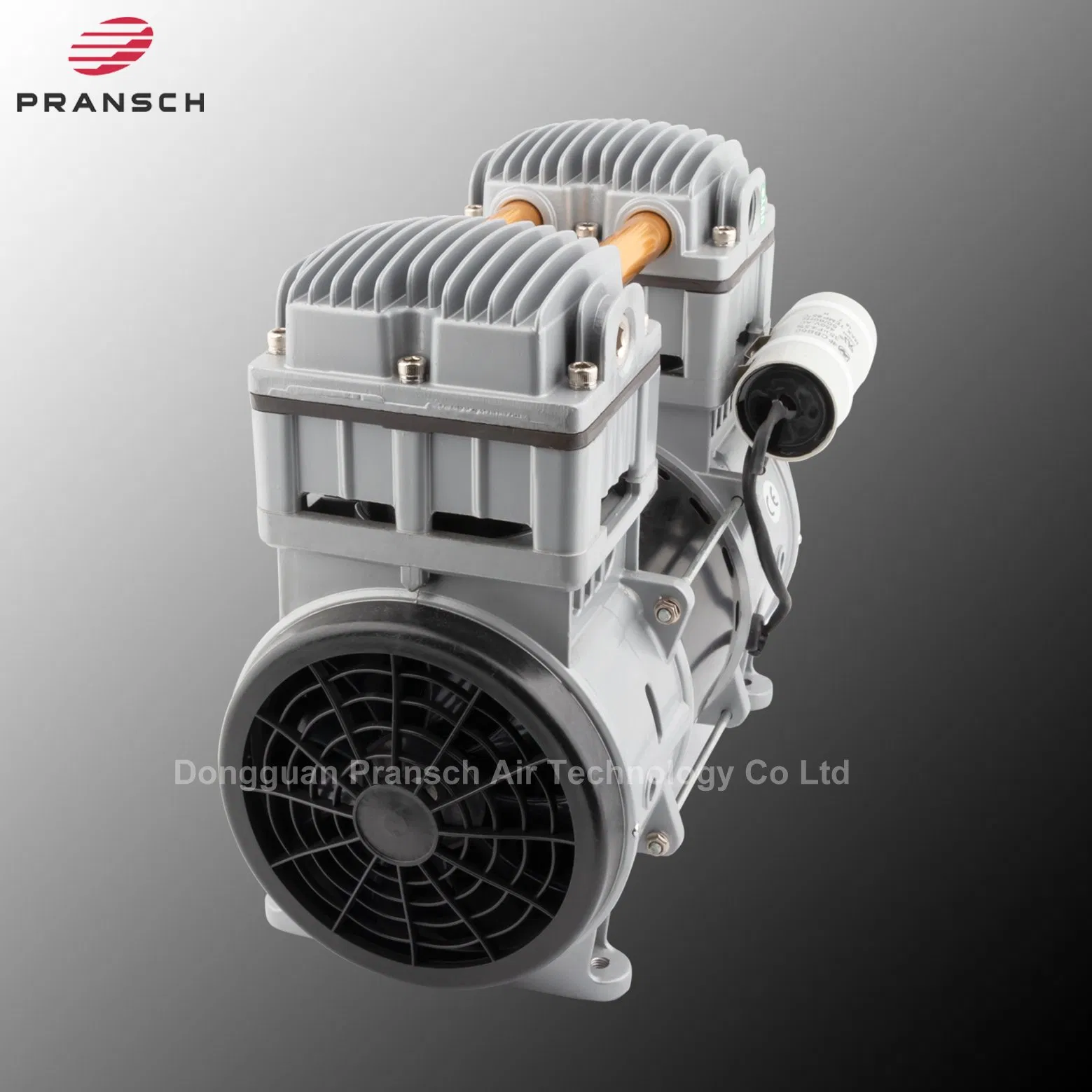

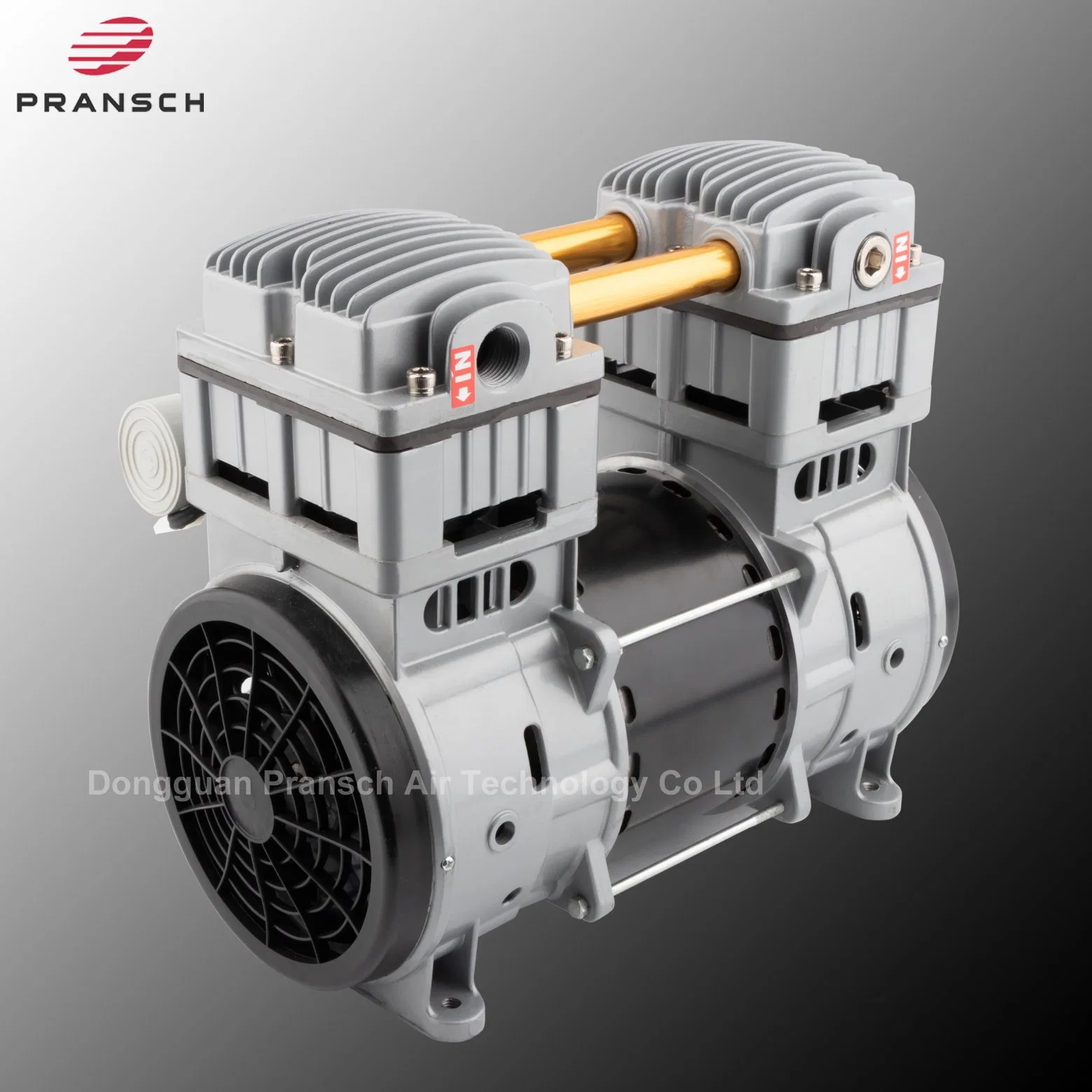

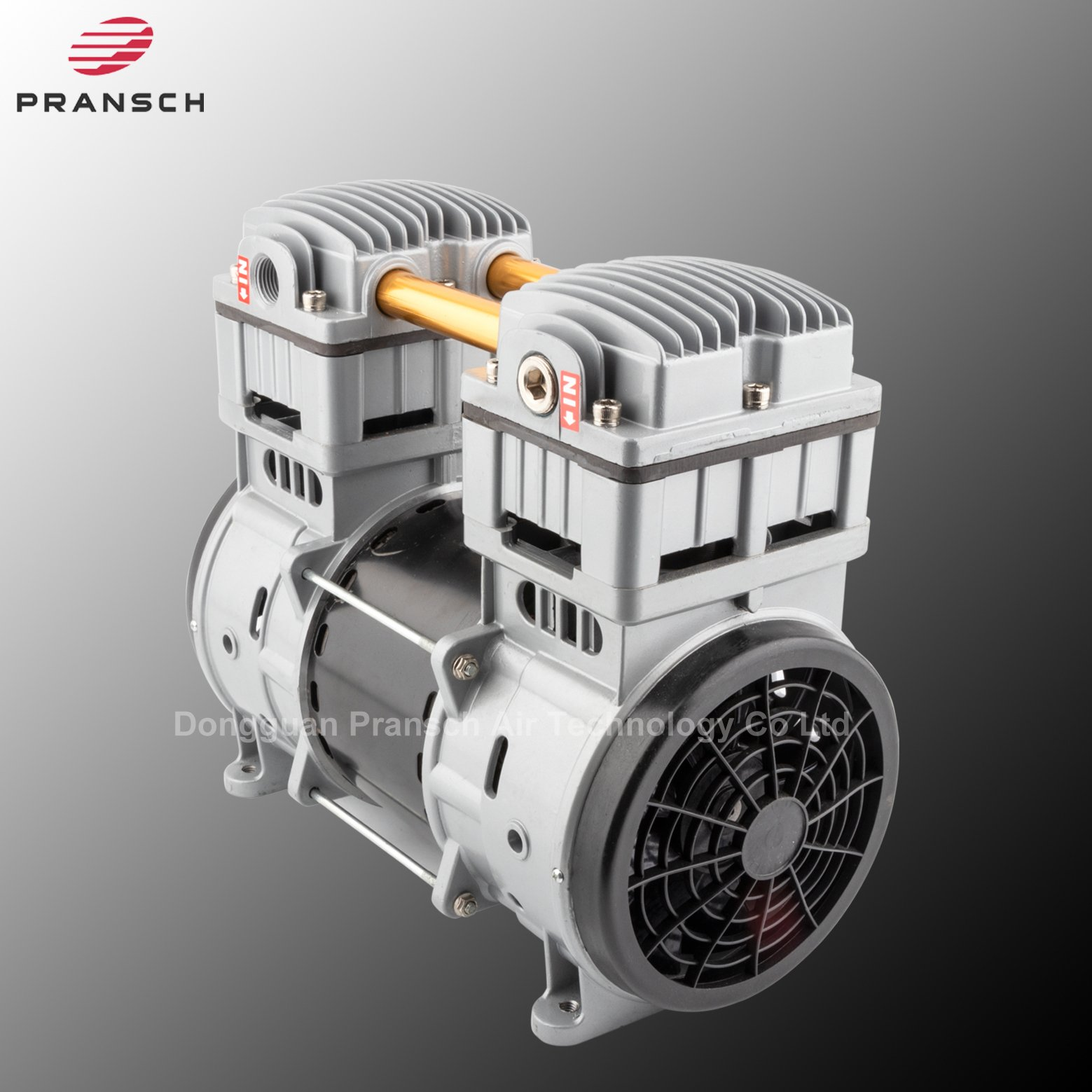

Silent Portable 3/4HP Twin Mini Rocking Food Industry Detailing Milker Braking Laboratory Dental Airbrush Piston Motor Head Air Dry Oilless Oil Free Vacuum Pump

1 / 5

Silent Portable 3/4HP Twin Mini Rocking Food Industry Detailing Milker Braking Laboratory Dental Airbrush Piston Motor Head Air Dry Oilless Oil Free Vacuum Pump

Customization:	Available
Oil or Not:	Oil Free
Structure:	Reciprocating Vacuum Pump

Send Inquiry

Product Description

Basic Specifications

Model NO.PM3000V

Exhauster MethodPositive Displacement Pump

Vacuum DegreeHigh Vacuum

Work FunctionMainsuction Pump

Working ConditionsDry

MaterialSteel

Power SourceCorded-Electric

Warranty2 Year Limited Warranty

PurposeTire Inflators, Food Processing & Packaging

OriginChina

HS Code841100090

Production Capacity500,000 PCS/Year

Silent Portable 3/4HP Twin Mini Rocking Piston motor Head Oilless Oil Free Air Dry Vacuum Pump

This series of oil-less rocking piston pumps and air compressors combines the best characteristics of traditional piston pumps and diaphragm pumps into compact units with excellent features. It is ideal for applications where oil-mist is undesirable, such as pressure/vacuum filtration, air sampling, water aeration, and flame photometer systems.

Core Advantages

Lightweight & Portable: Designed for easy transport and integration.
Low Maintenance: Durable construction ensures near ZERO maintenance requirements.
Safety Features: Includes thermal protection up to 130°C.
Complete Kit: Equipped with 1m power cord, shock mounts, and silencer-muffler.
Precision Control: Stainless steel vacuum/pressure gauges with oil damping and needle valves with lock nuts.
Global Compatibility: Power supply supports 230V, 50/60 Hz.

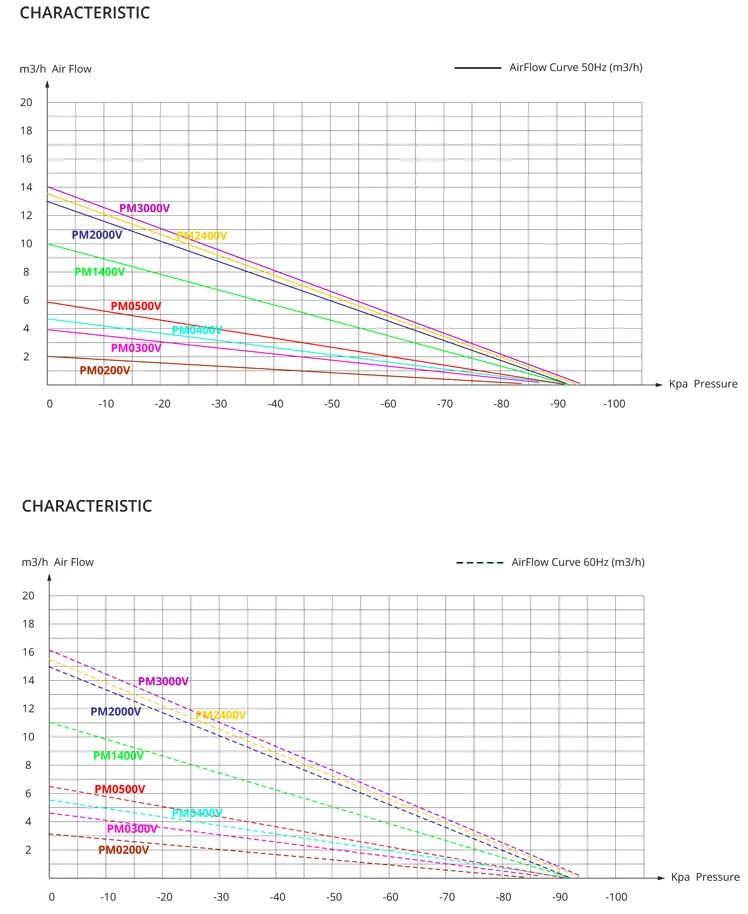

Technical Specifications

Model	Hz	Flow (L/min)	Pressure (Kpa)	Power (Kw)	Speed (Min-1)	Current (A)	Voltage (V)	Sound dB(A)	Weight (Kg)	Installation (mm)
PM200V	50/60	33/50	-84	0.10/0.12	1380/1450	0.45/0.90	210-235/110-125	48	1.8	L100xW74
PM300V	50/60	66/75	-86	0.12/0.14	1380/1450	0.56/1.13	210-235/110-125	50	3.2	L118xW70
PM400V	50/60	80/92	-92	0.32/0.36	1380/1450	0.95/1.91	210-235/110-125	56	6.0	L153xW95
PM550V	50/60	100/110	-92	0.32/0.36	1380/1450	1.50/3.10	210-235/110-125	56	6.0	L148xW83
PM1400V	50/60	166/183	-92	0.45/0.52	1380/1450	1.90/4.10	210-235/110-125	58	8.5	L203xW86
PM2000V	50/60	216/250	-92	0.55/0.63	1380/1450	2.50/5.20	210-235/110-125	60	9.0	L203xW86
HP2400V	50/60	225/258	-94	0.90/1.10	1380/1450	3.30/6.90	210-235/110-125	75	17.0	L246xW127
PM3000V	50/60	230/266	-94	1.10/1.30	1380/1450	4.20/8.50	210-235/110-125	76	17.5	L246xW127

Product Details & Applications

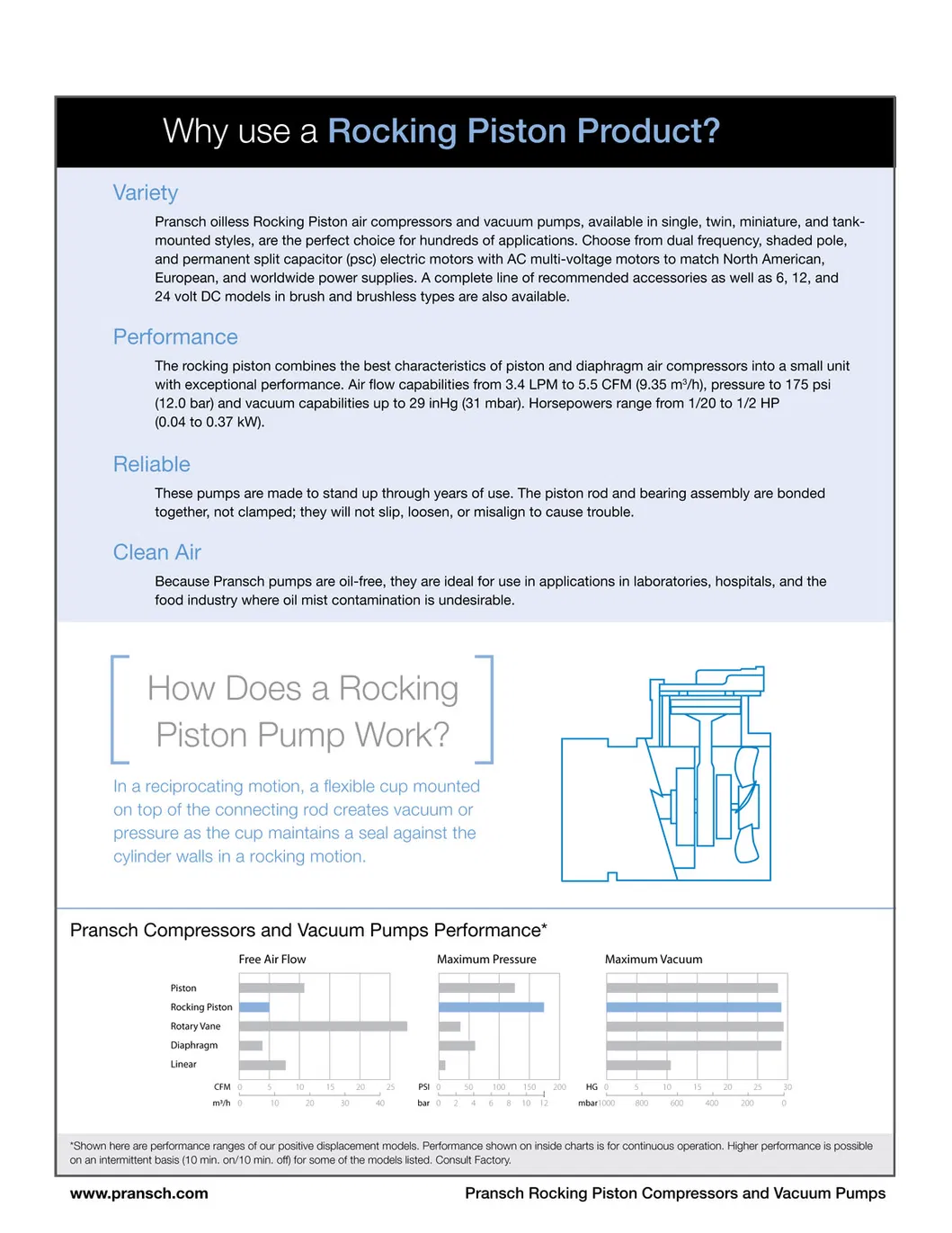

Why Choose Rocking Piston Technology?

Variety Available in single, twin, and miniature styles, matching worldwide power supplies (AC/DC).

Performance Combines piston power with diaphragm smoothness. Air flow up to 5.5 CFM and vacuum up to 29 inHg.

Reliable Bonded piston rod and bearing assembly prevent slipping or misalignment over years of use.

Clean Air 100% oil-free operation makes them essential for hospitals, laboratories, and food industries.

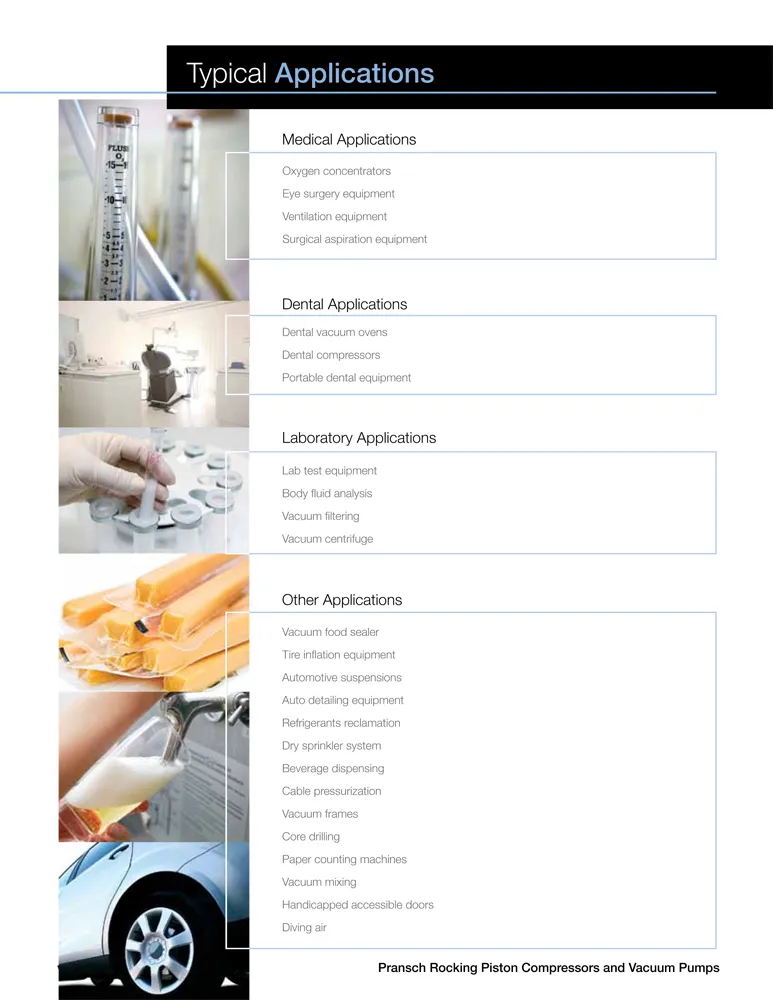

Key Applications

Transportation:

Auto detailing, Braking systems, Suspension systems, Tire inflators.

Food & Beverage:

Beverage dispensing, Coffee equipment, Nitrogen generation, Food packaging.

Medical & Lab:

Dental tools, Oxygen concentrators, Medical aspiration, Lab automation, Ventilators.

Industrial & Environmental:

Pond aeration, Water purification, Refrigerant reclamation, Vacuum mixing.

Frequently Asked Questions (FAQ)

Q: What makes these vacuum pumps "oil-free"?

A: These pumps utilize rocking piston technology that does not require oil lubrication in the compression chamber, ensuring the discharged air is free of oil mist contamination.

Q: Can these pumps be used for both vacuum and pressure applications?

A: Yes, rocking piston units are versatile and can be configured for both vacuum suction and air compression tasks across various industries.

Q: How do I maintain the pump for long-term use?

A: Maintenance is minimal due to the oilless design. Periodic inspection of the intake filters and ensuring the unit operates within its thermal limits (up to 130°C) is recommended.

Q: Are the pumps compatible with international power standards?

A: Yes, models are available for dual frequency (50/60Hz) and various voltages including 110-125V and 210-235V to meet global requirements.

Q: Is the PM3000V model suitable for dental or medical environments?

A: Absolutely. Its oilless operation and relatively low noise level make it an ideal choice for dental compressors, aspiration, and other medical laboratory settings.

Q: What is the noise level of these units?

A: Noise levels vary by model, ranging from approximately 48 dB(A) for smaller units to 76 dB(A) for high-capacity models like the PM3000V.
