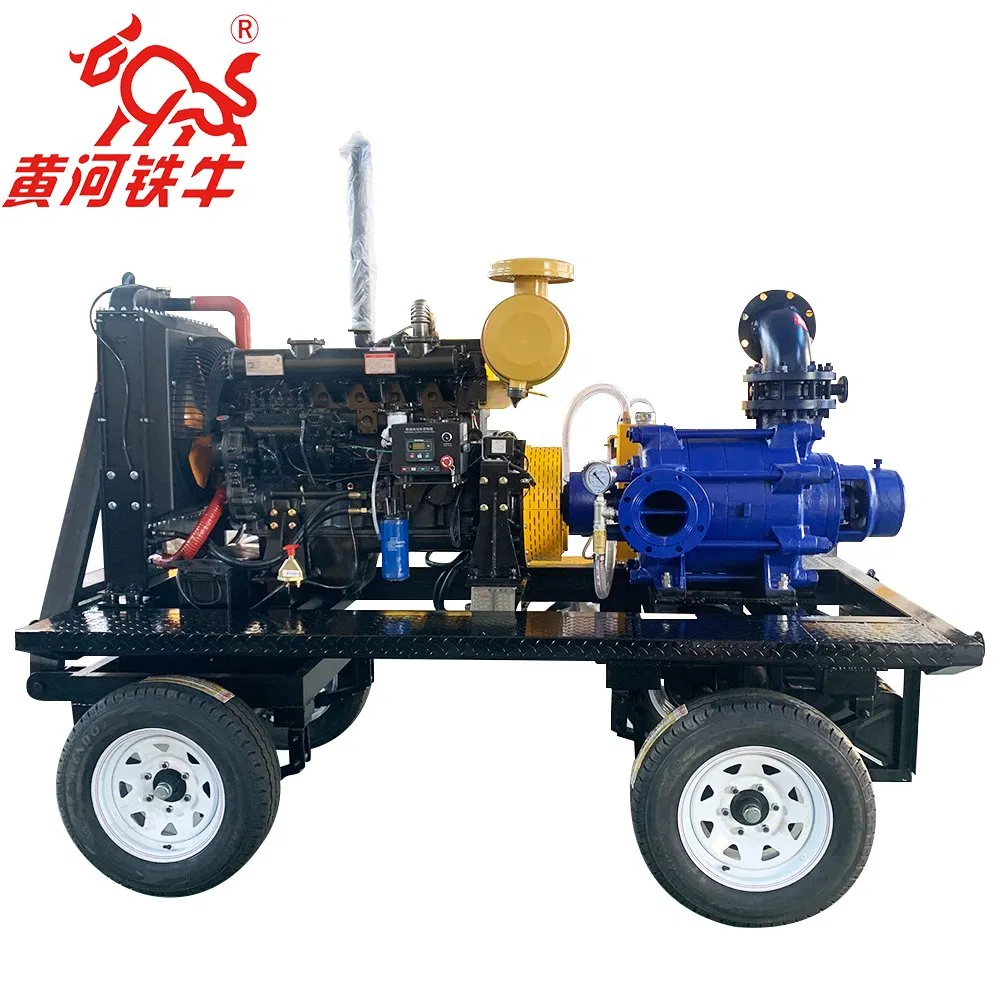

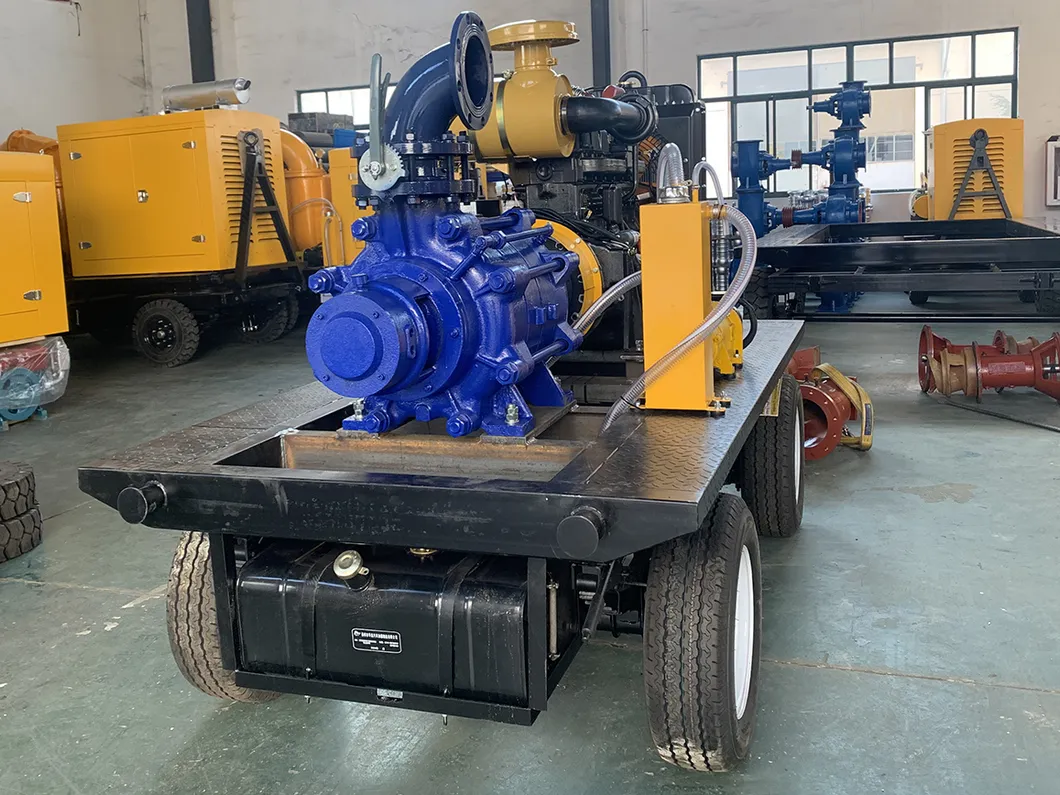

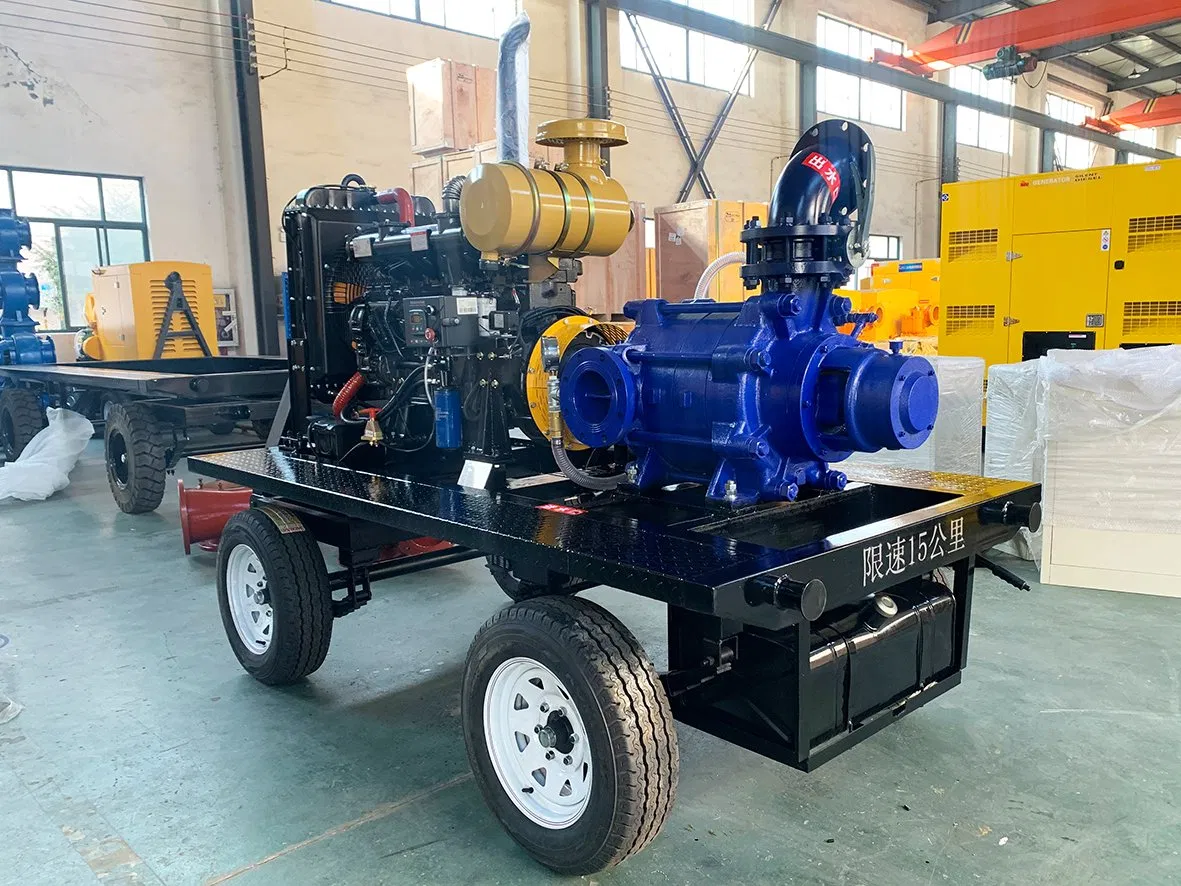

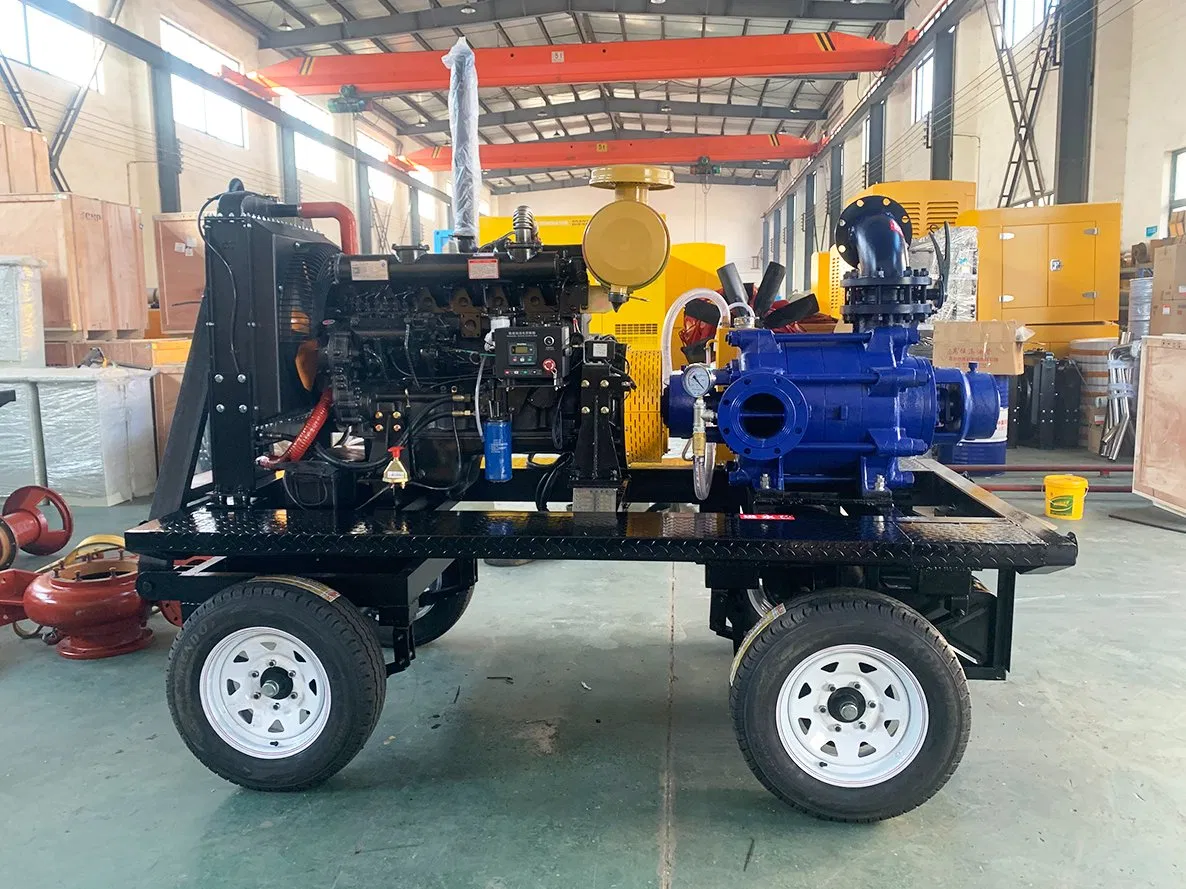

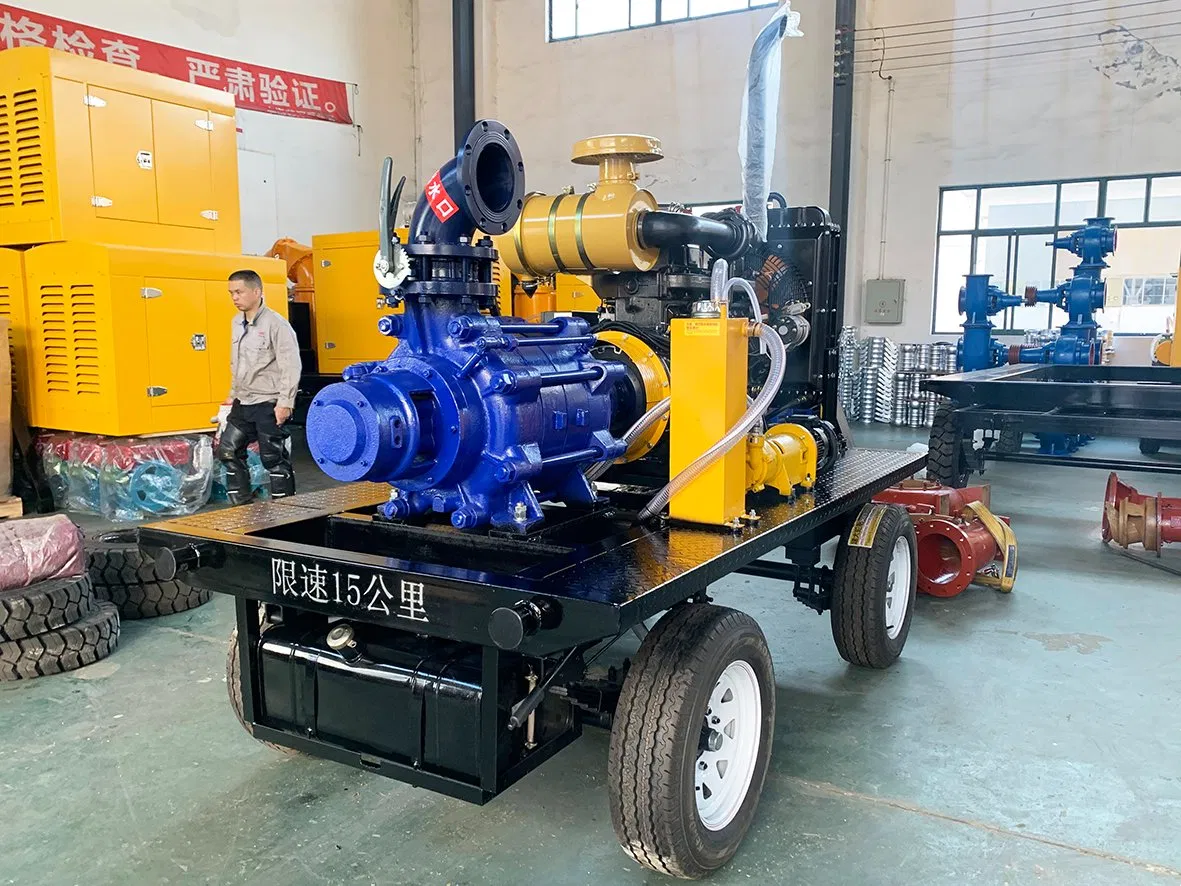

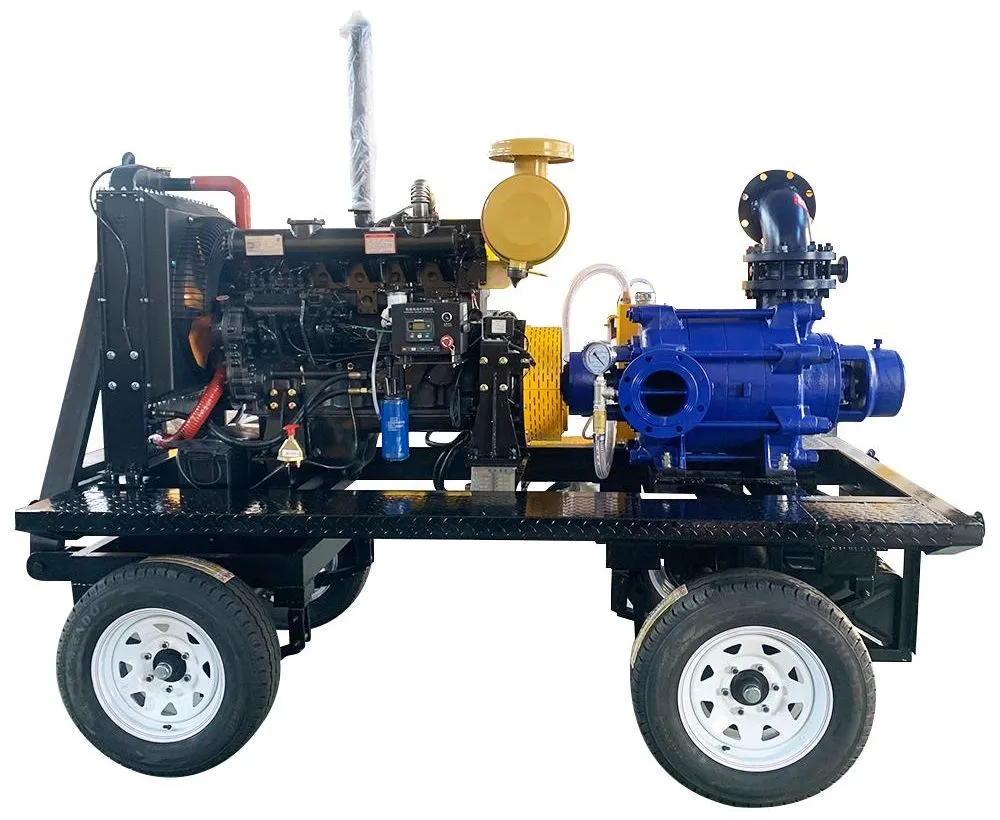

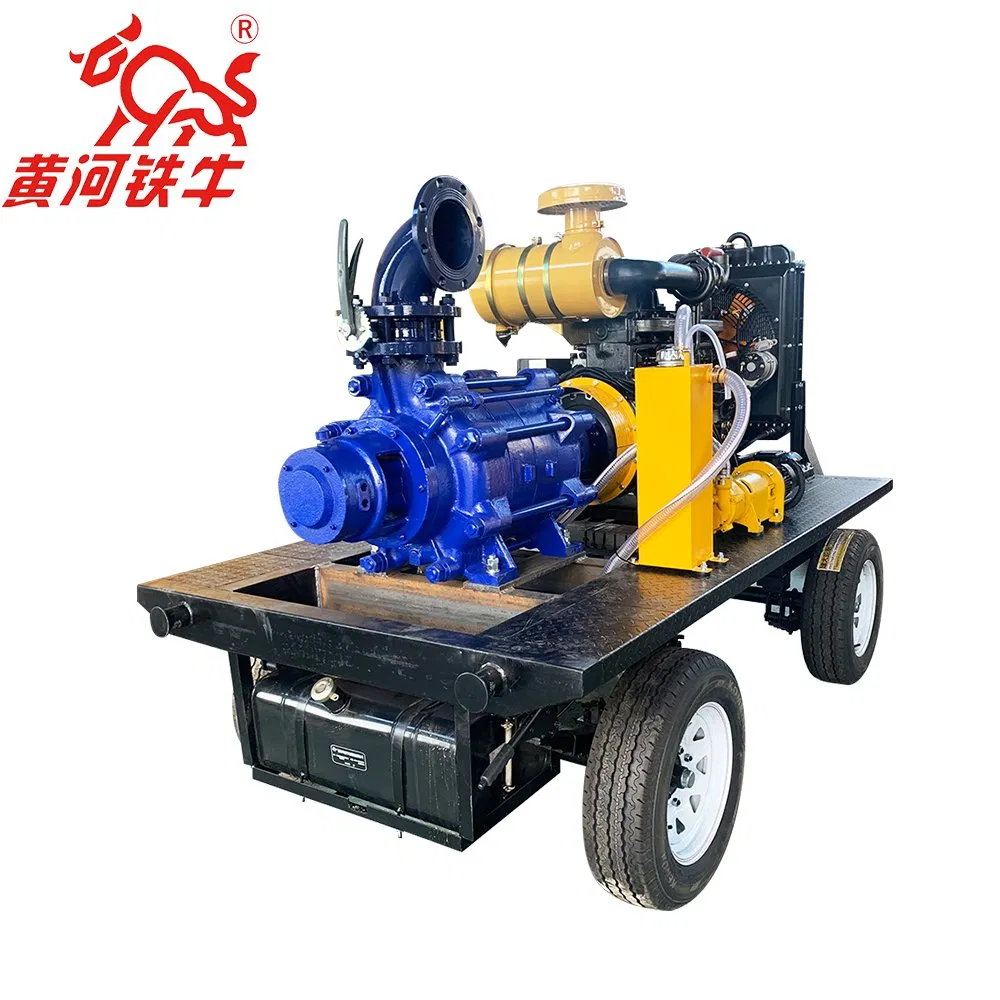

The multistage pump utilizes the principle of centrifugation. Type D pump is a multi-stage, segmented centrifugal clean water pump, which is suitable for water supply and drainage in mines, factories and cities. Designed for conveying liquids free of solid particles and abrasives. It is ideal for clean water without suspended matter, or other liquids with physical and chemical properties similar to clean water.
| Model | Flow (m³/h) | Lift (m) | Power (kw) | Speed (r/min) |
|---|---|---|---|---|
| D155-30*3 | 155 | 90 | 75 | 1450 |
| *4 | 120 | 90 | ||
| *5 | 150 | 110 | ||
| *6 | 180 | 132 | ||
| *7 | 210 | 160 | ||
| *8 | 240 | 200 | ||
| *9 | 270 | 200 | ||
| *10 | 300 | 220 | ||
| D155-67*3 | 155 | 201 | 132 | 2950 |
| *4 | 268 | 185 | ||
| *5 | 335 | 220 | ||
| *6 | 402 | 280 | ||
| *7 | 469 | 315 | ||
| *8 | 536 | 355 | ||
| *9 | 603 | 450 |

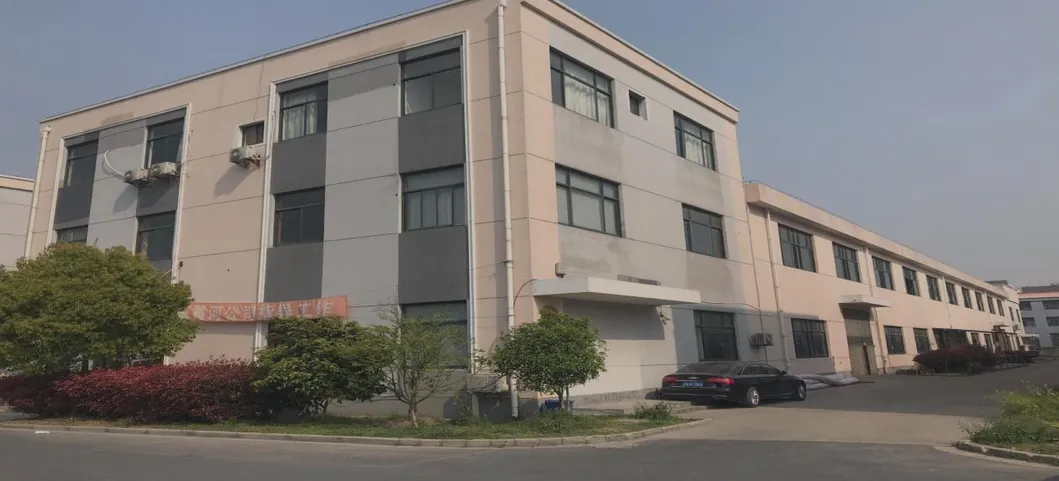

Our facility was established in 2012, focusing on the design and manufacturing of high-performance water pumps. We are dedicated to quality and innovation in the fluid transport industry.
We maintain high management standards with certificates including ISO9001:2015, ISO14001:2015, and ISO45001:2018. Our products are customized to meet specific working site conditions for industries such as chemical, oil, environment, metallurgy, power, and ocean engineering.
