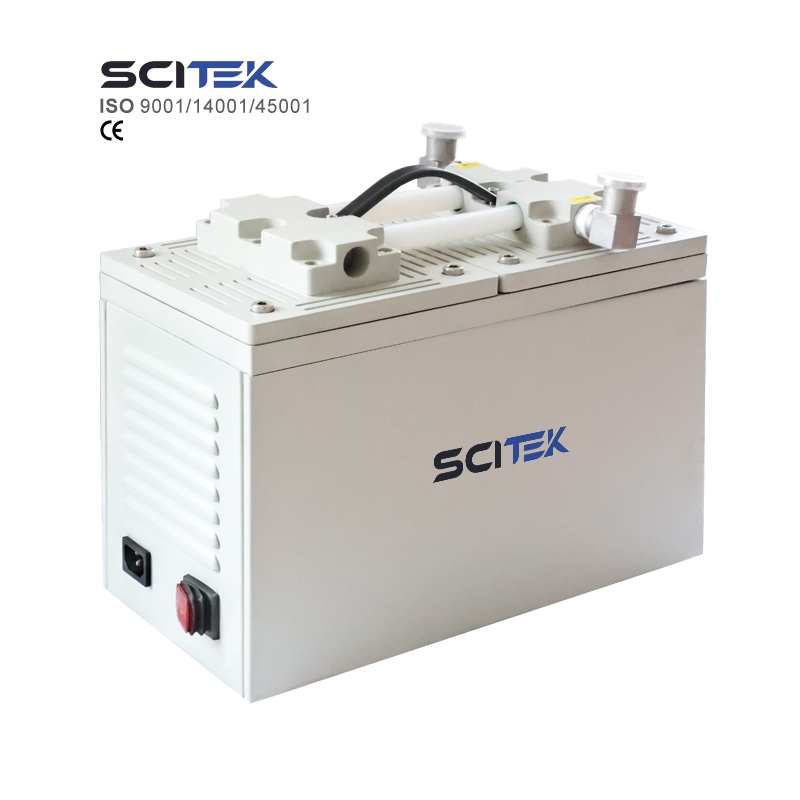

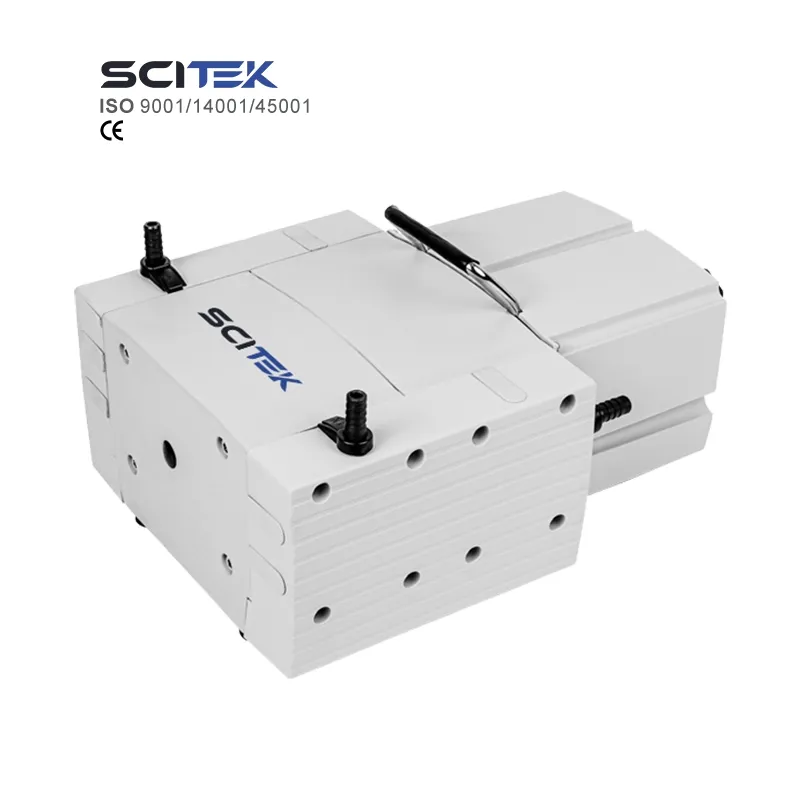

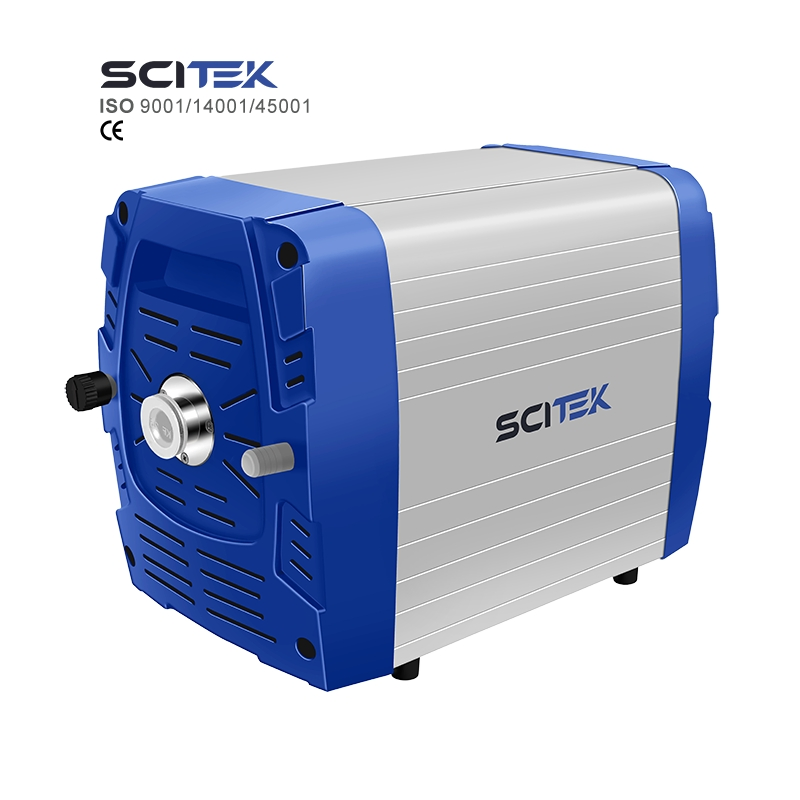

SCITEK Laboratory Chemical-Resistant Diaphragm Vacuum Pump

📋 Basic Information

Model NO.:

VP-DA Series;VP-DH1A;VP-DH2A;VP-DP2A

Vacuum Degree:

Vacuum

Work Function:

Vacuum Pump

Working Conditions:

Wet

Frequency conversion:

Rated at 1400

Pumping Speed (m³/h):

1.2 ;2 ;4;8;10;12;16

Pumping head:

1; 2

Components:

Wetted parts

Displacing valve:

FFKM

Diaphragm:

"Sandwich Configuraticn"PTFE

Inlet/Outlet:

PTFE

Fitting:

PTFE, PDVF

Package Size:

38.00cm * 20.00cm * 31.00cm

Gross Weight:

20.000kg

🚀 Product Description

Scope of Application:

Vacuum drying
Vacuum distillation
Vacuum concentration
Centrifugal acceleration
Rotary evaporation
Solid phase extraction

⭐ Diaphragm Vacuum Pump Features

Original imported accessories, stable and reliable
Small size and light weight
Easy maintenance and repair
Complete resistance to chemical corrosion
Vacuum stability, easy to control pumping speed
Can work continuously for a long time

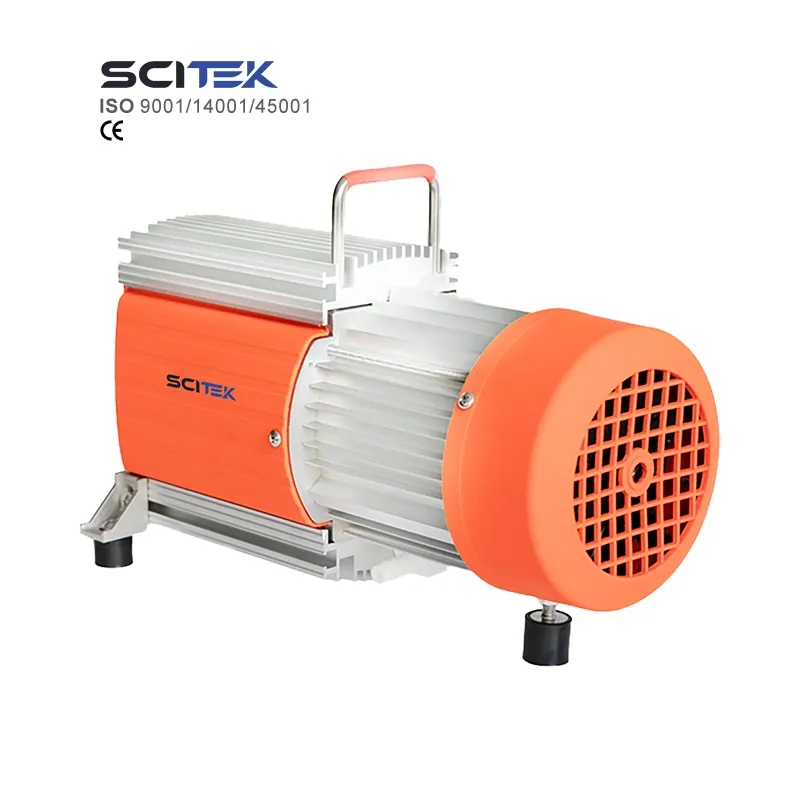

VP-D1A

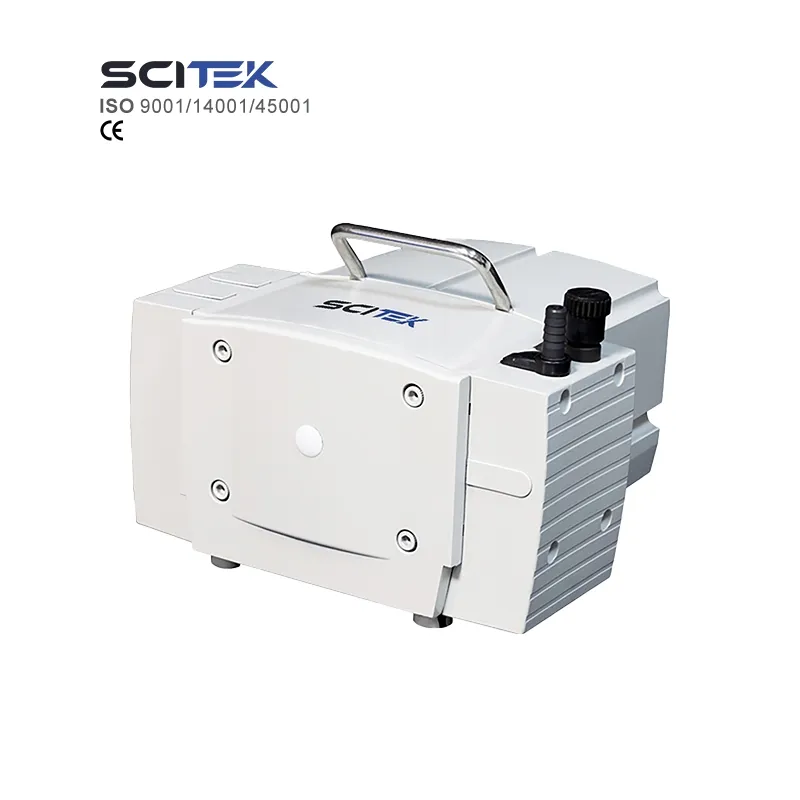

VP-D2A

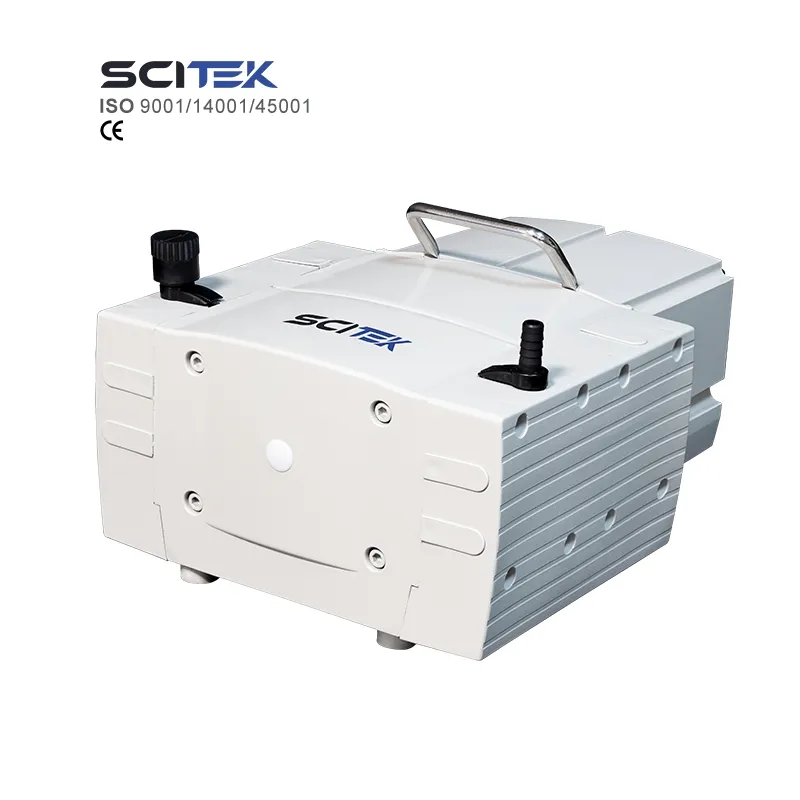

VP-D5A

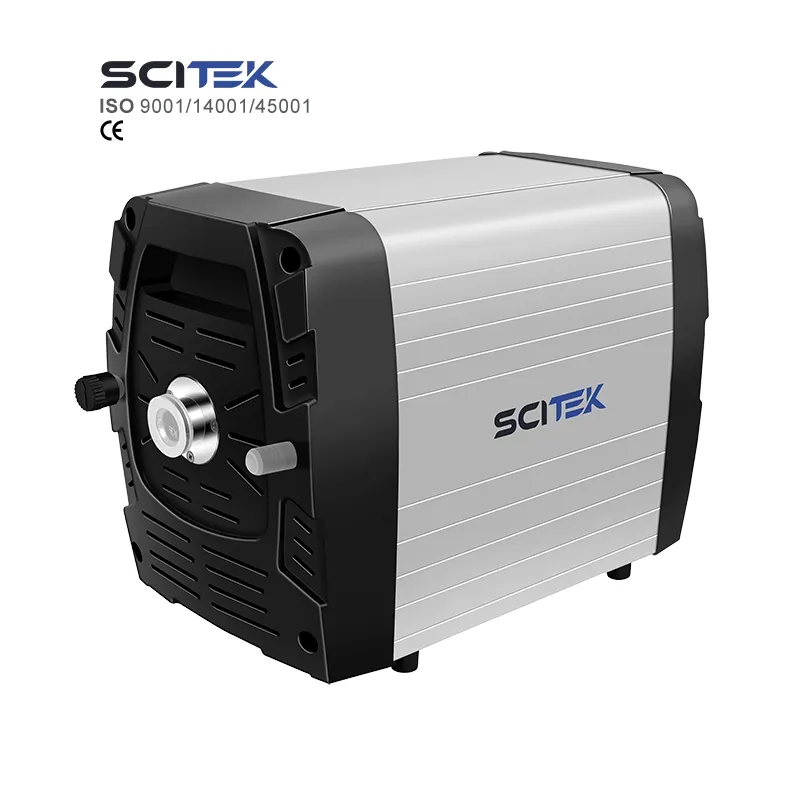

VP-D12A

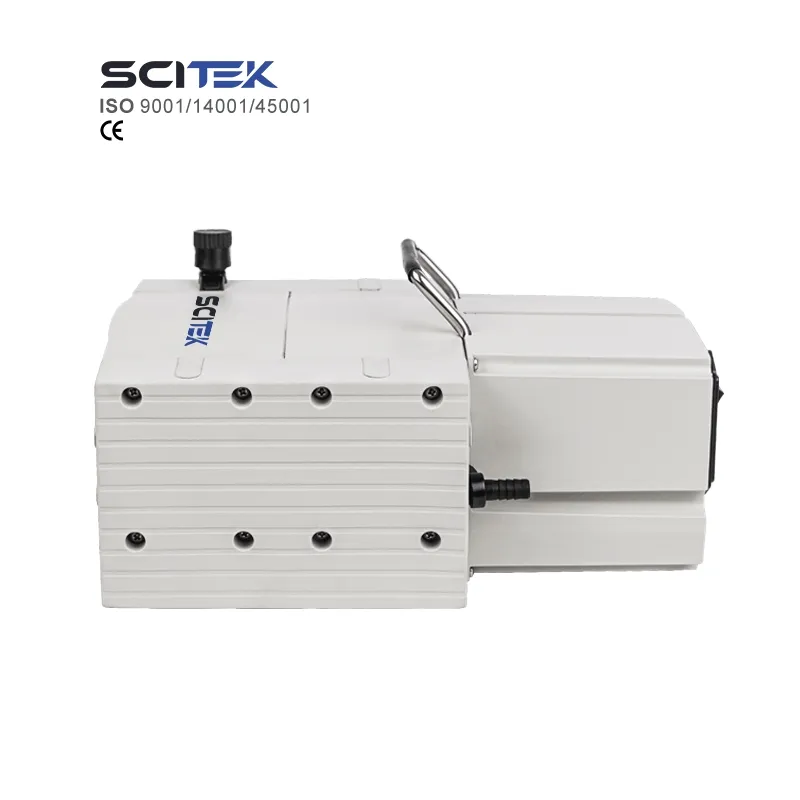

VP-DH2A

VP-D10A

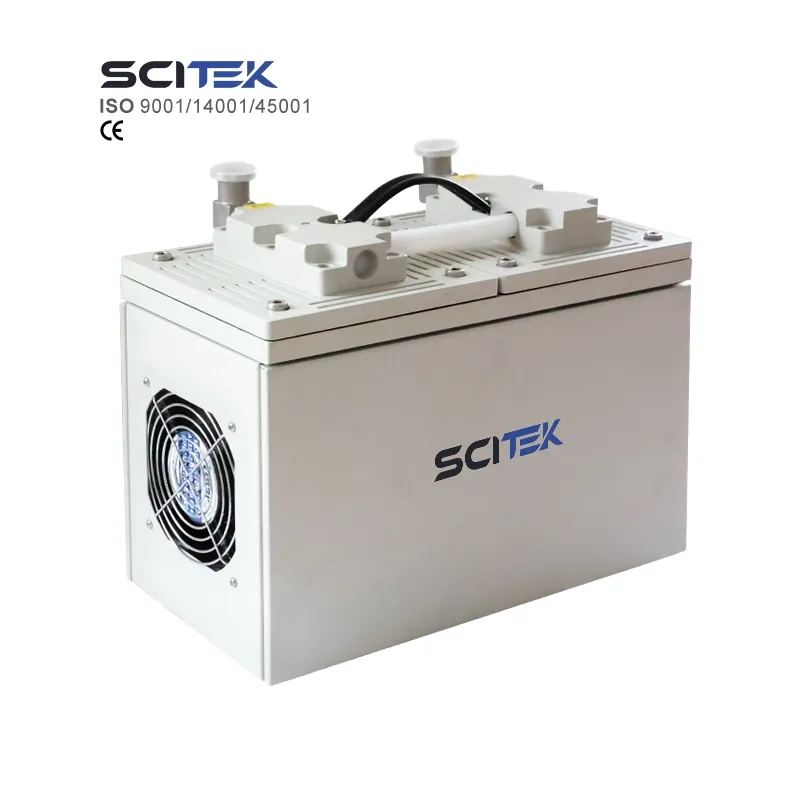

VP-D8A

VP-D16A

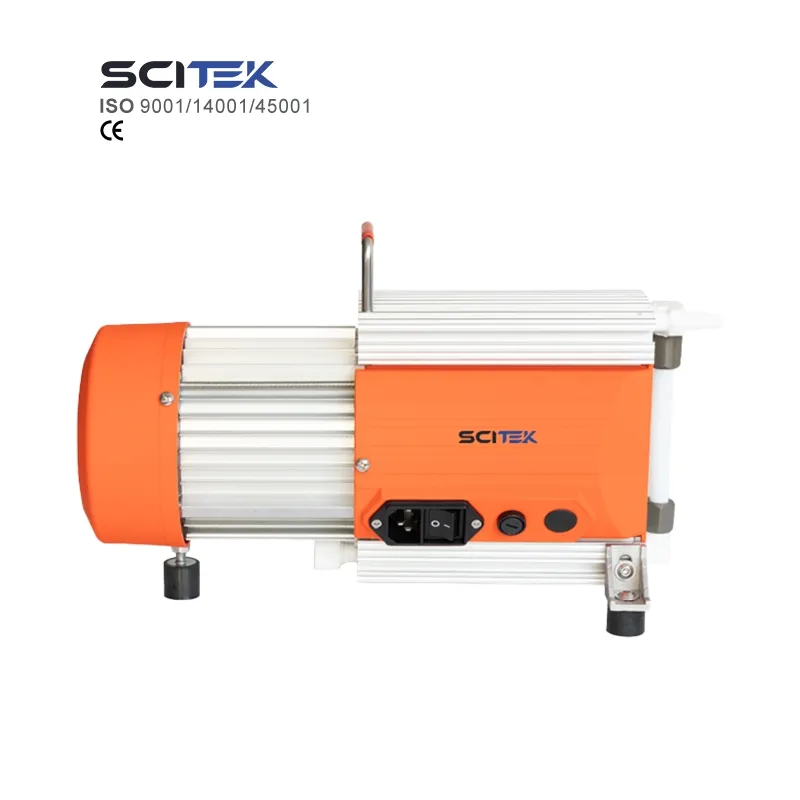

VP-DH1A

📊 Product Parameters

Model	VP-D1A/DH1A	VP-D2A	VP-D5A	VP-DP2A	VP-D12A	VP-DH2A	VP-D10A	VP-D8A	VP-D16A
Pumping Speed (m³/h)	1.2	2	4	2	12	2	10	8	16
Ultimate pressure (mbar)	≤2 / ≤3	≤8	≤2	≤8	≤2	≤1	≤0.5	≤30	≤150
Power supply(w)	80	180	360	360	600	360	600	400	400
Weight(kg)	7	8	10	10	23	10	23	20	20

🏢 Factory & Quality Control

📜 Certifications

📦 Packaging & Shipping

✅ Our Advantages

❓ Frequently Asked Questions

Q1: What materials are used for the wetted parts of the pump?

The wetted parts are made from high-quality chemical-resistant materials, including PTFE for the diaphragm and inlet/outlet, and FFKM for the displacing valve.

Q2: What is the maximum pumping speed available in this series?

The series offers a variety of pumping speeds ranging from 1.2 m³/h up to 16 m³/h, depending on the specific model selected.

Q3: Is the pump suitable for corrosive chemical applications?

Yes, the diaphragm vacuum pump is designed with complete resistance to chemical corrosion, making it ideal for laboratory chemical processes.

Q4: Does the motor include any safety protection features?

Yes, models are equipped with variable frequency permanent magnet motors that include automatic protection functions to ensure safe and stable operation.

Q5: What are the primary applications for these vacuum pumps?

Common applications include vacuum drying, distillation, concentration, rotary evaporation, centrifugal acceleration, and solid phase extraction.

Q6: Can these pumps be used for continuous long-term operation?

Absolutely. These pumps are engineered for high stability and can work continuously for extended periods without compromising performance.
