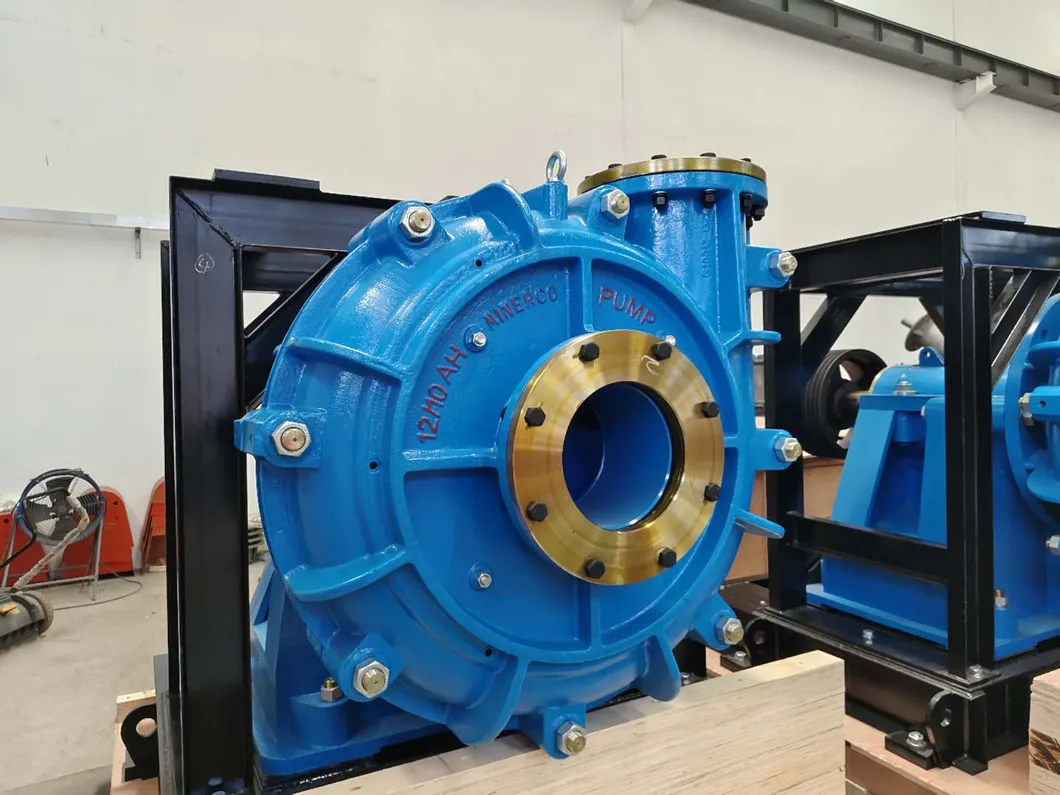

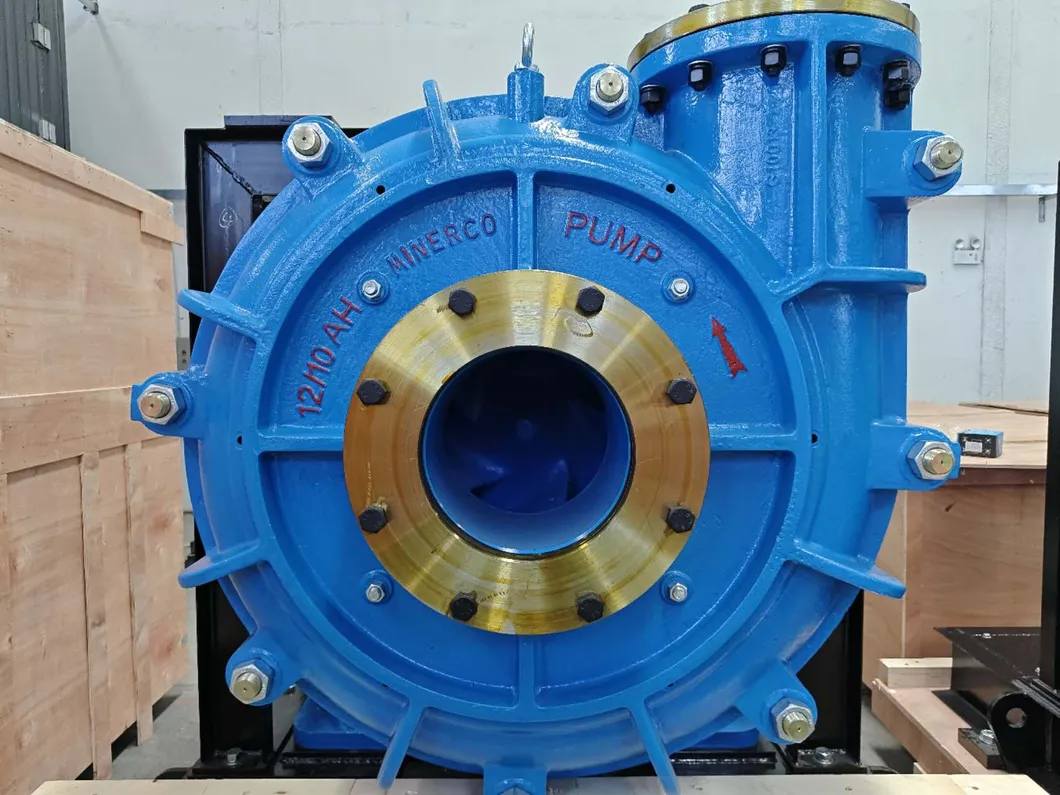

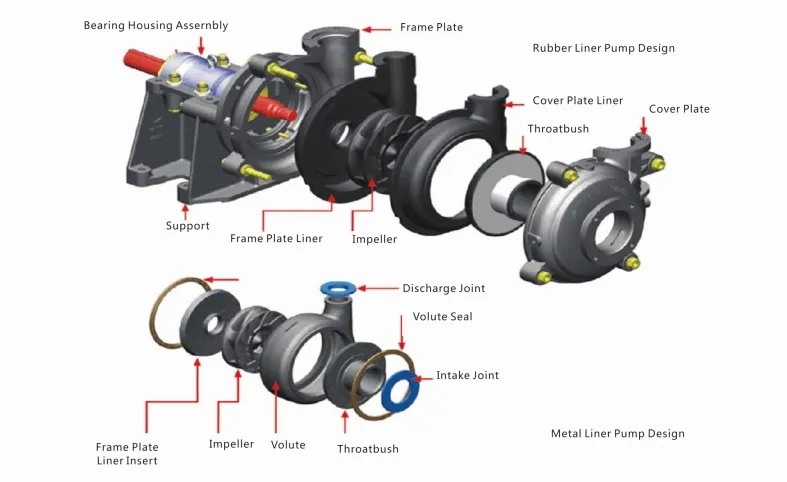

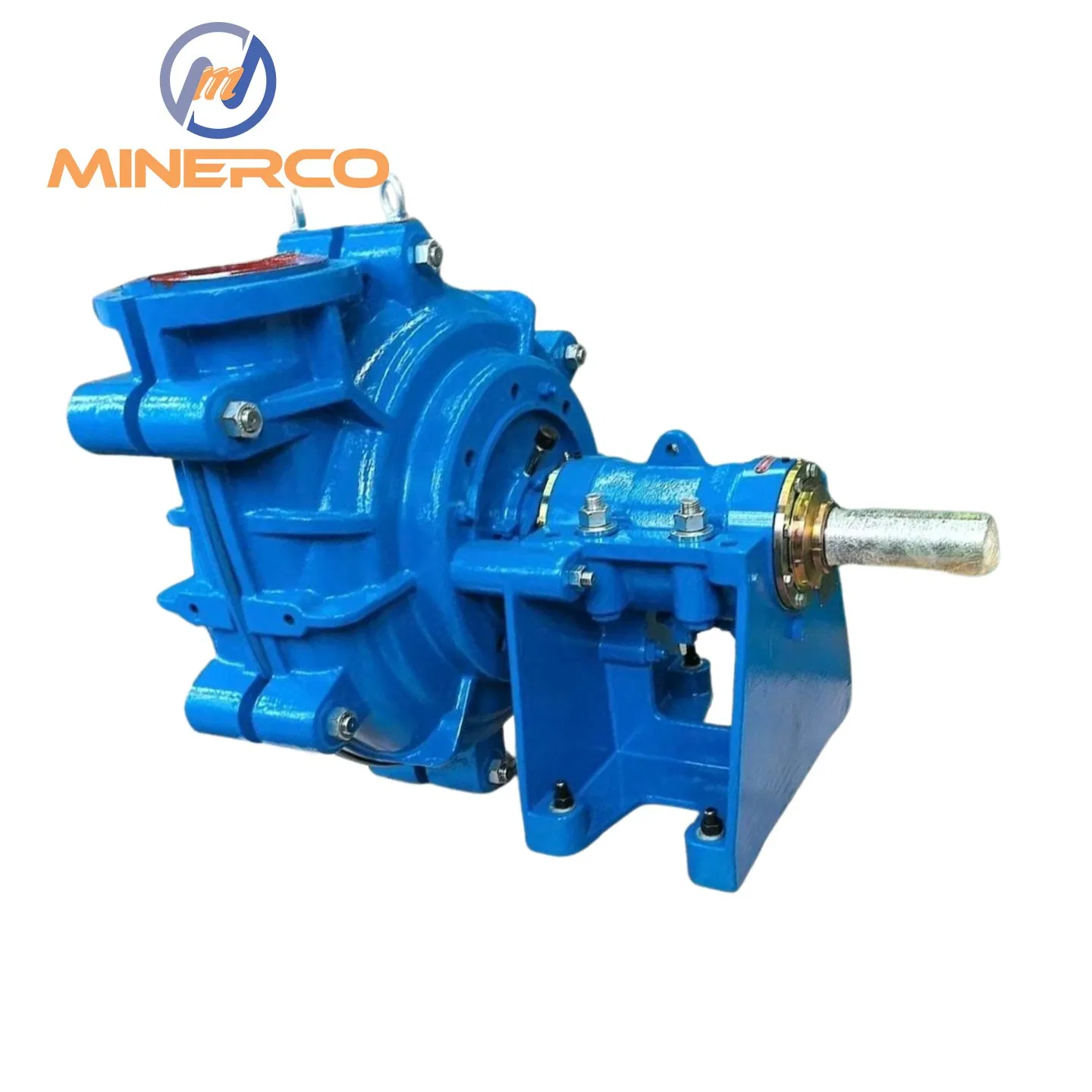

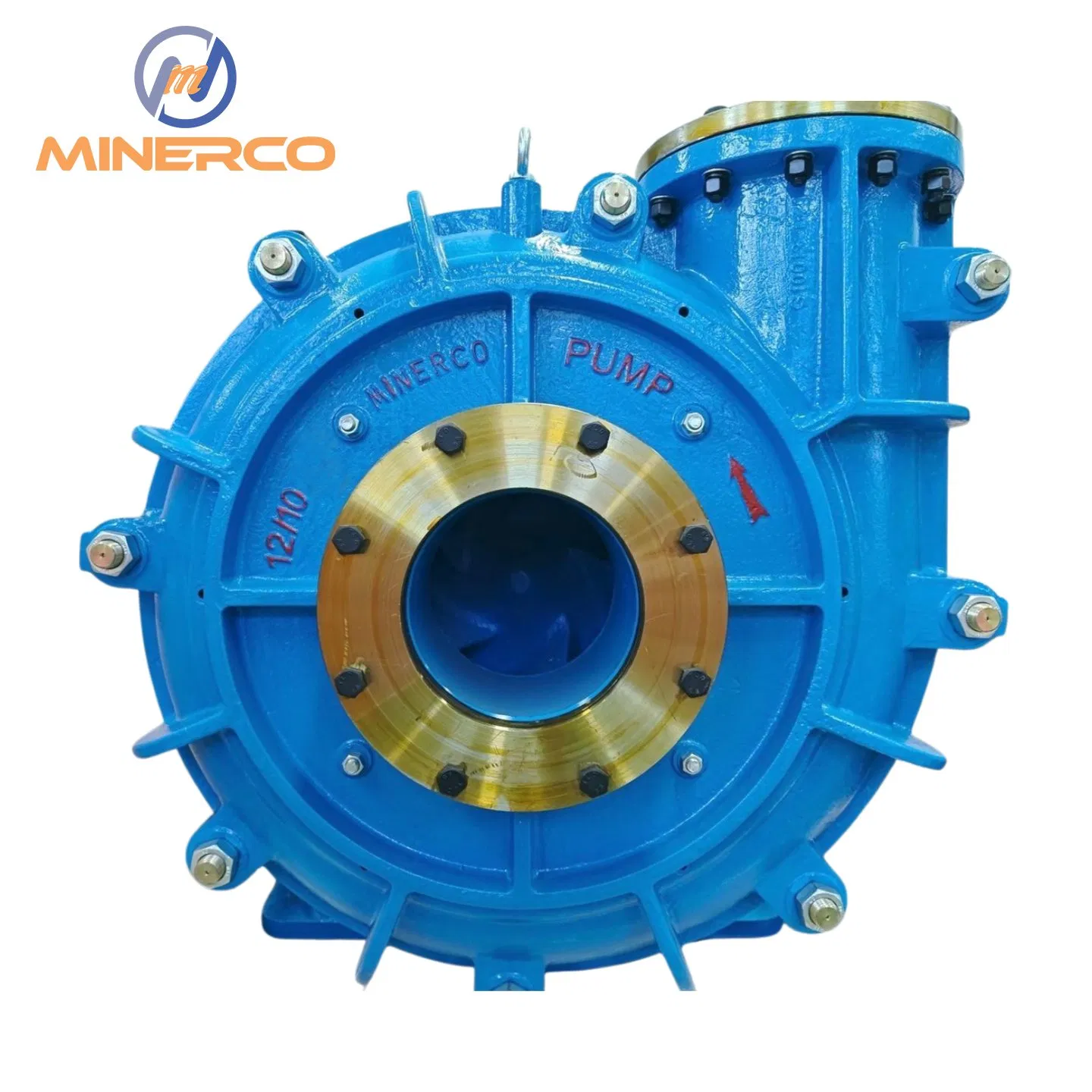

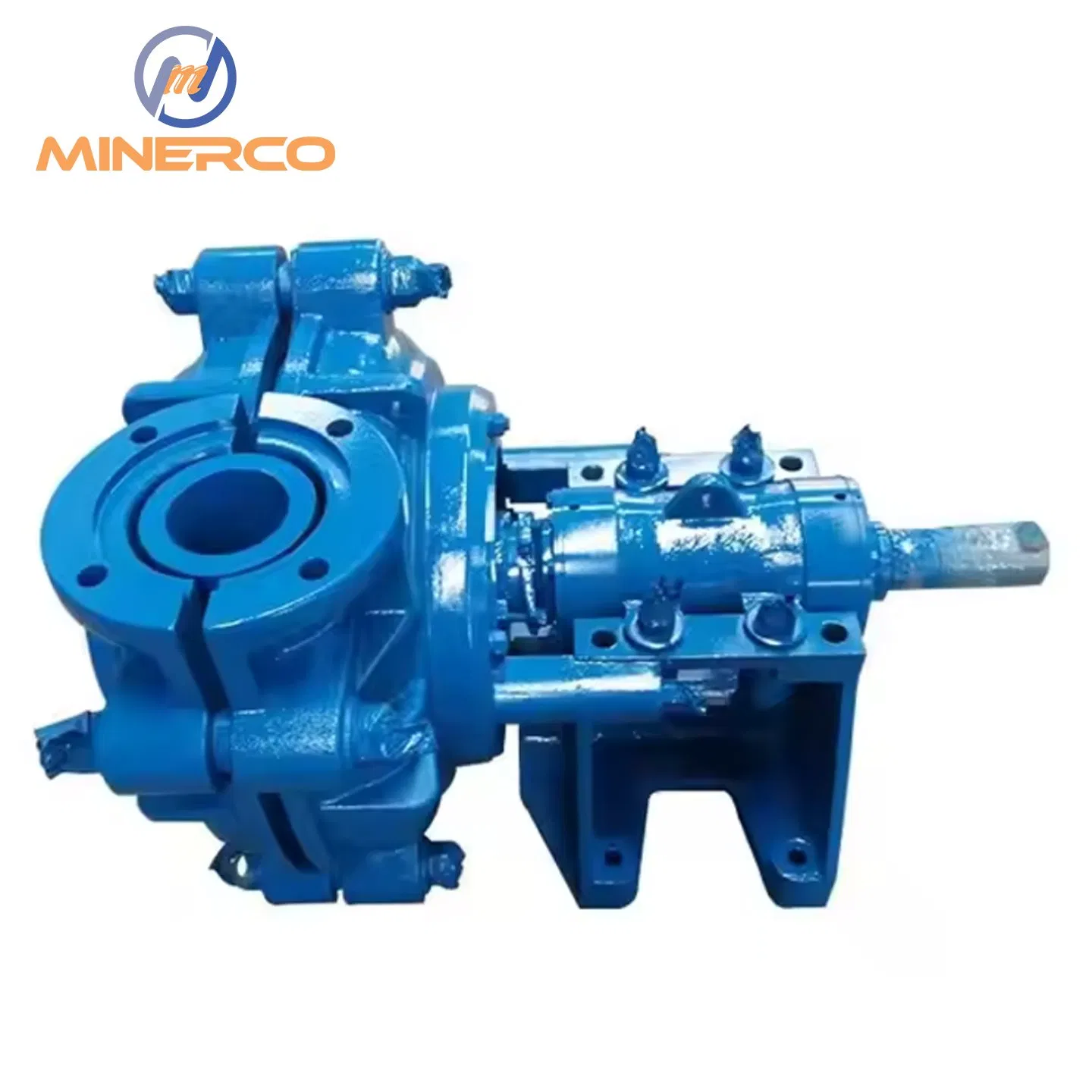

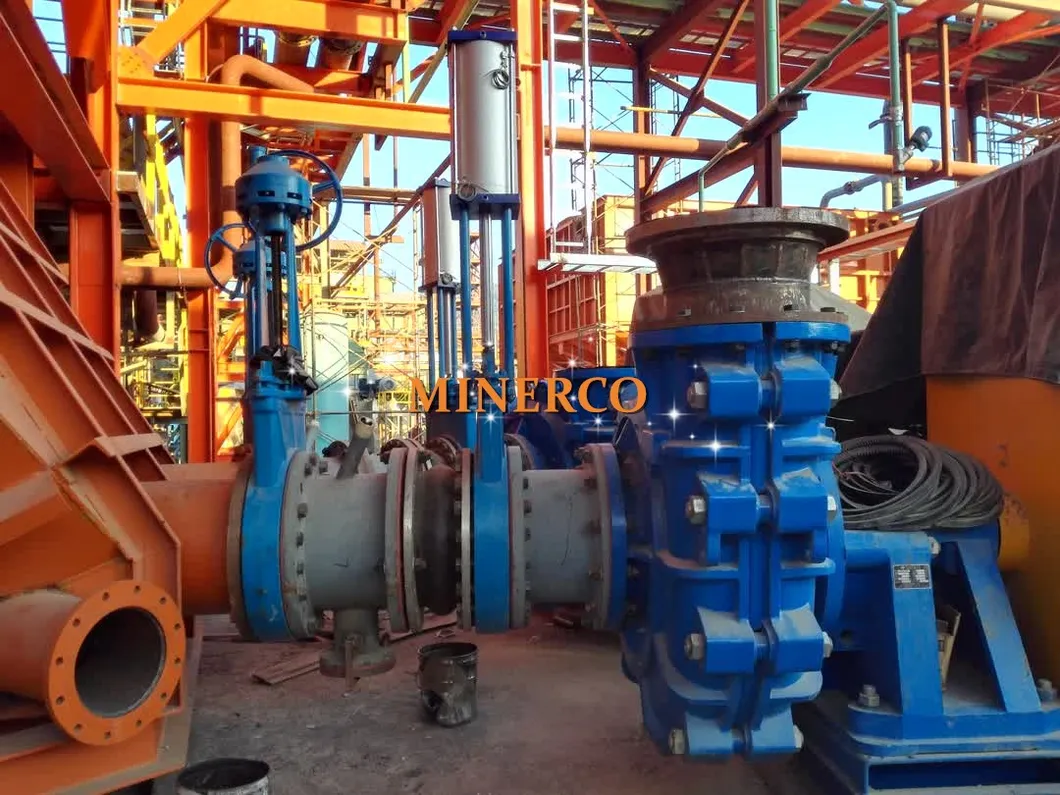

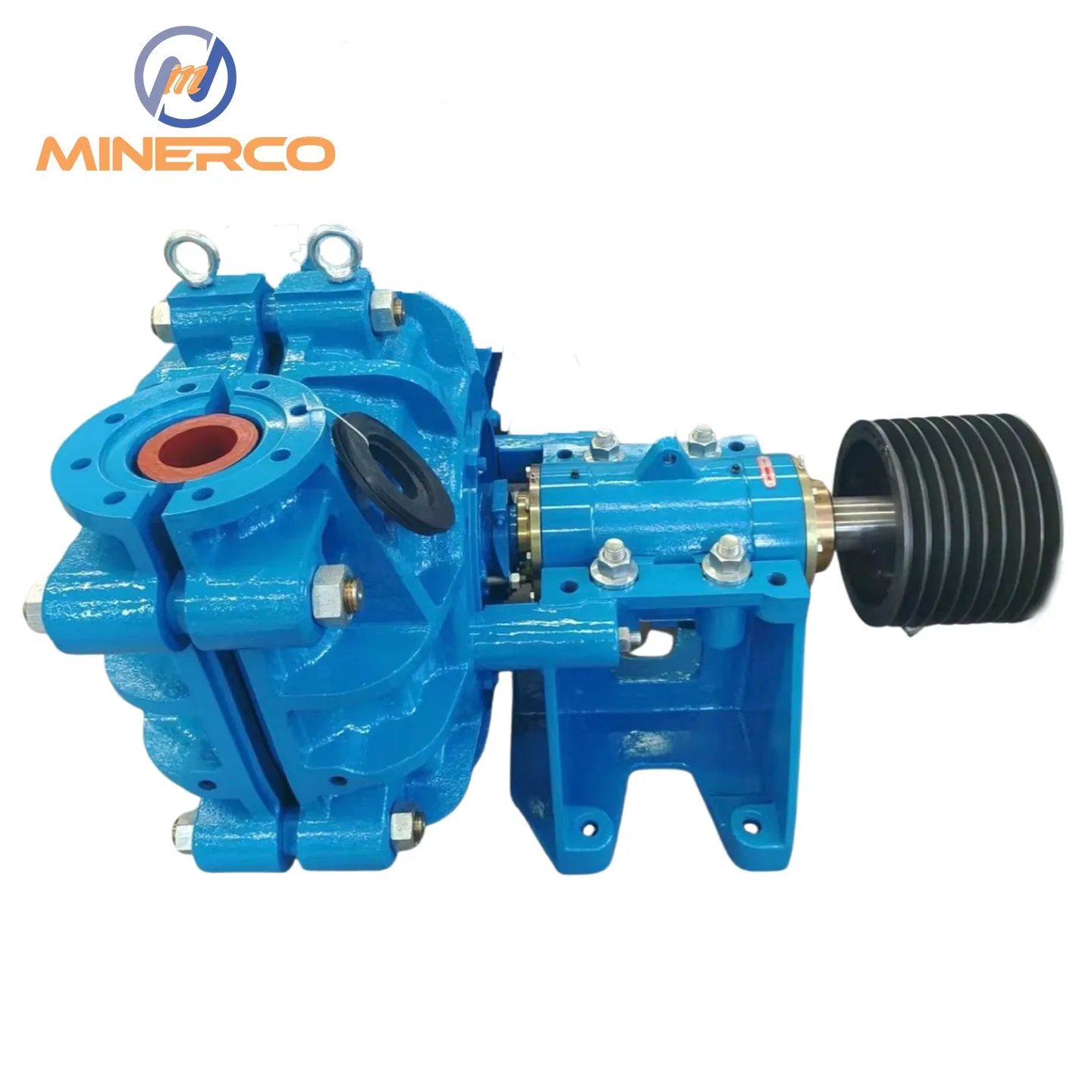

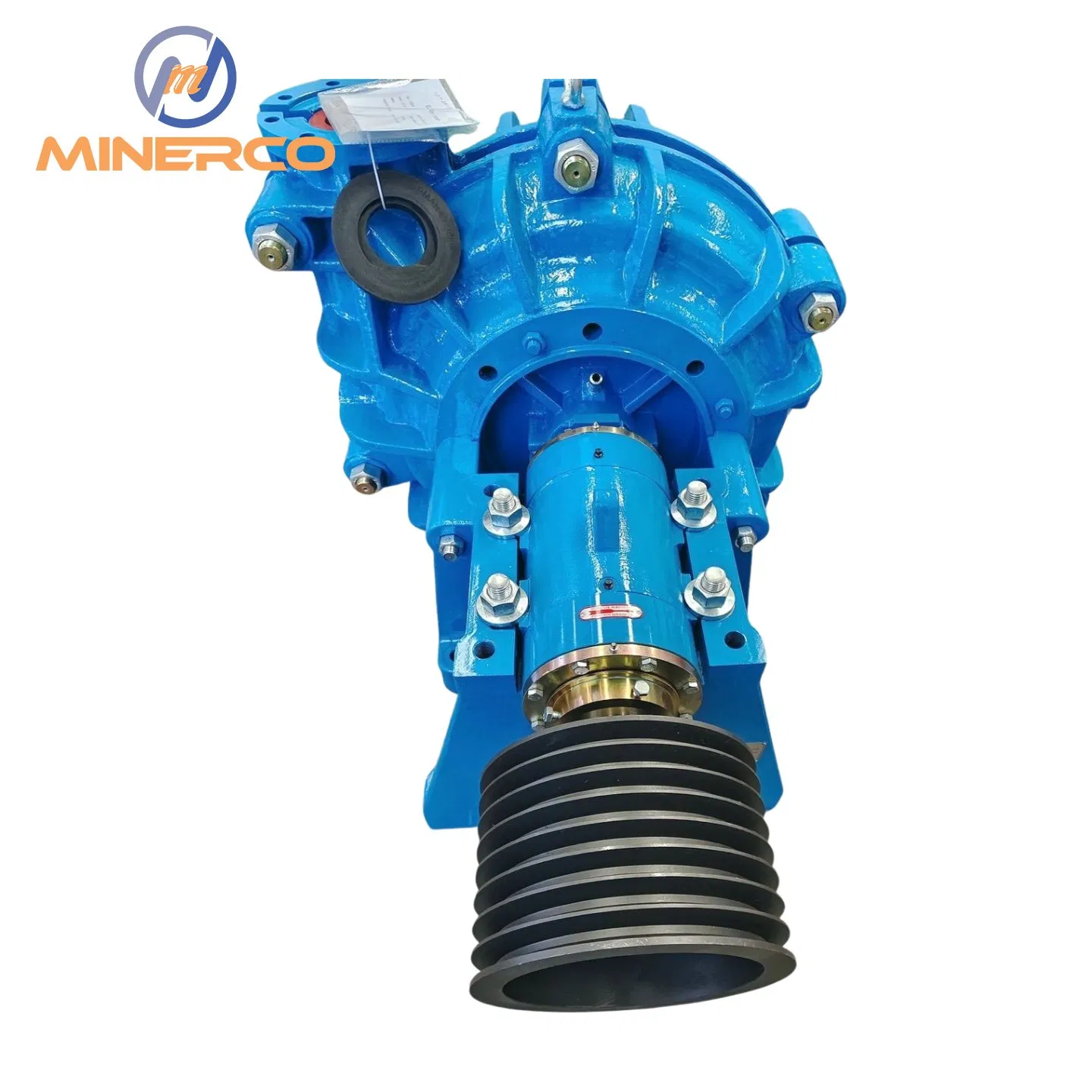

The AH(R)/HH/M(R) series slurry pumps are cantilevered, horizontal, centrifugal pumps designed for handling abrasive slurry with solid particles. These pumps are widely used in various heavy-duty applications, including mud pumping, impurity removal, dredging, and desilting. The wet parts are made of chrome alloy or rubber, tailored for different liquid handling needs.
| Type | Max. Power (kw) | Capacity (m³/h) | Head (m) | Vanes | Max. Particle (mm) |
|---|---|---|---|---|---|
| 1.5x1B-AH | 15 | 3.6-21.6 | 6-65 | 5 | 14 |
| 1.5x2B-AH | 15 | 7.2-48.6 | 5-62 | 5 | 19 |
| 2x3C-AH | 30 | 21.6-88.56 | 15-40 | 5 | 21 |
| 4x3C-AH | 30 | 28.8-158.4 | 7-53 | 5 | 28 |
| 6x4D-AH | 60 | 72-331.2 | 11-64 | 5 | 44 |
| 8x6E-AH | 120 | 126-720 | 6-62 | 5 | 63 |
| 10x8ST-AH | 560 | 216-1051.2 | 9-64 | 5 | 76 |
| 12x10ST-AH | 560 | 316.8-1620 | 10-66 | 5 | 86 |
| 14x12ST-AH | 560 | 504-2455.2 | 10-75 | 5 | 90 |

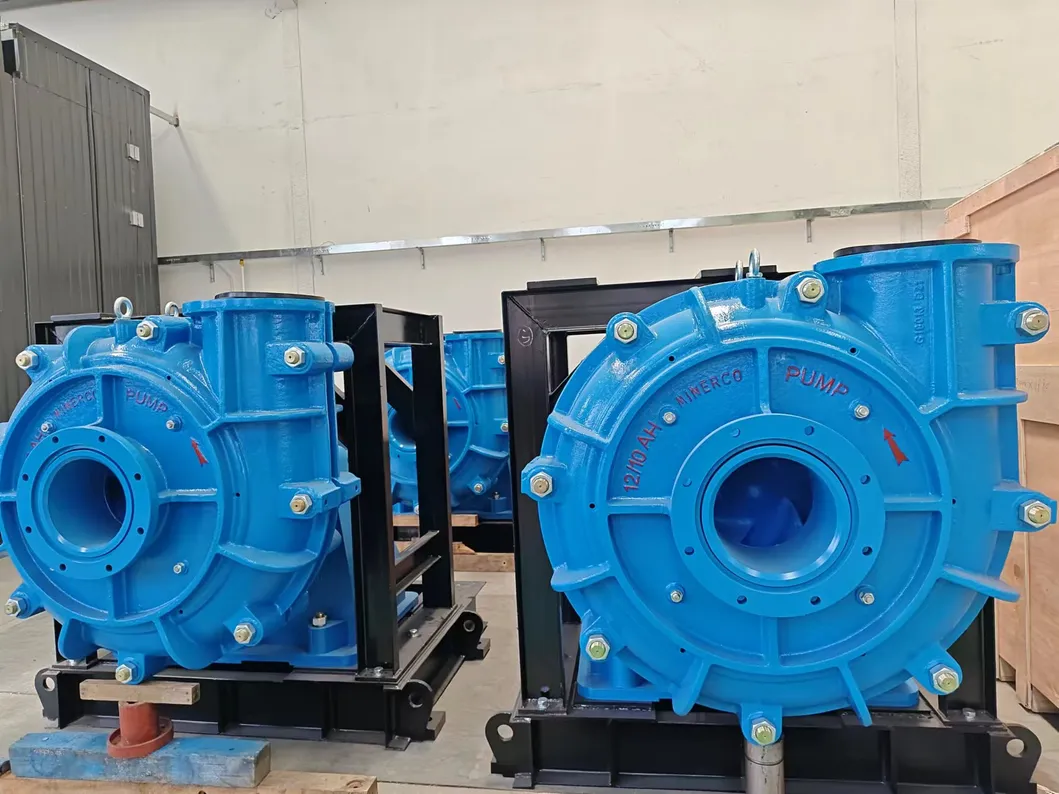

We operate as a scaled group composed of specialized units for pumps, valves, conveyors, and casting. Our engineering team provides technical support and has supplied solutions to world-class mining companies globally. For logistics, we ensure all pumps are bolted tightly inside export-standard wooden cases, while oversized pumps are fastened securely in containers.
