Application: Air, Gas
Capacity range: 1.35~108m3/min
Limited vacuum range: -98~5PA
Power range: 0.37~185kW
Max temperature: 70° C
| Model | Pumping speed (L/s) | Limit pressure (pa) | Power (kw) | Inlet (mm) | Weight (kg) |
|---|---|---|---|---|---|

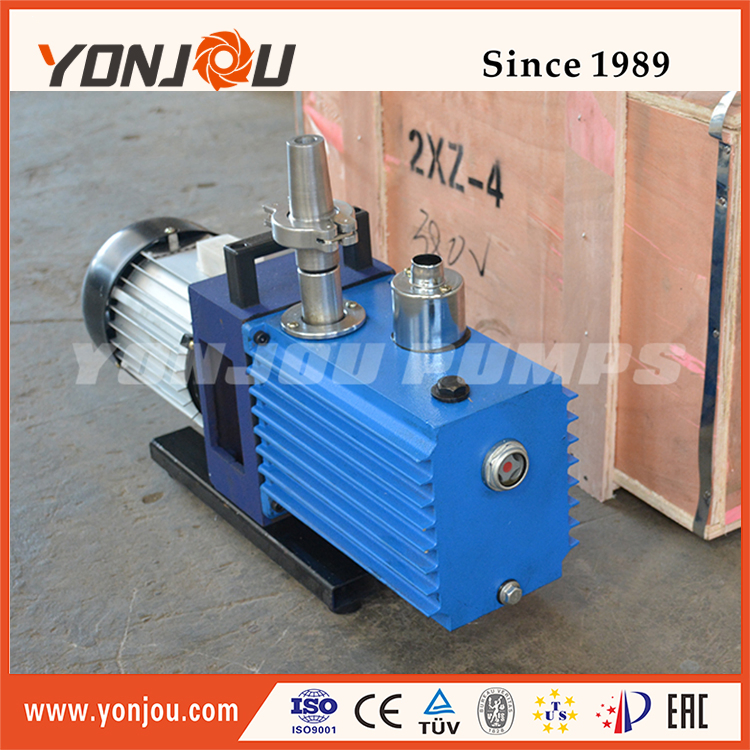

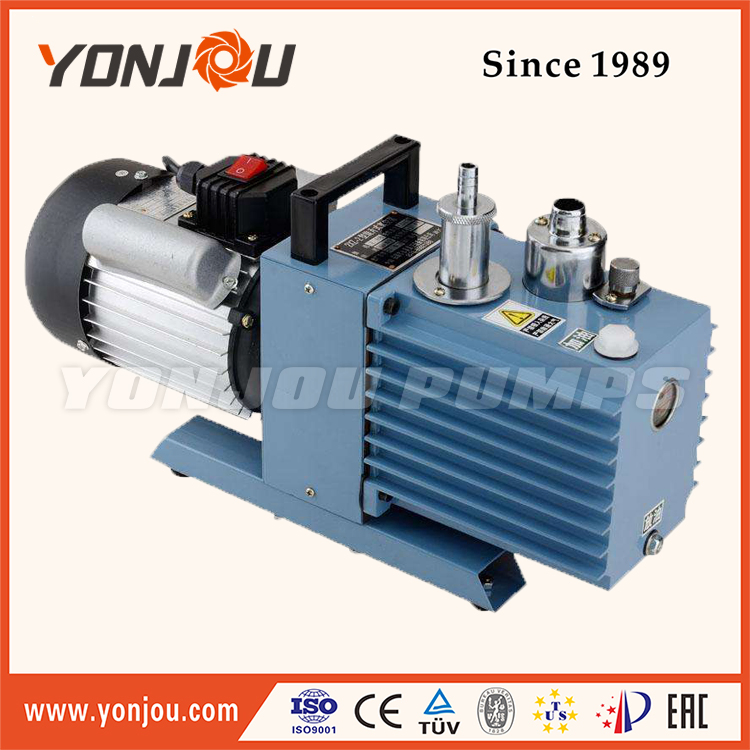

| 2XZ-0.25 | 0.25 | 0.6 | 0.12 | 10 | 15 |
| 2XZ-0.5 | 0.5 | 0.06 | 0.18 | 16 | 18 |
| 2XZ-1 | 1 | 0.06 | 0.25 | 16 | 19 |
| 2XZ-2 | 2 | 0.06 | 0.37 | 25 | 27 |
| 2XZ-4 | 4 | 0.06 | 0.55 | 25 | 30 |

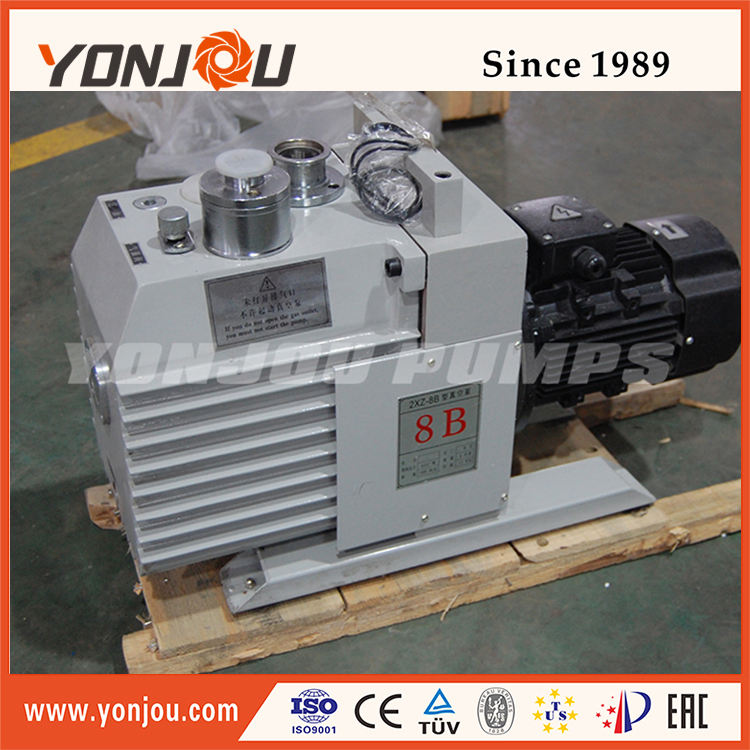

| 2XZ-8 | 8 | 0.06 | 1.1 | 32 | 35 |
| Model | Suction speed (m3/h) | Limit pressure (Pa) | Motor power (kw) | Rotary speed (r/min) |
|---|---|---|---|---|
| XD-010 | 10 | 0.02 | 0.37 | 1450 |
| XD-020 | 20 | 0.02 | 0.75 | 3000 |
| XD-040 | 40 | 0.02 | 1.1 | 1450 |
| XD-063 | 63 | 0.02 | 1.5 | 1450 |
| XD-100 | 100 | 0.02 | 1.5 | 1450 |
| XD-160 | 160 | 0.02 | 4 | 1450 |
