| Model NO. | 3196 |
|---|---|
| Selling Point | Accuracy Hydraulic Model and Precision Castings |
| Suitable Pump Model | 3196 |
| Mould | Precision Castings, Investment Casting Mould, Sand |
| Material 1 | CD4, Stainless Steel, Duplex Ss, Cast Alloy Steel |
| Material 2 | Cast Iron, Wear-Resistant Cast Iron, Cast Steel |
| Material Standard | ASTM, ANSI, SAE, Uns, DIN, En, ISO, Toct |
| Transport Package | Seaworthy |
|---|---|
| Specification | 3196 |
| Trademark | Customized |
| Origin | China |
| HS Code | 8413709990 |
| Production Capacity | 5000 Pieces Per Year |
| After Sale Service | Yes |
| Package Size | 160.00cm * 125.00cm * 110.00cm |
|---|---|
| Package Gross Weight | 350.000kg |
Providing a wide variety of products to meet multifarious demands. Adhering to "quality first, customer first and credit-based" principles to satisfy the potential needs of global clients.

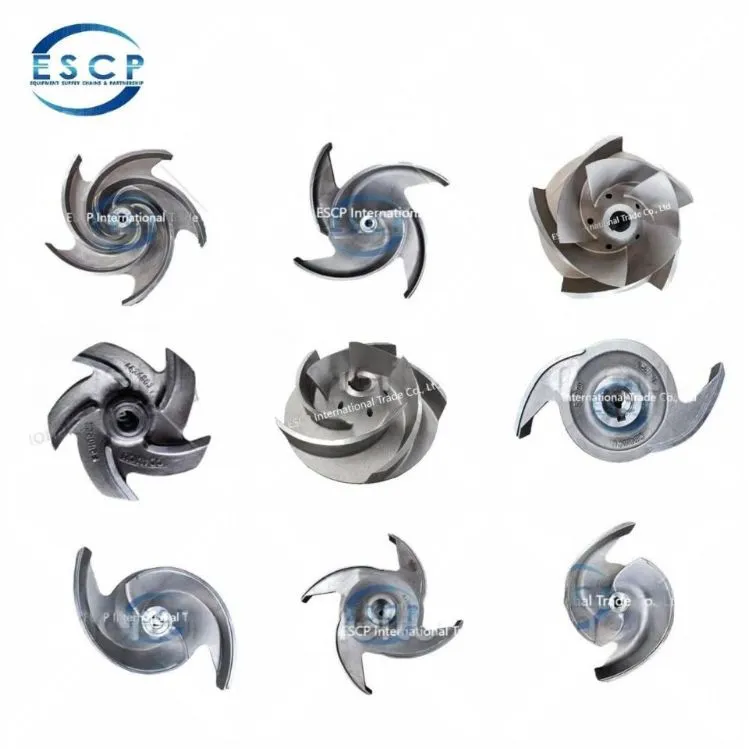

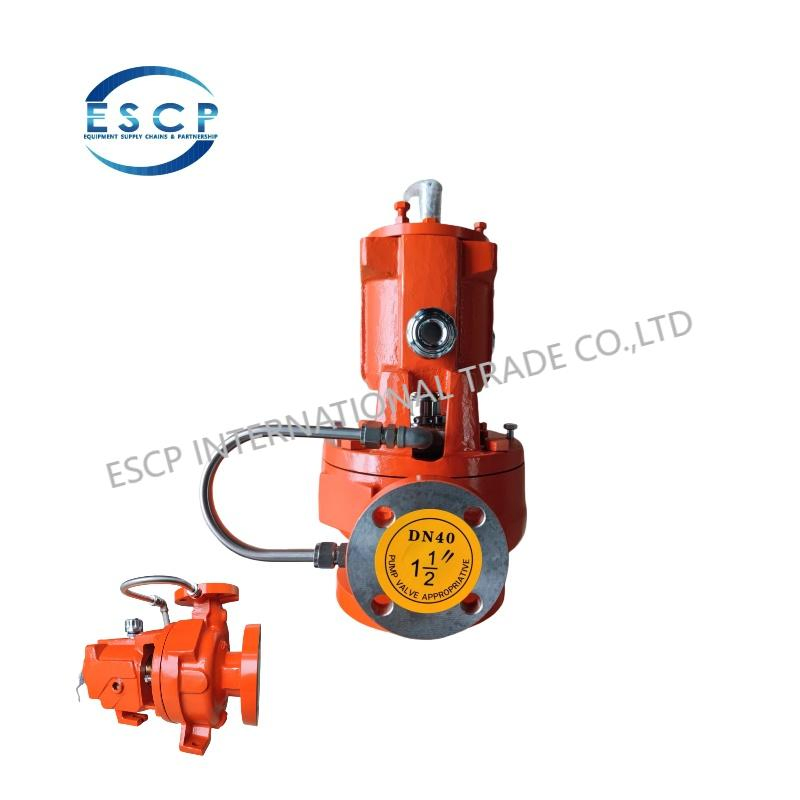

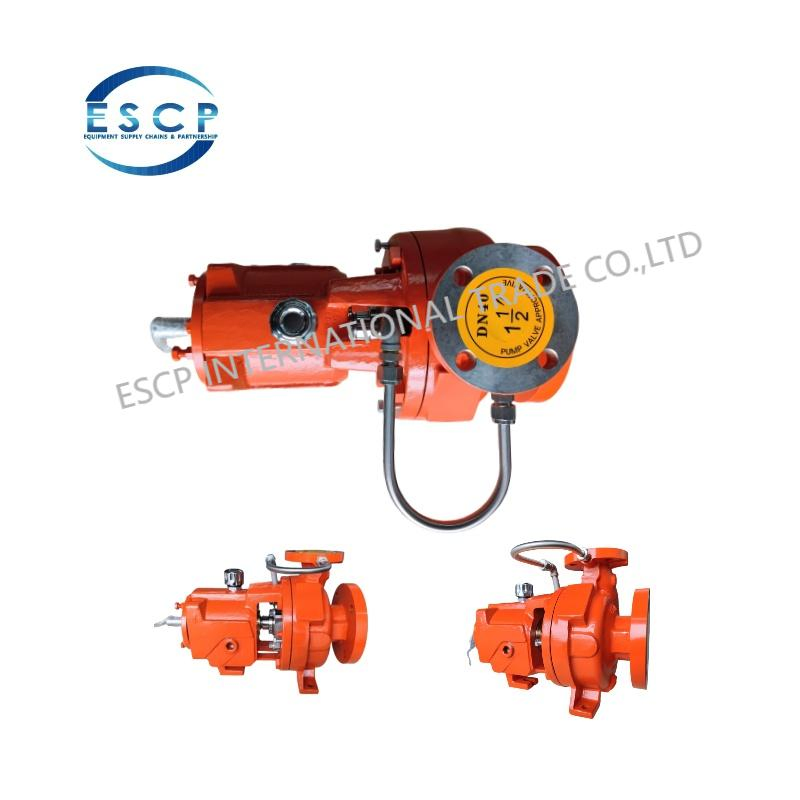

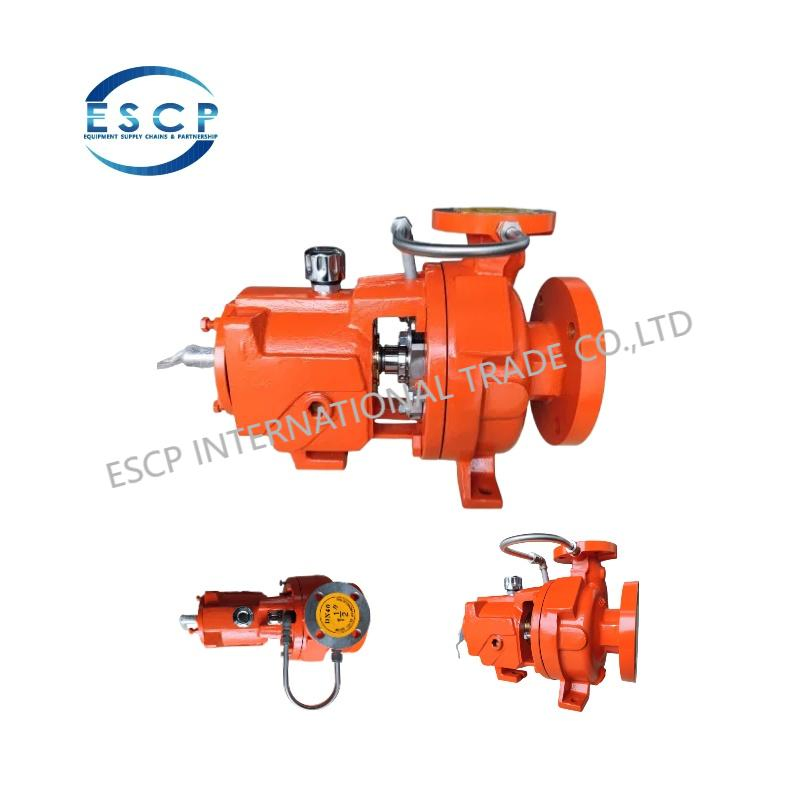

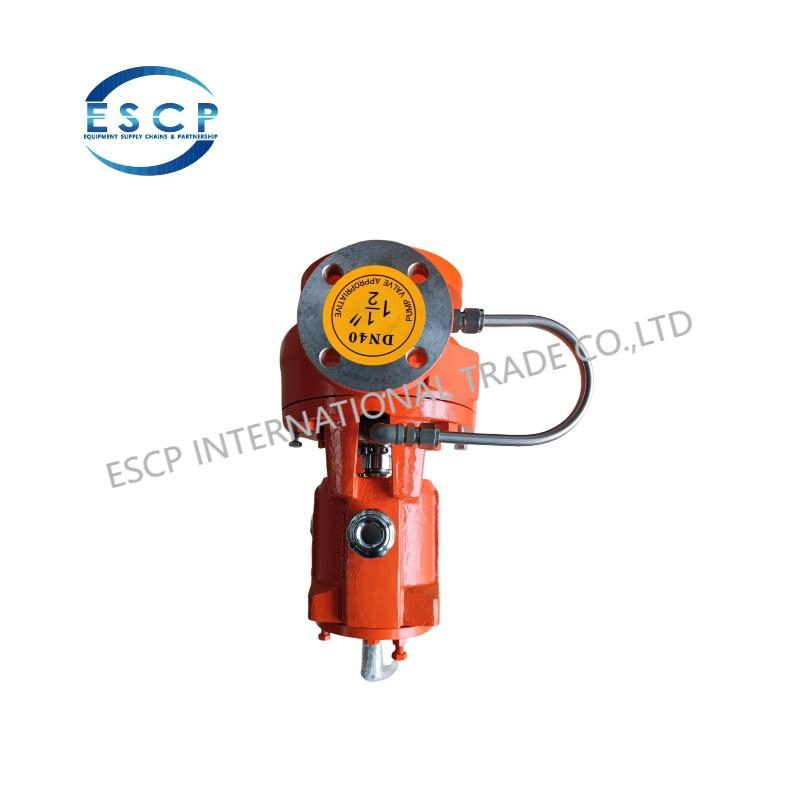

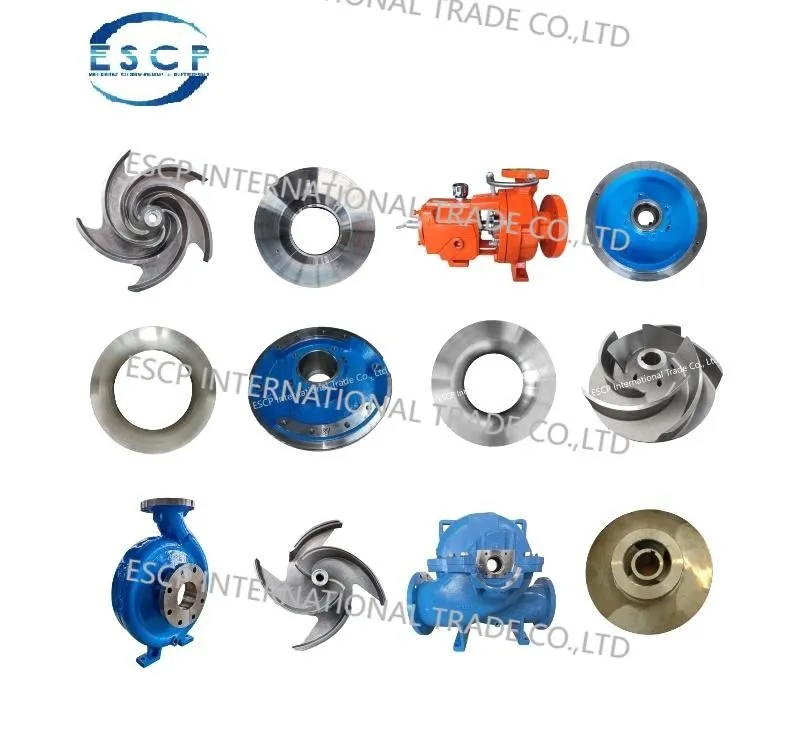

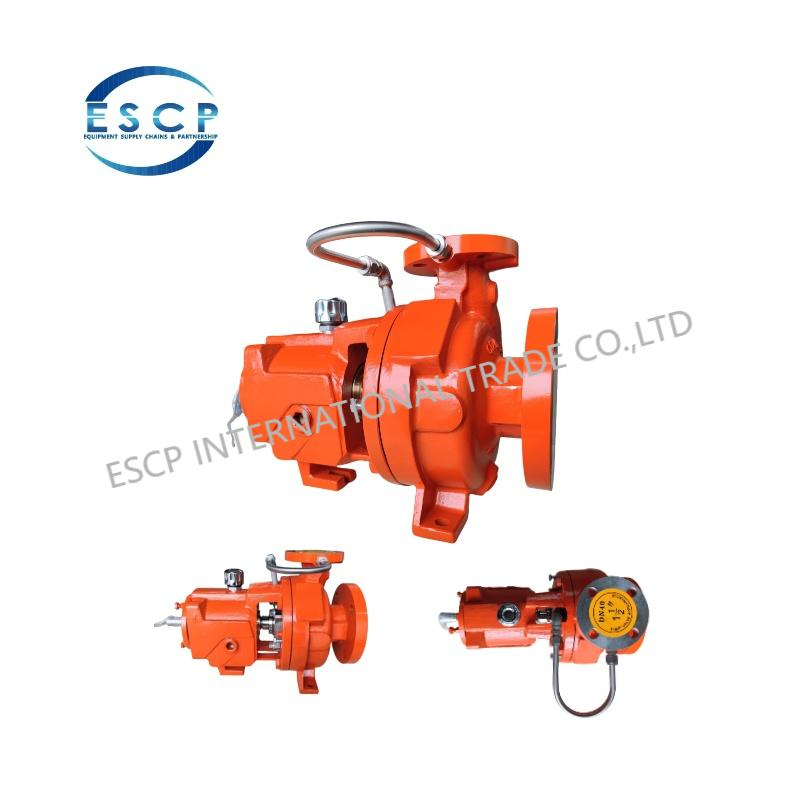

| Product Name | Impeller, Balance drum, Liner, Bearing Bracket, Diaphragm, Wear ring, Threaded Flange, Shaft Sleeve, Shaft, Mechanical Seal, Pump casing, Casing cover, Side plate, Bare shaft pump |
|---|---|
| Material Standards | ANSI, ASTM, SAE, UNS, DIN, EN, ISO, TOCT; Cast iron, Stainless steel, Duplex SS, Cast alloy steel |
| Mould & Casting | Investment Casting (Wax injection, Clusters assembly, Dewaxing), Sand casting mould |
| Processing | CNC machining, Auto lathe machining, Wire cutting, EDM cutting, Grinding, Milling, Drilling |
| Surface Treatment | Polishing, Anodize, Blacking, Chrome plating, Zinc plating, Nickel plating |
| Inspection | Balancing testing, Material certificate, Hydrostatic testing, Non-destructive testing (PT/ RT/ UT/ MT), 3D coordinator |
| Frame S | Frame M | Frame L | Frame XL |
|---|---|---|---|
| 3×6-12 | 6×8-14 | 6×10-16 | 12×14-19 |
| 4×6-12 | 8×8-14 | 8×10-16 | 16×16-19 |
| 6×8-12 | 10×10-14 | 10×12-16 | 10×12-22 |
| 8×8-12 | 12×12-14 | 14×14-16 | 12×14-22 |
| 3×6-14 | 6×8-16 | 4×8-19 | 14×16-22 |
| 4×6-14 | 4×6-19 | 6×10-19 | 18×18-22 |
Premium Pump & Parts Resources Platform:
1. Pump Overhaul & Repair: Service for leading pump brands including overhaul and rebuilds.

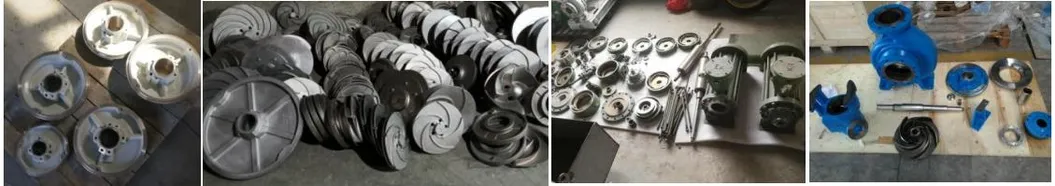

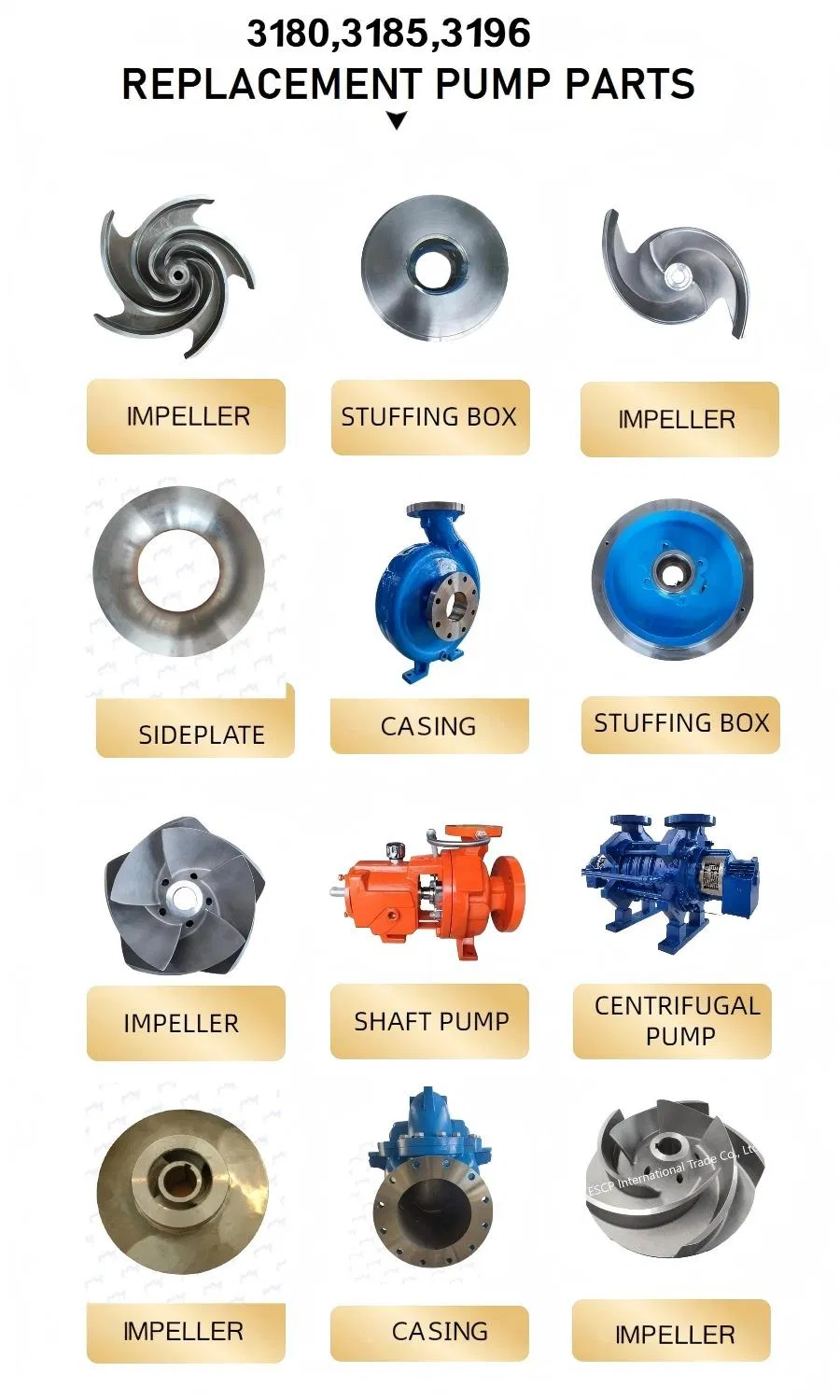

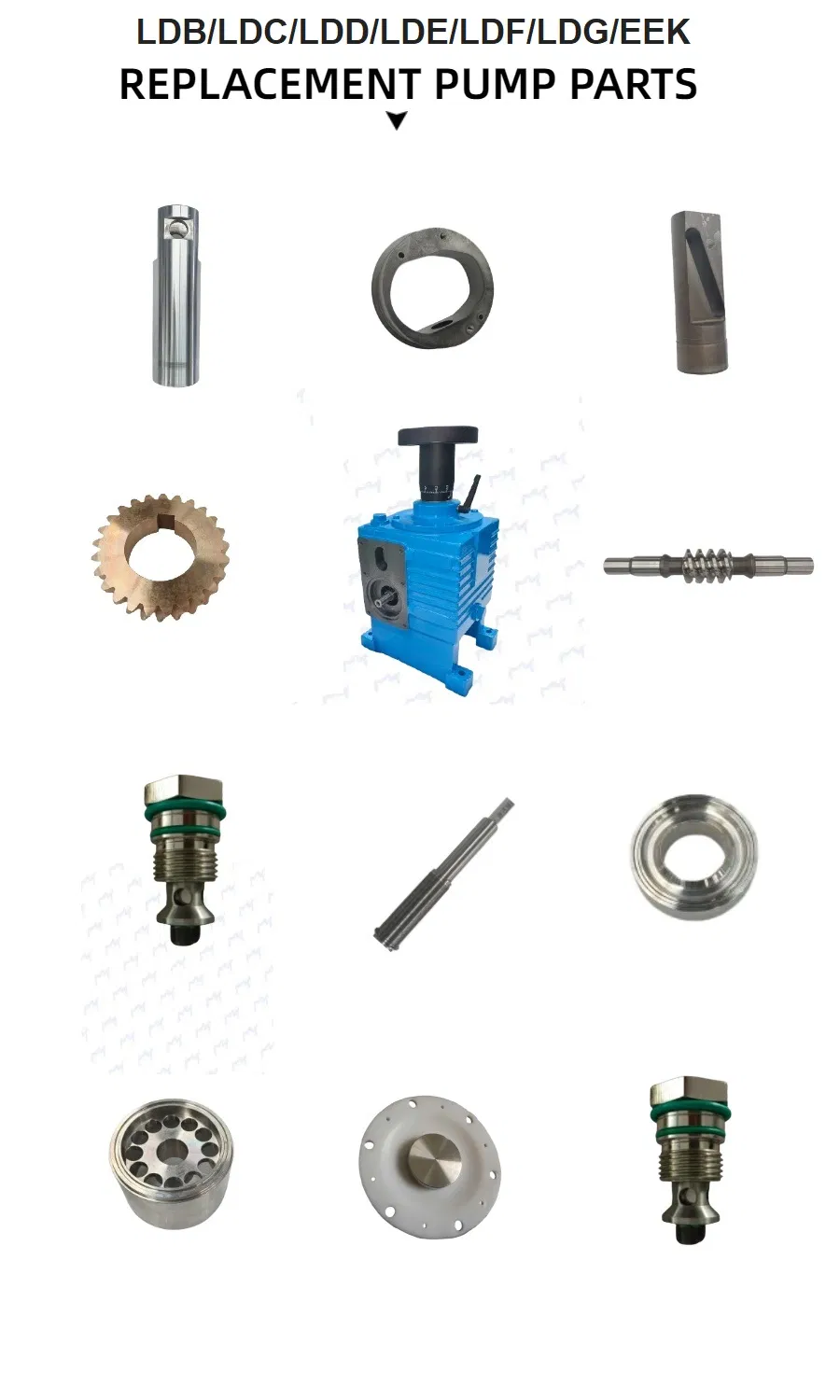

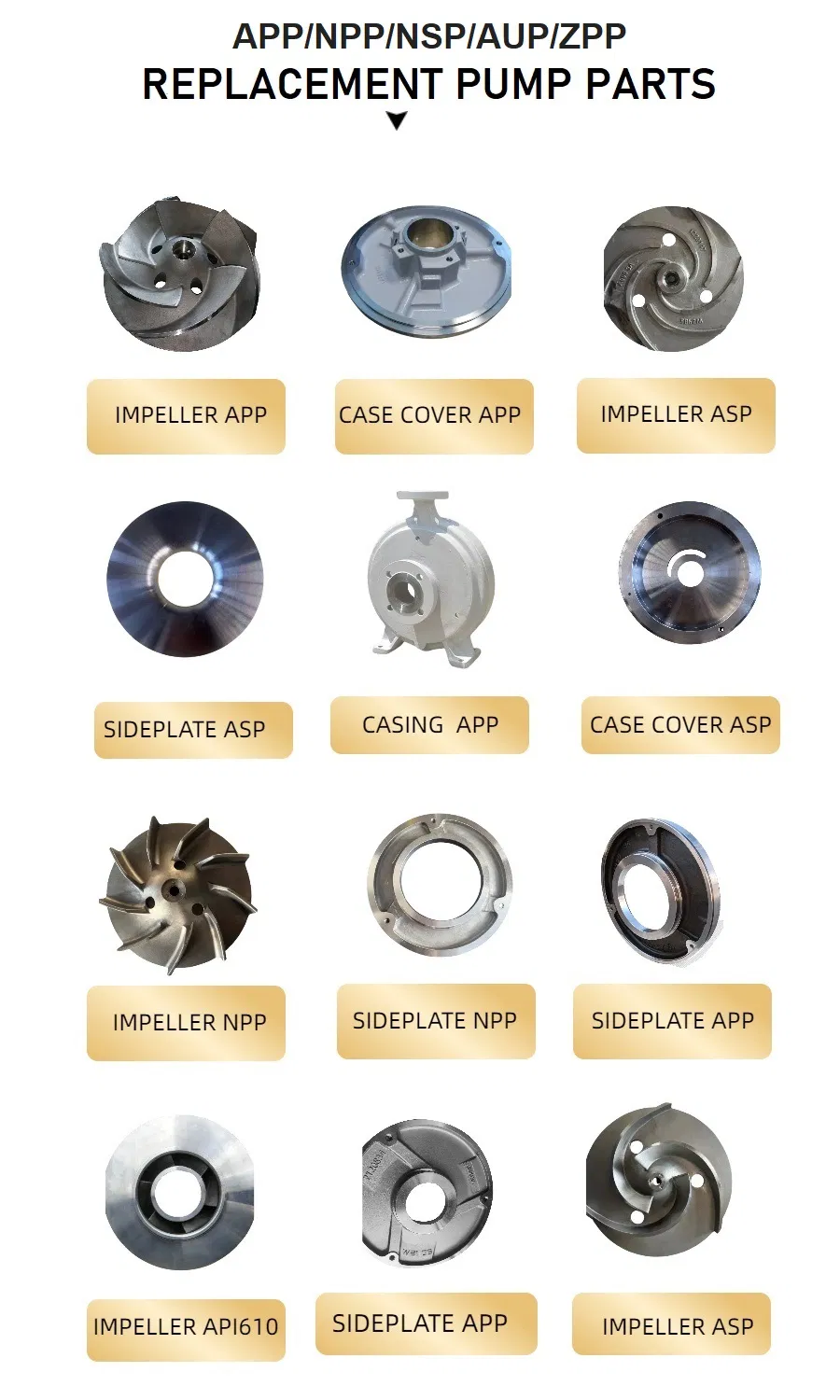

2. Retrofit OEM Spares: Specialized in APP/APT, Durco Mark III, CZ/ZE/ZF, 3196/3180/3185, and more.

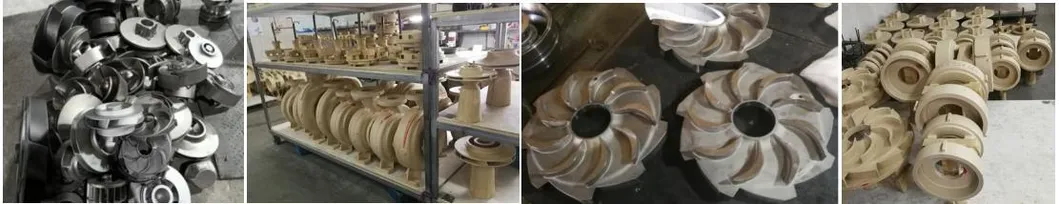

3. Casting OEM Service: Available materials include Martensitic cast steels, Austenitic steels (CF-8, CF-8M), Super duplex steels (Grade 5A), Titanium, and Nickel alloys.

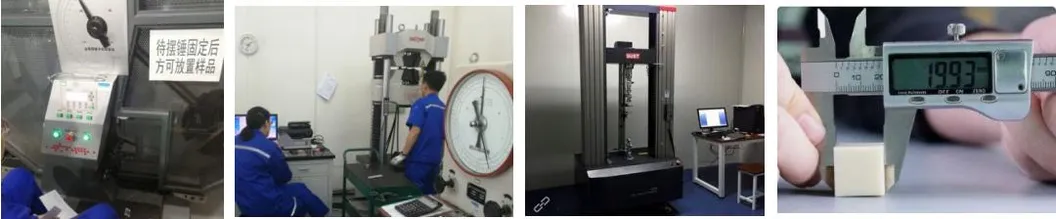

4. Quality Assurance: Strict testing for material properties and precision dimensions.
