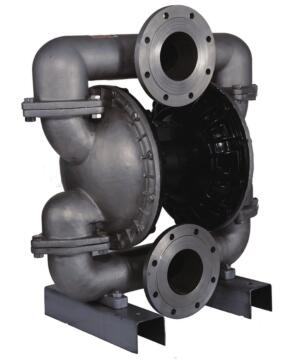

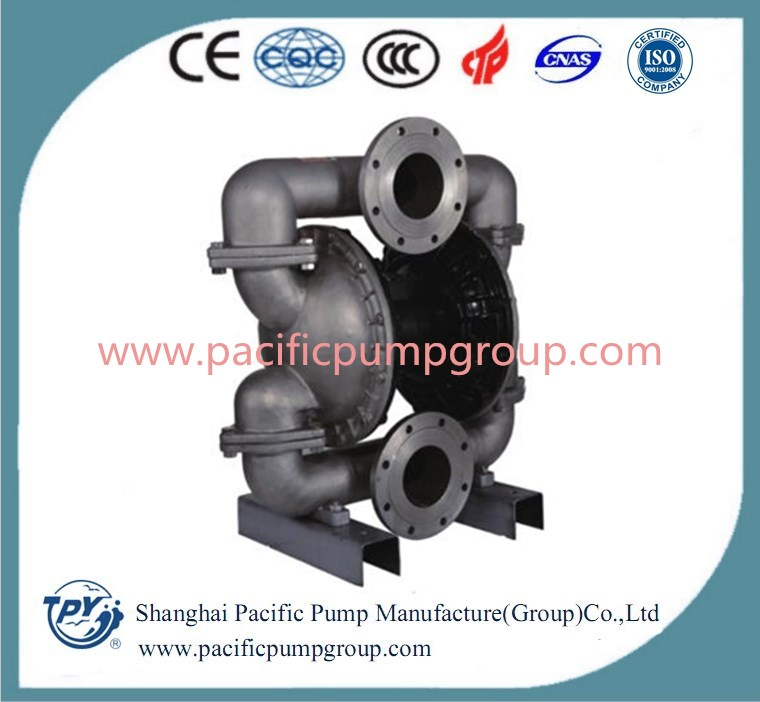

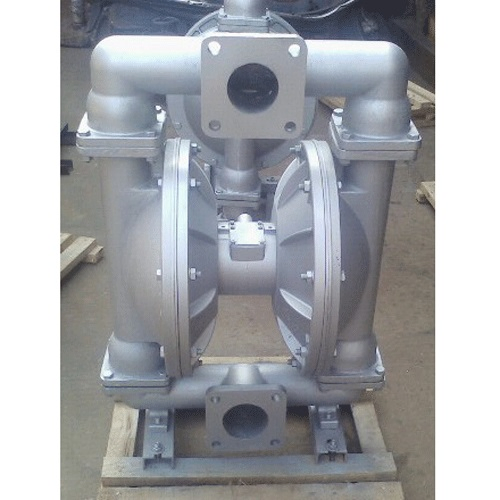

Qby Seires Air Operated Portable Diaphragm Pump for Slurry

QBY Series Air Operated Portable Diaphragm Pump for Slurry

The QBY3 series air powered diaphragm transfer pump combines the advantages of self-priming pumps, diving pumps, shield pumps, slurry pumps, and impurity pumps. It is designed for versatility and safety in demanding environments.

• No Electricity Required: Safe and reliable for use in flammable and explosive environments.
• Simple Structure: Easy to install and maintain with a reliable working mechanism.
• Corrosion Resistance: Capable of transporting toxins, flammable fluids, volatile strong acids, alkali, and corrosive liquids.

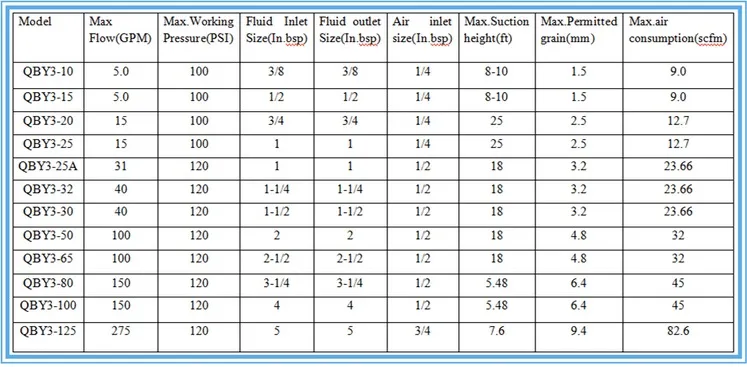

Pump Model Specifications

Main Features

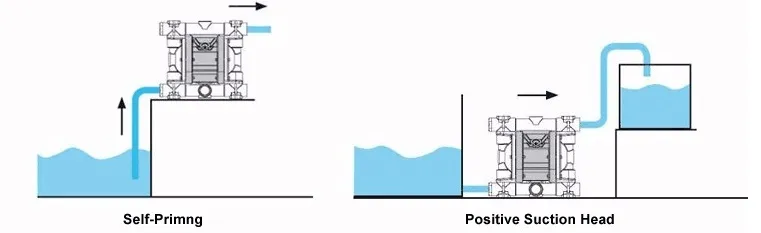

• Self-priming function without rotating parts; dry priming up to 5m and wet priming up to 8m.

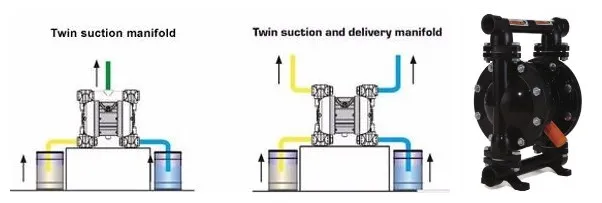

• Sectional type structure allows for conveying two different liquids via double diaphragms.
• Provides stall-free and ice-free operation.
• Bolt joint design ensures even sealing pressure for optimal performance.
• Diaphragm, ball, and ball seat utilize imported materials for extended service life.
• Suitable for pumping corrosive, volatile, flammable, and poisonous fluids with particles or high viscosity.

Pump Parts Material

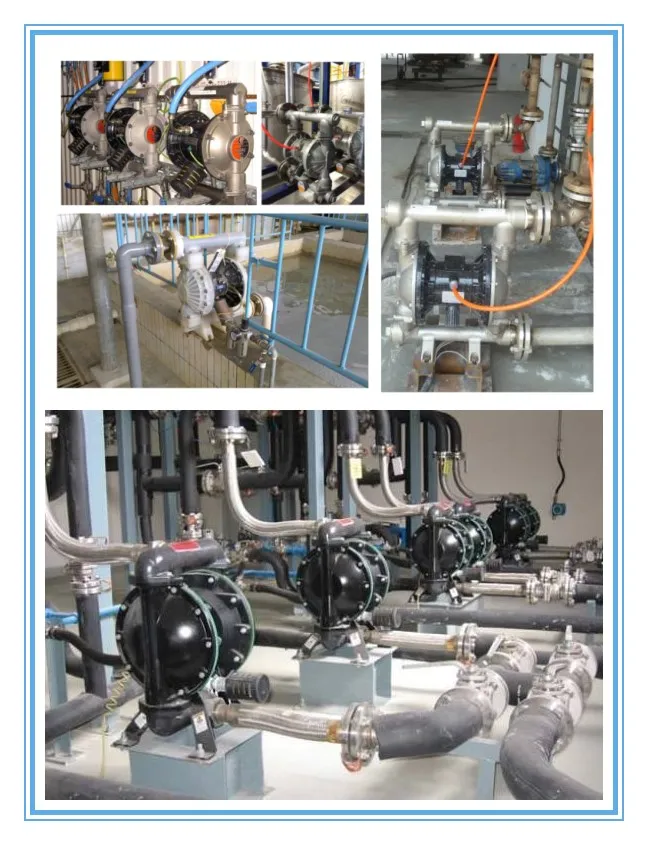

Applications & Showcases

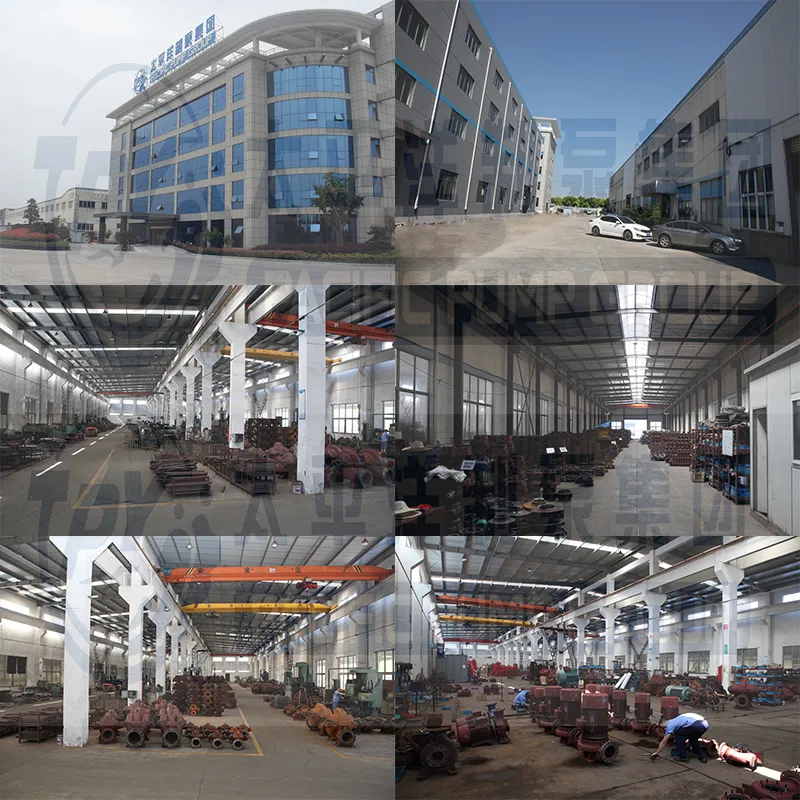

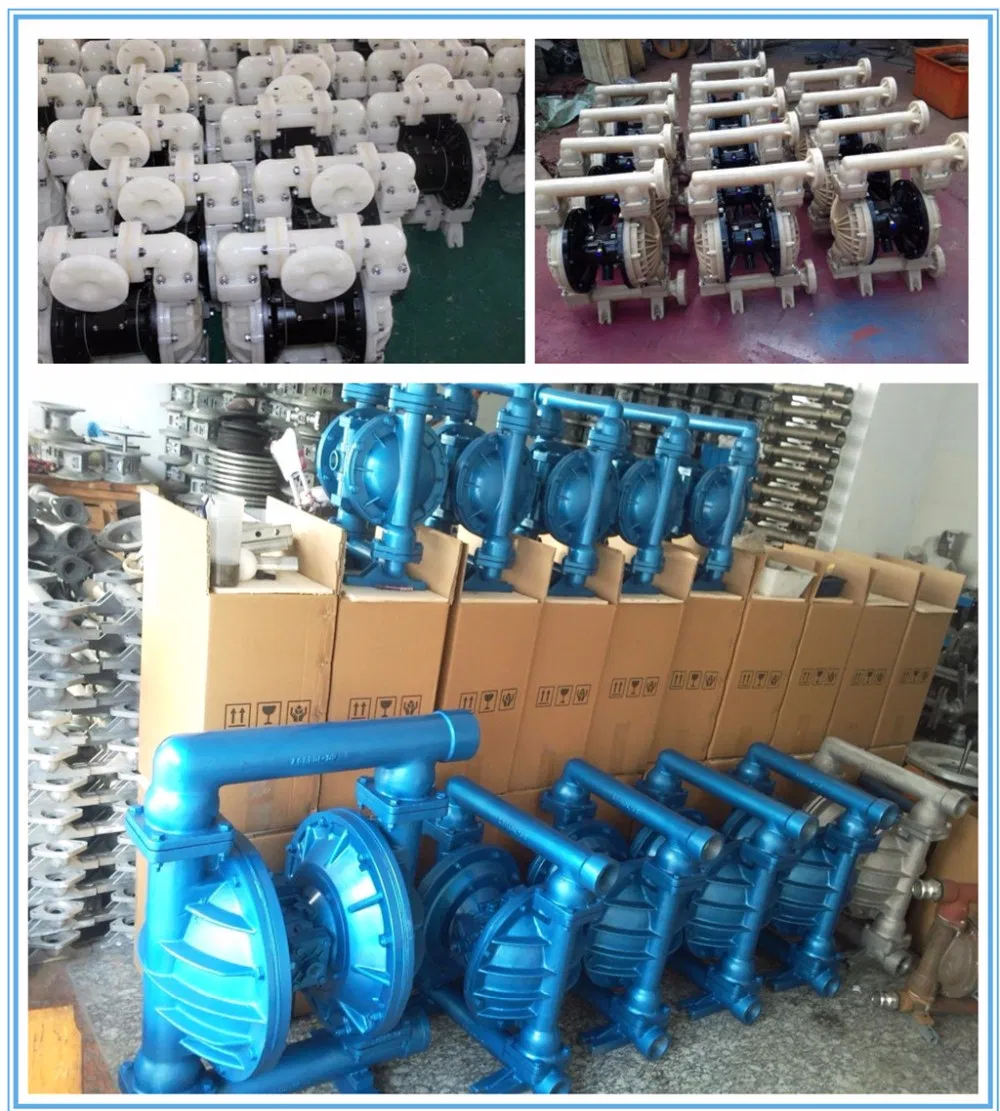

Workshop & Production
