PP/Aluminium/Stainless Steel Pneumatic (Air Operated, Qby, Double Diaphragm Pump, Membrane Pump, Slurry Pump, Chemical Pump

1 / 5

PP/Aluminium/Stainless Steel Pneumatic (Air Operated, Qby, Double Diaphragm Pump, Membrane Pump, Slurry Pump, Chemical Pump

Customization:	Available
After-sales Service:	Oversea Install Service
Warranty:	3

Send Inquiry

Product Description

Basic Info.

Model NO.

PP/Aluminium/Stainless Steel Pneumatic (Air Operat

Certification

EMC, ISO9001:2008, ISO9001:2000, RoHS, CE

Material

Aluminum Alloy

Power

Pneumatic

Valve Body Type

Direct Double-Seat

Function

Intelligent Type, Field Bus

Diaphragm Material

Polyvinylidene Fluoride

Performance

No Leak

Origin

China

HS Code

8601101900

Product Description

3 Inch Rd80 Diaphragm Pump Chemical Pump Water Pump PP PVDF Plastic Pump

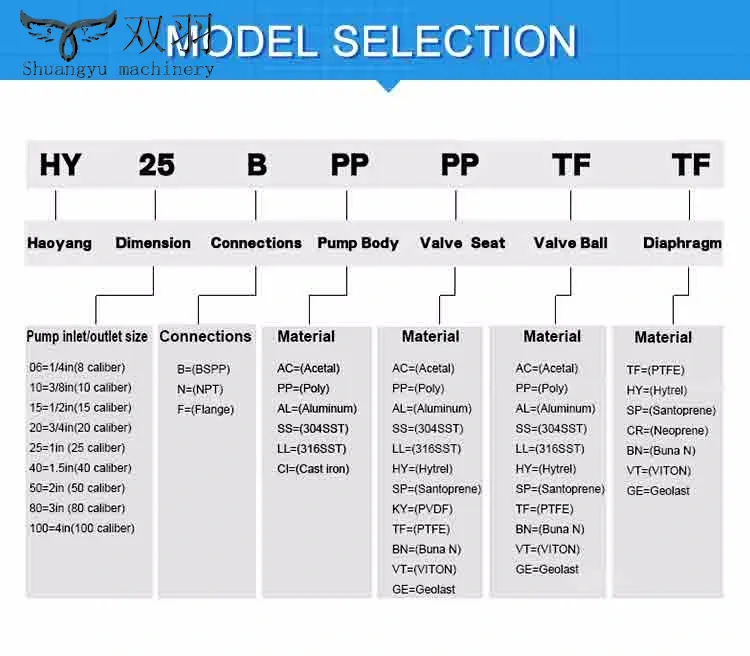

Mode	Max. Suction Lift (dry/wet,m)	Max. Particle Diameter (mm)	Suction and Discharge Size (inch/Npt)	Air Inlet Size (inch)	Max. Flow Rate (L/min)	Max. Air Consumption (m³/min)
HY-15/20	4 \7.6	2.5	1/2 3/4	1/4	57	0.672
HY-25	4 \8	4	1	1/2	157	1.7
HY-40	5 \8	5	1½	1/2	358	3.5
HY-50	5 \8	6	2	1/2	587	4.9
HY-80	5 \8	9.4	3	3/4	1060	9.1

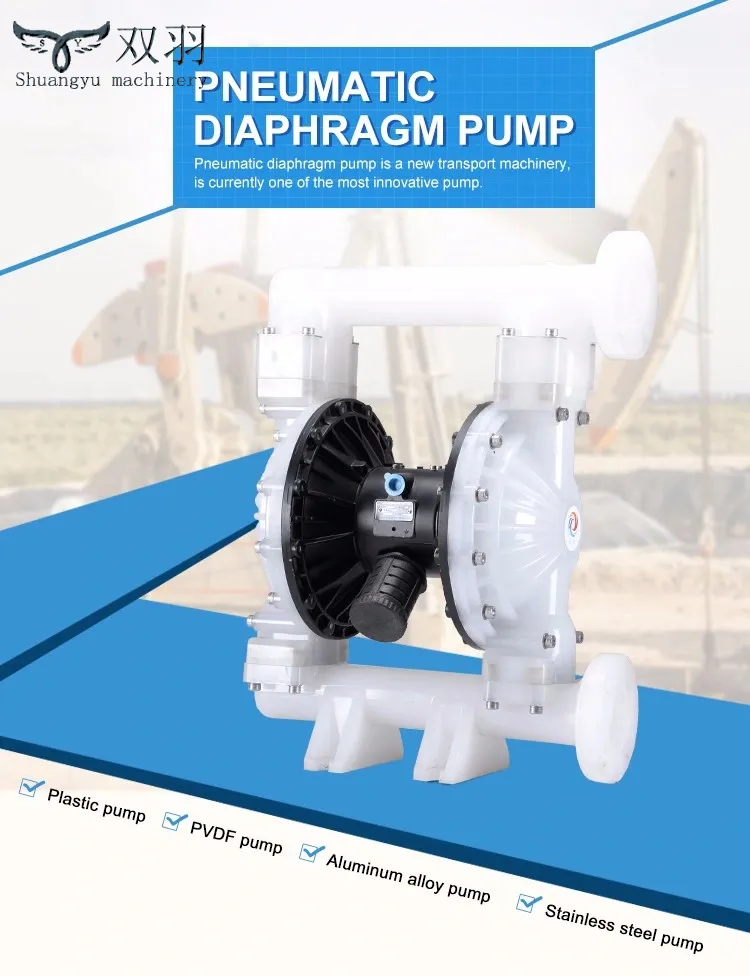

Pneumatic diaphragm pump is a new transport machinery, is currently one of the most innovative pump.
Using compressed gas as a power source for a variety of corrosive liquid, with particles of liquid, high viscosity, volatile, flammable, poisonous liquid can be pumped.

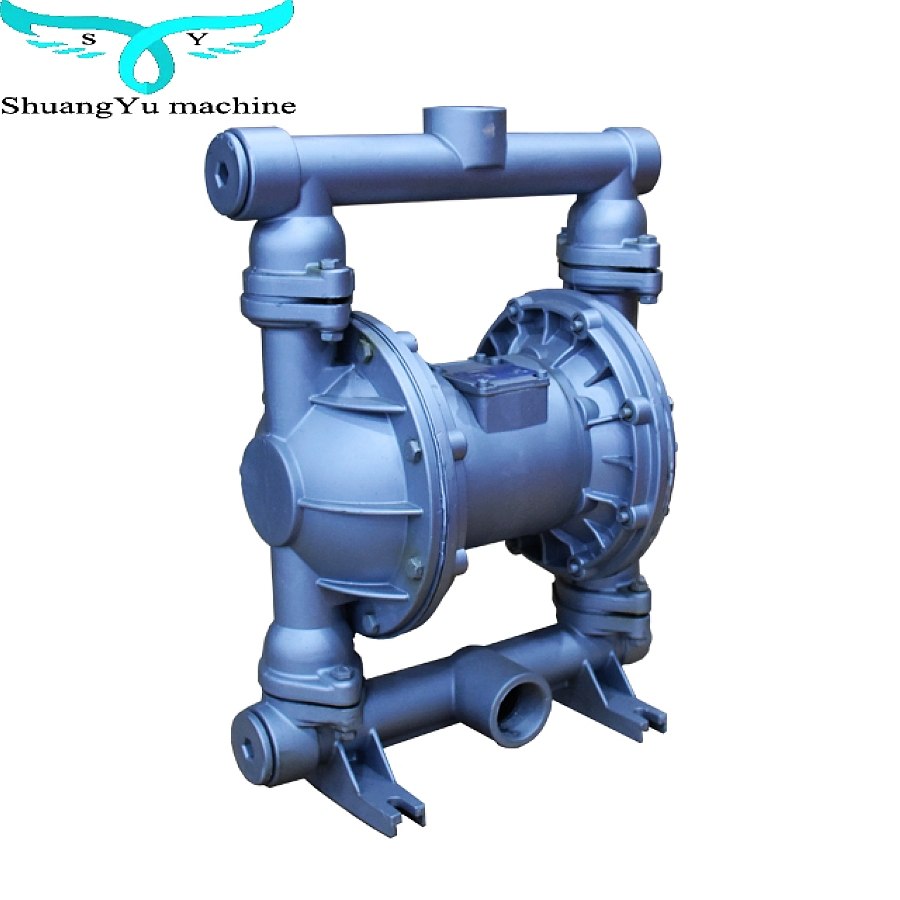

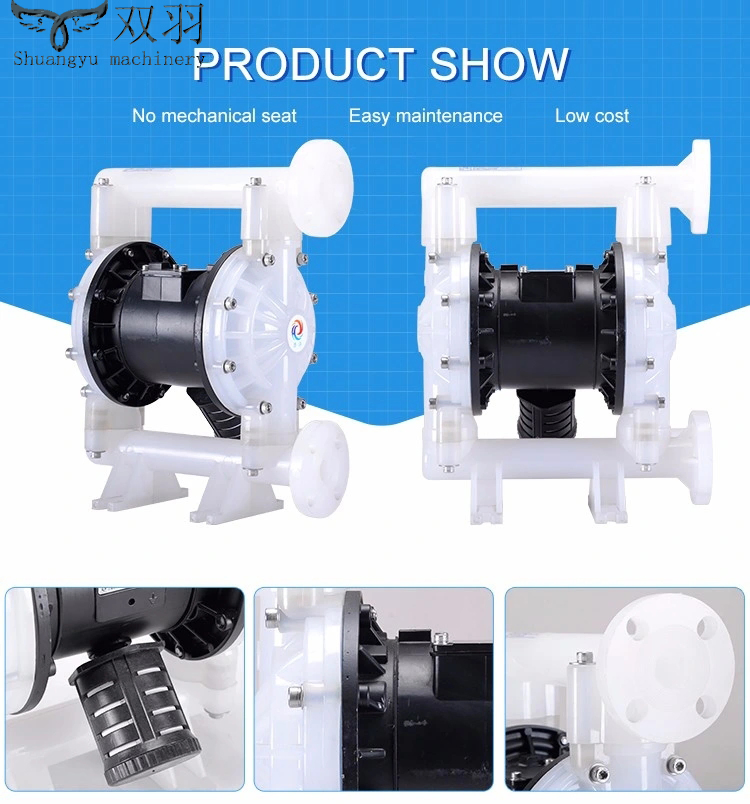

Four pneumatic diaphragm materials available: plastic, aluminum, cast iron, stainless steel.

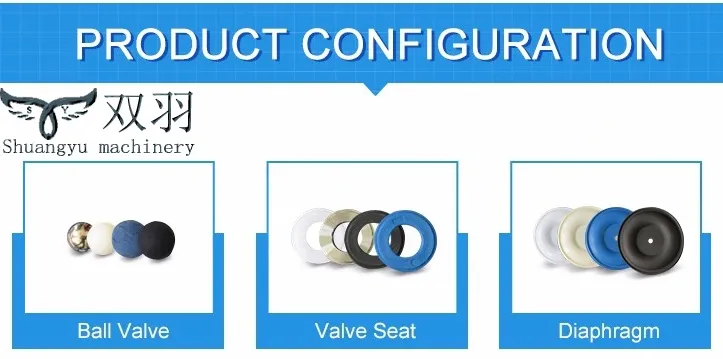

Diaphragms available in nitrile rubber, neoprene, Viton, Teflo, depending on the liquid medium.
Designed for special occasions to pump media that conventional pumps cannot handle.

Providing stall-free, ice-free operation
Explosion-proof, zero leak, simple operation
Can transmit adhesive liquid and large particles
Low shearing, protects material structure
Diversity of material, applicable to various erosive situations
Adjustable flow delivery via air supply
Adjustable pump lift via air pressure
Modularization of main valve and air motor for easy repair

Frequently Asked Questions

Q1: What are your accepted payment methods?

We accept T/T, Western Union, L/C, and other standard payment terms.

Q2: What kind of packaging is used for shipping?

Products are packed in standard export plywood cases or sturdy cartons to ensure safety during transport.

Q3: How long is the warranty period?

According to international standards, our products come with a 1-year warranty under standard operation, excluding quick-wear parts.

Q4: What materials can this pump handle?

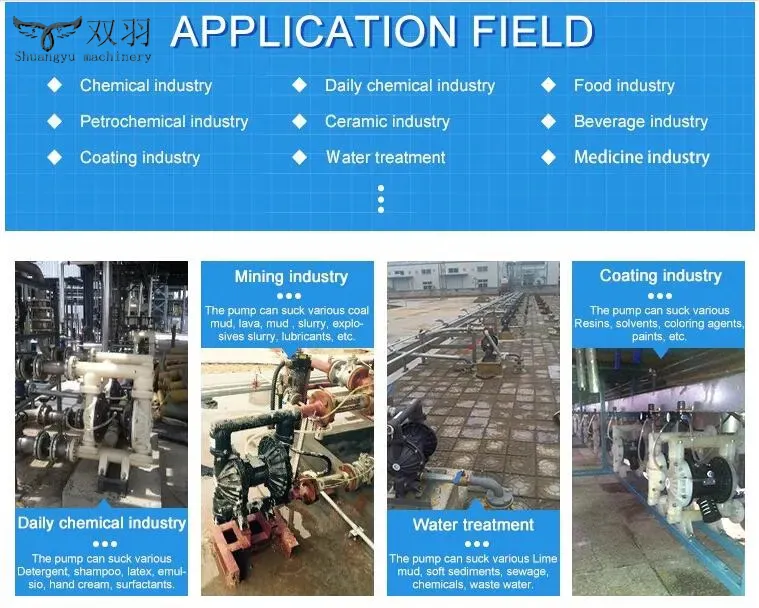

The pump is capable of transferring various media including food slurries (tomato, chocolate, syrup), paints, adhesives, ceramic glazes, toxic or flammable liquids, and strong corrosive acids or alkalis.

Q5: Does the product meet quality certifications?

Yes, our pumps hold CE certification. We ensure quality and can provide OEM services for personalized requirements.

Q6: What is the power source for this pump?

This is a pneumatic diaphragm pump which uses compressed gas as its power source, making it ideal for explosion-proof environments.
