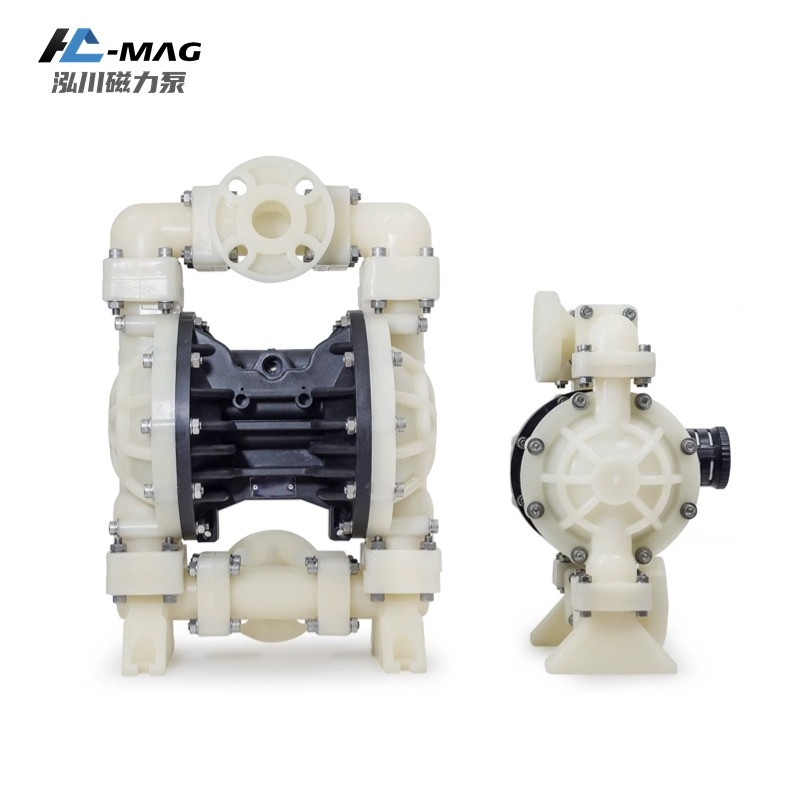

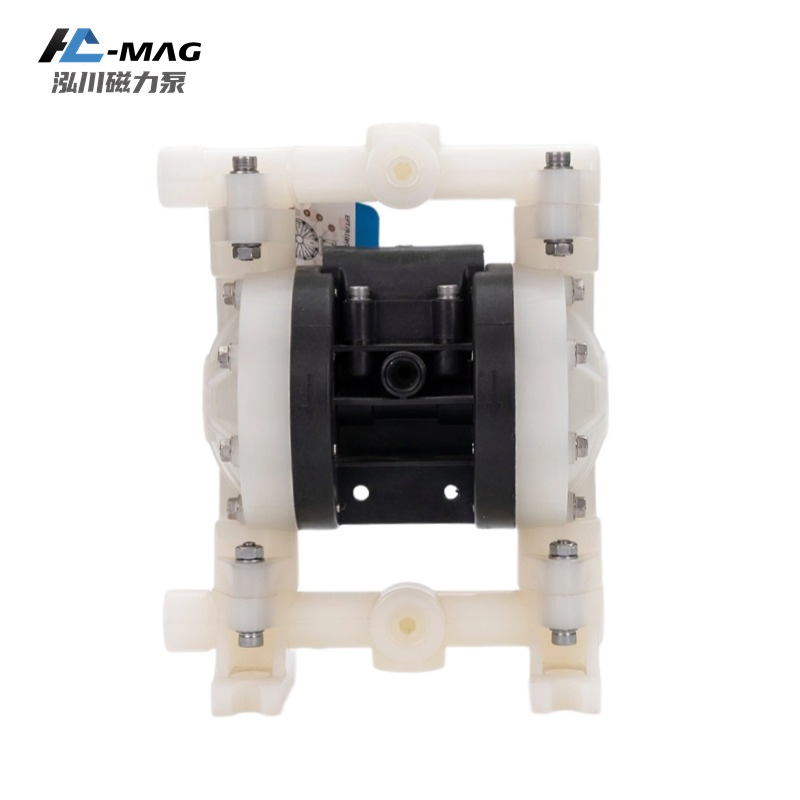

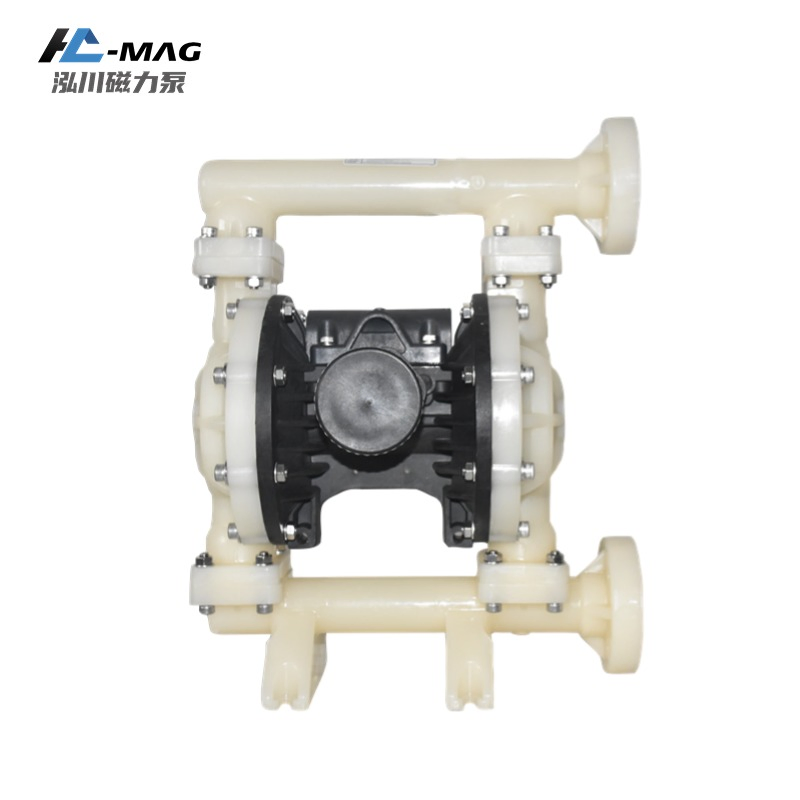

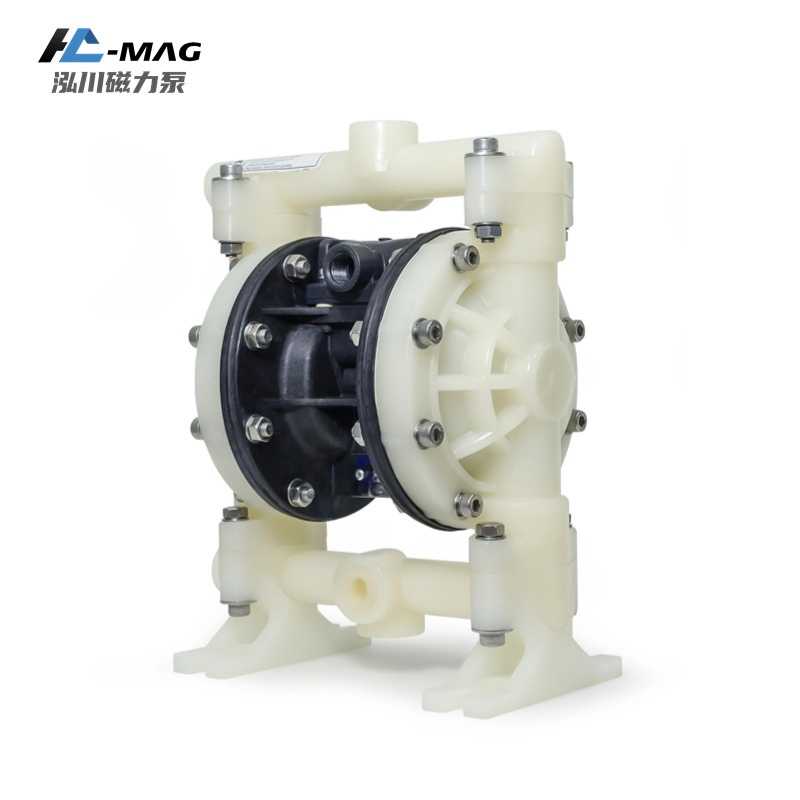

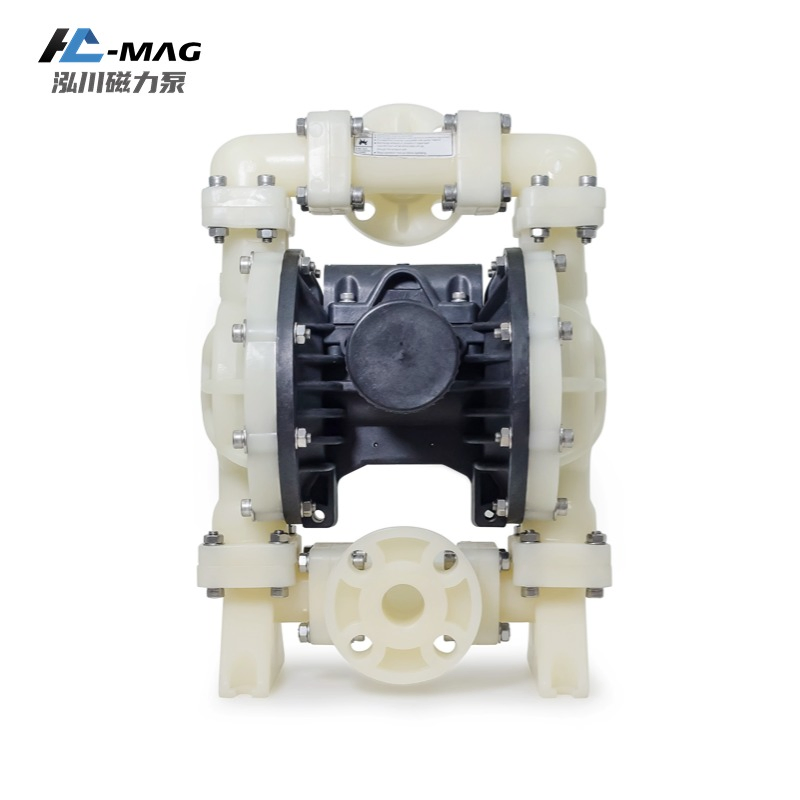

Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning
Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning
Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning
Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning
Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning
1 / 5
Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning
Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning
Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning
Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning
Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning

Plastic Pneumatic Diaphragm Pump Self Priming for Sewage, Viscous Liquid, Slurry, Wastewater, Cleaning

Customization: Available
Certification: CE
Material: PP/PVDF
Send Inquiry

Product Description

i

Basic Info

Model NO.
GY80
Power
Pneumatic
Valve Body Type
Diaphragm
Diaphragm Material
Santoprene, FKM, PTFE, EPDM, NBR
Performance
Corrosion-Resistant, Self-Priming, Low Shear
Temperature Resistant
100ºC
Self-Priming Head
3~5m
Maximum Particle Diameter
5mm
Suction and Discharge
1 1/2 in
Compressed Air Inlet
1/2 in
Max. Capacity
358L/Min
Max. Head
84m
Max. Air Supply Pressure
8.4bar
Valve Ball Material
PTFE, PVDF, PP, Stainless Steel, FKM, Santoprene
Max. Viscosity
10000cp
Origin
China
HS Code
8413709990
Production Capacity
50000pieces/Year
📦

Packaging & Delivery

Package Size
45.00cm * 33.00cm * 63.00cm
Package Gross Weight
45.000kg
✓

Product Introduction & Brief

  • ◈ 1. It can pump flowing liquid as well as convey some mediums which are not easy to flow, combining advantages of self-priming, submersible, shielded, and slurry pumps.
  • ◈ 2. No need to pour water; suction range up to 7m, head up to 50m, with export pressure not less than 6kgf per square centimetre.
  • ◈ 3. Wide flow shield with excellent performance for passing large particles up to 10mm with minimal wear and tear.
  • ◈ 4. Head and flow can be achieved through stepless adjustment of the valve opening (Air pressure adjustment 2-8kg/cm2).
  • ◈ 5. No rotating parts, preventing environmental pollution and ensuring personal safety.
  • ◈ 6. Operates without electricity; safe and reliable for use in flammable and explosive environments.
  • ◈ 7. Capable of transporting viscous liquids with viscosity below 10,000 centipoise.
  • ◈ 8. Requires no oil lubrication; idling does not damage the pump.
📷

Product Display

Pneumatic Diaphragm Pump 1
Pneumatic Diaphragm Pump 2

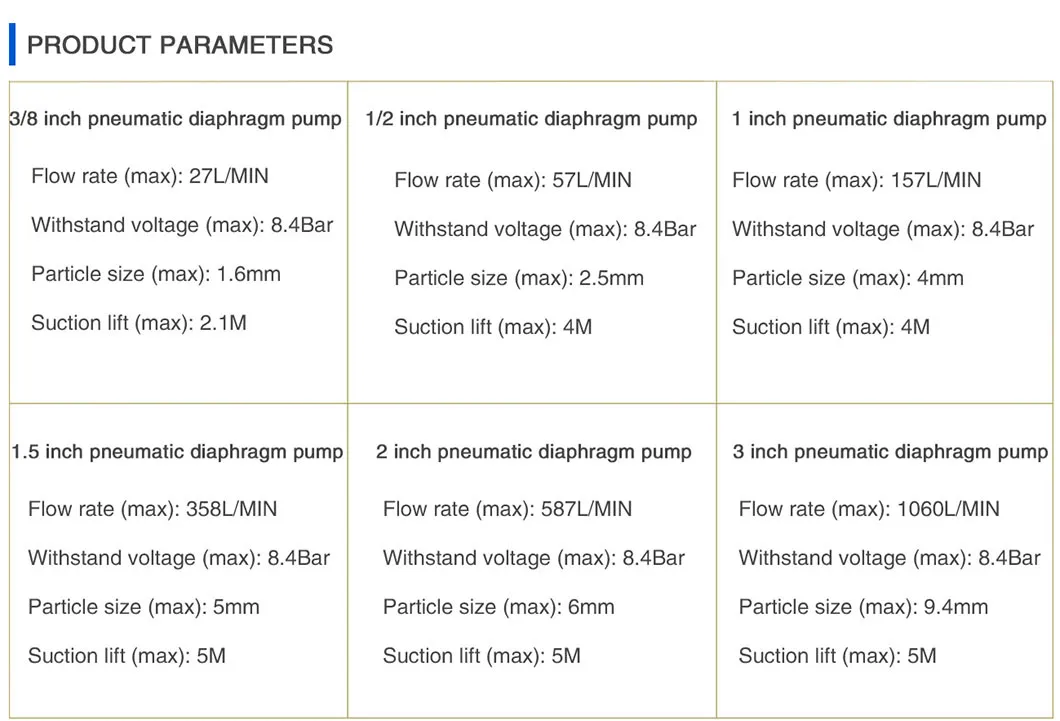

Pneumatic Diaphragm Pump 3

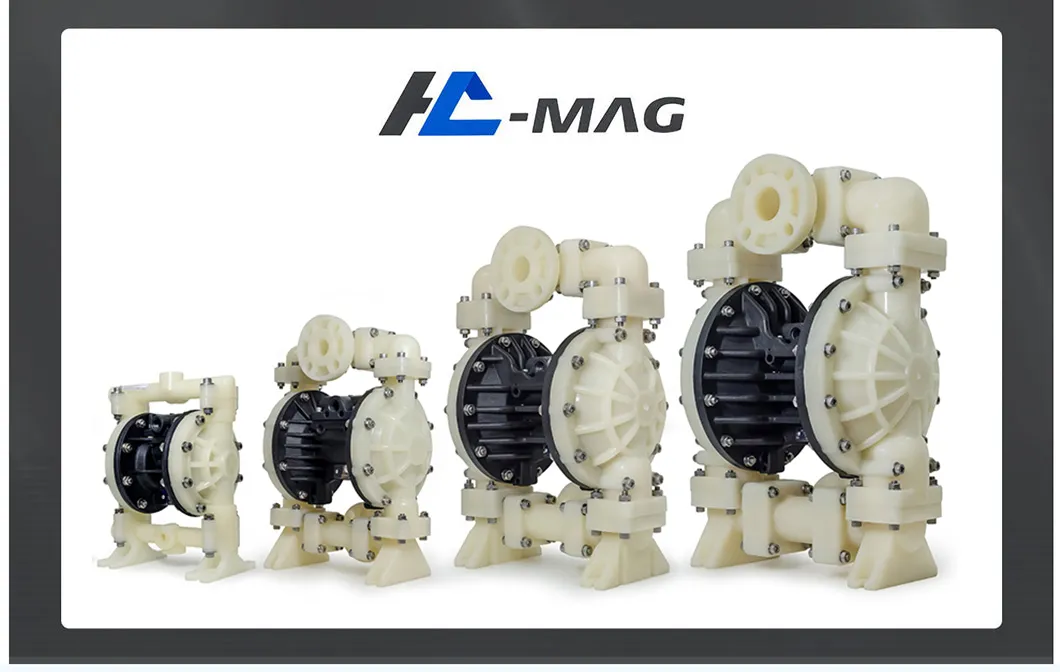

Pneumatic Diaphragm Pump 4
Pneumatic Diaphragm Pump 5

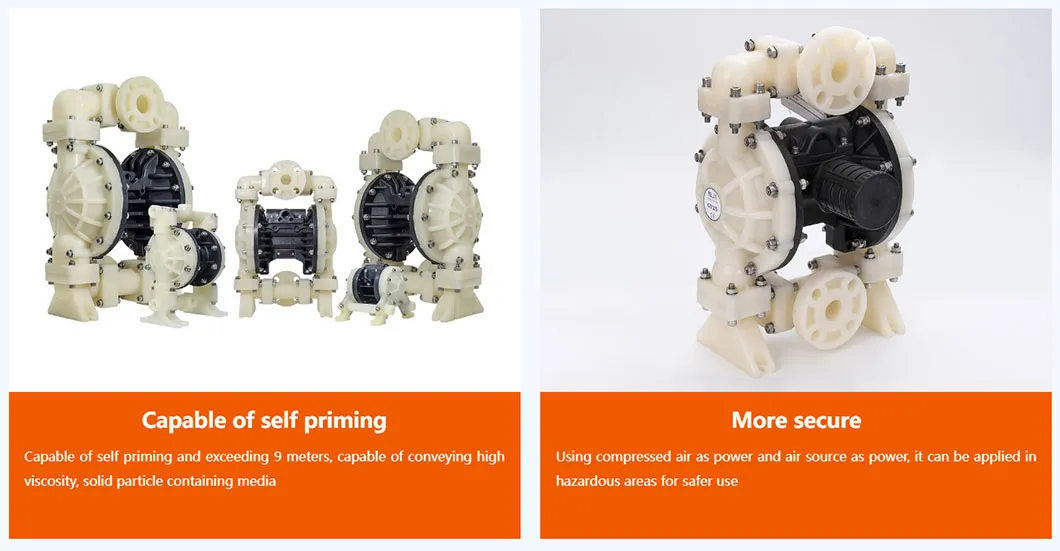

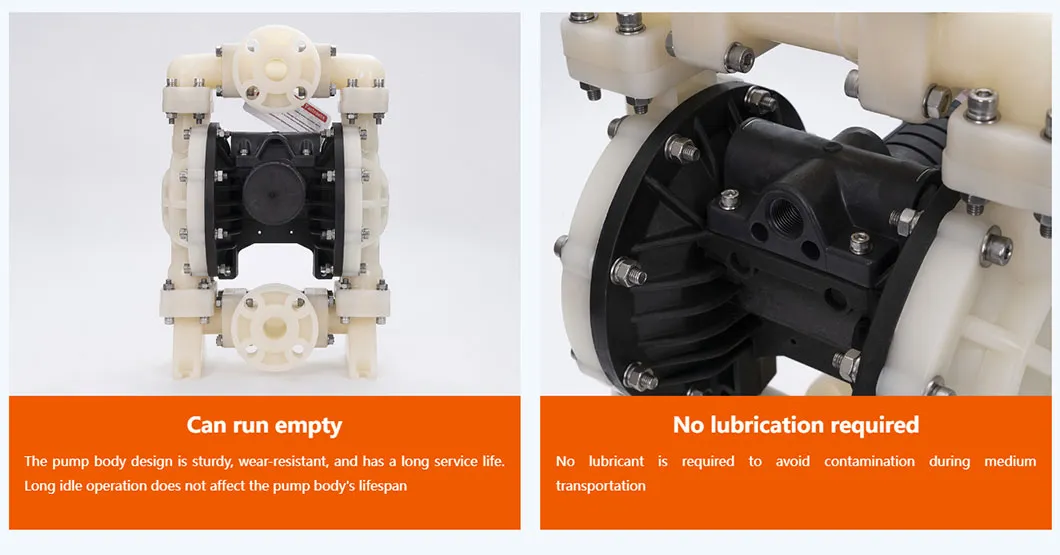

Pneumatic Diaphragm Pump 6
Pneumatic Diaphragm Pump 7
Pneumatic Diaphragm Pump 8
Pneumatic Diaphragm Pump 9
Pneumatic Diaphragm Pump 10
Pneumatic Diaphragm Pump 11
Pneumatic Diaphragm Pump 12
Pneumatic Diaphragm Pump 13
Pneumatic Diaphragm Pump 14

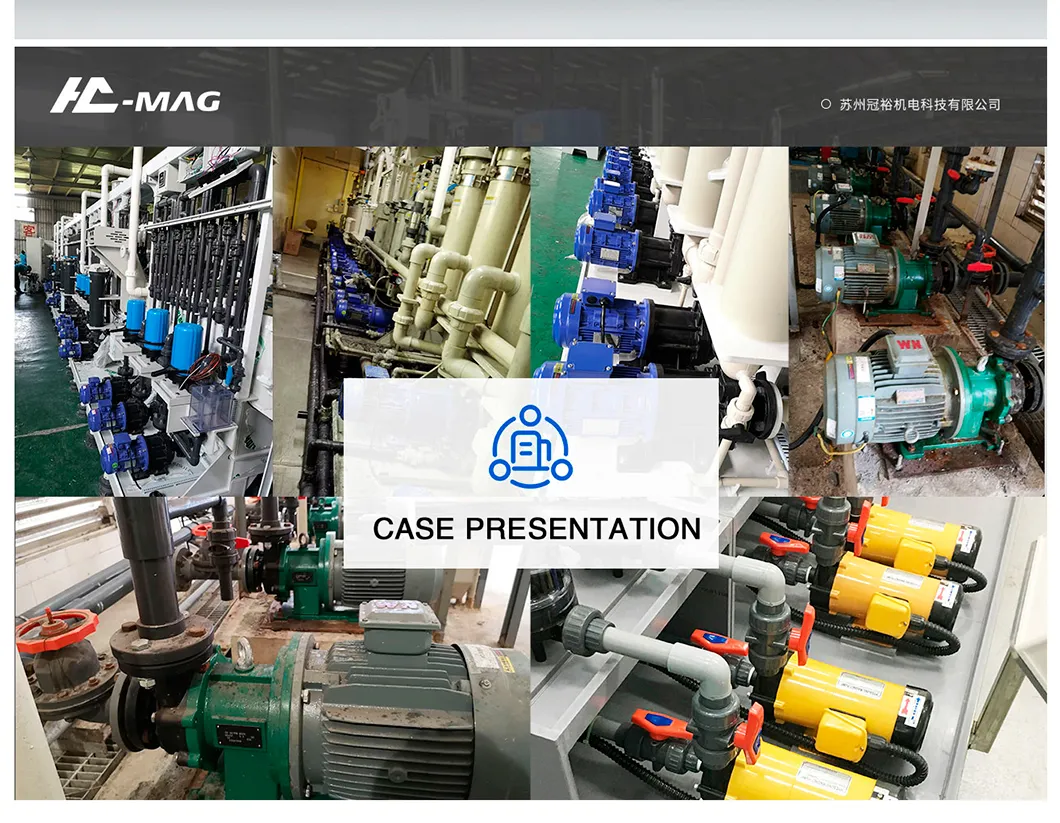

Pneumatic Diaphragm Pump 15
Pneumatic Diaphragm Pump 16
Pneumatic Diaphragm Pump 17
?

Frequently Asked Questions

Q1: What is the maximum capacity and head of the GY80 pump?

The GY80 model features a maximum capacity of 358L/Min and can reach a maximum head of 84m.

Q2: Can this pump handle high-viscosity fluids?

Yes, it is designed to transport viscous liquids with a viscosity of up to 10,000 centipoise.

Q3: Is it safe for use in explosive environments?

Absolutely. Since it is pneumatically powered and requires no electricity, it is safe and reliable for flammable and explosive locations.

Q4: What is the maximum size of solid particles it can pass?

The pump can handle a maximum particle diameter of 5mm to 10mm depending on the specific medium and setup.

Q5: What materials are available for the pump diaphragms?

We offer various materials including Santoprene, FKM, PTFE, EPDM, and NBR to suit different chemical compatibility needs.

Q6: Does the pump require continuous lubrication?

No, this pump does not require oil lubrication, and it can even run idle without sustaining damage.
