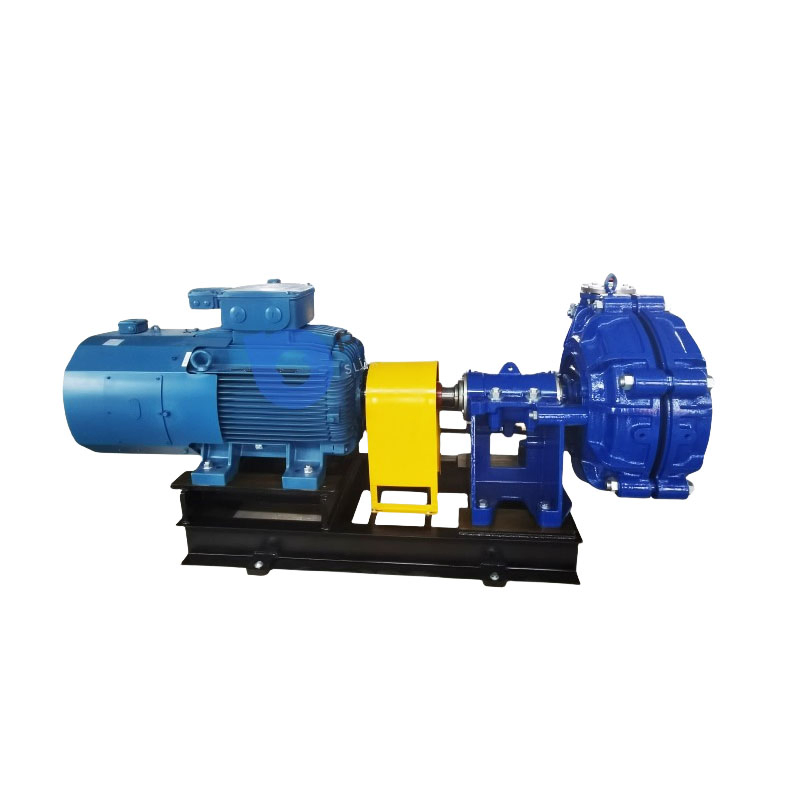

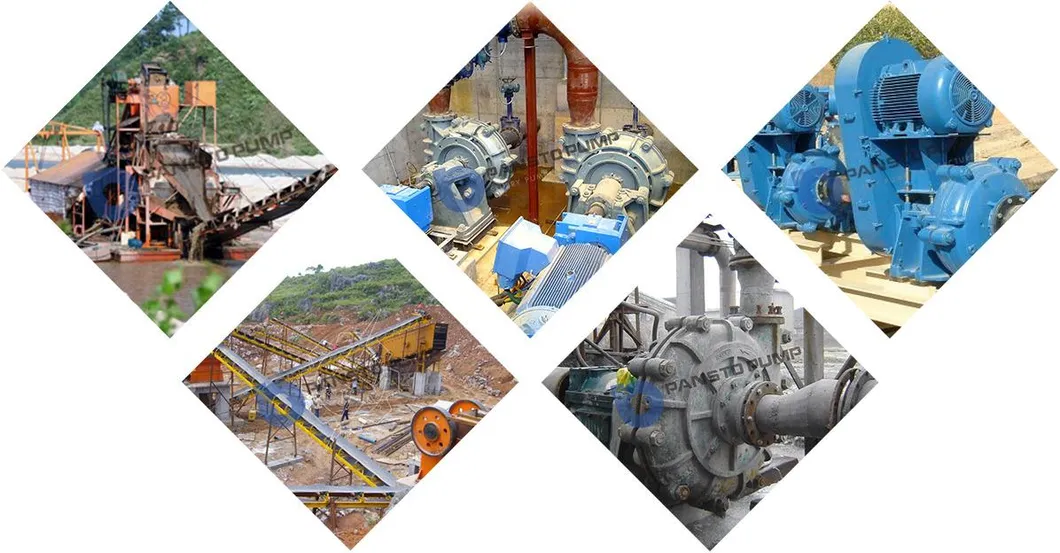

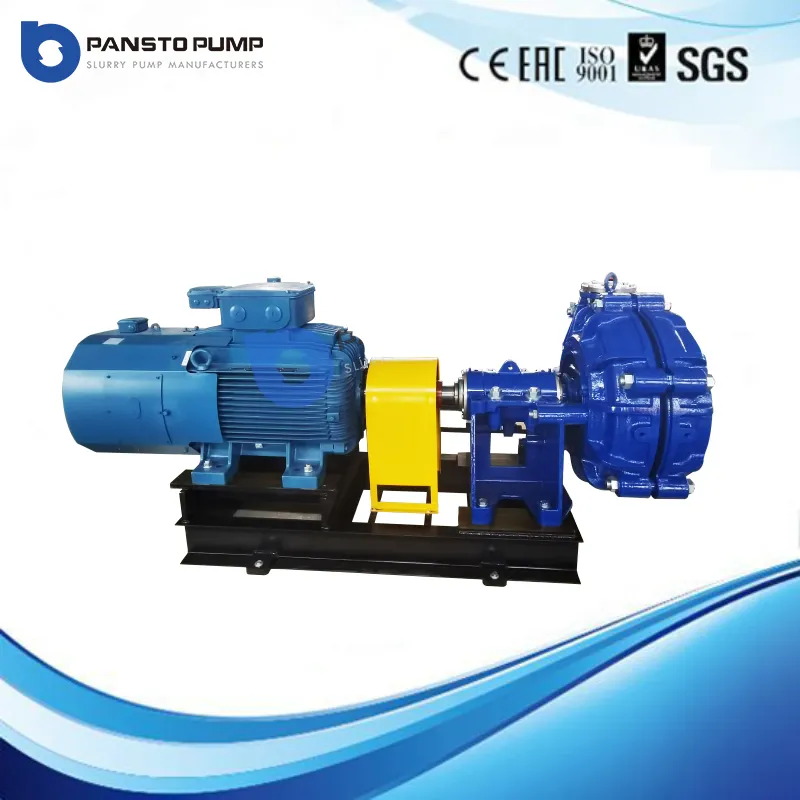

Application: PHH series slurry pumps are cantilever centrifugal slurry pumps, designed for transporting strong abrasive, high-concentration slurry or low-concentration high-lift slurry. These units are widely utilized in metallurgy, mining, petroleum, chemical industry, coal, electric power, and municipal engineering.

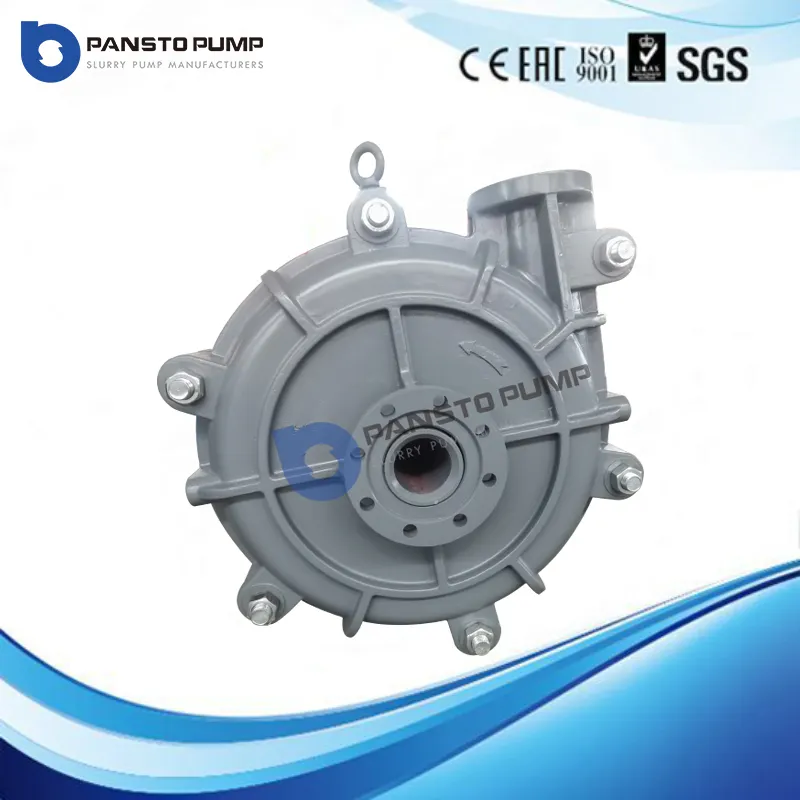

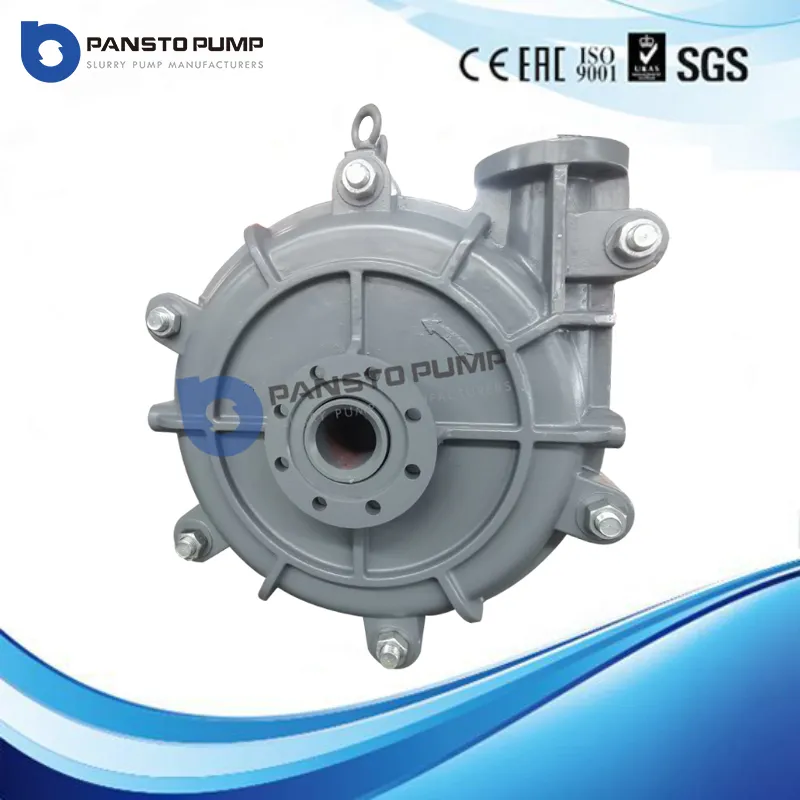

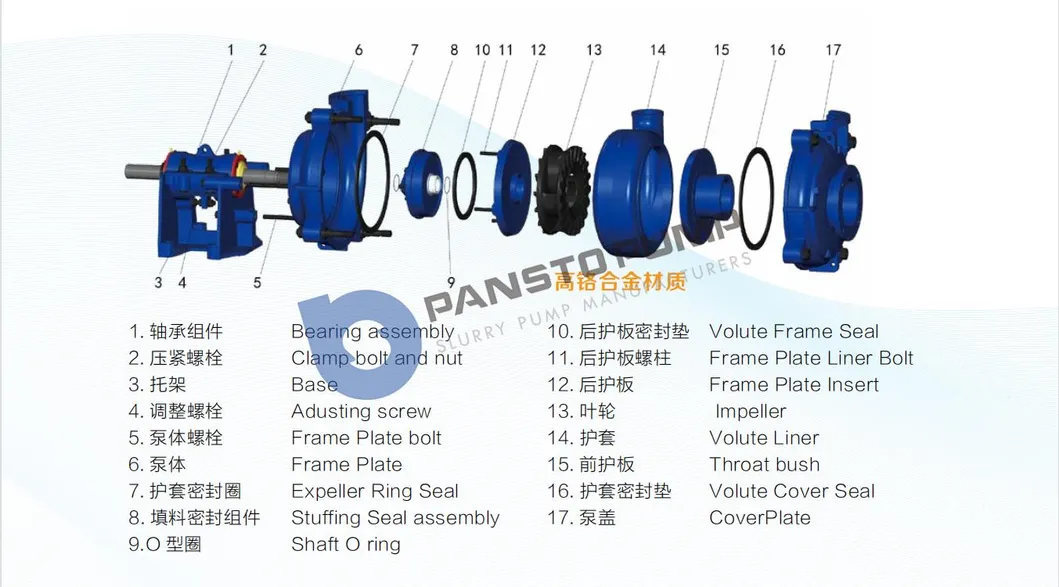

Structure: Featuring a cantilever, horizontal, axial suction design, the discharge port can be adjusted at 45-degree intervals. The cylindrical bearing assembly allows for precise gap adjustment between the impeller and throat bush, ensuring easy maintenance and long-term grease lubrication.

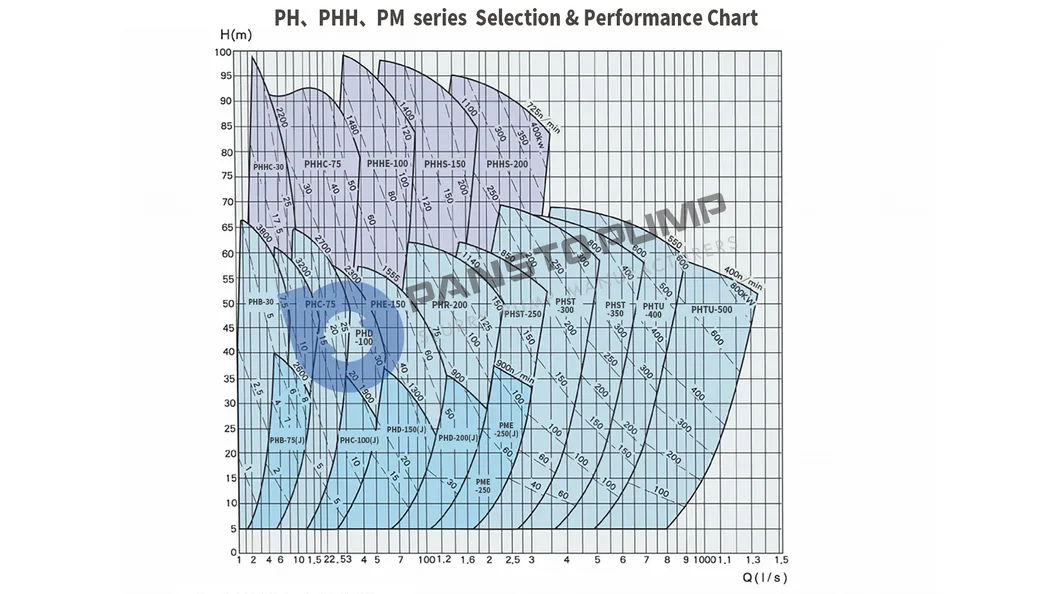

| Model | Power (KW) | Flow (m³/h) | Head (m) | Speed (r/min) | Eff (%) | NPSH (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| PHHC-40 | 7.5-30 | 16.2-34.2 | 25-92 | 1400-2200 | 20 | 2-5.5 | 318 |
| PHHD-75 | 15-60 | 68-136.8 | 25-87 | 850-1450 | 47 | 3.7.5 | 750 |
| PHHE-100 | 18.5-120 | 126-252 | 12-97 | 600-1400 | 50 | 2-5.5 | 1250 |

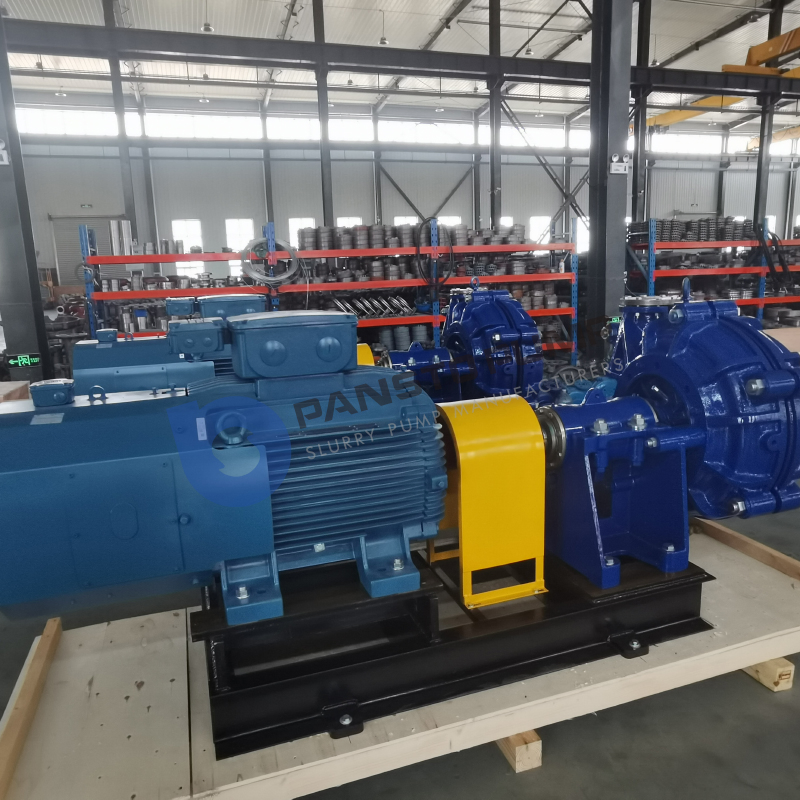

| PHHS-150 | 45-560 | 324-720 | 30-118 | 600-1000 | 64 | 3-8 | 3420 |

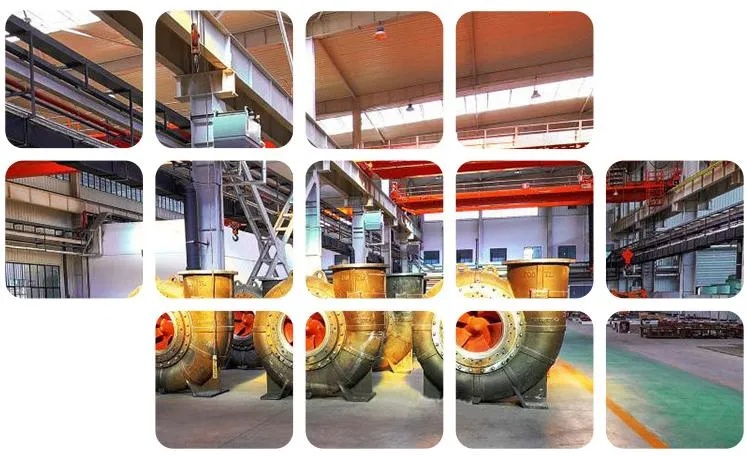

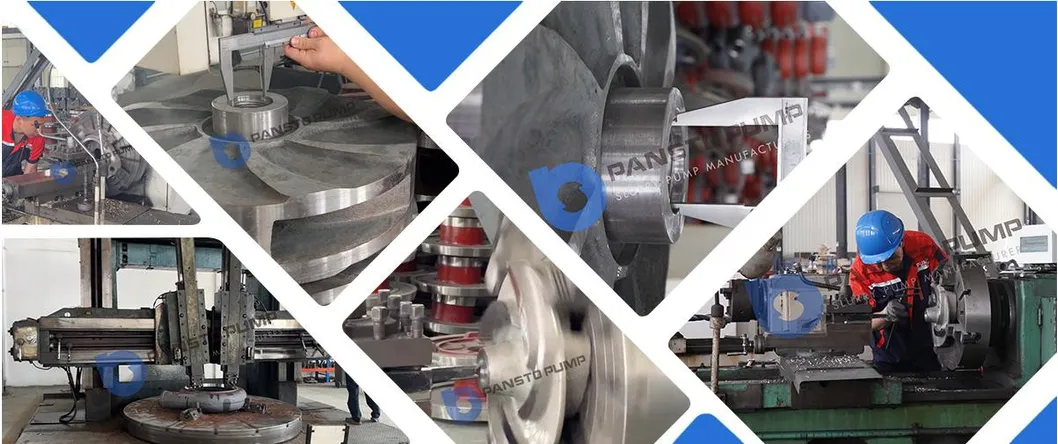

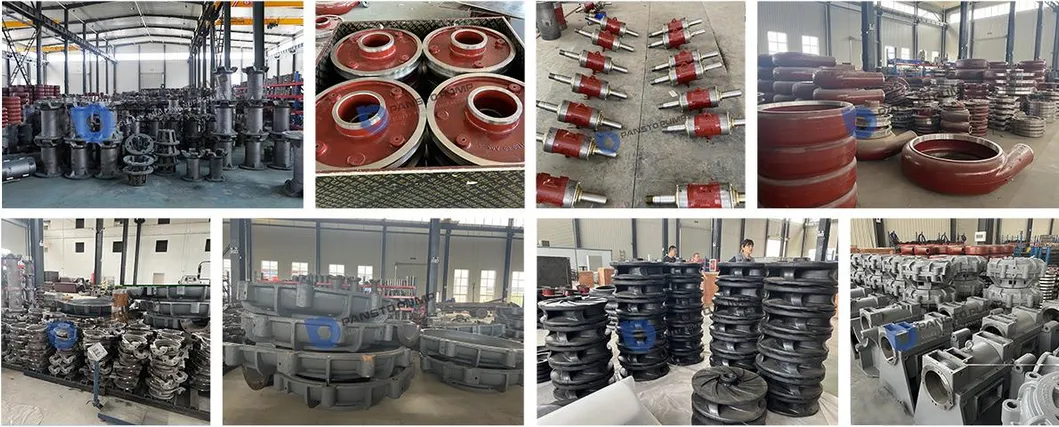

Our production involves over a dozen series and 100+ varieties, including horizontal/vertical slurry pumps, rubber-lined units, gravel pumps, and more. With advanced heat treatment and machining equipment, we adjust materials to match specific working conditions for optimal wear and corrosion resistance.
