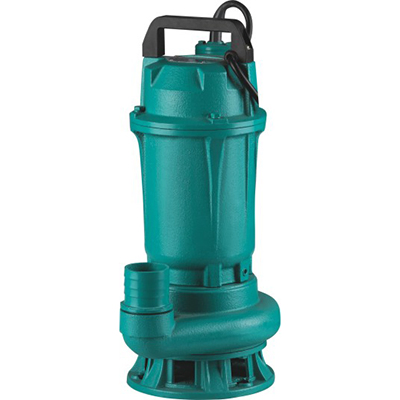

OEM Best Price Irrigation Well Submersible Water Pump Small Weight 1.1kw 1.5HP 220V Qdx Submersible Pump for Clean Water Manufacture Price Wholesale

Customization:	Available
Max.Head:	30-50m
Max.Capacity:	100-200 L/min

Basic Information

Model NO.

QDX3-30-1.1F

Driving Type

Motor

Material

Aluminum / Cast Iron

Structure

Single-stage Pump

Assembly

Electric Water Pump

Power

Electric

Start Up

Electric Pump

Type

Blade Pump

Application

Submersible Pump, Clean Water Pump

Industry

Mechanical Pump

Media

Submersible Pump

Performance

Automatic Pump

Theory

Electromagnetic Pump

Color

OEM

Voltage

220 V

Frequency

50Hz /60Hz

Outlet

1"

Impeller

Aluminum

Cable

8 M

Transport Package

1 PCS/ Ctns

Production Capacity

50000PCS/Year

Product Description

Applications

For water supply from wells or reservoirs
For domestic use, civil and industrial applications
For garden use and irrigation

Product Introduction

These submersible pumps consist of a water pump, seals, and a single-phase or three-phase asynchronous submersible motor. The pump offers advantages such as small size, light weight, easy removal, convenient installation, high efficiency, and energy-saving reliability.

Component Construction

Pump body: Cast iron
Motor housing: Aluminum Alloy
Impeller: Aluminum Alloy
Motor shaft: Carbon steel (304SS if requested)
Mechanical seal: Ceramic / Graphite
Cable: 8m cable with plug

Operating Conditions

Liquid Temperature up to 60 ºC
Ambient Temperature up to 40 ºC
5m maximum immersion depth

Motor Specifications

Single Phase 220V / 50Hz (110V / 60Hz available on request)
Insulation Class B
Protection Class: IP68
Equipped with Thermal Protector
Continuous Work S1

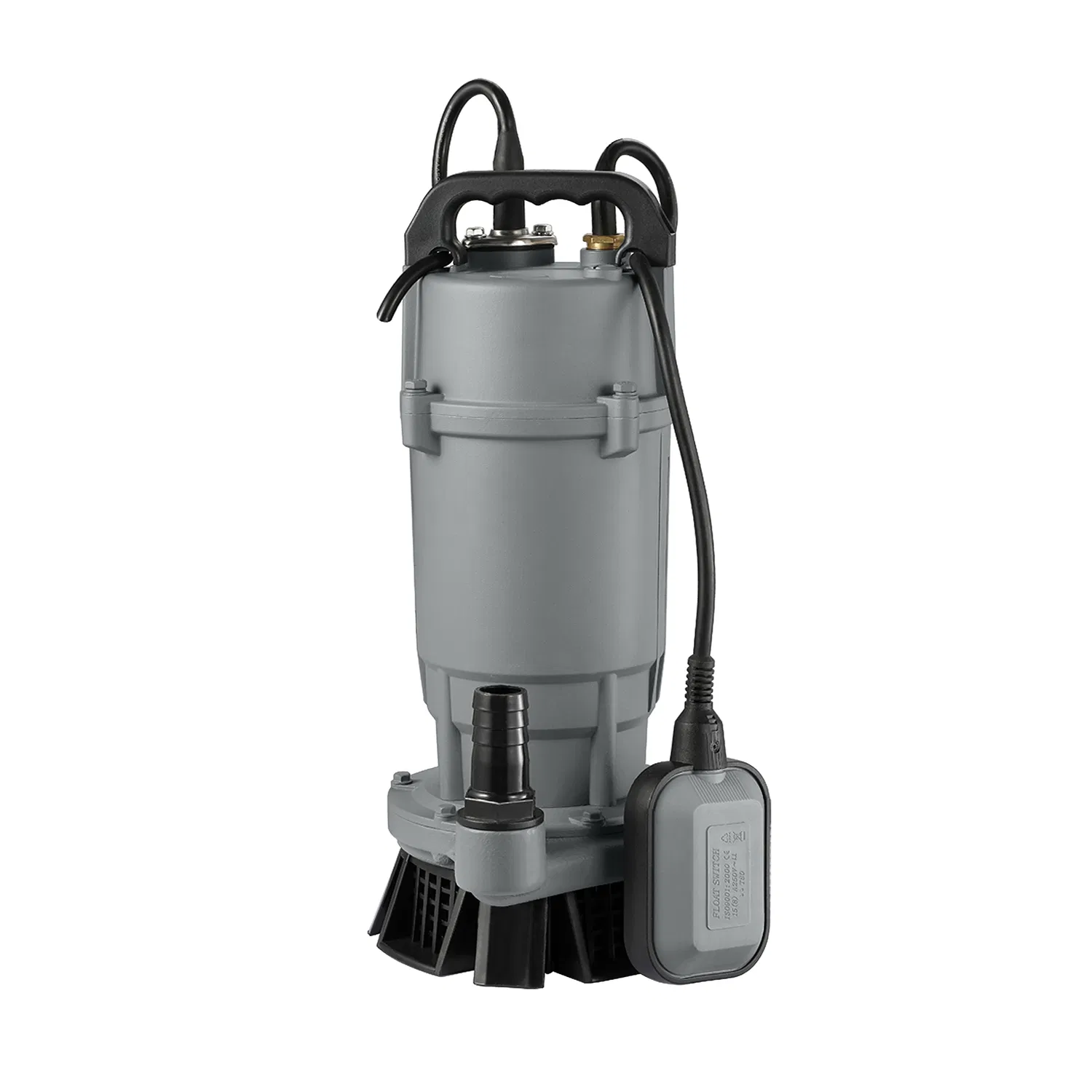

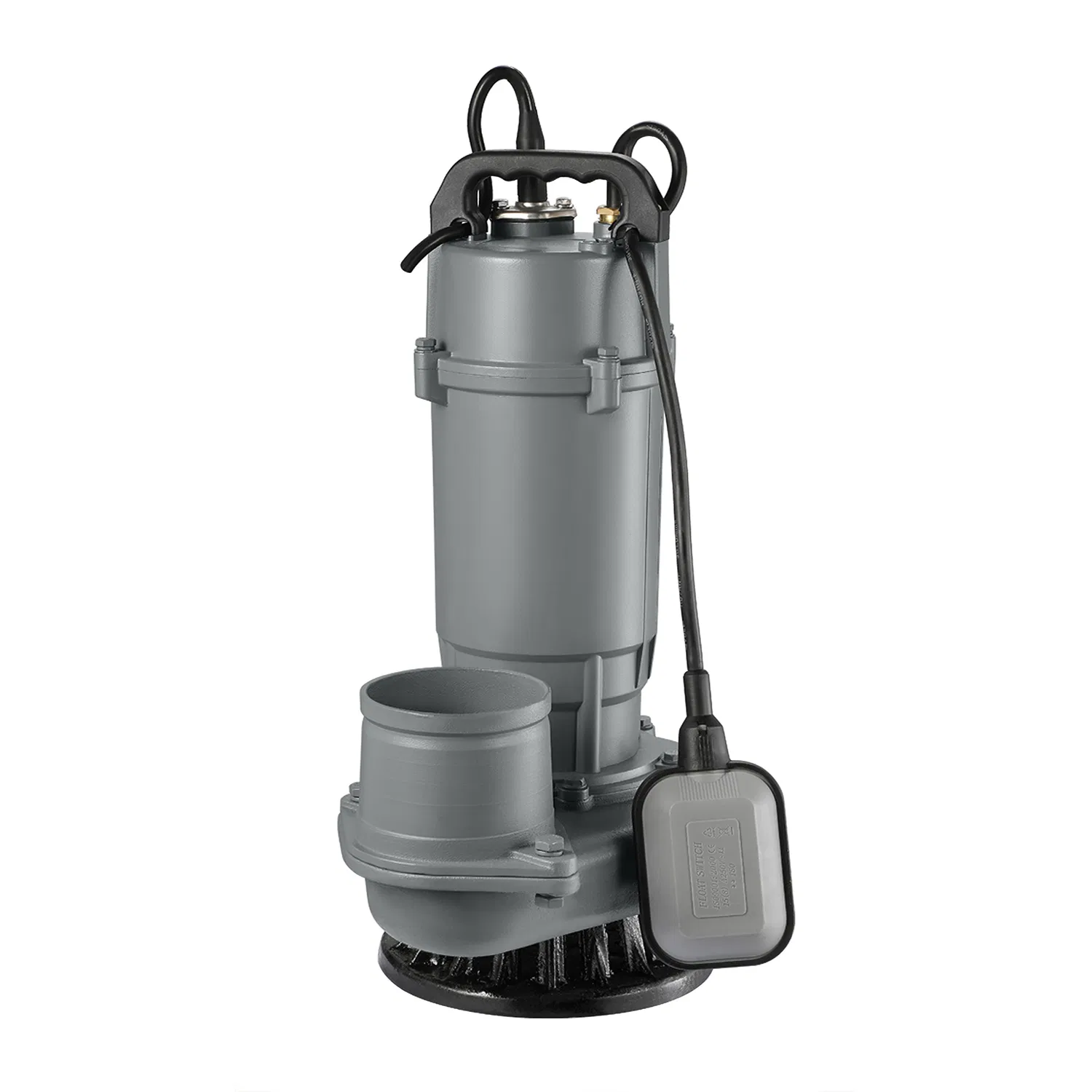

Detailed Photos

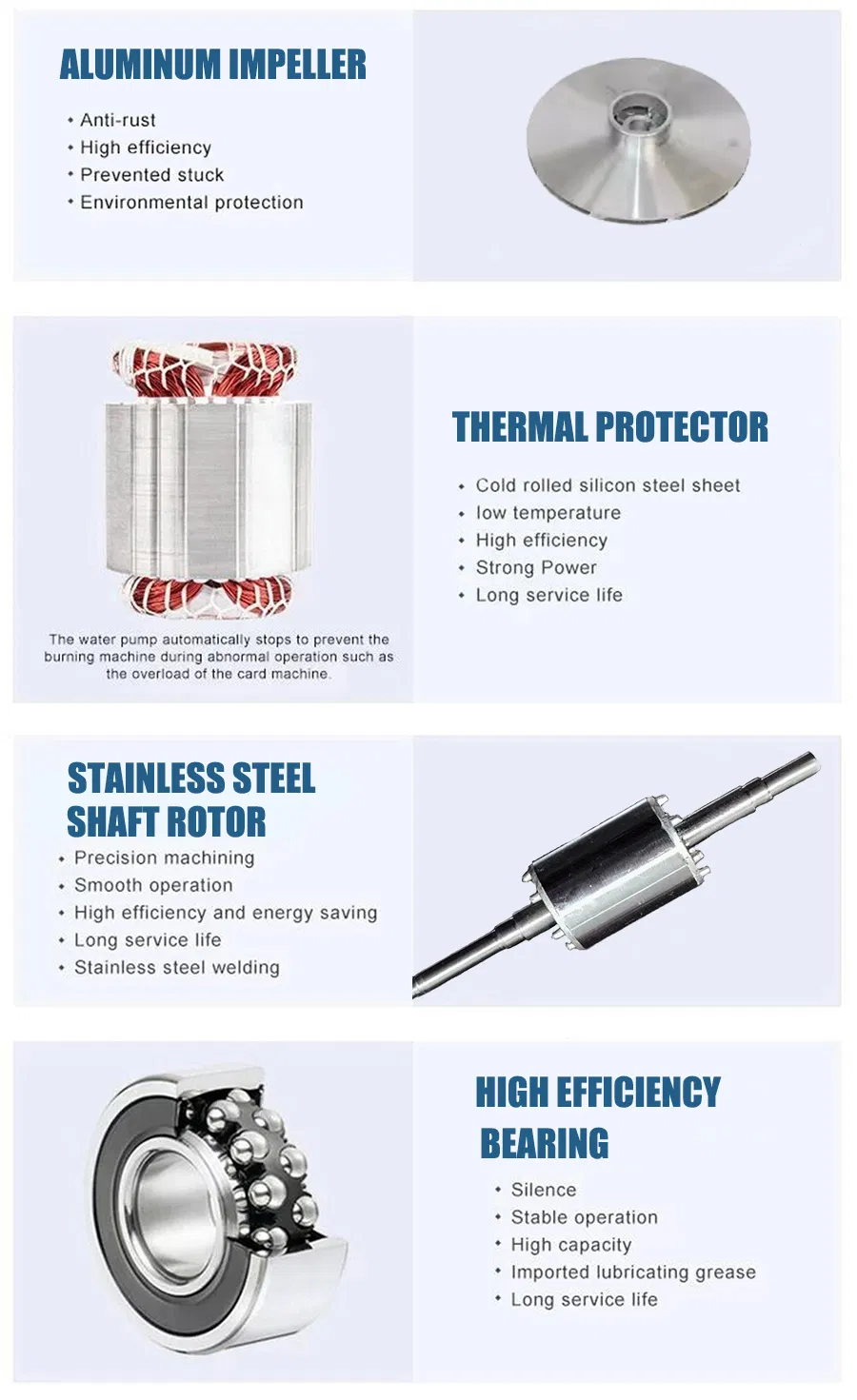

Spare Parts

Product Parameters

NO	Model	Power		Outlet (inch)	Rate Flow (m³/h)	Rate Head (m)
NO	Model	Kw	Hp	Outlet (inch)	Rate Flow (m³/h)	Rate Head (m)
1	QDX1.5-12-0.25F	0.25	0.34	1	1.5	12
2	QDX1.5-17-0.37F	0.37	0.5	1	1.5	17
3	QDX1.5-25-0.55F	0.55	0.75	1	1.5	25
4	QDX3-18-0.55F	0.55	0.75	1.2	3	18
5	QDX10-12-0.55F	0.55	0.75	1.5	10	12
6	QDX15-7-0.55F	0.55	0.75	2	15	7
7	QDX1.5-32-0.75F	0.75	1	1	1.5	32
8	QDX3-24-0.75F	0.75	1	1.2	3	24
9	QDX8-18-0.75F	0.75	1	1.5	8	18
10	QDX10-16-0.75F	0.75	1	2	10	16
11	QDX15-10-0.75F	0.75	1	2.5	15	10
12	QDX30-6-0.75F	0.75	1	3	30	6
13	QDX6-25-1.1F	1.1	1.5	2	6	25
14	QDX3-30-1.1F	1.1	1.5	1	3	30
15	QDX14-18-1.1F	1.1	1.5	2	14	18
16	QDX15-16-1.1F	1.1	1.5	2.5	15	16
17	QDX40-6-1.1F	1.1	1.5	3	40	6
18	QDX6-33-1.5F	1.5	2	2	6	33
19	QDX25-12-1.5F	1.5	2	2.5	25	12
20	QDX40-9-1.5F	1.5	2	3	40	9
21	QDX50-7-1.5F	1.5	2	4	50	7
22	QDX35-15-2.2F	2.2	3	3	35	15
23	QDX65-7-2.2F	2.2	3	4	65	7
24	QDX90-5-3F	3	4	6	90	5

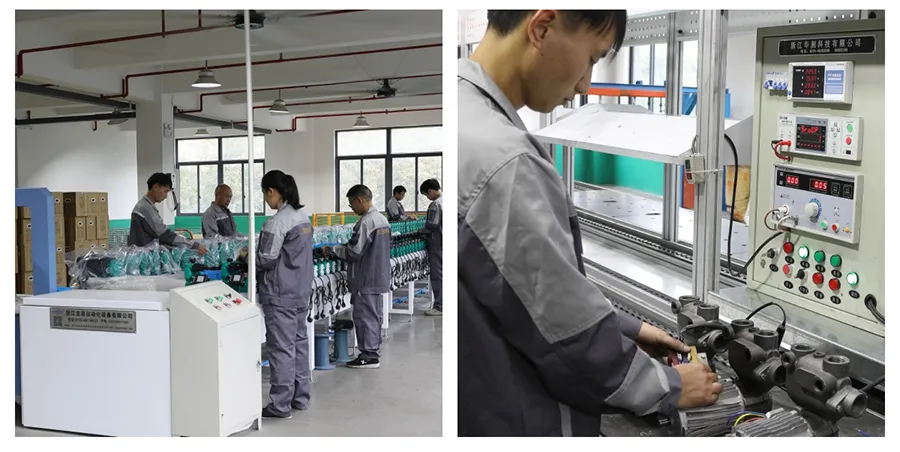

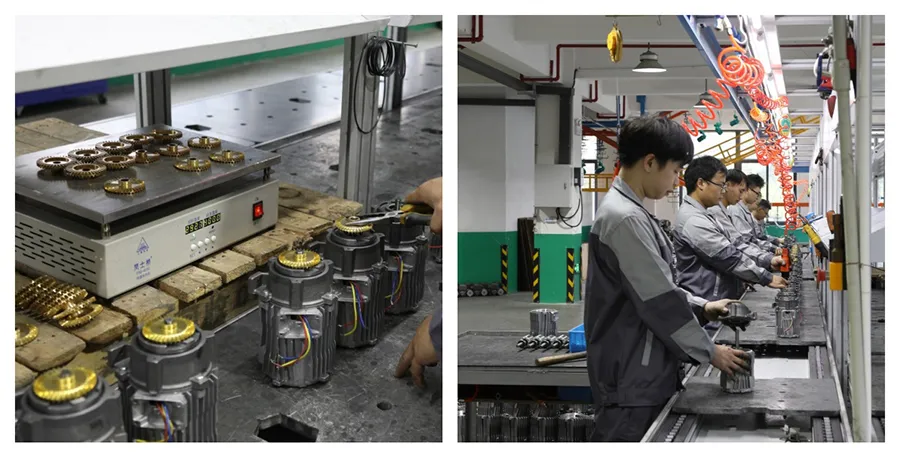

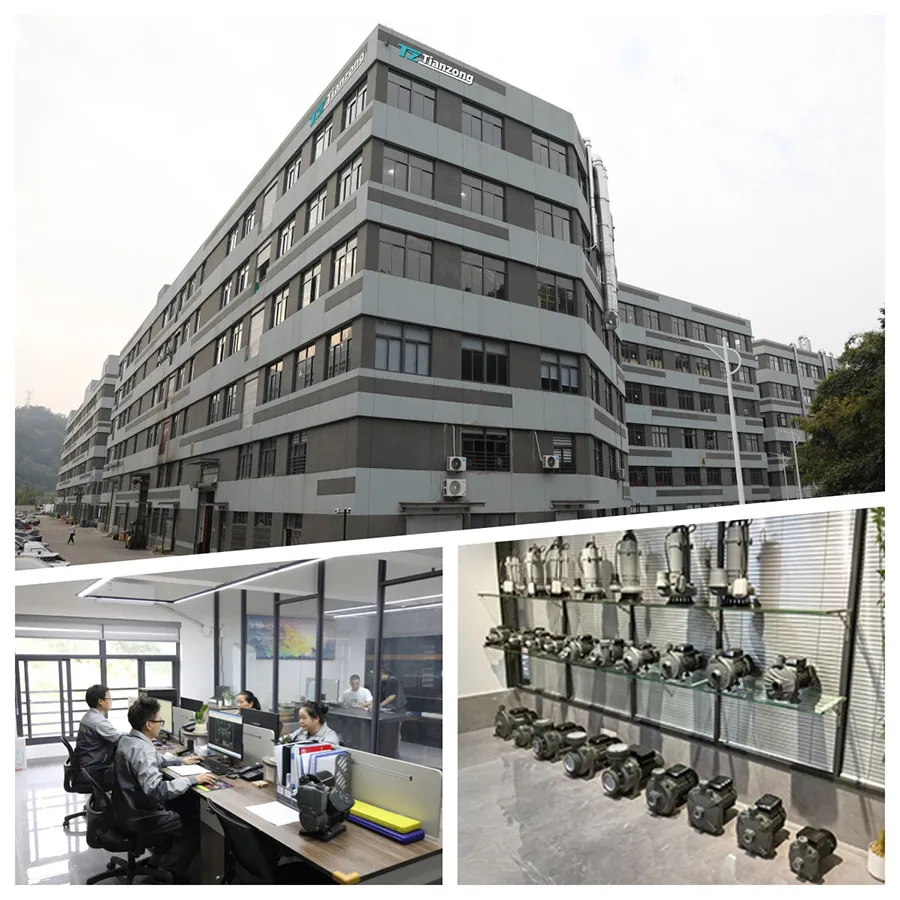

Company Profile & Advantages

Packaging & Shipping

Frequently Asked Questions

Are you a factory?

Yes. Our company is a professional manufacturer dedicated to providing high-quality pump solutions.

Is OEM and ODM service available?

Of course. We have many years of experience in providing professional OEM & ODM services to meet specific requirements.

How about your warranty?

We offer a 1-year product life guarantee and a generous 1-year warranty on all purchases starting from the date of the bill of lading.

I am buying from another supplier but need better service, would you match the price?

We pride ourselves on providing the best service and competitive prices. We would be happy to personalize a competitive quote for you.

What is the minimum order quantity (MOQ) for this product?

Our standard minimum order quantity is one full 20ft container. For first-time cooperation, customers can place a trial order to verify quality.

How can I ensure the quality before bulk ordering?

You may consult our service team regarding trial orders or sample testing to verify technical specifications and performance.
