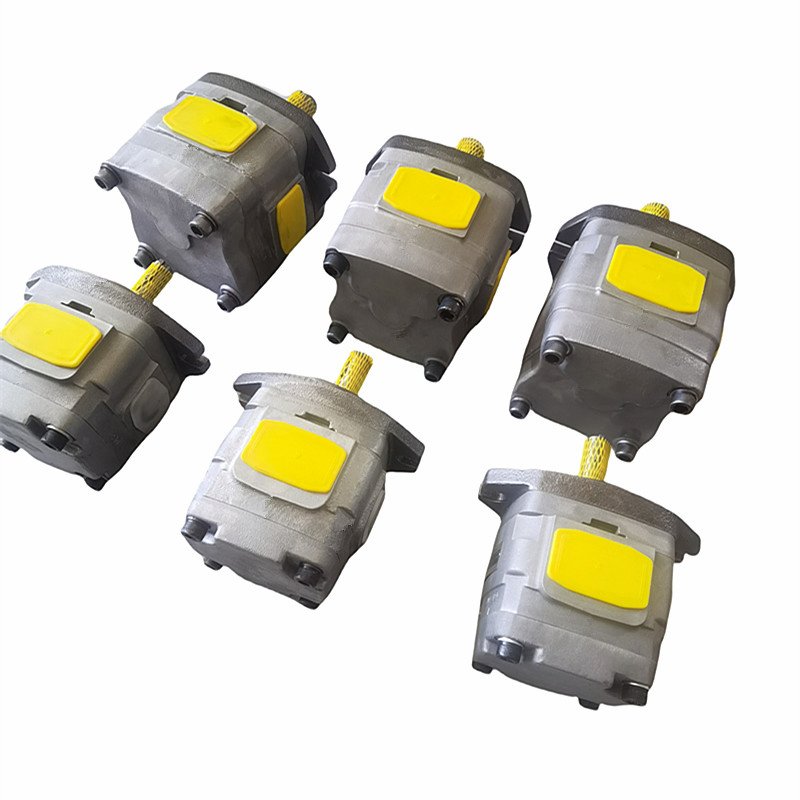

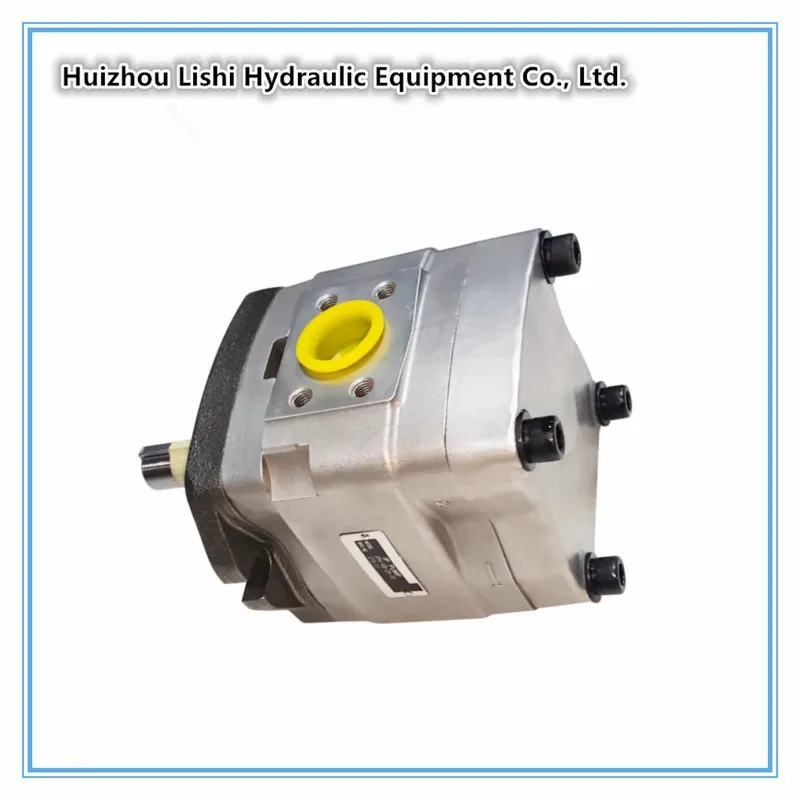

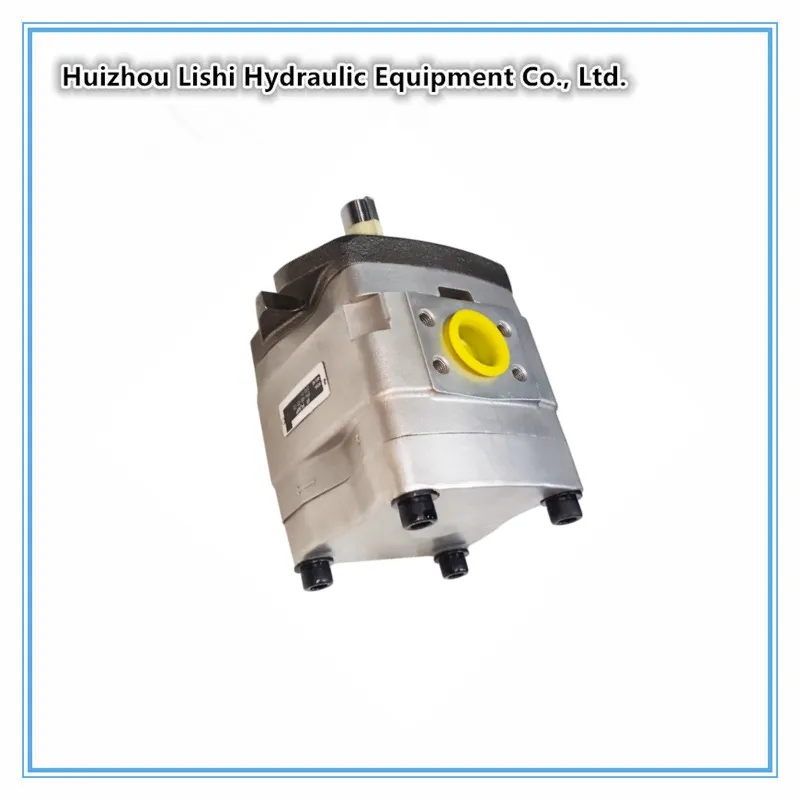

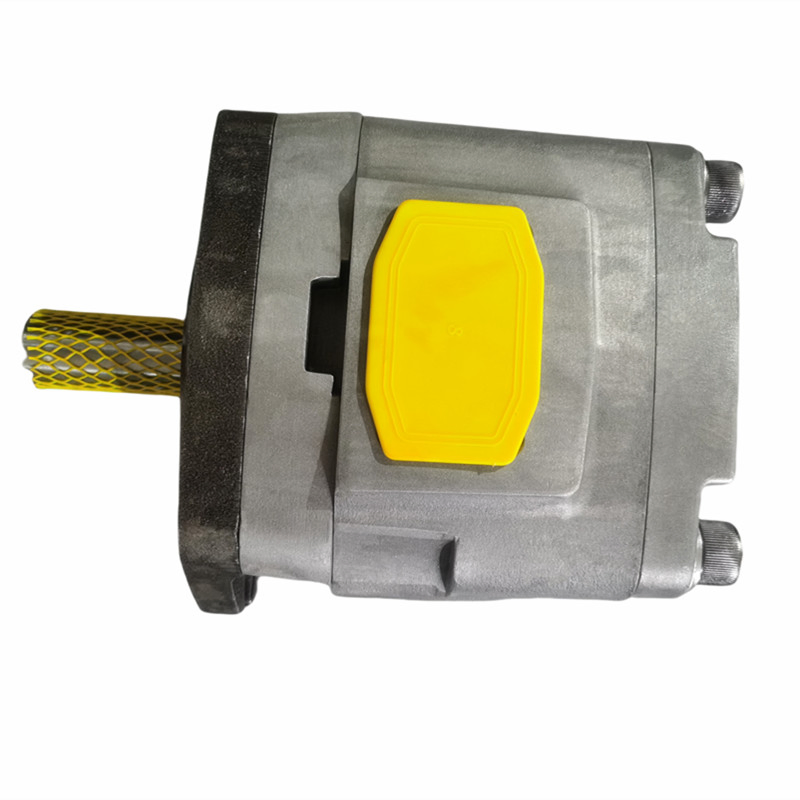

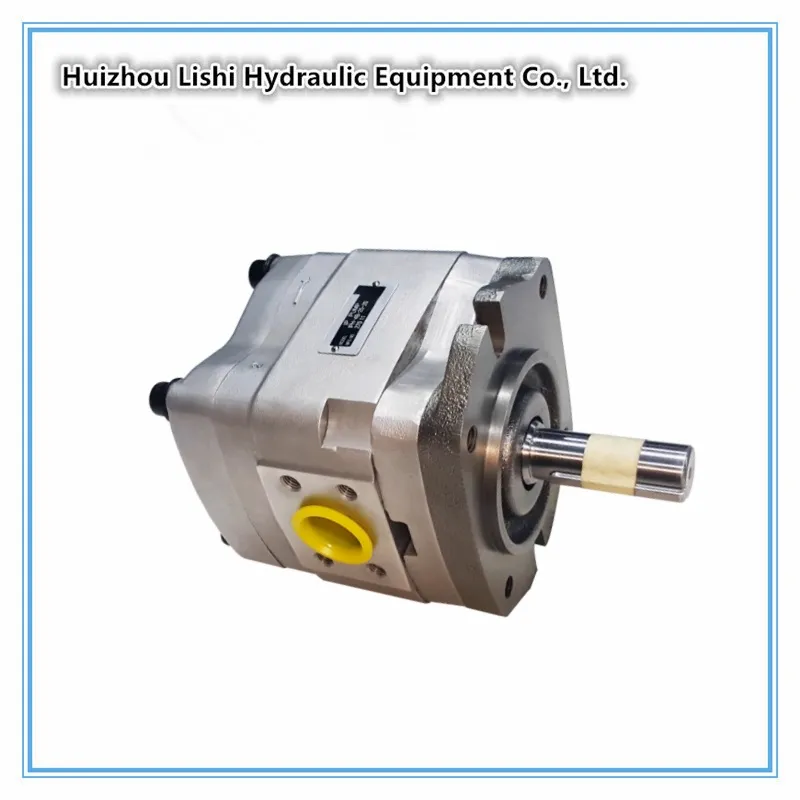

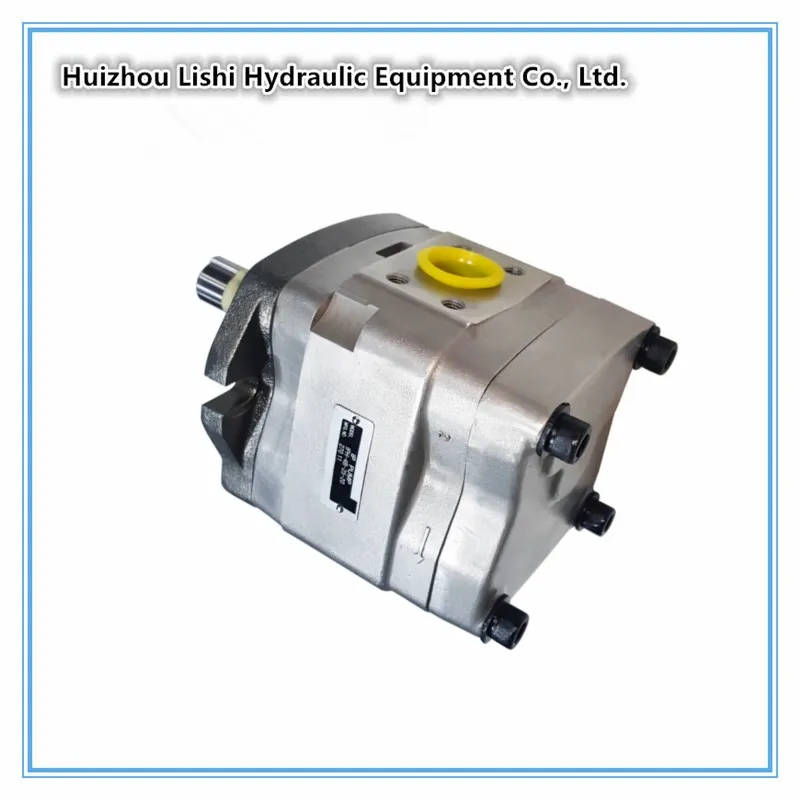

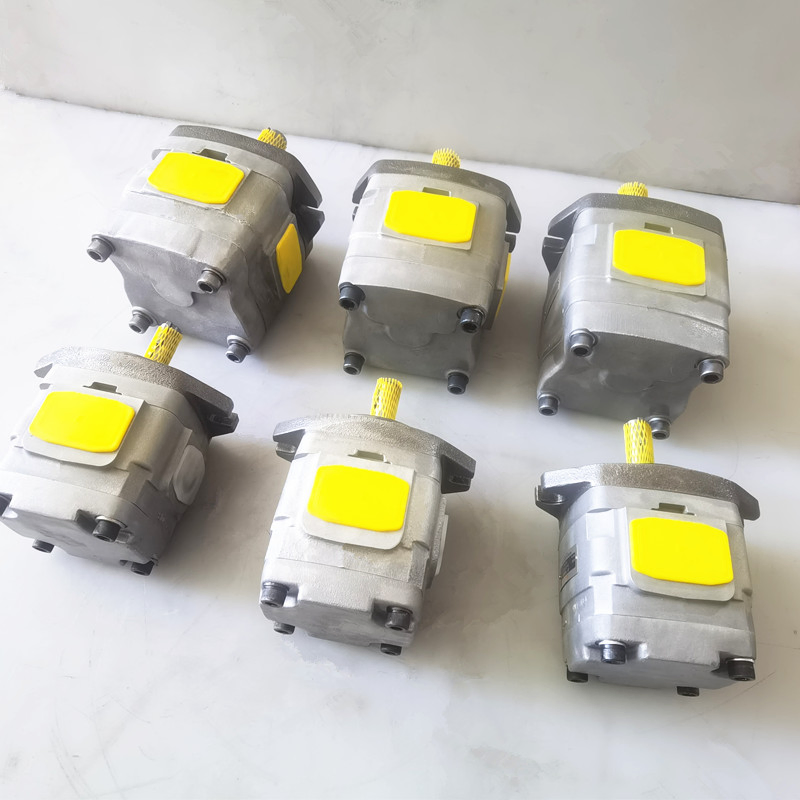

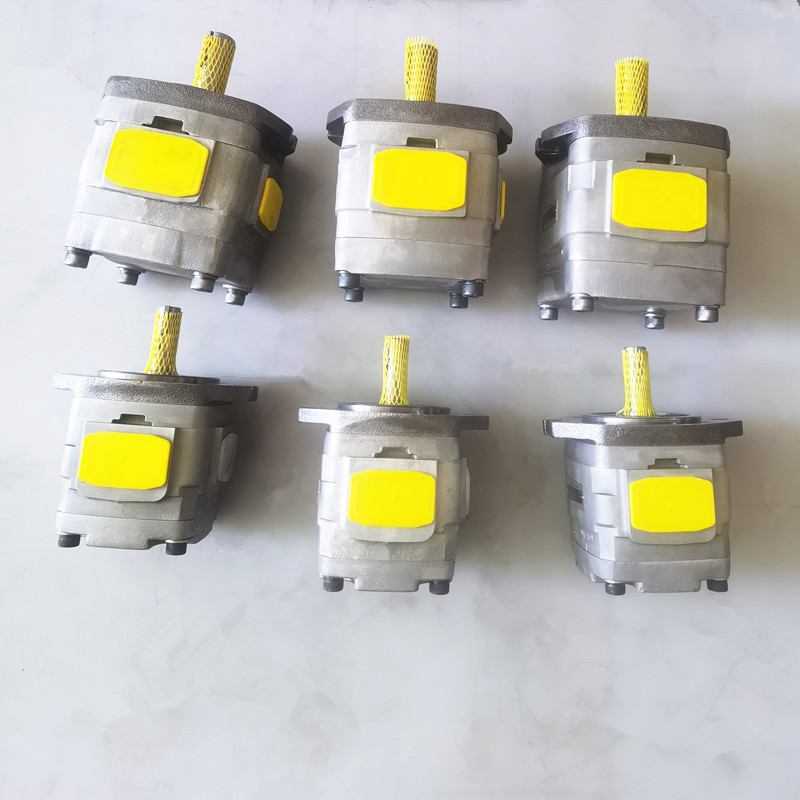

This series features high-performance dedicated gear pumps suitable for bending machines and other industrial hydraulic oil applications including IPH-2B, IPH-3B, and IPH-4B series.
| Model No. | Capacity (cm3/rev) | Rated Pressure (MPa) | Max Pressure (MPa) | Min Rev Speed (min−1) | Max Rev Speed (min−1) | Weight (kg) A/B |
|---|---|---|---|---|---|---|
| IPH-2A(B)-3.5-11 | 3.60 | 25 | 30 | 600 | 2000 | 4.4 / 2.4 |
| IPH-2A(B)-5 | 5.24 | 25 | 30 | 600 | 2000 | 4.5 / 2.5 |
| IPH-3A(B)-10-20 | 10.2 | 25 | 30 | 600 | 2000 | 10.5 / 4.8 |
| IPH-4A(B)-20-20 | 20.7 | 25 | 30 | 500 | 2000 | 15.2 / 9.5 |
| IPH-5A(B)-40-21 | 40.8 | 25 | 30 | 400 | 2000 | 32.0 / 19.0 |
| IPH-6A(B)-80-21 | 81.3 | 25 | 30 | 300 | 2000 | 62.0 / 39.0 |

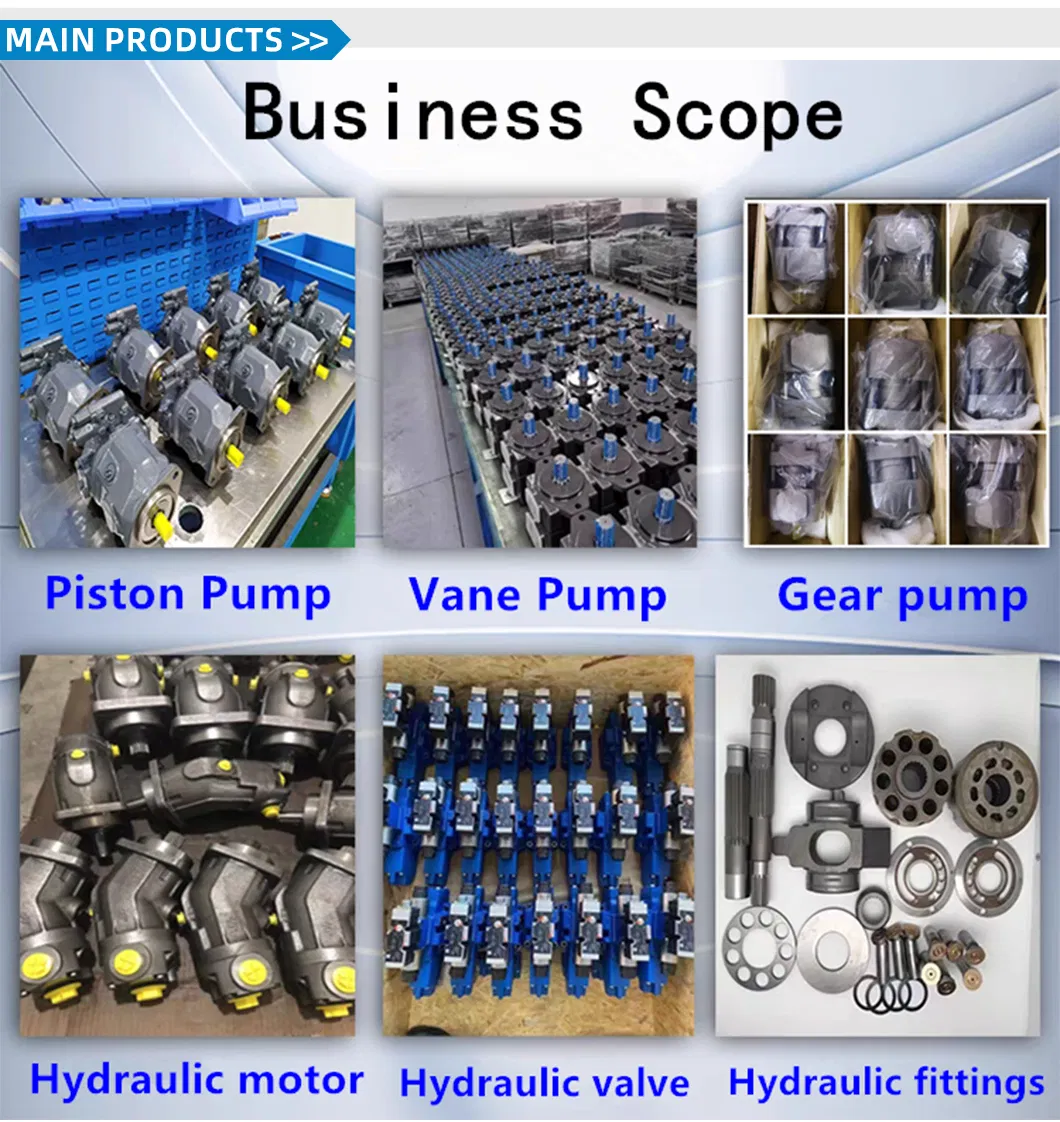

Our product line mainly includes plunger pumps, vane pumps, gear pumps, hydraulic valves, and hydraulic spare parts. These are widely used in steel plants, power plants, engineering machinery, mining machinery, industrial equipment, metallurgical machinery, injection molding, oil drilling, and port ships.

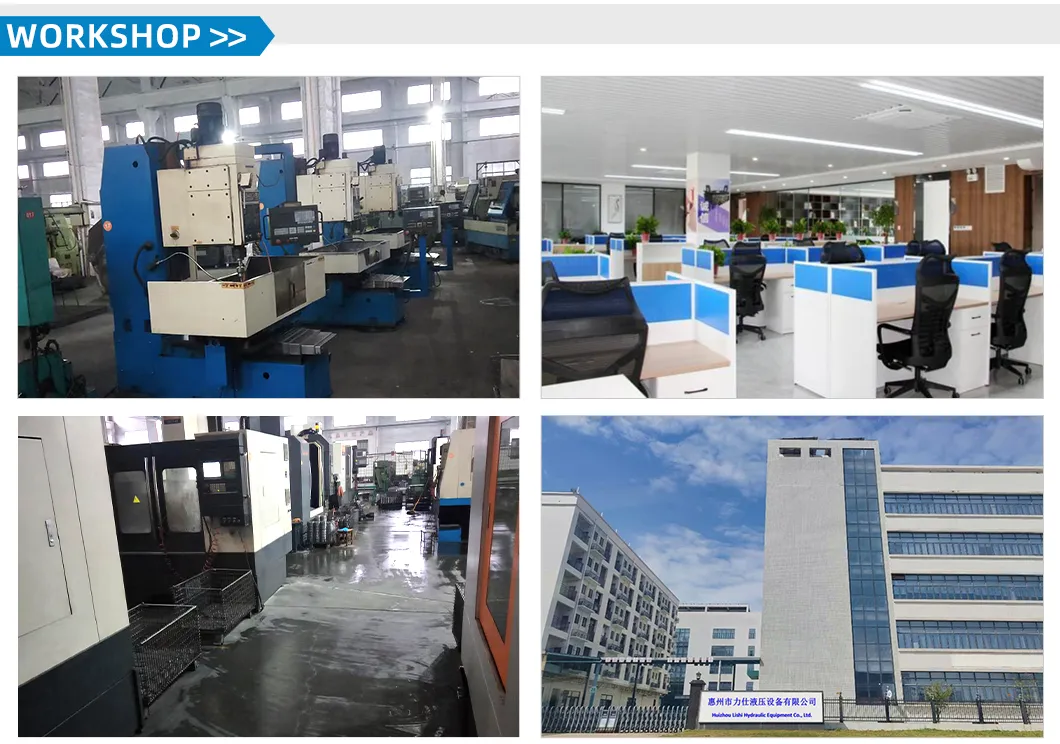

Equipped with professional staff and advanced management, we provide high-quality hydraulic components. Our products are durable, reasonably priced, and recognized by customers worldwide for stability and performance.
