Model NO.
200HS-F, 450HS-TU, 150HS-E; 75HSR-C, 8/6
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type
Single Suction Pump
Pump Shaft Position
Horizontal Pump
Material
High Chrom Alloy, SA05 27%, ASTM532, Classiii
Type
Centrifugual End Suction Slurry Pump
Seal Type
Packing Seal, Expeller Seal, Mechanical Seal
Color
Blue, Yellow, Orange...Any

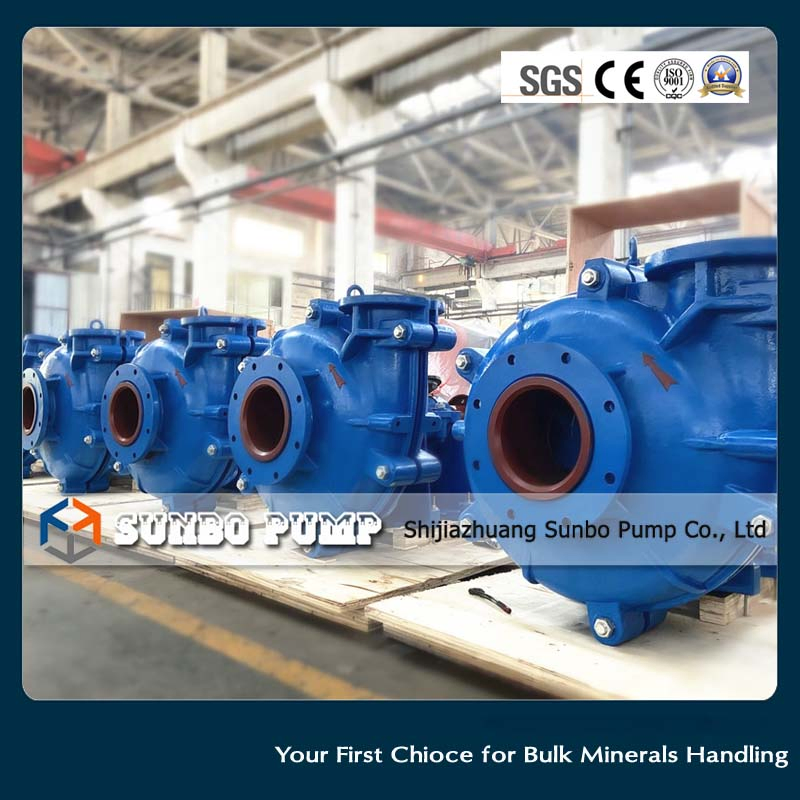

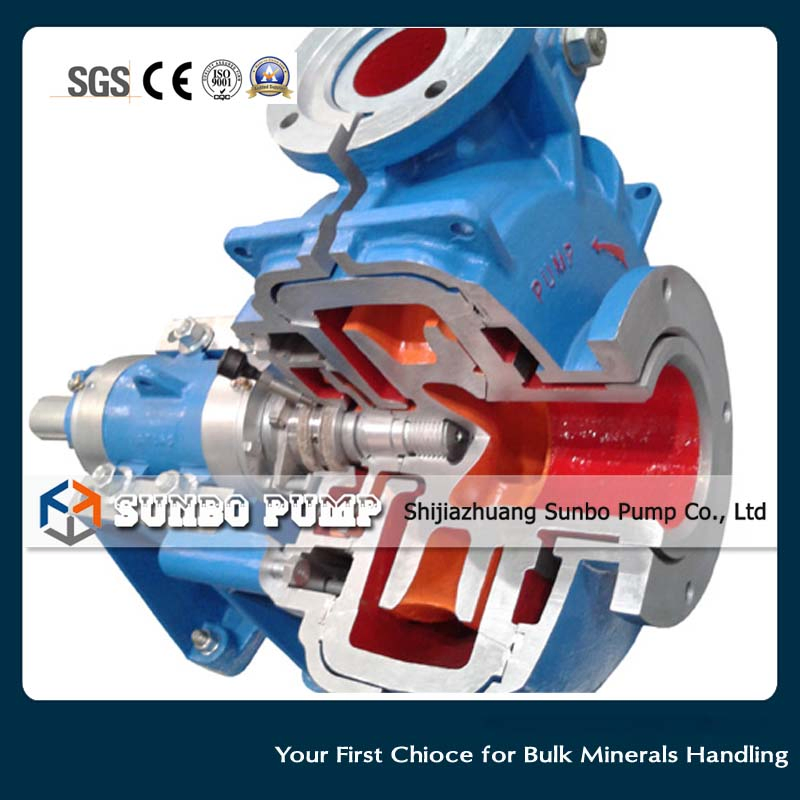

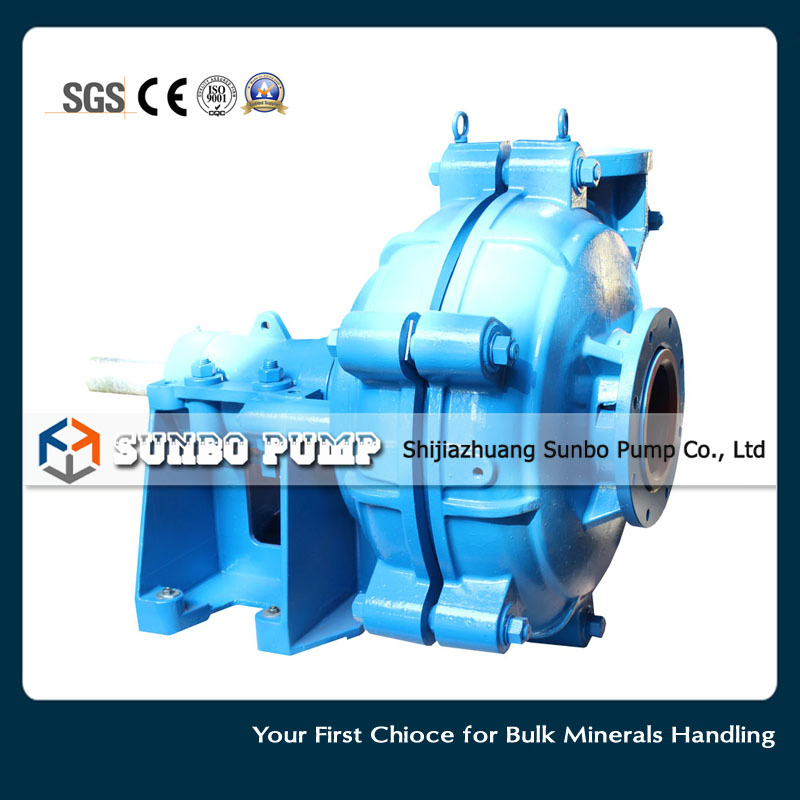

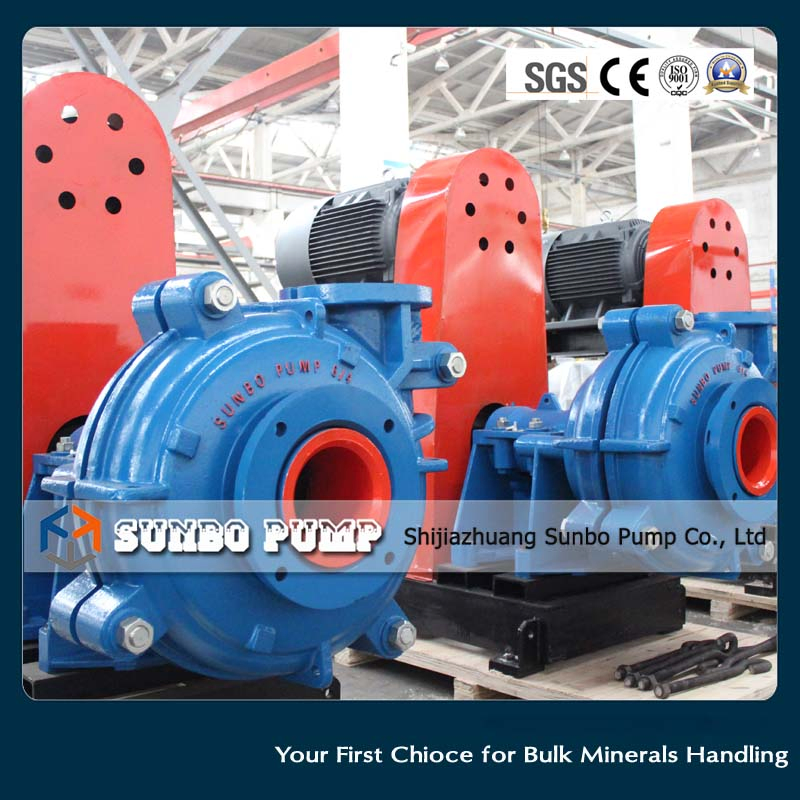

HS (R) series pump is a horizontal centrifugal heavy duty slurry pump designed for the continuous pumping of high abrasive, high density slurries with minimal maintenance requirements. It maintains high efficiency over the wear life of its components. The rubber and metal lined pumps feature casings which are radially split into two halves. Minimum casing bolts reduce maintenance and minimise downtime. HS pumps can be installed as multi-stage series.
1

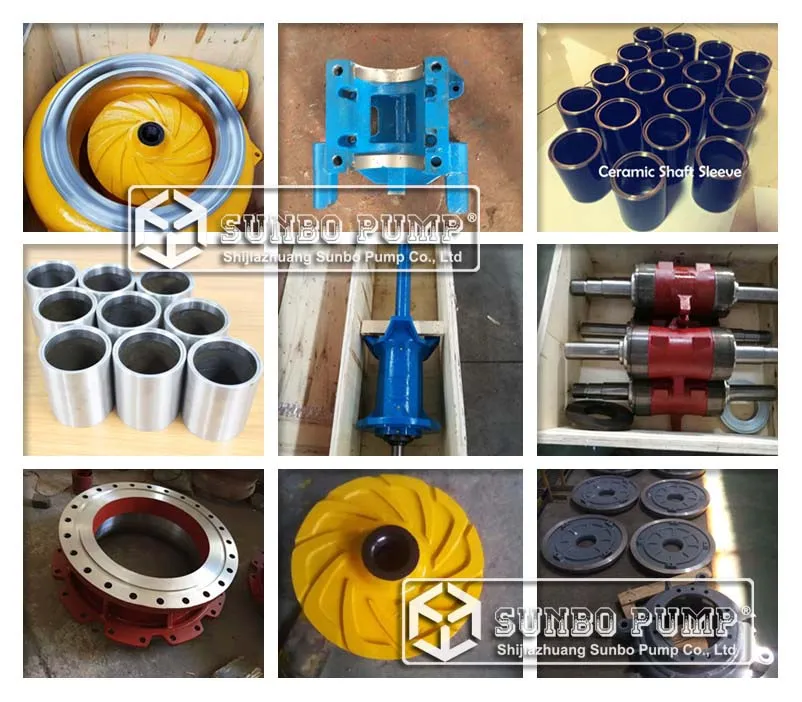

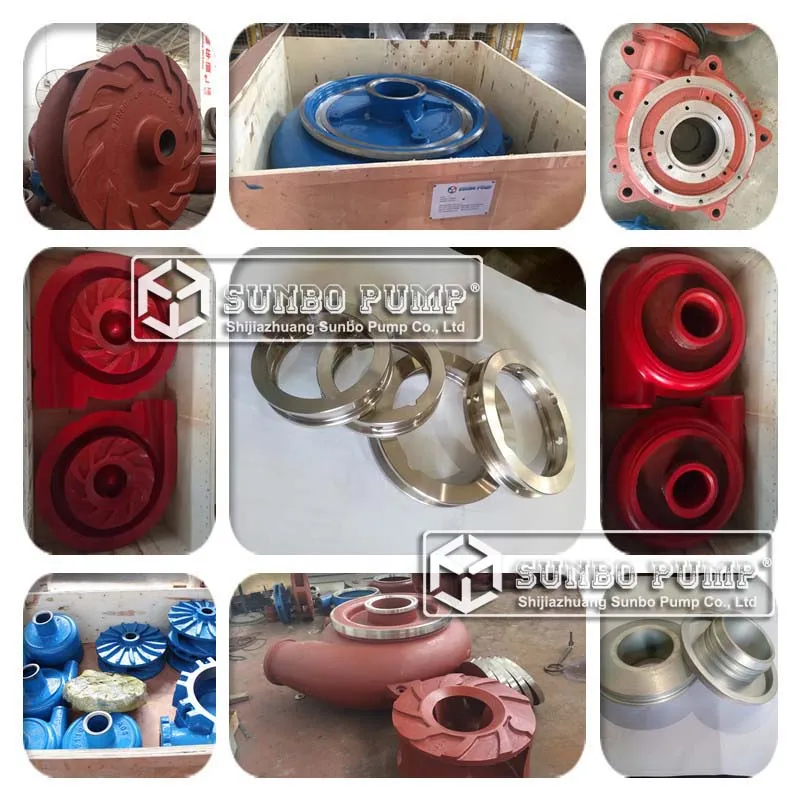

Replaceable wear-resistant metal or rubber liners and impellers for long service life.
2
Adjustable space between impeller and front liner, fully removable for maintenance.
3

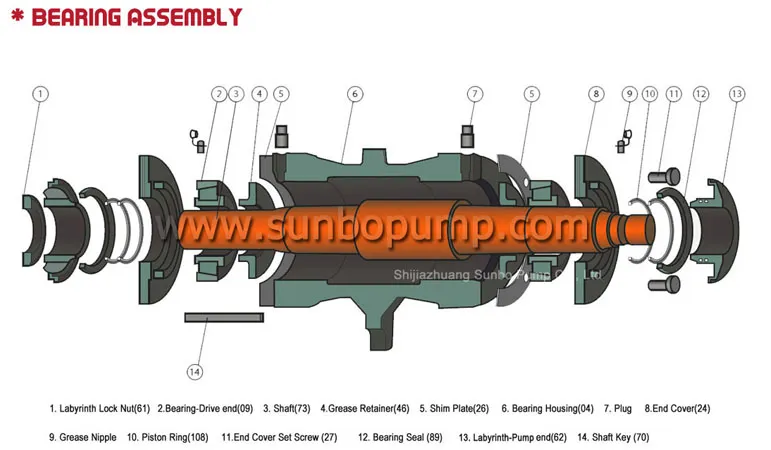

Bearing assembly utilizes grease lubrication for reliable operation.
4
Multiple seal types: packing seal, expeller seal, and mechanical seal.
5
Discharge direction can be installed at 45-degree intervals in eight positions.
6
Various drive types: V belt, gear reducer, fluid coupling, and frequency conversion.
| Pump Model |
Max. Power (KW) |
Capacity Q |
Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
Impeller Dia. |
| m3/h |
l/s |
| 25HS-B | 15 | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 152 |
| 40HS-B | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 184 |
| 50HS-C | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 214 |
| 75HS-C | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 245 |
| 100HS-E | 120 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 365 |
| 150HS-E | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 510 |
| 200HS-ST | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 686 |
| 300HS-ST | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 965 |
| 450HS-TU | 1200 | 2520-5400 | 700-1500 | 13-57 | 200-400 | 85 | 1370 |
* Capacity range recommended: 50%Q' ≤ Q ≤ 110%Q' (Q' is capacity at highest efficiency point).

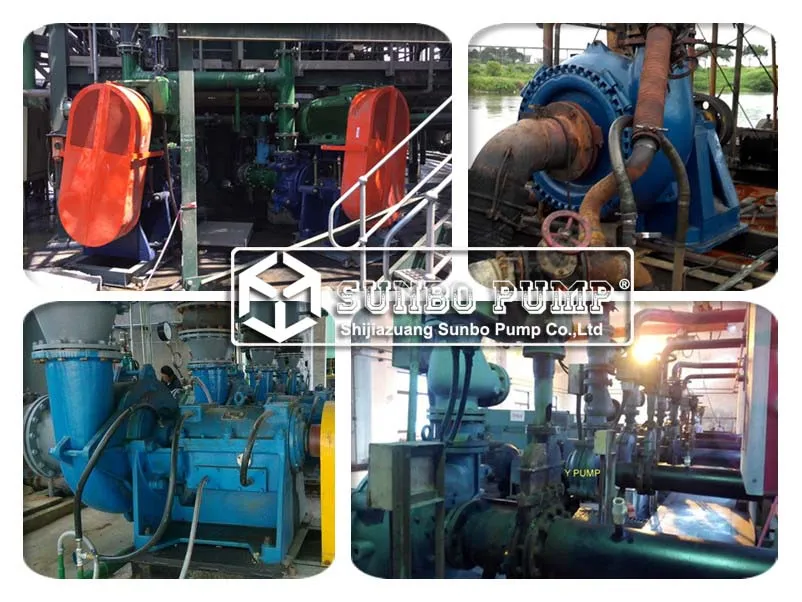

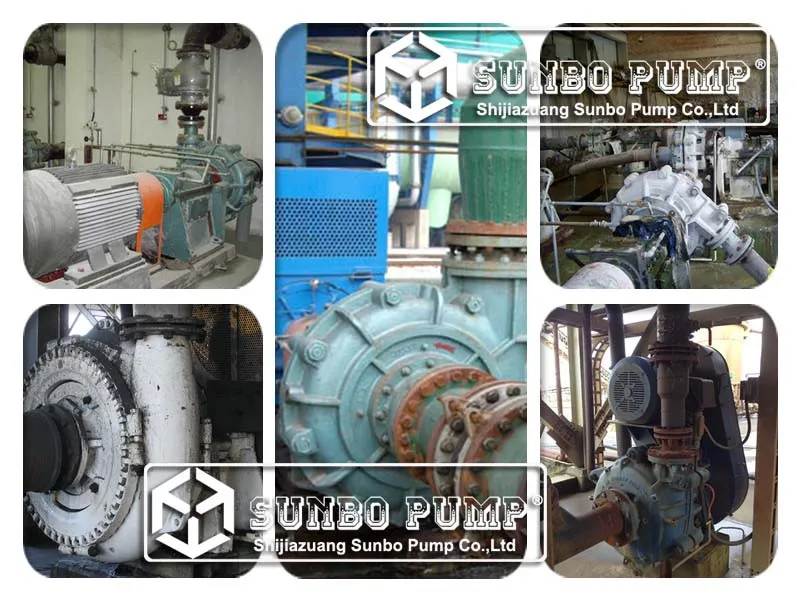

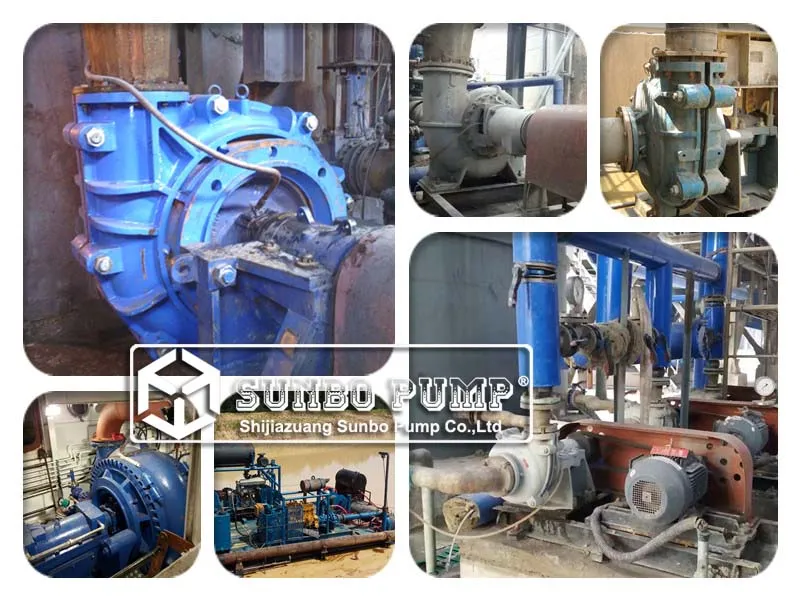

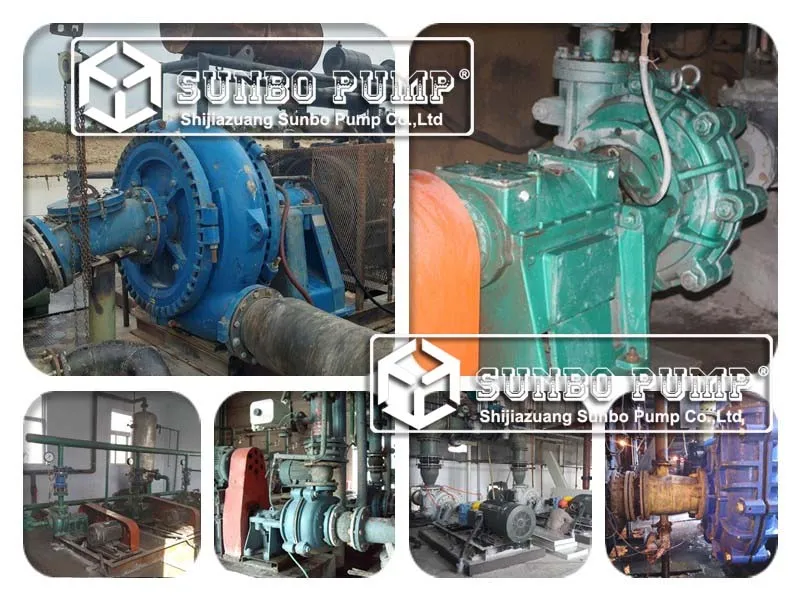

HS(R) series slurry pumps are widely used in metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill discharge, cyclone feed, tailings, power generation, and building materials. Depending on the duty, they are also known as Mineral Processing Pumps, Booster Pumps, Feeding Pumps, and Transfer Pumps.
FAQ
Q1: What materials are used for the pump liners?
A: The HS series features replaceable wear-resistant metal (High Chrom Alloy) or rubber liners depending on the application requirements.
Q2: What types of seals can be used with these slurry pumps?
A: There are three main seal options: Packing Seal, Expeller Seal, and Mechanical Seal to suit different working conditions.
Q3: Can the discharge direction be adjusted?
A: Yes, the discharge direction can be oriented to any of eight positions at 45-degree intervals to accommodate specific installation needs.
Q4: What are the typical applications for the HS series?
A: They are widely used in mining, mineral processing, coal washing, tailing transfer, and various industrial heavy-duty dredging tasks.
Q5: Are these pumps suitable for multi-stage installation?
A: Yes, the HS series is designed to be installed in multi-stage series for high-pressure or long-distance delivery requirements.
Q6: What drive types are compatible with the HS slurry pump?
A: Compatible drive types include V-belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.
