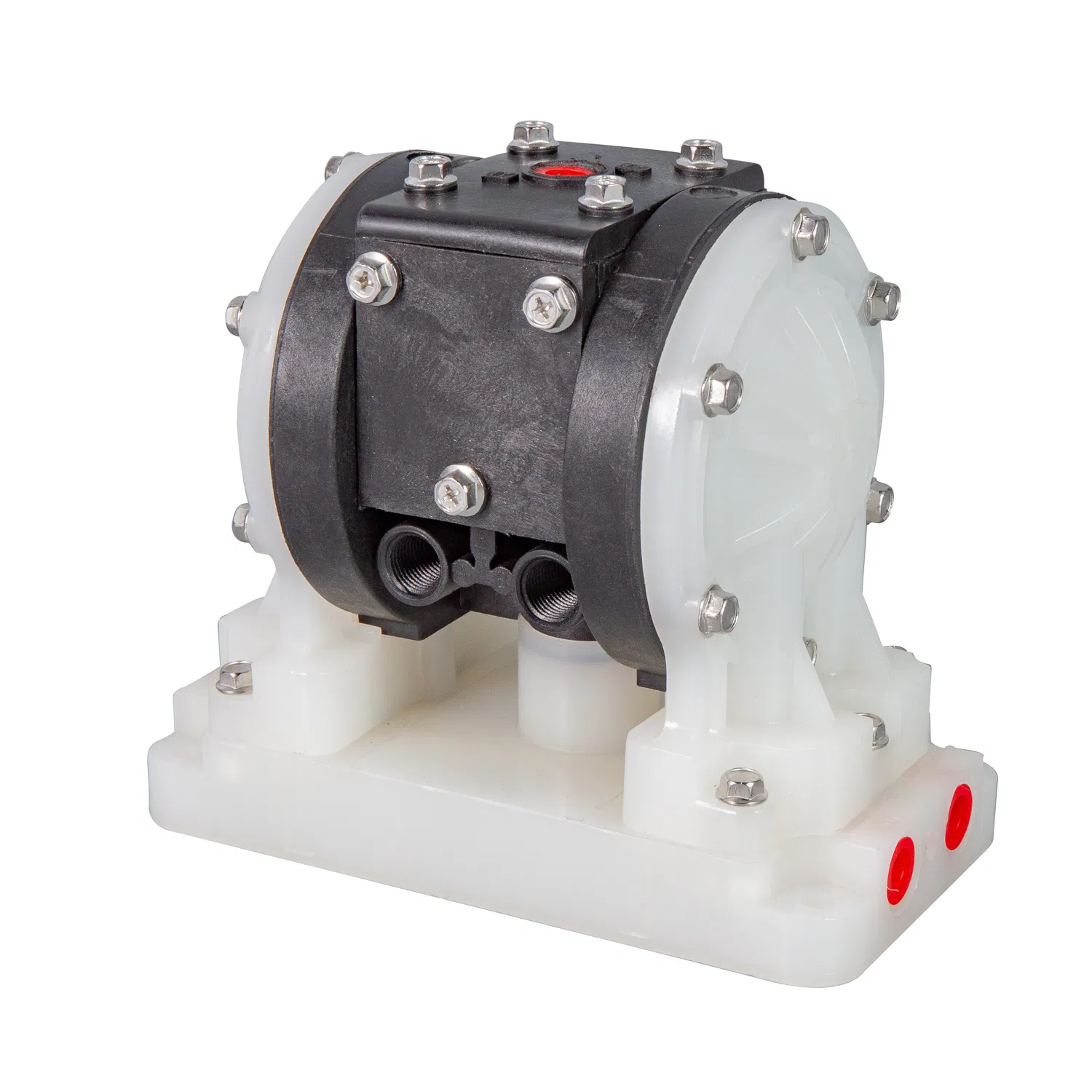

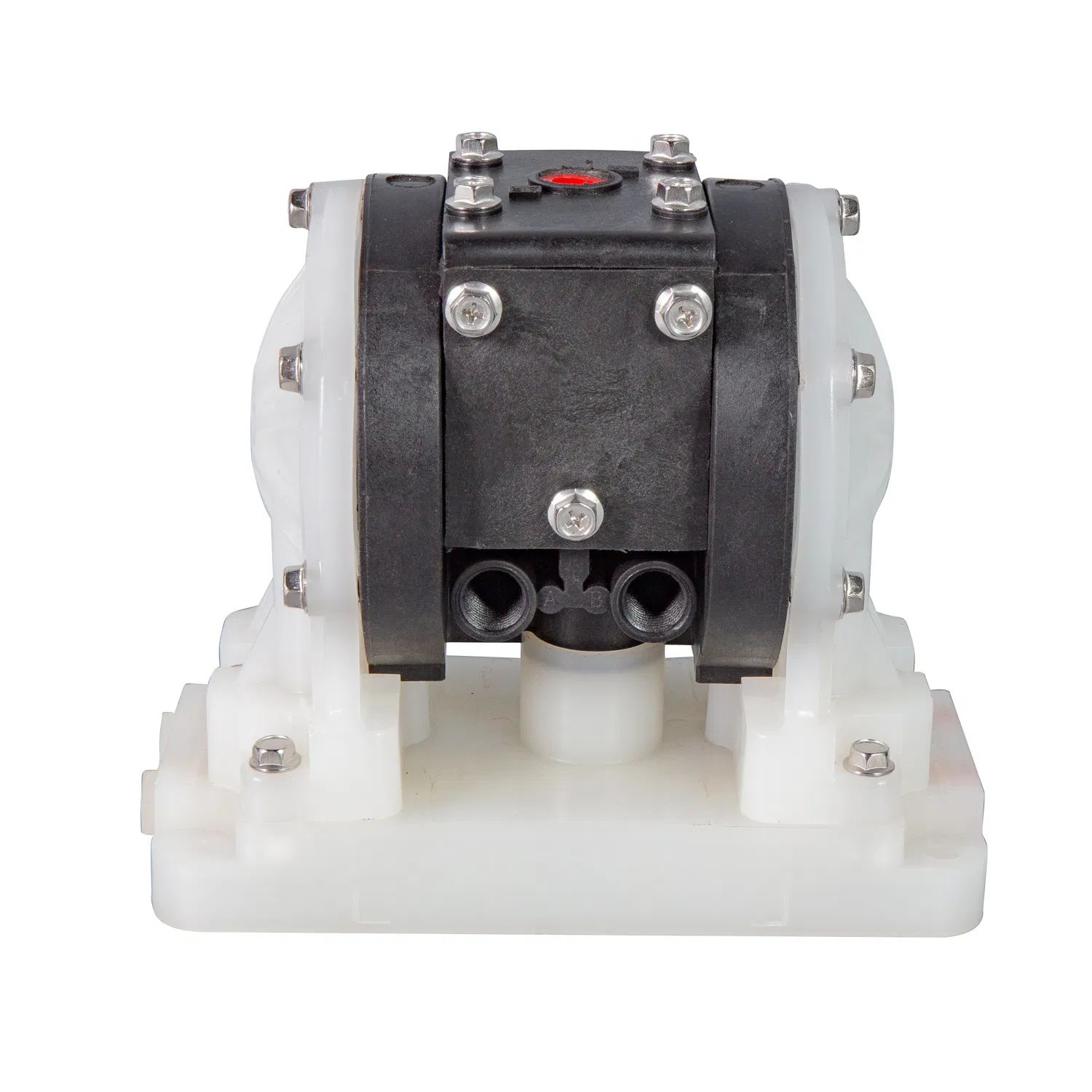

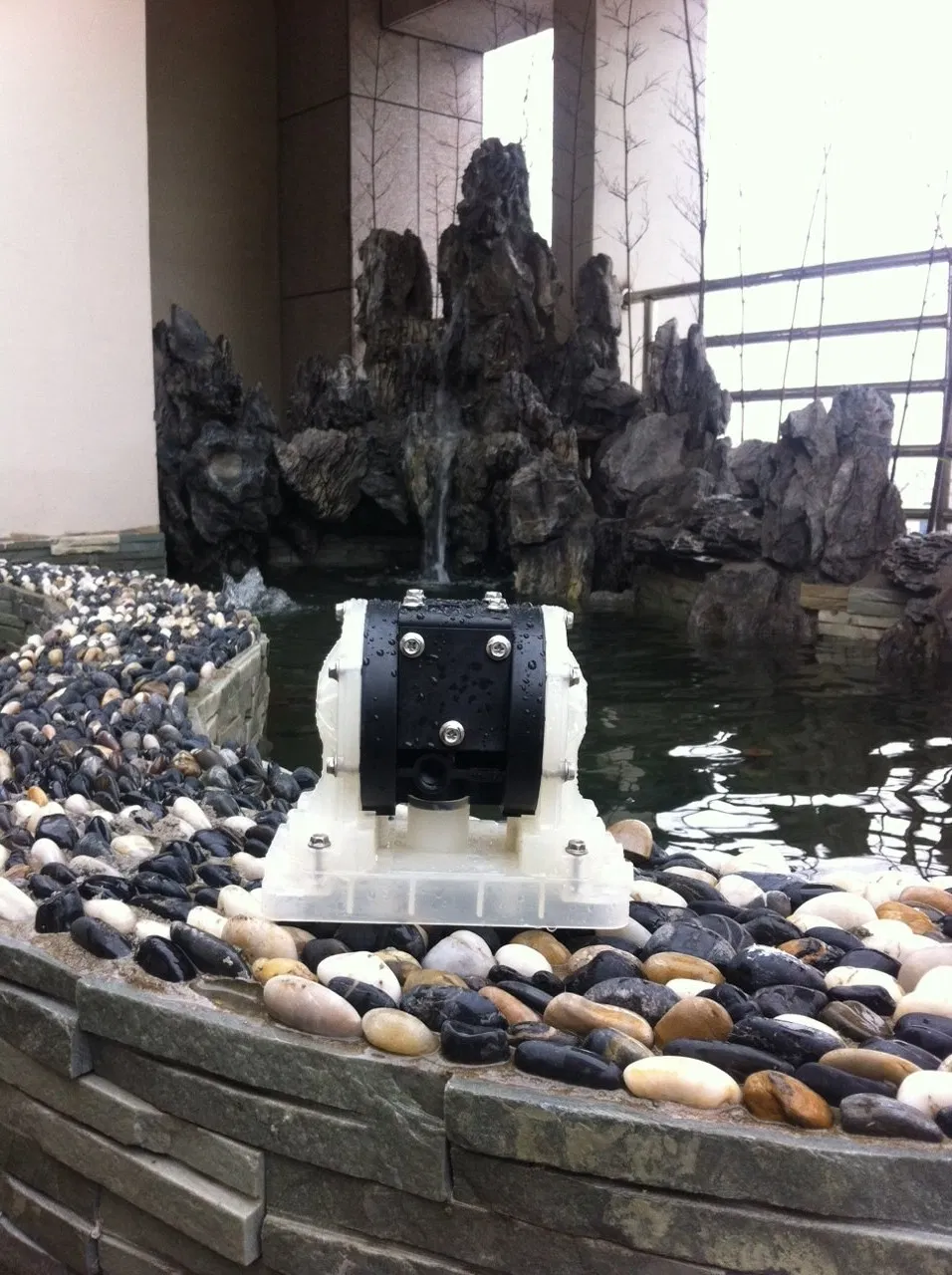

Mini Pneumatic Diaphragm Pump Vacuum PP for Water Oil Lotion 1/4 Inch

Customization:	Available
Warranty:	One Year (Except for Wearing Parts)
Material:	Plastic

Basic Information

Model NO.

RD06 PP

Power

Pneumatic

Valve Body Type

Diaphragm

Function

Fluid Transfer

Diaphragm Material

FPM

Performance

No Blocking

Size

1/4 Inch

Weight

1.1kg

Flow Rate

17 L/Min

Colour

White

Transport Package

Carton Box & Wooden Case

Specification

ISO, CE, SGS

HS Code

8413501090

Capacity

5000PCS/Month

Product Description

EASY MAINTENANCE

Low internal volume reduces waste and makes clean-up easy. Stainless steel bolts resist corrosion and provide positive positioning for easy reassembly.

UNIQUE, PATENTED AIR VALVE

Three-way pilot valve for no-stick operation. All parts are replaceable without opening wet body parts. No air-line lubrication required.

PRECISION-FITTED PARTS

Long-wearing End Bearings assure positive rod alignment and are easy to replace.

PROTECTIVE EXHAUST PORT

Common port for all exhaust prevents vapors in room from attacking air motor seals. Easily submerges for sump or disposal operations sitting idle.

RUGGED EXTERIOR CONSTRUCTION

Construction resists corrosion, prevents leakage and ensures clean fluid changes. Aluminum center sections are epoxy coated.

FLUID COMPATIBILITY

Housings available in aluminum, stainless steel, ductile iron, polypropylene, groundable acetal or Kynar.

POSITIVE SEAL DESIGN

Diaphragm firmly locked in place. Formed bead acts as a positive fluid seal. One thru-hole.

HEAVY DUTY DIAPHRAGM PLATES

Positive grip plates virtually eliminate leakage and pull-out, preventing costly downtime.

LONG LASTING ROD DESIGN

300 Series stainless steel rod designed for long life and corrosion resistance - even in wet air.

Max working pressure	100psi (0.7Mpa, 7bar)
Max flow rate	4.5gpm (17lpm)
Max reciprocating speed	dry running 320cpm / wet running 250cpm
Max suction height	3m
Max permitted grain	0.5mm
Max air consumption	9.0scfm (0.252m³/min)
Air inlet/outlet size	1/4in.npt(f) / 1/4in.bsp(f)
Fluid inlet/outlet size	1/4in.npt(f) / 1/4in.bsp(f)
Weight	acetal pump: 1.1kg

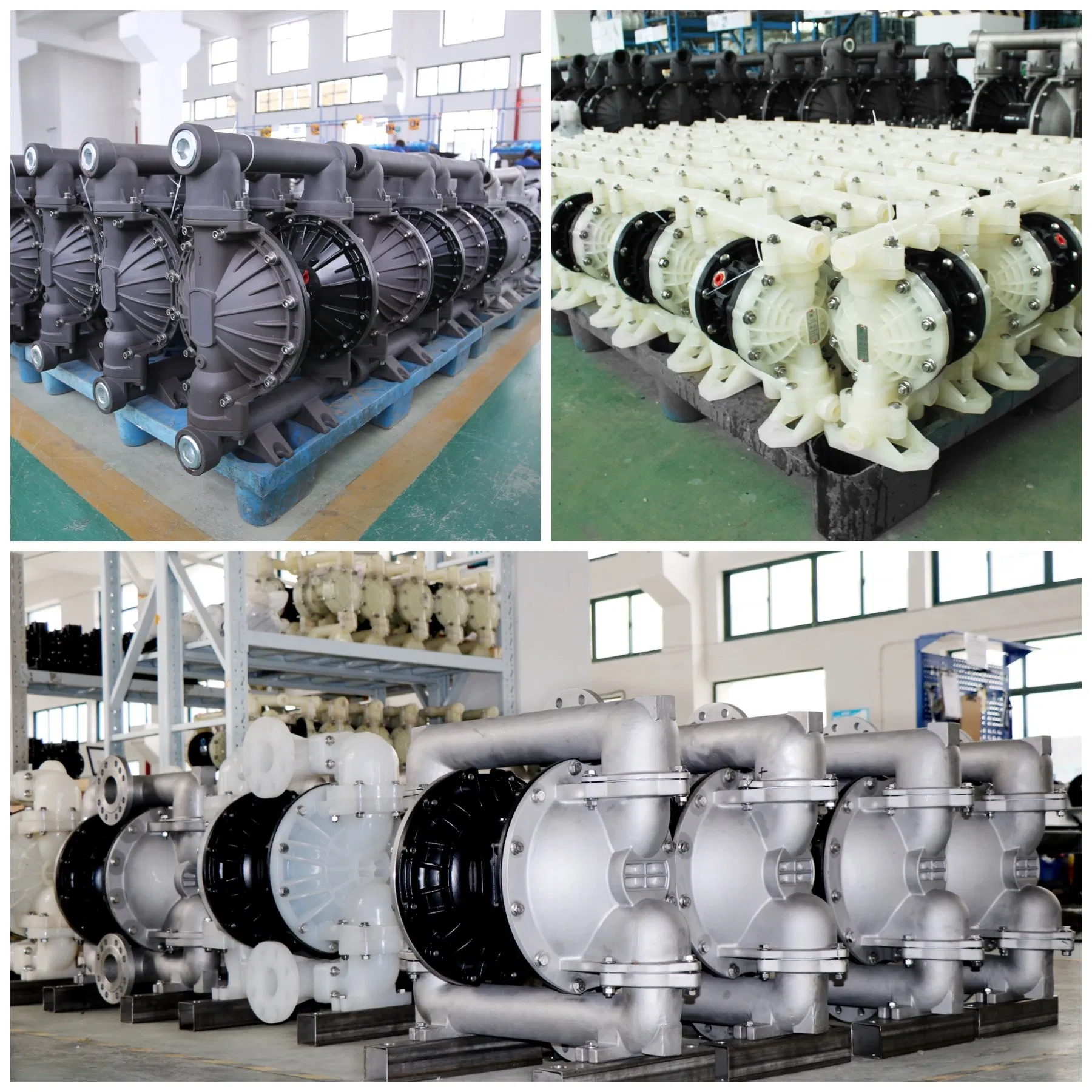

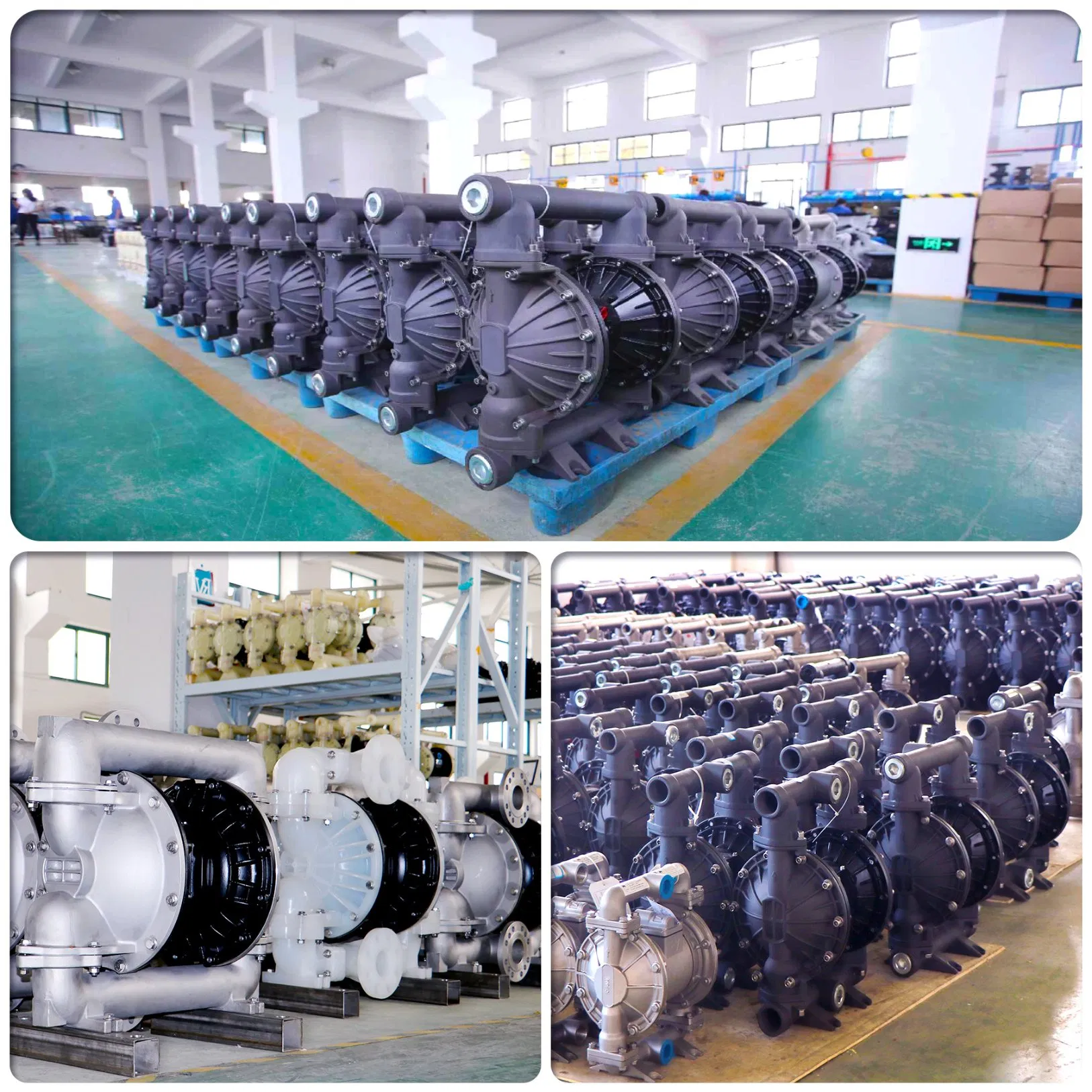

Packaging & Manufacturing

The pump manufacturer is a professional producer of air operated diaphragm pumps, with over 20-year manufacturing experience in this field. The production utilizes compressed air as a power source, adopting a three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing, and dyeing to handle corrosive, volatile, flammable, or poisonous fluids with particles and high viscosity.

Available Materials & Connections

Wetted parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm: PTFE, Santoprene, FKM, Hytrel, Buna-N, etc.
Connection: Threaded (1/4" to 1-1/2") and Flanged (1/2" to 3").

Our Services

✔️ All enquiries replied within 24 working hours
✔️ Professional design and production team
✔️ Standard export packaging (foam & wooden case)
✔️ Support for OEM or ODM
✔️ Efficient after-sales service

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A: We are a professional factory with over 20 years of manufacturing experience.

Q2: What are your accepted payment methods?

A: We accept T/T, Western Union, L/C, and other standard methods.

Q3: How are the products packaged for shipping?

A: Goods are packed in standard export cartons with protective foam and non-fumigation wooden cases.

Q4: What is the typical delivery time?

A: Delivery time depends on the specific order quantity.

Q5: What is the Minimum Order Quantity (MOQ)?

A: Usually, the MOQ is 10 pieces for each model.

Q6: What is the warranty policy?

A: We provide a one-year warranty, excluding wearing parts.
