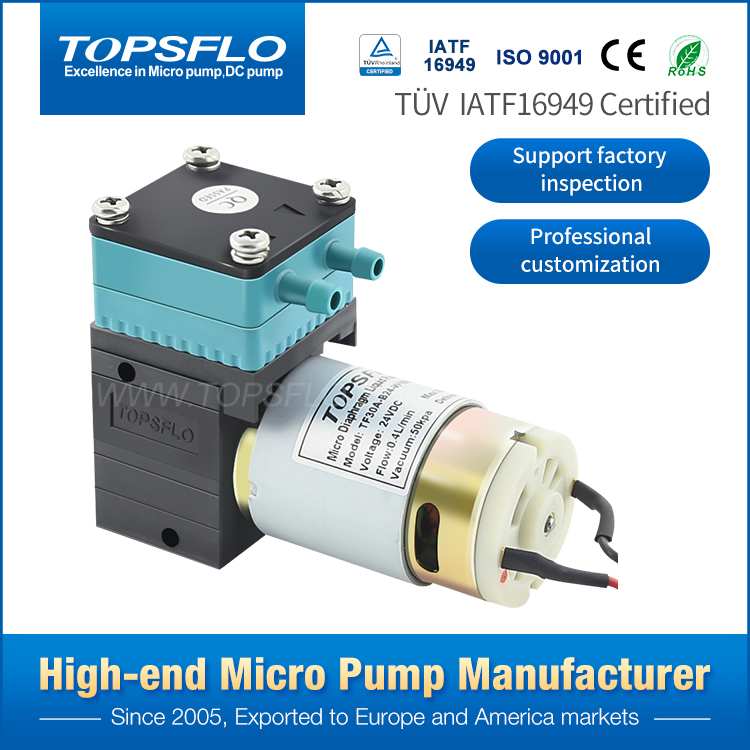

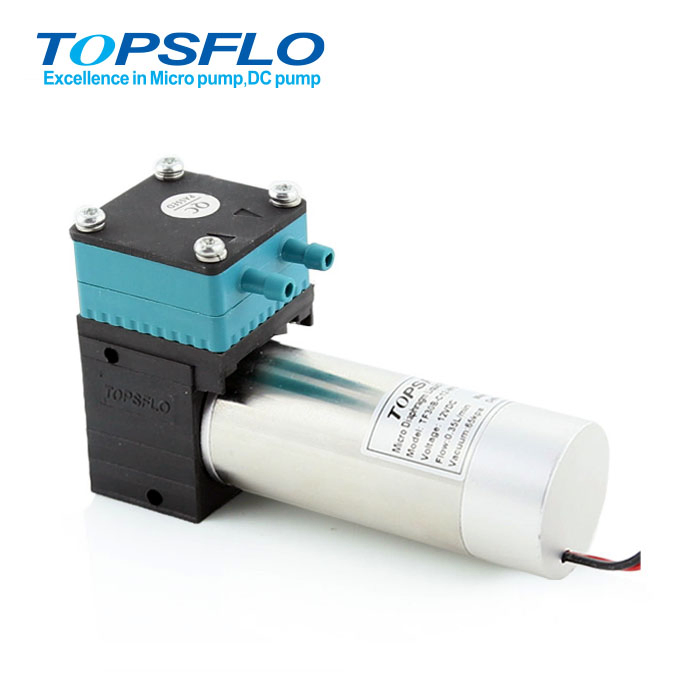

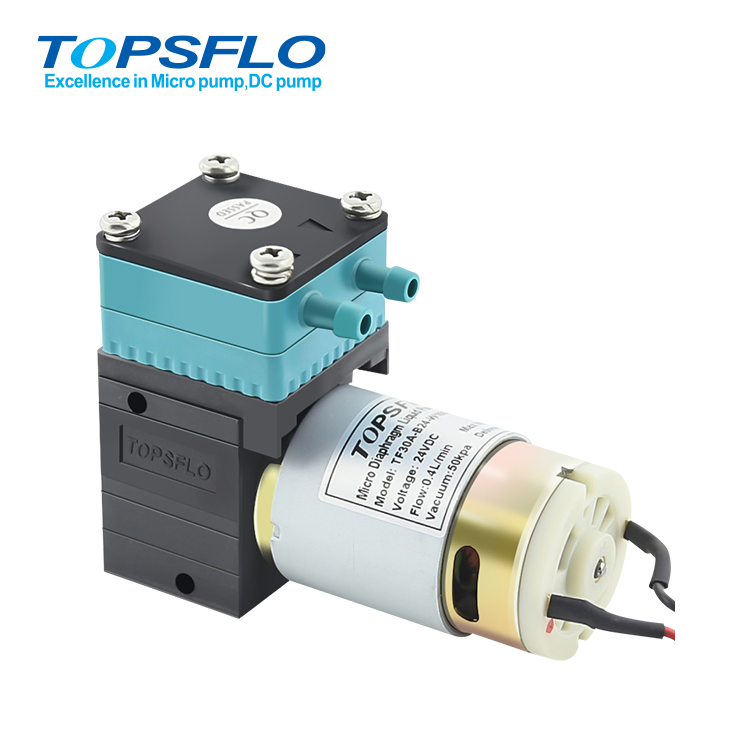

Economical Mini Electric Liquid DC Brush Motor Pump 6V 12V Diaphragm Vacuum Pump

1 / 5

Economical Mini Electric Liquid DC Brush Motor Pump 6V 12V Diaphragm Vacuum Pump

Customization:	Available
Voltage:	12V
Power:	Electric

Send Inquiry

Product Description

Basic Specifications

Model NO.

TF30A-B

Valve Body Type

Diaphragm

Flow Rate

0.4L/Min

Max Vacuum

-70KPa

Specification

CE, ISO9001, RoHS, IATF16949

Production Capacity

100,000 PCS/Month

Product Overview

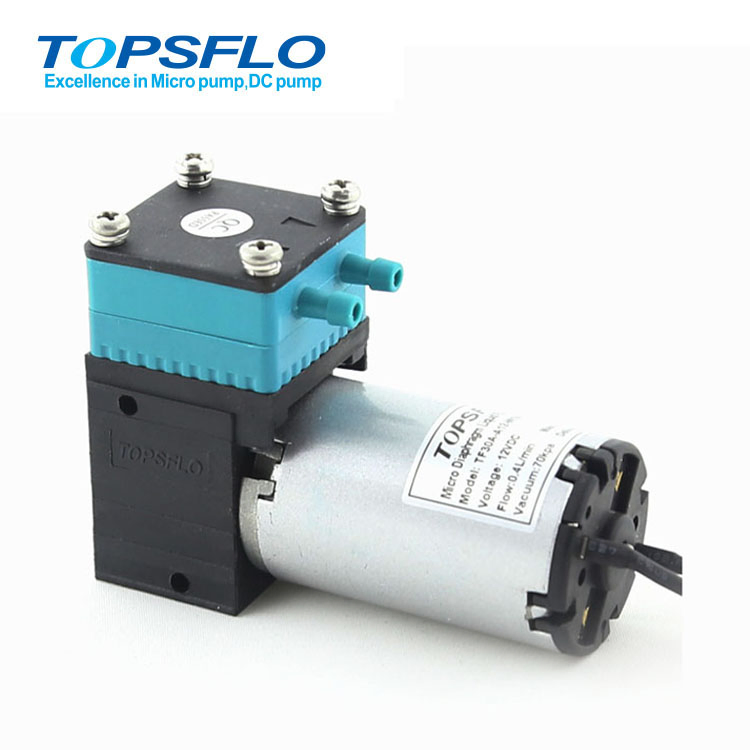

Economical Mini Electric Liquid DC Brush Motor Diaphragm Vacuum Pump (6V/12V)

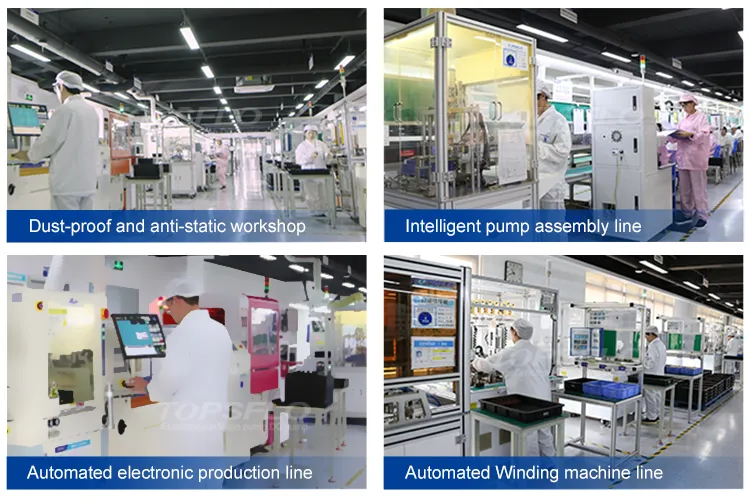

Advanced Infrastructure
Modern factory with ESD anti-static control and dust-free workshops.

Professional Equipment
100+ sets of imported equipment and CNAS accredited laboratories.

R&D Strength
Over 50 patents in the micro water pump industry with master-level technology.

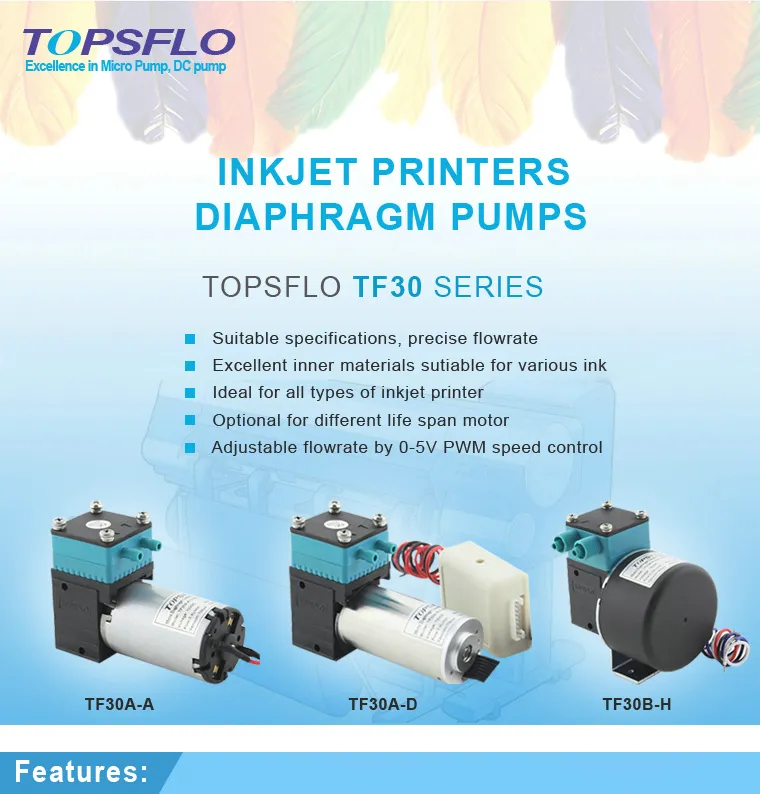

Key Features & Design

Advanced design concept comparable to world-class brands like KNF and Parker, featuring a compact structure and delicate outlook.

Precise flow rate control with suitable industrial specifications.
Excellent inner materials compatible with various ink types.
Ideal for all types of inkjet printers (CIJ, UV Large Format, etc.).

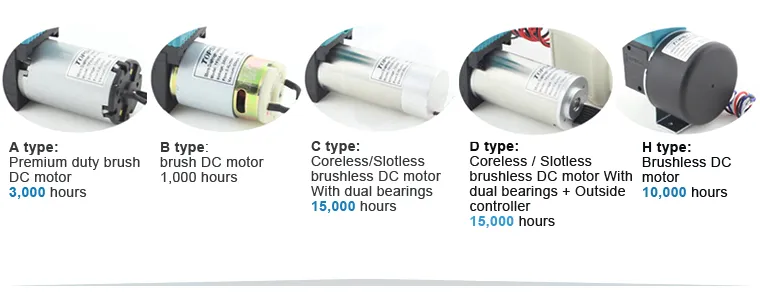

Optional motor configurations for different life span requirements.

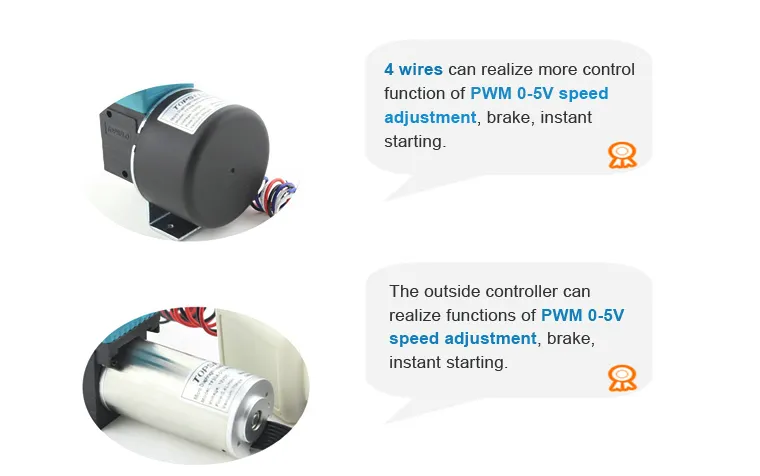

Adjustable flowrate via 0-5V PWM speed control.

Technical Parameters

Model	Rated Voltage (VDC)	Max Head (M)	Max Vacuum (KPa)	Max Flow (L/min)	Lifetime (hrs)
TF30A-A	6/12/24	≥10M	-70KPa	Water: 0.4 / Gas: 4	3,000
TF30A-C/D	6/12/24	≥10M	-70KPa	Water: 0.4 / Gas: 4	15,000
TF30B-H	6/12/24	≥10M	-60KPa	Water: 0.35 / Gas: 4.5	10,000

Industrial Applications

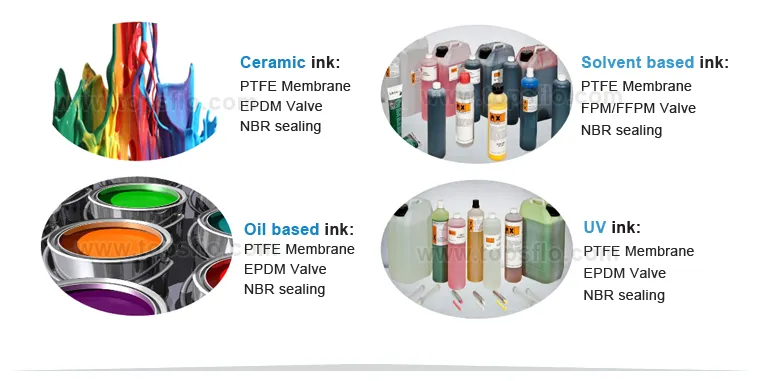

1. Compatible Ink Types:

UV cured, titanium dioxide pigmented, silver and metal particles, solvent-based, oil-based, and MEK inks. Materials available include Nylon, PTFE, PVDF, EPDM, FFPM, and 316 stainless steel for corrosive liquids.

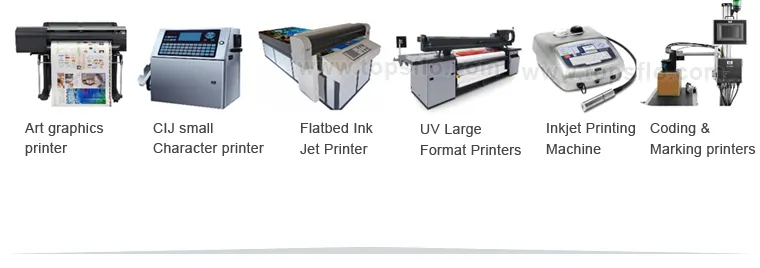

2. Printer Versatility:

Perfectly suited for Art graphics printers, Coding & Marking systems, CIJ small character printers, and UV large format printing machines.

Reliability & Control

Our pumps feature anti-electromagnetic interference capacitors and advanced thermal management to ensure low temperature rise during continuous operation. The 0-5V PWM speed control allows for precision automation.

Frequently Asked Questions

Q1: What types of ink can the TF30A series handle? A: It is compatible with UV inks, solvent-based inks, water-based inks, oil-based inks, and corrosive MEK inks, thanks to optional high-grade wetted materials like PTFE, PVDF, and FFPM.

Q2: Can I adjust the flow rate of the pump? A: Yes, the pump supports 0-5V PWM speed control, allowing users to precisely adjust the flow rate according to the system's needs.

Q3: What is the maximum lifetime of these micro pumps? A: Depending on the motor selection, the TF30A-C and TF30A-D models can reach a lifetime of up to 15,000 hours of operation.

Q4: Does the pump generate a lot of heat during use? A: No, the pump utilizes advanced technology that ensures minimal temperature rise during operation, especially in models with outside controllers.

Q5: Are these pumps compliant with international standards? A: Yes, the products are fully certified and pass CE, RoHS, REACH, and ISO9001 standards, with some materials meeting Food Grade requirements.

Q6: What are the primary applications for the TF30A-B? A: It is widely used in inkjet printers, CIJ small character printers, medical equipment, and automobile circulation systems.
