Laboratory Using Mini Diaphragm Oilless Vacuum Pump for Sale

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	One Year

Basic Specifications

Model NO.

MP-401

Type

Oil Free Diaphragm Pump

Vacuum Degree

High Vacuum

Shell Material

Stainless Steel

Inside Material

PTFE (All contact parts)

Motor Power

250W

Pumping Speed

45L/Min

Ultimate Vacuum

0.095MPa

Product Description

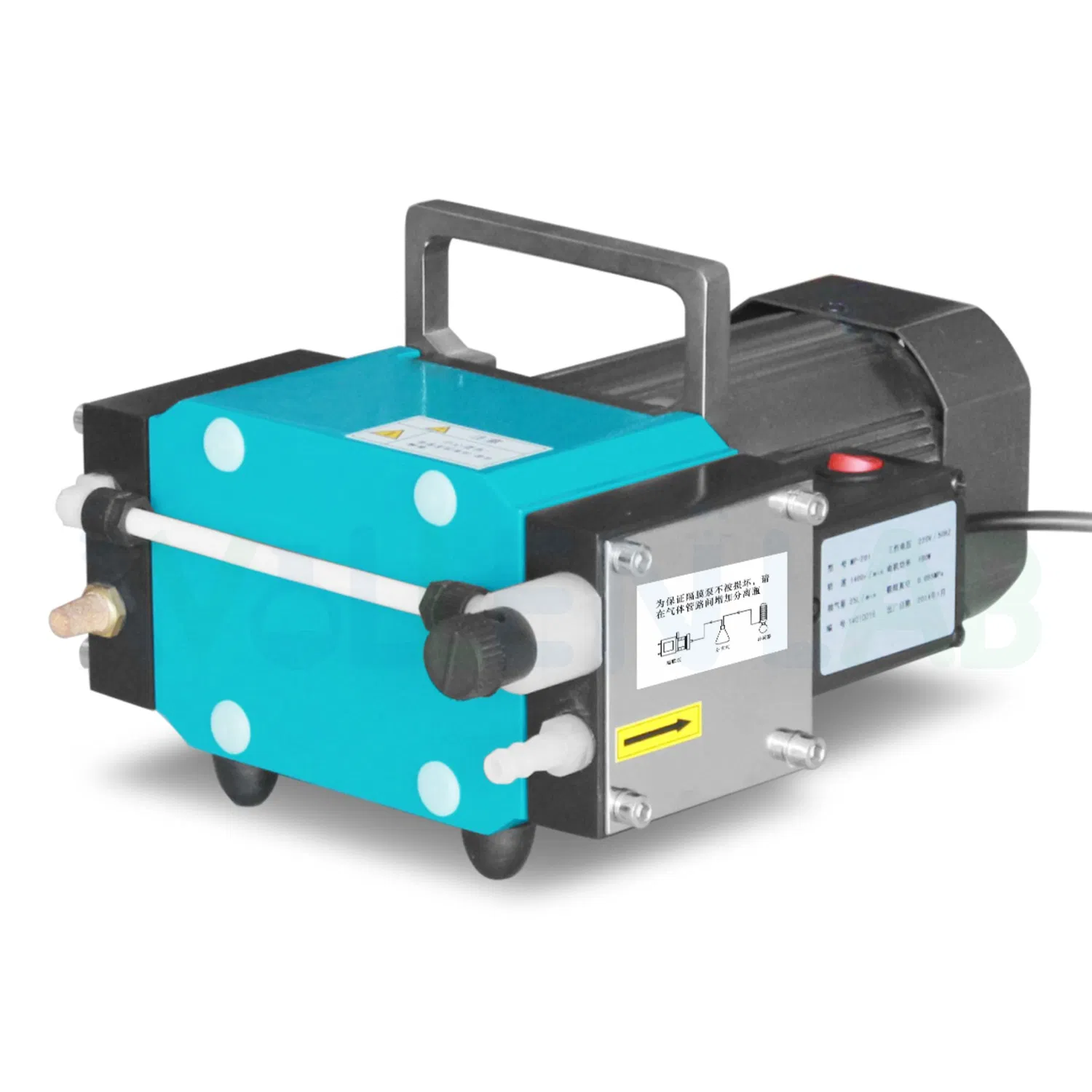

Lab Oilless 45L/M Electric Operated Diaphragm Vacuum Pump

Applications:

MP series diaphragm vacuum pump provides negative pressure condition for processes of evaporation, distillation, crystallization, drying, sublimation, and reduced pressure filtration. It is ideal for extracting highly toxic, flammable, explosive, strong acid, and alkali samples.

Key Advantages:

✓Excellent substitute for water circulating and rotary vane vacuum pumps.
✓Oilless operation: No working medium or friction between parts.
✓Adjustable vacuum levels to meet specific experimental needs.
✓Superior chemical resistance: All gas-contact parts made of PTFE+FV rubber.
✓High-quality components: Imported valve plates and motors from renowned manufacturers.
✓Compact and portable: Smooth transmission, small volume, and light weight.

Technical Parameters

Parameter	Specification (MP-401)
Power	250W
Electrical Requirements	1 Phase, 220V/50Hz
Rotation Speed	1400 rpm
Inlet/Outlet Diameter	Φ10 mm
Ultimate Vacuum	0.095 Mpa
Pumping Speed	45 L/min
Safety Features	Check Valve
Dimensions (L×W×H)	540×340×500 mm
Gross Weight	33 KG

Product Gallery

Our Service

Frequently Asked Questions

Q1: Does this pump require oil for operation? A: No, the MP-401 is a completely oilless diaphragm vacuum pump, meaning it requires no working medium and produces no friction between working parts.

Q2: What materials are used for chemical resistance? A: All parts that come into contact with gases are made of PTFE (Polytetrafluoroethylene) and FV rubber, providing excellent resistance to strong acids and alkalis.

Q3: Can the vacuum level be adjusted? A: Yes, the vacuum level can be adjusted according to your specific experimental or process requirements.

Q4: What are the primary applications for this pump? A: It is widely used for evaporation, distillation, crystallization, drying, sublimation, and filtration, especially when handling toxic or corrosive samples.

Q5: What is the pumping speed and ultimate vacuum? A: The MP-401 offers a pumping speed of 45L/min and can achieve an ultimate vacuum of 0.095MPa.

Q6: Is the pump easy to transport? A: Yes, it is designed with a compact volume and light weight for easy movement within a laboratory environment.
