⚙️ Product Description

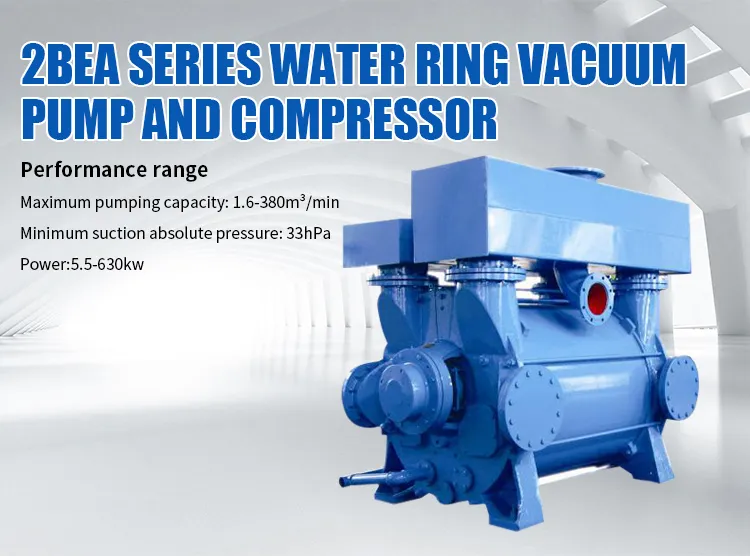

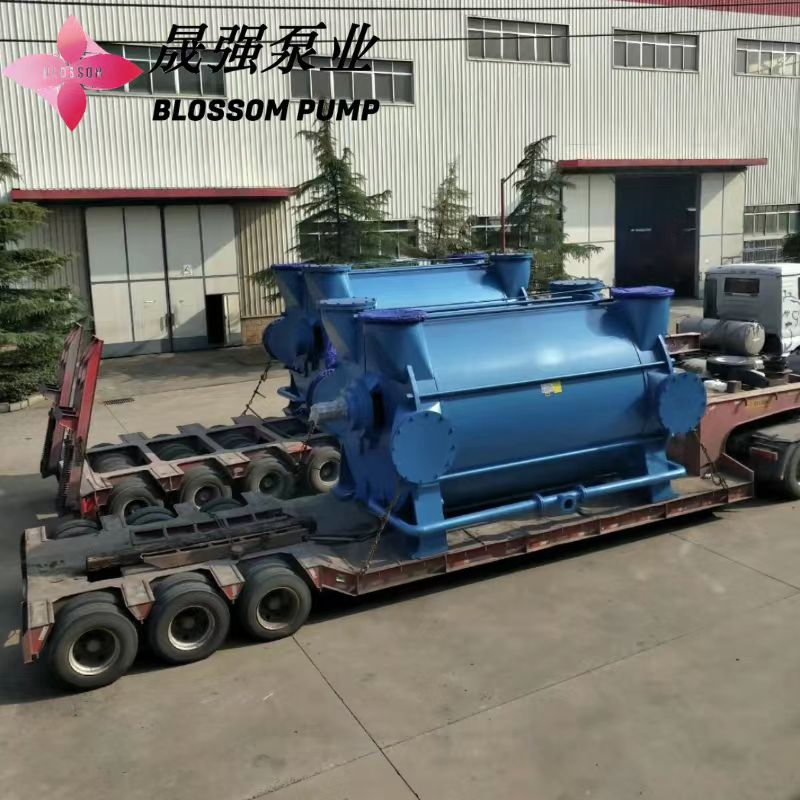

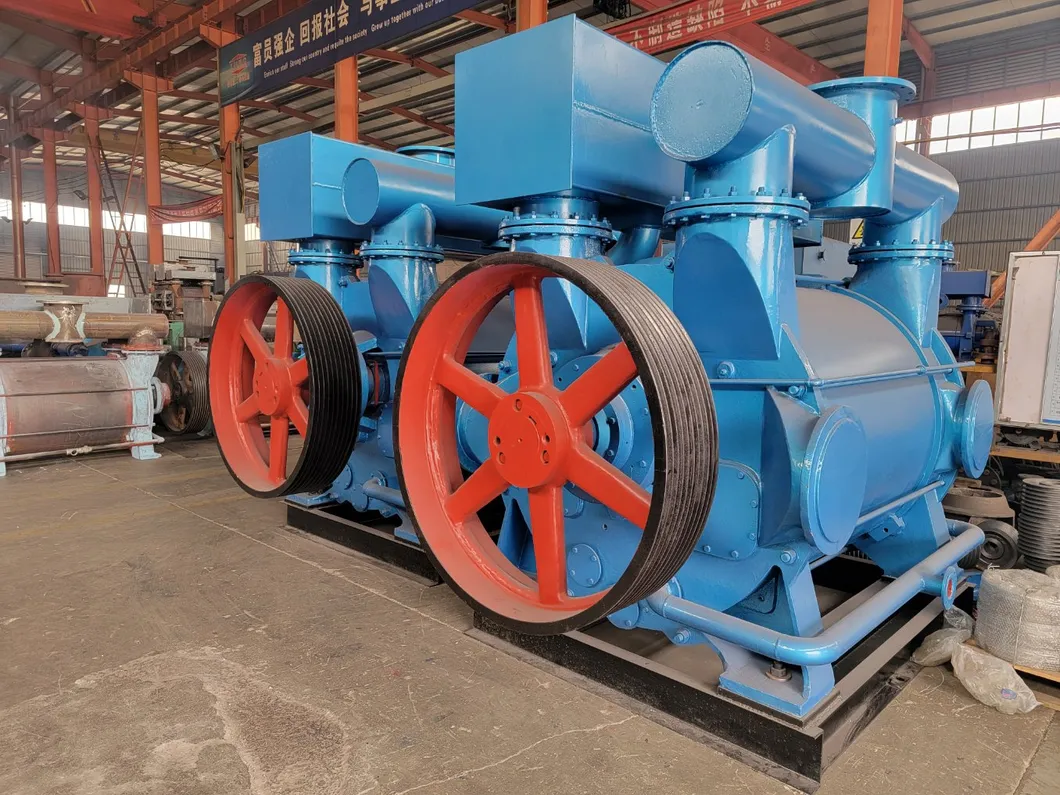

2BE series water ring vacuum pump and compressor are developed based on many years of scientific research results and production experience. Combined with international advanced technology, these high-efficiency and energy-saving products are typically used for pumping non-solid particles, water-insoluble, and non-corrosive gases to create vacuum and pressure in closed containers. By utilizing different construction materials, they can also handle corrosive gases or use corrosive liquids as the working fluid.
Widely used in papermaking, chemical, petrochemical, light industry, pharmaceutical, food, metallurgy, building materials, electrical appliances, coal washing, mineral processing, and chemical fertilizer industries. This series utilizes a single-stage single-action structure, providing benefits such as simplified maintenance, reliable operation, and high efficiency under harsh conditions.
🔍 Structure Declaration
2BEA-10-25 Structure diagram
1. Flat key
2. Shaft
3. Oil deflector
4. Bearing cap
5. Bearings
6. Bearing bracket
7. Brasque cover
8. Brasque body
9. Brasque ring
10. Brasque
11. Valve plate
12. Valve block
13. Front distribution plate
14. Pump body
15. Impeller
16. O seal ring
17. Back distribution plate
18. Side cover
19. Flat key
20. Axle sleeve
21. Elastic collar
22. Water retaining ring
23. Adjusting washer
24. Rear bearing body
25. Bearing screw cap
26. Bearing
27. Bolt

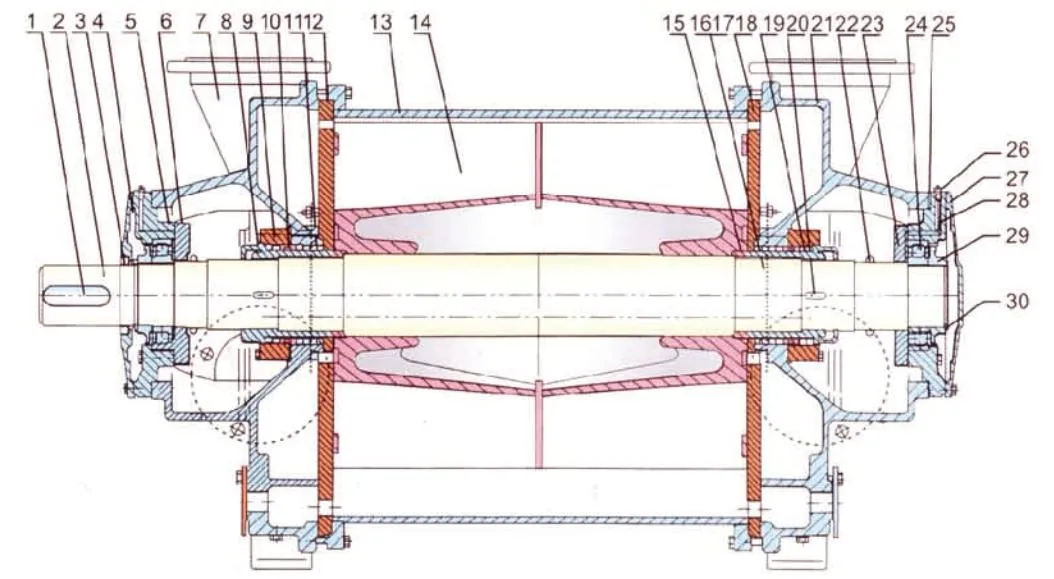

2BEA-30-70 Structure diagram
1. Flat key
2. Shaft
3. Oil deflector
4. Front bearing retainer
5. Front bearing body
6. Front bearing inner cover
7. Front side cover
8. Brasque cover
9. Brasque body
10. Brasque ring
11. Brasque
12. Front distribution plate
13. Pump body
14. Impeller
15. O seal ring
16. Valve block
17. Valve plate
18. Back distribution plate
19. Axle sleeve
20. Flat key
21. Back side cover
22. Water retaining ring
23. Rear bearing inner cover
24. Bearing
25. Adjusting washer
26. Oil block
27. Rear bearing outer cover
28. Back bearing body
29. Oil baffle disc
30. Elastic retainer
❓ Frequently Asked Questions
What are your standard packing terms?
Generally, we pack our goods in neutral export wooden cases. If you have a legally registered patent, we can pack the goods in wooden cases with your own marks after receiving your authorization letters.
What are your payment terms?
Our standard terms are T/T 30% as a deposit and 70% before delivery. We provide photos of the products and packages before you pay the final balance.
What delivery terms do you offer?
We support various delivery terms including EXW, FOB, CFR, CIF, and other international standards.
How long does delivery usually take?
Typically, it takes between 10 to 30 days after receiving your advance payment. The specific timeframe depends on the pump material, items, and total order quantity.
Do you test all pumps before they are shipped?
Yes, we conduct a 100% test on all pumps before delivery to ensure performance and quality standards are met.
Can you manufacture products based on samples?
Yes, we can produce according to your samples or technical drawings. We are also capable of building specific molds and fixtures as required.
