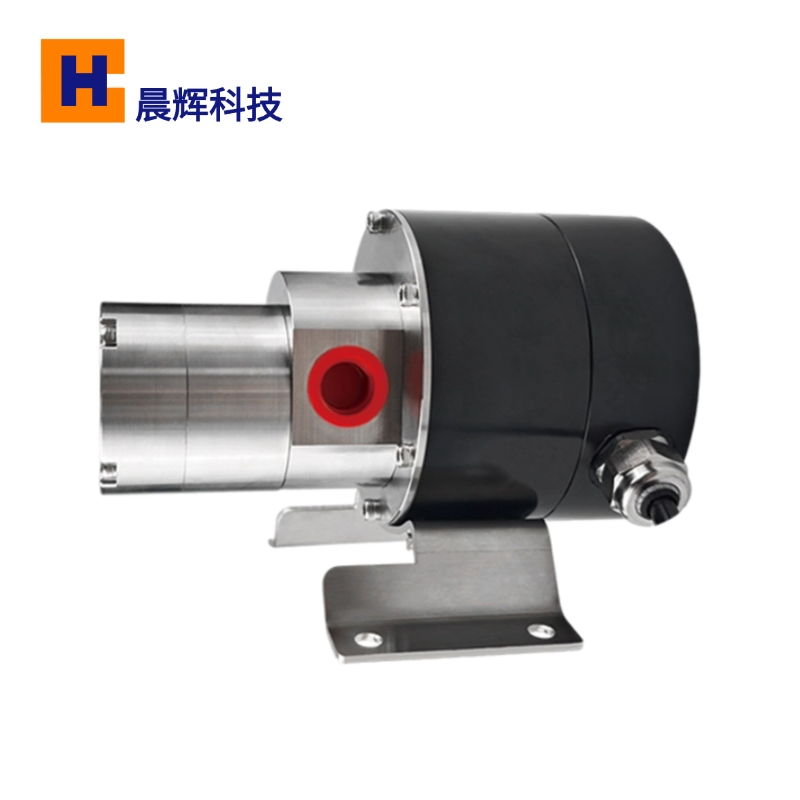

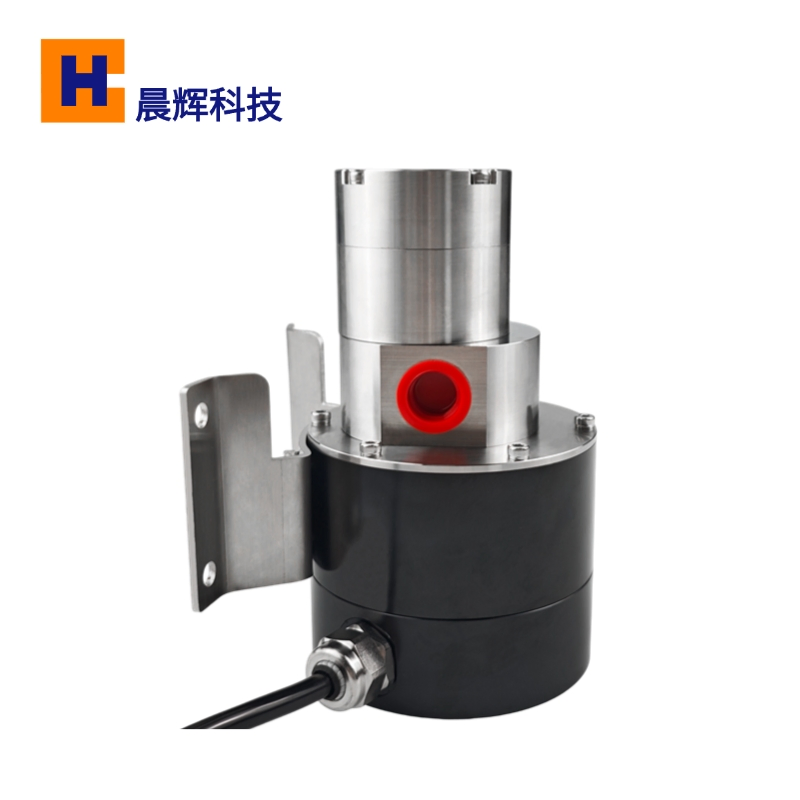

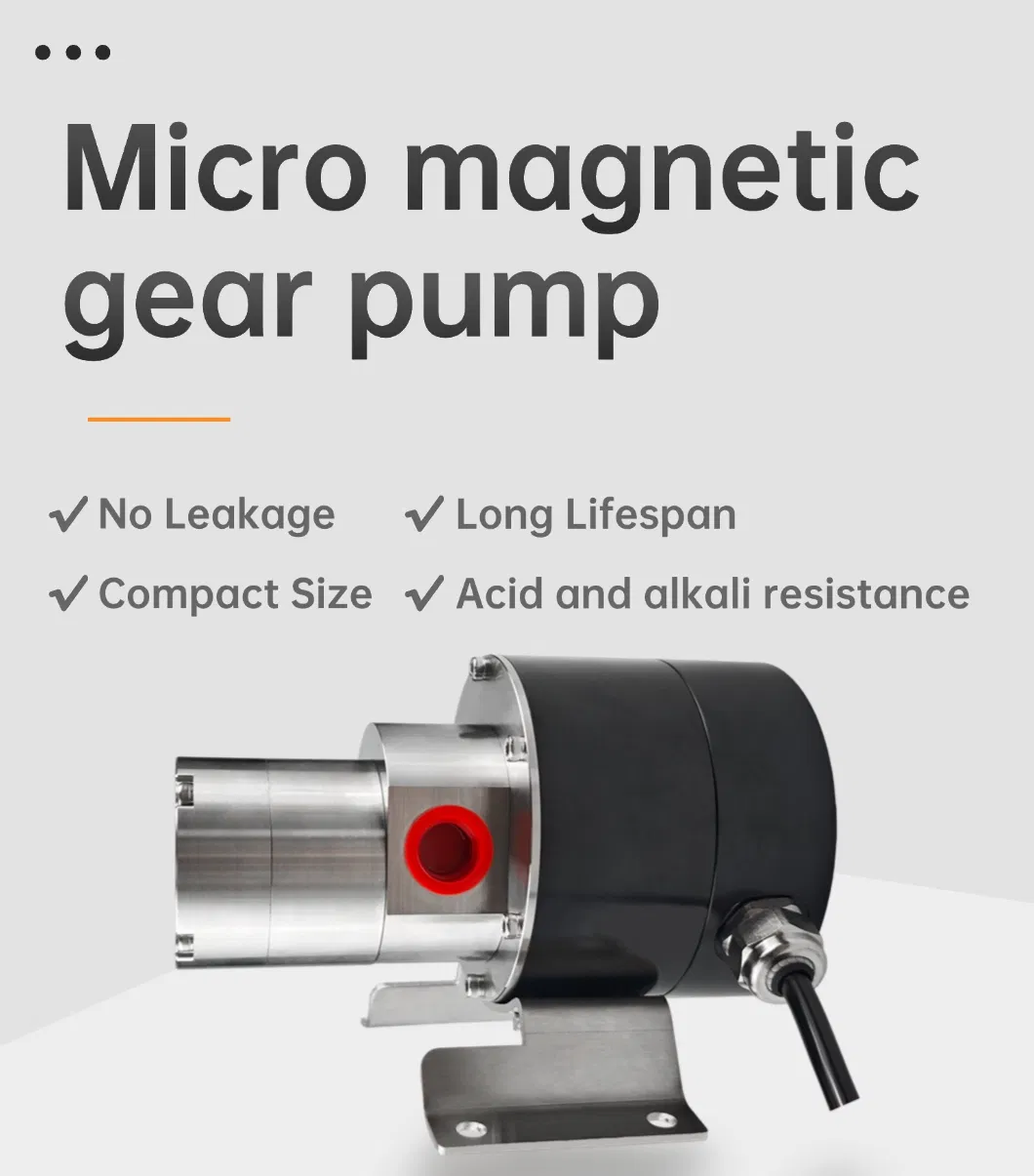

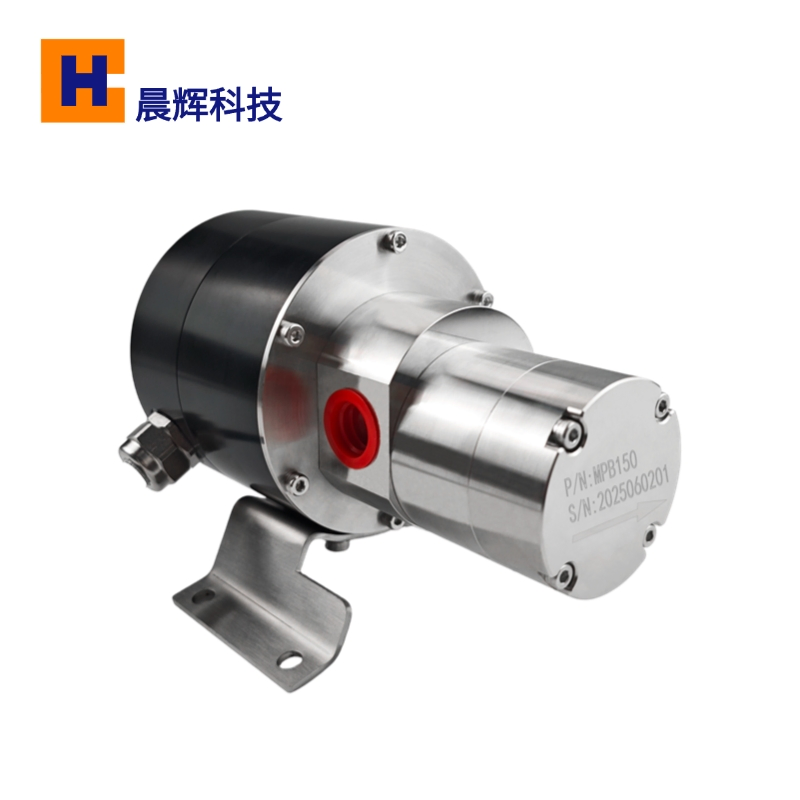

MPB150-300W BLDC Motor Micro Magnetic Drive Gear Pump
Continuous accurate fluid transportation through high-precision gears. Delivery accuracy reaches +/-0.5% when used with servo or stepper motors.

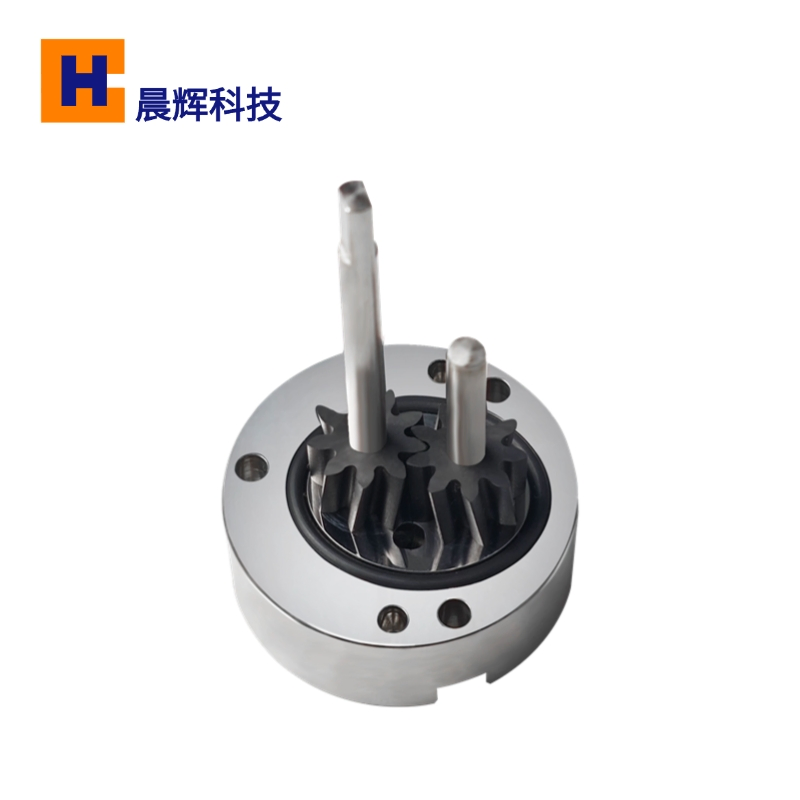

High conveying pressure and smooth operation. Designed for high pressure delivery even in low viscosity liquids.

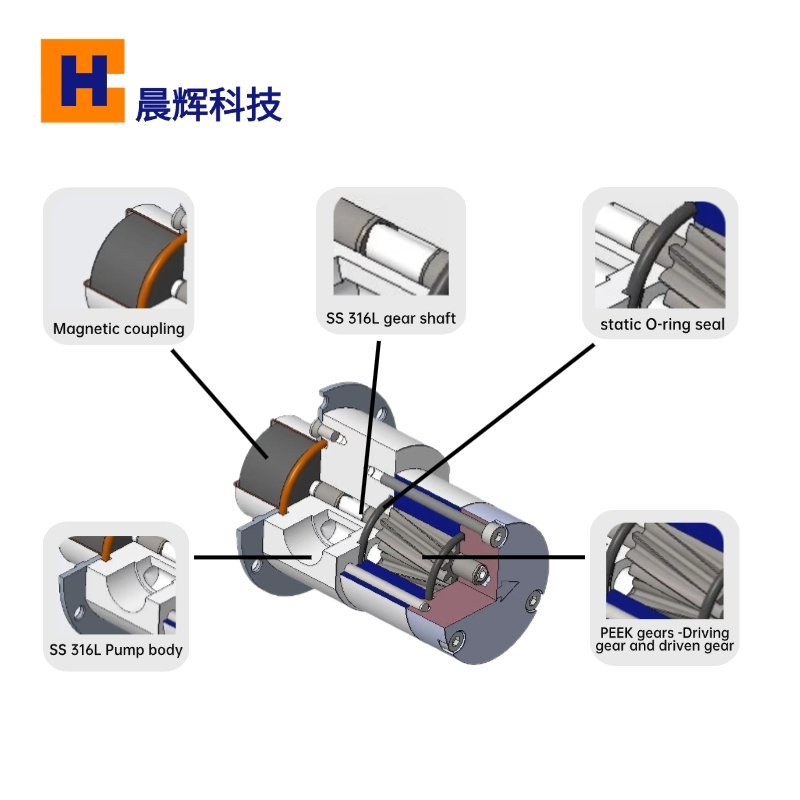

Magnetic drive and static O-ring seal ensure the medium is completely isolated from the outside environment.
Built with top-tier materials and precision technology. DC permanent magnet brushless motor ensures stable operation and longevity.

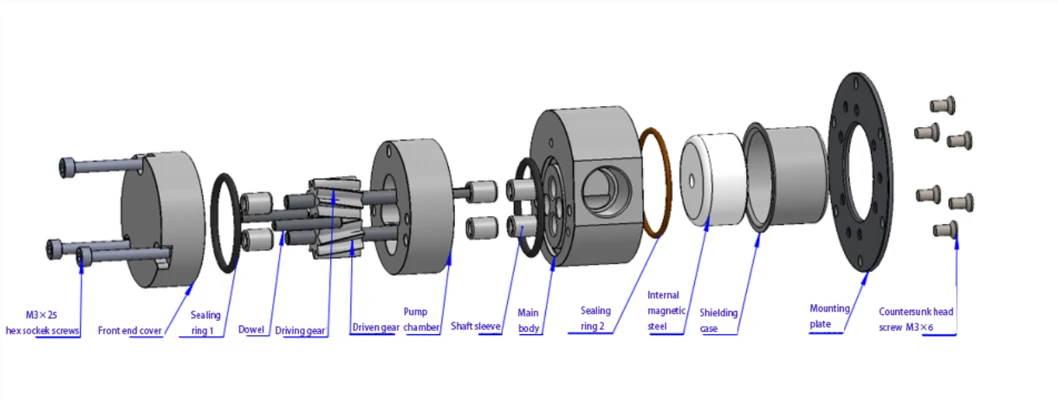

| 1. Inner-hexagon screw*3 | 2. Front end cover | 3. Sealing ring 1 |
| 4. Dowel*2 | 5. Driving gear | 6. Driven gear |
| 7. Pump Chamber/Body | 8. Shaft sleeve*6 | 9. Main body |
| 10. Sealing ring 2 | 11. Internal magnetic steel | 12. Shielding case |
| 13. Mounting plate | 14. Countersunk screw |
Our magnetic gear pumps are widely used in specialized fields requiring precision and reliability:
