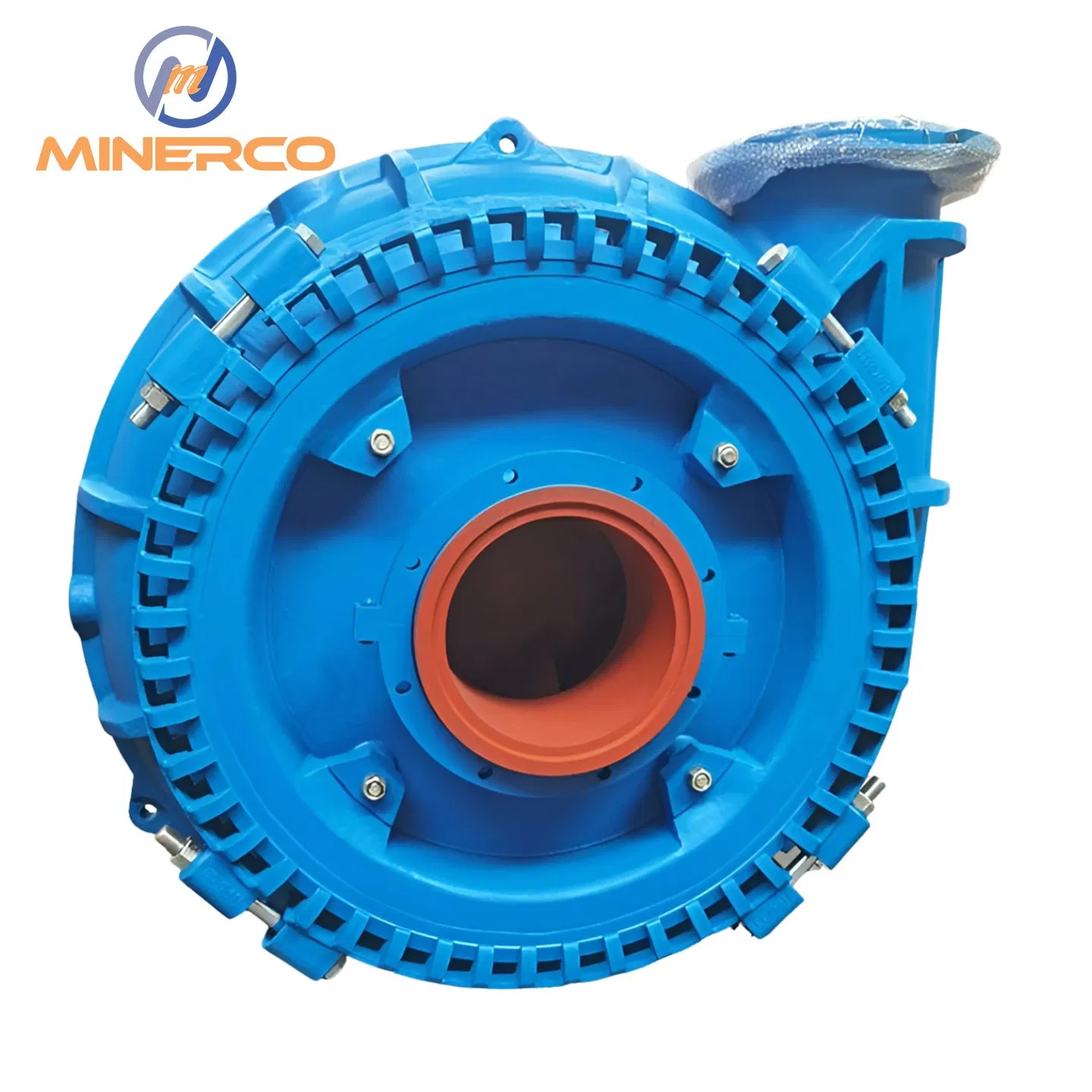

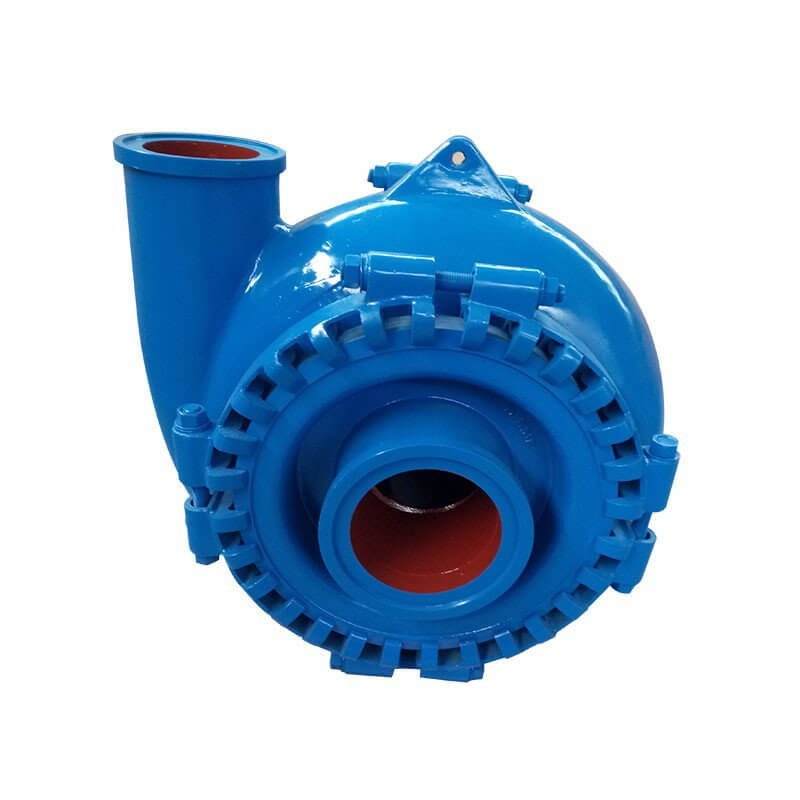

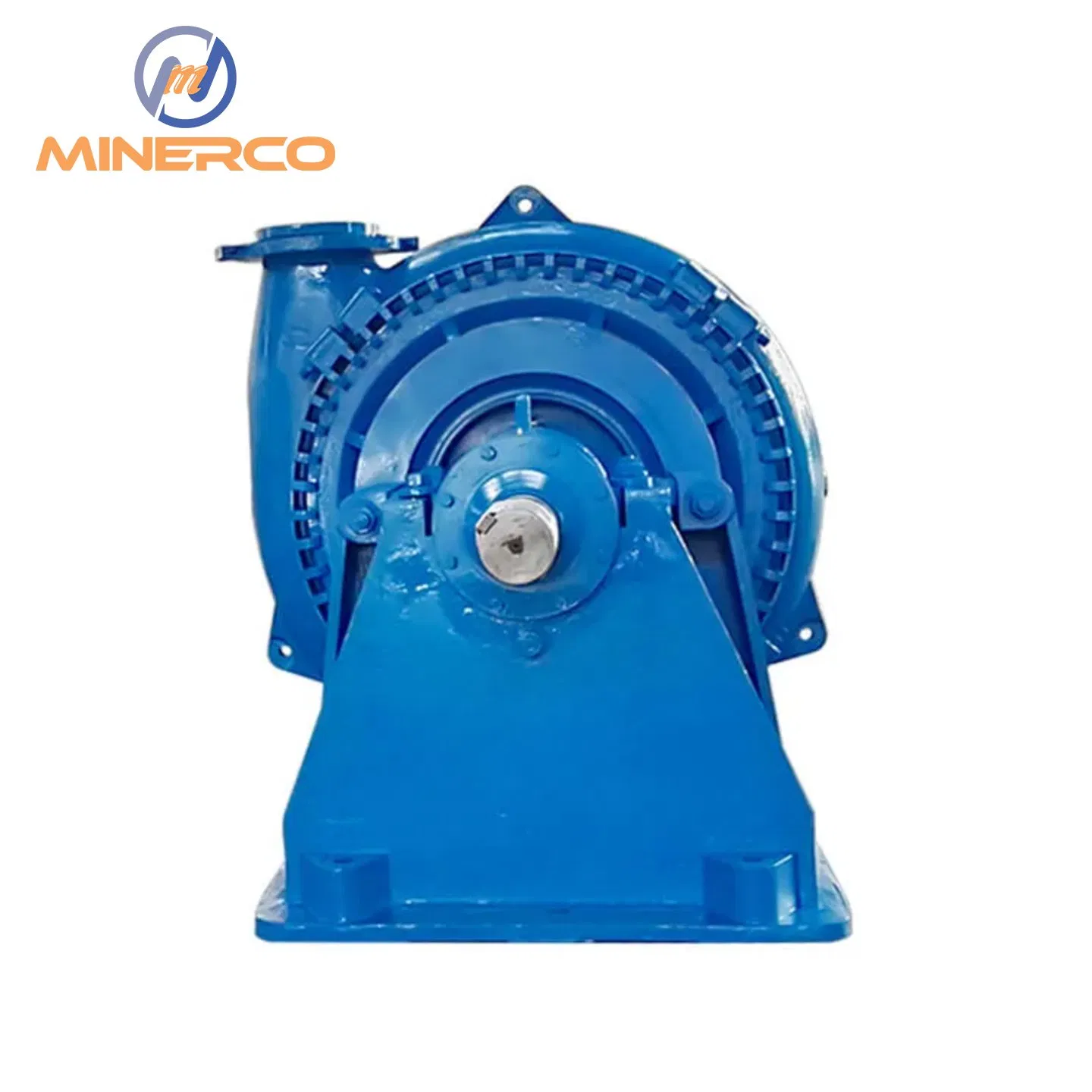

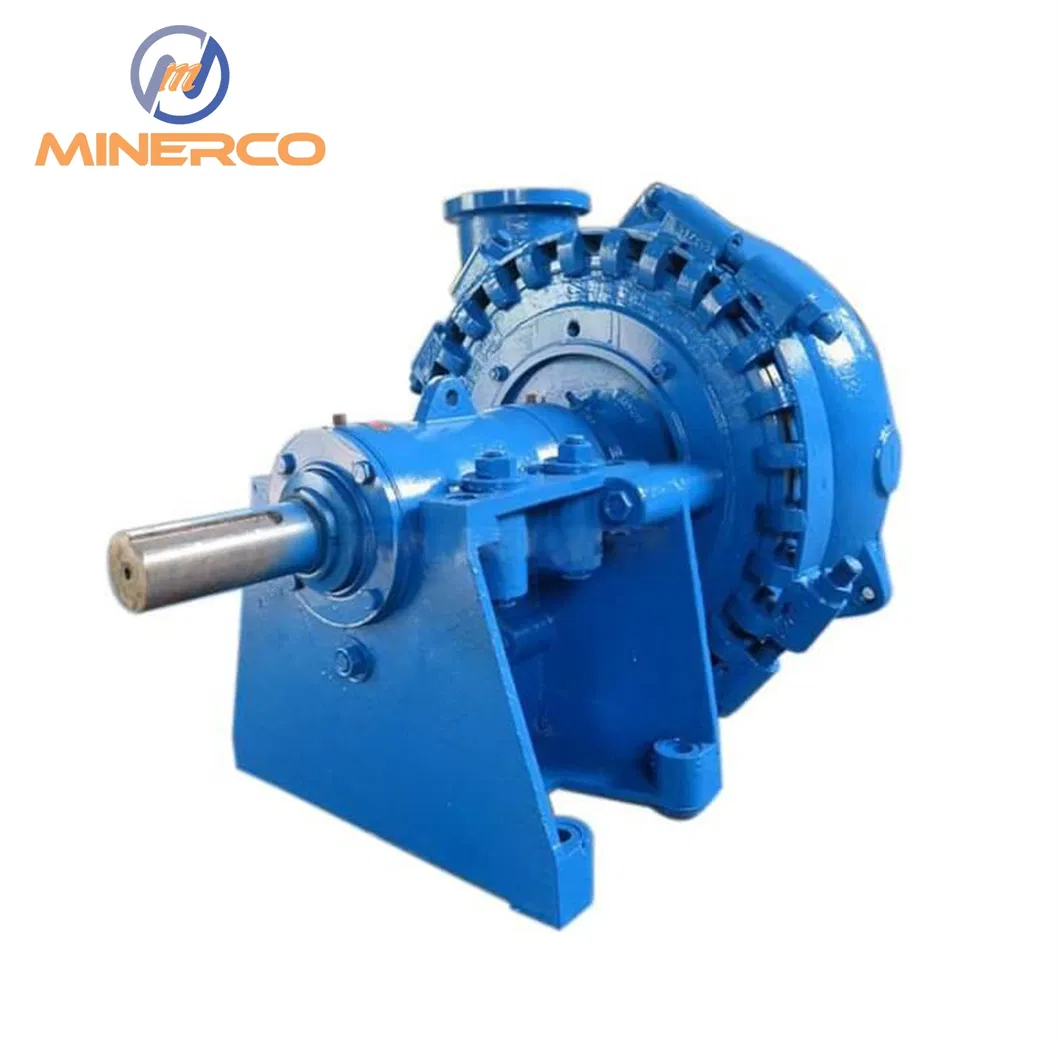

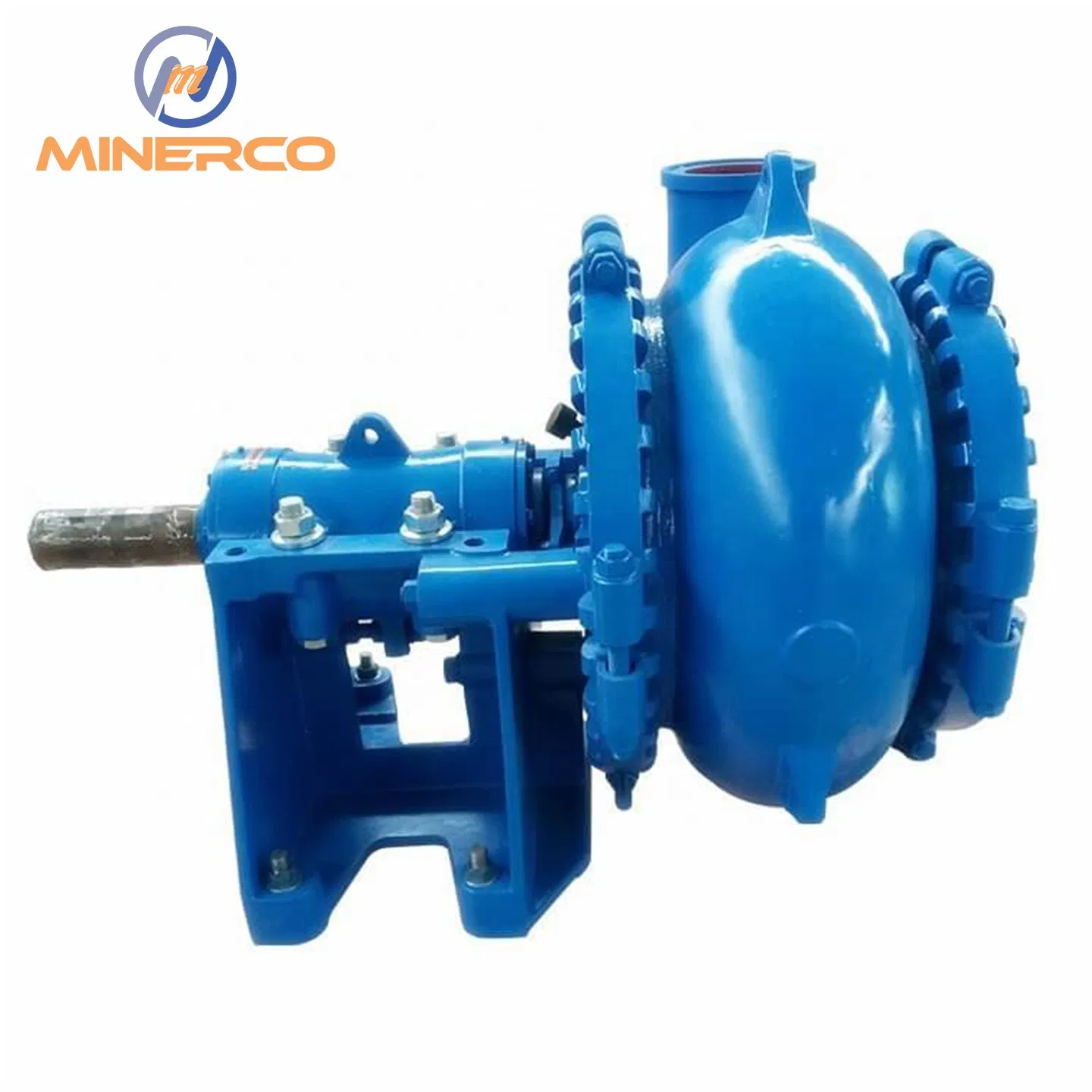

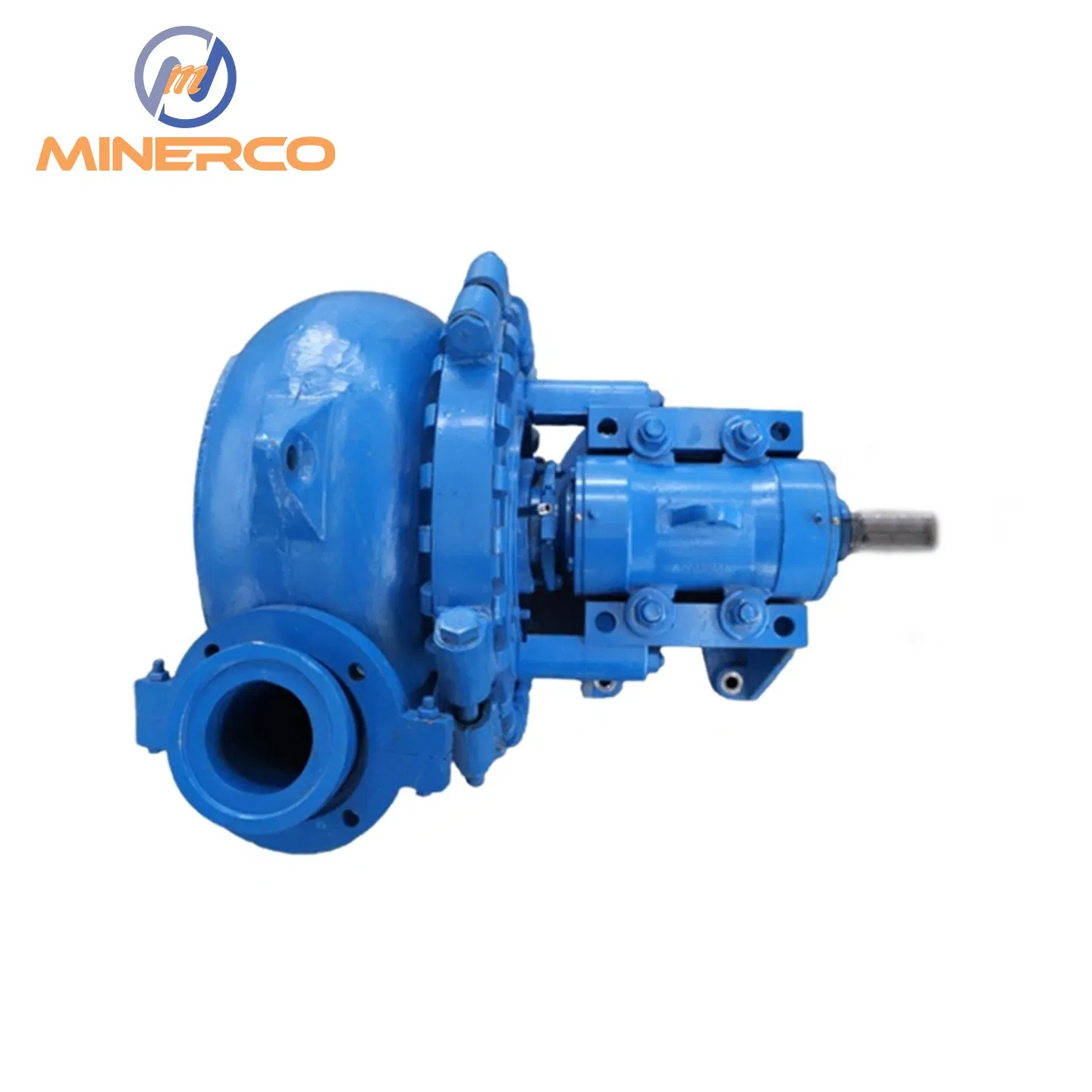

Single Stage Horizontal Centrifugal Marine Sand Slurry Pump for Mining

Customization:	Available
After-sales Service:	Within 24 Hours
Warranty:	12 Months After Trial Operation/12 Months After Sh

Product Overview

Model NO.8/6G

Max. Head30-50m

Max. Capacity50-100 L/min

Driving TypeMotor

Impeller NumberSingle-Stage Pump

Working PressureHigh Pressure Pump

Position of ShaftHorizontal Pump

UsageMining, Slurry, Circulating

Inhalation Dia.150mm

Drainage Path100mm

Production Cap.1500/Year

Transport PackageExport Standard Wooden Case

Product Description

Designed for industries demanding reliable, high-performance pumps in abrasive environments, the G/GH gravel pump is characterized by its wide flow passage, excellent cavitation resistance, high efficiency, and exceptional wear resistance.

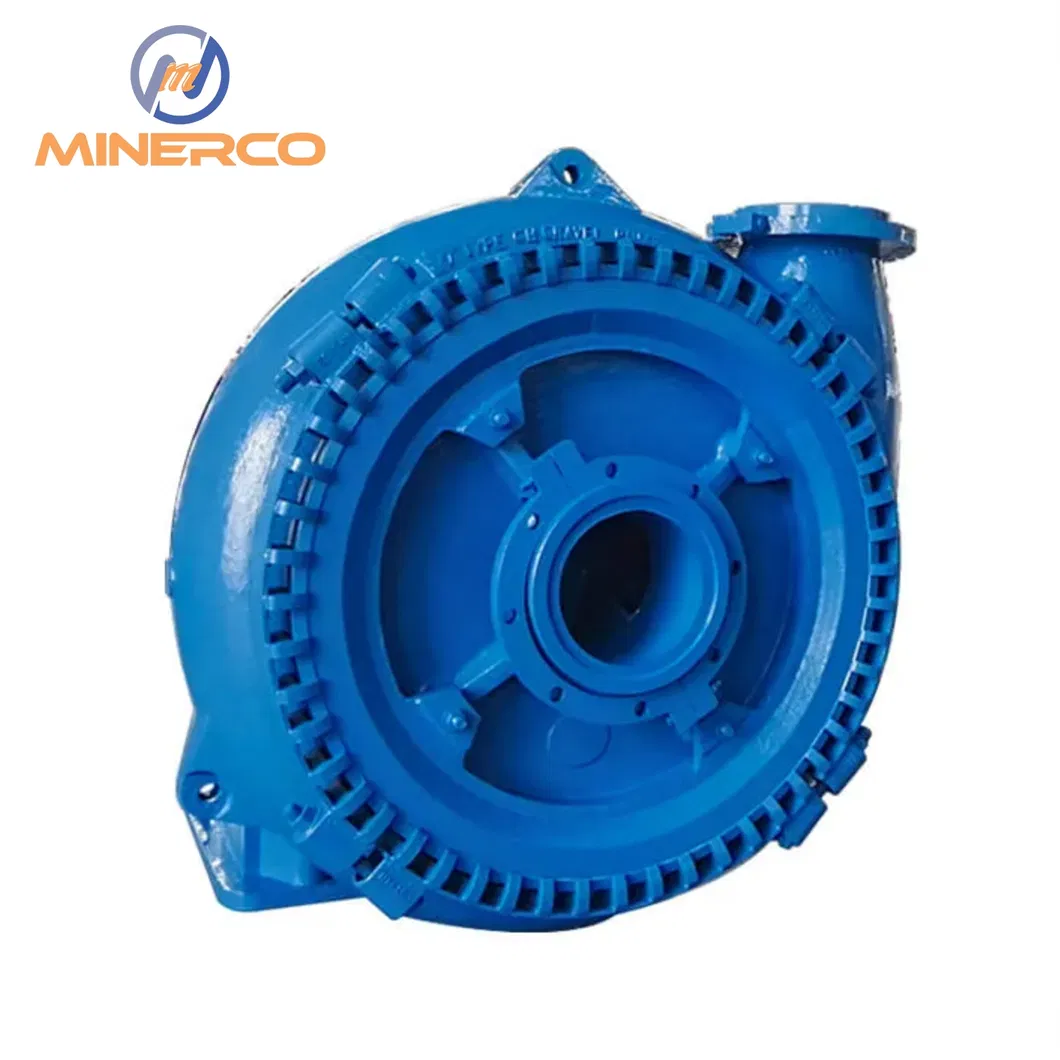

Horizontal Centrifugal Marine Sand Slurry Pump

🚀 Key Features

Continuous Handling: Designed for the most difficult high abrasive slurries with large solids.
High Head Performance: GH types are specifically engineered for high head applications.
Robust Construction: Single casing connected by clamp bands with a wide wet-passage.
Advanced Materials: Wet parts made of Ni-hard and high chromium abrasion-resistance alloys.
Flexible Installation: Discharge direction can be oriented in any 360-degree direction.

Technical Parameters

Performance range:
• Discharge range: 100 ~ 350mm
• Flow range: 150 ~ 2880m³/h
• Head range: 10 ~ 90m

🔧 Structure Diagram

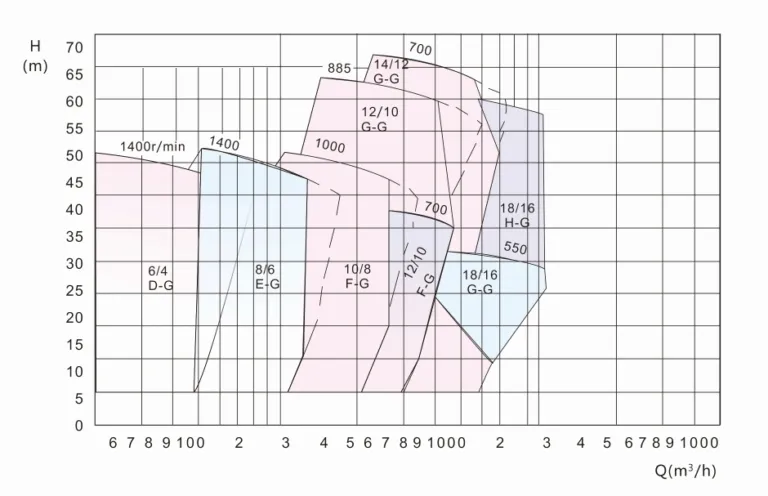

📊 Performance Chart

Model	Flow (m³/h)	Head (m)	Speed (r/min)	Efficiency (%)	NPSH (m)	Discharge (mm)	Suction (mm)
6/4D-G	108~216	6~52	600~1400	52	2.0~3.0	100	150
8/6E-G	180~430	8~45	800~1400	60	2.0~3.5	150	200
8/6F-GH	216~540	18~90	500~1100	71	2.0~4.0	150	200
10/8F(S)-G	360~750	10~52	500~1000	65	2.0~4.5	200	250
10/8S-GH	432~1080	18~80	500~950	72	2.0~4.0	200	250
12/10G-G	576~1120	10~60	400~850	65	2.0~4.5	250	300
14/12G-G	900~2230	10~65	300~700	68	2.0~6.5	300	350
18/16TU-GH	2160~4220	25~90	250~500	78	2.0~7.5	400	450

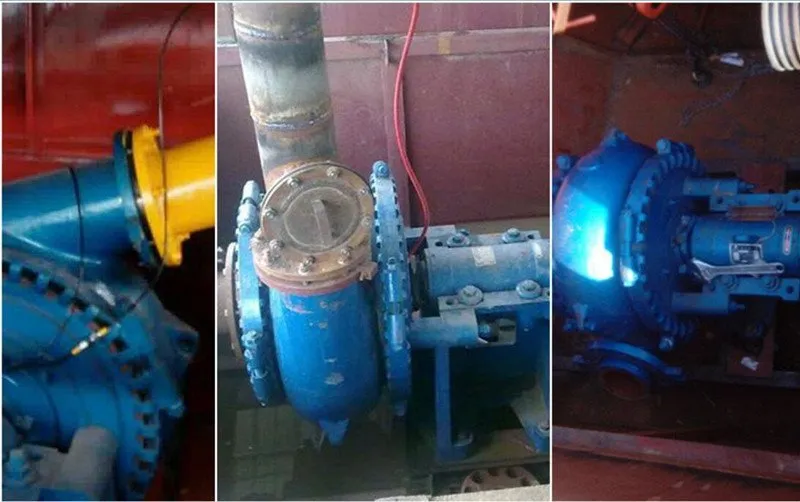

Industrial Applications

The G/GH gravel pump is highly regarded in several industries due to its robust performance:

Mining: Manages high-abrasive slurries with large solids.
Dredging: Ideal for river dredging and sand extraction.
Metallurgy: Efficiently transports metal smelting slag.
Power Plants: Used in coal washing and ash handling.
Petrochemical: Handles corrosive fluids with high reliability.

Packaging & Shipping

Package Size150cm * 150cm * 150cm

Gross Weight300.00kg

We ensure all wooden cases are reinforced and pumps are bolted securely inside. For oversized units, bare loading in containers with professional fastening is used.

Frequently Asked Questions

1. Are your pumps and spares interchangeable with other international brands? Yes, our components are 100% interchangeable in terms of material, working life, and efficiency.

2. How does your pricing compare to original equipment manufacturers? Our prices are typically 30% to 50% of the original costs while maintaining the same operational lifespan.

3. What is the standard lead time for orders? Popular spare parts are in stock for 5-day delivery. Custom or out-of-stock items usually ship within 3 weeks.

4. What kind of warranty do you provide? We offer a one-year warranty on the entire pump (excluding wear parts). Wet part lifespan matches leading global brands.

5. Do you offer OEM or custom manufacturing services? Yes, we provide full OEM services and can provide on-site technical training for operation and maintenance.

6. Can your technical team provide on-site support? Our engineering team is available for on-site technical support within 4 days for urgent requirements.
