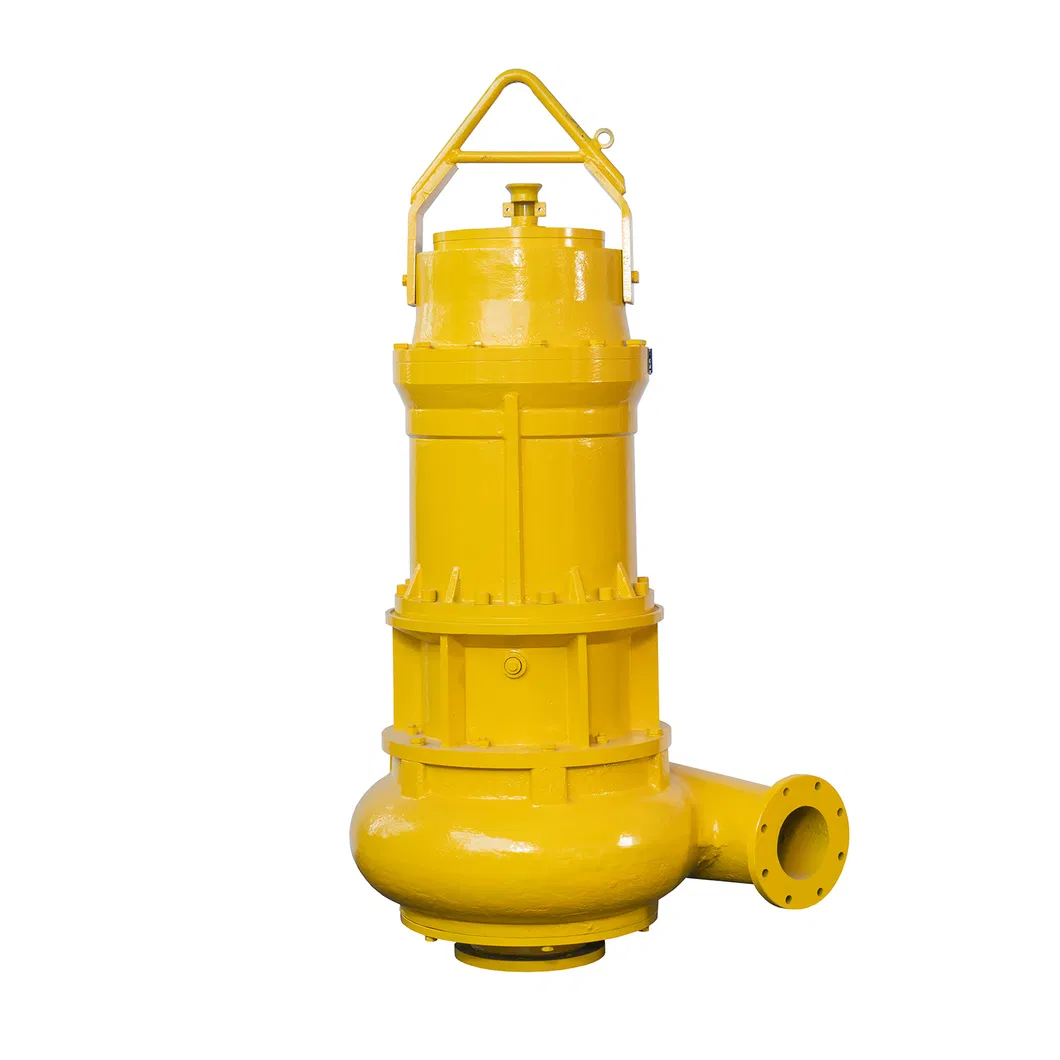

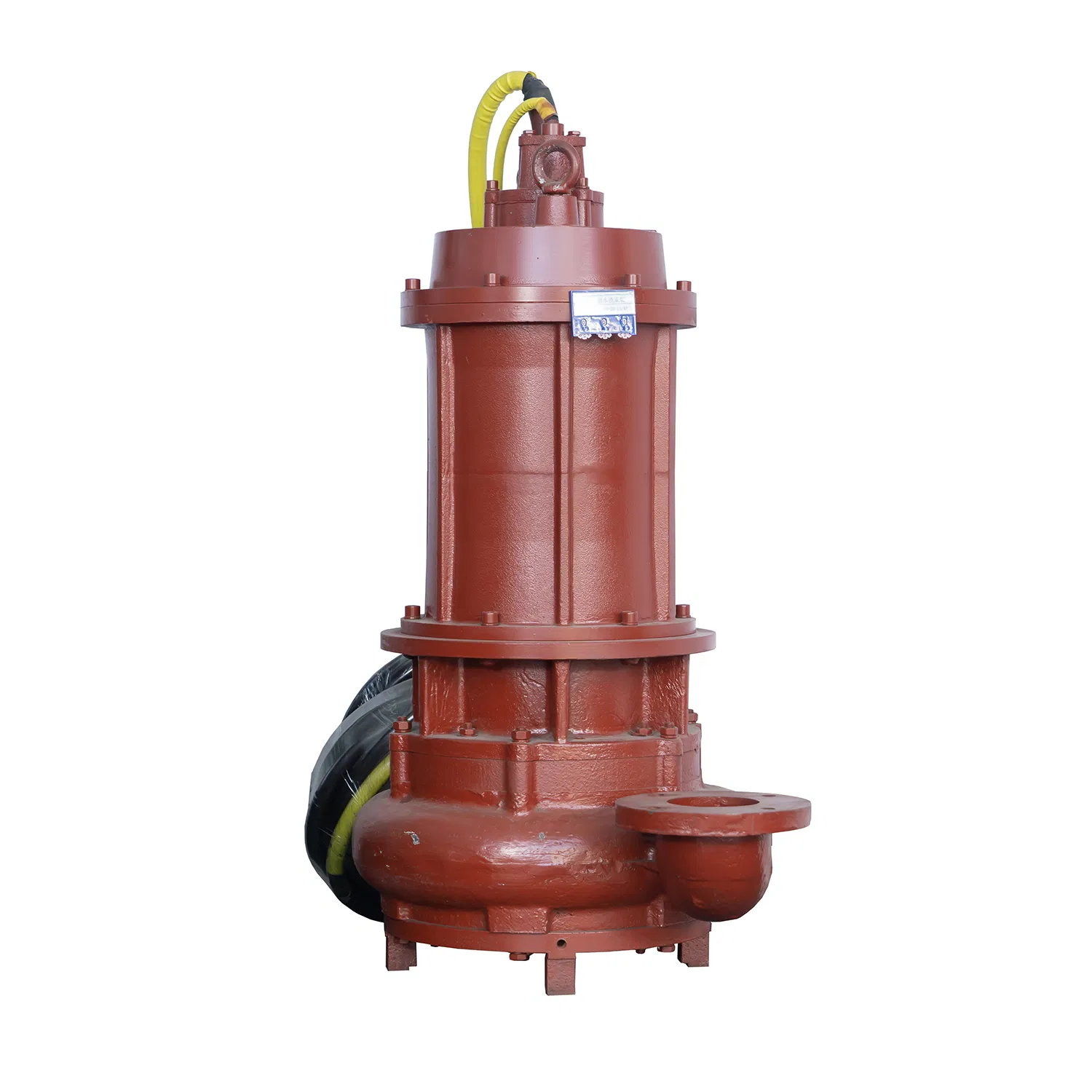

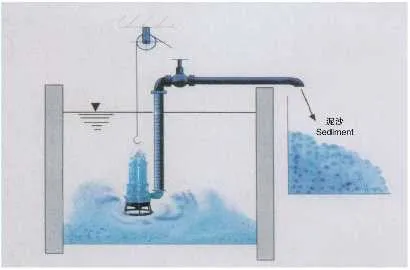

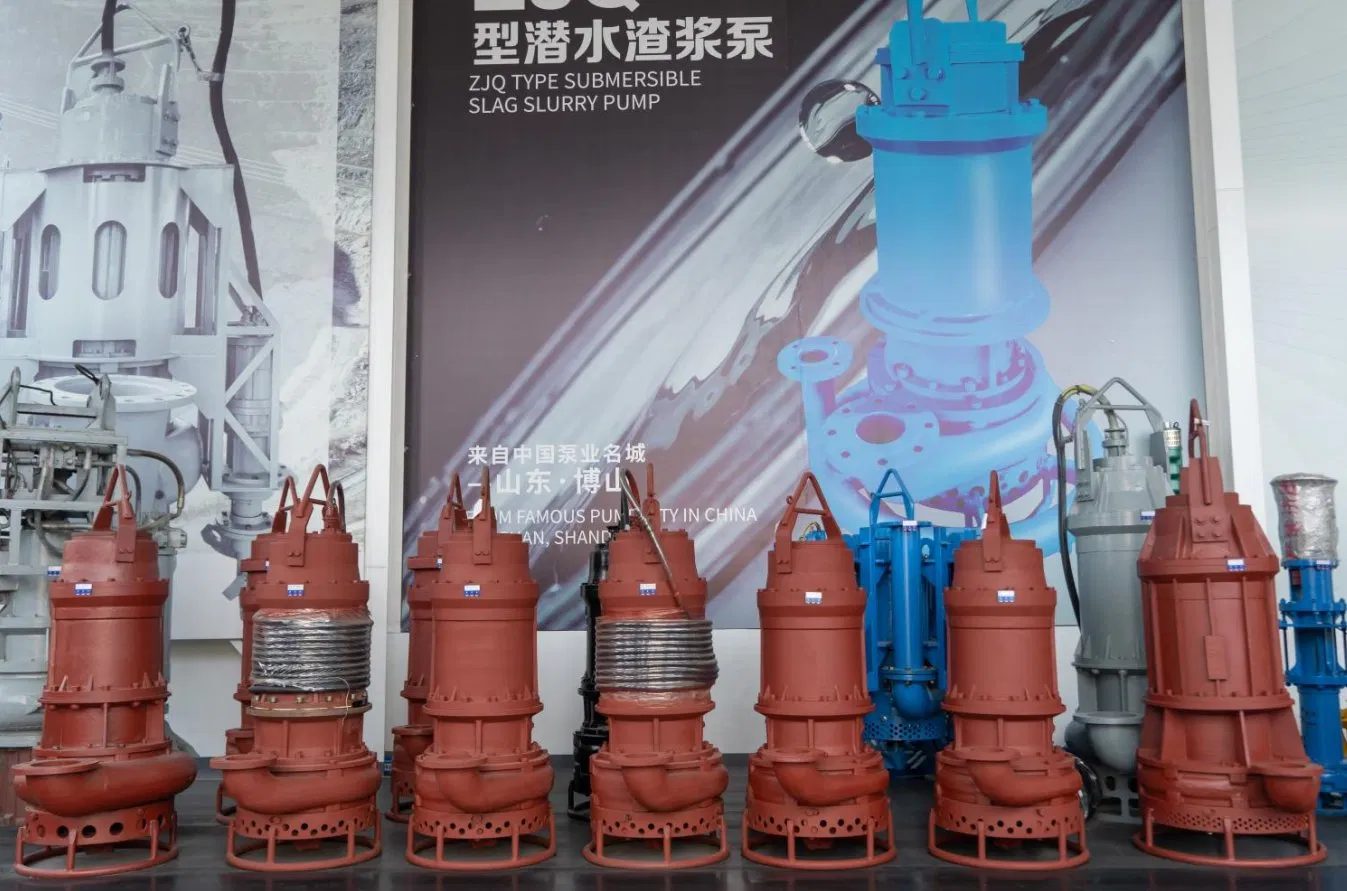

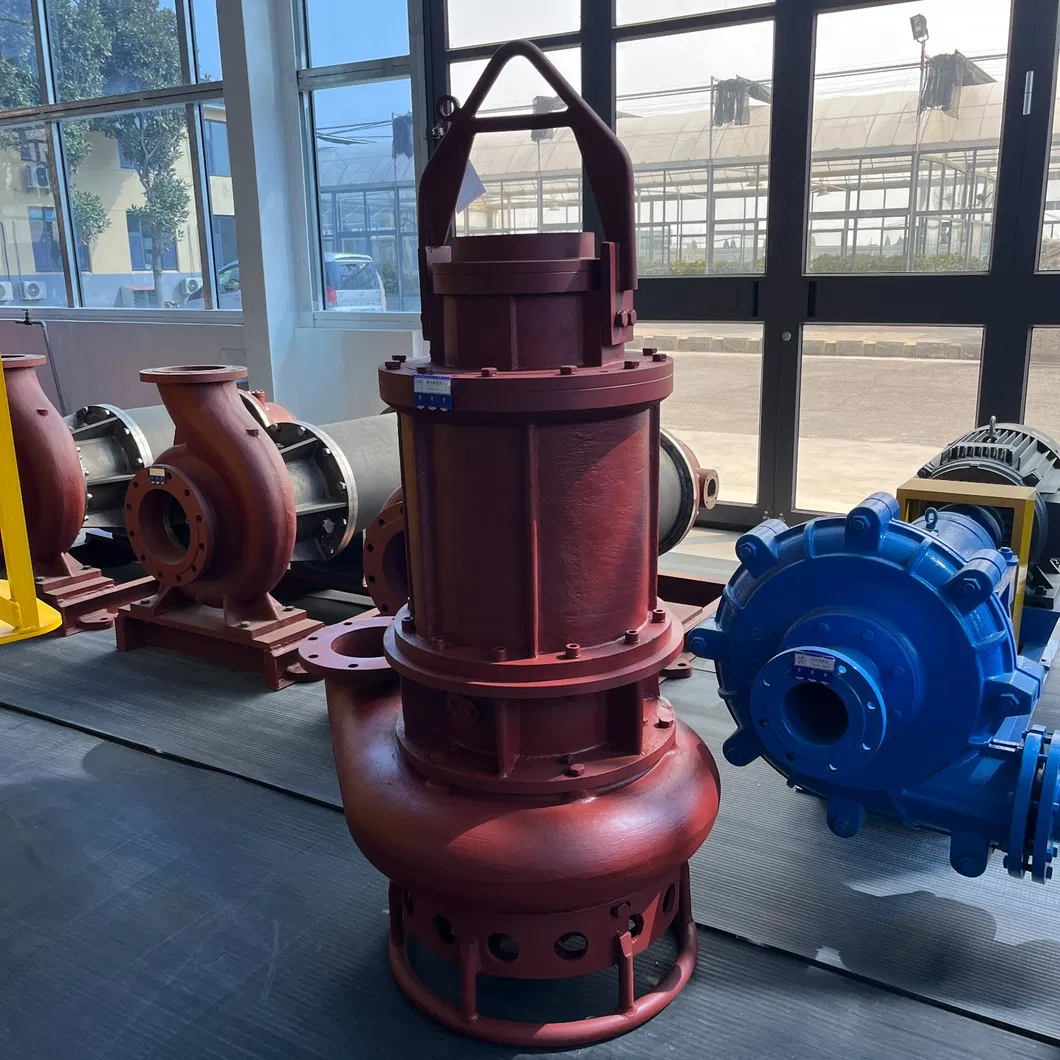

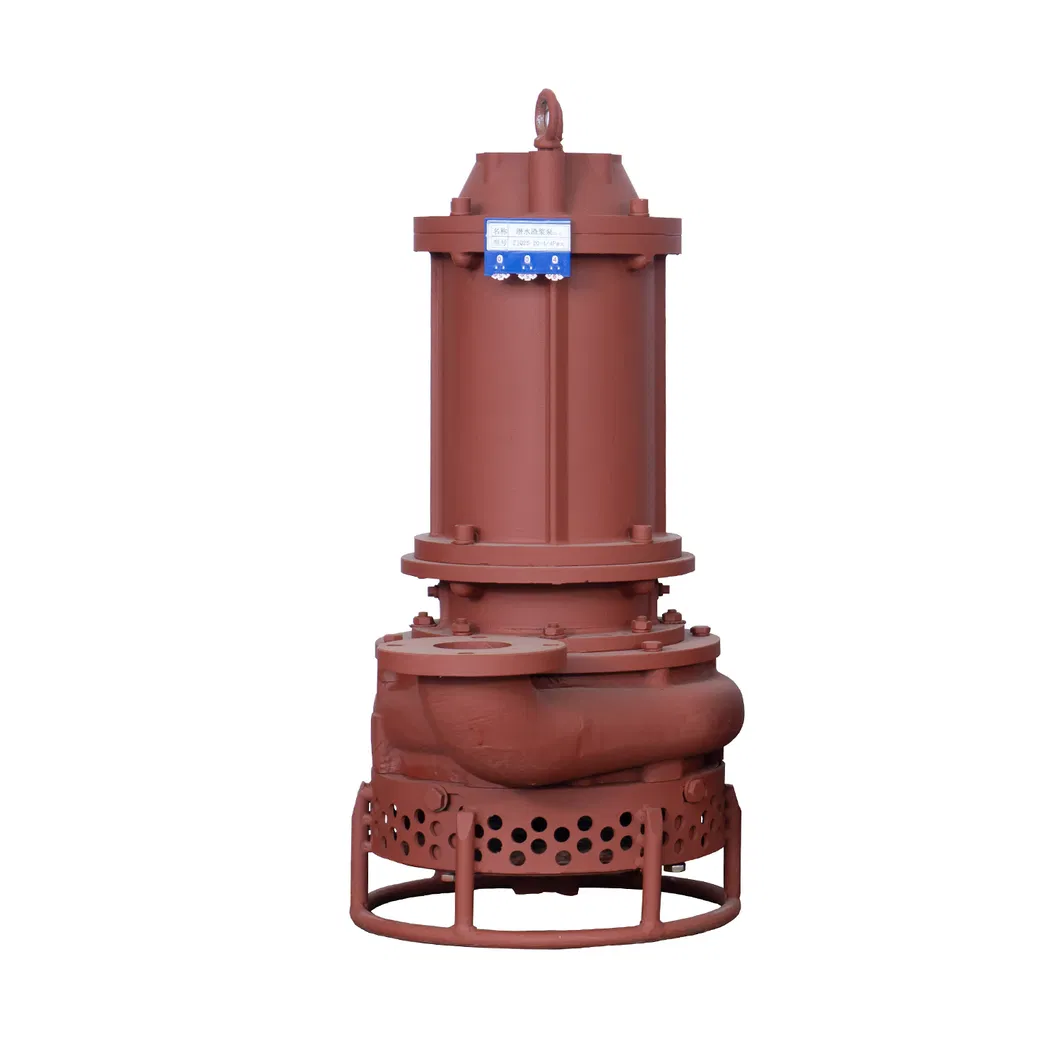

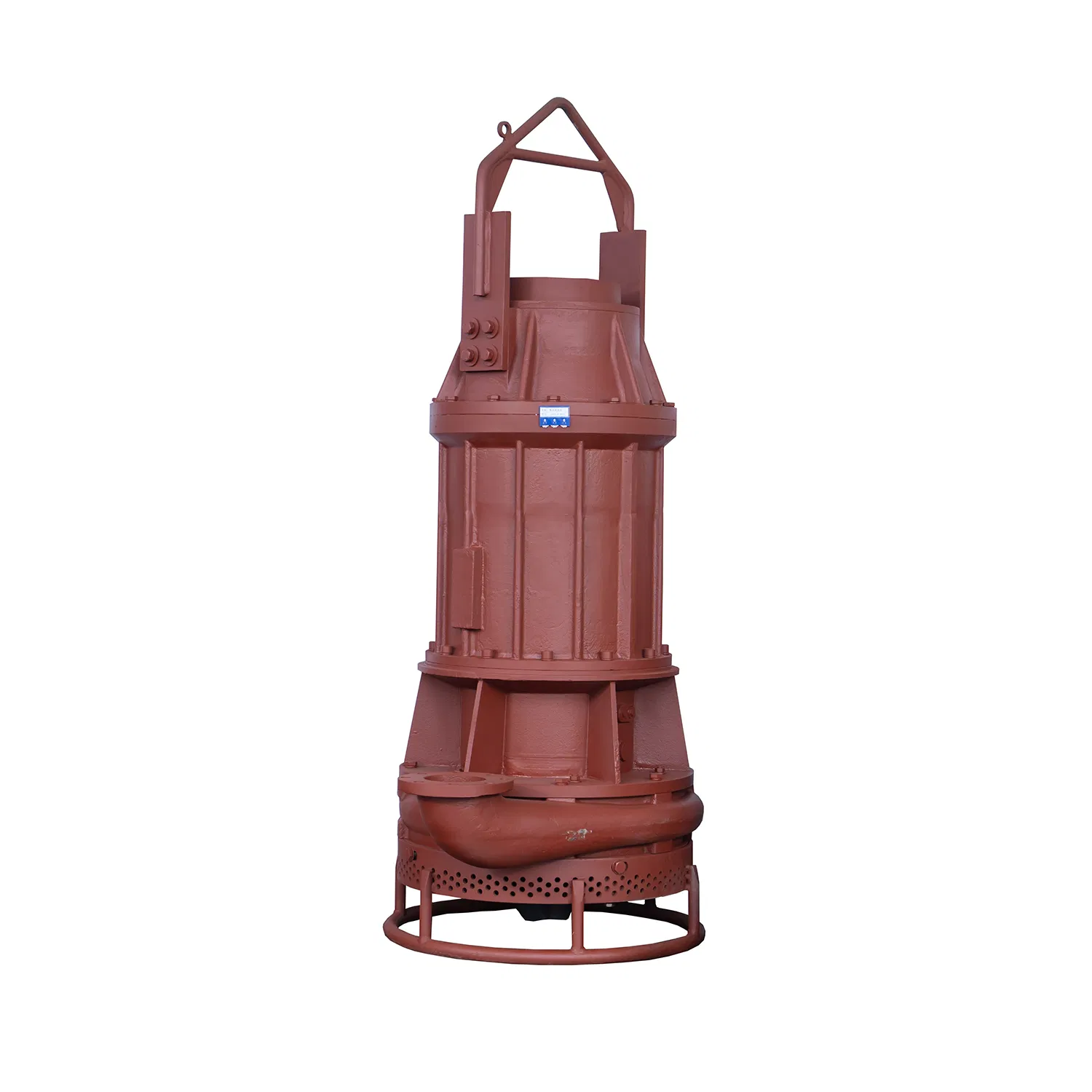

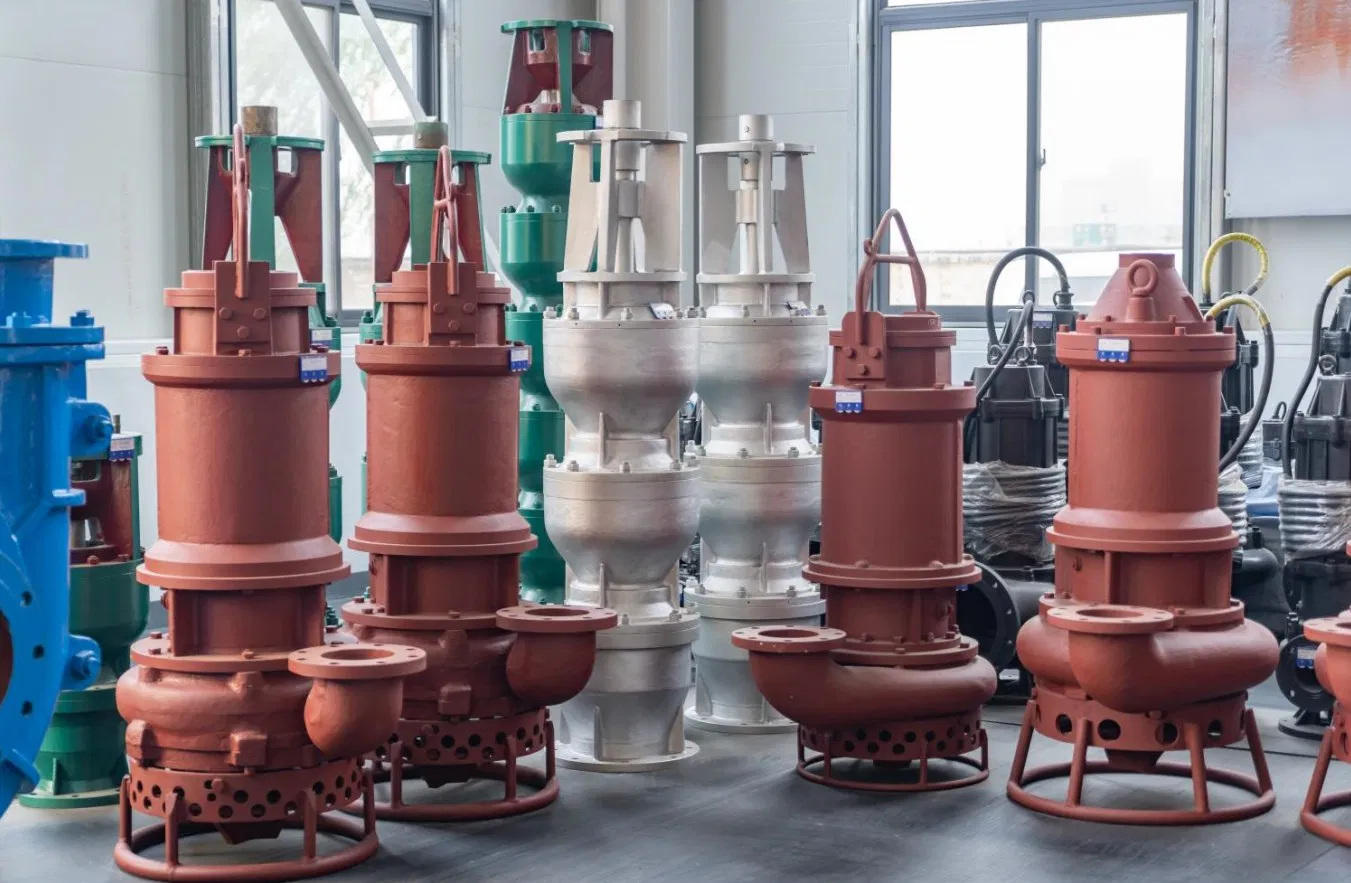

ZJQ submersible slurry pump is the hydraulic machinery with coaxial motor and water pump and submerged in the medium for work. The equipment has advanced structure, wide flow channel, strong discharge capacity, excellent material selection and strong corrosion resistance. It is suitable for conveying the liquid with sandstone, coal cinder, tailings and other solid particles. It is mainly used for cleaning and conveying of the slurry liquid of metallurgy, mine, iron and steel works, thermal power plant and other enterprises, and is the ideal substitute product of the traditional slurry pump.

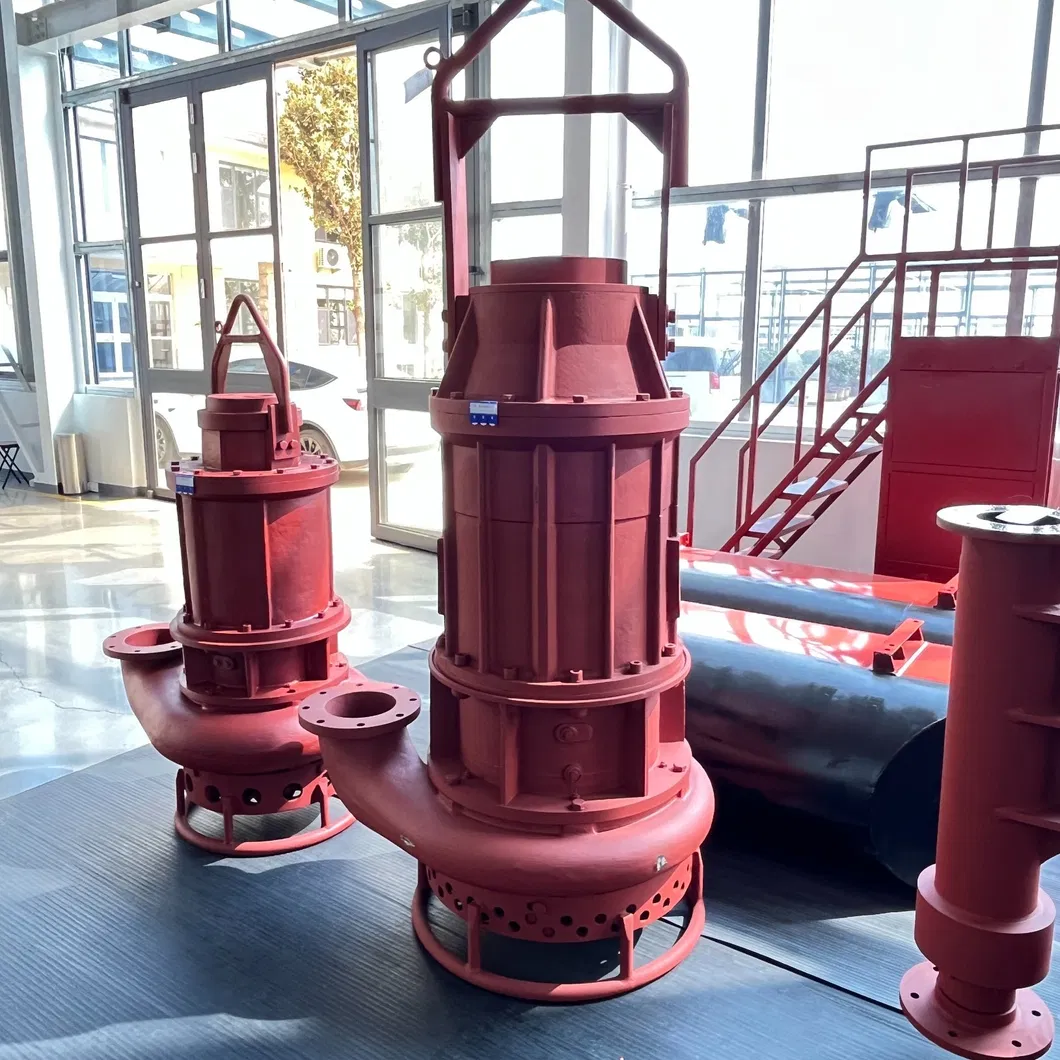

The series products are designed and manufactured by absorbing foreign advanced technology. The wear-resistant material with high technology is adopted, so as to greatly improve the equipment life, and reduce the repair frequency. A set of mixing impeller is added at the bottom of the water pump except for the primary impeller, which can spray the sediment sludge to eddy flow, so that high concentration convey can be realized without auxiliary devices. The unique sealing device can effectively balance the pressure inside and outside the oil chamber. If necessary, overheat protection, inlet water detection and protection measures shall be adopted for the motor.
| Model | ZJQ |
| Outlet diameter (mm) | 65-400 |
| Flow (m³/h) | 25-2000 |
| Lift (m) | 15-80 |
| Motor power (KW) | 3-132 |
| Rotating speed (rpm) | 980/1460 |
| Max. granularity (mm) | 14-60 |
| Weight (KG) | 125-4000 |
Type submersible dredging pump, wet ends and casing all in high chrome (A05) material. High abrasion and corrosion resistance.

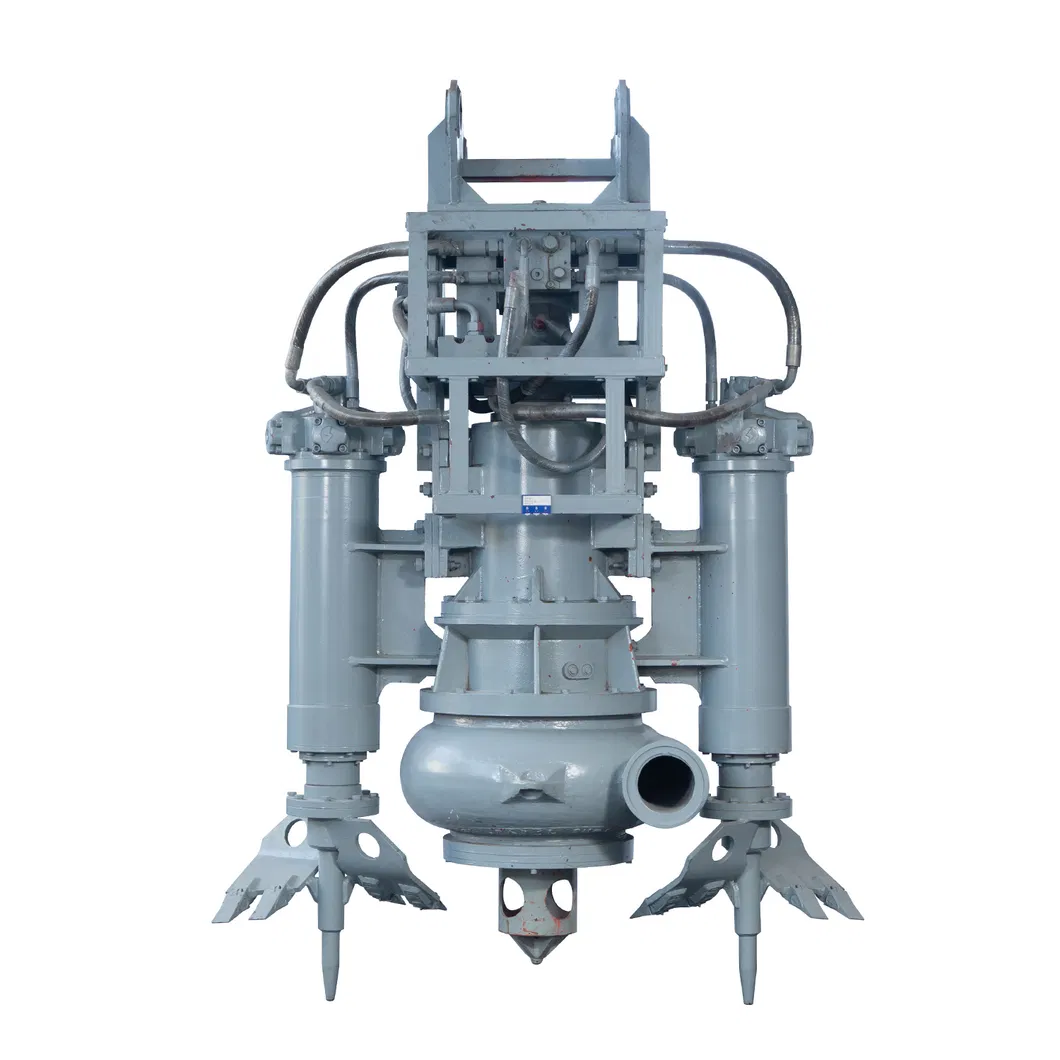

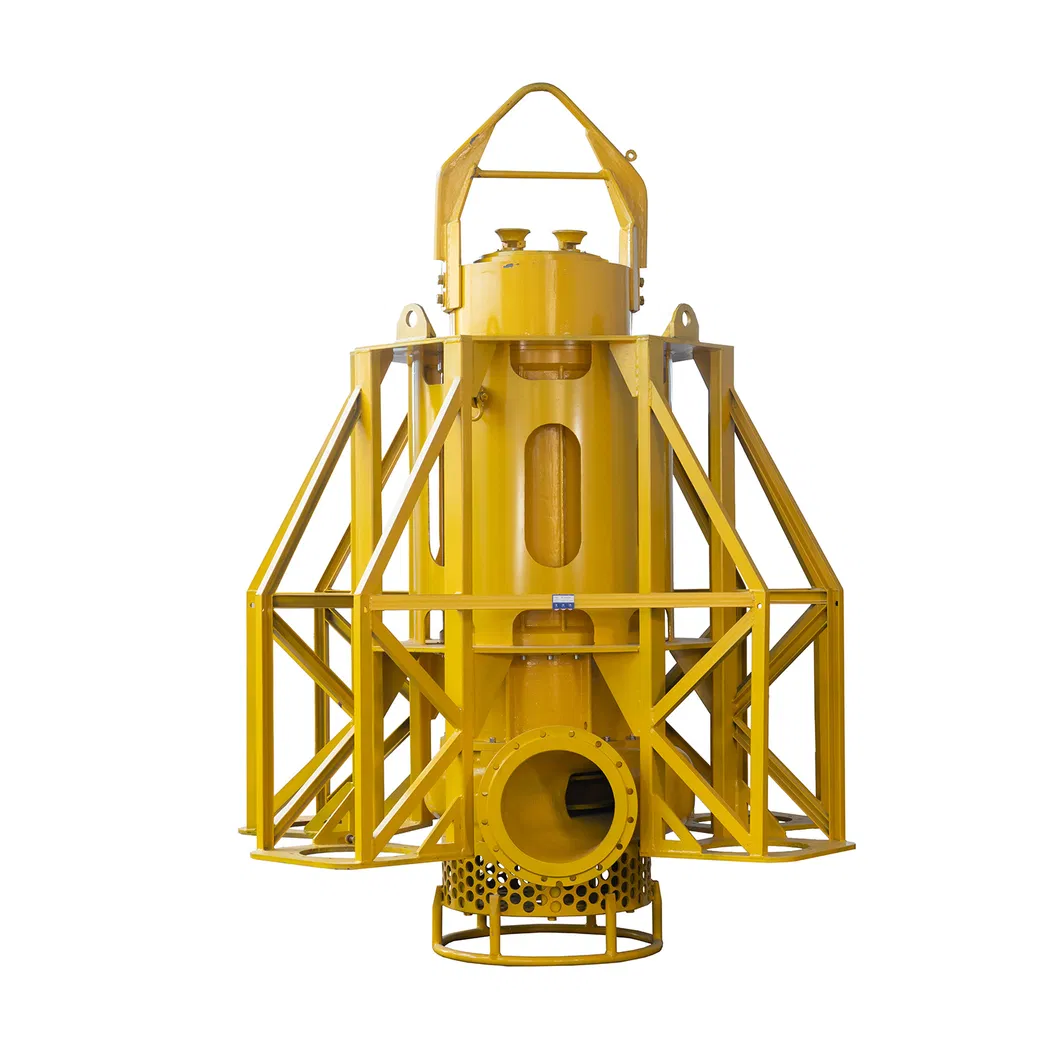

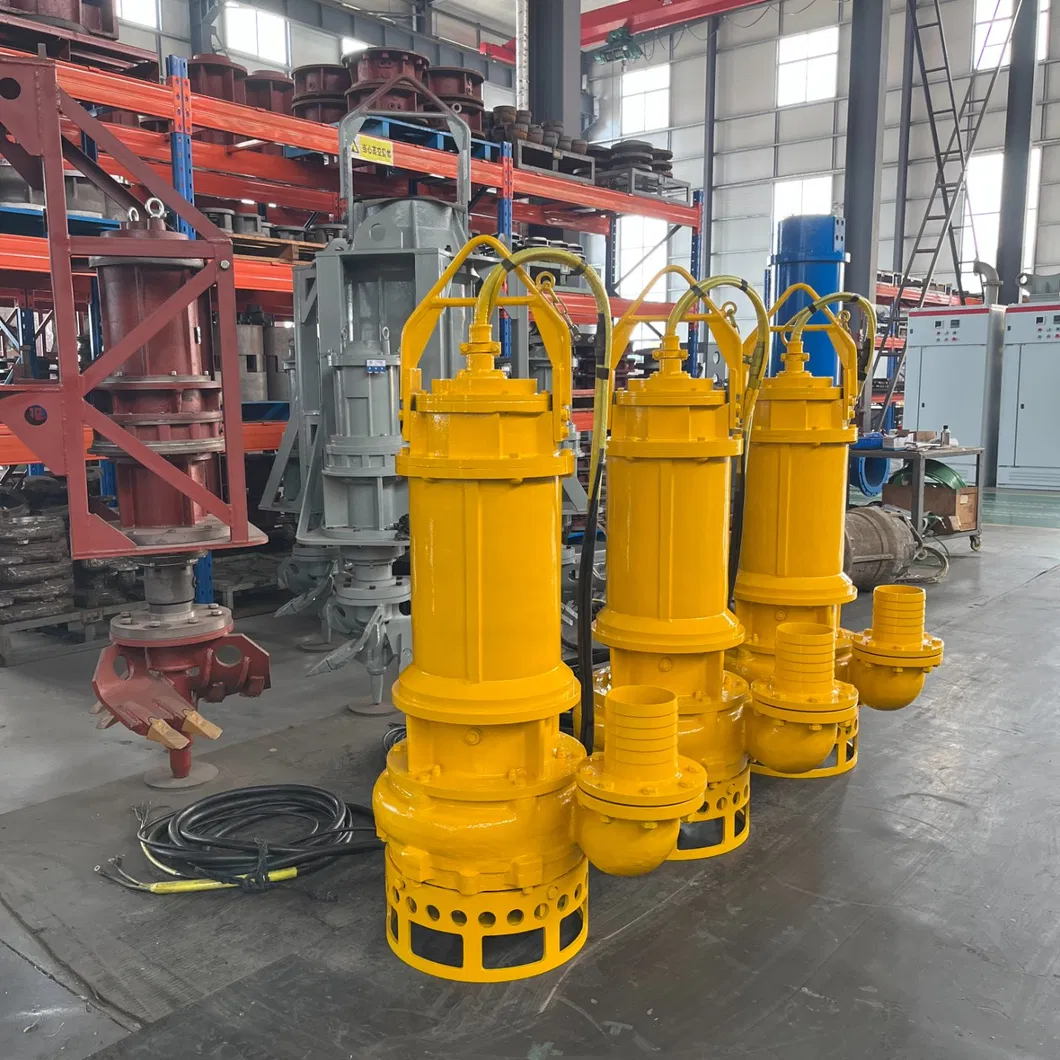

Pumps can be installed with agitators to increase solids absorption. Sets can include 2 or 3 agitators based on requirements.
