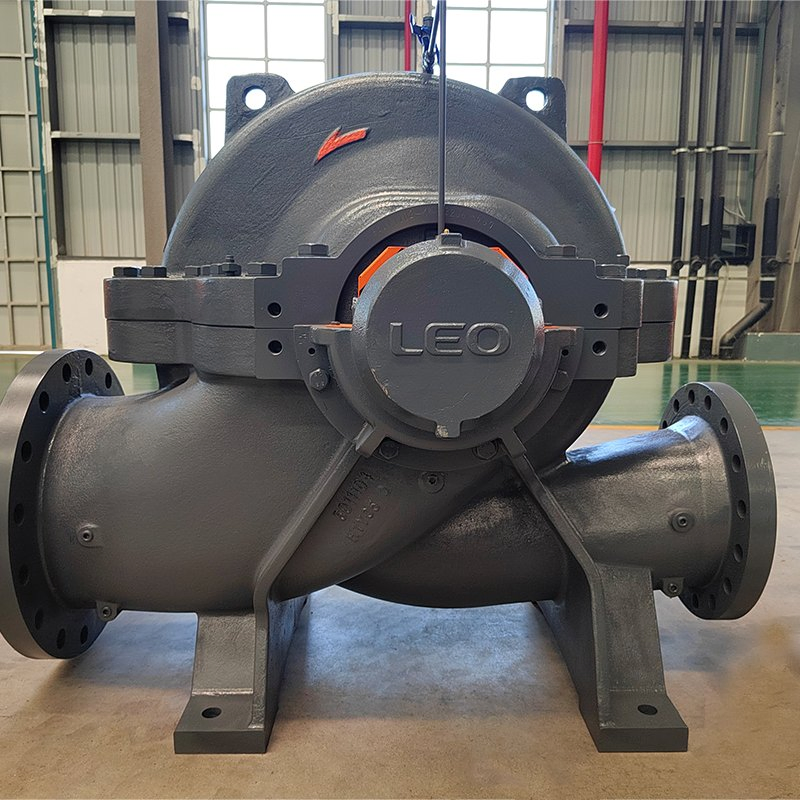

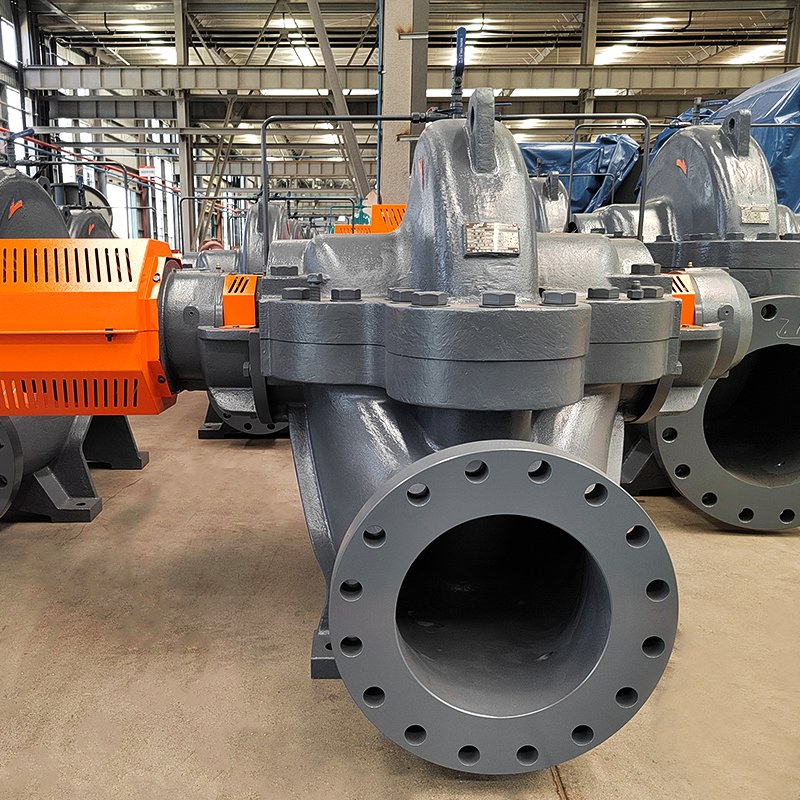

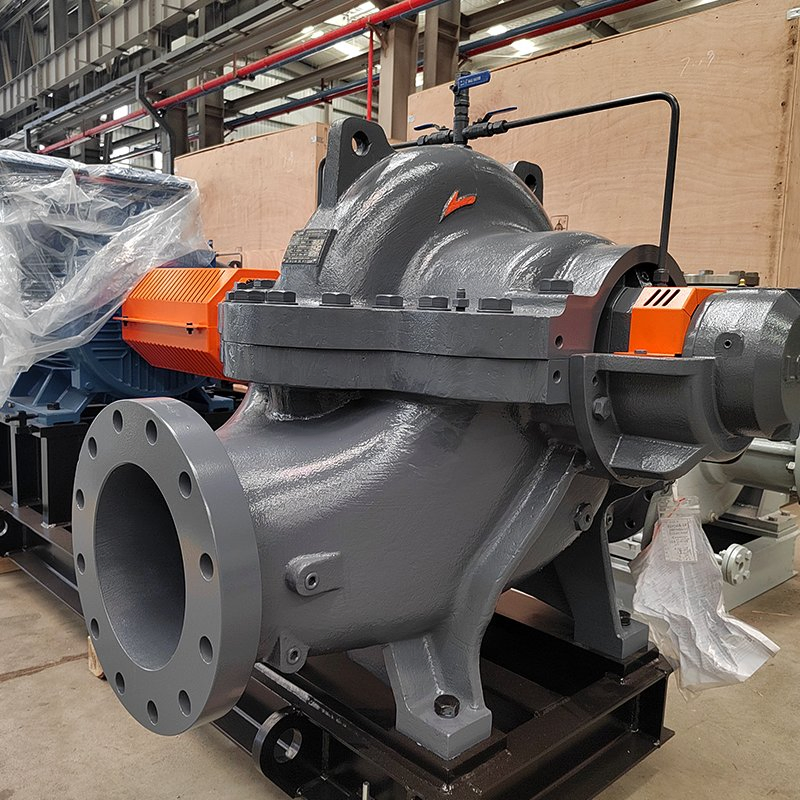

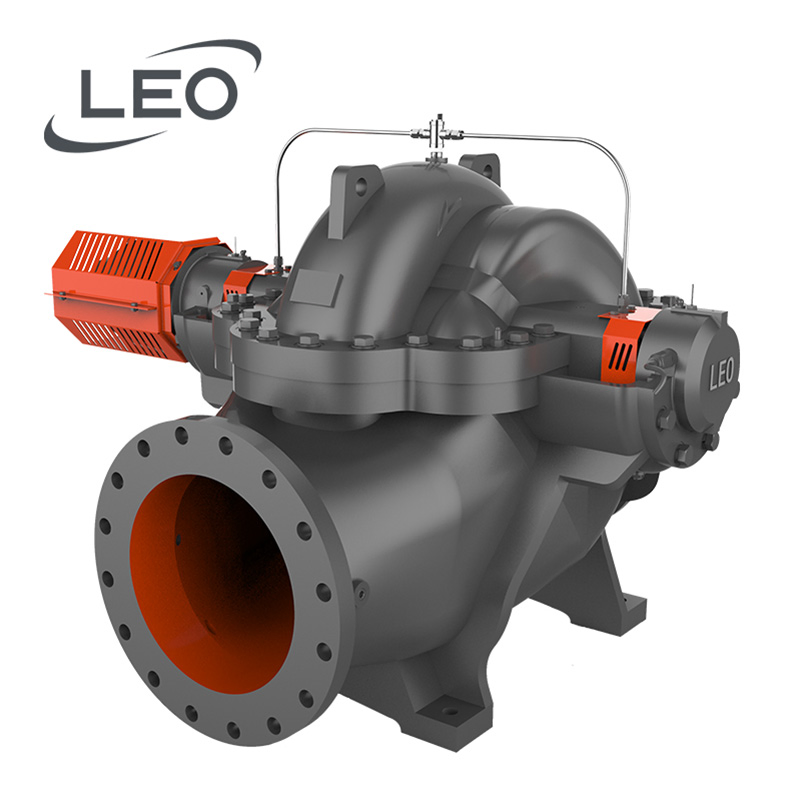

Leo Industrial Electric High Pressure Horizontal Single Stage Double Suction Centrifugal Water Pump for Farmland Irrigation

Customization:	Available
Warranty:	One Year
Max.Head:	>150m

Basic Information

Model NO.

GSX250-770

Max. Capacity

>400 L/min

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

High Pressure Pump

Position of Shaft

Horizontal

Impeller Type

Double-Suction, Closed

Standard Temp

-20-80 Celsius

General Description

The GSX series product is characterized by a broad comprehensive performance curve, sound hydraulic performance, novel structure, high efficiency, high reliability, low net positive suction head, and low maintenance. The design, manufacture, and quality meet GB/T5656 standards for centrifugal pumps (Class II).

Application

GSX series products are mainly used for transporting fresh water or liquids with similar physicochemical properties. They are widely applied in water supply and drainage systems, circulation cooling water systems for steel, petrochemicals, thermal power generation, mining, and other industrial conditions.

Performance Parameters Table

Model	Capacity (m³/h)	Head (m)	Efficiency (%)	Shaft Power (kW)	Speed (rpm)	Inlet/Outlet (mm)
GSX250-770	882	226	76	715	1480	DN300 / DN250
	1260	216	83	894
	1512	205	83	1018

Material & Specifications

Component	Material / Value
Impeller	ZG07Cr19Ni10
Pump Shaft	40Cr
Pump Cover/Body	HT250
Machinery Seal	Imported / Domestic Optional
Motor Power	900 kW (YX450-4)
Protection / Insulation	IP54 / Class F
Rated Voltage	6000V / 50Hz

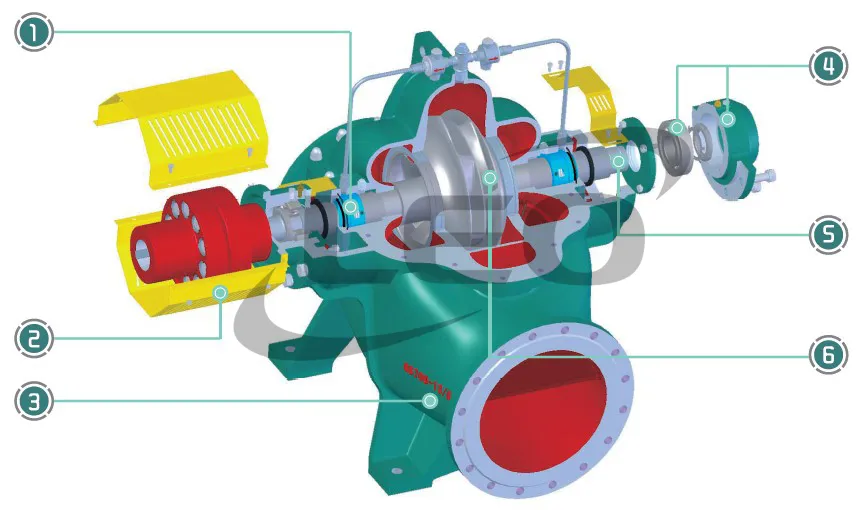

Structural Features

1. Sealing System

Superior mechanical seal for long-term leakage-free operation.
Strong interchangeability with soft packing structures.
Stainless steel shaft sleeve for easy maintenance.

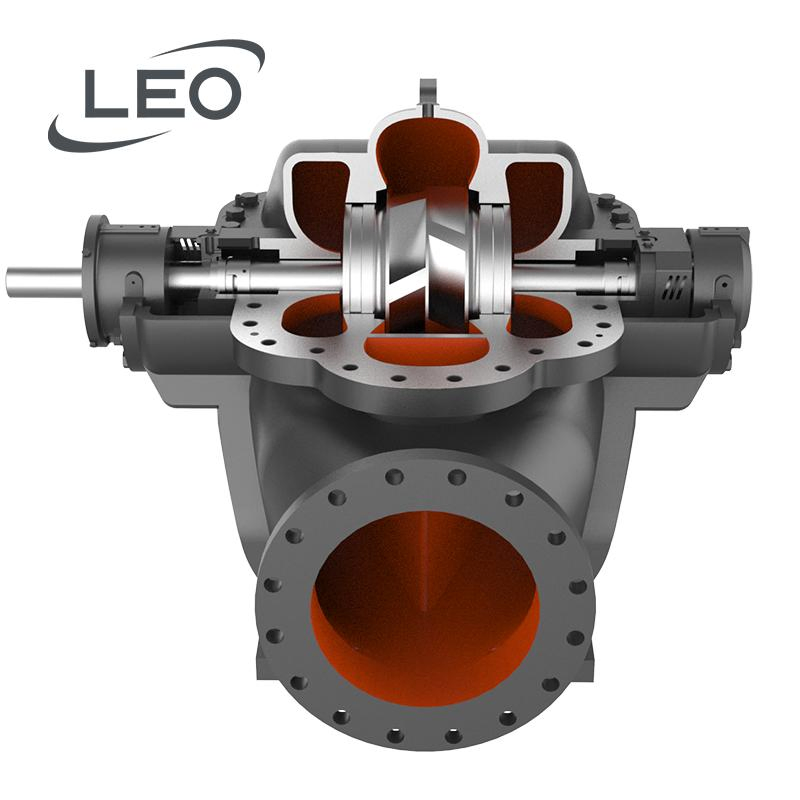

2. Casing & Impeller

Circular pressure chamber design for high efficiency.
Double-volute chamber balances radial force.
Staggered blade design reduces vibration and pulse.

Ordering Instructions

Please provide the following data when placing an order:

Pump mode or working data: Capacity, Head, and NPSH.
Medium properties: Temperature, corrosiveness, and physical characteristics.
Shaft seal preference: Mechanical seal (standard) or soft packing.
Rotation direction: Clockwise (standard) or Counterclockwise.
Motor requirements: Voltage, protection class, and anti-explosion needs.

Product Showcase

Frequently Asked Questions

1. What are the primary applications for the GSX series pumps?

They are designed for transporting fresh water and similar liquids in water supply/drainage systems, steel industry cooling, petrochemical plants, and thermal power generation.

2. What high-performance materials are used in construction?

The standard model utilizes ZG07Cr19Ni10 for the impeller, 40Cr for the shaft, and HT250 for the pump body to ensure durability and efficiency.

3. Does the GSX pump support reverse rotation?

The pump features a bold shaft design that allows for short-time inversion and uses a common shaft suitable for both forward and reverse rotations.

4. How is the vibration minimized in this pump model?

Vibration is minimized through a double-volute chamber that balances radial forces and a staggered blade design that ensures a smooth flow state and low pulse.

5. What sealing options are available for the shaft?

Users can choose between non-asbestos soft packing, mechanical seals (supplied as standard), and injection-type soft packing based on their specific needs.

6. Can this pump handle high-temperature liquids?

Yes, for temperatures exceeding 80ºC, the pump can be configured with a water-cooling structure for the bearings and specialized casing materials like QT500-7.
