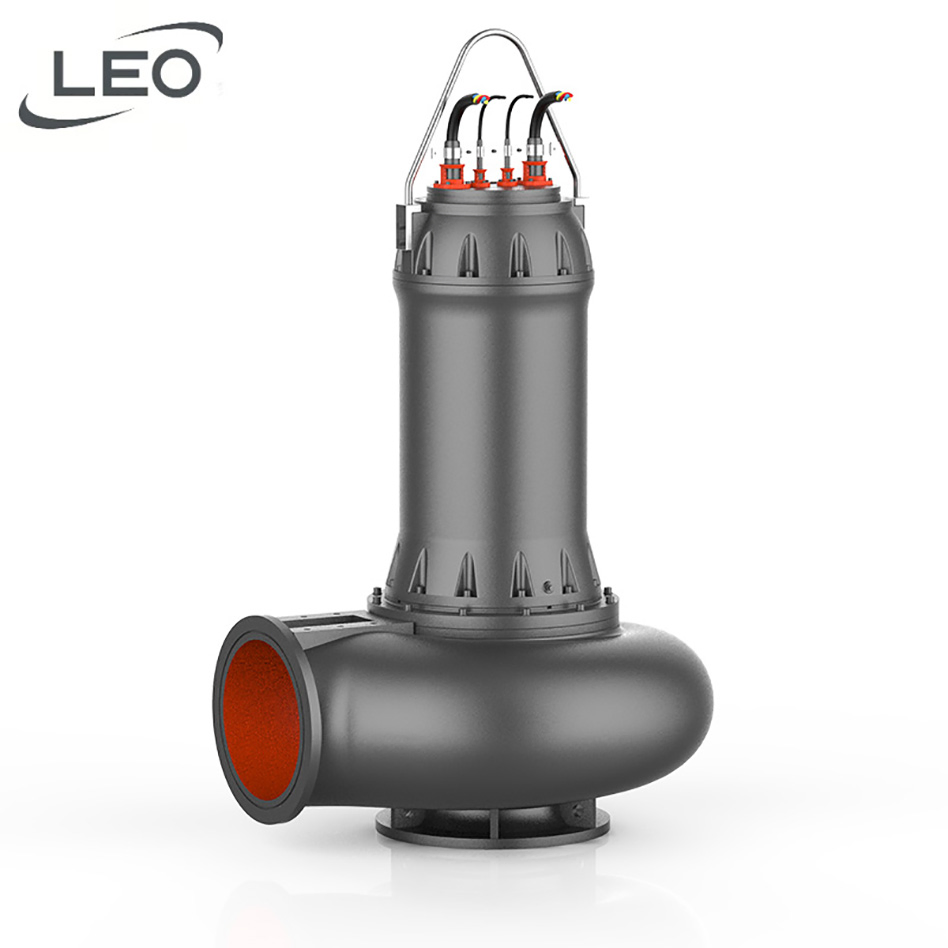

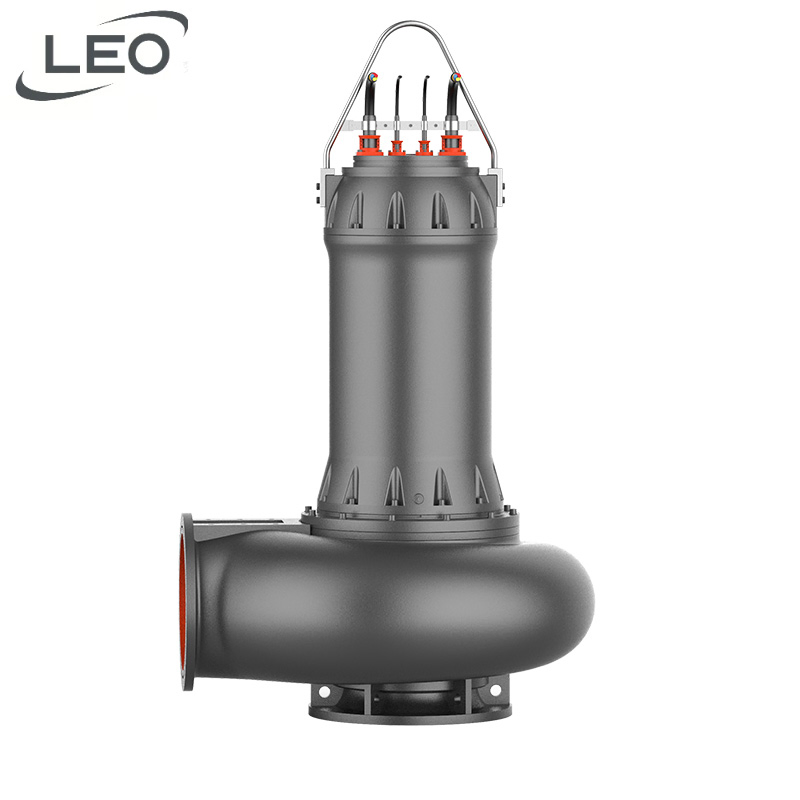

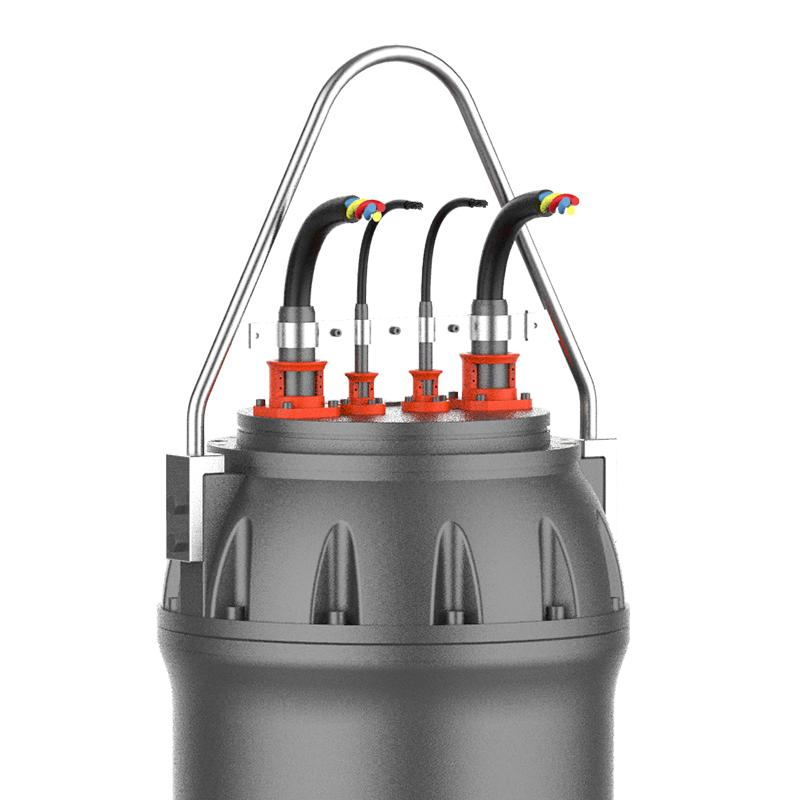

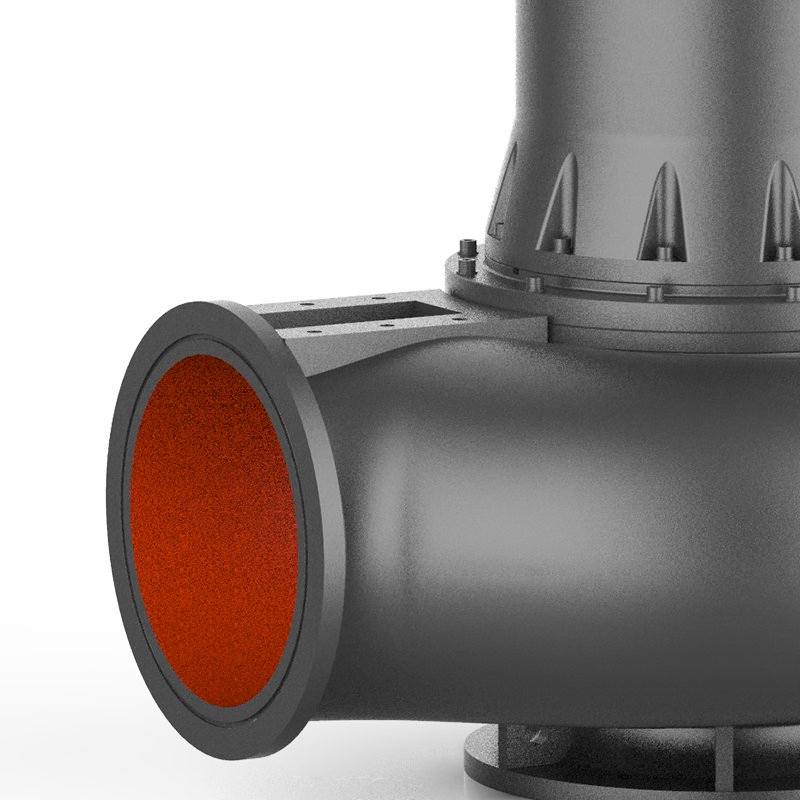

Leo Non-Clogging Industrial Electric Vertical Submersible Sewage Water Pump for Wastewater Drainage

1 / 5

Leo Non-Clogging Industrial Electric Vertical Submersible Sewage Water Pump for Wastewater Drainage

Customization:	Available
Warranty:	One Year
Max.Head:	30-50m

Send Inquiry

Product Description

📊Basic Information

Model NO.

150WQ200-30-30

Max. Capacity

>400 L/min

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Power

Electric

Start Up

Electric Pump

Application

Submersible Pump, Sewage Pump

Media

Sewage Pumps

Theory

Centrifugal Pump

Rated Voltage

380V, 660V, 3kv, 6kv, 10kv etc

Frequency

50Hz Three-Phase AC

Medium Temperature

Below 42 Celsius

pH Value

4-10

HS Code

8413709990

Origin

China

📦Packaging & Delivery

Package Size

1455.00cm * 560.00cm * 450.00cm

Gross Weight

450.000kg

Transport Package

Export Plywood Case

📝General Information

This series features many obvious advantages such as compact structure, no overload, high efficiency, and energy saving. It offers high reliability, high stability, anti-winding, and no clogging. With automatic coupling, automatic protection, and control, it performs unique functions in transporting various kinds of sewage or insoluble solid-phase mixed liquids containing solid particles and sediment.

The design, manufacturing, and quality comply with GB/T24674 "Waste submersible motor-pumps" standards, CJ/T472 "Submersible sewage pump" standards, and efficiency indexes reaching GB32031 standards for energy efficiency grades.

🏗️Application Fields

Mainly used to transport various types of sewage, wastewater, rainwater, or other insoluble solid phase mixed liquids containing solid particles, sediment, and fiber. Widely applied in:

Urban sewage treatment plant drainage systems
Factory and commercial heavily polluted wastewater discharge
Residential area and civil air defense system drainage
Hospital and hotel sewage drainage
Hydropower station auxiliary machinery drainage
Municipal engineering and construction site drainage
Exploration and mining supporting equipment

⚙️Performance Parameters

Model	Capacity (m³/h)	Head (m)	Efficiency (%)	Shaft Power (kW)	Speed (rpm)
150WQ200-30-30	120	33	65	16.6	1450
	200	30	75	21.8
	260	26	71	25.95

🛠️Technical Attributes

Category	Component	Material / Value
Materials	Impeller / Pump Cover	HT250
	Pump Shaft	2Cr13
	Seal Ring	ZG07Cr19Ni10
	Volute / Suction Bell	HT250
	Guide Rail / Sling Chain	06Cr19Ni10
	Cable	Special Submersible (10m)
Conditions	Medium Temperature	≤42ºC
	Medium PH Value	4~10
	Medium Density	≤1200kg/m³
	Solids Volume Ratio	≤5%
Motor Specs	Protection / Insulation	IP68 / H-class
	Motor Power	30KW (4P)
	Rated Voltage / Current	380V / 58.1A
	Efficiency	92.3%
	Cooling	Water/Air Contact

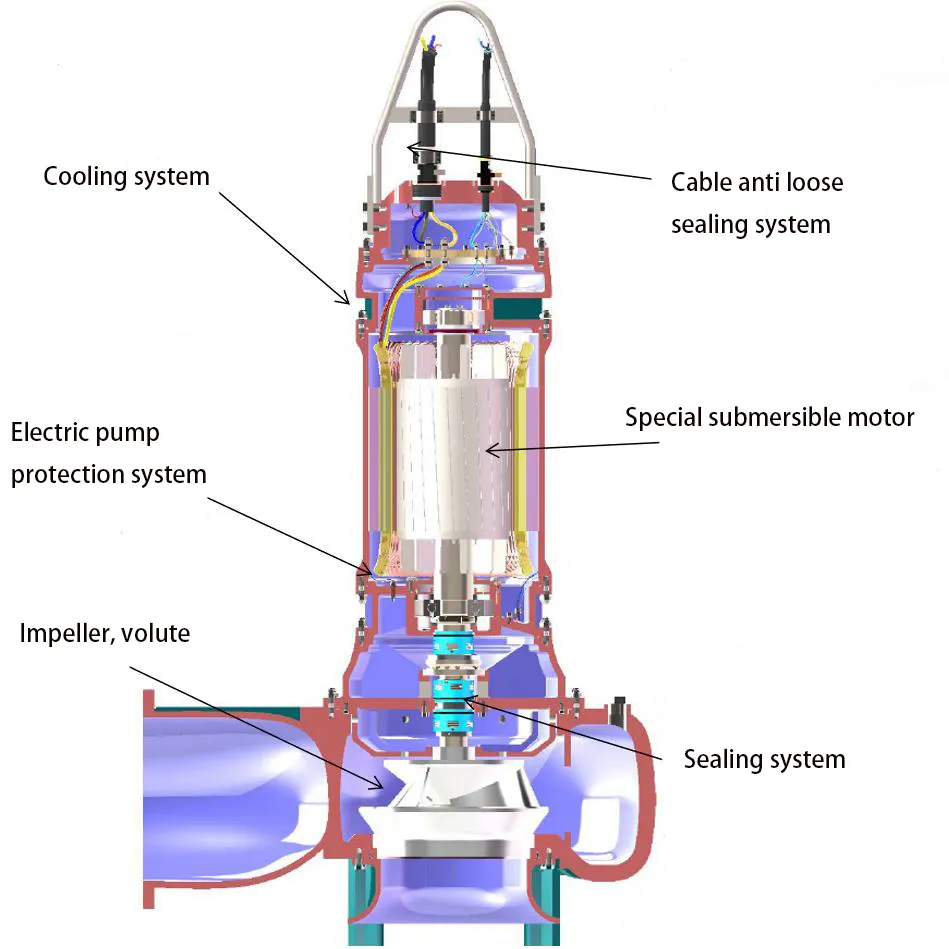

💎Structural Features

1. Special Submersible Motor

H-class insulation (180ºC), IP68 protection. Low energy consumption and high stability. Wiring chamber is sealed and separated from the stator/rotor for double insurance.

2. Protection System

Built-in warning sensors for leakage in wiring chamber, motor cavity, and oil chamber. Comprehensive monitoring of temperature rise in bearings and coils.

3. Optimized Impeller & Volute

CFD simulation design, non-blocking and non-overload. Wide passages allow solids to pass easily without entanglement. Balanced for minimal vibration.

4. Anti-Loose Cable Sealing

Special structure eliminates water/electricity leakage caused by artificial pulling or cable aging, reducing failure probabilities significantly.

5. Advanced Cooling & Sealing

Enhanced heat dissipation via direct contact. Patented double sealed chamber with three sets of mechanical seals ensures highly reliable operation.

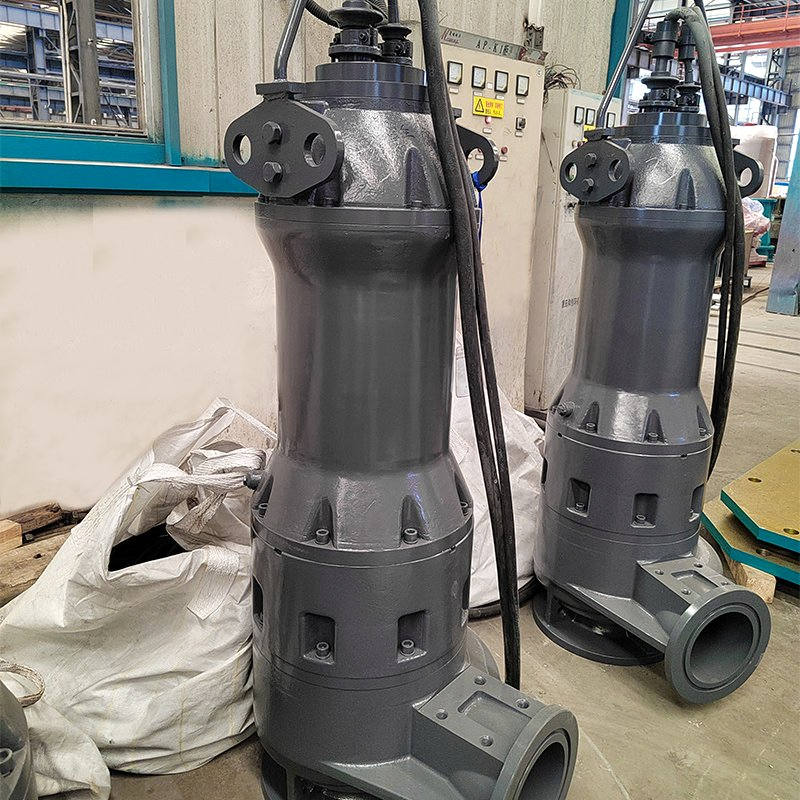

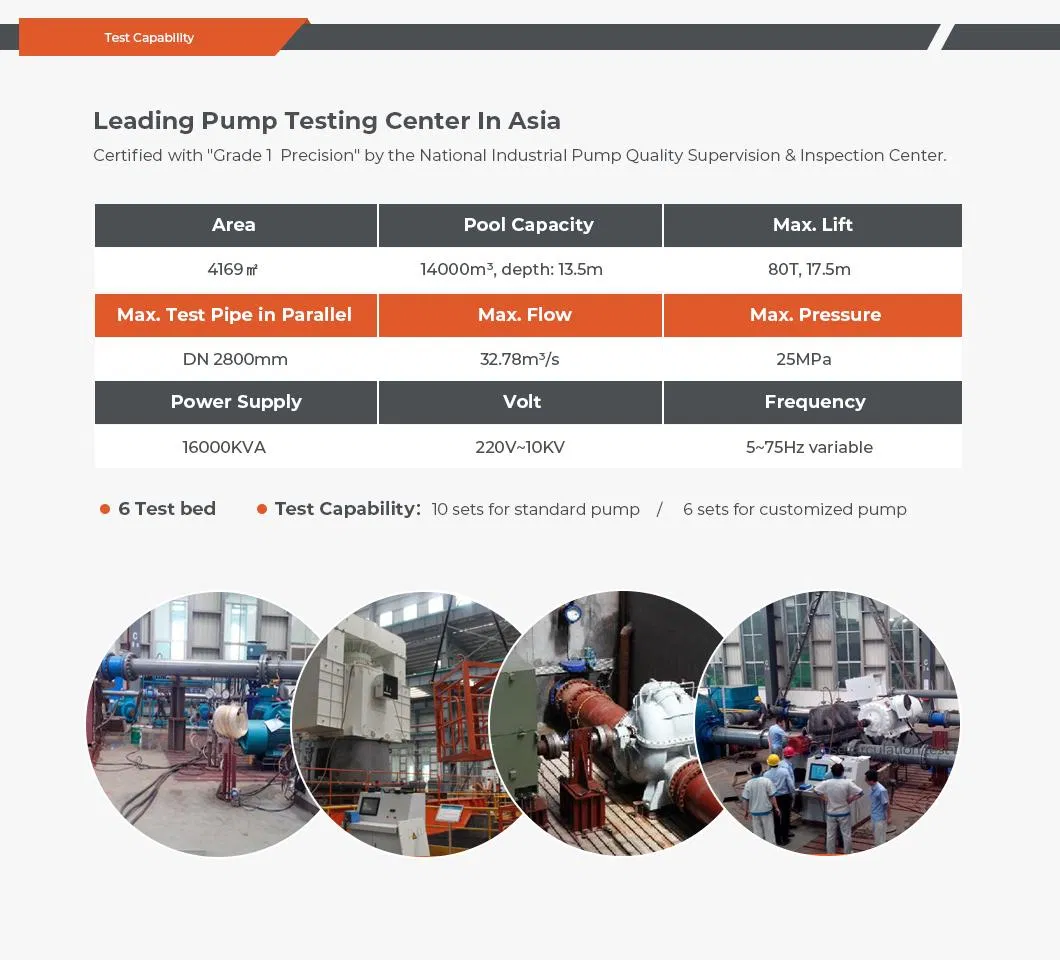

📸Manufacturing & Quality

❓Frequently Asked Questions

Q1: What is the primary use for the 150WQ series pump?

A: It is primarily designed for transporting sewage, wastewater, rainwater, and liquids containing solid particles or fibers in municipal, industrial, and construction settings.

Q2: What materials are used in the pump's construction?

A: The main body and impeller are typically made of Cast Iron (HT250), the shaft is 2Cr13, and critical components like the seal ring are made of high-grade stainless steel.

Q3: How does the motor handle high temperatures?

A: The motor uses H-class insulation, allowing it to withstand temperatures up to 180ºC, with an IP68 protection rating for complete submersibility.

Q4: Does the pump have any built-in safety features?

A: Yes, it includes built-in sensors for water leakage in various chambers and temperature monitoring for the bearings and motor coils.

Q5: Can it handle solids without clogging?

A: Yes, the dual-flow channel impeller and wide volute passage are designed specifically to allow solids and fibers to pass through without clogging or entanglement.

Q6: What are the installation requirements for this pump?

A: It supports standard coupling installation and can operate in mediums with a pH between 4 and 10 and temperatures below 42°C.
