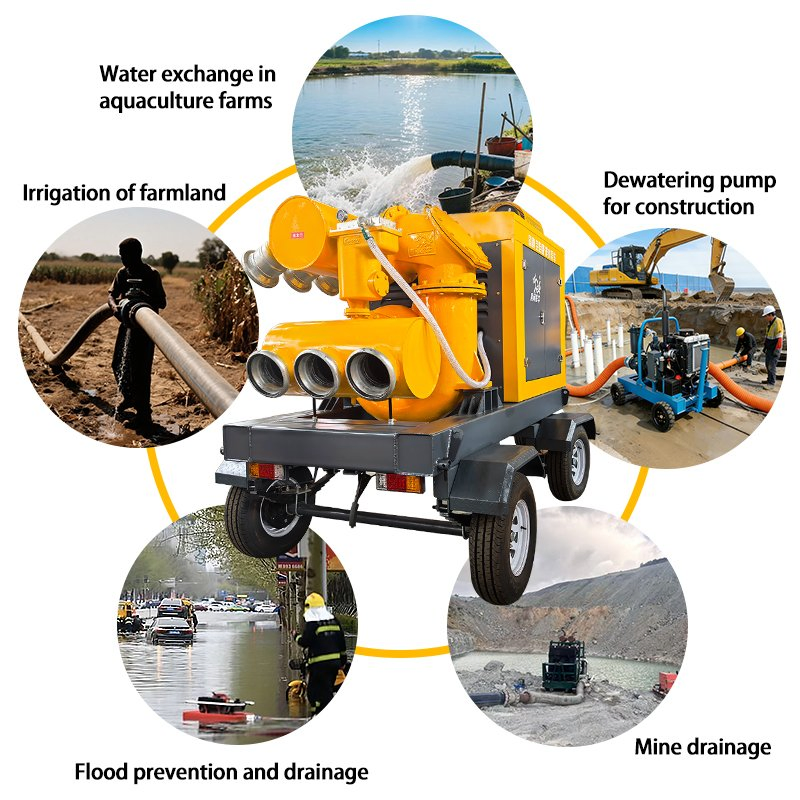

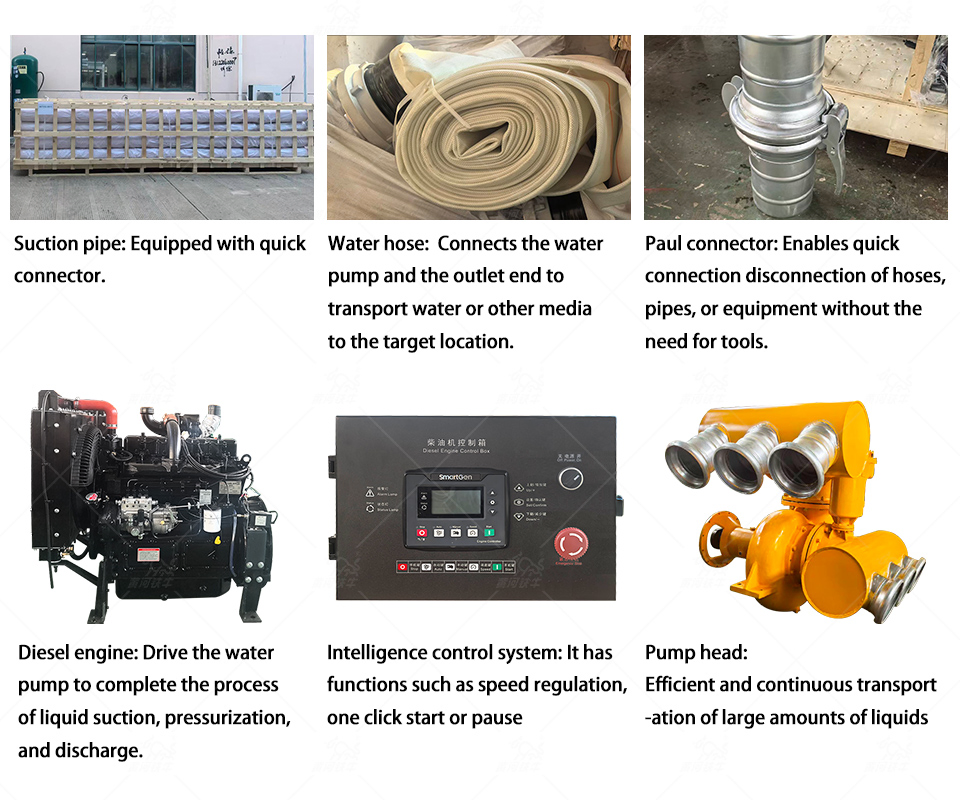

Features: Equipped with a high-capacity vacuum pump, supports dry water intake, and does not require pre-watering.
Advantage: Automatically removes air from the suction pipe, supports rapid start-up in dry environments, and handles intermittent pumping situations.
Benefit: Save time and manpower. Instant use significantly reduces emergency deployment time.

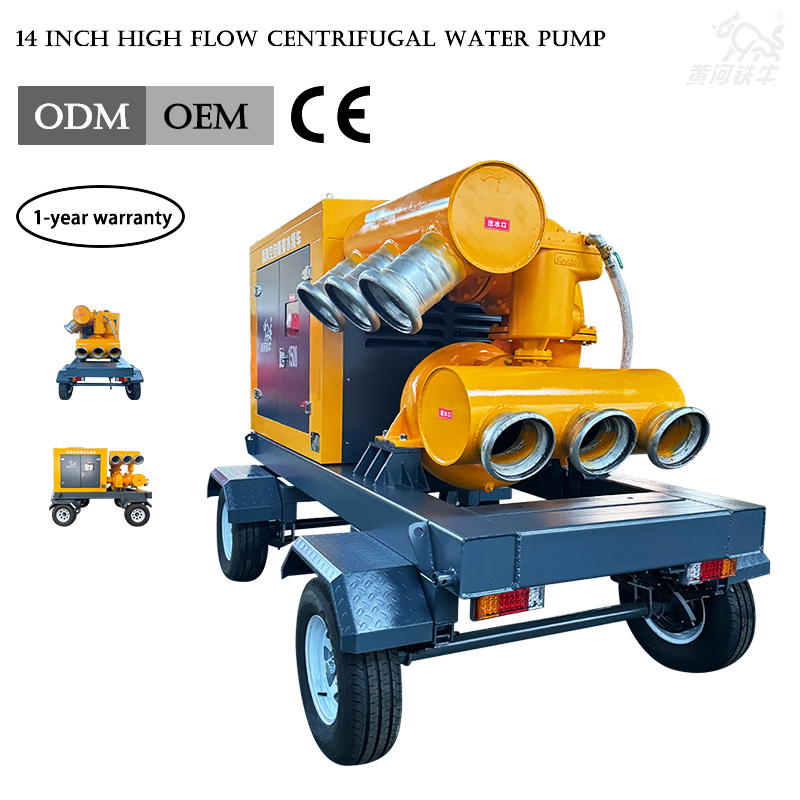

Feature: 14 inch (350mm) suction/drain port, compatible with high horsepower diesel engines.
Advantage: Hourly drainage capacity over 2600 cubic meters to handle massive water accumulation.
Benefit: Rapid drainage reduces disaster risk in municipal flood control or mine drainage operations.
Feature: Vacuum assisted technology enables vertical suction up to 9 meters.
Advantage: Far exceeds ordinary self-priming pump limits; absorbs water without a bottom valve.
Benefit: Flexible deployment for complex terrains like deep pits and river dredging.
| Model | Flow (m³/h) | Lift (m) | Suction (m) | Speed (RPM) | Power (kW) |
|---|---|---|---|---|---|
| M14-20 | 1200 | 20 | 8.5 | 1450 | 90 |
| M14-16 | 1080 | 16 | 8.5 | 1450 | 75 |
| M14-32 | 1200 | 32 | 8.5 | 1450 | 160 |
| M14-28 | 1120 | 28 | 8.5 | 1450 | 132 |
| M14-24 | 1040 | 24 | 8.5 | 1450 | 110 |
| M14-50 | 1200 | 50 | 8.5 | 1450 | 250 |
| M14-44 | 1120 | 44 | 8.5 | 1450 | 220 |
| M14-38 | 1040 | 38 | 8.5 | 1450 | 200 |
| M14-31 | 905 | 31 | 8.5 | 1450 | 160 |
Note: We provide various configurations. The above data is for partial reference. Contact us for custom specifications.

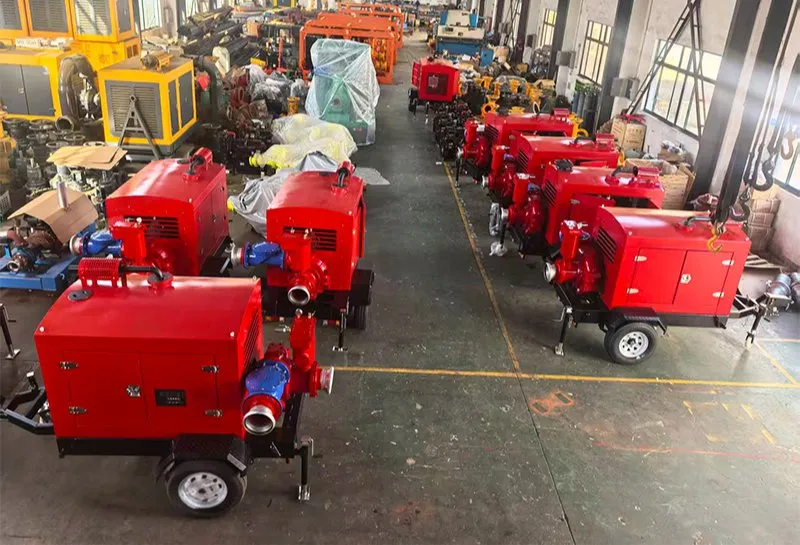

Our company has a history of 29 years. As a professional manufacturer, we have extensive sales experience and a strong reputation, serving many loyal partners. Our main products include flood control mobile pumps, marine seawater centrifugal pumps, farmland irrigation pumps, and mine flushing pumps. We have a complete team capable of selection, design, and providing high-quality solutions worldwide.
