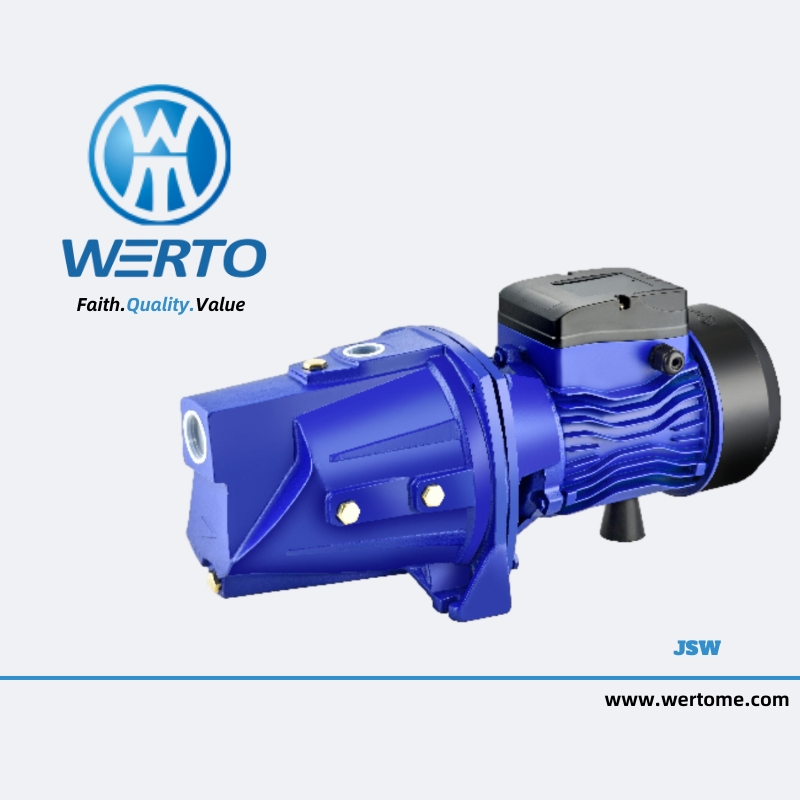

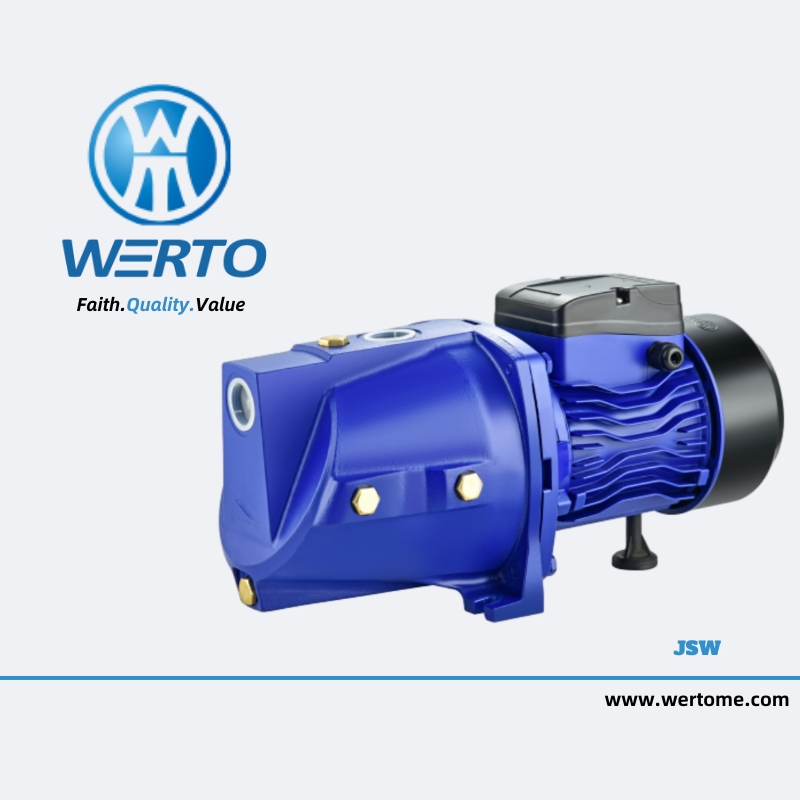

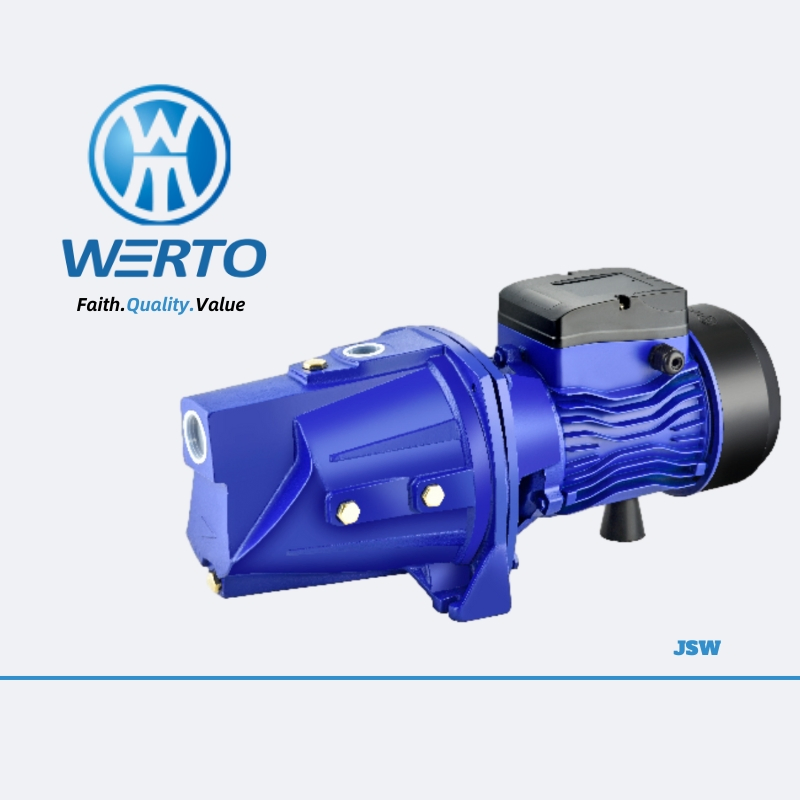

Jsw Series High-Efficiency Self-Priming Electric Water Pump Jet Pump for Irrigation System

1 / 3

Jsw Series High-Efficiency Self-Priming Electric Water Pump Jet Pump for Irrigation System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

JSW

Max.Head

30-50m

Max.Capacity

50-100 L/min

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Power

Electric

Type

Jet Pump

Industry

Domestic Use

Theory

Jet Pump

Specification

0.75KW/1HP

HS Code

841370999

📦

Packaging & Delivery

Package Size

445.00cm * 205.00cm * 230.00cm

Package Gross Weight

14.000kg

📝

Product Description

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The self-priming JET pumps are designed to pump water even in cases where air is present. As a result of their reliability and ease of use, they are recommended for domestic applications such as water distribution with pressure sets, and garden irrigation.

⚙️

Motor Features

Insulation Class B
Protection IP44
Thermal protector
Continuous service S1
Two-pole induction motor
Single-phase 220V/50Hz, 60Hz on demand
Three-phase 380V/50Hz, 60Hz on demand

🌡️

Operating Conditions

Suction lift up to 8m
Liquid temperature up to 60°C
Ambient temperature up to 40°C

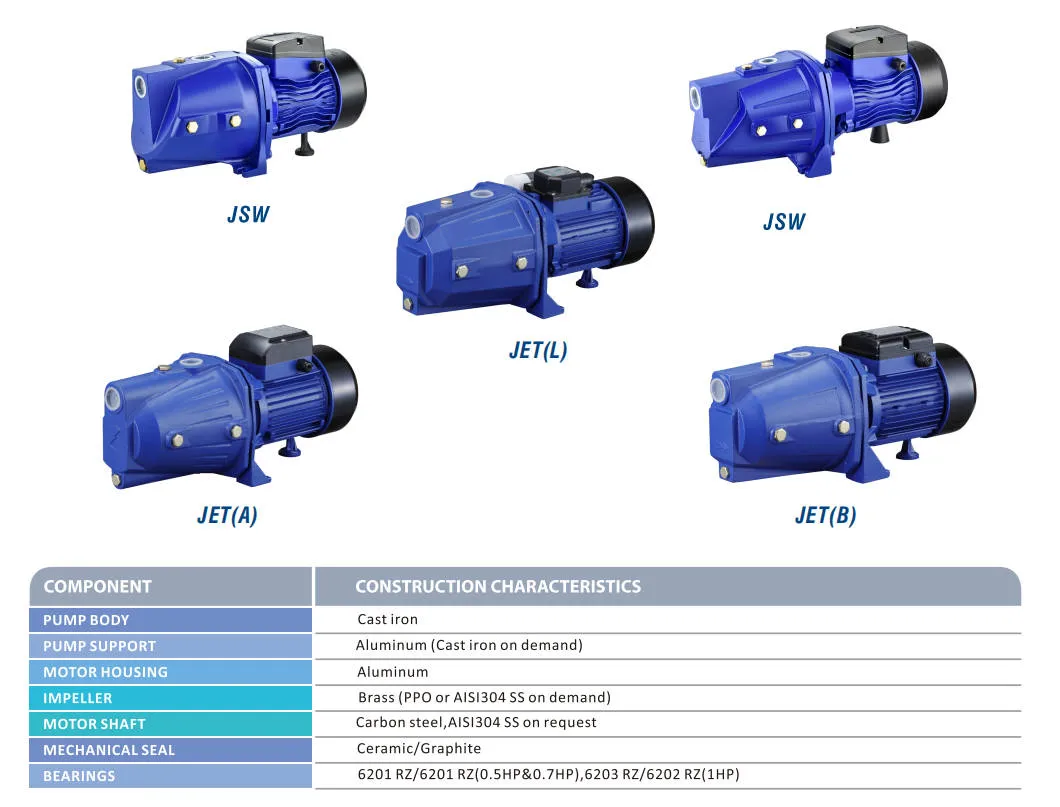

COMPONENT	CONSTRUCTION CHARACTERISTICS
PUMP BODY	Cast iron
PUMP SUPPORT	Aluminum (Cast iron on demand)
MOTOR HOUSING	Aluminum
IMPELLER	Brass (PPO or AISI304 SS on demand)
MOTOR SHAFT	Carbon steel, AISI304 SS on request
MECHANICAL SEAL	Ceramic/Graphite
BEARINGS	6201 RZ / 6203 RZ

🌟

Applications & Advantages

🖼️

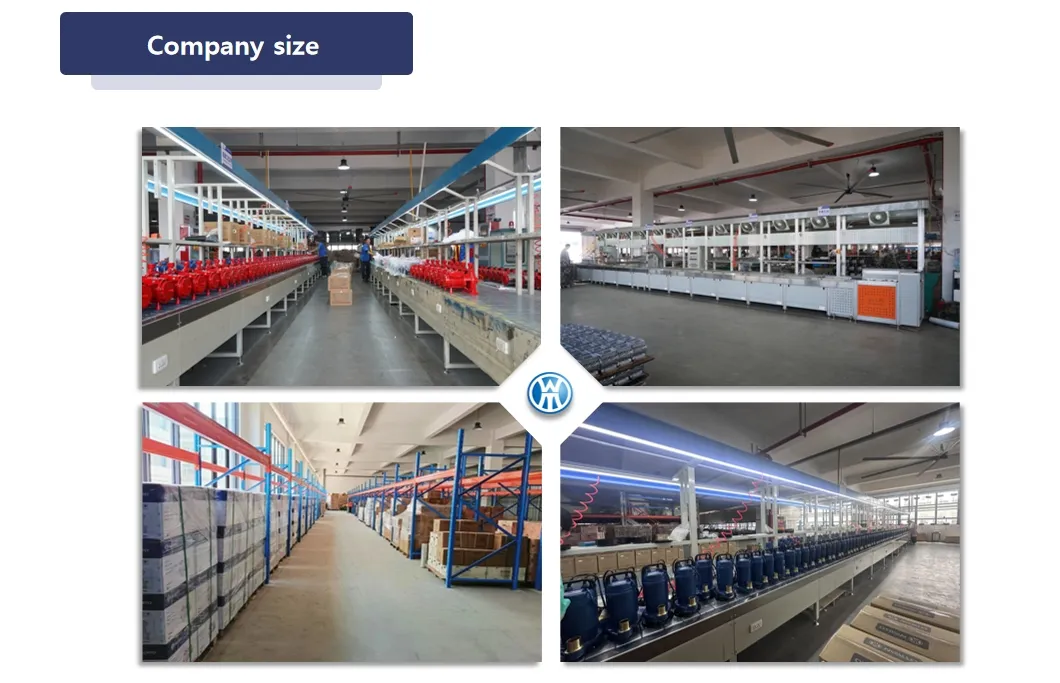

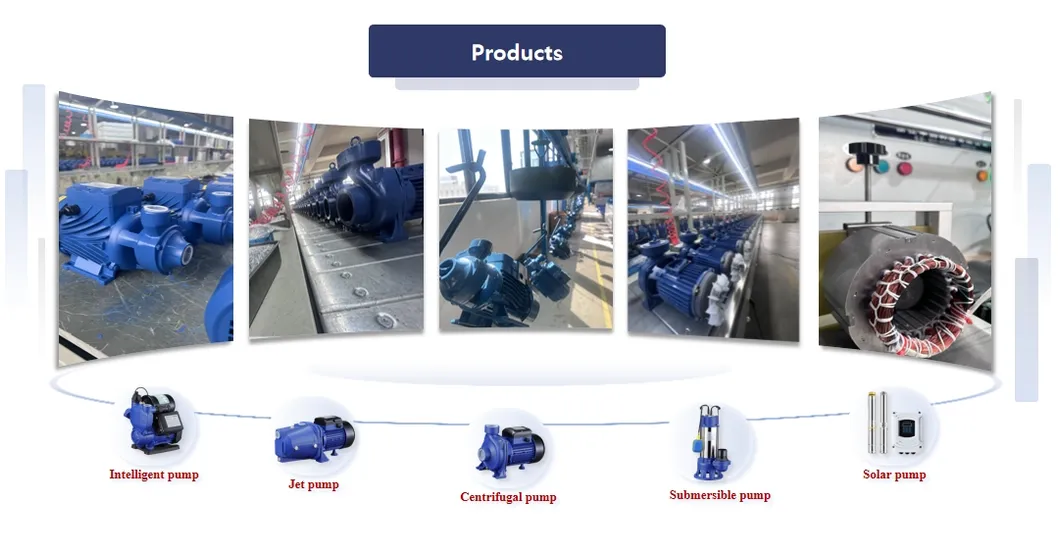

Production & Quality Control

📜

Certifications

Frequently Asked Questions

Are you a manufactory or trading company?

We are a water pump manufactory with 18 years of production experience.

What is your Minimum Order Quantity (MOQ)?

Trial sample orders are accepted.

What are your payment terms?

We accept T/T, L/C, D/A, D/P, and other standard payment methods.

What certificates do you have?

We hold GS, TUV, CE, ROHS, and ISO9001 certifications.

How about the warranty?

We provide a one-year warranty for surface and deep well pumps, and a two-year warranty for circulating pumps.

What is the delivery time?

Usually 25-30 days after receiving the deposit.
