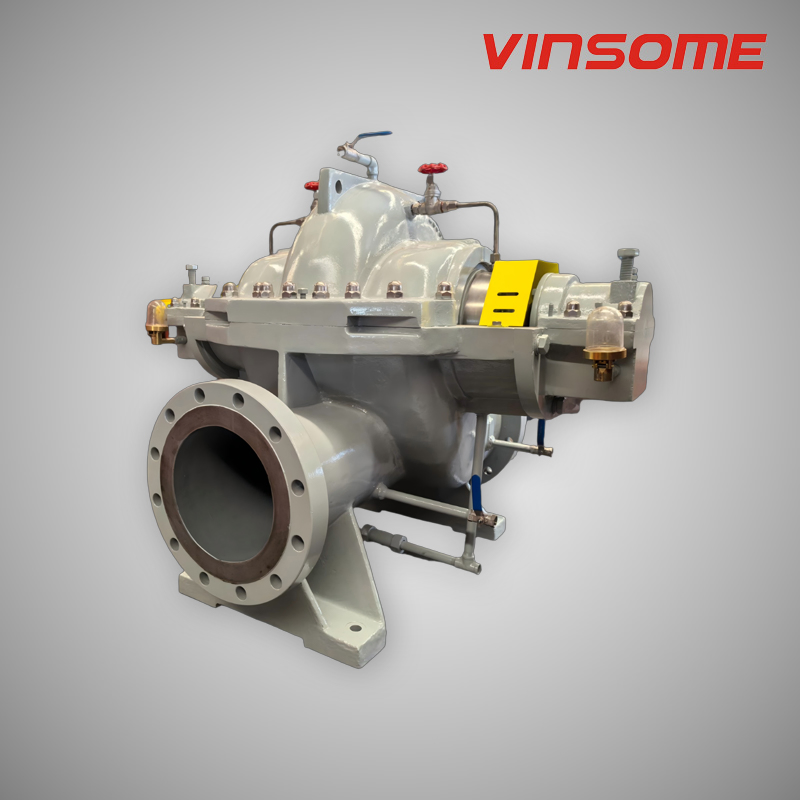

| Model NO. | BB1 |
| Max. Head | ~450m |
| Max. Capacity | ~10000m³/H |
| Driving Type | Motor |
| Impeller Number | Single or Two Stages |
| Working Pressure | Middle Pressure Pump |
| Influent Type | Single or Double Suction |
| Pump Shaft Position | Horizontal |

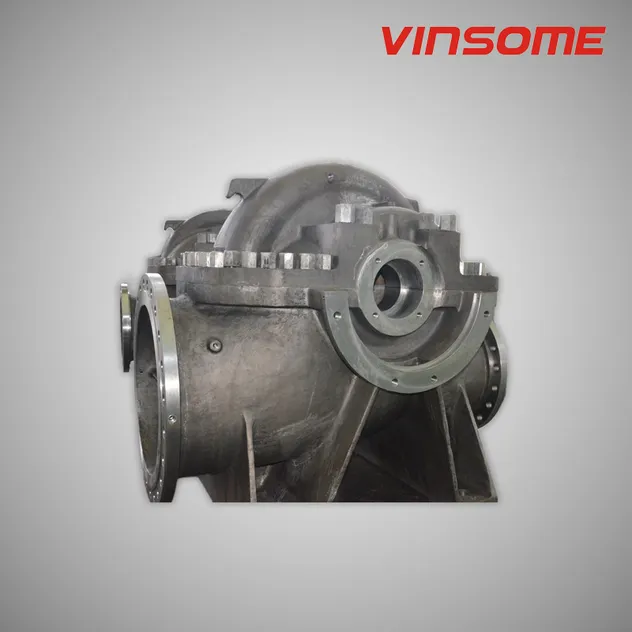

| Pump Casing | Radial Split Casing |
| Usage | Condensate Pump, Circulating Pump, Industrial Water Transfer |
| Temperature Range | -45℃ ~ 450℃ |
| Shaft Sealing | Mechanical Seal |
| Standard | API610 / ISO / ANSI / DIN / JIS |
| Materials | Cast Steel / SS 304 / 316 / Duplex SS |
| Bearing | NSK Heavy Duty Bearing |
| Suction Size | DN150 to DN800 mm |
| Discharge Size | DN80 to DN600 mm |
| Capacity Q | 120 m³/h to 10000 m³/h |
| Head H | 18 m to 450 m |
| Operating Pressure | ~ 5.0 MPa |
| Speed | 50Hz to 60Hz, VFD |
| Features | Wide hydraulic coverage; Low NPSH requirement |
We are a professional provider of overall technical solutions in the fields of fluid machinery and fluid engineering, industrial equipment automation, and frequency converters. Our team includes specialists in fluid engineering, electrical engineering, and electronic engineering.
Pumps, frequency converters, servo drives, PLC, industrial control cabinets, motors, mechanical seals, and on-site engineering solutions (including 3D scanning for reverse molding of replacement parts and equipment debugging).
| Package Gross Weight | 3500.000kg |
| Packaging Type | Standard Export Polywood Box |
