| Model NO. | IH |
| Max. Head | 110m-150m |
| Max. Capacity | 400m3/H |
| Driving Type | Motor |
| Working Pressure | 1.6MPa |
| Position of Pump Shaft | Horizontal |
| Temperature Range | -20℃ to 180℃ |
| Main Material | Stainless Steel (304, 316, 316L) |
| Voltage | 200V - 480V |
| Application | Chemicals, Waste Gas, Wastewater Treatment |

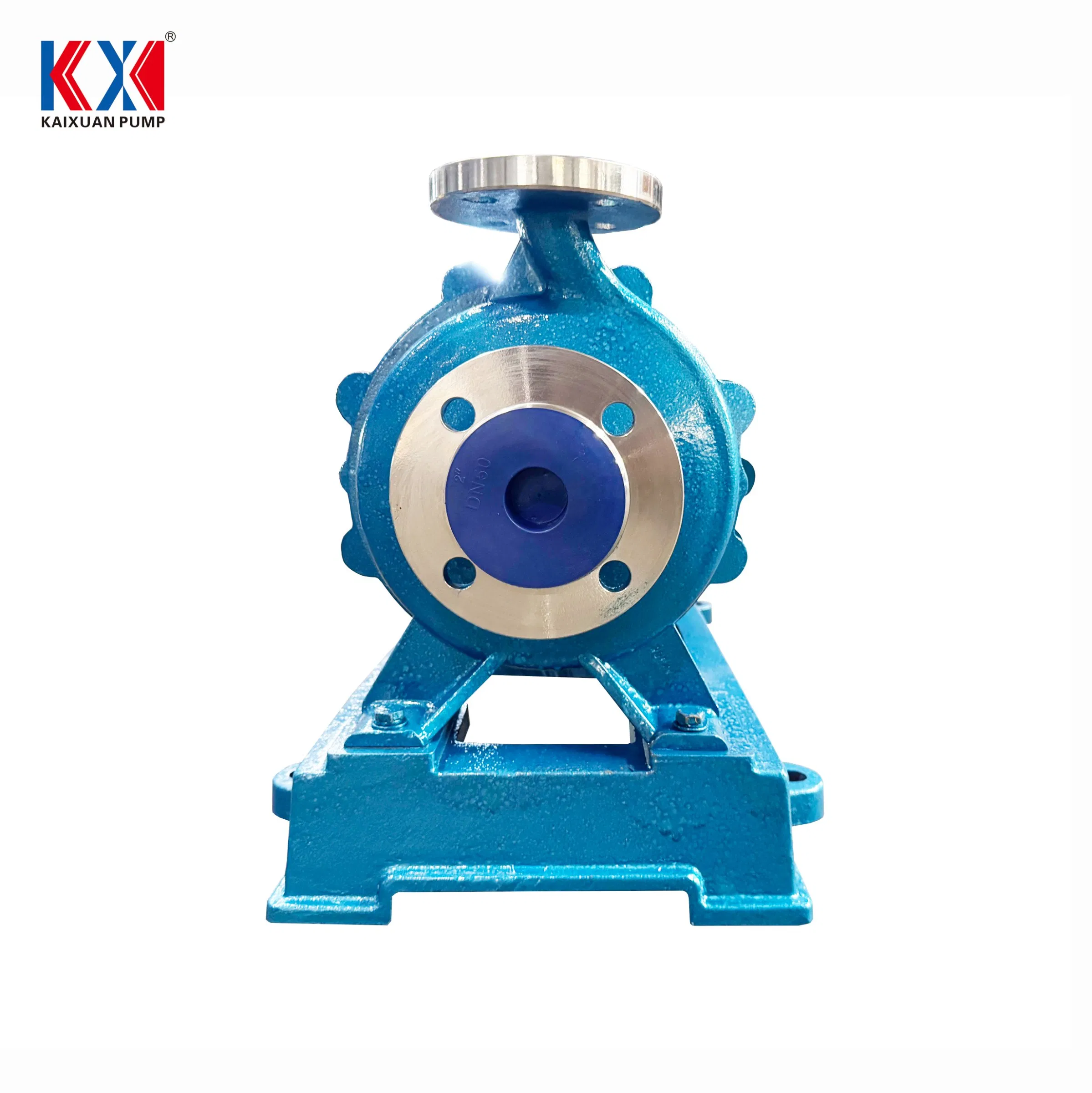

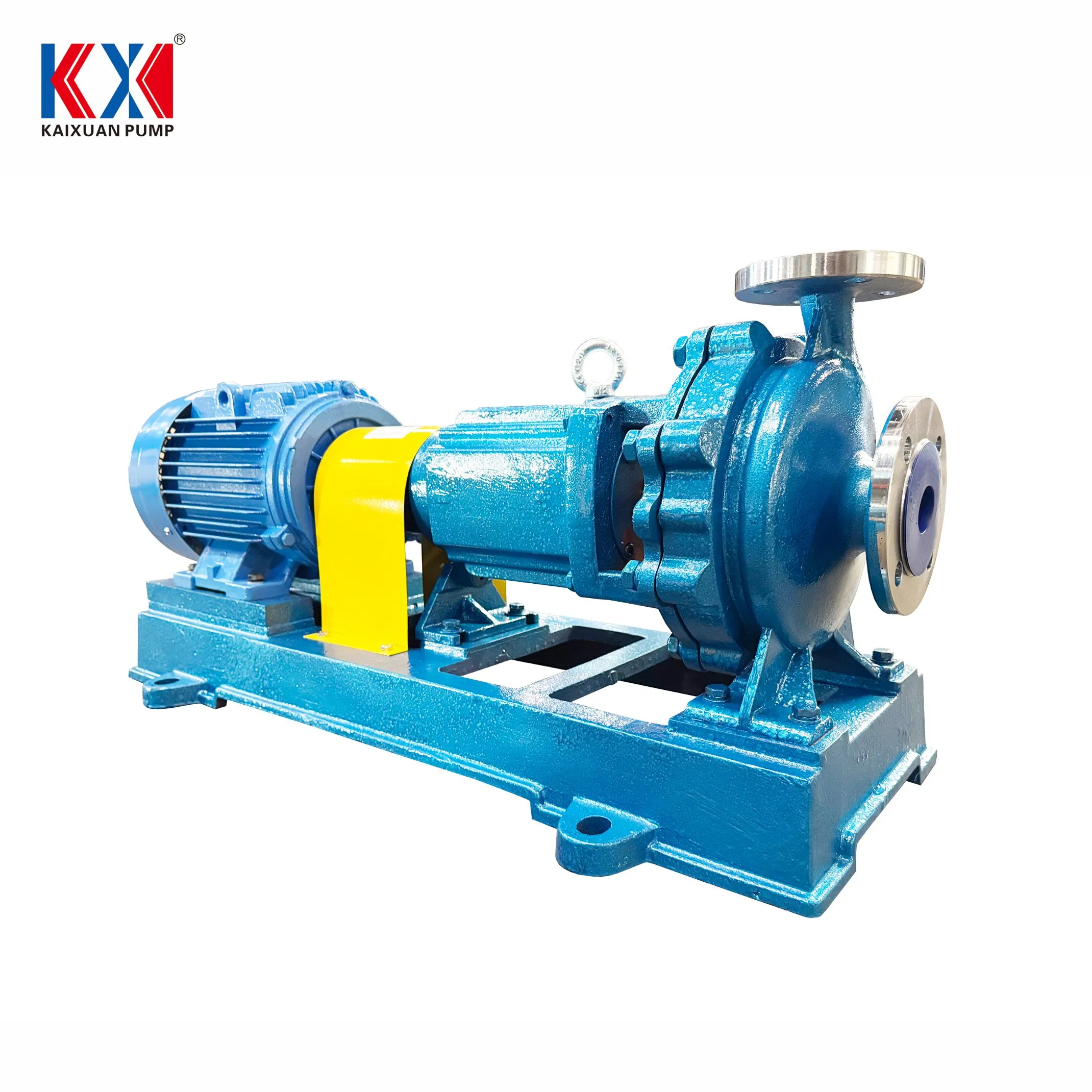

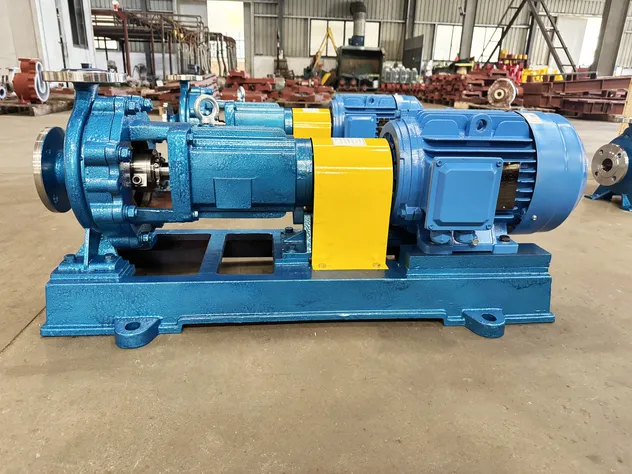

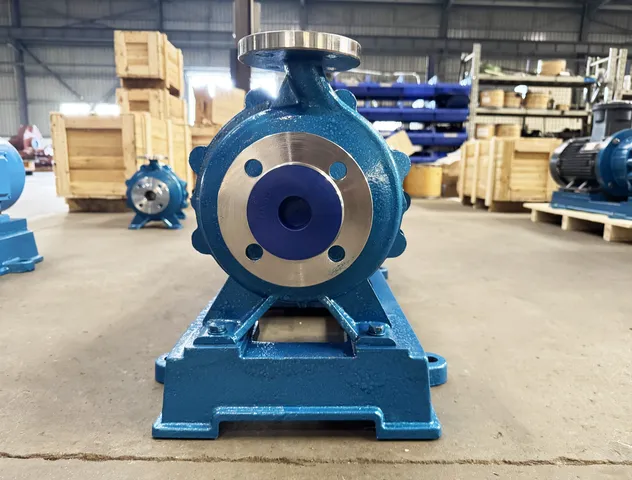

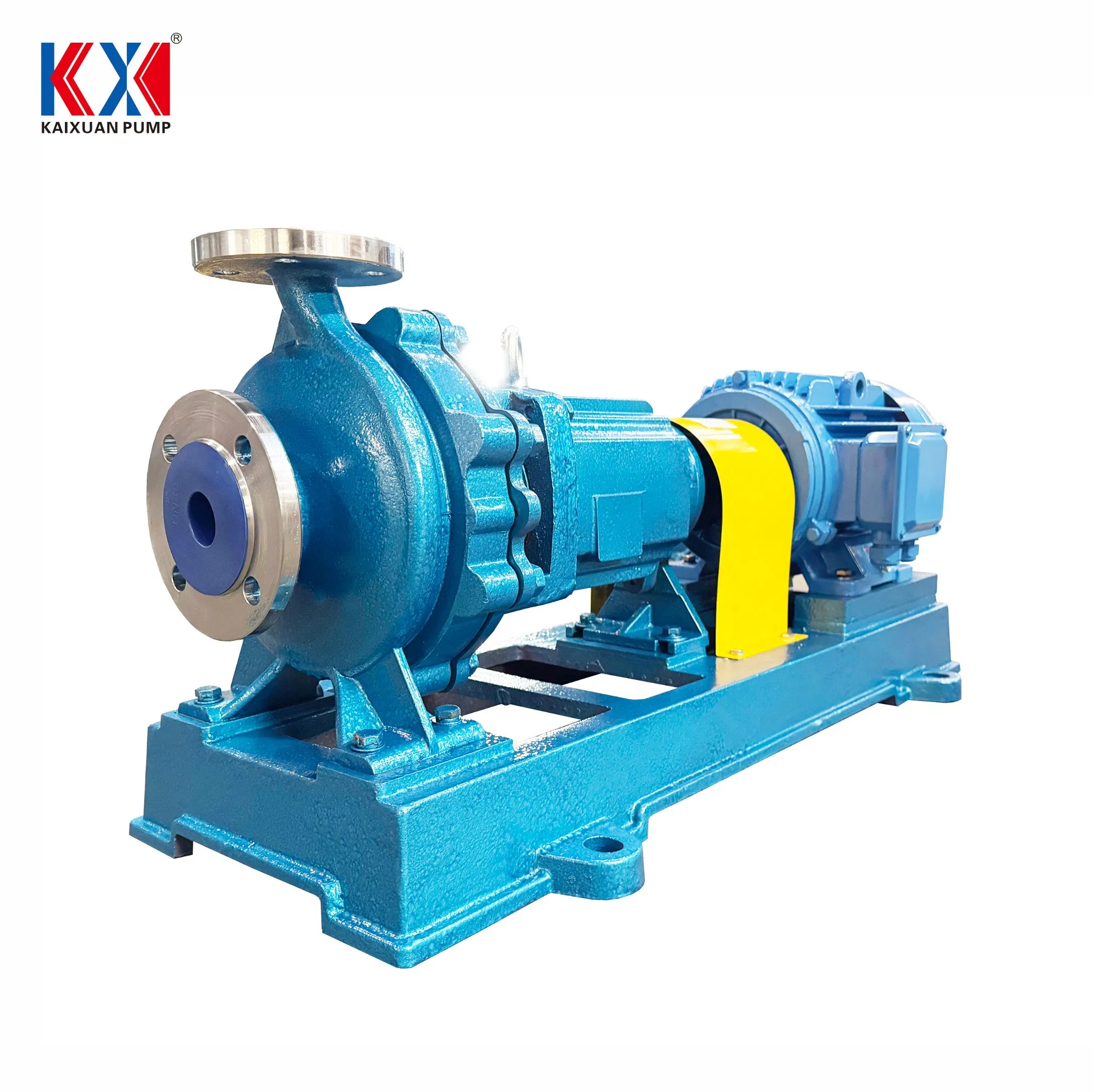

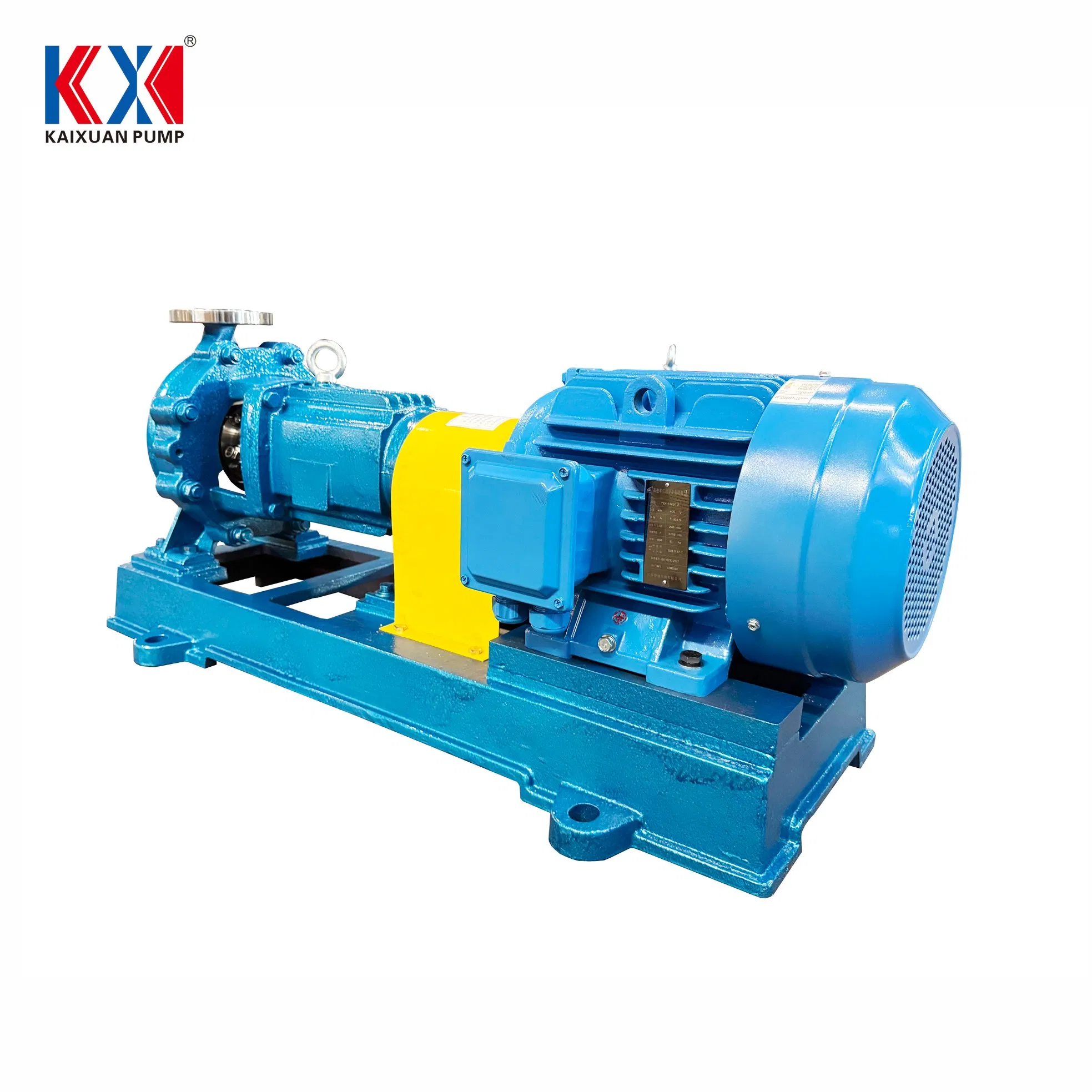

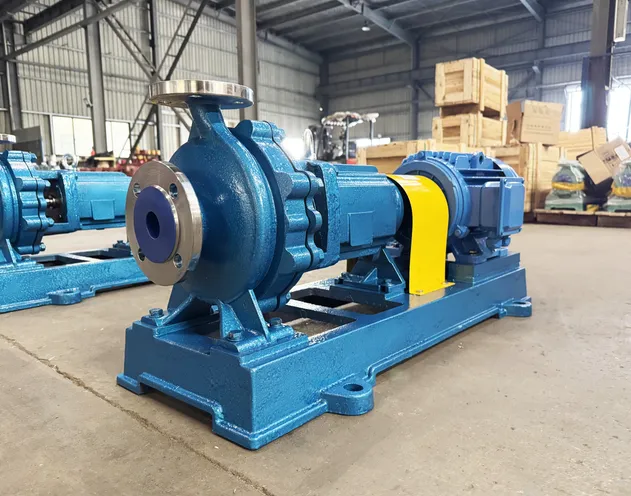

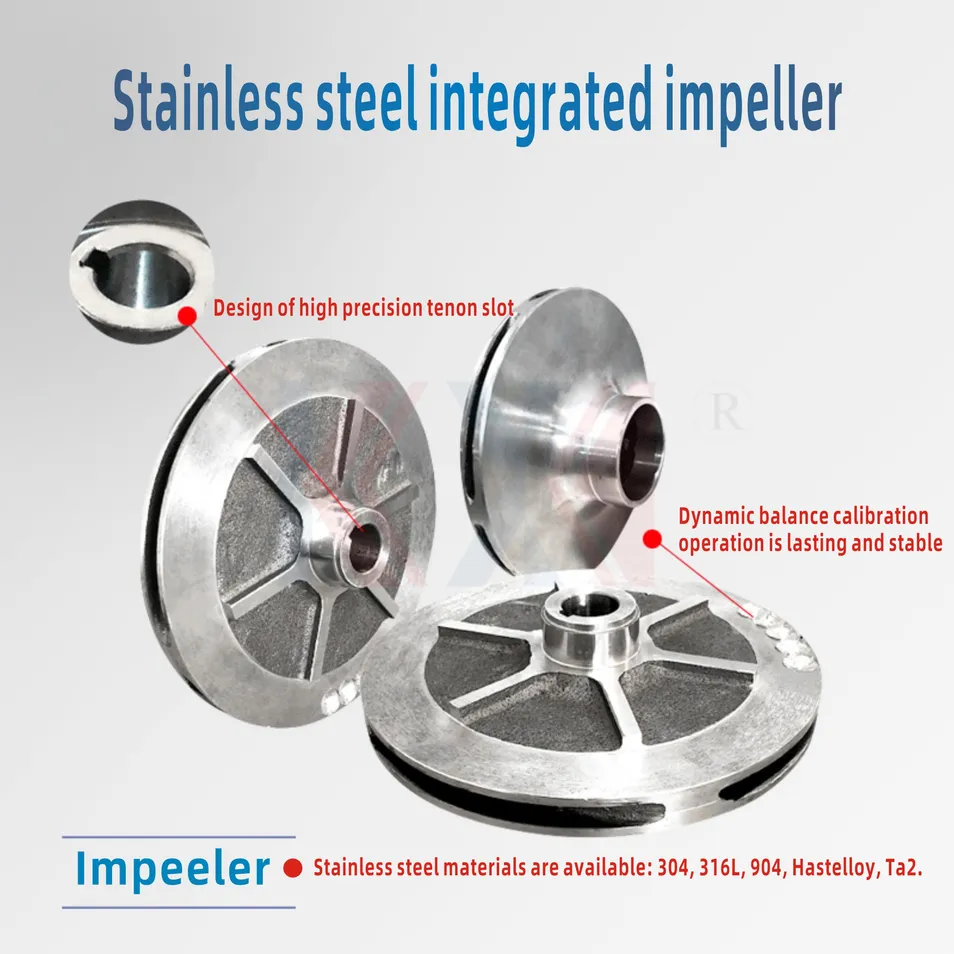

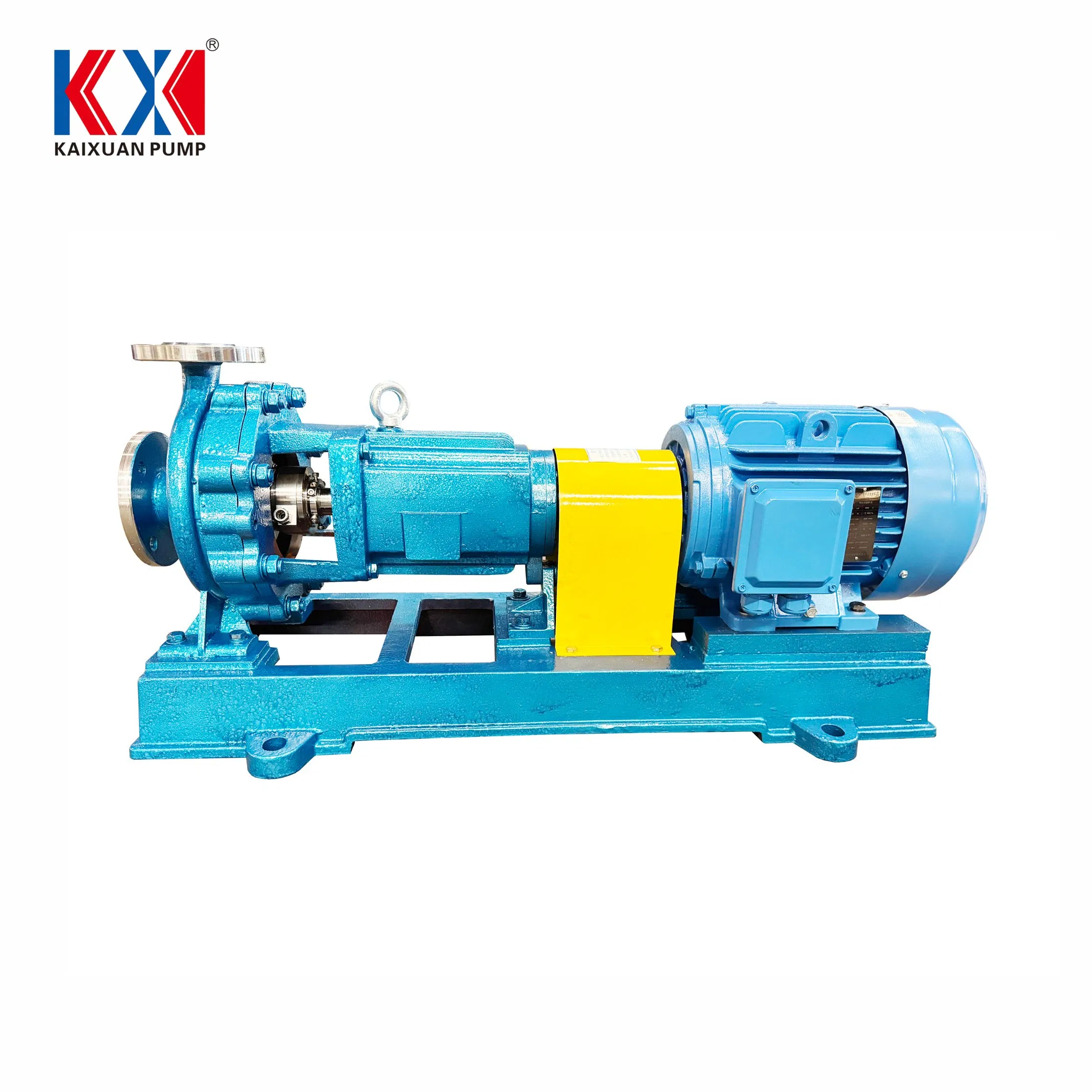

The IH series Stainless Steel Centrifugal Pump is a highly efficient and reliable industrial pump designed specifically for the demanding requirements of the chemical processing industry. With its robust construction, advanced impeller design, and corrosion-resistant materials, this pump provides superior performance and durability in handling a wide range of corrosive and abrasive fluids.

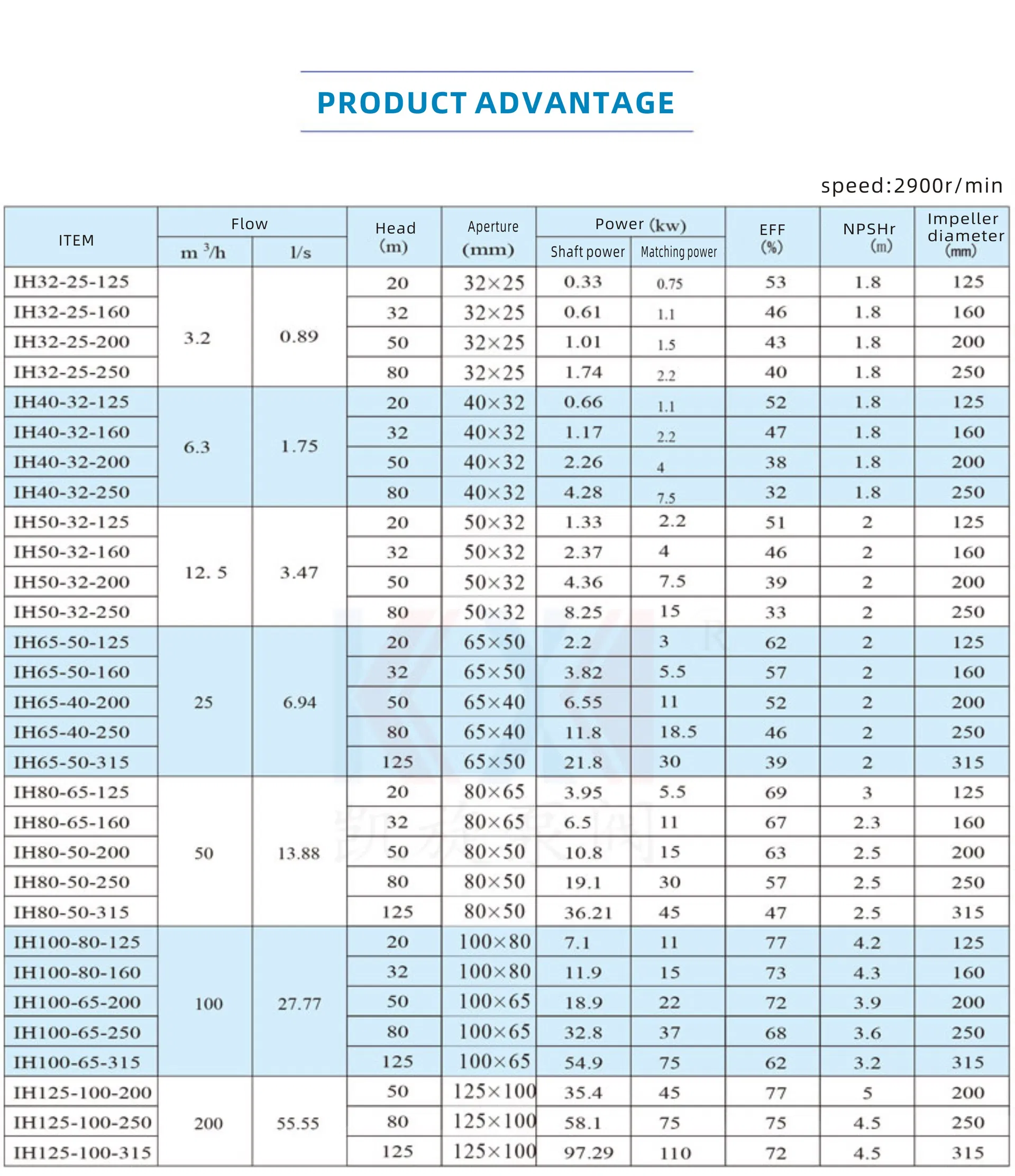

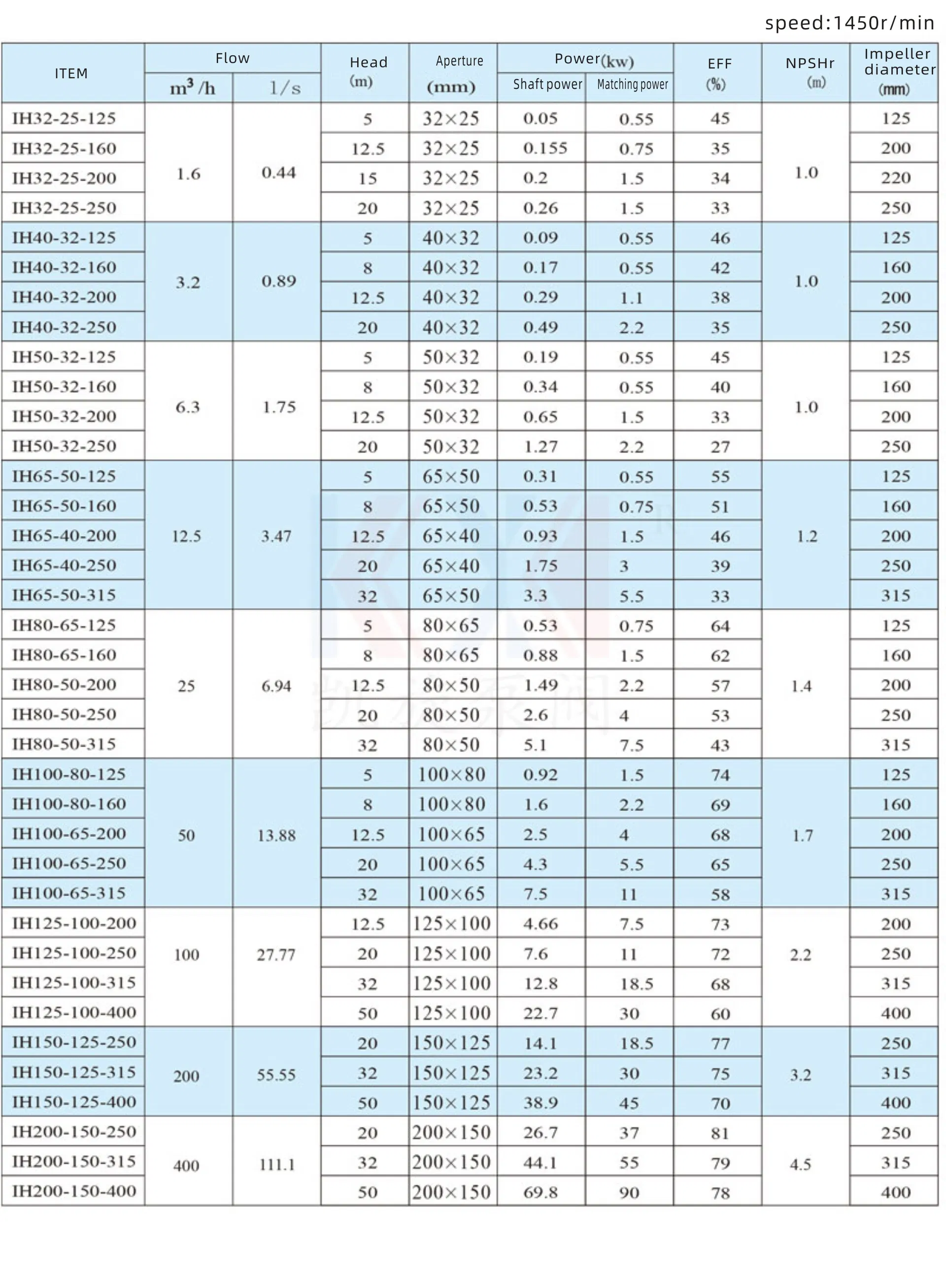

| Inlet*Outlet | 32*25-200*150mm |
| Flow Rate | 4-400 m³/h |
| Head Range | 10-125m |
| Speed | 2900r/min, 1450r/min, 3600r/min |
| Power | 0.55kw - 100kw |
| Material Options | SS304, SS316, Dual-Phase Steel |
| Warranty | 24 months (excluding wearing parts) |

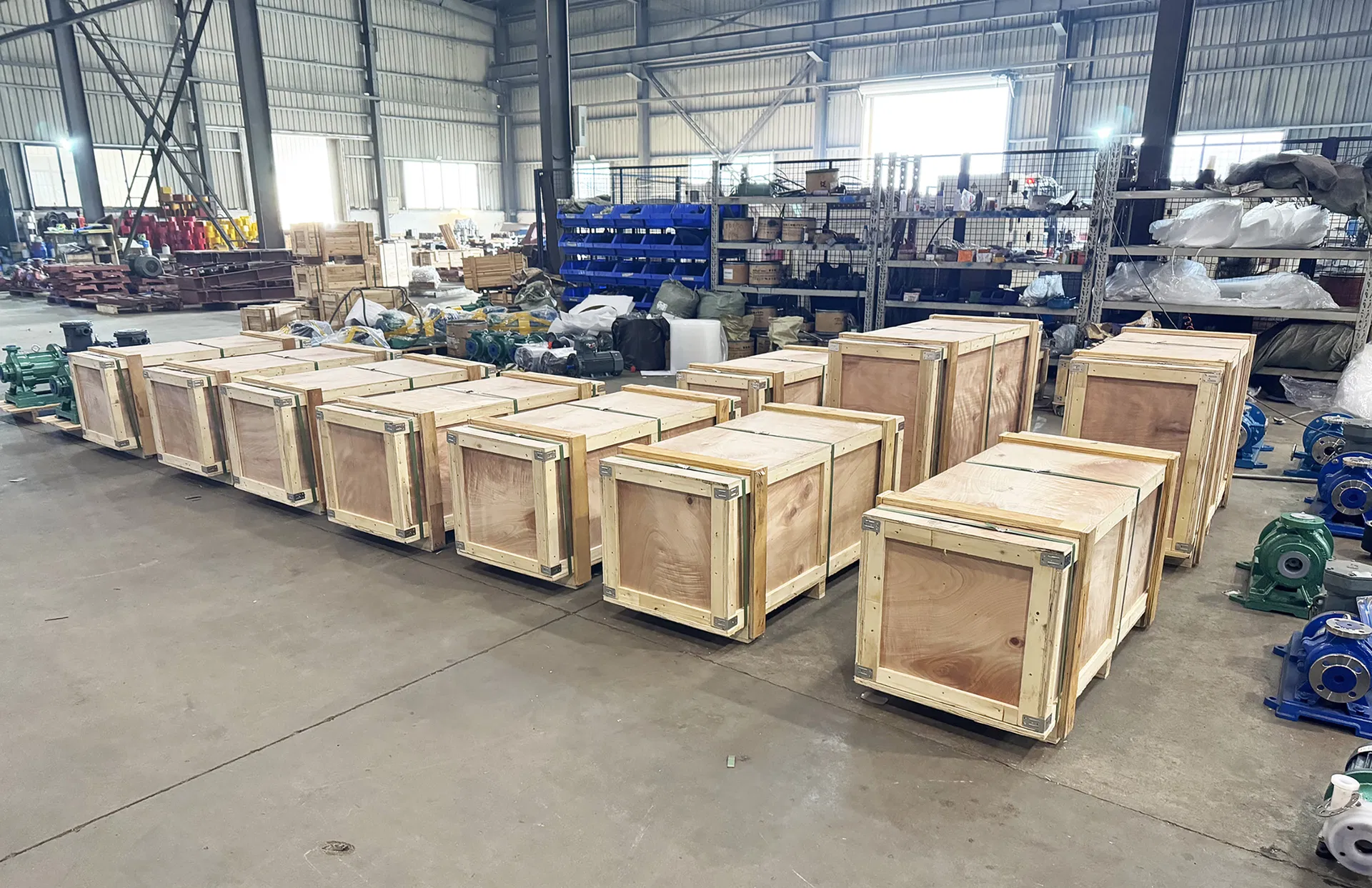

Transportation Options:

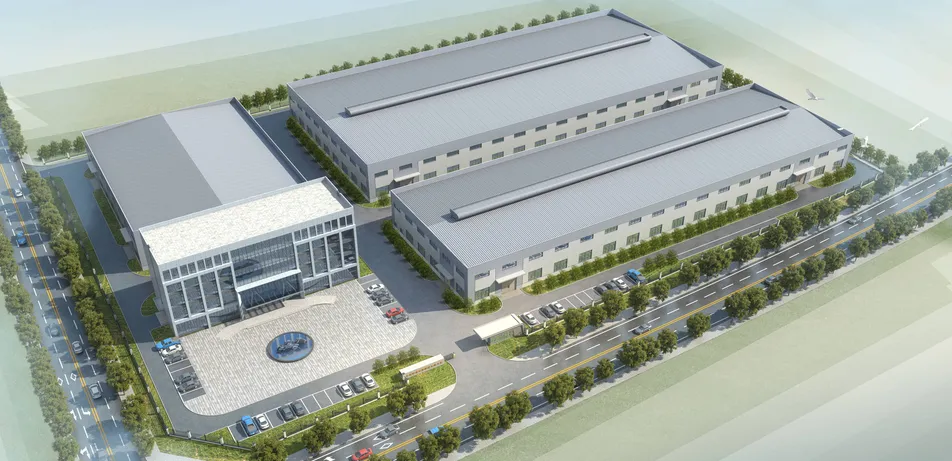

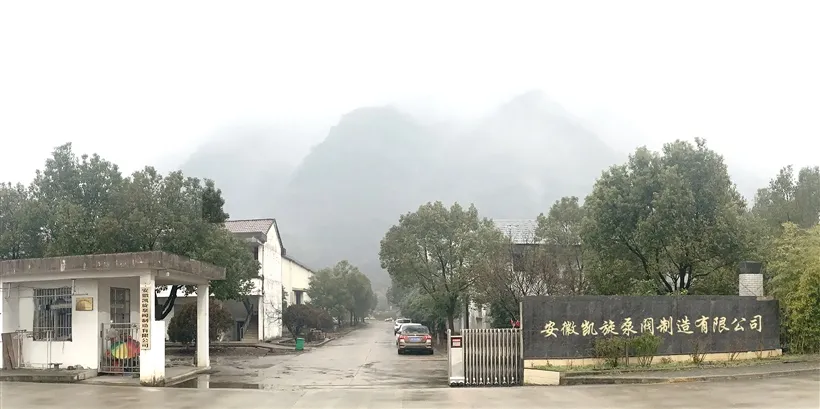

We are a manufacturer specializing in the R&D, design, and production of chemical pumps and magnetic drive pumps. Our production facility integrates advanced molding and scientific research, with an annual capacity of 20,000 units. We maintain ISO9001, ISO14001, and ISO45001 certifications to ensure the highest quality standards.
