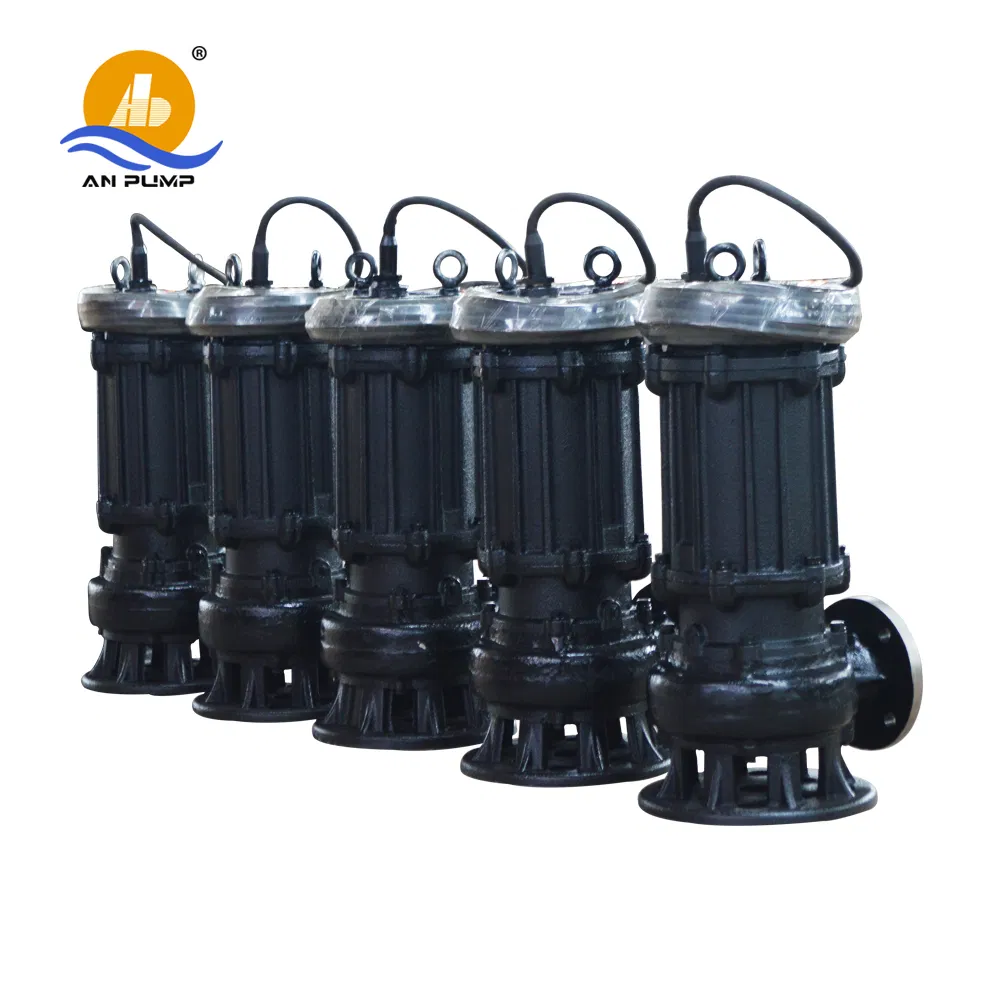

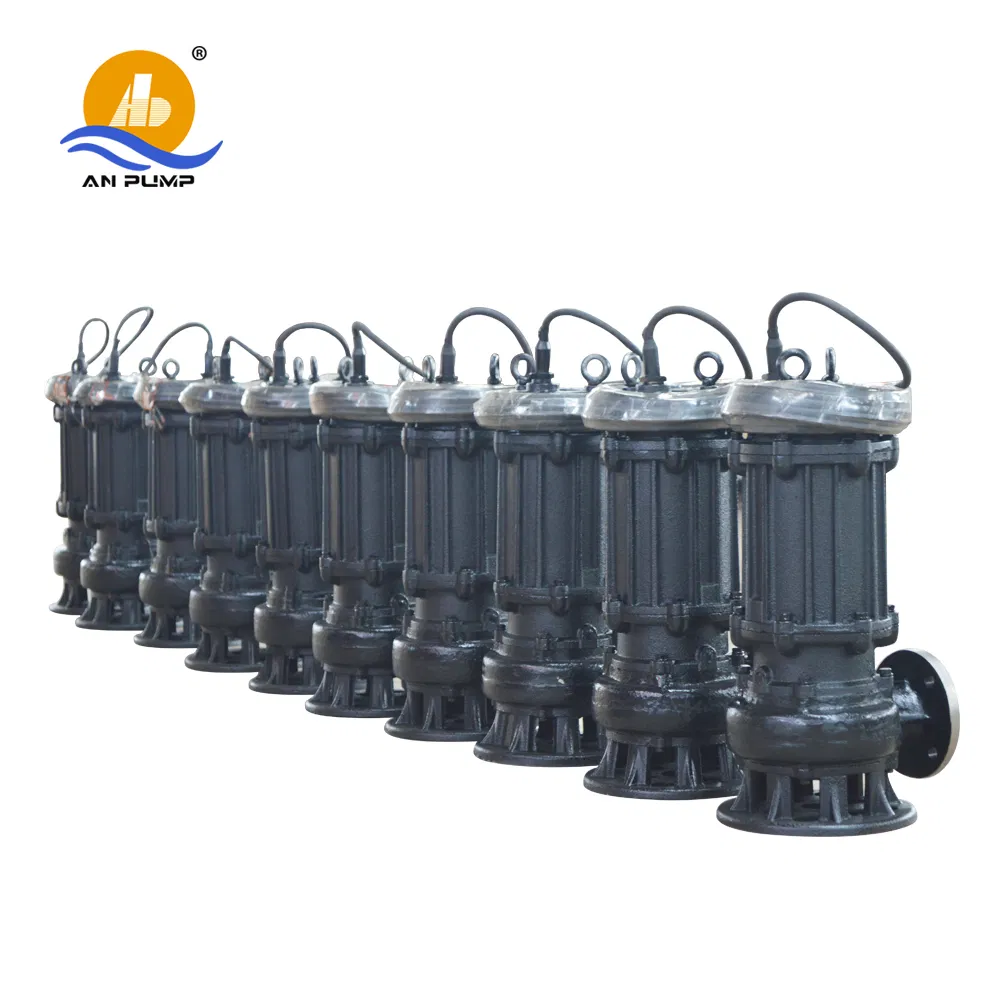

Industrial Sewage Submersible Water Pump

Customization:	Available
Max.Head:	>150m
Max.Capacity:	>400 L/min

Basic Info.

Model NO.

ASW

Driving Type

Motor

Material

Cast Iron / Stainless Steel

Structure

Single-stage Pump

Assembly

Booster Pump

Power

Electric

Type

Jet Pump / Submersible

Size

1''-28''

Flow

2-2400m3/H

Head

5-600m

Certificate

TUV/SGS/ISO/CE/BV

Motor

IP68

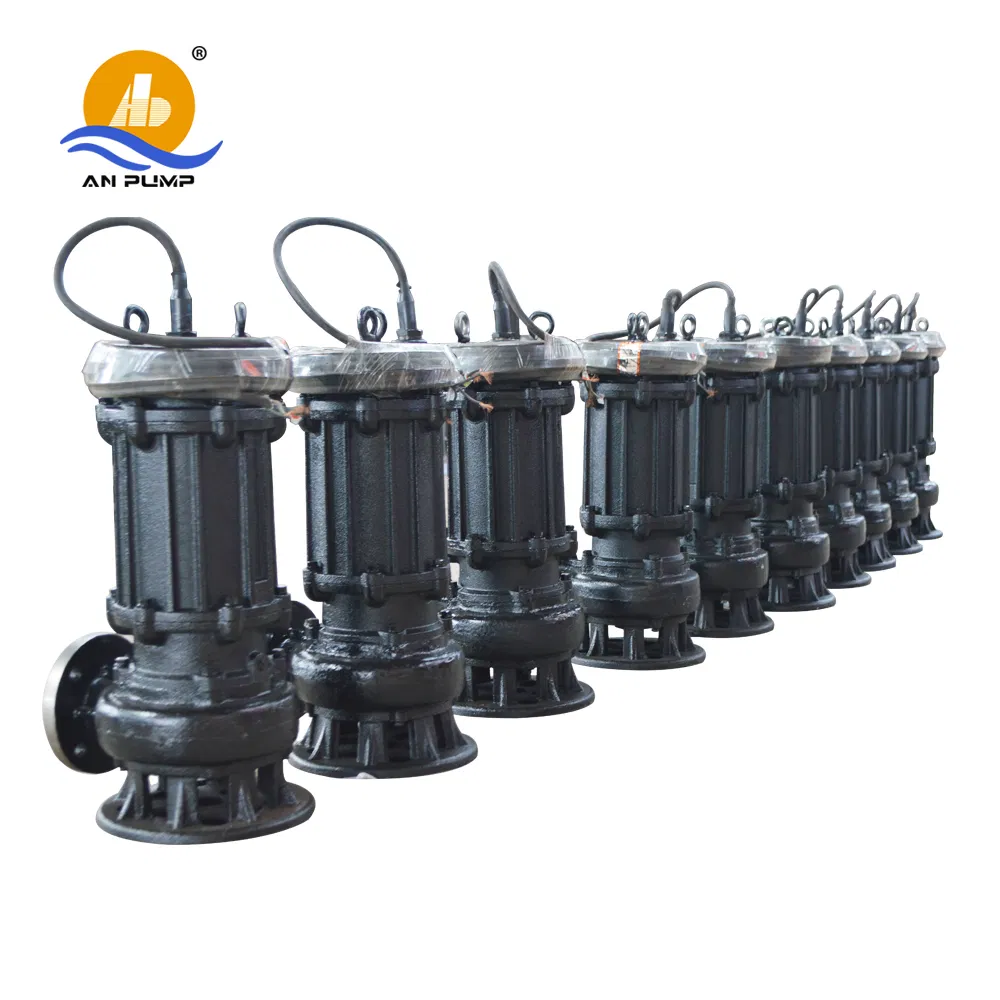

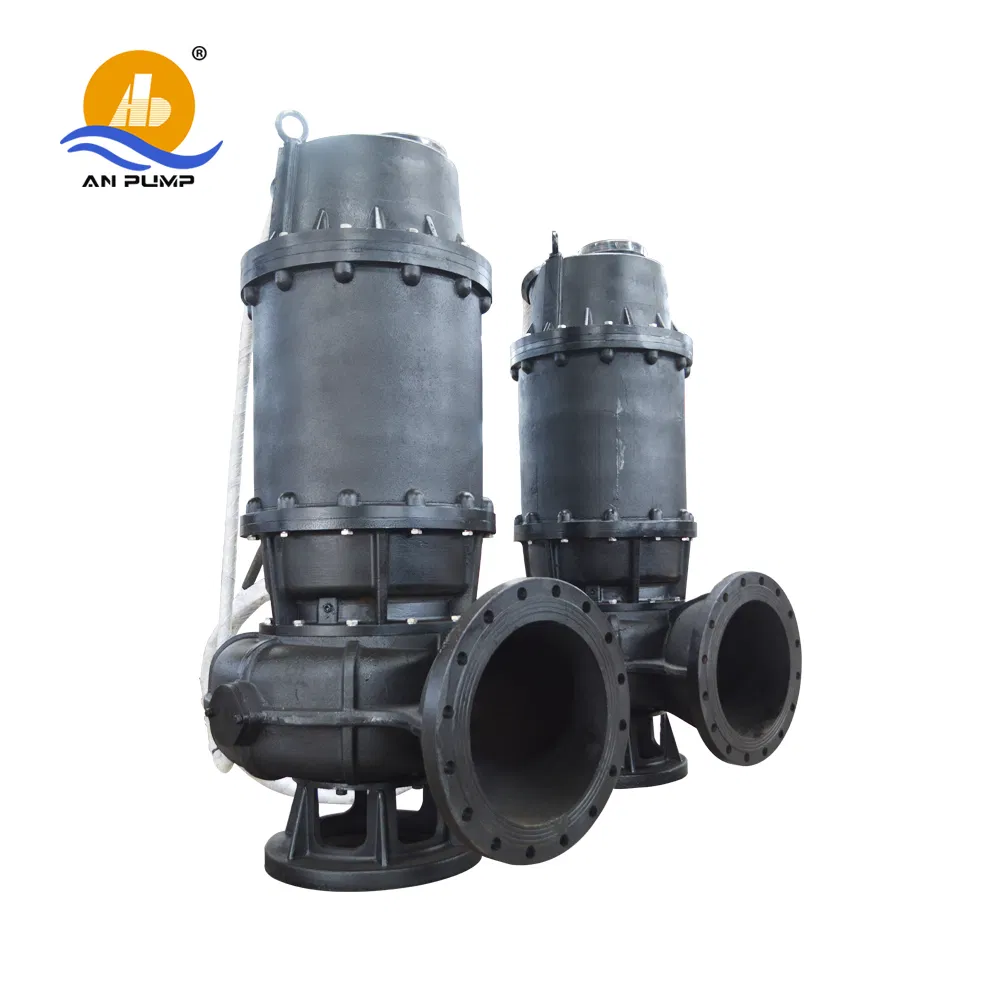

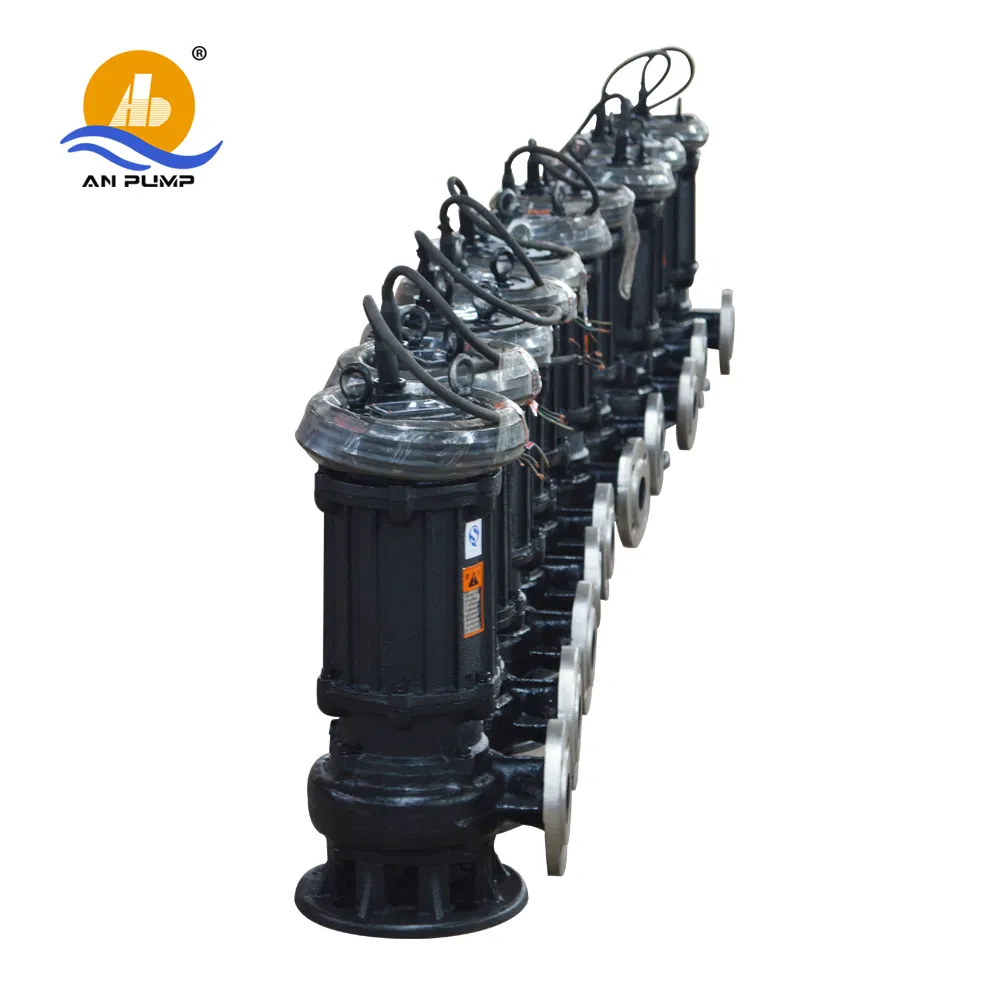

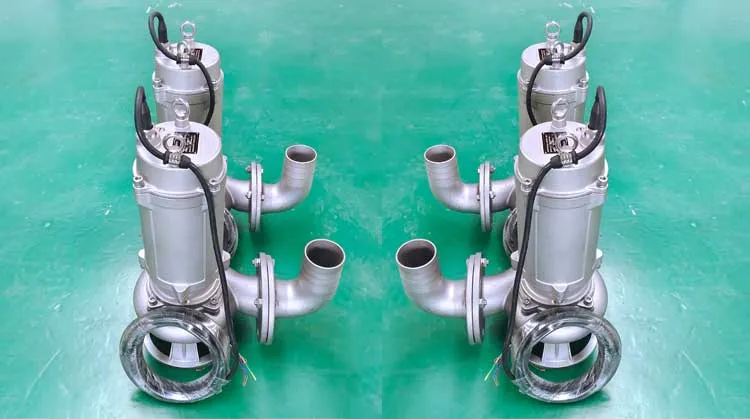

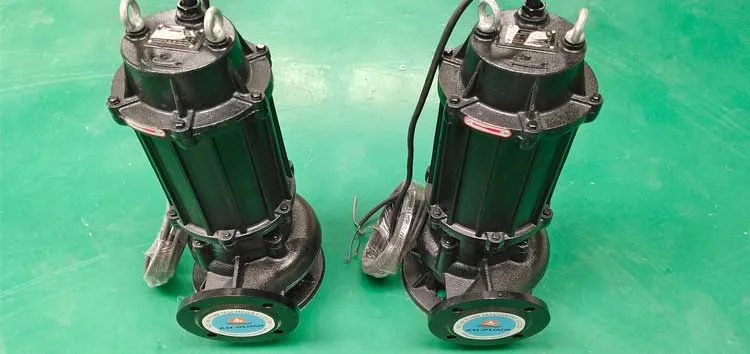

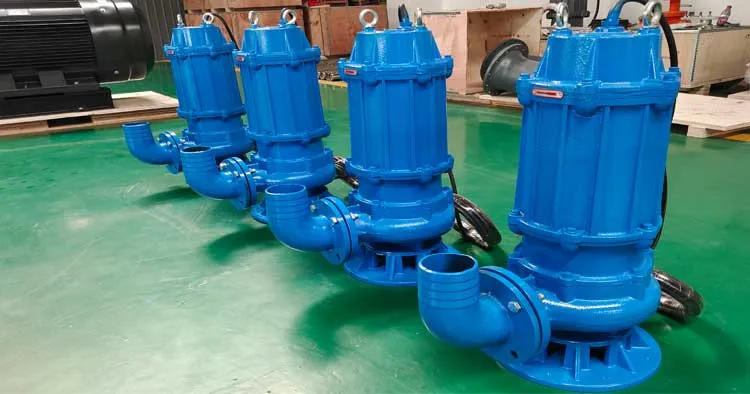

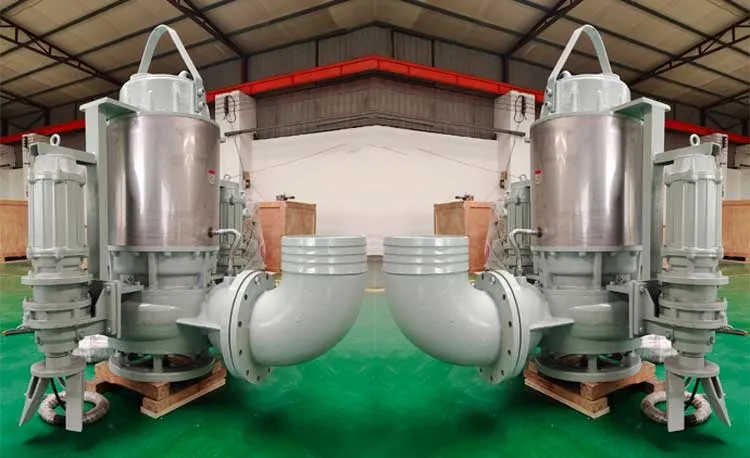

Product Display

Product Description

ASW series submersible sewage pumps are developed based on advanced international technology. They offer high efficiency, circumvolution proofing, lockage-free operation, auto-coupling, and high reliability with auto-control features. They are specifically designed for pumping liquids containing solids and long fibers.

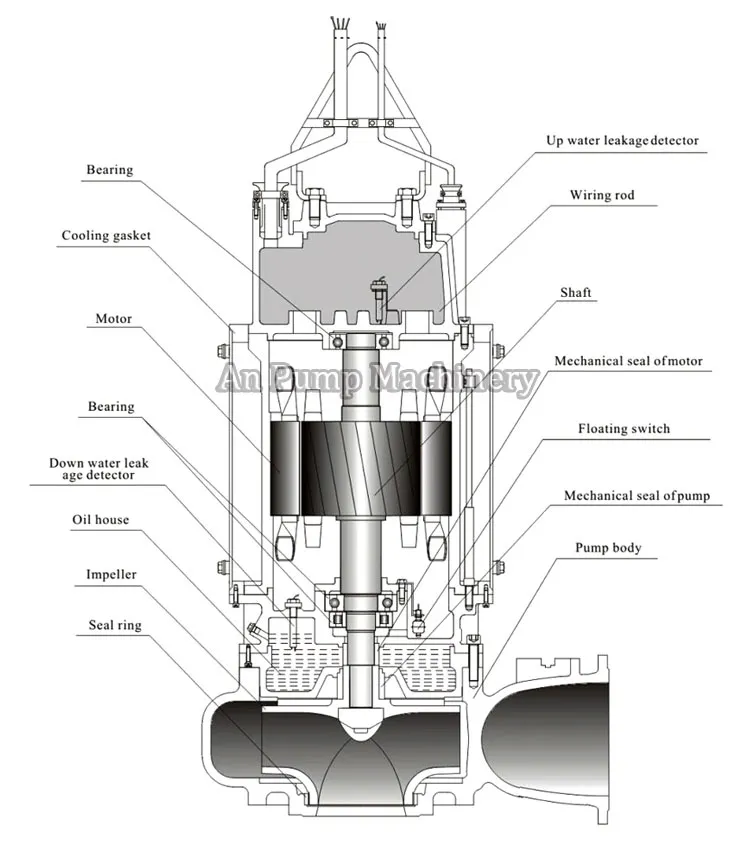

Structure and Key Features

Common Type: Adopts a closed-flow channel impeller, ideal for medium with large solid particles.
Cutter Type: Equipped with an automatic shredding device to crush dry solids, paper, and textile materials.
Mixer Type: Features an automatic mixing device on the spindle shaft to prevent sediment accumulation.
Anti-Flushing Type: Produces high-pressure water flow to scour the pump pit, preventing sludge buildup and odors.

Application Areas

Waste water drainage in factories and industries.
Municipal sewage plant drainage systems.
Residential area and hospital waste water management.
Flood system drainage and municipal facilities.
Exploration, mining, and agricultural irrigation.
River and Pond Dredging operations.

Material Specifications

No.	Standard	Cast Iron	Ductile Iron	SS 304	SS 316
1	China	HT250	QT500-7	0Cr18Ni9	0Cr17Ni12Mo2
2	US	NO.35	70-50-05	SS304	SS316
3	Japan	FC250	FCD500	SUS304	SUS316
4	Germany	GG25	GGG50	X5CrNi18.9	X5CrNiMo18.10
5	ISO	250	500-7	11	20,20a

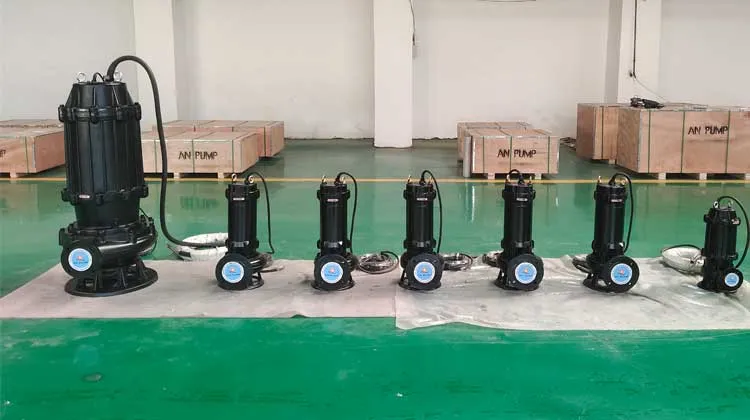

Packaging & Shipping

Frequently Asked Questions

Are you a manufacturer?

Yes, we have been specialized in centrifugal pump manufacturing and marketing for over 32 years.

Which markets do you export to?

Our products are exported to Europe, North & South America, South-East Asia, Africa, Oceania, and Middle East countries.

What information is needed for a quotation?

Please provide the pump capacity, head, medium, operation situation, and quantity for an accurate model selection.

Can we print our own brand on the pump?

Yes, OEM services are available and fully acceptable according to international trade rules.

How can I get the latest pricing?

You can reach out through our professional inquiry portal. Our service team will respond with a detailed quote within 24 hours.

What materials are available for corrosive liquids?

For corrosive media or seawater, we offer high-grade Stainless Steel 304, 316, and Duplex Steel options.

Industrial Sewage Submersible Water Pump

Product Description

Structure and Key Features

Related Products

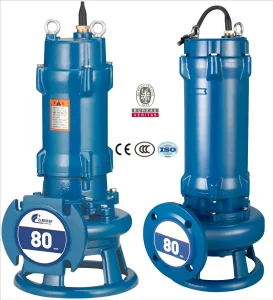

Efficient Gnwq Series Knife Cutting Electric Submersible Pump for Residential Industrial Sewage Handling

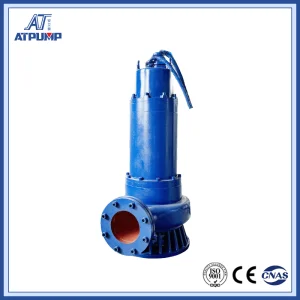

Wqb Series 35kw Explosion-Proof Industrial Submersible Explosion-Proof Pumps Chemical Pump

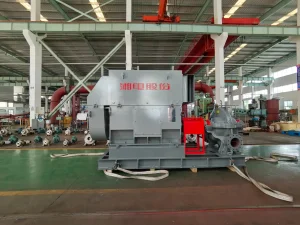

ODM Haishi Horizontal Water Slurry Industrial Sewage Chemical Oil High Pressure Pump

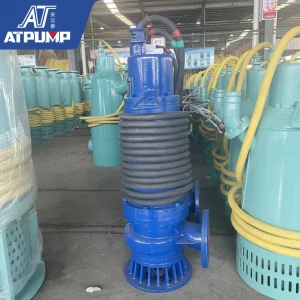

Submerged Pumps Water Sewage Pump Urban Sewage Treatment Plant Drainage High Pressure Water Pump Industrial Pump Mine Drainage

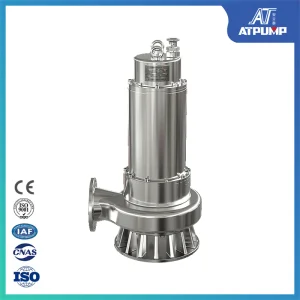

1.5kw-90kw Duplex Stainless Steel Custom Industrial Submersible Sewage Pump Submersible Pump SS304 SS316 SS316L Electric Industrial High Pressure Water Pump

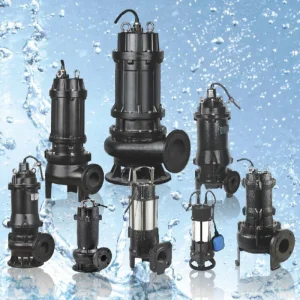

Meudy Large Passage Non-Clog Electric Industrial Submersible Cutter Cutting Grinder Grinding Sewage Water Pump

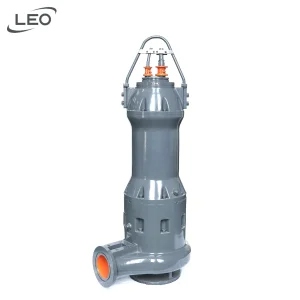

Leo Industrial Electric Non-Clogging Vertical Centrifugal Submersible Sewage Water Pump for Sewage Drainage

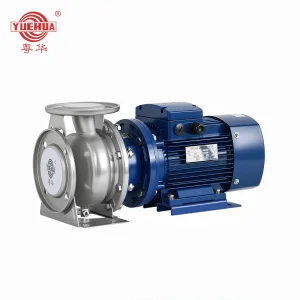

YUEHUA Horizontal Industrial End Suction Single-Stage Sewage Wastewater Impeller Liquid Radial Centrifugal Pumps

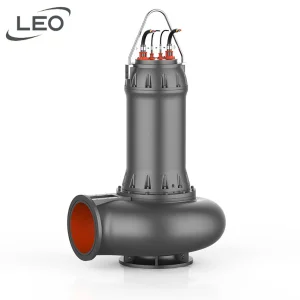

Leo Non-Clogging Industrial Electric Vertical Submersible Sewage Water Pump for Wastewater Drainage

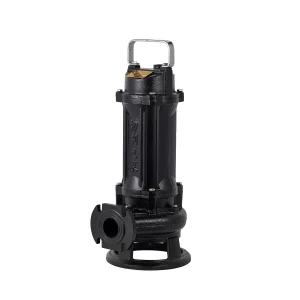

Industrial Submersible Cutting Sewage Pump for Dirty and Waste Water Treatment
