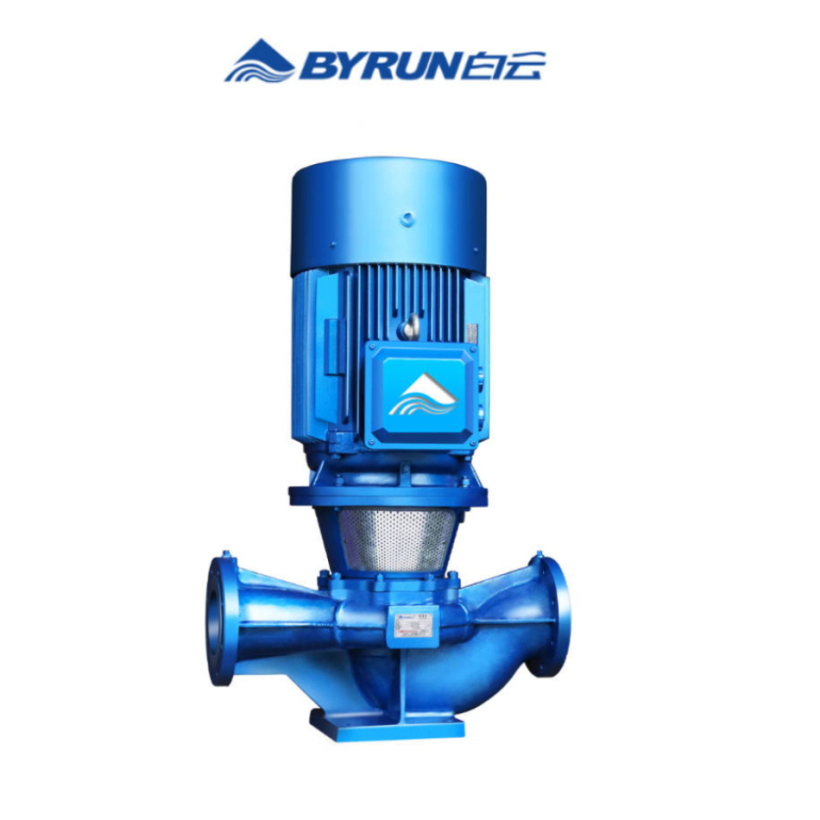

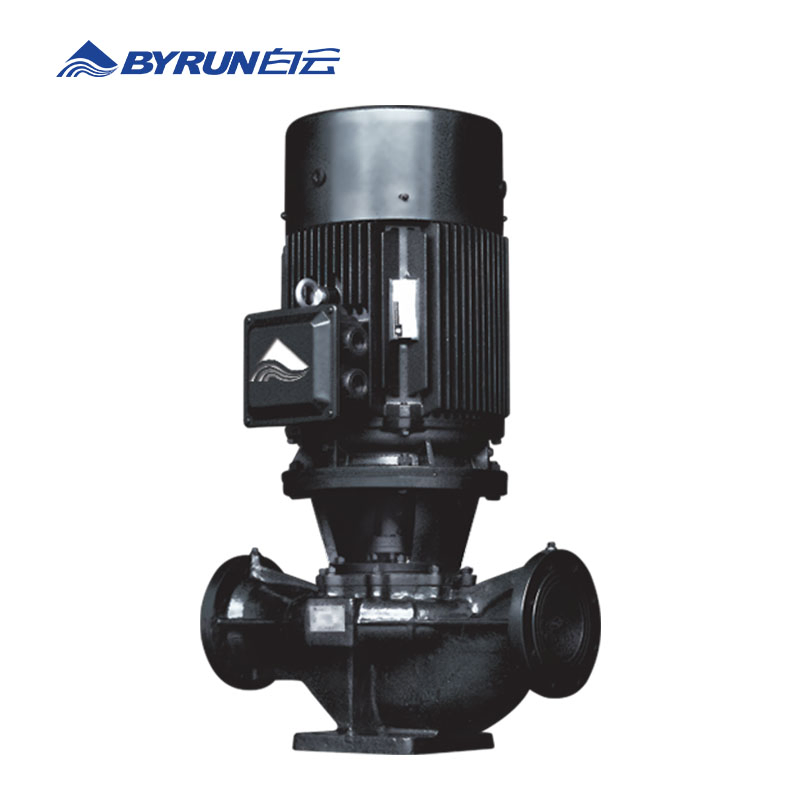

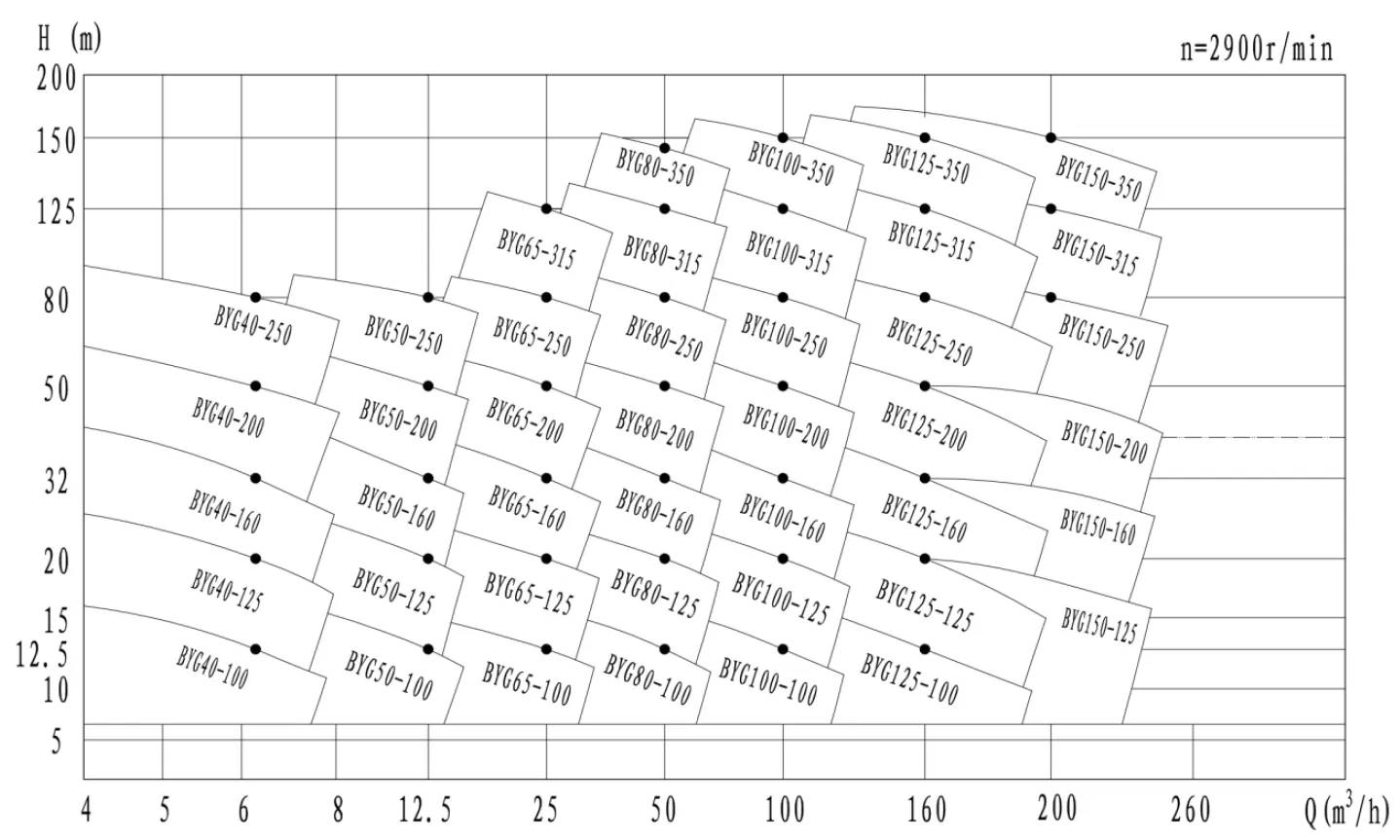

Industrial Vertical Pipeline Electric Water Pump With Seriation Design
BYG series vertical centrifugal pumps are engineered for industrial and urban water supply and drainage systems. They are ideal for high-rise building supply, air conditioning, heating circulation, fire fighting, and industrial process pressurization.

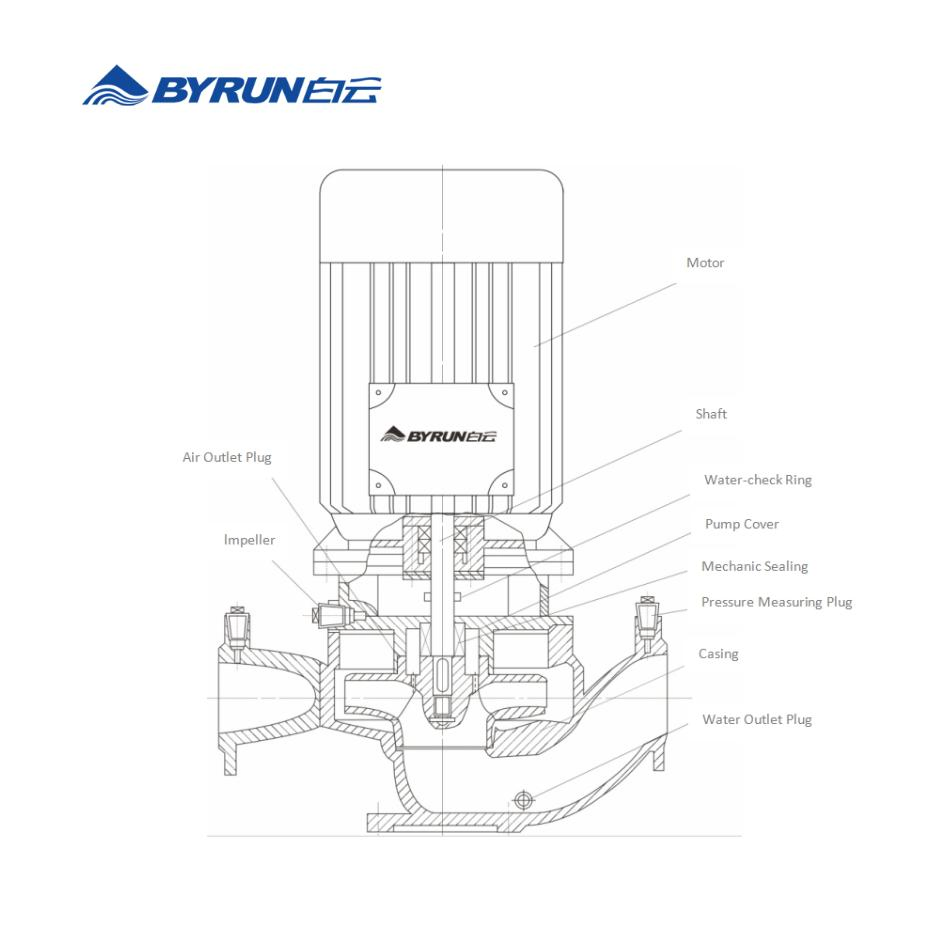

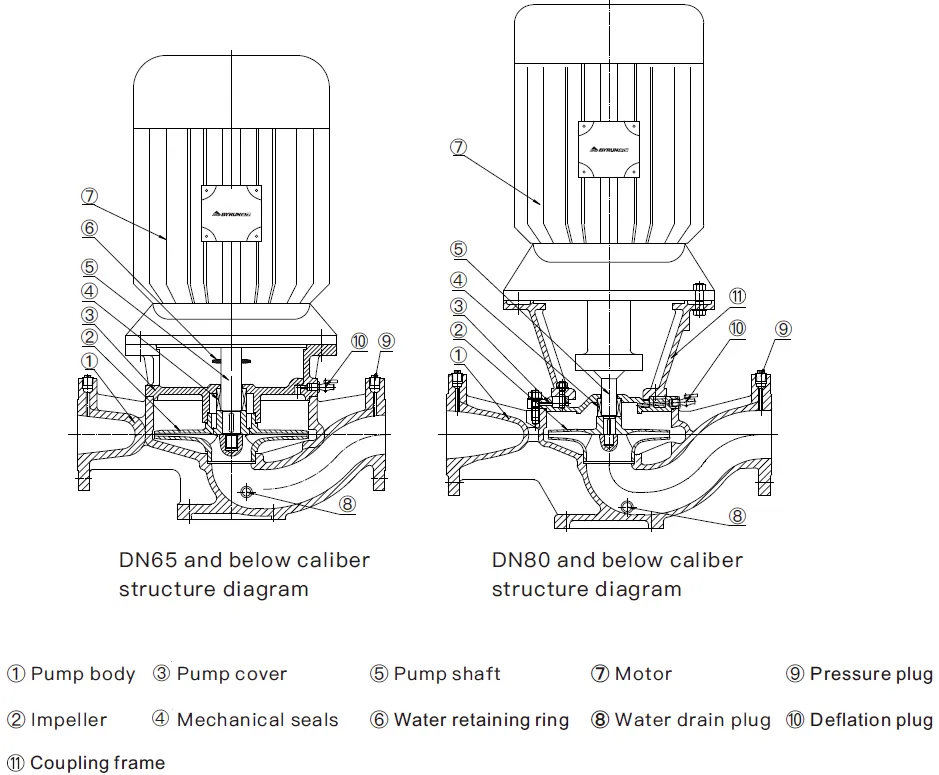

| No. | Component Name | Standard Material |
|---|---|---|
| 1 | Motor | Copper Windings / Carbon Steel |
| 2 | Coupling | Carbon Steel |
| 3 | Motor Coupling Frame | Cast Iron |
| 4 | Pump Body | Cast Iron |
| 5 | Impeller | Cast Iron |
| 6 | Shaft | 45# Steel |
| 7 | Bearing | Bearing Steel |
| 8 | Mechanical Seals | Graphite / Silicon Carbide |

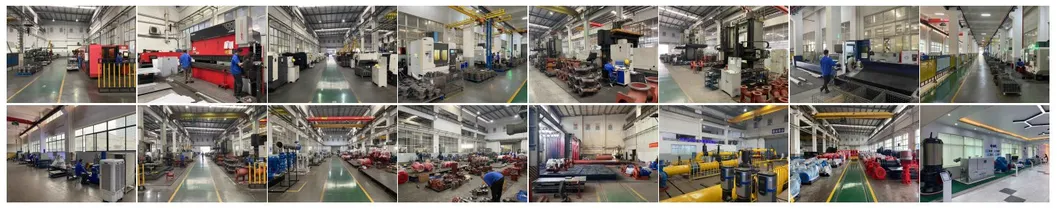

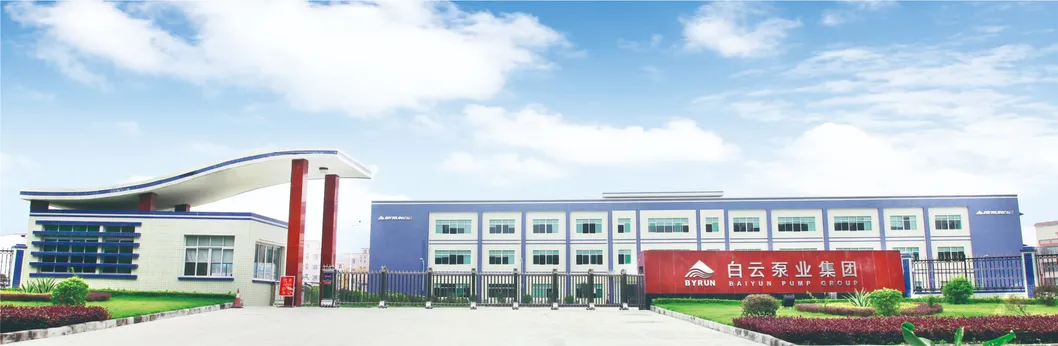

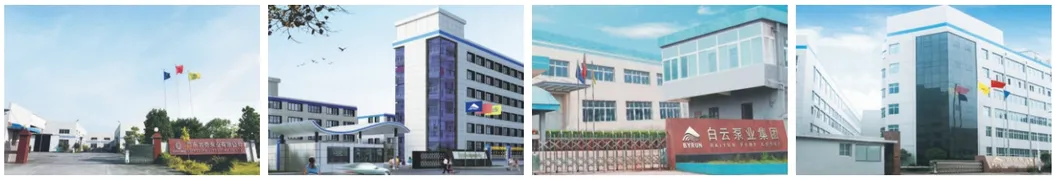

Our products are secured in standard export wooden cases to ensure safety during international transit. We leverage five specialized manufacturing bases to maintain high production capacity and quality standards.
