Industrial Horizontal Centrifugal Mine Mining Minerals Processing Mud Sand Slurry Pump

Customization:	Available
After-sales Service:	3 Years
Warranty:	3 Years

Send Inquiry

Product Description

📊Basic Information

Model NO.	AM2
Max.Head	>150m
Max.Capacity	>400 L/min
Driving Type	Motor
Impeller Number	Single-Stage Pump
Working Pressure	High Pressure Pump
Position of Pump Shaft	Horizontal Pump
Usage	Slurry Pump, Mining Pump, Dewatering Pump
Material	Cr Alloy, Rubber etc
Voltage	380V-480V
Feature	Long Life, High Abrasion Resistance

🔧Product Description

AM series slurry pumps are cantilever horizontal centrifugal slurry pumps. They are widely utilized in mining, electrical power, metallurgy, coal, and environmental industries for the transportation of abrasive solid slurries.

Technical Advantages:

🚀 High Concentration: Volume concentration up to 60%, weight concentration up to 70%.
💧 Excellent Performance: Single set head can reach up to 120m; supports series connection for higher requirements.
🌊 High Flow Capacity: Flow rates up to 3400m³/h.
💎 Material Versatility: High chrome alloy (Cr27Mo, Cr30MoNi) and rubber options for PH values 1.0-14.

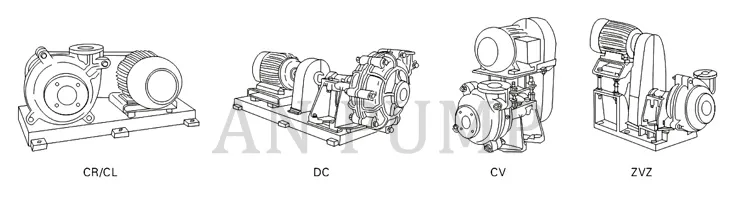

⚙️ Driving Options: Motor and diesel engines available with CR, CZ, CV, ZV driving methods.
📉 Energy Saving: Advanced water conservancy design with soft start and frequency start methods.

📋Technical Specifications

Parameter	Detail
Flow (m³/h)	13-5000
Head (m)	5-68
Power (kw)	15-1200
Efficiency (%)	20-85
Pass Particle Size (mm)	19-135
Material	High Cr Alloy, Rubber

🏗️Construction & Performance

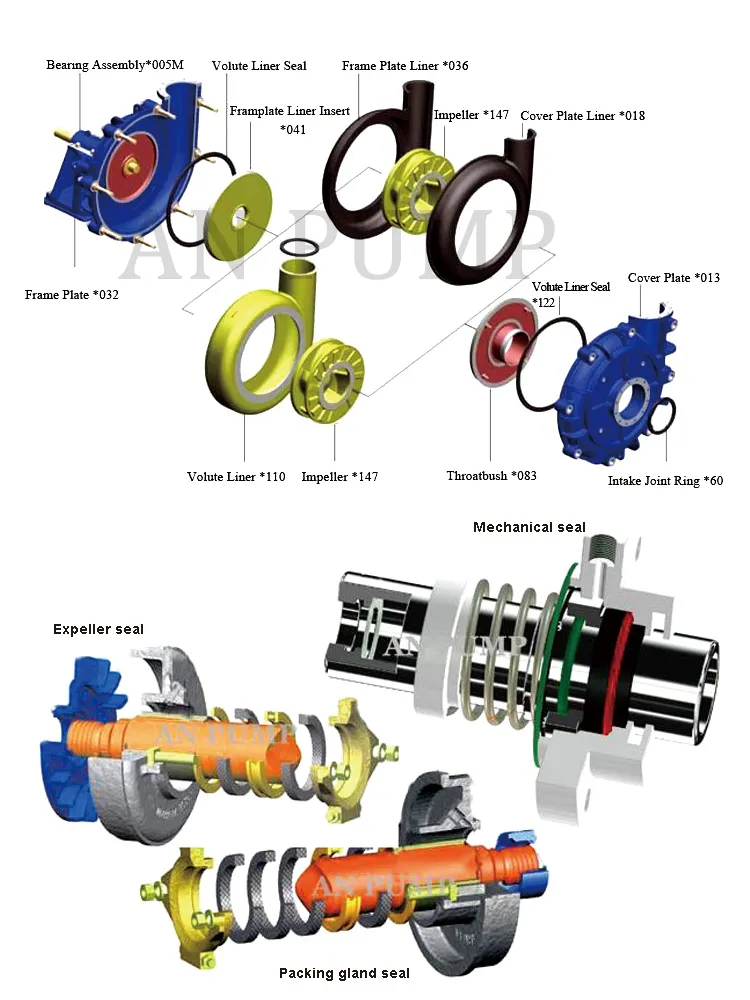

Pump Construction Diagram

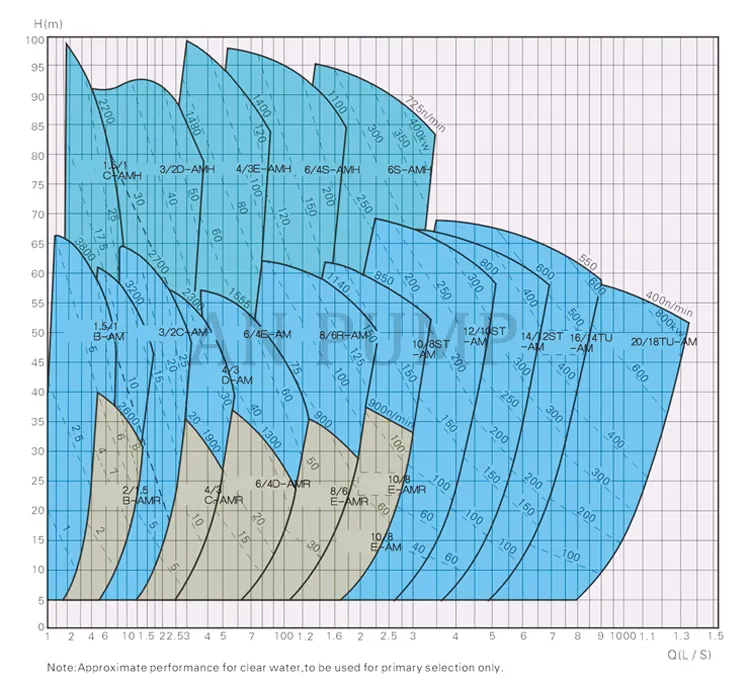

Performance Chart

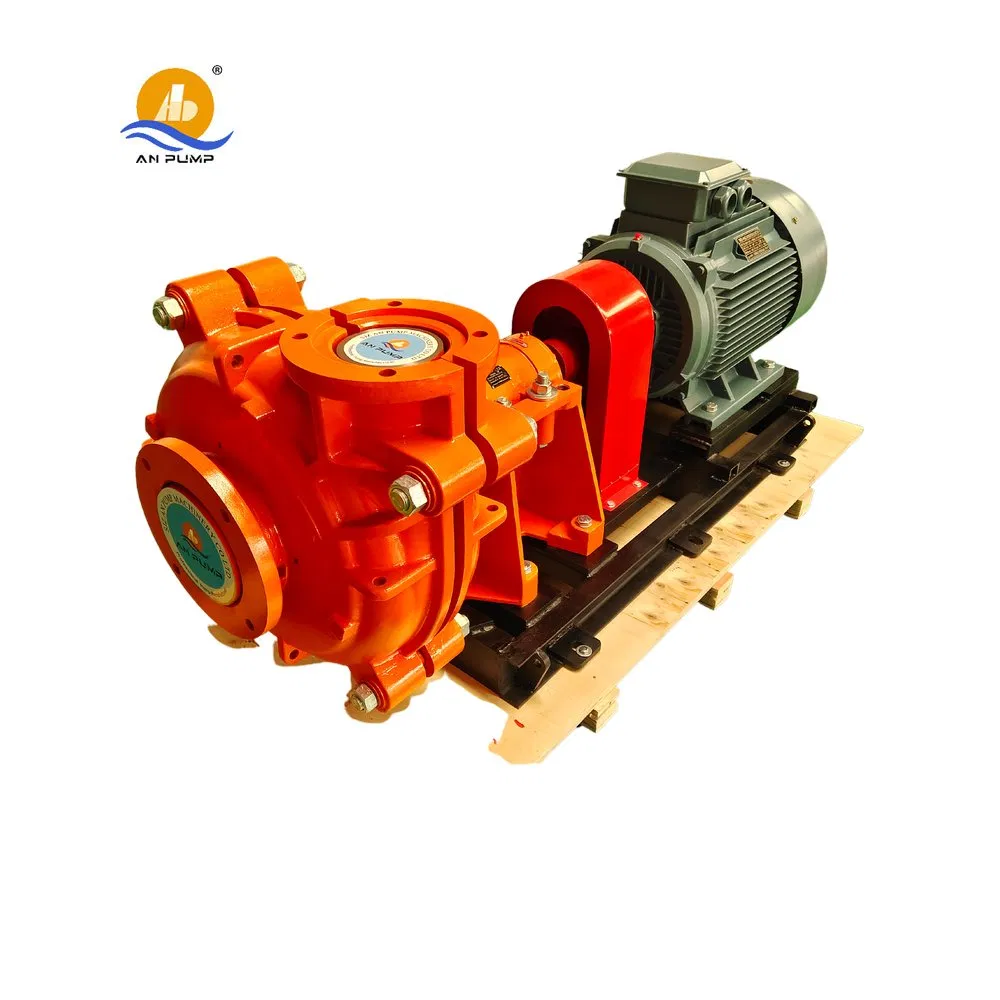

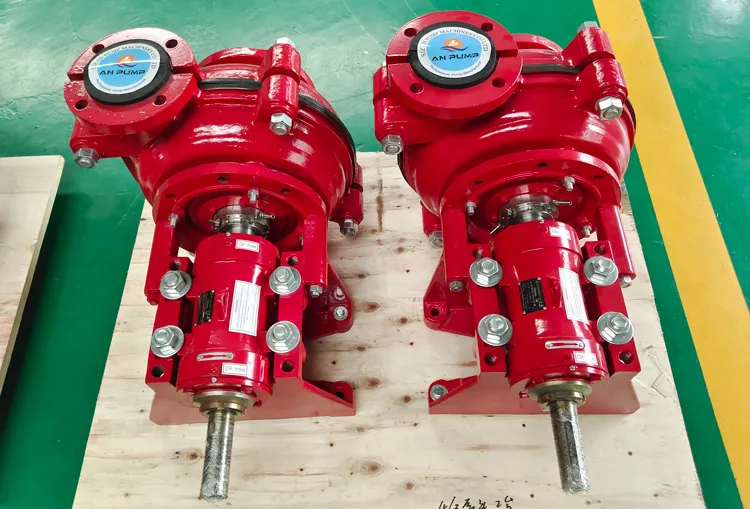

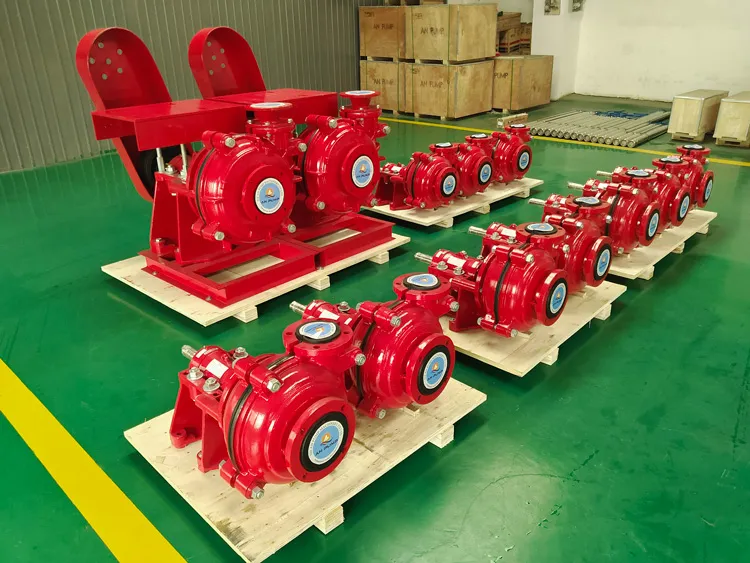

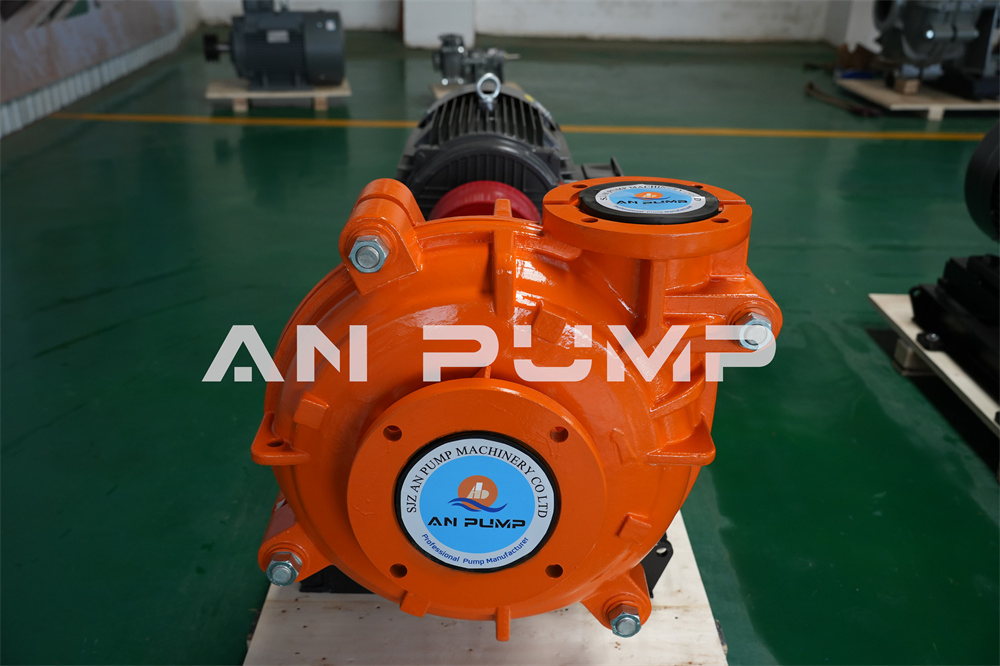

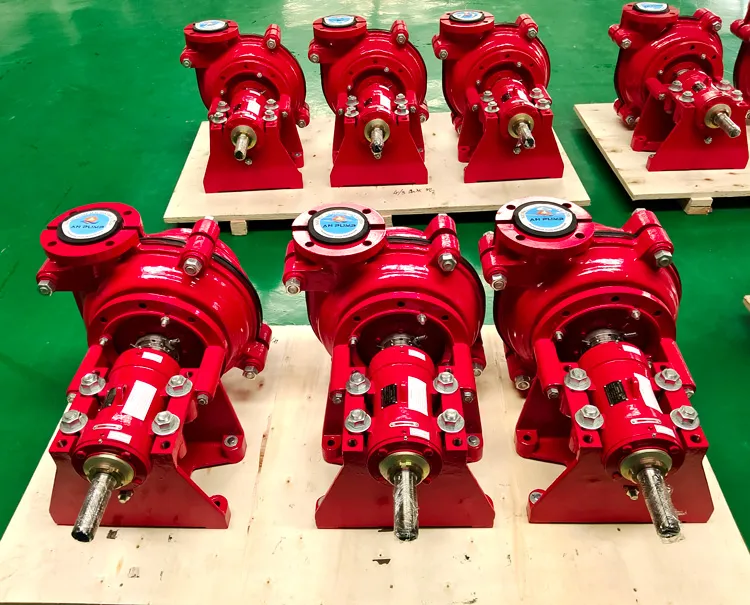

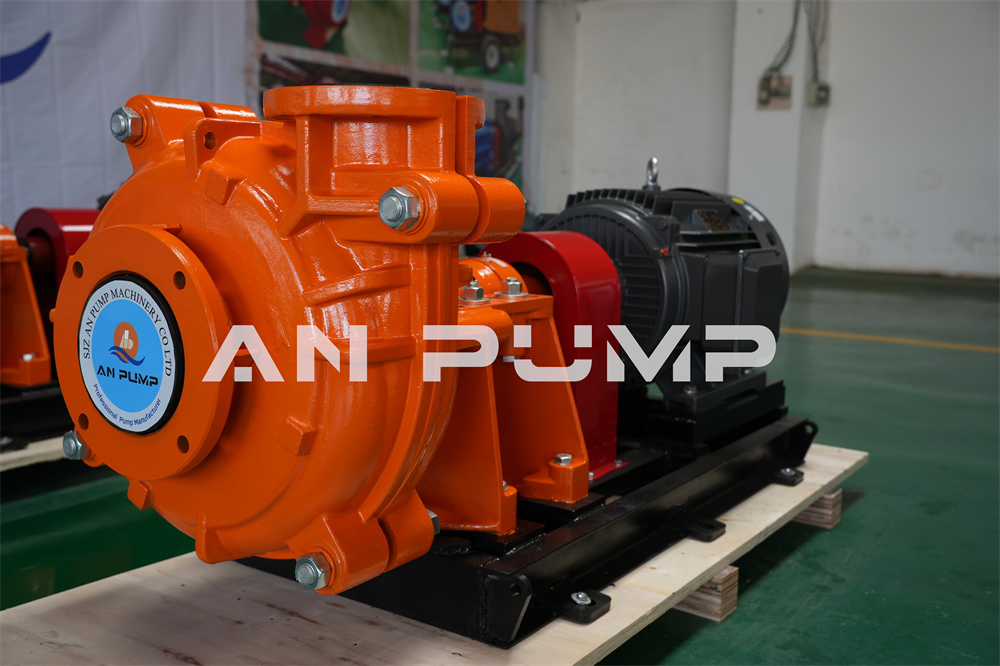

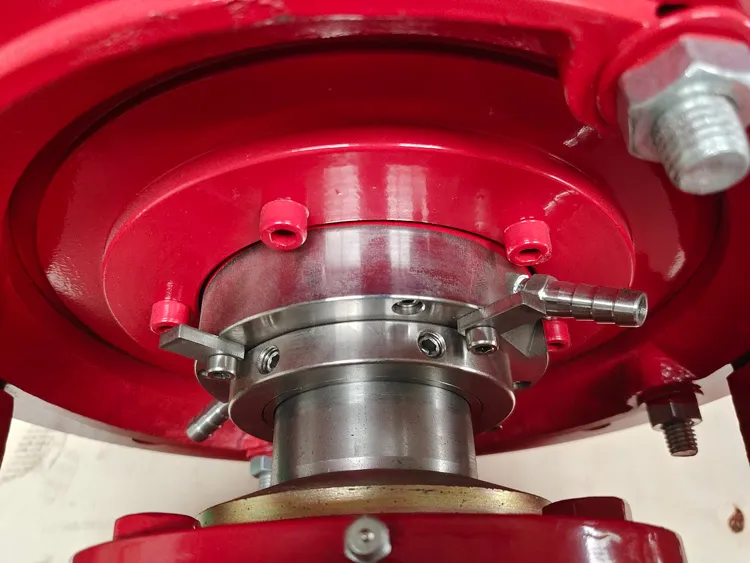

📸Detailed Photos

🏭Production & Exhibition

❓Frequently Asked Questions

Are you a manufacturer?

Yes, we have been specializing in centrifugal pump manufacturing and marketing for over 32 years.

Which markets do you export your pumps to?

Our products are exported to Europe, North & South America, South-East Asia, Africa, Oceania, and Middle East countries.

What information is needed for an accurate quotation?

Please provide the pump capacity, head, medium type, operation situation, and required quantity for precise model selection.

Is OEM branding available?

Yes, printing your own brand on the pump is totally acceptable according to international trade rules.

What materials are used for abrasive slurries?

We use high-chrome abrasion and corrosion-resistant alloys such as Cr27MoNi and Cr30MoNi, as well as rubber linings depending on the application.

How can I obtain pricing for specific models?

You can reach out via our official contact channels. Our service team will respond with a detailed quote within 24 hours.
