Industrial Electric High Pressure Serialized Submersible Sewage Pump for Rainwater

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.BWQ(Above 11 KW)
Max.Head60m
Max.Capacity5000m³/H
Driving TypeMotor
MaterialCast Iron
StructureSingle-stage Pump
PowerElectric
Start UpElectric Pump
TypeCentrifugal Pump
IndustryWater Treatment
Motor ProtectionIP68
OriginChina
Product Description

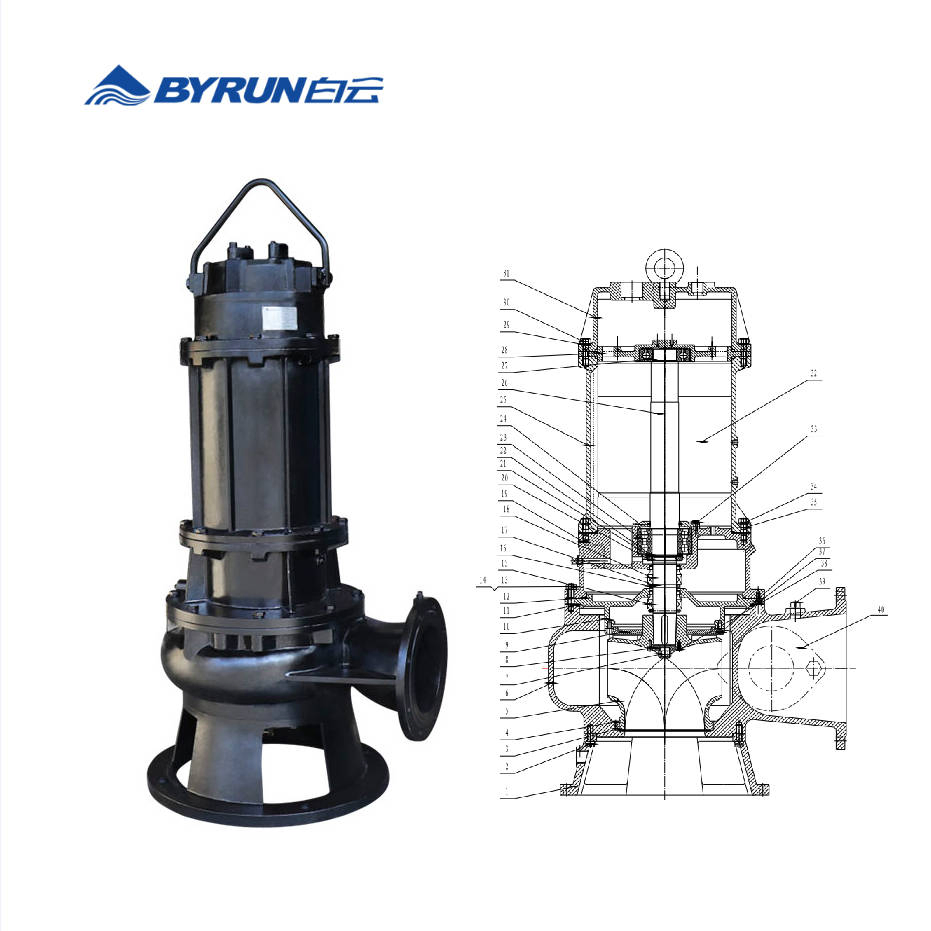

Bwq Series Submersible Sewage Pump (Above 11 Kw)

Submersible Sewage Pump

BWQ series submersible sewage pump is based on advanced technology and advantages of similar products, using the best hydraulic model, special structure and materials. It is developed to meet the actual needs of sewage discharge, offering efficiency and performance that excel in the industry.

Key Features:

  • Unique double flow channel impeller design for optimal matching with the pump body.
  • Non-clogging, anti-winding, and high efficiency performance.
  • Integrated engine and pump design, resulting in small vibration and low noise.
  • Specifically designed for sewage with IP68 protection grade.
  • Two independent mechanical seals for superior double sealing.
  • Equipped with water leakage probe, overheating protection, and float switch for automatic monitoring.

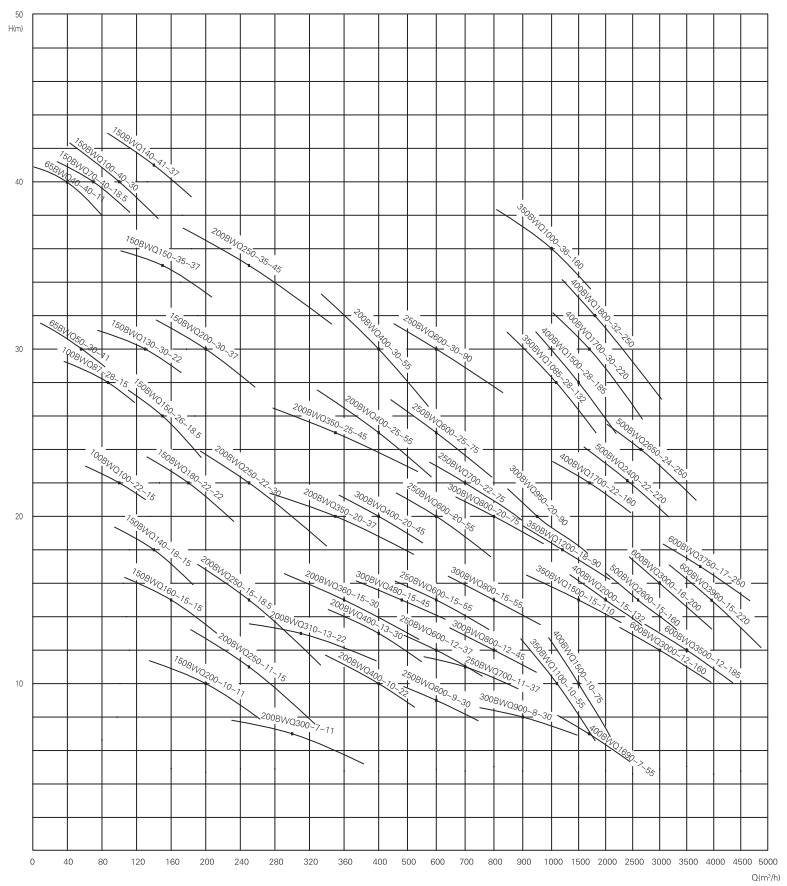

Model & Product Parameters

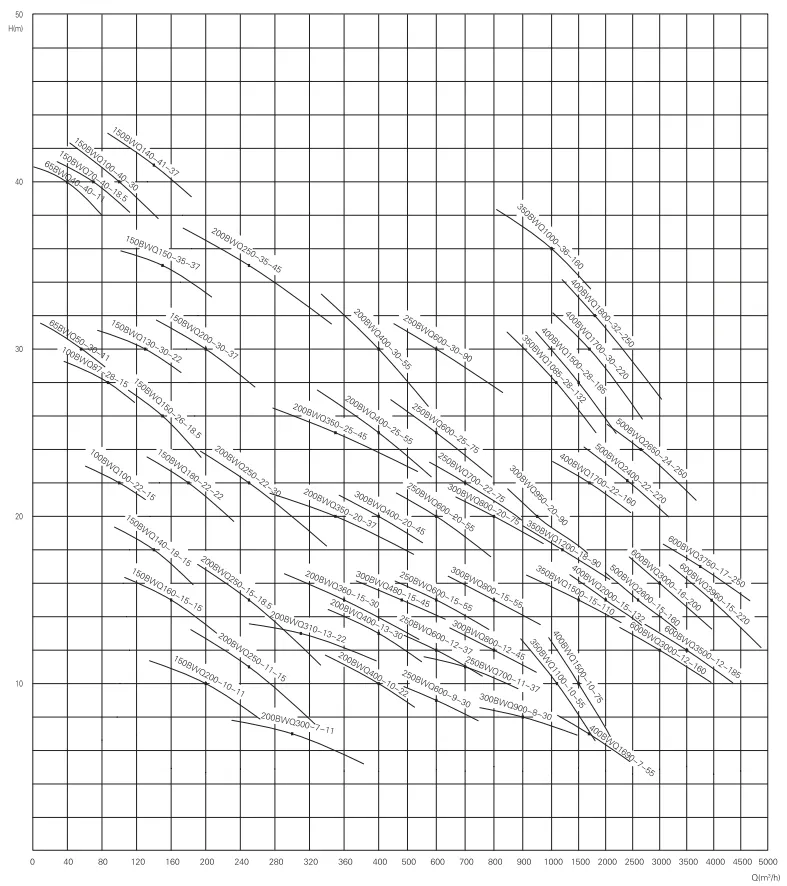

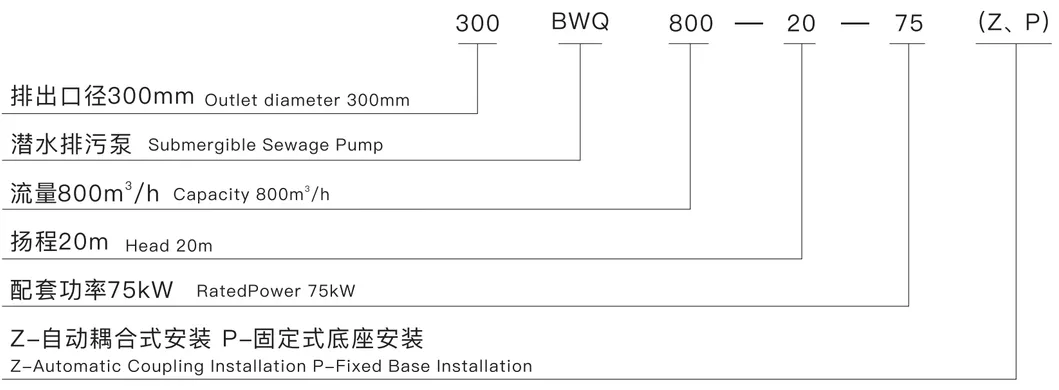

Model Description Product Parameters
Product Material & Structure
No. Component Name Material Specification
1MotorCopper Windings / Carbon Steel
2CouplingCast Iron
3Pump CoverCast Iron
4Pump BodyCast Iron
5ImpellerCast Iron
6Shaft20Cr13
7BearingBearing Steel
8Mechanical SealsGraphite / Silicon Carbide

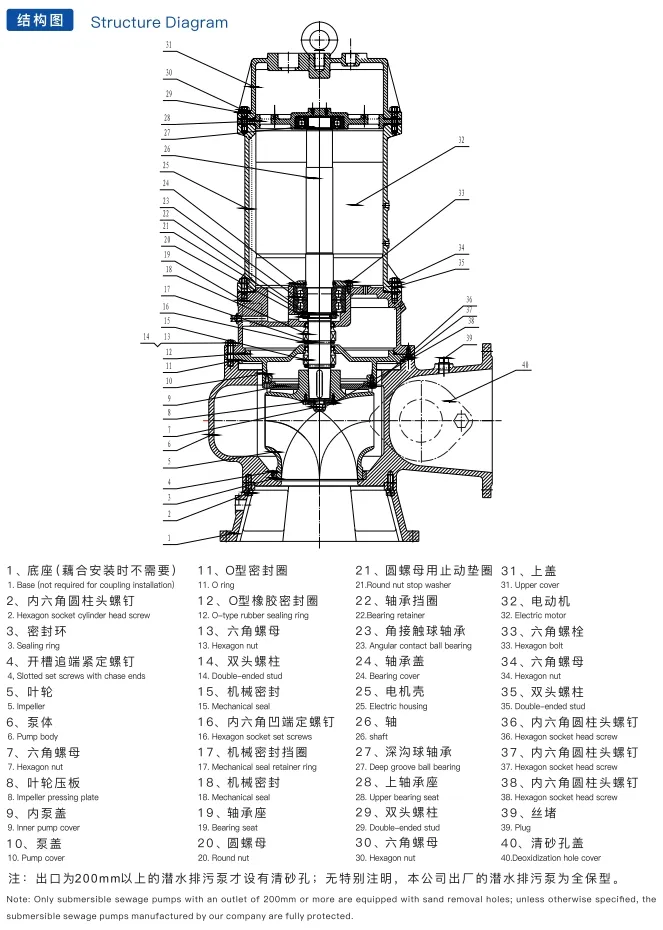

Pump Structure Diagram
Packaging & Shipping

Our products are packed in standard export wooden cases to ensure safe delivery. We handle all logistics with professional care to meet international shipping standards.

Packaging Process
Company Overview

We are a large-scale high-tech enterprise group integrating research and development, design, manufacturing, sales, installation and service of various pumps, water supply equipment, and intelligent water systems. With 5 manufacturing bases, we are a leading enterprise in the pump industry, dedicated to providing high-quality liquid handling solutions.

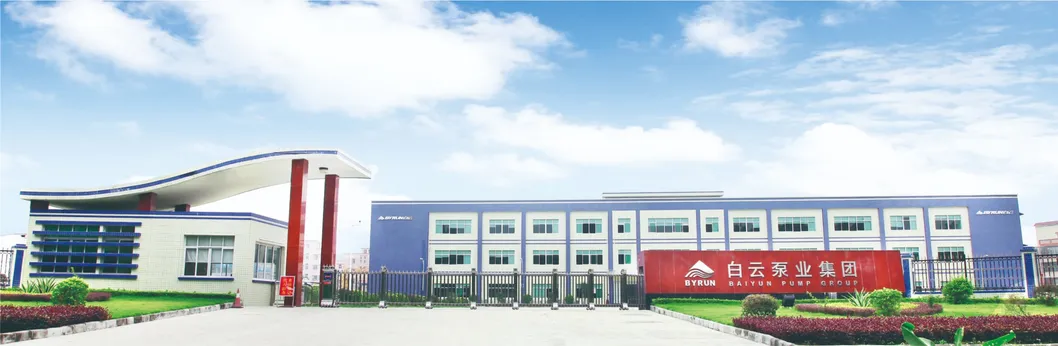

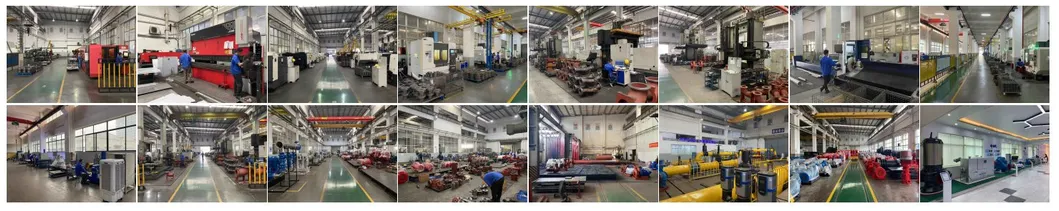

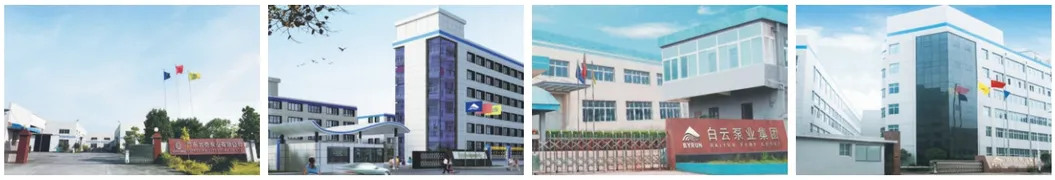

Facility 1 Facility 2 Facility 3
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional manufacturer with a large-scale factory production base.
How long is your delivery time?
Generally, it is 3-4 weeks for regular products. For OEM or customized orders, the specific timeline will be provided with the quotation.
What is your minimum order quantity (MOQ)?
Our MOQ is 1 set.
What are your terms of payment?
30% T/T deposit in advance, and 70% balance before shipment.
Do you support professional customized services?
Yes, we support professional customization for special working conditions and specific technical requirements.
What kind of protection does the pump have?
The pump features IP68 protection, overheating protection elements, water leakage probes, and float switches for safety.
