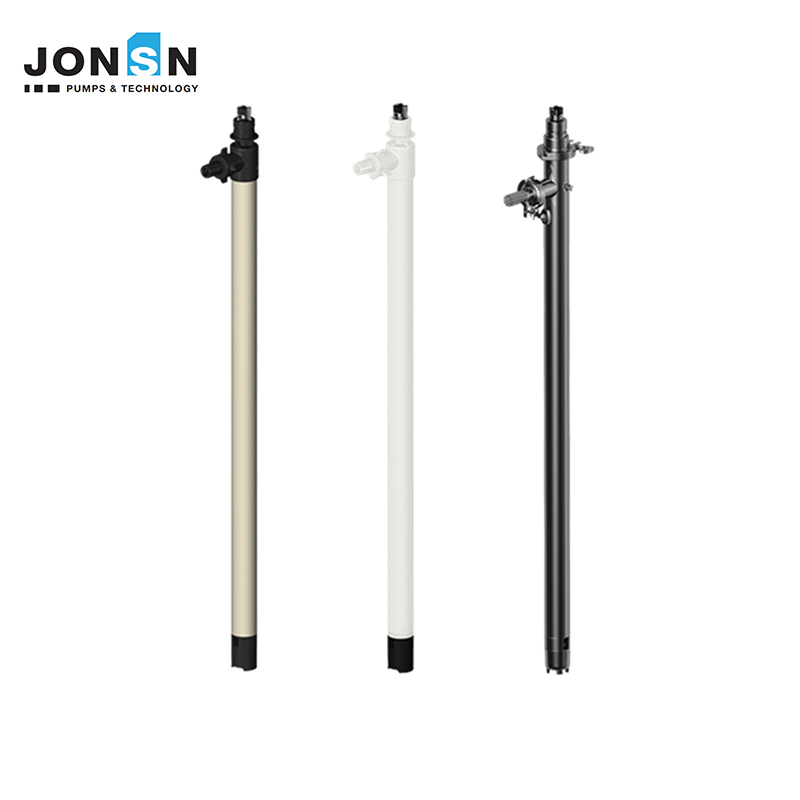

Industrial Grade Corrosion Resistant Drum Pump for Liquid Transfer

1 / 5

Industrial Grade Corrosion Resistant Drum Pump for Liquid Transfer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

PTPH10

Suction Method

Single Suction

Shaft Position

Vertical

Application

Water, Chemical

Flow Rate

0-160 L/Min

Viscosity

0-800 Cps

Pressure Diff.

0-25 M

Body Material

Shaft Material

Hc276

Motor Type

Electric / Air Motor

Certification

CE, ISO9001

📘 Product Overview

PT series drum pump is a general-purpose solution primarily applied to transfer various strong acids, strong alkalis, organic solvents, additives, oils, and other middle-low viscosity mediums from barrels or containers. Materials such as PP, PVDF, and stainless steel ensure compatibility with a wide range of chemical applications.

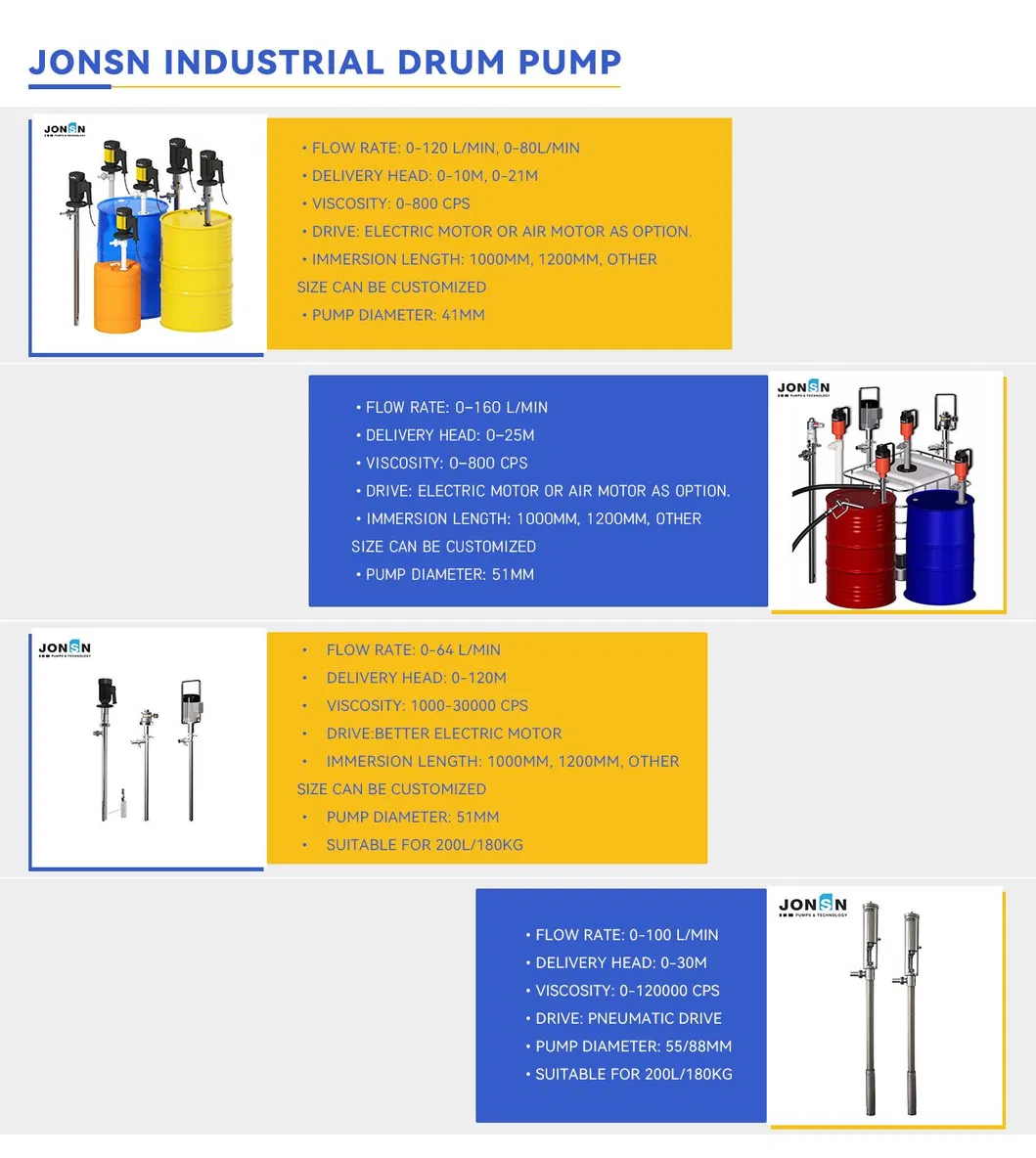

Flow rate: 0-160 l/min (electric), 0-120 l/min (air)
Delivery head: 0-25 m (electric), 0-16 m (air)
Temperature: PP: 71ºC, PVDF: 49 ºC, SS: 160 ºC
Viscosity Range: 0-800 cps
Immersion Length: 700mm, 1000mm, 1200mm (Customizable)

⭐ Secure Features & Advantages

Security: Non-leakage, high-pressure shielding structure for hazardous materials.
Practicality: Portable design (4-8kg). Empty a 200L drum in 2-3 minutes.
Versatility: Standard quick-fit 1" connectors suitable for various demands.
Reliability: Modular construction allows tool-free cleaning and maintenance in 5-10 minutes.
High Quality: Utilizes NSK bearings (SS model) and USA HC276 (PVDF model) for superior corrosion resistance.

🚀 Applications

Optimized for transferring: Methanol, acetone, toluene, acetic acid, nitric acid, phosphoric acid, sodium hydroxide, sodium hypochlorite, acrylic acid, ammonia, cyclohexane, and more.

📈 Technical Performance

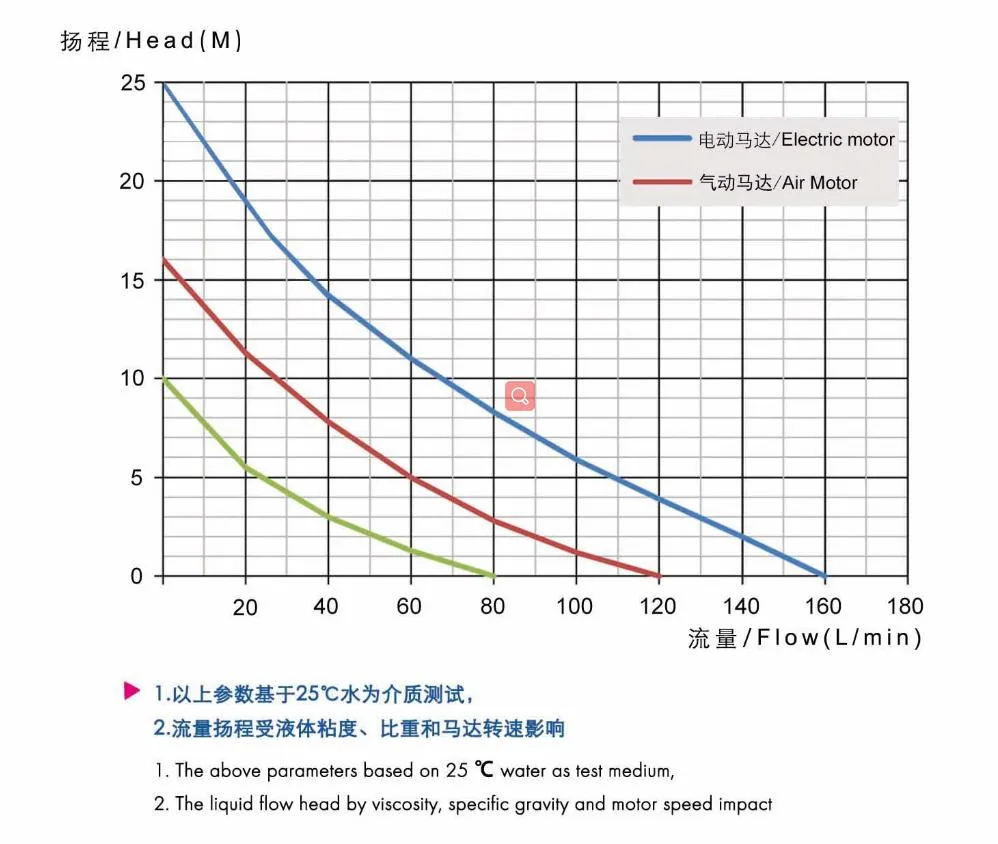

Performance Curve:

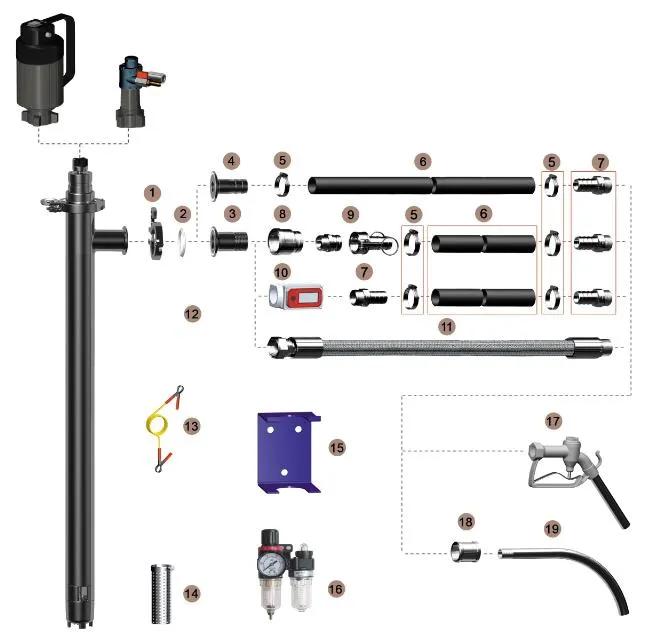

Drum Pump Accessories:

Model	Type	Power	Voltage	Speed	Weight	Area
TM750	Adjustable Motor	750W	220V	0-10000RPM	3.5KG	Standard
BM800	Explosion-proof	800W	220V	10000RPM	5.0KG	Ex-proof
AM330	Air Motor	330W	--	0-10000RPM	1.5KG	Ex-proof
AM640	Air Motor	640W	--	0-16000RPM	2.0KG	Ex-proof

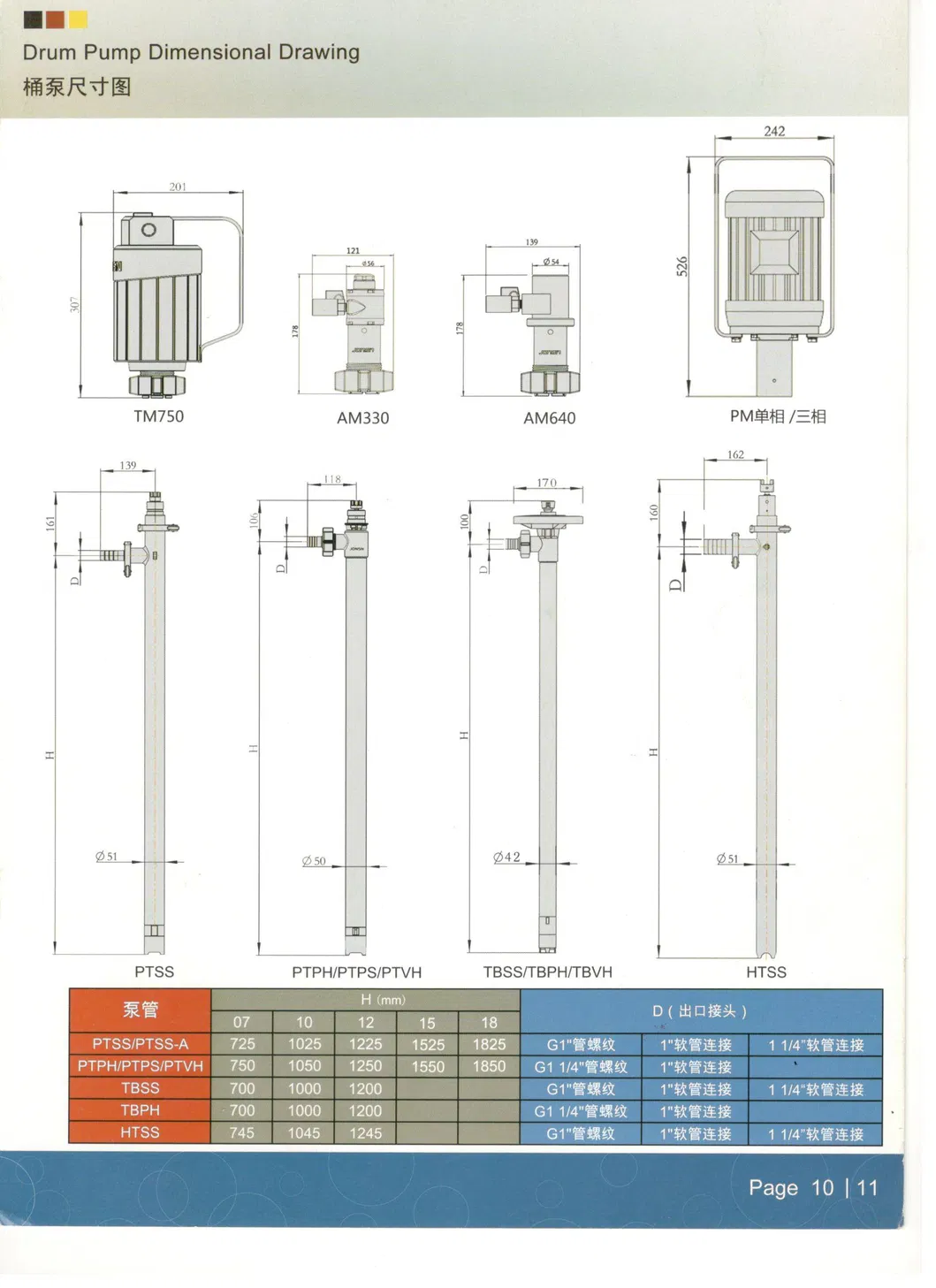

📐 Dimensional Drawing

🔧 Our Service & Production

Frequently Asked Questions

Q1: What is the maximum flow rate for the PT series drum pump? A: The maximum flow rate is 160 L/min when using an electric motor and up to 120 L/min with an air motor.

Q2: Can these pumps handle highly corrosive chemicals? A: Yes, the pumps are available in PP, PVDF, and Stainless Steel materials, specifically designed for strong acids, alkalis, and organic solvents.

Q3: Is there an explosion-proof option for hazardous environments? A: Yes, we offer both explosion-proof electric motors (BM800) and air-operated motors (AM330/AM640) for use in Ex-proof areas.

Q4: What is the maximum viscosity the pump can transfer? A: The pump can handle liquids with a viscosity up to 800 cps when powered by an electric motor.

Q5: How difficult is the maintenance for this drum pump? A: Maintenance is very easy. The modular construction allows for dismantling and cleaning in 5-10 minutes without the need for auxiliary tools.

Q6: What immersion tube lengths are available? A: Standard lengths include 700mm, 1000mm, and 1200mm, but non-standard custom lengths can also be provided.
