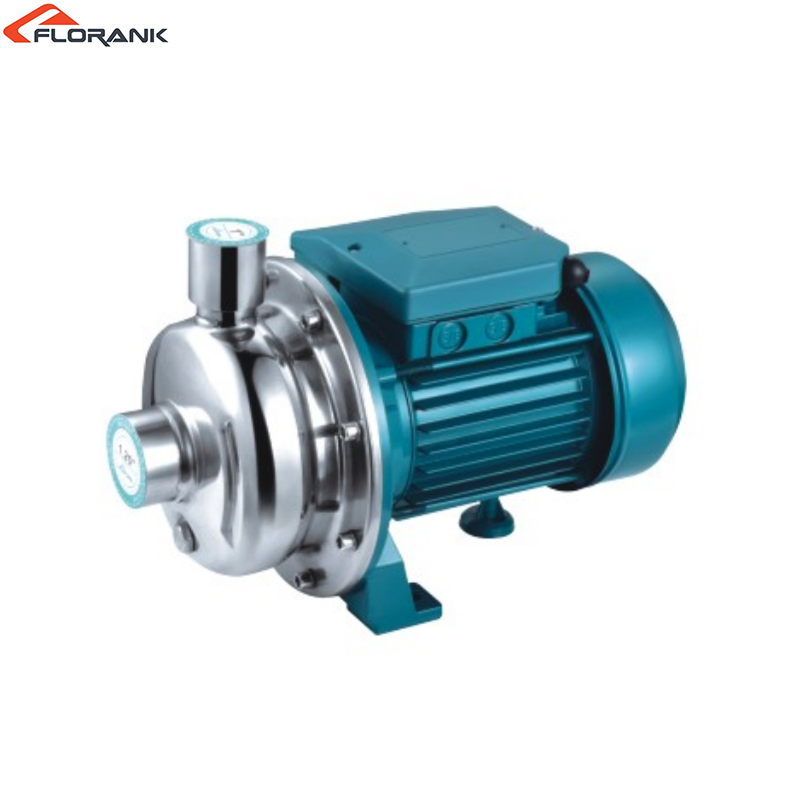

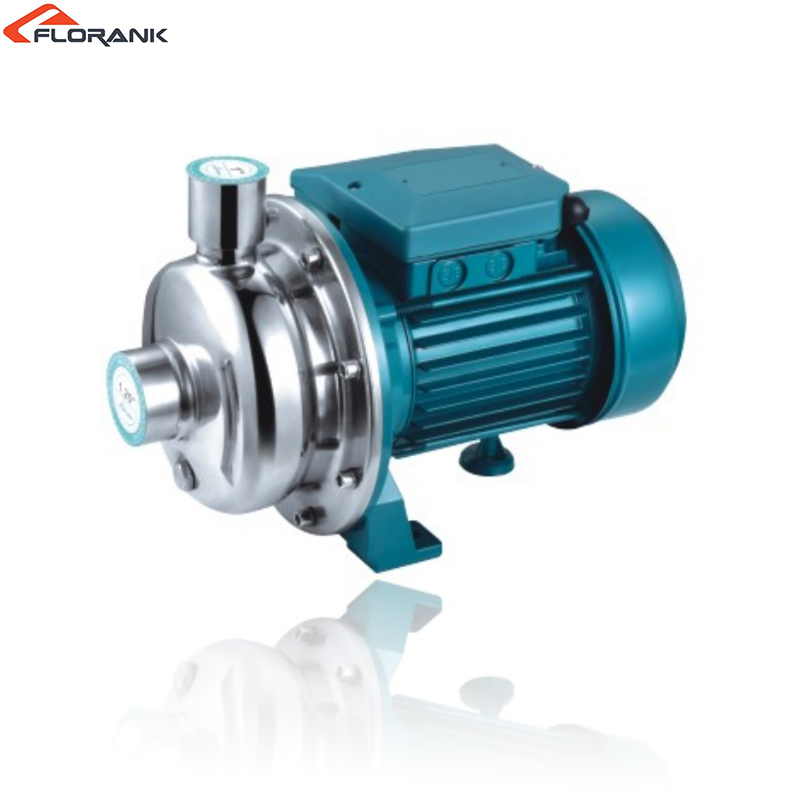

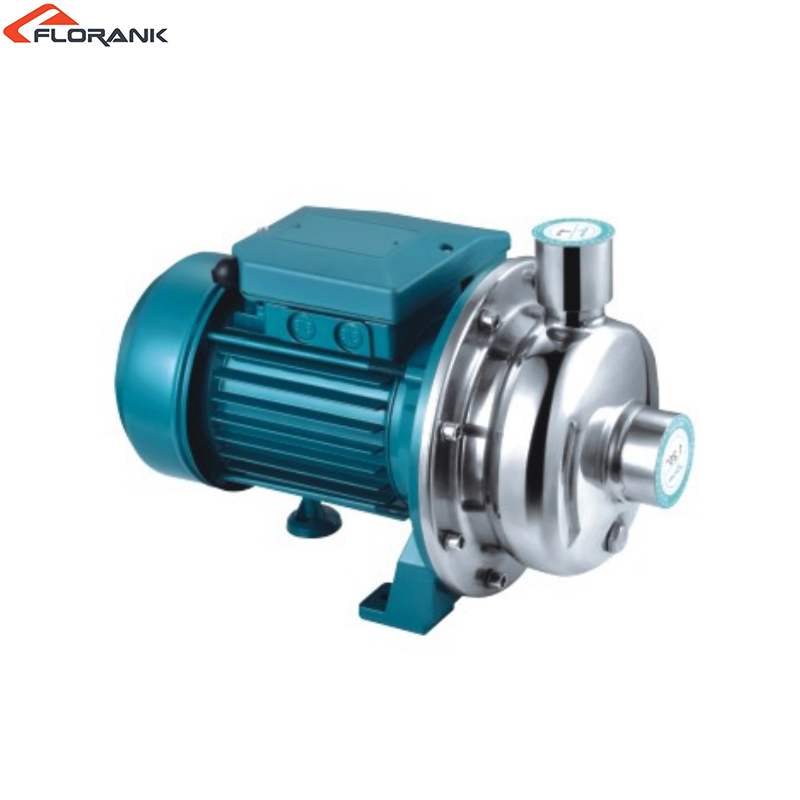

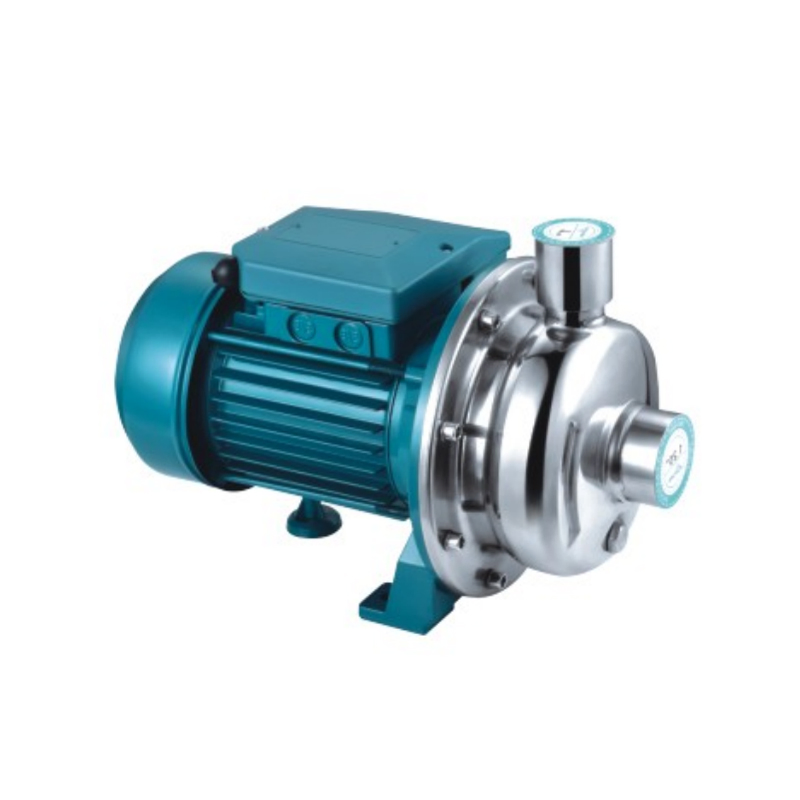

Can be used to transfer clean water or other liquids similar to water in physical and chemical properties. Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
Cast iron pump body and support under special anti-rust treatment. Brass/Stainless steel/PPO impeller. Alsi 304 shaft. Max Liquid temperature: + 60ºC.
C&U Bearing. Motor with copper winding. Built-in thermal protector for single phase motor. Insulation class: B/F. Protection class: IP44/IP54. Max Ambient temperature +40ºC.
| Model | Power | Pipe | Max Flow | Max Head | Max Suction | |
|---|---|---|---|---|---|---|
| Kw | Hp | Inch | m³/h | m | m | |
| XCT-18S | 0.37 | 0.5 | 1.25"x1" | 6.8 | 18 | 8 |
| XCT-20S | 0.55 | 0.75 | 1.25"x1" | 7.2 | 22 | 8 |
| XCT-26S | 0.75 | 1 | 1.25"x1" | 8.4 | 26 | 8 |
| XCT-30S | 1.1 | 1.5 | 1.25"x1" | 12 | 30 | 8 |
| XCT-33S | 1.5 | 2 | 1.25"x1" | 12 | 33 | 8 |
| XBK75 | 0.75 | 1 | 1.5"x1.5" | 18 | 9 | 8 |
| XBK110 | 1.1 | 1.5 | 2"x2" | 24 | 13 | 8 |
| XBK150 | 1.5 | 2 | 2"x2" | 27 | 15 | 8 |
| XBK180 | 1.8 | 2.5 | 2.5"x2" | 30 | 17 | 8 |
We are a professional manufacturer and exporter of water pumps with over 15 years of experience, specializing in manufacturing vortex pumps, centrifugal pumps, Jet pumps, self-priming pumps, and more. Our products are widely used for domestic appliances, agriculture irrigation, building construction, and industrial water boosting.
Not Your Competitor: We do not compete with our customers on a B2C basis. You won't find us selling directly on major retail platforms where our customers operate.
