Horizontal Centrifugal Petrochemical Hot Crude Fuel Pumps Diesel Gas Oil Transfer Acid Chemical Process API610 ISO Oh1 Oh2 Water Pump Manufacturer Sulzer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

HZA

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Impeller Number

Single-Stage Pump

Working Pressure

Middle Pressure Pump

Influent Type of Impeller

Single Suction Pump

Position of Pump Shaft

Horizontal Pump

Pump Casing Combined

Verticaljoint Surface Pump

Mounting Height

Suction Centrifugal

Impeller

Closed

Standard

API610

Temperature

-80~450 Degrees

Pressure

2.5~11MPa

Rotation Speed

1450, 2900

Capacity

3~2600m3/H

HS Code

8413709990

Production Capacity

5000

Product Description

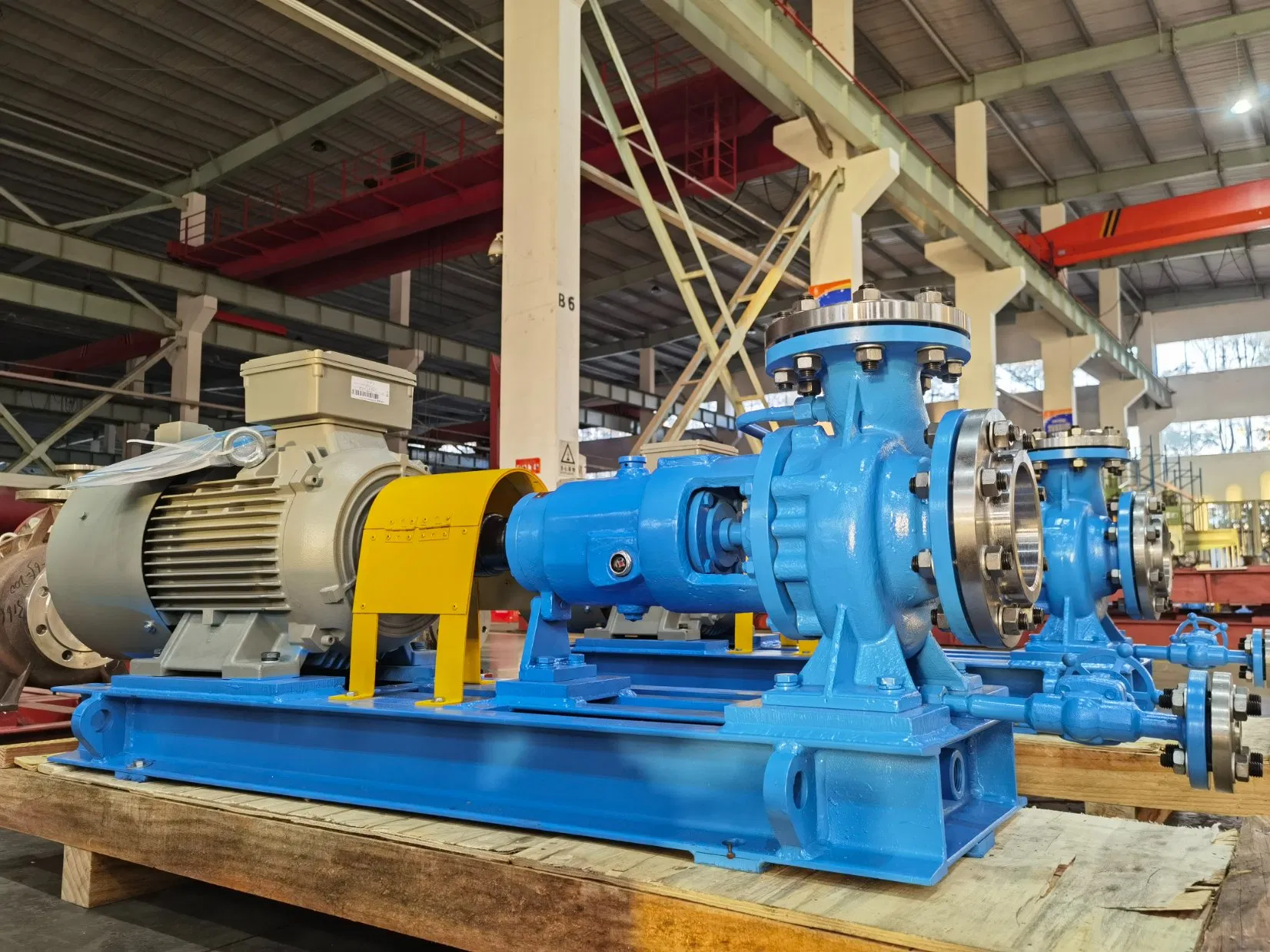

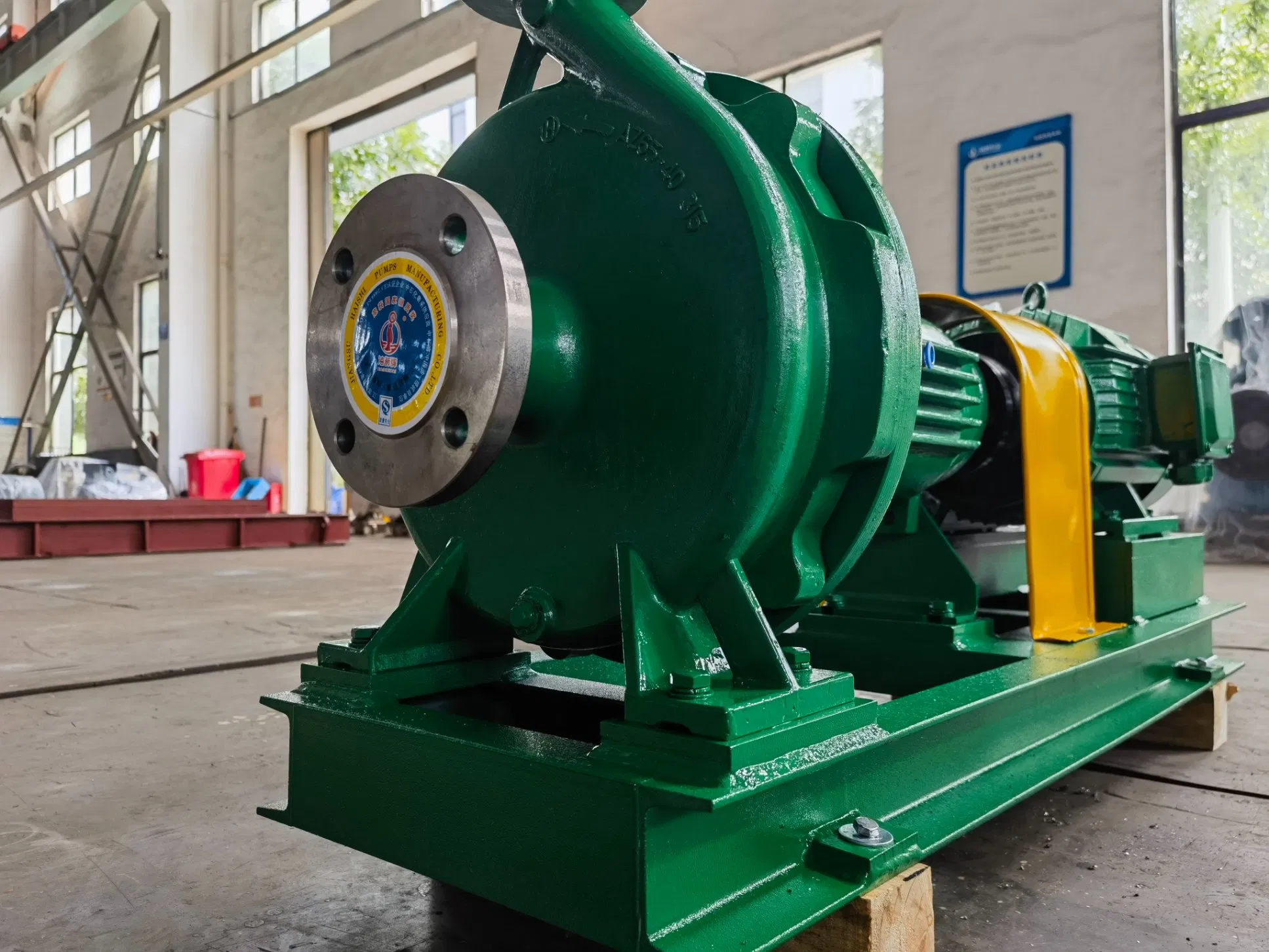

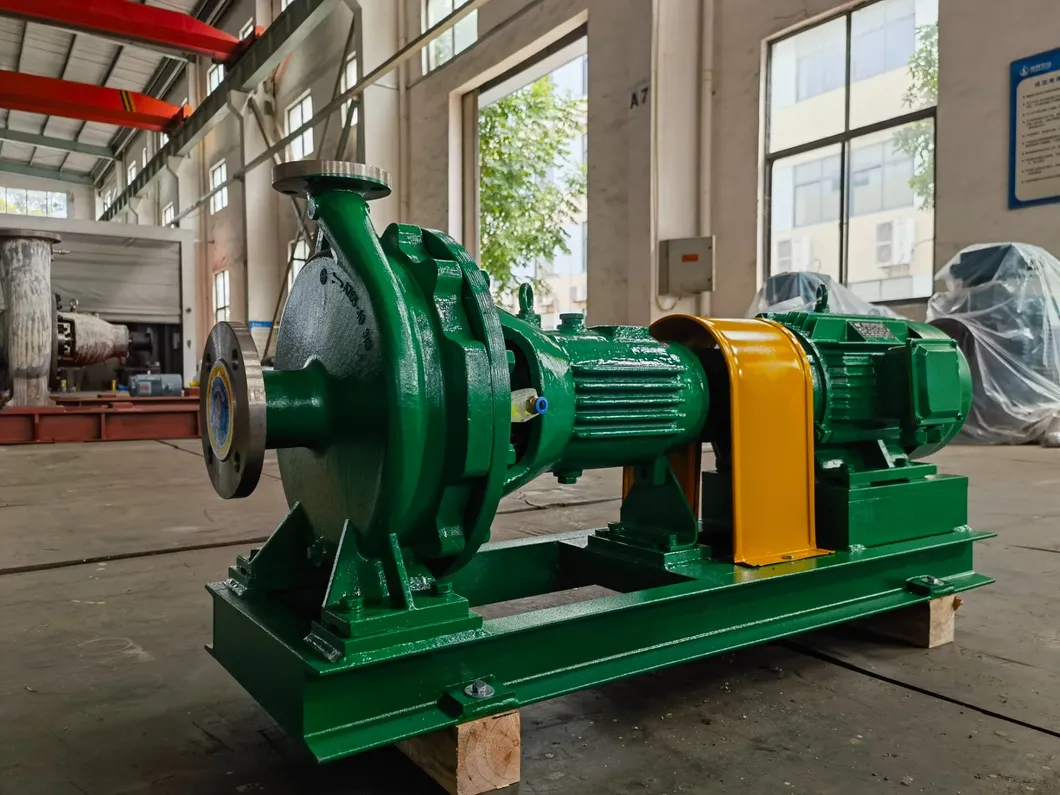

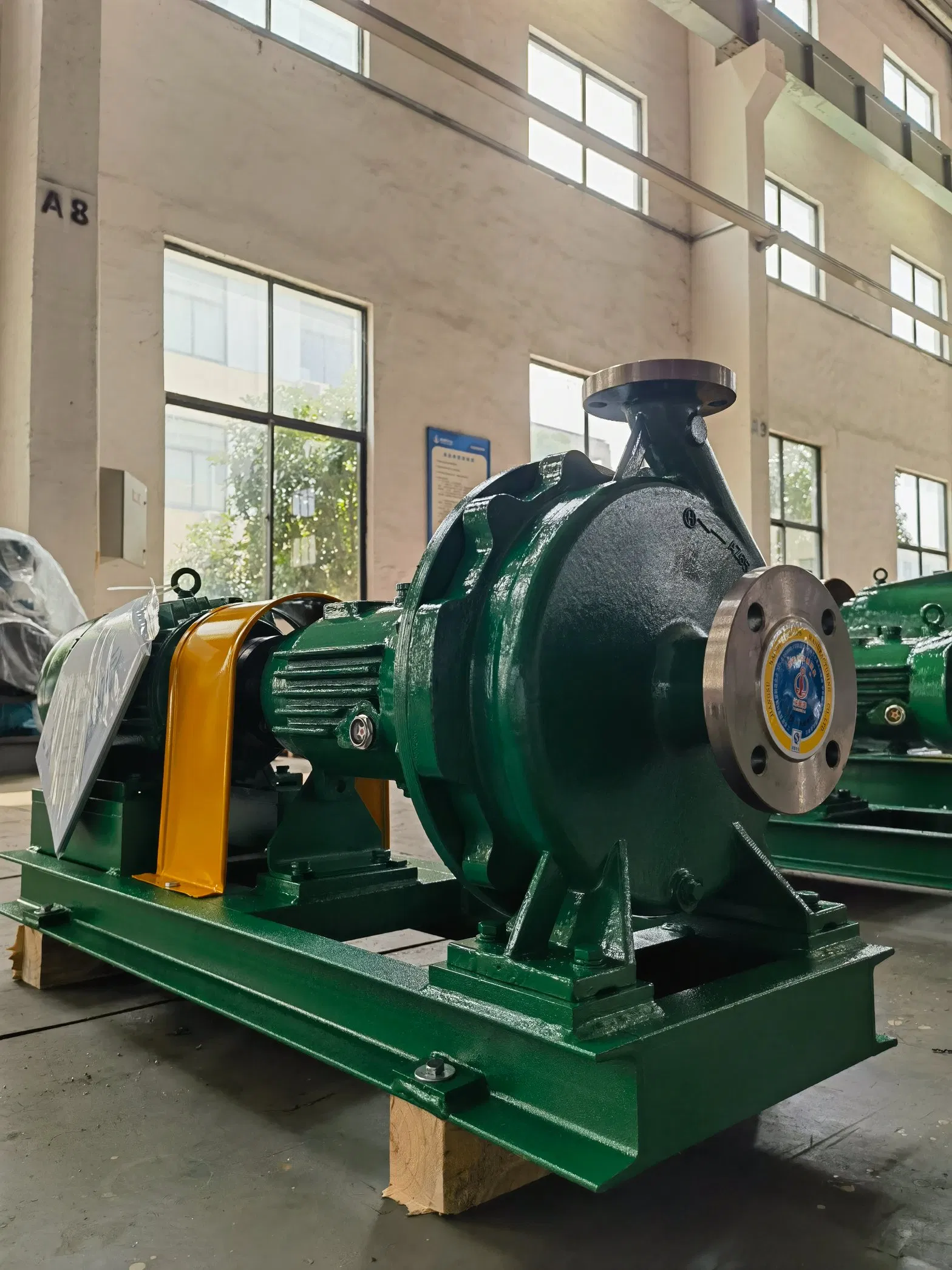

Horizontal Centrifugal Petrochemical Pump

Demonstration of Type	Range of Application	Performance Parameter
HZA50-250	Oil refinery, petrochemical industry, coal processing, cryogenic engineering	Discharge: ~2600m³/h
HZA: Foot support series	Chemical industry, paper, pulp, sugar industry	Head: ~250 m
HZAO: Open impeller series	General process, water supply, seawater desalination	Speed: 1450~2950r/min
HZE: Center support series	Heating and air conditioning, power plant	Design pressure: ~2.5MPa
HZEO: Center support open impeller	Environmental protection engineering	Temp: -40ºC~180ºC
50/250: Outlet/Impeller Diameter	Shipbuilding and Marine industry	Center support: -40ºC~450ºC

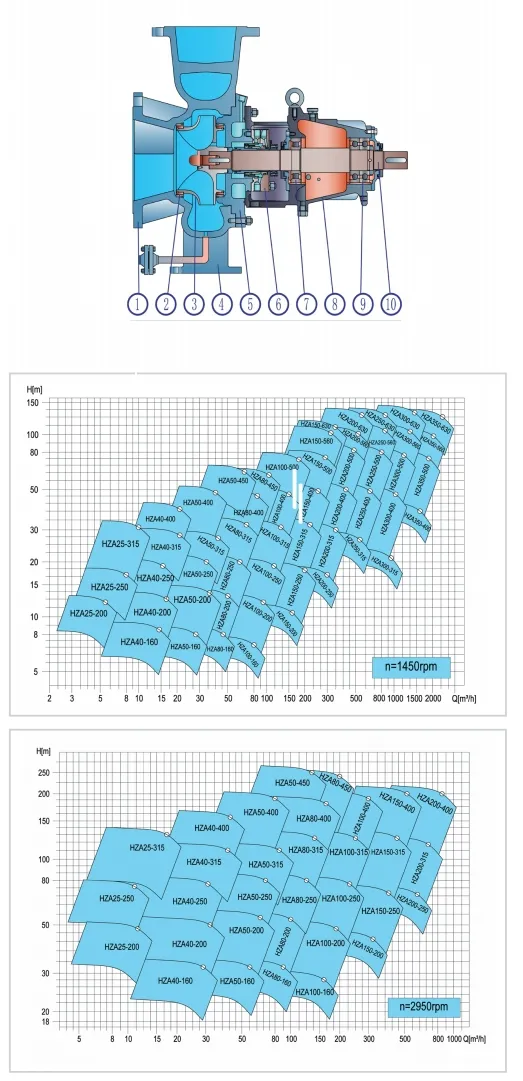

Components: 1. Pump body 2. Seal ring 3. Impeller 4. Pump foot 5. Pump cover 6, shaft seal 7. Non-drive end bearing 8.Bearing bracket 9.Drive end bearing 10.Shafting

HZA and HZE series petrochemical process pumps are horizontal, radially split, single-stage cantilevered centrifugal pumps with a volute-type pump body. Designed and manufactured in accordance with API610. These pumps offer high safety, reliability, and long service life. The sealing system follows API682 standards, suitable for complex operating conditions.

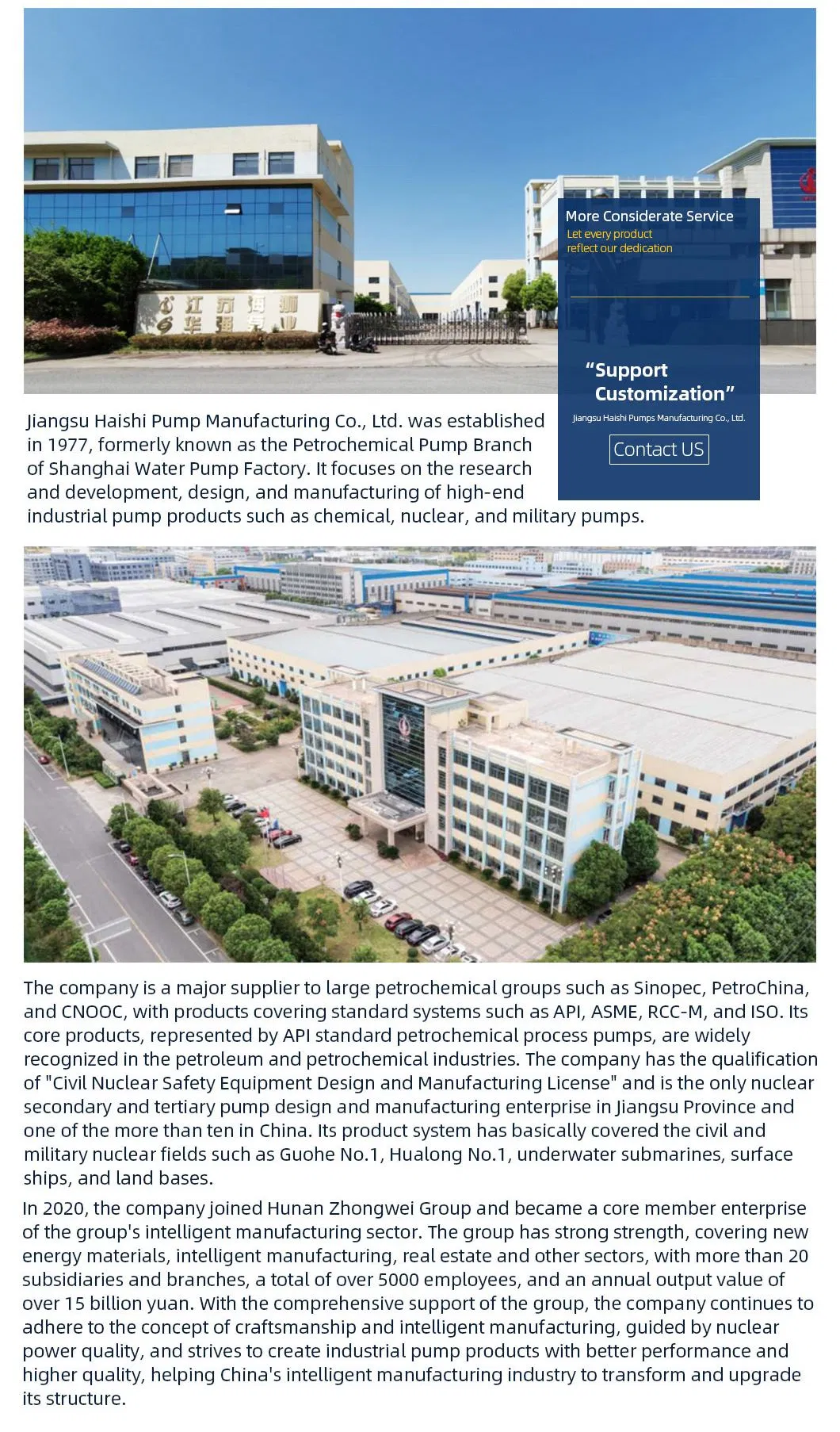

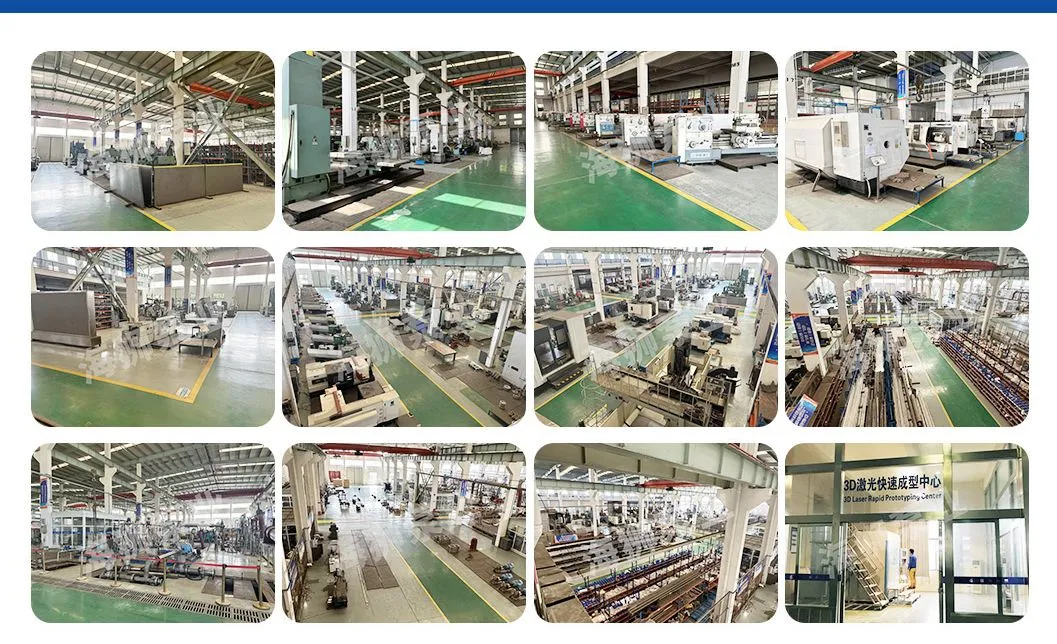

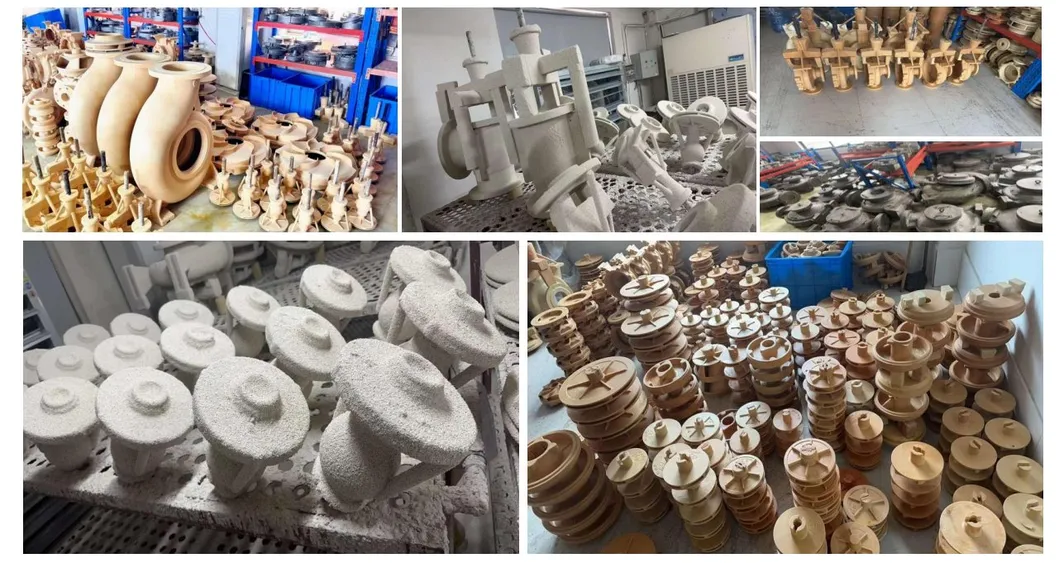

Workshop & Production

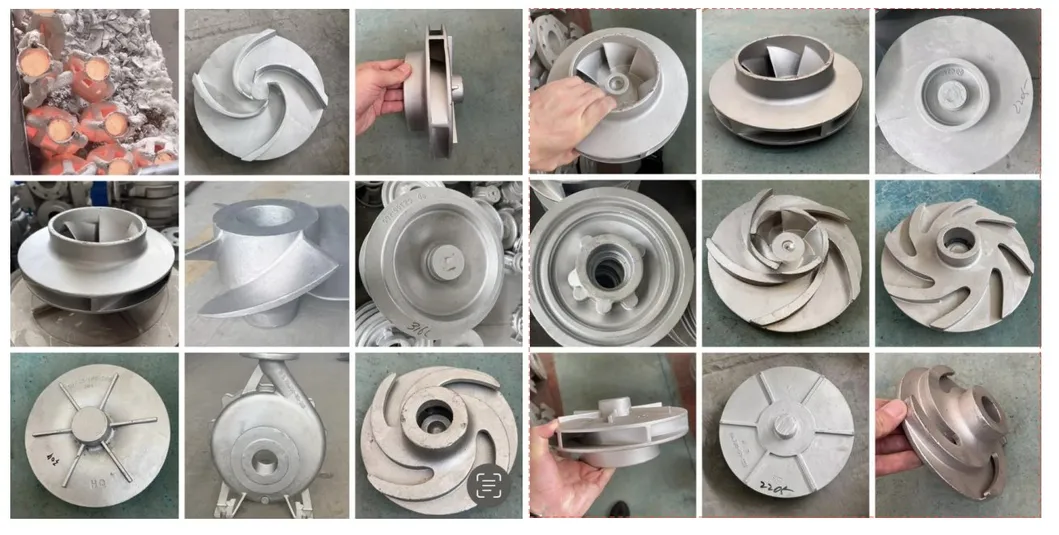

We offer integrated solutions from embryo casting to complete machine with short lead time and controlled quality.

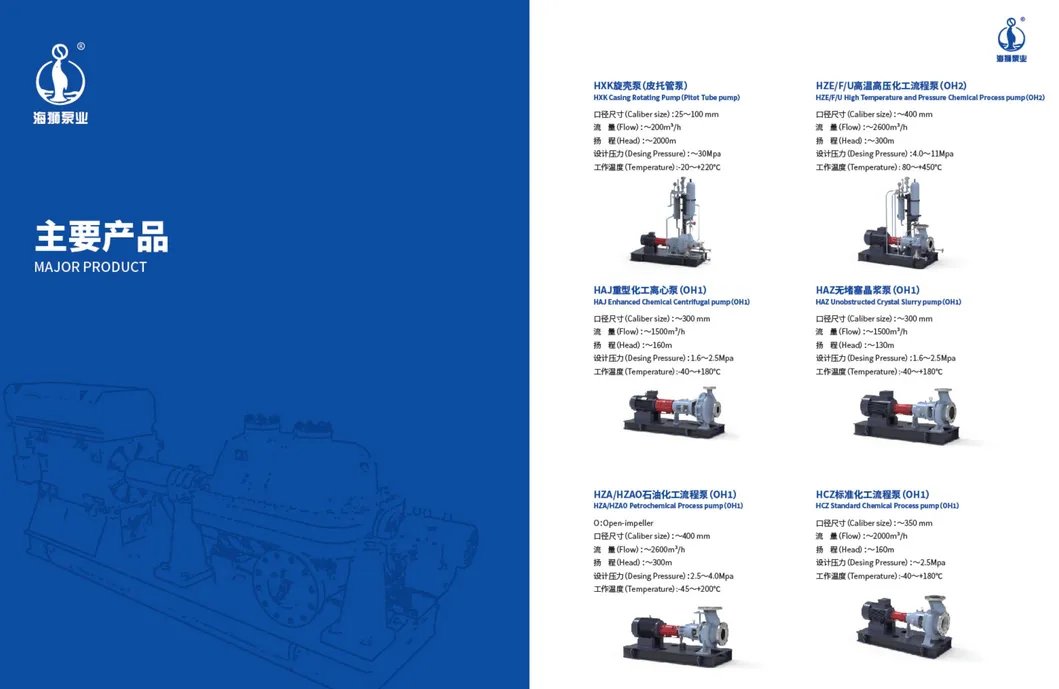

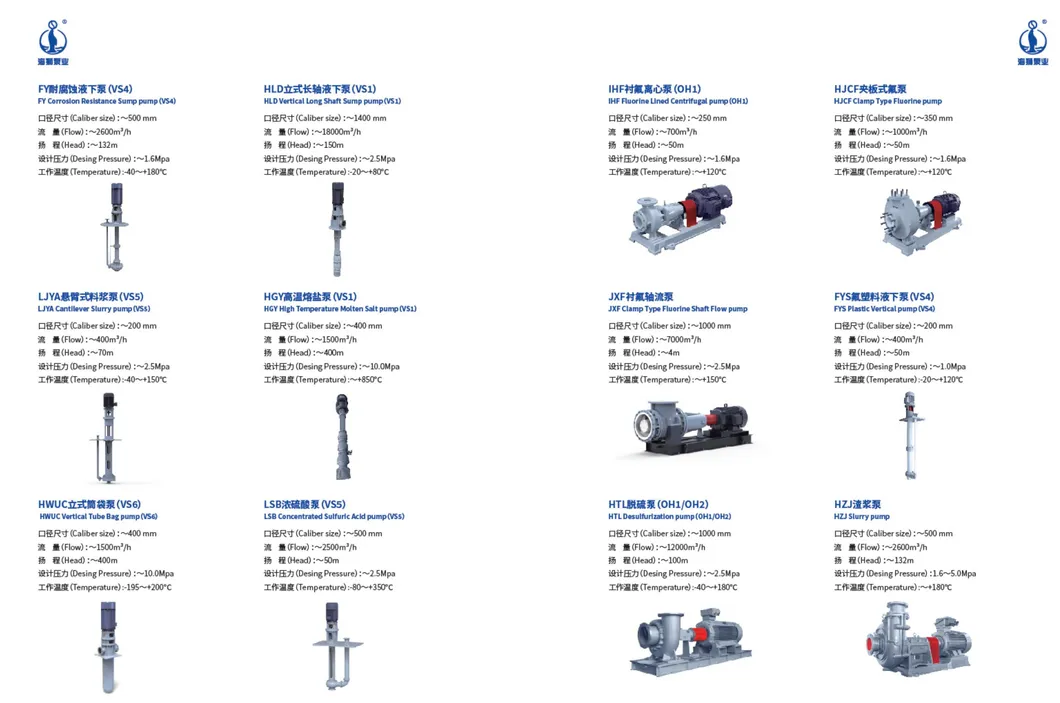

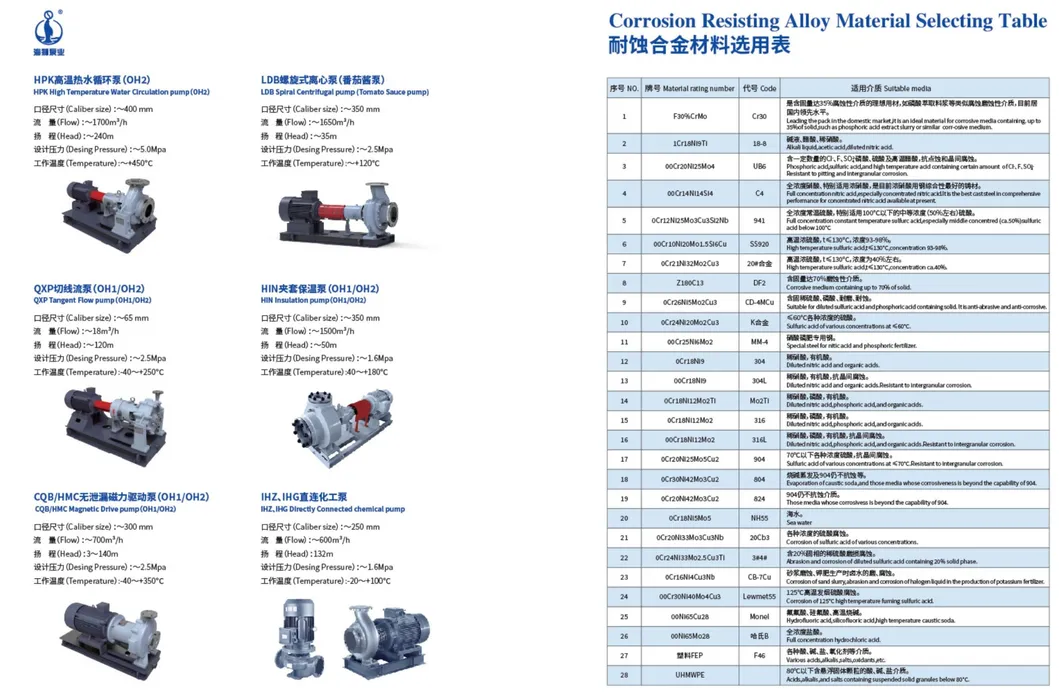

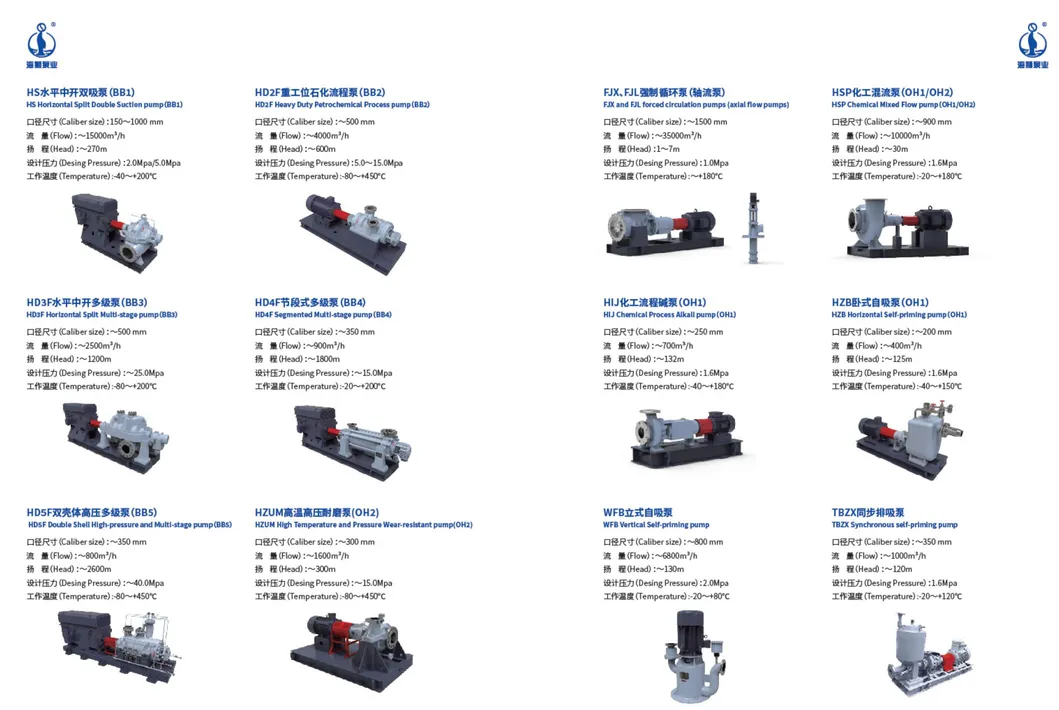

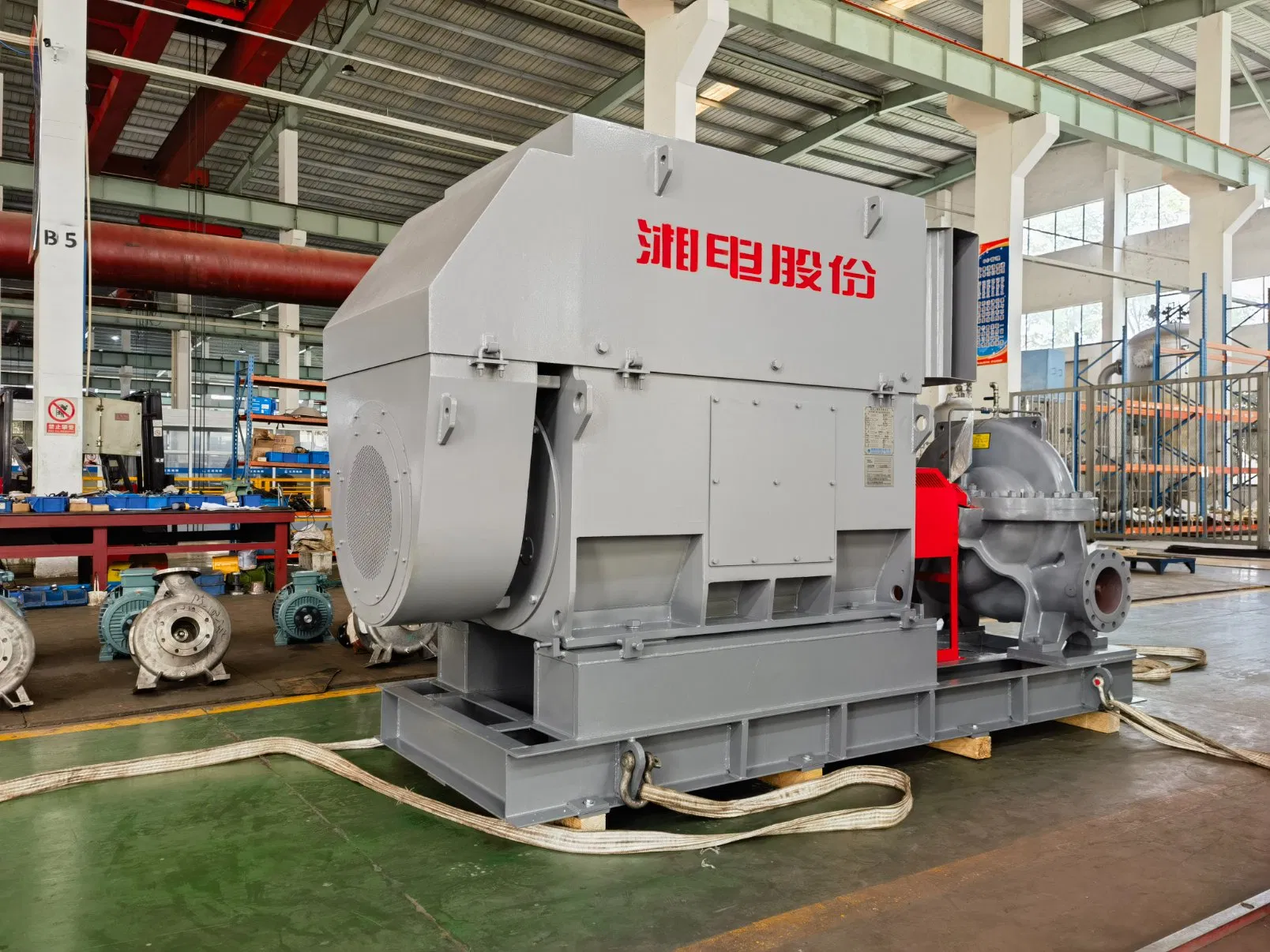

Main Product Showcase

Exhibition & Global Reach

Certifications & Partners

Application Areas

Coal chemical, petroleum and petrochemical, natural gas chemical.
Chemical fiber, desulfurization and denitration.
Thermal power generation, biomass power generation.
Mining development, nonferrous metal smelting, Iron and steel metallurgy.
Environmental protection, wastewater treatment, evaporation and concentration (MVR).
Ocean engineering and New energy industries.

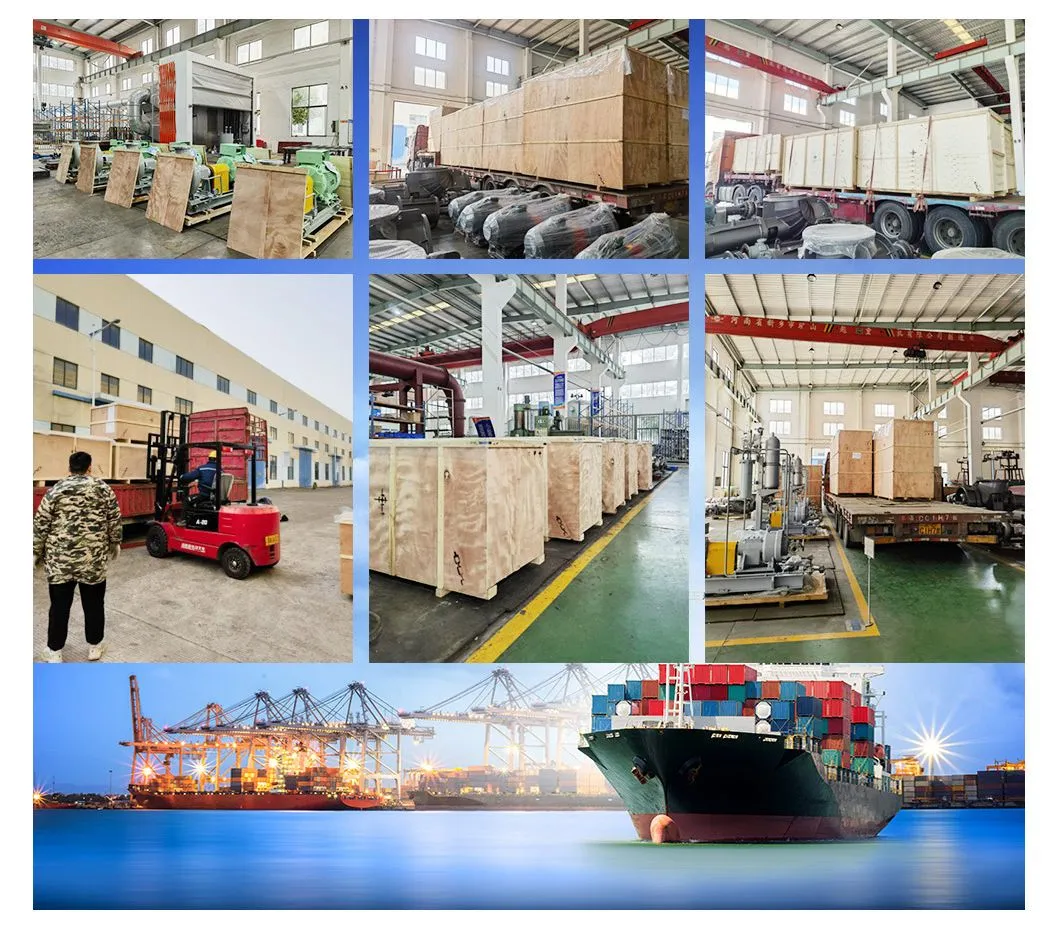

Packaging & Transportation

Why Choose Us?

🏆

5 DECADES

Established in 1977, rich experience in pump manufacturing.

👥

500+ STAFFS

Professional engineers and skilled workers.

🏭

100,000m²

Modernized workshops and strict QA&QC procedures.

🌐

20+ BRANCHES

Strong domestic and overseas service network.

🤝

3000+ CLIENTS

Proven quality with a global client base.

📜

20+ PATENTS

Strong R&D capability and backup of product quality.

Frequently Asked Questions

How long is your factory history?

Our factory was established in 1977, bringing over 45 years of expertise.

What international certificates do you have?

We are certified with API, CE, and ISO9001 standards.

Do you have your own foundry?

Yes, we have our own casting foundry within our factory to control quality from the source.

What is your product warranty period?

We provide 12 months since commissioning or 18 months after shipment, whichever is earlier.

What is the annual output capacity?

Our factory can produce around 20,000 pieces of various types of pumps annually.

What after-sales service is provided?

We offer free guidance via video calls for most issues, and paid site service is also available if needed.
