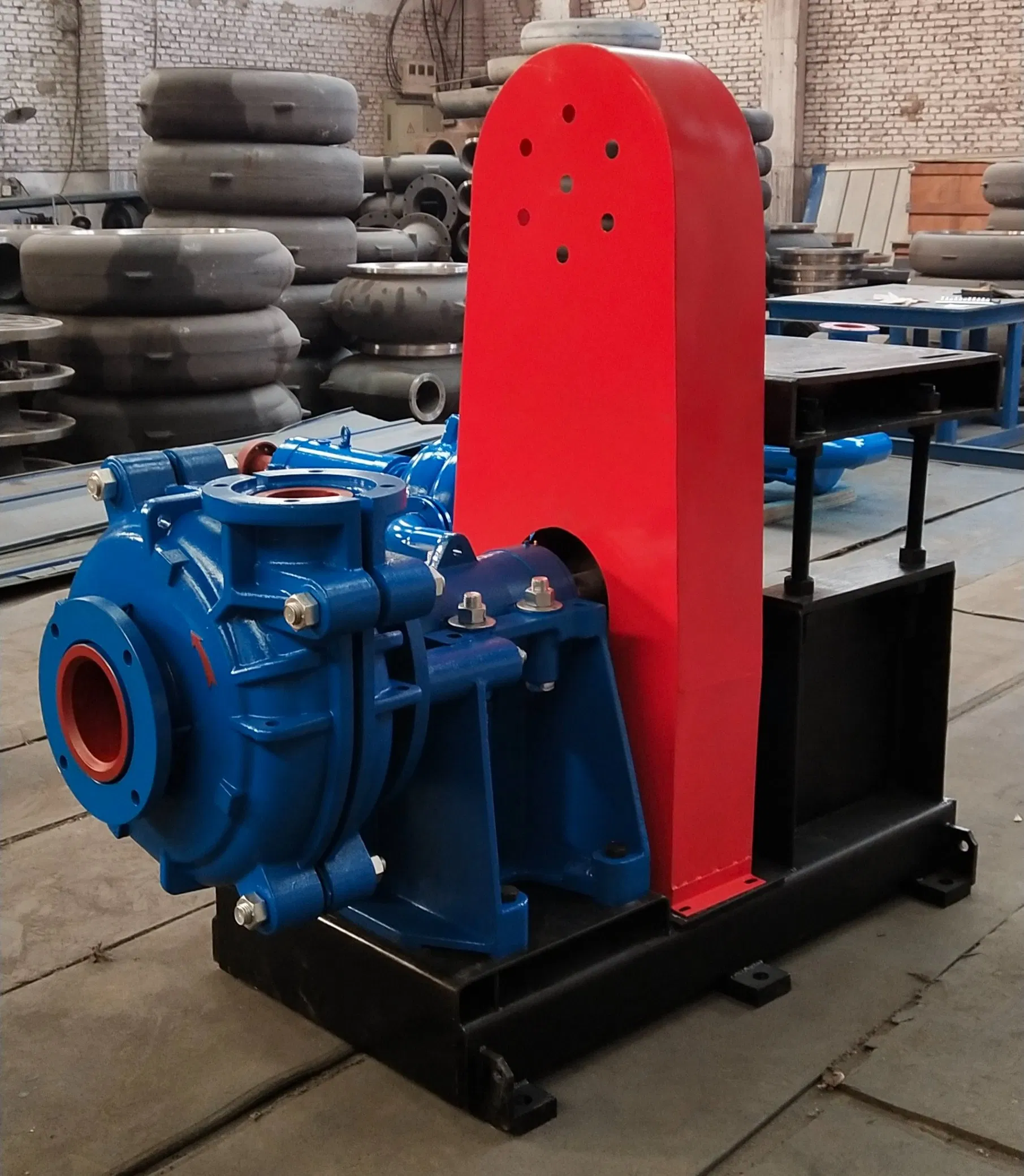

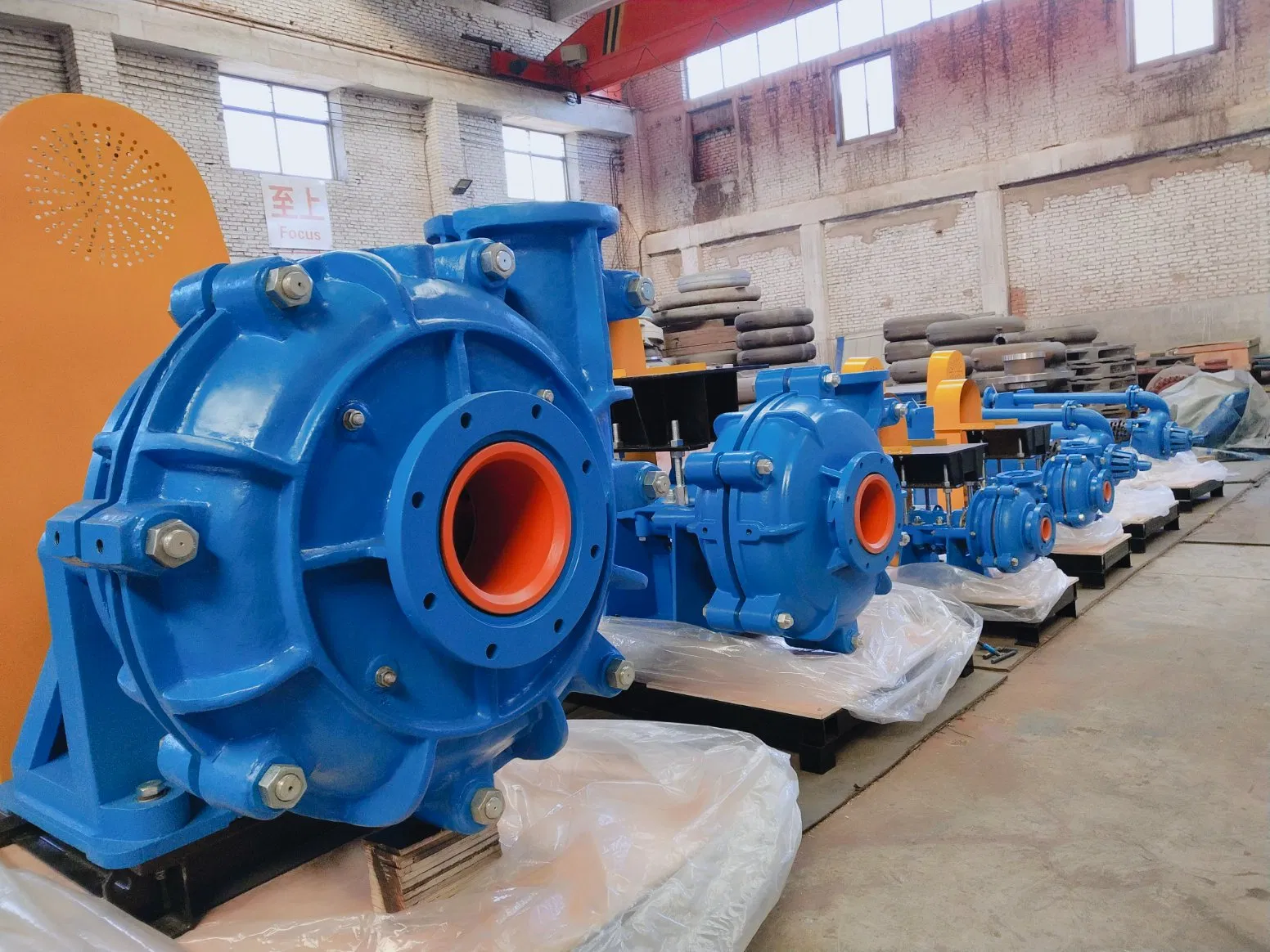

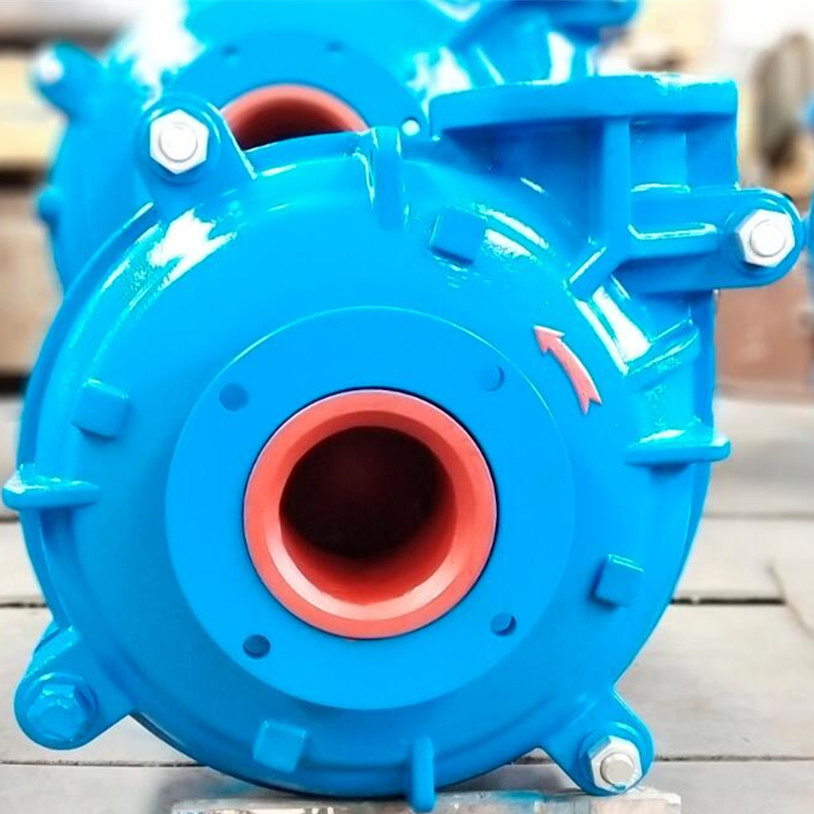

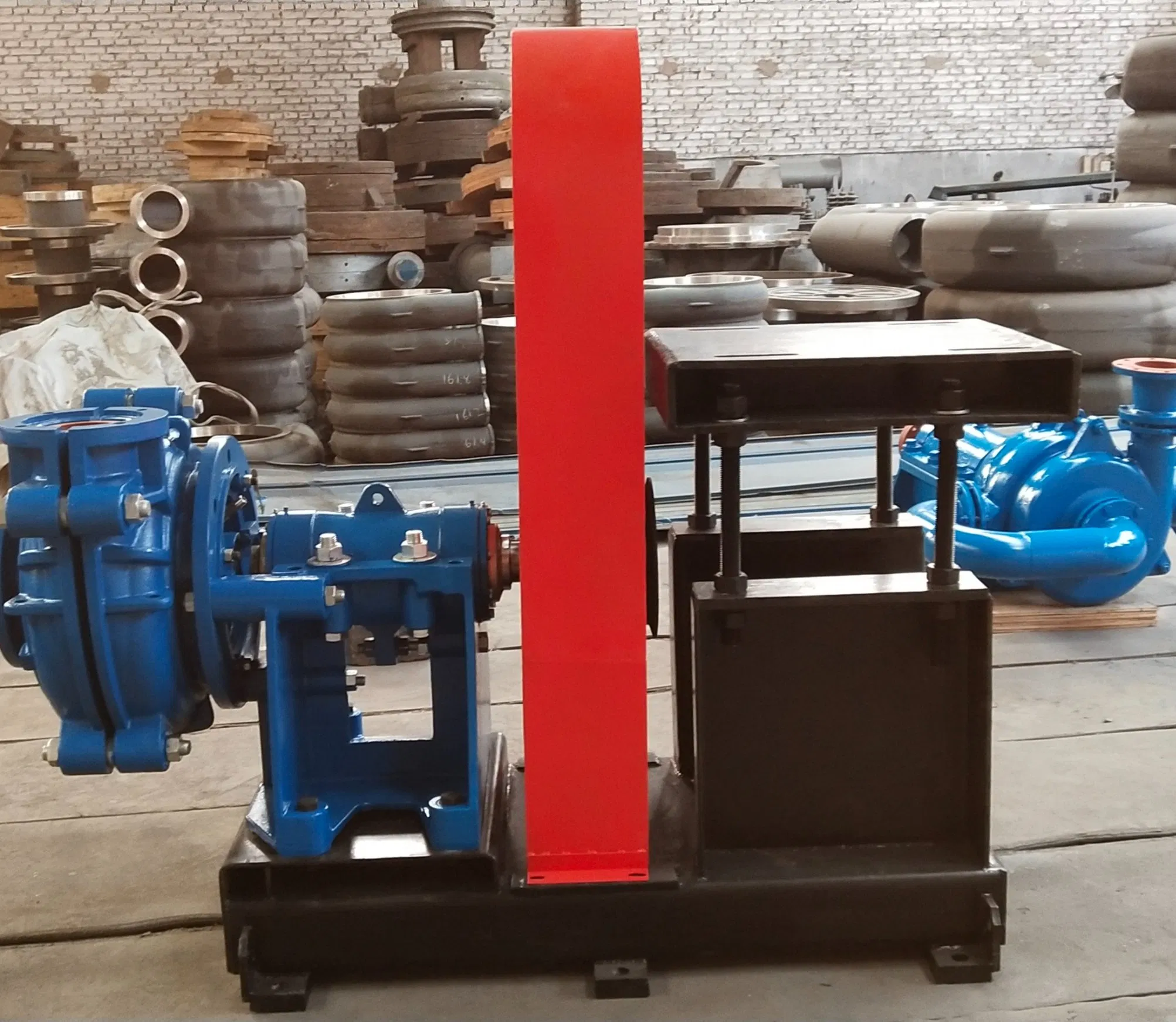

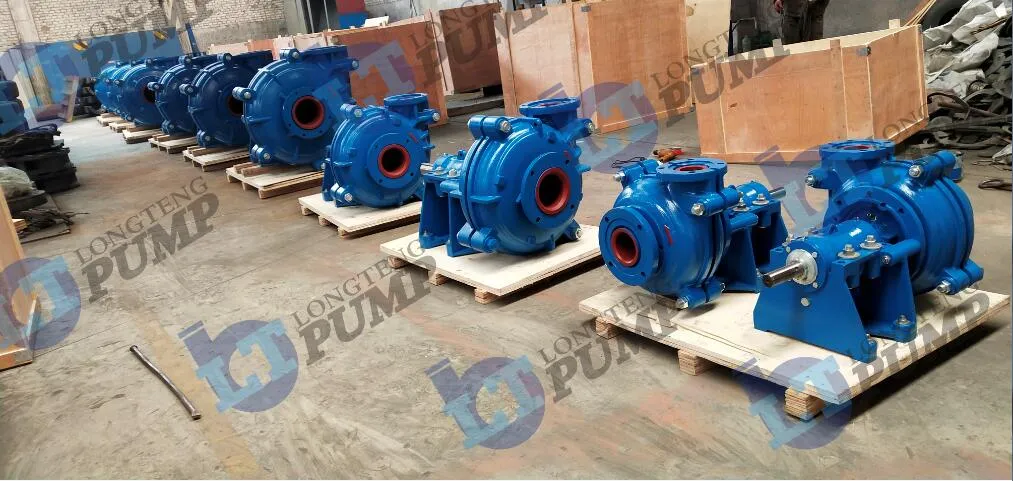

Horizontal Centrifugal Heavy Duty Slurry Pumps are designed for pumping highly abrasive and high-density slurry. These thick, viscous fluids contain particles that are difficult to handle with traditional chemical or water pumps. Our heavy-duty slurry pumps are built specifically for these challenging environments.
These pumps are widely used across various industries, including mining, mineral processing, metallurgy, dredging, de-watering, water treatment, coal washing, and building materials. They are also commonly referred to as mud pumps, sand pumps, dredge pumps, or sludge pumps depending on the specific application.
| Pump Model | Max Power (KW) | Capacity Q (m3/h) | Capacity Q (l/s) | Head H (m) | Speed n (r/min) | Max Eff. η% | NPSH (m) | Impeller Dia. |
|---|---|---|---|---|---|---|---|---|
| 1.5/1 B-SH | 15 | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 152 |
| 1.5/1B-SHR | 15 | 10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 | 2-4 | 152 |
| 1.5/1C-HH | 30 | 16.2-34.2 | 4.5-9.5 | 25-92 | 1400-2200 | 20 | 2-5.5 | 330 |
| 2/1.5-SH | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 |
| 3/2 C-SH | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 |
| 4/3D-SH | 60 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 |
| 6/4E-SH | 120 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 |
| 8/6S-SH | 300 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 |
| 10/8 ST-SH | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 |
| 14/12ST-SH | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 |
Selected capacity range based on density:
Our factory operates a dedicated casting workshop with over 20 years of experience. We control quality from the source by never using recycled materials. Each product undergoes 4 to 5 rigorous inspections, including material analysis, hardness testing, dimensional detection, impeller balancing, and pressure testing.
We provide users with comprehensive technical information for operation and maintenance. Our team offers remote and on-site technical training, equipment installation support, and commissioning services. We guarantee a reply within 24 hours to any quality concerns and provide solutions within 48 hours.

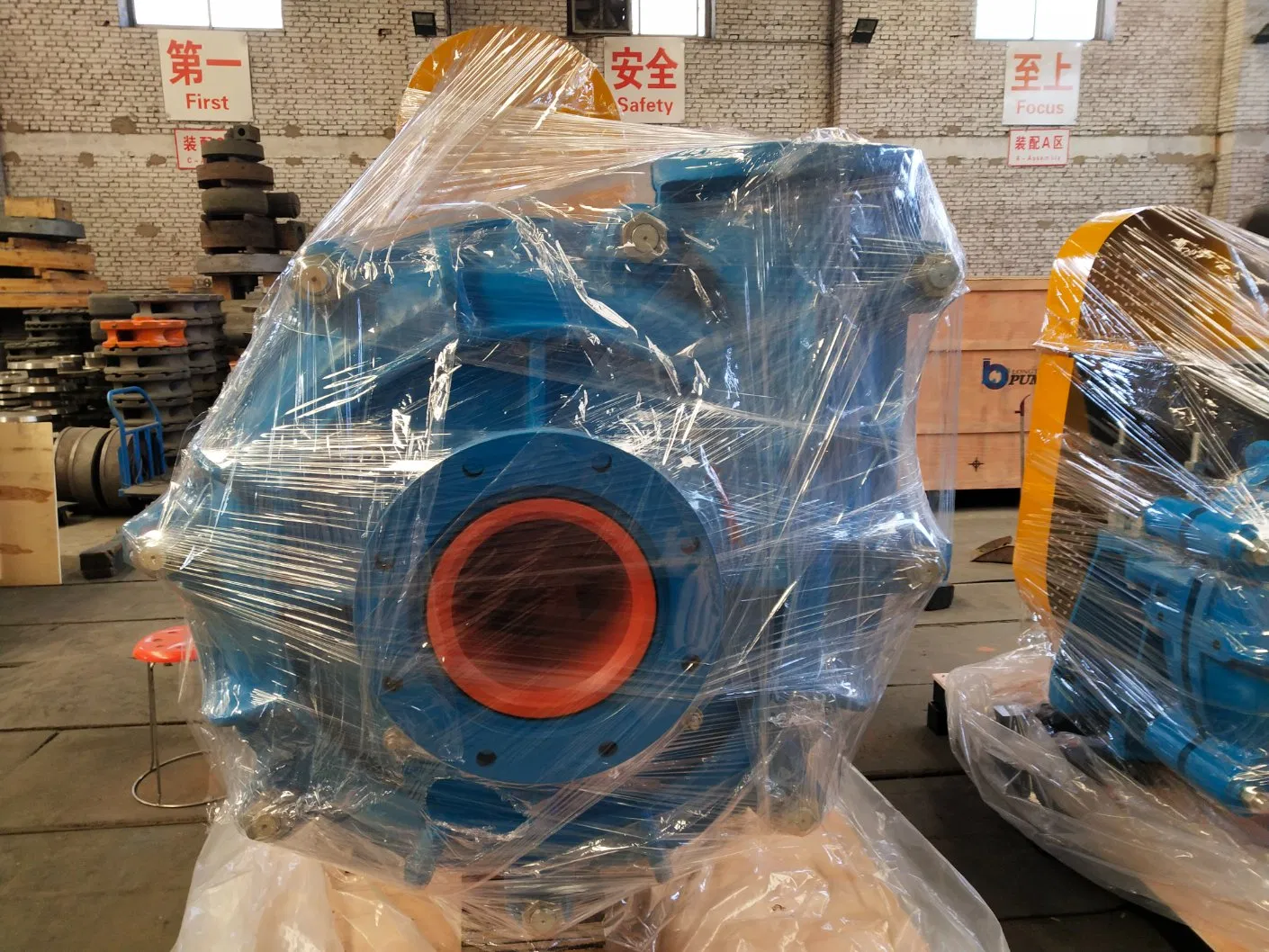

Products are packed in standard export plywood wooden boxes lined with plastic and bubble film for maximum protection during transit. We deliver globally via land, sea, and air to ensure products arrive safely at your warehouse.
