Hiph3 Series Small Electric Pipeline Centrifugal Pump for Hot Water Circulation, Industrial Water Circulation

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
HiPH3
Max. Head
10-30m
Max. Capacity
300-400 L/min
Driving Type
Motor
Material
Stainless Steel
Structure
Single-stage Pump
Power
Electric
Media
Water
Impeller
PPO
Shaft
Stainless Steel 304
Package Size
58.00cm * 31.00cm * 51.00cm
Gross Weight
50.000kg

Product Description

HiPH3 Series Small Pipeline Centrifugal Pump

Designed for hot water circulation and industrial water systems, the HiPH3 series offers high efficiency and reliable performance for modern water management needs.

Applications1. Hot Water Circulation & Heating
2. Air-Conditioning Systems
3. Industrial Circulation
4. Water Supply & Boosting
Key FeaturesIn-line Design, Easy Installation
Lightweight & Excellent Engineering
Long Life & Durable Components
HiPH3 Pump Overview
Application View 1
Application View 2

Technical Specifications

Partial Custom configurations available upon request.

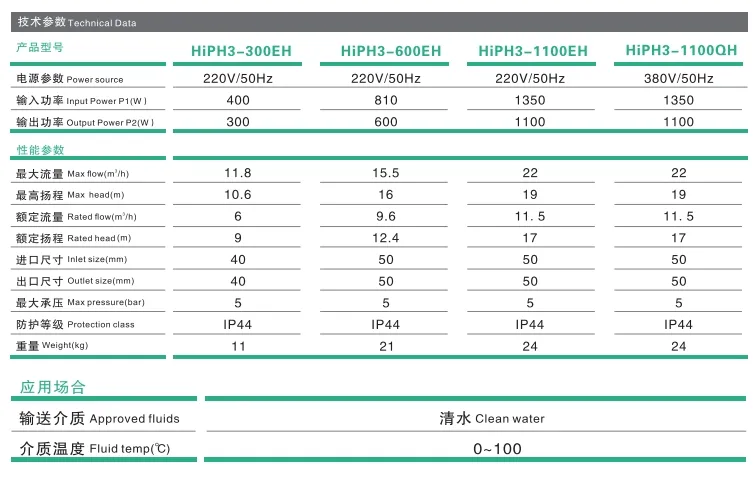

Technical Data Sheet

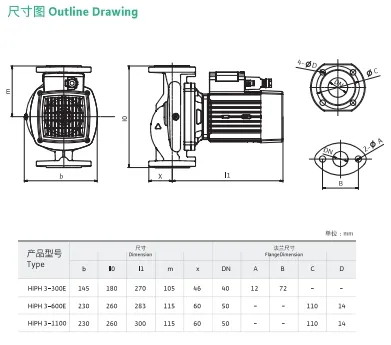

Dimension Drawing 1

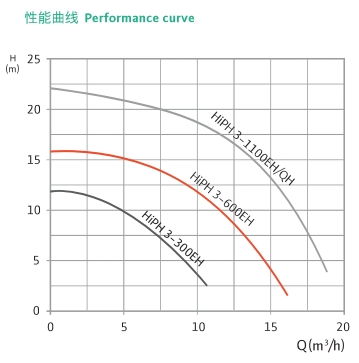

Dimension Drawing 2

Service & Support

Standard Warranty12 months comprehensive coverage.
Global Support24/7 technical assistance and spare parts supply.
Expert TrainingOn-site or remote operation and maintenance training.
Manufacturing Facility

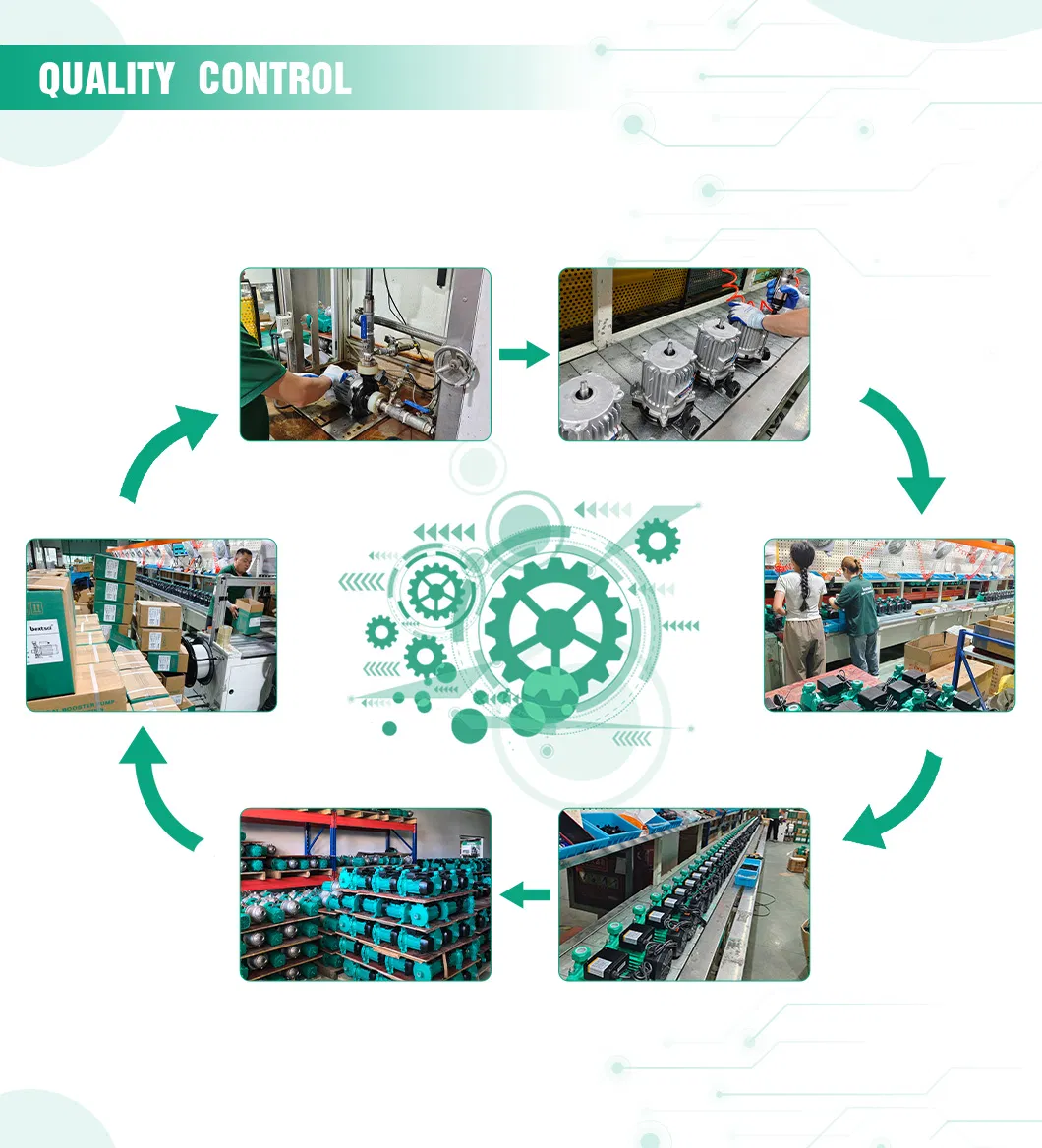

Production Line
Quality Control

Frequently Asked Questions

What are the primary uses for the HiPH3 series pump?
The HiPH3 series is specifically designed for hot water circulation, air-conditioning systems, industrial water circulation, and general water supply boosting.
What materials is the pump constructed from?
The pump features a high-grade Stainless Steel body and a durable PPO impeller to ensure longevity and resistance to corrosion.
Does this model support custom configurations?
Yes, we offer partial custom configurations to meet specific industrial requirements upon request.
What is the warranty period for this pump?
We provide a standard 12-month warranty along with 24/7 global technical support and spare parts availability.
Is the pump easy to install in existing pipelines?
Absolutely. Its in-line, pipeline-style design allows for straightforward integration into existing systems with minimal modification.
What is the power source for the HiPH3?
The pump is driven by a high-efficiency electric motor, suitable for continuous industrial operation.
